USER MANUAL VF80LFDW Veripart

VERIPART VPCF80LFDW Chest Freezer Control panel Serial Number: Batchcode: Climate classification SN/N/ST/T Security class I Voltage 220-240V- Frequency 50Hz Rated current 0.98A Total input power 120W Energy consumption E16 0.251kWh/24h Energy consumption E32 0.539kWh/24h Refrigerant R600a,60g Net weight 27kg Net capacity 199L Product code 958380 Veripart is a registered trademark of Coolblue B.V. Weena 664 3012CN, Rotterdam The Netherlands www.coolblue.nl/klantenservice Made in China

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Security class -	Veiligheidsklasse / Classe de sécurité / Sicherheitsklasse
Voltage -	Spanning / Tension / Spannung
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale spanning / Tension nominale / Nennspannung
Total input power -	Totaal ingangsvermogen / Puissance d'entrée totale / Gesamte Eingangsleistung
Energy consumption E16 -	Energieverbruik van E16/ Consommation d'énergie de E16 / Energieverbrauch von E16
Energy consumption E32 -	Energieverbruik van E32/ Consommation d'énergie de E32 / Energieverbrauch von E32
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Net weight -	Netto gewicht / Poids net / Nettogewicht
Net capacity -	Totaal opslagvolume / Volume total de stockage / Gesamtes Speichervolumen
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

4

1. VEILIGHEID 5

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Simple diagram showing a black checkmark inside a whiteboard with a diagonal line below (no text or symbols)

Simple line drawing of a window with a black 'X' symbol on the left pan (no text or labels)

6. Inschakelen

-88°C 3s to unlock 3s to frost freeze 8°C~2°C -12°C~24°C -32°C INVERTER

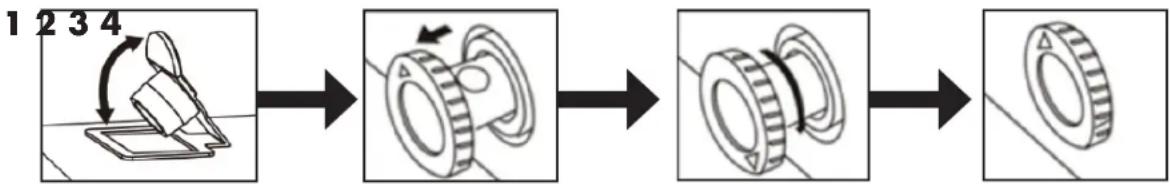


1.1 Intended use and anticipated unintended use 20
1.2 Safety warnings and regulations 20
1.3 Safety instructions: installation 21
1.4 Safety instructions: use 22

2. PRODUCT FEATURES 23

2.1 Dimensions 23
2.2 Guarantee 24
2.3 Technical Data 24

3. INSTALLATION 24

3.1 Replacing the LED lighting 25

4. USE 25

4.1 Precautions for use 25
4.2 Setting the temperature 26
4.3 Storage of food 26

5. MAINTENANCE AND CLEANING 27

6. TROUBLESHOOTING 29

6.1 Faults 30

7. TAKING OUT OF SERVICE 31

8. SAFE DISPOSAL 31

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at www.coolblue.nl/en if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as:

• staff kitchens in shops, offices and other work environments;
• farms and guests in hotels, motels, B&B and other residential environments;
• catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Do not place electrical appliances in the chest freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.

• Keep the power cable away from heat, oil, sharp edges or moving parts.

• Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~50/60Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

! CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

! ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
  • Make sure that the power cable of the installed appliance is always easily accessible
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance.

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N, ST and T.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN To +32°C
N To +32°C
ST To +38°C
T To +43°C

*The appliance operates without problem down to an ambient temperature of -15°C.

1.4 SAFETY INSTRUCTIONS: USE

! CAUTION!

• Do not place carbonated or sparkling drinks in the chest freezer.
• Do not remove objects from the chest freezer if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

2.1 DIMENSIONS

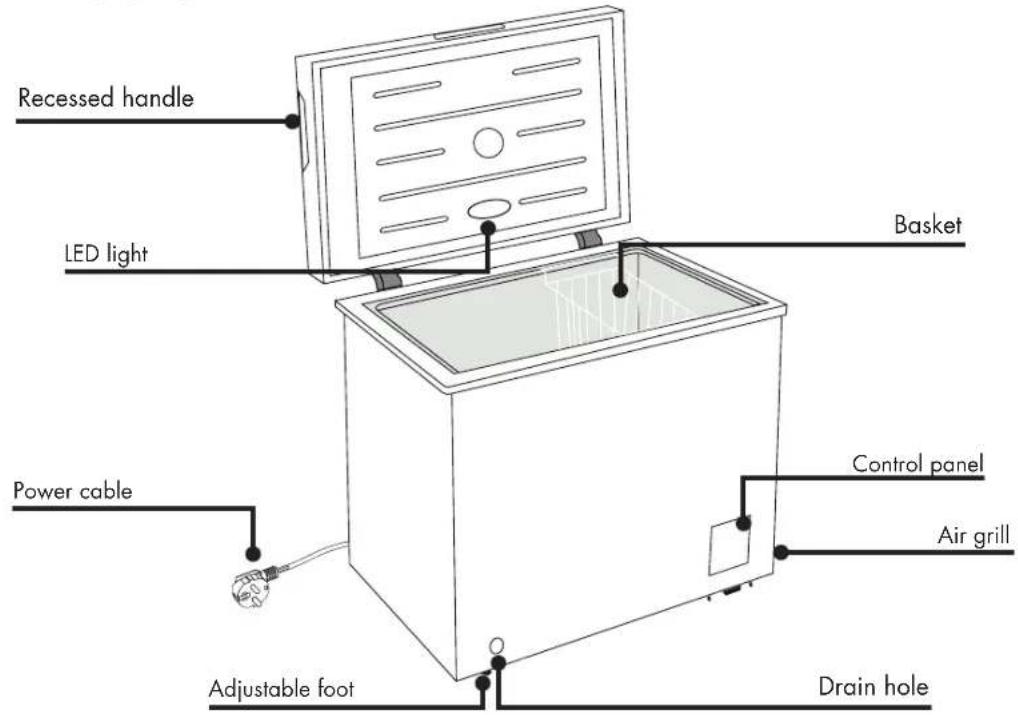

Recessed handle LED light Basket Power cable Control panel Air grill Adjustable foot Drain hole

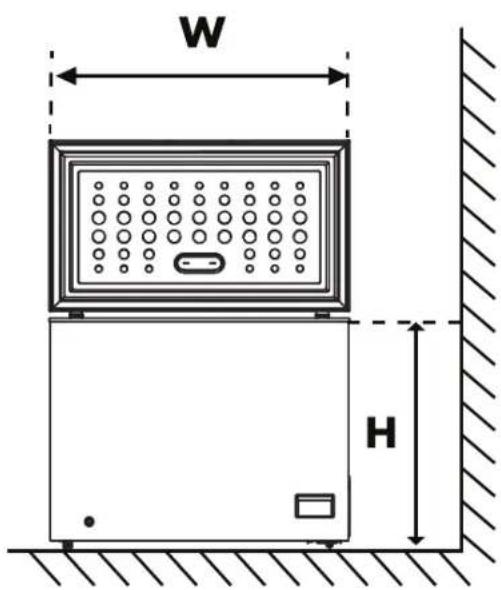

W H

• Figure 1. Front view

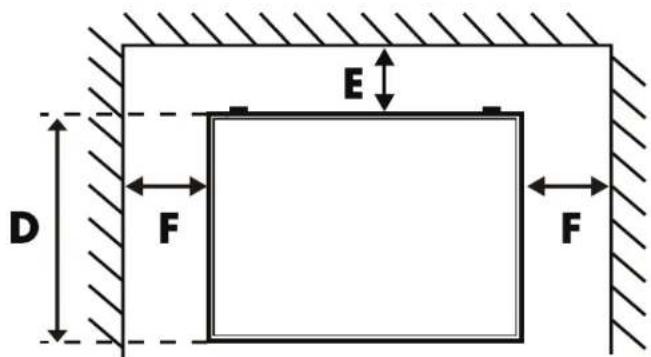

D E F F

• Figure 2. Top view

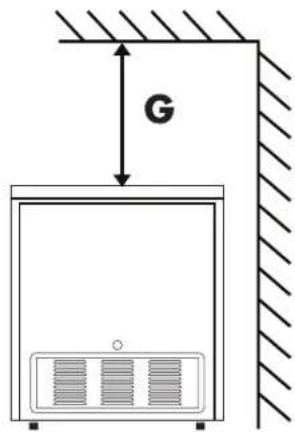

G

• Figuur 3. Side view

*Figures 1, 2 and 3 illustrate the space required for the appliance.

W D H E F G
82,3cm 55,6cm 83,5cm min. 10cm min. 10cm min. 70cm

*Keep a minimum distance of 300mm from radiators.

2.2 GUARANTEE

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/klantenservice. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service.

2.3 TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 10 cm on both sides and at least 10 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
  • Always place the appliance on a moisture-resistant and dry surface.

Simple line drawing of a progress bar with a black checkmark symbol (no text or labels)

Simple line drawing of a whiteboard with a black 'X' symbol on the left (no text or numbers)

- Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

5. Wait

On first installation wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Storage basket

The freezer is delivered with a storage basket. Hang the basket from the top edge in the freezer.

8. Storing food

See Section 4 "Use".

3.1 REPLACING THE LED LIGHTING

This product contains a LED light source of energy efficiency class F. Replacement or maintenance of the LED lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualified person.

4. USE

4.1 PRECAUTIONS FOR USE

- On first use or after a long period of downtime: run the appliance for at least four hours at position 'Fast Freeze' (-32°C)' before placing products in the freezer. After 24 hours, set the temperature control between '-18'.

- The appliance may not operate optimally (risk of thawing or too high a temperature in the freezer) if it is in a place where the ambient temperature is below the minimum of the temperature range for which the appliance is designed for a longer period of time. The information about the temperature range (climate type) of the appliance is stated on the type plate, which is explained in section 1.3.

- The interior temperature may be affected by factors such as the location of the cooling unit, the ambient temperature and the frequency with which the door is opened. Adjust the temperature setting if desired.

- If vibration noise occurs because the appliance is positioned against the wall or if the wall becomes black due to air circulation around the compressor, you should place the appliance away from the wall.

- Do not place filled glass or can packages in the freezer to avoid breakage due to volume expansion.

- Do not place electrical appliances in the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.

- Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.

- Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

- Do not place carbonated or sparkling drinks in the freezer compartment.

- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

- Only use the power cable installed on the appliance from the factory. Do not change the power cable. The power cable may only be replaced by an authorised service technician.

- Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.

- Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

4.2 SETTING THE TEMPERATURE

1. Switching the freezer on and off

When connected, all LED lights flash once and the normal display resumes within 2 seconds. When the digital display is on, the control panel is automatically locked with a child lock if no buttons are pressed within 3 minutes.

The appliance automatically resumes the mode previously set before the power interruption.

2. Child lock

If no buttons are pressed within 3 minutes, the appliance's "child lock" function is automatically activated. When the "child lock" function is on, the temperature and "Fast Freeze" function cannot be set.

-88°C - - Do not deliverable Do not light deliverable BC-25 -127~247 -327 INVERTER

To deactivate the child safety lock:

Press and hold the "-" button for 3 seconds to deactivate the "child lock" function.

3. Freezer temperature setting

The freezer can be used both as a fridge and as a freezer.

Temperature range

- Set as fridge: from 2°C to 8°C

- Set as freezer: from -12°C to -24°C and with the Fast Freeze function -32°C (max 36 hours)

Recommended temperatures:

- Refrigerator: -4°C

- Freezer: -18°C

Setting the temperature:

If the buttons are unlocked, the temperature display starts flashing when the "+" / "-" button is pressed for the first time. Press the "+" or "-" to set the temperature of the fridge or freezer, this moves in 1°C increments.

Fast Freeze

Press and hold the "+" button for 3 seconds to enable or disable the "Fast Freeze" mode.

When the "Fast Freeze" function is enabled, the temperature in the compartment is quickly cooled to -32^ , which is beneficial to prevent the loss of nutritional value of the food and to keep its freshness intact.

The "Fast Freeze" mode switches off automatically 26 hours after switching on, and the temperature will return to the last set temperature.

Error codes

Error codes may occur and are displayed on the control panel. Refer to chapter 6 Troubleshooting to see what the error code means and what the next steps are.

4.3 STORAGE OF FOOD

- The freezer is suitable for freezing fresh food and storing frozen food for a long time.

• The maximum amount of food that can be frozen in 24 hours is for this appliance: 9 kg.

• The freezing process takes 24 hours. Do not add any other food to freeze during this period.

- The temperature of the freezer is kept below -18°C. This allows food to be stored for a long time. The storage period on the packaging must be observed.

- The ideal temperature setting for the freezer is -18°C. It is possible to set it colder, but in principle this is not necessary. A lower temperature does not mean that food will last longer, but every degree lower does mean more energy consumption.

- Allow hot food to cool to room temperature before putting it in the freezer.

- Only freeze fresh and thoroughly cleaned foods.

- Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.

• Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.
• Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.
• Ice lollies, if eaten directly from the freezer, can cause frostbite.
• It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.
• It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.
• Pack the food airtight into food freshness bags before distributing it evenly over the freezer drawers.
• Packaging bags you use should be dry, in case several packaging bags are frozen together.
• Ensure there is sufficient space between foods. Putting them too close together blocks the cold airflow, affecting the cooling effect.
• To prevent cross-contamination and odour transfer, food should be packed in suitable materials that are sturdy, flavourless, impermeable to air and water, non-toxic and pollution-free.

Tips for buying frozen goods

• When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.
• Ensure that frozen food packaging is in perfect condition.
  • Always buy frozen products at the end of your shopping trip or visit to the supermarket.
• Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.
• Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.
• Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.
• Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control knob to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not remove objects from the chest freezer if your hands are wet/damp as this may cause grazes or frostbite.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

DEFROSTING & CLEANING

When the appliance has been in use for some time, a thin layer of ice is formed on the surface of the inner wall of the freezer. If this layer is more than 3 mm thick, it can affect the cooling effect. Energy consumption increases by about 10 percent for every 2 millilitres of ice. The ice layer must be removed approximately every 6 months.

Go through the following steps to remove the ice layer:

• 6 hours before defrosting, turn the thermostat knob to the "-24" position to ensure the food is at its lowest temperature when you take it out.
• Remove frozen food from the appliance. Place the food temporarily in a cool box, cooler bag or an extra freezer.
• Turn off the appliance, defrosting usually takes a few hours. To defrost faster, keep the freezer door open.
• Remove the fixed ice crust when it softens. Do not use scrapers or spatulas as this can damage the freezer.
• Before draining the water, place a tray under the drain hole on the outside of the freezer.
• Draining the water is done in the following 4 steps. Once all the water has drained, dry the inside well.

1. At the bottom of the freezer there is a drain opening. When defrosting the freezer, remove the rubber cover and the water will flow out and be discharged through the drain pipe.
2. Pull out the water pipe 20-25 mm until the water drain hole is visible.
3. Turn the water pipe until the arrow points downwards.
4. After defrosting, check that no more water comes out before turning the water pipe back into place, with the arrow pointing upwards.

- When finished, switch on the "Fast Freeze" function and leave it on for about three hours. After that, set the freezer to the desired and recommended setting.

INTERIOR AND EXTERIOR CLEANING

• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
- If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service:

www.coolblue.nl/en/customer-service

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all.	- The control knob for the temperature is wrong.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than -15°C, such as a balcony, garage or storage room.- The power has failed.	- Set the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than -15°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.- Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. If you know about the power failure beforehand: Set the thermostat button in the high mode an hour in advance, so that the food is frozen completely. (Do not add any other food to freeze during this period!) Set the temperature mode back to the original setting in good time when the power supply is restored.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the appliance.	- There is spoiled food in the appliance.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
The compressor works continuously.	- Too many products are stored at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the next section.

PROBLEM POSSIBLE CAUSE SOLUTIONS

Abnormal noise - The appliance is not stable/level.- The appliance is making contact with the wall or other objects.- ‘Super Freeze’ mode has been turned on.	- Readjust the appliance’s adjusting legs.- Move the appliance slightly.- This is normal. ‘Super Freeze’ mode uses the maximum power of the appliance.
The appliance freezes too much.	- The temperature of the appliance is set too high.- ‘Super’ mode has been turned on.

6.1 FAULTS

ERROR CODE CAUSE SOLUTION

EO If EO is displayed	on the control panel, this indicates a malfunction in the freezer.	An authorised service technician is needed to solve the problem. Please contact customer service.
HH Temperature is 12°C higher than the set temperature.		Press any button on the control panel. The fault disappears when the temperature difference is less than 12°C. If this does not happen, please contact customer service.

Power failure memory: In case of power failure, the device will automatically resume the mode previously set before the power failure.

Switch-on delay protection: To protect the compressor of the refrigerator from damage during a short-term power failure (less than 5 minutes), the compressor is not immediately started after switching on. Wait until the compressor starts up. If this does not happen, please contact customer service.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Coolblue B.V. when you no longer want to use the device or you can return the device to a Coolblue store of your choice.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China

MANUEL D'UTILISATION

CONGÉLATEUR

VPCF80LFDW

VERIPART

TABLE DES MATIÈRES

AVANT-PROPOS

34

1. SÉCURITÉ 35

Simple black checkmark inside a whiteboard with a diagonal line (no text or symbols)

Simple line drawing of a box with a black 'X' symbol on the front face (no text or labels)

4. Nettoyage

-88°C 3s to unlock 3s to lock freeze 8°C~2°C -12°C~24°C -32°C € | € € | € € INVERTER

PROBLÈME CAUSE POSSIBLE SOLUTIONS

PROBLÈME CAUSE POSSIBLE SOLUTIONS

6.1 DYSFONCTIONNEMENTS

CODE D'ERREUR CAUSE SOLUTION

Simple black checkmark inside a whiteboard with a diagonal line (no text or symbols)

Simple line drawing of a whiteboard with a black 'X' symbol on the left (no text or numbers)

6. Einschalten

-88°C 3s to unlock 3s to frost freeze 8°C~2°C -12°C~24°C -32°C INVERTER

2. Kindersicherung

Veripart contact details

Veripart is a registered brand of Coolblue B.V.

Coolblue B.V.

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China
