USER MANUAL VPVR185NFCW Veripart

Electrical schematic diagram with labeled components and connections, including meters and switches

Serial Number

Batchcode

Climate classification SN / N / ST / T
Freezer compartment volume 274L
Fourstar compartment volume 274L
Voltage 220-240V~
Frequency 50Hz
Rated current 1.3A
Security class I
Power usage 140W
Energy consumption E16 0.32	kWh/24h
Energy consumption E32 0.65	kWh/24h
Temperature rise time 9h
Refrigerant R600a,60g
Insulating agent	Cyclopenlane
Freezing capacity (Kg/24h)	17
Product code	966667

Veripart is a registered trademark

of Wisepick Productions B.V.

Weing 664

3012CN, Rotterdam, The Netherlands

www.coolblue.nl/klantenservice

Made in China

Climate classification -	Klimaatklasse / Classification climatique / Klimaklassifizierung
Freezer storage volume -	Opslagvolume vriezer / Volume de stockage du congélateur / Gefrierspeichervolumen
Fourstar storage volume -	Fourstar-opslagvolume / Volume de stockage Fourstar / Vier-Sterne-Speichervolumen
Voltage -	Spanning / Tension / Spannung
Frequency -	Frequentie / Fréquence / Frequenz
Rated current -	Nominale spanning / Tension nominale / Nennspannung
Security class -	Veiligheids klasse / Classe de sécurité / Sicherheitsklasse
Power usage -	Stroomverbruik / Consommation d'énergie / Stromverbrauch
Energy consumption E16 -	Energieverbruik E16 / Consommation d'énergie E16 / Energieverbrauch E16
Energy consumption E32 -	Energieverbruik E32 / Consommation d'énergie E32 / Energieverbrauch E32
Temperature rise time -	Temperatuur stijging tijd / Temps de montée en température / Temperaturanstiegszeit
Refrigerant -	Koelmiddel / Réfrigérant / Kältemittel
Insulating agent -	Isolatiemiddel / Agent isolant / Isoliermittel
Freezing capacity -	Vriescapaciteit / Capacité de congélation / Gefriervermögen
Product code -	Productcode / Code produit / Produktcode

INHOUDSOPGAVE

VOORWOORD

4

1. VEILIGHEID 5

1.2 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

WAARSCHUWING!

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Diagram showing a device with a black 'X' symbol on its screen, indicating cancellation or error.

5. Wacht

Line drawing of a hand installing or adjusting a shelf panel on a metal shelf (no text or symbols)

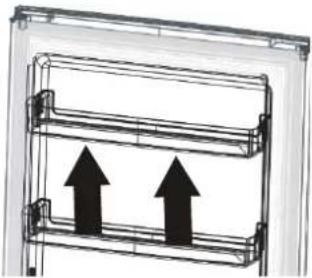

Diagram of a mechanical or electrical component with two upward-pointing arrows, no text or symbols present.

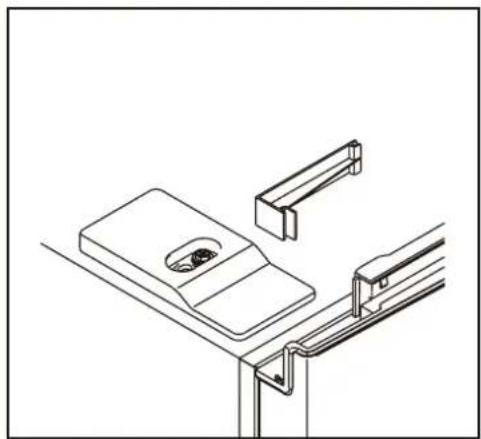

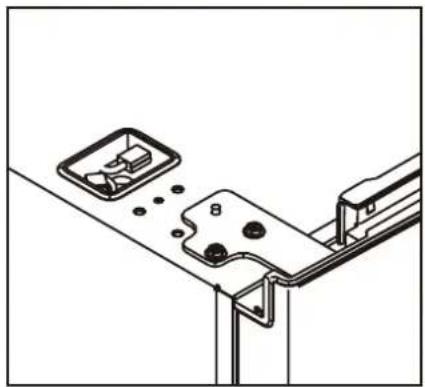

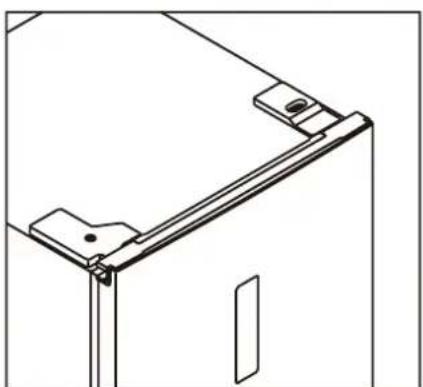

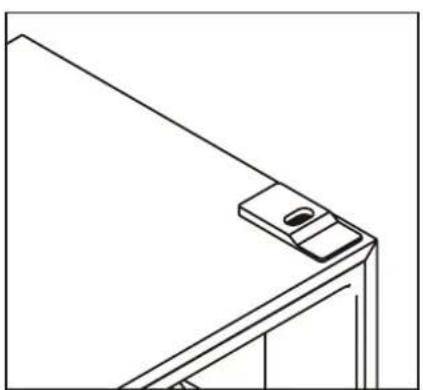

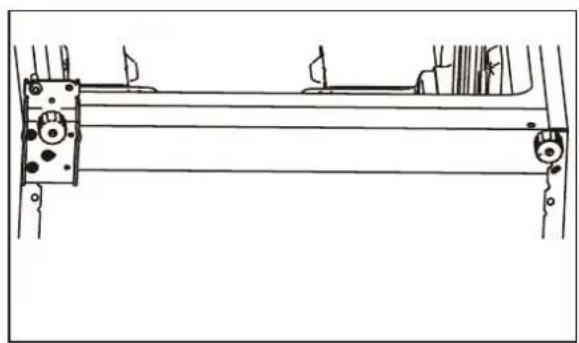

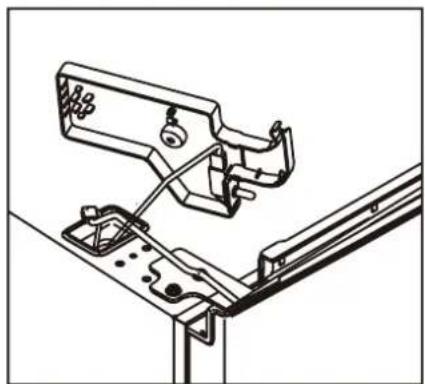

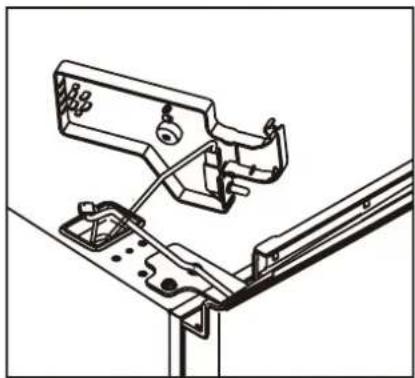

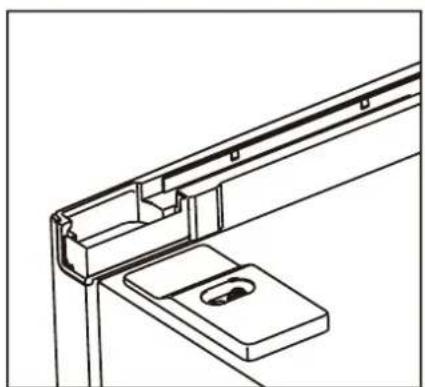

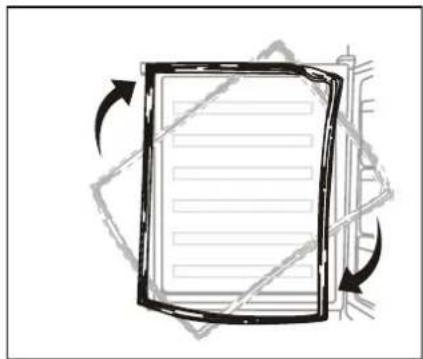

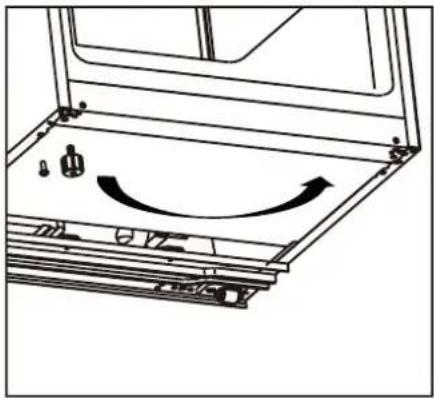

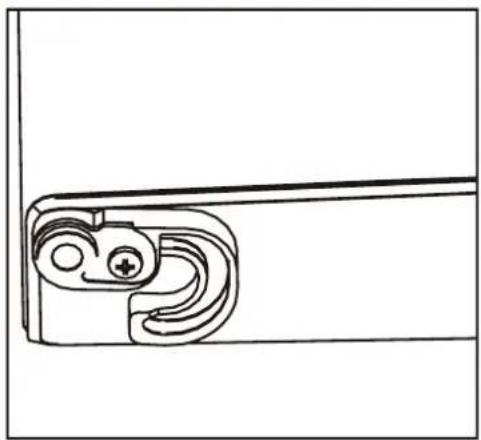

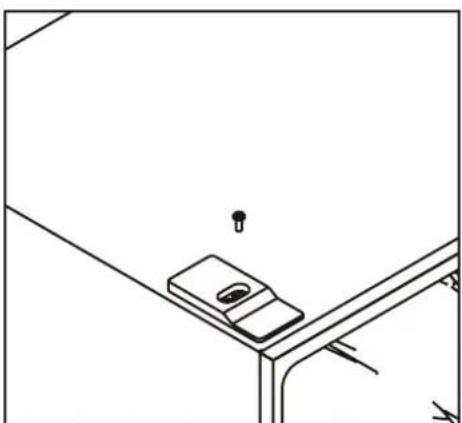

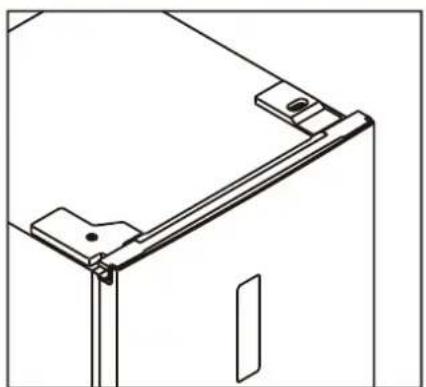

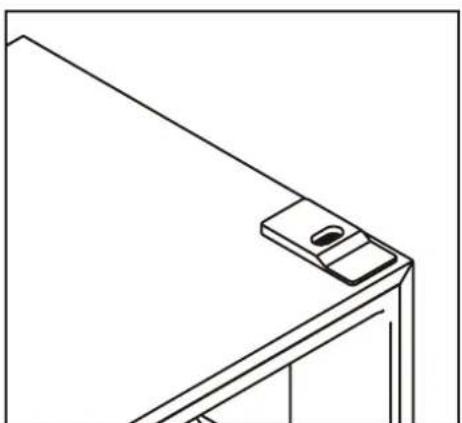

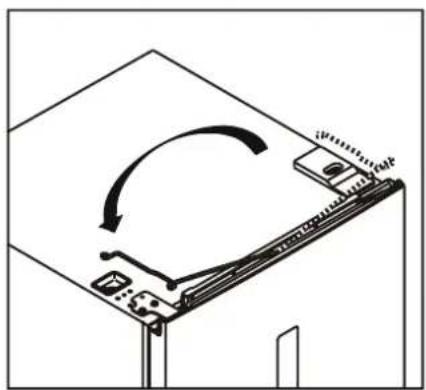

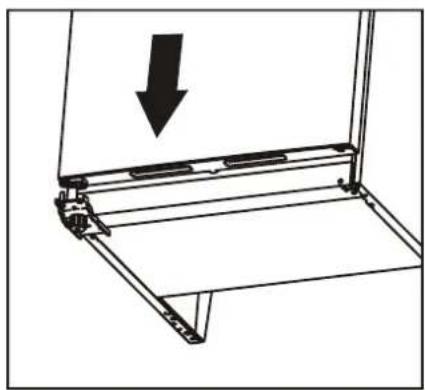

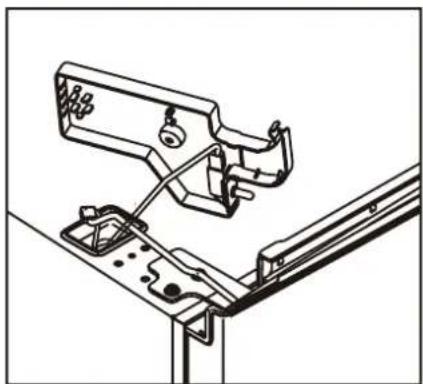

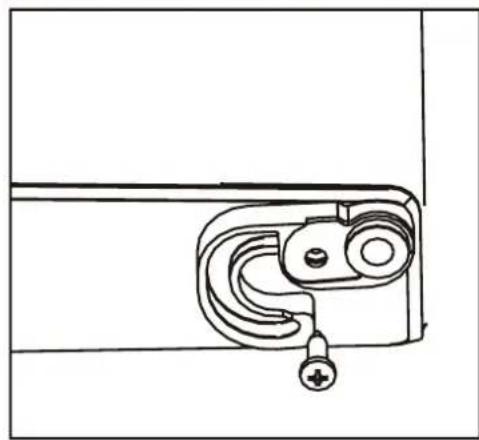

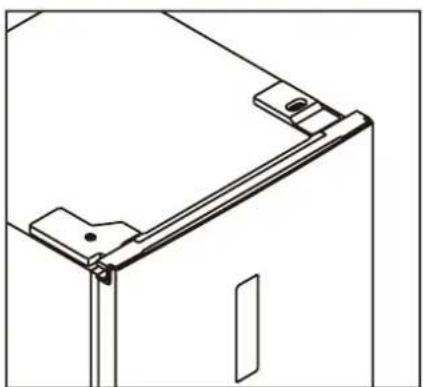

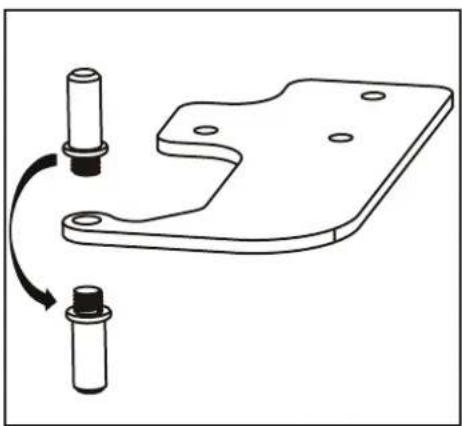

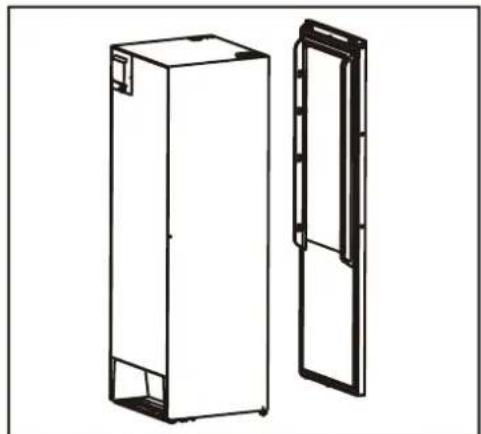

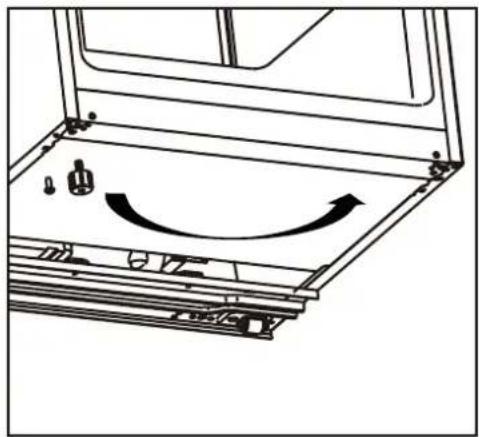

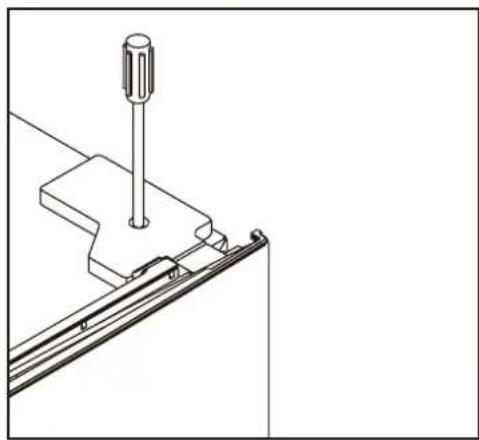

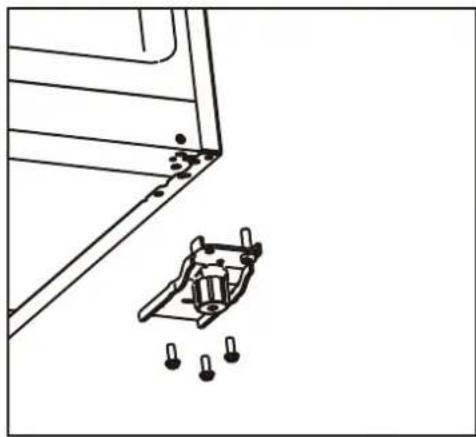

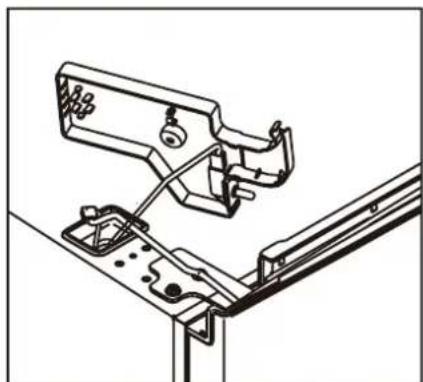

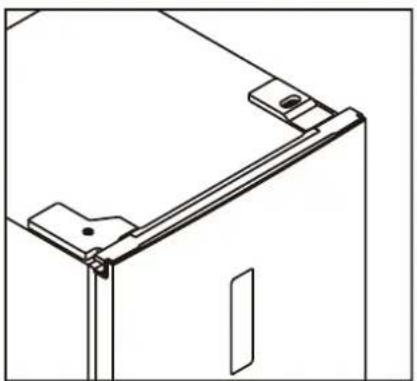

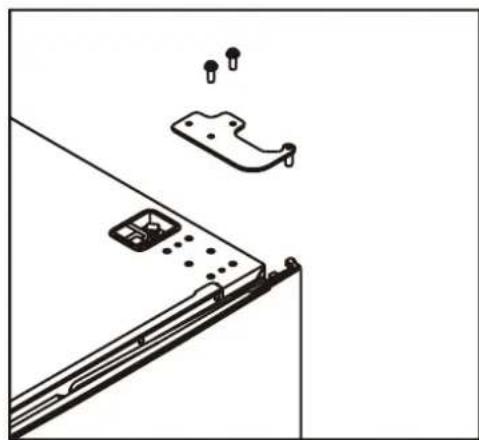

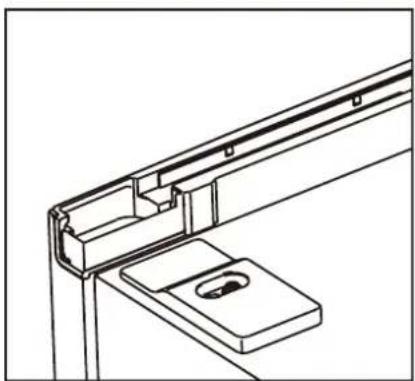

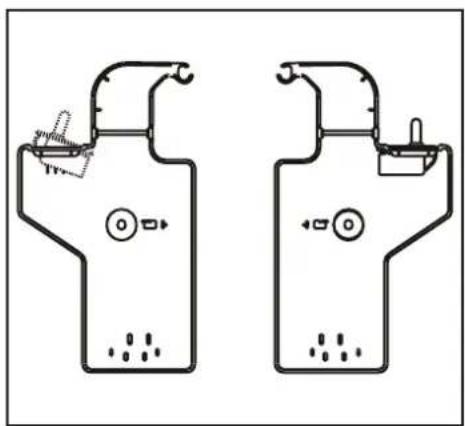

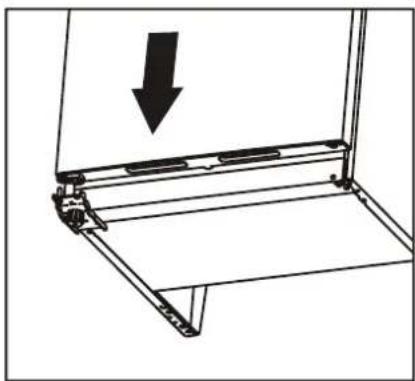

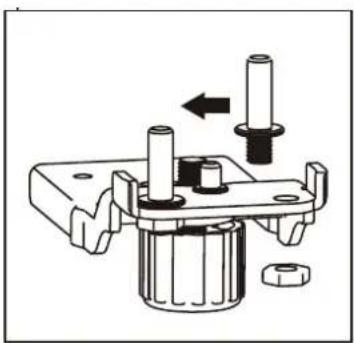

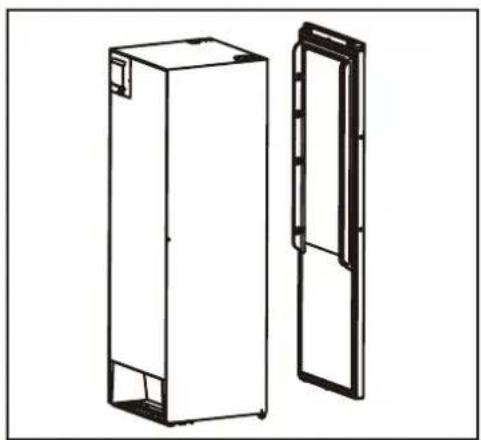

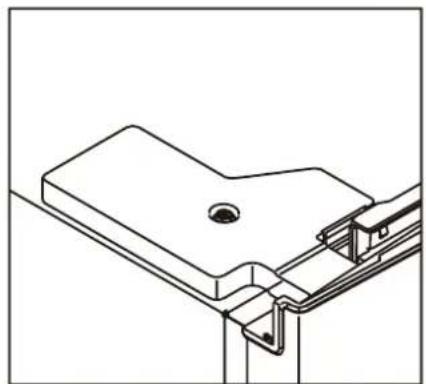

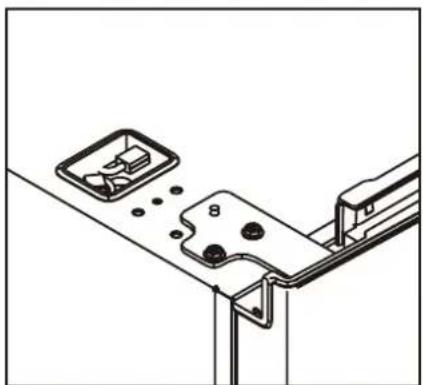

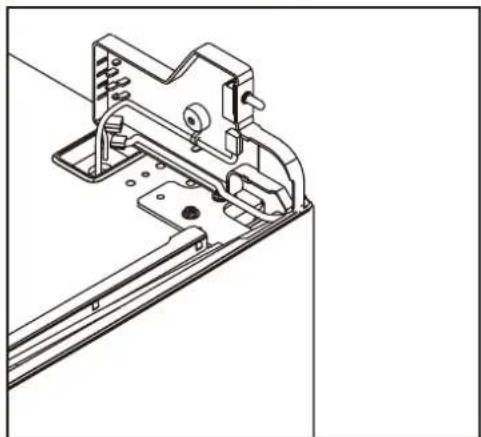

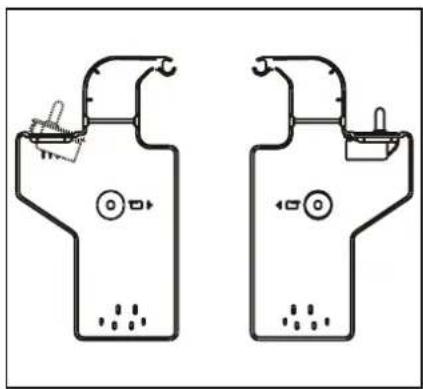

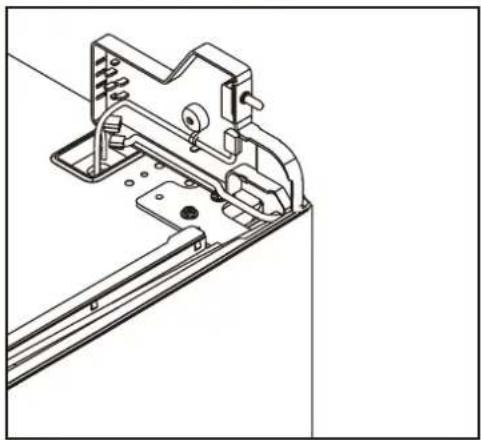

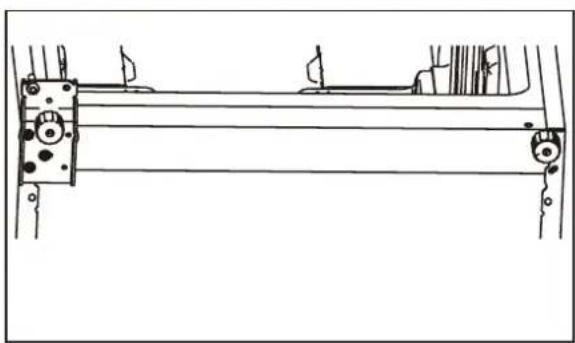

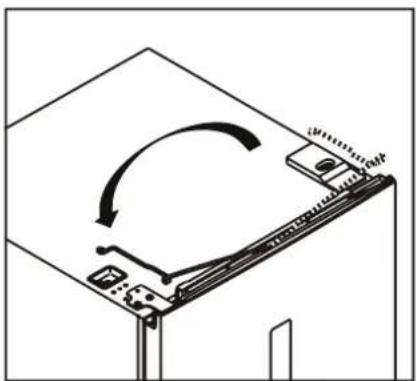

3.2 DE DRAAIRICHTING VAN DE DEUR OMKEREN

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

Line drawing of a screwdriver with no text or symbols

Technical line drawing of a vertical metal bracket with mounting feet (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a separate bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a shaft and housing with a bolt and nut, no text or symbols present

Technical line drawing of a mechanical assembly with mounting brackets and levers (no text or symbols)

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Two identical schematic diagrams of household appliances or devices, no text or symbols present.

Simple line drawing of a mechanical device mounted on a bracket (no text or symbols)

Line drawing of a corner-mounted device with a small screen and mounting bracket (no text or symbols)

Diagram of a document with arrows indicating rotational movement, no text or symbols present

Technical line drawing of a mechanical assembly with an arrow indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and a component labeled '8' (no text or symbols beyond basic lines)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Diagram of a mechanical device with an arrow indicating rotational motion (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

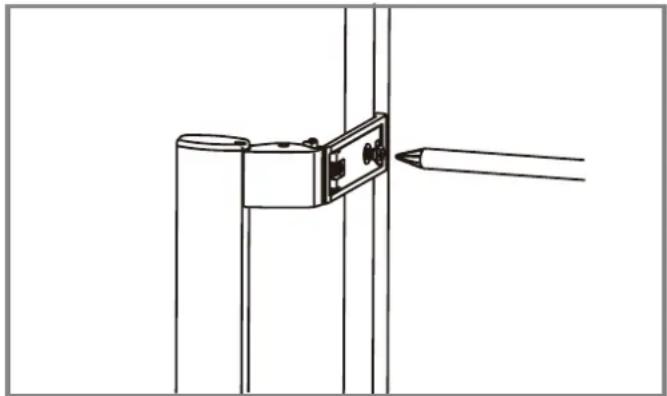

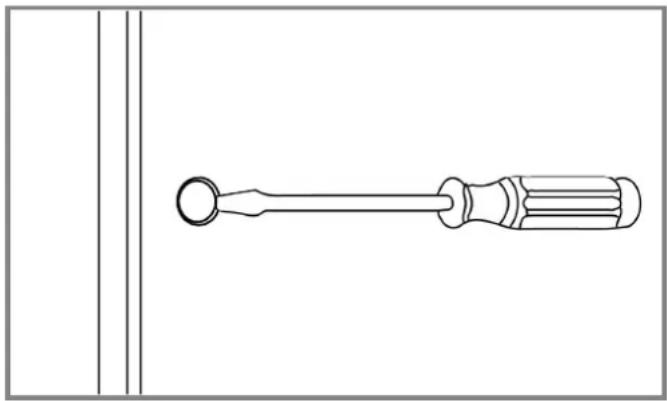

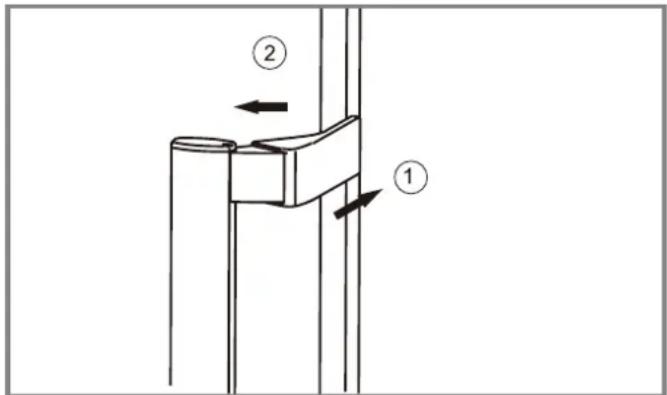

Handgreep installeren

Line drawing of a screwdriver with a circular head and threaded shaft, shown in two vertical lines (no text or symbols)

Technical line drawing of a mechanical bracket or bracket assembly with a pencil inserted (no text or symbols)

Technical diagram showing two labeled components (① and ②) with directional arrows indicating movement or force.

3.3 VERVANGEN VAN DE LED-VERLICHTING

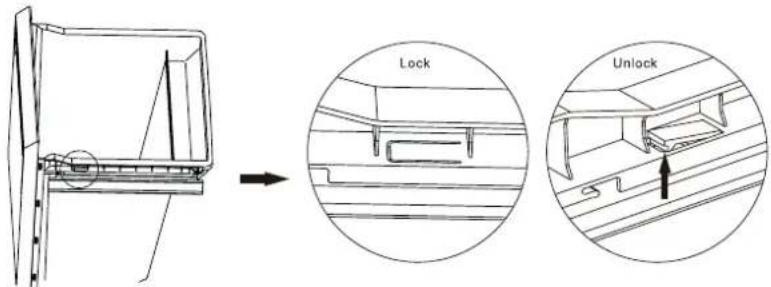

Technical diagram illustrating lock and unlock states of a mechanical component with labeled parts and directional arrows

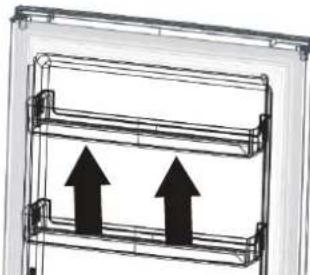

4.3 OPSLAG VAN VOEDSEL

1.1 Intended use and anticipated unintended use 26
1.2 Safety warnings and regulations 26
1.3 Safety instructions: installation 27
1.4 Safety instructions: use 28

2. PRODUCT FEATURES 29

2.1 Dimensions 29
2.2 Guarantee 30
2.3 Technical Data 30

3. INSTALLATION 31

3.1 Installing the appliance 31
3.2 Door reversal instructions 32
3.3 Replacing the LED lighting 36

4. USE 37

4.1 Precautions for use 37
4.2 Setting the temperature 37
4.3 Storage of food 39

5. MAINTENANCE AND CLEANING 40

6. TROUBLESHOOTING 41

7. TAKING OUT OF SERVICE 43

8. SAFE DISPOSAL 43

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Veripart cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
DANGER!	Fire hazard and/or flammable materials
WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
ATTENTION!	Indicates a situation related to material damage.
NOTE	Indicates useful additional information.

NOTE

You can also find the latest version of this manual online, at www.coolblue.nl/en if you search for the article number.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Veripart and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Veripart and/or the third party to whom the data belong.

Veripart contact details

Veripart is a registered brand of Wisepick Productions B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Veripart

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

1. SAFETY

1.1 INTENDED USE AND ANTICIPATED UNINTENDED USE

• This appliance is only intended for use indoors.
- This appliance is not intended for use as a built-in appliance.
- This appliance is intended for domestic use and similar applications such as: - staff kitchens in shops, offices and other work environments; - farms and guests in hotels, motels, B&B and other residential environments; - catering and similar non-retail applications.

- This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.

- Any use of the appliance other than as described in this manual is considered to be unintended use and may result in property and immaterial damage to you or to others, the appliance, your other property or other people's property and the expiry of the warranty.

1.2 SAFETY WARNINGS AND REGULATIONS

WARNING!

• Keep the vents in the appliance housing open.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your freezer.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance.
• Do not place electrical appliances in the food storage compartments of the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Never open the appliance and do not perform any repairs to the appliance that are not described in this manual. The appliance may only be opened for maintenance by an authorised service technician.
• It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

DANGER!

• Do not use this appliance with extension leads or power strips.
• Never use a timer, inverter or a separate remote control that automatically turns the appliance on or off. Do not connect the appliance to an earthed power socket that is regularly switched on or off.
• Do not twist or kink the power cable or roll the cable up. Do not clamp the power cable between the surface and the appliance. This can damage the cable's insulation.
• Never pull on the power cable to move the appliance or to unplug it from the earthed socket.
• Keep the power cable away from heat, oil, sharp edges or moving parts.

- Do not use the appliance if the power cable is damaged. Never replace the power cable yourself. The power cable may only be replaced by an authorised service technician.

- Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

- Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.

ELECTROCUTION HAZARD DUE TO SHORT CIRCUIT

• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
  • Always place the appliance on a moisture-resistant and dry surface.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Do not touch the appliance or power cable with wet hands.

1.3 SAFETY INSTRUCTIONS: INSTALLATION

CAUTION!

• Never leave the power cable in such a way that someone could trip over it or accidentally pull it.
• Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.

ATTENTION!

• Use only the original accessories provided for the installation.
• Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.
• Never clean the appliance with aggressive or abrasive cleaners, or sharp objects.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Never drop the appliance and avoid bumping. Dropping or bumping the appliance may affect the proper operation of the appliance. Do not use the appliance if it has been dropped.
  • Make sure that the power cable of the installed appliance is always easily accessible.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance will function correctly, but energy consumption may increase slightly.

• Do not install the appliance near radiators, stoves, ovens or hobs.

• Do not install the appliance in direct sunlight.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m3. The amount of refrigerant contained in the appliance can be found on the type plate.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the "Climate Range" table.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct). This type of refrigerator has climate range SN, N, ST and T.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN To +32°C
N To +32°C
ST To +38°C
T To +43°C

*The appliance operates without problem down to an ambient temperature of -15°C.

1.4 SAFETY INSTRUCTIONS: USE

CAUTION!

• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• Food storage times recommended by the food manufacturer must be observed.
• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish airtight in suitable containers or freezer bags in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

2. PRODUCT FEATURES

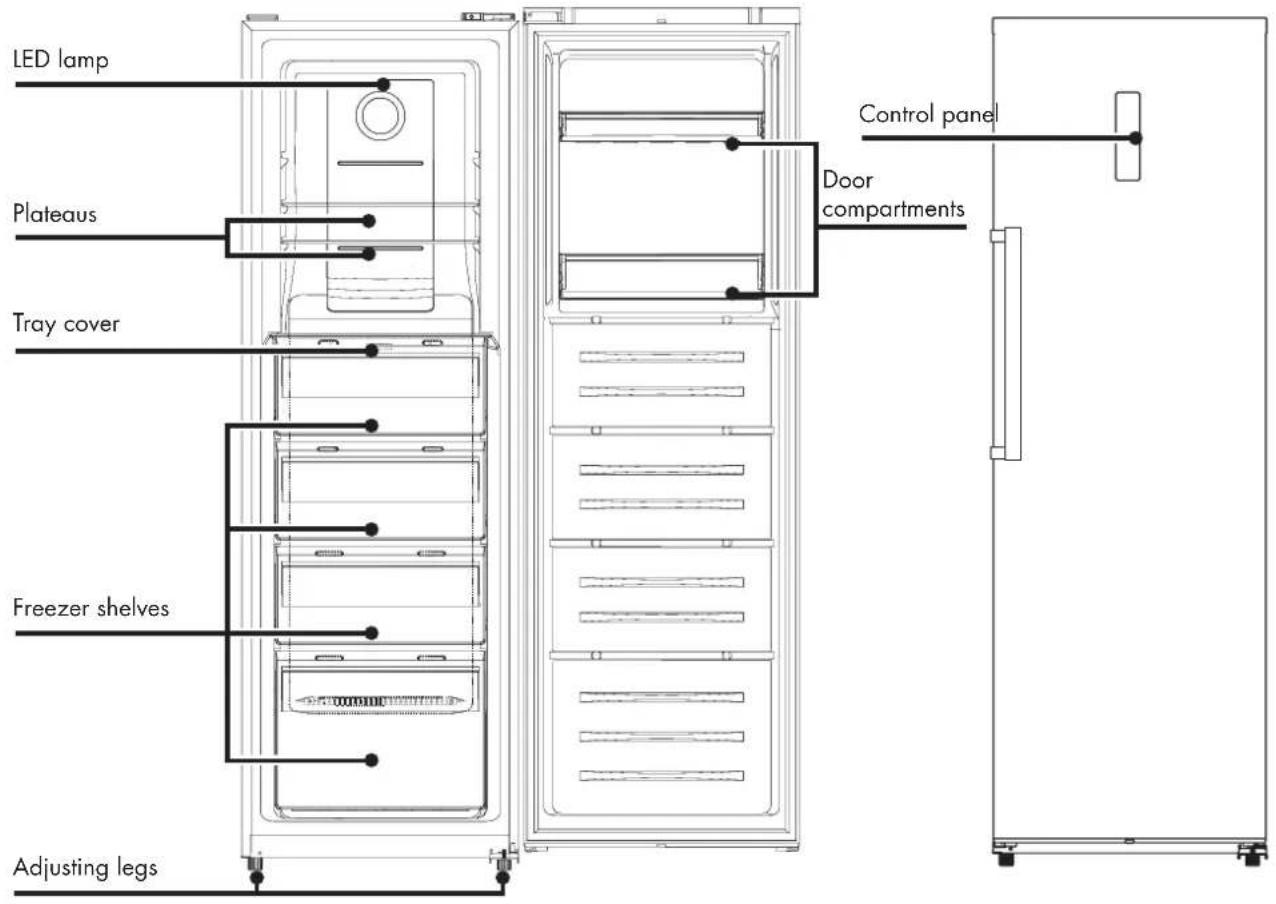

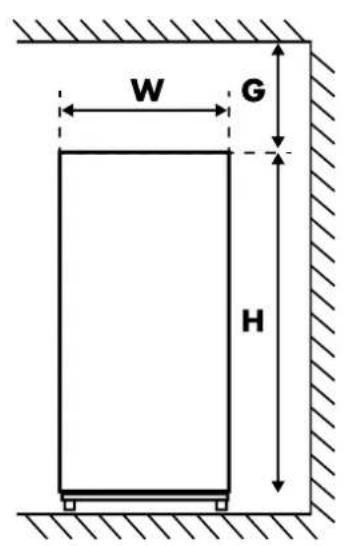

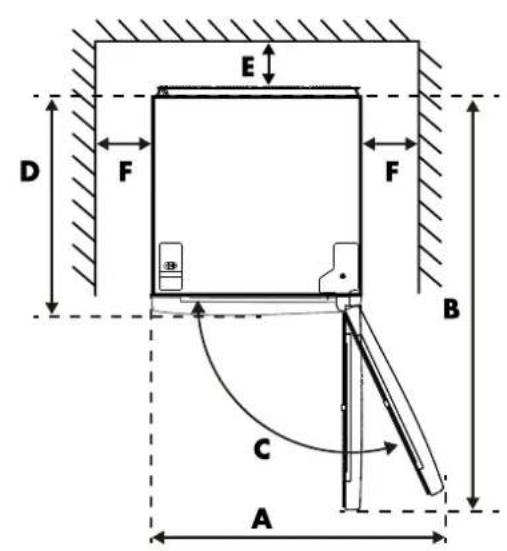

2.1 DIMENSIONS

LED lamp Plateaus Tray cover Freezer shelves Adjusting legs Control panel Door compartments

W G H

E D F F B C A

• Figure 1. Front view • Figure 2. Top view

W D H A B C(°) E F G
60cm 65cm	185cm 83	,5cm 132,3	cm 115 min.	5cm min.	5cm	min. 5cm

*Figures 1 and 2 illustrate the space required for the appliance.

2.2 GUARANTEE

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/klantenservice. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee. If you place the appliance in an ambient temperature that is colder than the minimum temperature, the guarantee lapses.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service.

2.3 TECHNICAL DATA

Does not contain freon

The freon-free freezerrant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance. See link www.theenergylabel.eu for detailed information on the energy label.

3. INSTALLATION

3.1 INSTALLING THE APPLIANCE

Before installing the appliance, carefully review the safety information (chapter 1).

1. Unpack

Remove the packaging materials and dispose of them properly. Check that the appliance is not damaged. Do not connect the appliance if it is damaged. Report any damage immediately to the salesperson via customer service. In that case, keep the packaging.

2. Location

• The location where you place your appliance should be well ventilated.
  • Always move the appliance with two people. Use two hands when moving, lifting or turning the appliance.
• Do not place the appliance near a heat source, such as a stove or boiler, and avoid direct sunlight, so as to guarantee the cooling effect and save on energy consumption.
• Do not place the appliance in a damp place so that it cannot rust and there is no leakage current.
• Do not use the appliance outdoors. This appliance is only intended for use indoors.

3. Installation of the appliance

• This appliance is not intended for use as a built-in appliance.
• Use only the original accessories provided for the installation.
• To reverse the direction in which the door opens, go to section 3.2.
• During operation, the appliance emits heat to the environment. Therefore there must be at least 5 cm clearance on the top, at least 5 cm on both sides and at least 5 cm on the back of the appliance (see also section 2.1).
• Use the front adjusting legs to level the appliance. If the appliance is not level, it is possible that the door may not close properly, reducing the cooling performance of the appliance. If the appliance is not level, this can also lead to malfunctions.

- Make sure that the power cable is not stuck or damaged during installation or positioning the appliance.

- It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

• Always place the appliance on a moisture-resistant and dry surface.

- Place the appliance on a firm and flat surface (floor) so that it is stable, otherwise vibrations and noise may occur. When placing the appliance on floor coverings such as carpets, straw mats or polyvinyl chloride (PVC), place a solid sheet or cover under the appliance to prevent colour change due to heat dissipation.

4. Clean

Before putting the appliance into use, clean the interior and all associated accessories with lukewarm water and neutral soap. Dry everything carefully. Do not use solvents or abrasive powders; these may damage the coating.

5. Wait

On first installation (or after turning the door) wait at least four hours before plugging in the appliance. This allows the oil to flow back into the compressor.

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Simple line drawing of a device with a black 'X' symbol on the screen and a base, likely indicating cancellation or error.

6. Switch on

Before plugging in the power cable, check that the voltage and frequency of the type plate match your power supply network. Only connect the appliance to an earthed power socket. After one hour, open the door of the appliance. If the temperature in the appliance is noticeably lower, this indicates that the cooling system is operating normally.

7. Mounting accessories

- Adjustable shelves The walls of the appliance are equipped with a series of guide profiles so that the shelves can be inserted if desired.

- Installing the door compartments To store food of different sizes, the door compartments can be set to different heights. Proceed as follows: gradually pull the compartment in the direction of the arrows until it comes loose and put it in the desired position.

Line drawing of a hand placing a wooden plank on a shelf (no text or symbols)

8. Storing food

See Section 4 "Use".

Diagram of a two-panel door frame with upward arrows indicating movement or force (no text or symbols)

3.2 DOOR REVERSAL INSTRUCTIONS

• To remove the door, the appliance must be tilted backwards. We recommend doing this with two people. Rest the appliance on a firm surface so that it does not slip away as you reverse the door.
• Keep all removed parts to remount the door later.
• Do not lay the appliance down flat. This can damage the cooling system. If the appliance does have to be placed on its back or side for some time during this process, it must be able to stand upright for four hours before connecting it to prevent damage to the internal components.

Necessary tools:

Line drawing of a screwdriver with a pointed tip (no text or symbols)

• Crosshead screwdriver

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

- Adjustable spanner

Line drawing of a screwdriver with no text or symbols

- Flat head screwdriver

Supplied parts:

2 x Handle cover 2x Screws

Technical line drawing of a vertical metal frame with mounting brackets (no text or symbols)

Left hinge cover 1xLeft closure guide1x

1. Unplug and empty the appliance.

2. Remove the wiring covers at the top of the door.

3. Unscrew the cover top right and disconnect the door switch connector and the display.

4. Unscrew the top hinge and remove the door.

5. Remove the right closure guide and take the left safety closure included with the accessories supplied and install it on the left side.

Technical line drawing of a mechanical assembly with a lever and base mount (no text or symbols)

Technical line drawing of a mechanical assembly with a screw and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

Line drawing of a mechanical clamp or bracket with a plus button, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of two rectangular metal enclosure units, one open and one closed, with no visible text or symbols.

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

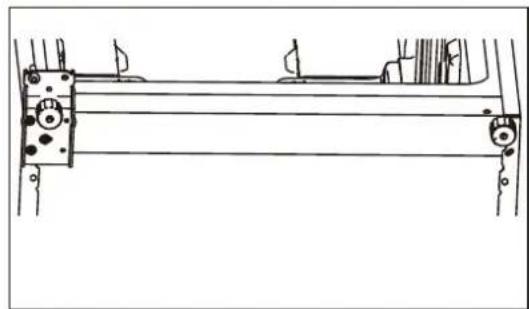

1. Remove the lower hinge. Move the adjustable foot from the left to the right.

Technical line drawing of a mechanical bracket with mounting holes and a separate mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion or direction (no text or symbols)

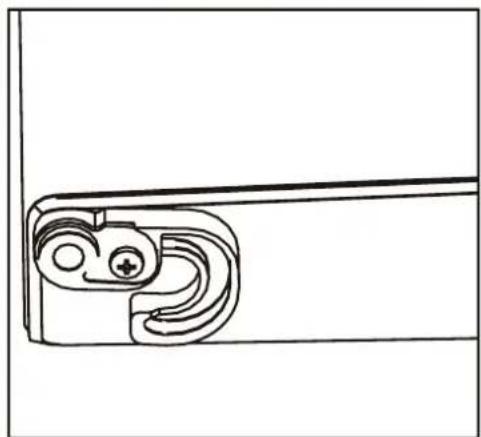

1. Loosen the bottom hinge pin and move it from the right to the left. Now install the lower hinge on the left side of the appliance.

Mechanical assembly diagram showing a bolted joint with two cylindrical components and a nut, no text or symbols present.

Technical line drawing of a mechanical assembly with mounting brackets and mounting holes (no text or symbols)

1. Loosen the top hinge pin and move it from the bottom to the top. Remove the door switch from the right hinge cover and install it in the left hinge cover included in the accessories supplied.

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Two identical line drawings of a showerhead with control valves and a valve, no text or symbols present.

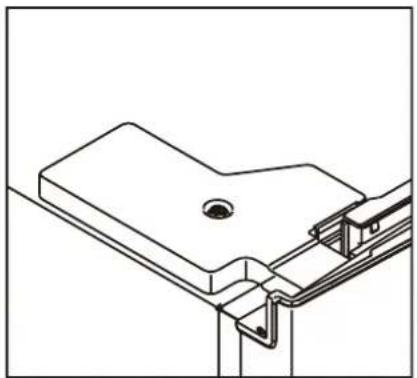

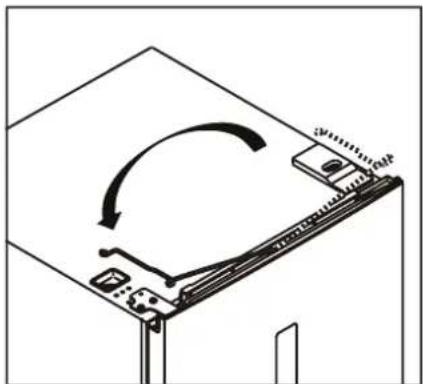

1. Unscrew the top cover on the left, move it and install it on the right.

Simple line drawing of a mechanical bracket with a small inset component (no text or symbols)

Line drawing of a mechanical bracket or bracket with a small inset detail (no text or symbols)

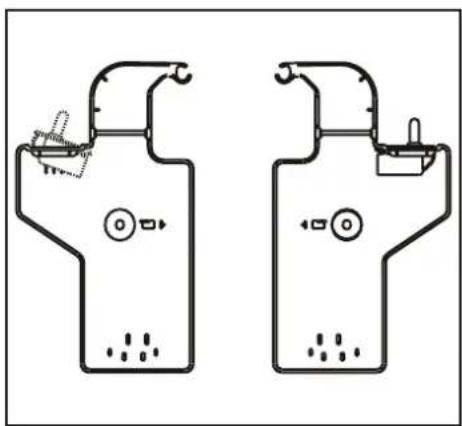

1. Remove the refrigerator and freezer door gaskets, then rotate and reattach them.

2. Install the door and move the connecting wires from the right to the left.

3. Install the top hinge on the left, adjust the top hinge slightly during installation to ensure that the door seal is properly sealed.

4. Connect the plug. Install the cover on the hinge.

5. Install the wiring cover caps.

Abstract diagram of a document with directional arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical bracket assembly with mounting holes and a separate housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a structural bracket assembly (no text or symbols)

Diagram of a computer monitor with an open lid and scroll, showing a circular arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Install the handle

1. Remove the covers from the screw holes.

Line drawing of a screwdriver with a circular head and threaded shaft (no text or symbols)

1. The handle is in a freezer drawer. Screw the handle to the door using the screws supplied.

Technical line drawing of a mechanical bracket with a pencil inserted, no text or symbols present

1. Place the handle covers over the screws.

Technical diagram showing two labeled components (① and ②) with directional arrows indicating movement or flow.

3.3 REPLACING THE LED LIGHTING

This product contains a LED light source of energy efficiency class G. Replacement or maintenance of the LED lighting must be carried out by the manufacturer, its maintenance representative or an equivalent qualified person.

4. USE

4.1 PRECAUTIONS FOR USE

• On first use or after a long period of downtime: run the appliance for at least four hours at position '-22' before placing products in the freezer. After 24 hours, set the temperature control at '-18'.
• The appliance may not operate optimally (risk of thawing or too high a temperature in the freezer) if it is in a place where the ambient temperature is below the minimum of the temperature range for which the appliance is designed for a longer period of time. The information about the temperature range (climate type) of the appliance is stated on the type plate, which is explained in section 1.3.
• The interior temperature may be affected by factors such as the location of the cooling unit, the ambient temperature and the frequency with which the door is opened. Adjust the temperature setting if desired.
• If vibration noise occurs because the appliance is positioned against the wall or if the wall becomes black due to air circulation around the compressor, you should place the appliance away from the wall.
• Do not place filled glass or can packages in the freezer to avoid breakage due to volume expansion.
• Do not place electrical appliances in the freezer (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.
• Only use the power cable installed on the appliance from the factory. Do not change the power cable. The power cable may only be replaced by an authorised service technician.
• Never use the appliance in a damp room, such as a bathroom, or in the vicinity of a bath, shower or swimming pool.
• Before use, check that the voltage on the socket you want to use matches that on the type plate of the appliance (220-240V\~ 50Hz). Only connect the appliance to an earthed power socket. Damage caused by faulty voltage is not covered by the guarantee.

4.2 SETTING THE TEMPERATURE

1. Control panel

- Controls

1. FREEZER: Temperature control of the appliance
2. SUPER: Switch 'Super mode' on or off
3. ALARM/ECO: Switch door open alarm on or off, 'Eco-mode' on or off.
4. LOCK: Lock and unlock the control panel.

- LED screen

1. Display set temperature
2. 'Supermodus' indicator
3. 'Eco-mode' indicator
4. 'Lock' indicator

NO FROST -80°C 5 6 7 8 1 FREEZER 2 SUPER 3 ALARM ECO 3s 4 LOCK 3s

*The buttons only work when the appliance is unlocked. The buttons emit a beep when touched.
*The freezer can operate at an ambient temperature of -15 degrees if the temperature is set close to the lowest or coldest level.

2. Temperature setting

The freezer temperature can be set by pressing the 'Freezer' button. After the most recent setting, the display will blink for five seconds. After this, the desired temperature is set and this is shown on the display. (5). The following settings are possible: -14, -16, -18, -20 and -22 and 'Supermode'. The recommended setting is -18 °C.

3. Enable 'Supermode'

When the 'Supermode' function is enabled, the temperature in the box will be cooled quickly, which helps prevent any loss of the food's nutritional value and preserve its freshness. Press the 'Super' button (2) to select 'Supermode'.

After the 'Supermode' indicator has blinked for five seconds, 'Supermode' is enabled.

When 'Supermode' is selected, the 'Supermode' indicator will illuminate and display -25 °C. When 'Supermode' is enabled, the temperature of the appliance cannot be changed. In this case, the 'Supermode' indicator flashes three times. If the temperature needs to be changed, first switch off 'Supermode'. To switch off 'Supermode':

• Press the 'Super' button to switch off 'Supermode'.
• Once 'Supermode' is switched on, and the appliance is not reset, 'Supermode' will automatically switch off after 50 hours. The appliance returns to the last set temperature setting.

*In 'Supermode' the appliance will consume more energy than normal. The most energy-efficient mode for this appliance is -18 °C. In 'Supermode' the appliance may emit slightly more noise.

4. ECO mode

Press the 'Alarm / Eco' button for three seconds to select 'Eco-mode'. After the 'Eco' indicator on the display has blinked for five seconds, 'Eco-mode' is enabled. When 'Eco-mode' is selected, the 'Eco' indicator illuminates on the display. The appliance is now set to the most efficient temperature setting, based on the ambient temperature. The appliance will be set automatically according to the following situations.

Ambient temperature (T _a ) Be	ow 10°C Between 10°C and 27°C Between 28° and 34°C Above 35°C
Set temperature -18°C -18°C	-16°C -15°C

When 'Eco-mode' is enabled, the temperature of the appliance cannot be changed.

If the temperature needs to be changed, first switch off 'Eco-mode' by pressing and holding the 'Eco' button for three seconds.

5. Door alarm

If the door remains open for more than 90 seconds, the door alarm goes off. You can disable it by closing the door properly or by pressing the 'Alarm / Eco' button.

6. Temperature alarm

If the temperature in the appliance becomes too high, the temperature alarm will go off. The display shows 'HT' (High Temperature), alternating with the current temperature in the appliance.

Briefly press the 'Alarm / Eco' button to turn off the temperature alarm. If the temperature in the appliance has dropped to the set temperature, the alarm will be disabled and 'HT' will automatically disappear from the display.

7. Unlock/Lock

Press the 'Lock' button for three seconds to lock the control panel. The display shows the lock and unlock symbol. When the lock is enabled, the appliance settings cannot be changed. In this case, the 'Lock' indicator blinks three times on the display. If the appliance needs to be configured, first disable the lock by pressing and holding the 'Lock' button for three seconds.

When the control is unlocked, all buttons are available. If no action is taken within 25 seconds the control panel automatically locks.

8. Daily use

Removing the refrigerated drawer.

1. Pull out the bottom drawer to the stop position.

2. Push up the lock on both sides of the bottom drawer.

3. Pull out the bottom drawer.

Technical diagram illustrating lock and unlock mechanism of a mechanical component, with labeled parts and directional arrows.

4.3 STORAGE OF FOOD

- The freezer is suitable for freezing fresh food and storing frozen food for a long time.

• The maximum amount of food that can be frozen in 24 hours is for this appliance: 17 kg.

• The freezing process takes 24 hours. Do not add any other food to freeze during this period.

- The temperature of the freezer is kept below -18°C if the thermostat is set at '-18'. This allows food to be stored for a long time. The storage period on the packaging must be observed.

- The ideal temperature setting for the freezer is -18°C. It is possible to set it colder, but in principle this is not necessary. A lower temperature does not mean that food will last longer, but every degree lower does mean more energy consumption.

- Allow hot food to cool to room temperature before putting it in the freezer.

- Only freeze fresh and thoroughly cleaned foods.

- Prepare the food in small portions so that it is soon completely frozen and can then be thawed in the desired amount.

- Do not allow fresh, non-frozen food to come into contact with food that has already been frozen, and prevent the temperature of the food that has already been frozen from rising.

- Lean foods are better and more durable than fatty foods; salt shortens the shelf life of food.

- Ice lollies, if eaten directly from the freezer, can cause frostbite.

- It is advisable to indicate the freezing date on each individual package in order to keep track of the shelf life.

- It is advisable to keep the time between buying the food and putting it in the freezer as short as possible.

- Pack the food airtight into food freshness bags before distributing it evenly over the freezer drawers.

- Packaging bags you use should be dry, in case several packaging bags are frozen together.

- Ensure there is sufficient space between foods. Putting them too close together blocks the cold airflow, affecting the cooling effect.

- To prevent cross-contamination and odour transfer, food should be packed in suitable materials that are sturdy, flavourless, impermeable to air and water, non-toxic and pollution-free.

Tips for buying frozen goods

- When you buy frozen products, read the storage guidelines on the packaging. You can store any frozen product for the period indicated by the star rating. This usually corresponds to the period stated as "best before" on the front of the package.

- Ensure that frozen food packaging is in perfect condition.

• Always buy frozen products at the end of your shopping trip or visit to the supermarket.

- Try to keep frozen food together while shopping and on the way home as this helps to keep food cooler.

- Only buy frozen food if you can freeze it immediately. In most shops, you can buy special insulating bags. These keep frozen food cold for longer.

- Use good quality food and handle it as little as possible. When food is frozen in small quantities, it takes less time to freeze or thaw it.

- Estimate the amount of food to be frozen. When freezing large quantities of fresh food, set the temperature control knob to low mode, this sets the freezer temperature lower. This allows you to freeze the food quickly, keeping it fresh.

5. MAINTENANCE AND CLEANING

Before cleaning the appliance, carefully review the safety information (Section 1).

CAUTION!

• Always remove the plug from the earthed socket before cleaning the appliance.
- Cleaning and user maintenance must not be carried out by children without supervision.
- Never touch the plug with wet or moist hands because of the risk of electric shocks and injury.
- Do not remove objects from the freezer compartment if your hands are wet/damp as this
- may cause grazes or frostbite.
- Do not put your hands unprotected in the bottom of the appliance as the sharp metal corners can cause scratches.
- Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your appliance.
- Do not use the appliance if any of its components are damaged or faulty. Replace a damaged or faulty appliance immediately. Remove the plug from the earthed socket and contact customer service.

ATTENTION!

• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Never open the appliance. The appliance may only be opened for maintenance by an authorised service technician.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts etc.
• The electrical parts of the appliance may only be cleaned with a dry cloth.

NOTE

Once in use, it is best to use the appliance continuously. Under normal circumstances it is best not to interrupt its use in order not to affect the lifetime of the appliance.

DEFROSTING

This freezer is a no-frost freezer. This means that defrosting is automatic. If ice does form in the freezer, please contact our customer service as this should not happen.

INTERIOR AND EXTERIOR CLEANING

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly.
• Remove all drawers, shelves, door compartments etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
  • Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this (no water).
• If the appliance will not be used for several months, switch it off, unplug it from the socket, clean and dry it and leave the door open to prevent mould forming in the appliance. For more information on switching off and storage, see Section 7.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. If the following descriptions do not solve your problem, please contact our customer service:

www.coolblue.nl/en/customer-service

Only an authorised service technician may solve the malfunctions that are not listed in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS

The appliance does not cool at all.	- The control knob for the temperature is wrong.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- The appliance is installed in a place where the ambient temperature is less than -15°C, such as a balcony, garage or storage room.- The power has failed.	- Set the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than -15°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.- Try to open the door of the appliance as little as possible to keep the food safe and fresh for hours. If you know about the power failure beforehand: Set the thermostat button in the high mode an hour in advance, so that the food is frozen completely. (Do not add any other food to freeze during this period!) Set the temperature mode back to the original setting in good time when the power supply is restored.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the appliance.	- There is spoiled food in the appliance.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
PROBLEM POSSIBLE CAUSE SOLUTIONS
The compressor works continuously.	- Too many products are stored at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the next section.
The side panels are hot.	- This is normal.The heat exchanger components are on the side of the appliance.Immediately after installation, the sides become hot, after the fridge reaches its internal temperature,the temperature of the side panels will decrease.
Abnormal noise	- The appliance is not stable/level.- The appliance is making contact with the wall or other objects.- 'Super Freeze' mode has been turned on.	- Readjust the appliance's adjusting legs.- Move the appliance slightly.- This is normal. 'Super Freeze' mode uses the maximum power of the appliance.
The temperature cannot be set.	- 'Super Freeze' mode has been turned on.	- See Section 4 'Use' to deactivate 'Super Freeze' and set the temperature.
The appliance freezes too much.	- The temperature of the appliance is set too high.- 'Super Freeze' mode has been turned on.	- See Section 4 for information on how to set the temperature.The recommended temperature setting for this appliance is -18°C.- See Section 4.3 for information on how to turn off 'Super Freeze' mode.
The alarm goes off.	- The door is open.- The temperature in the appliance is too high.- In addition to the alarm going off, the 5 indicator lights on the temperature display also flash (the 'Super' light and the 4 digit lights from '-14' to '-20').	- Make sure the door is completely closed and stays closed.- Press the 'Set' button to deactivate the alarm.- Lower the ambient temperature by opening windows or doors or using blinds. Allow hot food to cool to room temperature before putting it in the freezer. See Section 4.4 for more information.

Contact the service centre if the fault occurs again.

7. TAKING OUT OF SERVICE

Switching off and storage

• If the appliance will not be used for several months, first switch it off and then pull the plug out of the socket.
  • Make sure the appliance is completely thawed.
• Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
• Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
• Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
• Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
• The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

DANGER!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

The materials used in this appliance marked with this symbol are recyclable. This marking indicates that, throughout the EU, this product must not be disposed of with the household waste.

This symbol indicates that the device must not be disposed of with other household waste within the EU. By disposing of the device properly, you help to prevent possible dangers to the environment and human health. The recycling of materials contributes to the conservation of natural resources. Therefore, do not dispose of discarded electronic devices with household waste. When disposing of the device, follow the national and local regulations regarding the environmentally friendly disposal of electronic equipment. You can also contact Veripart when you no longer want to use the device or you can return the device to a Coolblue store of your choice.

ATTENTION!

• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.

Veripart contact details

Veripart is a registered brand of Wisepick Productions B.V.

Customer service can be reached at: www.coolblue.nl/en/customer-service

Veripart

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

MANUEL D'UTILISATION

CONGÉLATEUR

VPVR185NFCW

VERIPART

TABLE DES MATIÈRES

AVANT-PROPOS

46

1. SÉCURITÉ 47

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Simple line drawing of a rectangular sign with an 'X' symbol in the center, mounted on a base.

5. Attente

Line drawing of a hand installing or adjusting a shelf panel (no text or symbols)

Diagram of a mechanical or electrical component with two upward-pointing arrows, no text or symbols present.

3.2 INVERSION DU SENS DE ROTATION DE LA PORTE

Line drawing of a screwdriver with a pointed tip (no text or symbols)

• Tournevis cruciforme

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

- Clé à molette

Line drawing of a screwdriver with no text or symbols

- Tournevis plat

Pièces fournies :

Technical line drawing of a vertical metal frame with mounting brackets (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a separate bracket component (no text or symbols)

Diagram of a mechanical assembly with a curved arrow indicating rotation or motion (no text or symbols present)

Mechanical assembly diagram showing a shaft and housing with a bolt, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Two identical mechanical device diagrams with no visible text, numbers, or symbols.

Simple line drawing of a door handle with a small inset detail (no text or symbols)

Line drawing of a mechanical bracket or bracket with a small object on top (no text or symbols)

Diagram of a document with arrows indicating rotational movement (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating downward motion (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Diagram of a mechanical device with a rotating arrow indicating rotation, no text or symbols present

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Line drawing of a screwdriver with a circular head and threaded shaft (no text or symbols)

Technical line drawing of a mechanical bracket or bracket assembly with a pencil inserted (no text or symbols)

Technical diagram showing two labeled components (① and ②) with directional arrows indicating movement or force.

3.3 REMPLACEMENT DE L'ÉCLAIRAGE LED

Lock Unlock

4.3 STOCKAGE DES ALIMENTS

Simple line drawing of a vertical container with a black checkmark on the side (no text or symbols)

Diagram showing a device with a black 'X' symbol on its screen, likely indicating cancellation or error.

5. Warten

Illustration of a hand holding a shelf with a wooden plank (no text or symbols)

Diagram of a mechanical or electrical component with two upward-pointing arrows, no text or symbols present.

Line drawing of a screwdriver with a pointed tip (no text or symbols)

Line drawing of an adjustable wrench with a handle and screw (no text or symbols)

Technical line drawing of a vertical metal frame with mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a screw and bracket (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a bracket (no text or symbols)

Technical line drawing of two rectangular metal enclosure units, one open and one closed, with no visible text or symbols.

Line drawing of a door lock mechanism with handle and mounting bracket (no text or symbols)

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Technical line drawing of a mechanical bracket with mounting holes and a separate bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating motion or direction (no text or symbols)

Mechanical assembly diagram showing a shaft and nut assembly with a directional arrow (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket with two cylindrical components and a curved arrow indicating rotation (no text or symbols)

Two identical mechanical device diagrams with no visible text, numbers, or symbols

Line drawing of a small electronic device mounted on a bracket, with no visible text or symbols

Line drawing of a corner-mounted device with a small screen on top (no text or symbols)

Diagram of a document with arrows indicating rotational movement, no text or symbols present

Technical line drawing of a mechanical bracket with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a bracket (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Diagram of a mechanical device with an arrow indicating rotational motion (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical bracket or frame assembly (no text or symbols)

Handgriff anbauen

Line drawing of a screwdriver with a circular head and threaded shaft (no text or symbols)

Technical line drawing of a mechanical bracket or bracket assembly with a pencil inserted (no text or symbols)

Technical diagram showing two labeled components (① and ②) with directional arrows indicating movement or force.

Lock Unlock

Veripart contact details

Veripart is a registered brand of Wisepick Productions B.V.

Veripart

Weena 664

3012 CN Rotterdam

The Netherlands

www.coolblue.nl

Made in China
