Product Type	LED Dog Harness
Brand	Zoofari
Model	IAN 337489
Available Sizes	S, M, L
Chest Girth (Size S)	Approx. 48 cm
Belly Girth (Size S)	50 to 65 cm
Chest Girth (Size M)	Approx. 52 cm
Belly Girth (Size M)	60 to 75 cm
Chest Girth (Size L)	Approx. 52 cm
Belly Girth (Size L)	70 to 85 cm
Power Supply Type	Rechargeable Integrated Battery
Battery Voltage	3.6 V
Battery Capacity	40 mAh
Battery Type	LIR2032 (Lithium-ion)
Charging	Via USB cable (micro USB)
Lighting Modes	3 modes: fast flash, slow flash, steady
Protection Class	Splash-proof
Main Material	Textile (not specified)
Use	Domestic, for dogs
Care Instructions	Clean with a damp cloth
Warranty	3 years from date of purchase
Repairability	Spare parts available during warranty period (per manual)
Package Contents	1 harness, 1 USB cable, 1 manual

Frequently Asked Questions - IAN 337489 ZOOFARI

How to choose the correct harness size?

Measure your dog's chest and belly girth. For sizes M and L, there should be a gap of four finger widths between the belly and front legs; for size S, two finger widths. The dog should be able to move its front legs freely.

How to recharge the harness battery?

Remove the battery from the harness, connect the included micro USB cable to the battery, then plug the USB end into a powered computer or USB charger. The red light turns on during charging and turns off when the battery is full.

How to turn the LEDs on and off?

Press the on/off button: once for fast flash, twice for slow flash, three times for steady light, four times to turn off.

Is the harness water resistant?

Yes, it is splash-proof, but should not be submerged. Avoid charging outdoors or in a humid environment.

Can I replace the battery myself?

No, the battery is integrated and not user-replaceable. At end of life, remove it only for disposal, without reusing it.

How to clean the harness?

Clean with a damp cloth, then wipe dry. Never use harsh cleaning products. If your dog has been sick, disinfect with a suitable product recommended by a vet.

What if the harness is too big for my dog?

If the harness is too large, the dog may slip out with its front legs. It is important to choose the correct size by following the given measurements.

Can I use this harness for professional use?

No, it is designed for domestic use only, not commercial. Proper use is as described in the manual.

What if the battery gets hot during charging?

Let the battery cool down for at least 5 to 10 minutes before recharging. Do not cover the item or leave it unattended while charging. If it burns, do not use water but dry sand.

How to dispose of the harness and battery?

Do not dispose of the product with household waste. Remove the battery and take it to a municipal collection point. The harness can be recycled according to local regulations.

USER MANUAL IAN 337489 ZOOFARI

Instructions for use

FR BE

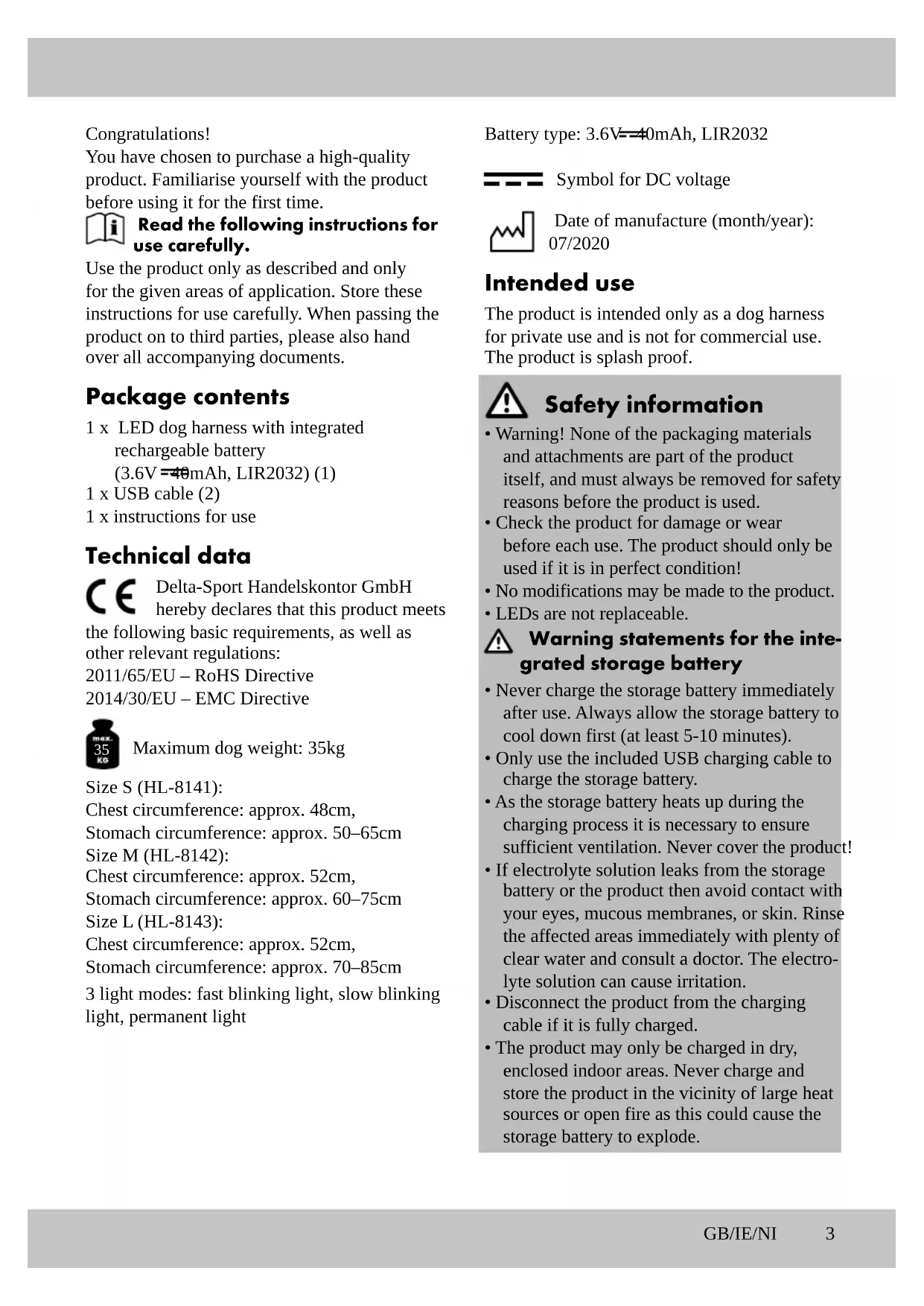

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x LED dog harness with integrated rechargeable battery

$$ (3. 6 \mathrm {V} = 4 0 \mathrm {m A h}, \text {L I R} 2 0 3 2) (1) $$

1 x USB cable (2)

1 x instructions for use

Technical data

CE Delta-Sport Handelskontor GmbH hereby declares that this product meets

the following basic requirements, as well as other relevant regulations:

2011/65/EU - RoHS Directive

2014/30/EU - EMC Directive

Maximum dog weight: 35kg

Size S (HL-8141):

Chest circumference: approx. 48cm

Stomach circumference: approx. 50-65cm

Size M (HL-8142):

Chest circumference: approx. 52cm

Stomach circumference: approx. 60-75cm

Size L (HL-8143):

Chest circumference: approx. 52cm

Stomach circumference: approx. 70-85cm

3 light modes: fast blinking light, slow blinking light, permanent light

Battery type: 3.6V = 40mAh , LIR2032

Symbol for DC voltage

Date of manufacture (month/year): 07/2020

Intended use

The product is intended only as a dog harness for private use and is not for commercial use. The product is splash proof.

Safety information

• Warning! None of the packaging materials and attachments are part of the product itself, and must always be removed for safety reasons before the product is used.
• Check the product for damage or wear before each use. The product should only be used if it is in perfect condition!
• No modifications may be made to the product.
• LEDs are not replaceable.

Warning statements for the integrated storage battery

• Never charge the storage battery immediately after use. Always allow the storage battery to cool down first (at least 5-10 minutes).
• Only use the included USB charging cable to charge the storage battery.
• As the storage battery heats up during the charging process it is necessary to ensure sufficient ventilation. Never cover the product!
• If electrolyte solution leaks from the storage battery or the product then avoid contact with your eyes, mucous membranes, or skin. Rinse the affected areas immediately with plenty of clear water and consult a doctor. The electrolyte solution can cause irritation.
• Disconnect the product from the charging cable if it is fully charged.

• The product may only be charged in dry, enclosed indoor areas. Never charge and store the product in the vicinity of large heat sources or open fire as this could cause the storage battery to explode.

• If the storage battery catches fire during the charging process then do not extinguish it with water but rather with dry sand, for example.

• Do not leave the product unsupervised during the charging process and look out for any signs of overheating.
• Only charge the storage battery in ambient temperatures of 5 - 35^
• The charging contacts on the device may not be connected using metal objects.
• If the product has been subjected to a strong blow then store it in a safe place for the next 30 minutes (e.g. in a metal box).
• Never attempt to manipulate, modify, or repair a storage battery or the product.
• When the storage battery reaches the end of its useful life the storage battery must be removed and the product must be disposed of. Do not try to replace the storage battery.
• The storage battery that has been removed for disposal must not be re-used or dismantled.

Danger!

The storage battery could be damaged and you could seriously injure yourself while removing it:

• Be sure not to damage the storage battery during its removal.
• Do not dismantle the storage battery after removal.
• The storage battery may not be thrown into the fire or short-circuited after removal. The storage battery could overheat and explode.

Use

Determining the correct size

Selection of the correct size is important for the safe and comfortable use of the product.

Determine the correct size as follows:

For sizes M and L the product must sit four finger widths behind the front legs, for size S two finger widths.

The size is correct if the dog can move freely with its front legs.

Note: if the product is too large then there is a risk that the dog will step out of the product with its front legs.

Charging the rechargeable battery (Fig. B)

1. Remove the rechargeable battery (3) from the product.
2. Connect the micro USB plug (2b) of the USB cable (2) to the battery connector (3a) of the rechargeable battery.
3. Plug the USB plug (2a) of the USB cable into a USB port on a powered-on computer or charging station with a USB port.

The charging process is indicated by a red LED (3b). The LED goes off as soon as the rechargeable battery is fully charged.

Putting on the product

1. Open the hook-and-loop fastening (1c) and guide the product over the dog's head.
2. Close the belly strap and pull the buckle at the top of the belly strap tight (Fig. A).

Note: make sure that two fingers fit between the product and the dog's back.
3. Attach the leash (not included in the package contents) to the leash ring (1a).

Turning the light on and off

The LED dog harness can light up by pushing a button. To do so press the on/off button (1b).

You have three different light modes to choose from:

Press 1 x: light blinks quickly.

Press 2 x: light blinks slowly.

Press 3 × : light shines continuously.

Press 4× to turn the light off.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Only clean the product with a damp cloth and wipe dry afterwards.

The product must be disinfected if the animal gets sick or after an illness.

You should consult a veterinarian you trust and ask for a suitable cleaner and disinfectant.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty

disposal facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household

waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Disposc of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and

numbers (b) with the following meaning: 1-7: plastics/20-22: paper and cardboard/80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN:337489_2001

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
