| Product type | Umbrella clothes dryer (outdoor drying rack) |
| Brand | AQUAPUR |
| Model | IAN 385246 |
| Article reference | CS92033K |
| Use | Outdoor only |
| Dimensions (unfolded) | approx. 167 x 167 x 187 cm (L x H x D) |
| Deployed diameter | approx. 2.36 m |
| Useful height | 170.5 cm |
| Dimensions (folded) | approx. 11 x 11 x 189 cm (L x H x D) |
| Vertical tube diameter | approx. 3.2 cm |
| Weight | approx. 4.10 kg |
| Maximum load | 50 kg |
| Total rope length | approx. 50 m |
| Material | Steel |
| Resistance | UV and weather |
| Number of arms | 6 arms (umbrella dryer) |
| Noise level | None (silent) |
| Power supply | None (manual) |
| Maintenance | Clean with a damp cloth; store indoors off-season |
| Safety | Do not use in strong wind; do not exceed 50 kg; keep children away |
| Spare parts | No spare parts provided; do not repair yourself |
| Warranty | Refer to the full manual |
| Production ID | 04/2022 |
Frequently Asked Questions - IAN 385246 AQUAPUR
User questions about IAN 385246 AQUAPUR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tumble drier in PDF format for free! Find your manual IAN 385246 - AQUAPUR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 385246 by AQUAPUR.
USER MANUAL IAN 385246 AQUAPUR
DE AT CH
WÄSCHESPINNE
Kurzanleitung
FR BE
SÉCHOIRPARAPLUIE
ROTARY CLOTHES AIRER
Shortmanual
NL BE
WASSPIN
Korte handleiding
CZ
SUŠÁK NA PRÁDLO
Krátký návod
ES
TENDEDERO
Guía rápida
IT
STENDIBIANCHERIA
Guidarapida
SI
SUŠILNIKPERILA
Kratkanavodila
GB/IE Short manual Page 11


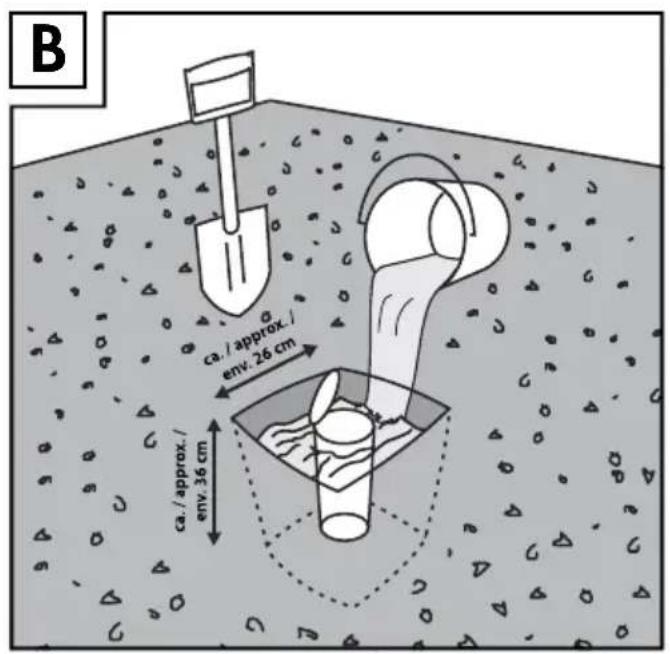

B ca. / approx. / env. 26 cm ca. / approx. / env. 36 cm


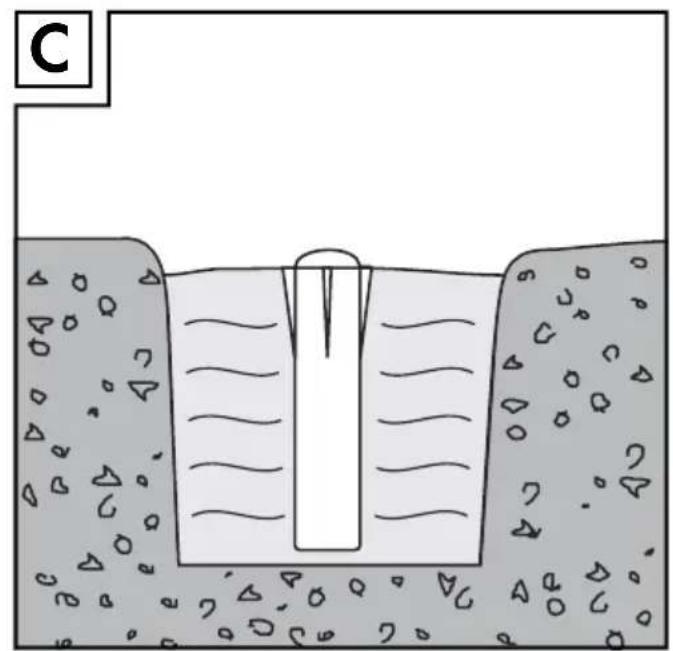

Cross-sectional diagram of a water channel with sediment layers and a central pipe (no text or symbols)


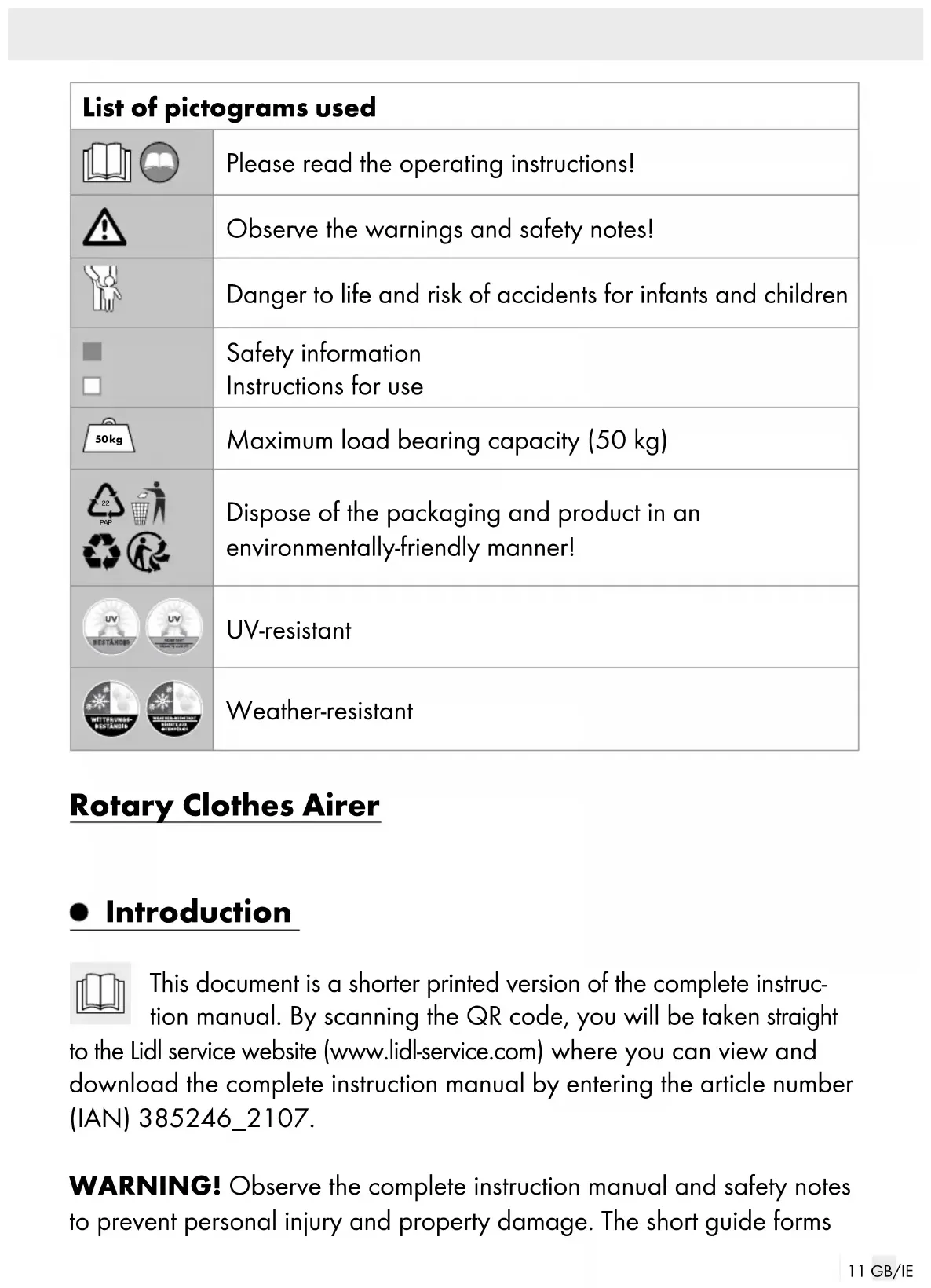

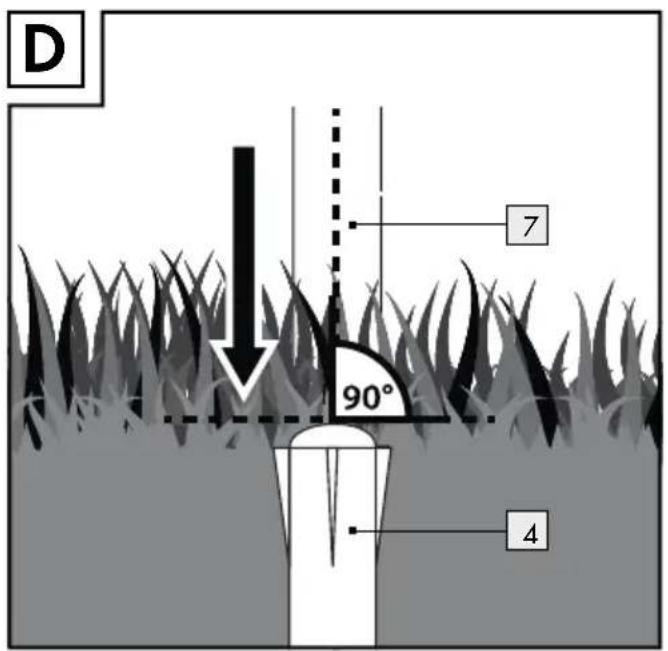

D 7 90° 4| List of pictograms used | |
 | Please read the operating instructions! |
 | Observe the warnings and safety notes! |
 | Danger to life and risk of accidents for infants and children |
 [063G] | Safety informationInstructions for use |
 | Maximum load bearing capacity (50 kg) |
  | Dispose of the packaging and product in an environmentally-friendly manner! |
  | UV-resistant |
  | Weather-resistant |
Rotary Clothes Airer
- Introduction
This document is a shorter printed version of the complete instruction manual. By scanning the QR code, you will be taken straight
to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 385246_2107.
WARNING! Observe the complete instruction manual and safety notes to prevent personal injury and property damage. The short guide forms
an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Keep the short manual well preserved and if you hand the product on to third parties, all documentation should be passed on as well.
This product is a rotary clothes airer. For outdoor use only. Modifying the product is prohibited and will result in damage. Misuse may also result in other life-threatening risks and injuries. This product was designed for private use only. It is not intended for commercial use. The manufacturer is not liable for damages due to improper use.
- Parts description
1 Washing line
2 Arms
3 Steel tube
4 Ground sleeve
5 Ground sleeve cap
6 Protective cover
7 Support column
8 Grip button
9 Star component
10 Handle
- Technical data
Item number: CS92033K
Total drying length: approx. 50 m
Maximum load: 50 kg
Item weight: approx. 4.10 kg
Item dimensions when opened: approx. 167 cm x 167 cm x 187 cm
$$ (W \times H \times D) $$
Item dimensions when closed: approx. 11 cm x 11 cm x 189 cm
$$ (W \times H \times D) $$
Side span width: approx. 1.67 m
Diameter when spread out: approx. 2.36 m
Column diameter: approx. 3.2 cm
Usable height: 170.5 cm
Production ID: 04/2022
Safety information
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave
children unsupervised with the packaging material. There is a danger of suffocation.
WARNING! RISK OF STRANGULATION AND SUFFO-
CATION! Never allow children to play with the packaging film or the washing line. Children can get entangled in them whilst playing and suffocate. The product must be stored out of the reach of children and in a closed room!
This product is not a toy. Please keep children away from the product.
■ CAUTION! CRUSHING HAZARD! Be careful with your hands and fingers when opening or closing the product.
- Check the product for any damages routinely and before each use. Do not use a damaged product.
Do not use the product for hanging or storing other items.
Only use the product on a level and stable surface and make sure it is firmly positioned.
Do not use the product in strong winds or storms.
Distribute the laundry evenly over the product when hanging it up.
Never attempt to repair the product yourself. No replacement parts are included for this product.
Do not sit or lean on the product.
Do not exceed the product's maximum load capacity of 50 kg.

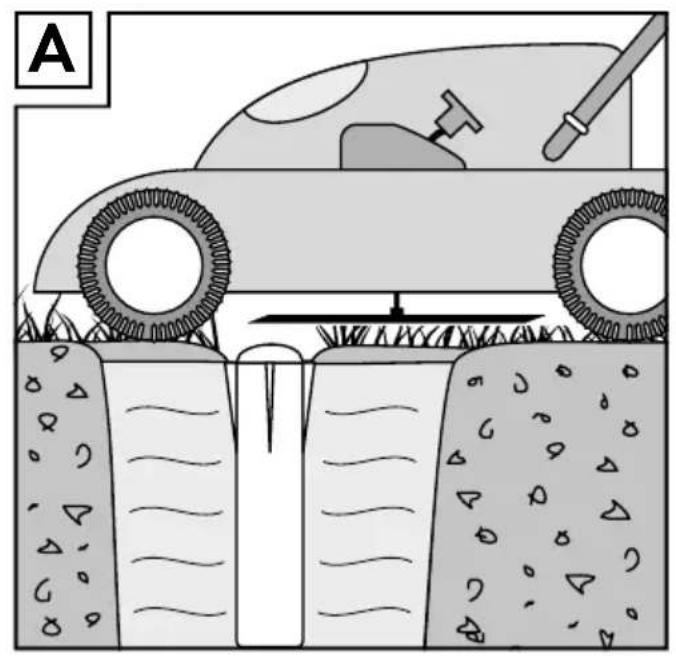

If you would like to secure the ground sleeve into a lawn, make sure that the cap is just below ground level in order to prevent damages when mowing the lawn.
