HG06177 - Camping table Rocktrail - Free user manual and instructions

Product type	Camping table
Brand	Rocktrail
Model	HG06177
Dimensions (set up)	70 × 70 × 70 cm (L × H × D)
Dimensions (folded)	72 × 18 × 12 cm
Weight	3.4 kg
Maximum load	50 kg
Frame	Metal frame with slatted tabletop
Delivery contents	Table frame (1), rods (2), edge guards (2), slatted tabletop (1), carry bag, assembly instructions
Intended use	Camping, outdoor domestic use
Safety	Do not sit on it, avoid lateral load, use on a flat surface
Cleaning	Damp cloth with mild detergent, dry before storing
Storage	Dry, clean place at room temperature
Warranty	3 years from date of purchase
After-sales service France	Tel. [phone], Email: [e-mail]
After-sales service Belgium	Tel. [phone] (Luxembourg: 80023970), Email: [e-mail]
Spare parts	Available during warranty period
IAN reference	384973_2107

Frequently Asked Questions - HG06177 Rocktrail

How to assemble the Rocktrail HG06177 table?

Take the table out of the bag. Gently unfold the frame by the opposite corners. Insert the two rods into the supports. Place the edge guards aligning the notches. Put on the slatted tabletop and press firmly on the four corners to engage the pins. Refer to the manual for details.

What is the maximum weight the table can support?

The maximum load is 50 kg. Do not exceed this limit to avoid any risk of tipping or damage.

Can I sit on the table?

No, it is strictly forbidden to sit or climb on the table. The product is not designed to support a person's weight and could tip over or break.

What material is the table made of?

The frame is metal and the tabletop consists of slats (material not specified in the manual). The carry bag is made of fabric.

How to clean and maintain the table?

Clean with a damp cloth soaked in mild detergent. Do not use harsh products. Thoroughly dry all parts before storing to prevent mold and bad odors.

What are the dimensions of the table when folded?

The transport dimensions are approximately 72 x 18 x 12 cm (height x width x depth). It comes with a shoulder carry bag.

Can I use an umbrella with this table?

No, do not attach an umbrella to the table. Only use an umbrella with its own stand, as the table is not stable enough to support a lateral load.

How long is the warranty?

The table comes with a 3-year warranty from the date of purchase. Keep the receipt as proof of purchase.

Where can I find spare parts?

Spare parts necessary for use are available during the warranty period. Contact customer service at the details provided in the manual.

How to store the table after use?

Store the table in a dry and protected place at room temperature. Make sure it is clean and dry before folding and putting it in the carry bag.

USER MANUAL HG06177 Rocktrail

Black and white photo of a folding table with a coffee cup, plate of food, and armrest (no text or symbols visible)

ALUMINIUM-CAMPINGTISCH / ALUMINIUM CAMPING TABLE / TABLE DE CAMPING EN ALUMINIUM

DE AT CH

ALUMINIUM-CAMPINGTISCH

Assembly, operating and safety instructions

NL BE

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is suitable for private use and is not intended for commercial use. The product was manufactured for use when camping.

- Technical data

Dimensions (assembled): approx. 70 x 70 x 70 cm (W x H x D)

Dimensions (disassembled): approx. 72 x 18 x 12 cm (W x H x D)

Weight: approx. 3.4 kg

Max. load: 50 kg

• Description of parts and contents

1 Table frame x 1
2 Rod x 2
3 Edge protector x 2
4 Slatted tabletop x 1

1 Carrying bag with a shoulder strap 1 Set of assembly instructions and instructions for use

Safety information

KEEP THESE INSTRUCTIONS IN A SAFE PLACE! WHEN PASSING THIS PRODUCT ON TO OTHERS; PLEASE INCLUDE ALL THE DOCUMENTS.

DANG RONING!

LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. There is a danger of suffocation.

■ Make sure that no persons, particularly children, stand or pulls themselves up on the product. The product could tip over.

This product is not a toy and should only be used under adult supervision. The product is not a climbing frame or toy.

■ Never sit or stand on the product.

Do not use this product as surface to stand on, stepladder or surface to jump from.

Take care when unfolding or folding up the product in order to avoid injuries or getting trapped.

■ Make sure that your hands do not end up in the folding section in order to avoid injuries.

- Check the product for damage or wear before every use. Only use the product in good condition. Do not use the product if damages are visible or suspected.

■ Verify the product is stable before use.

Before use, set up the product on a level, firm surface, otherwise the product may become unstable and fall to one side or tip over. This could result in injuries or property damage.

■ When unfolding the product, make sure that the folding mechanism properly clicks into place before you use the product.

■ Make sure that you have completely unfolded the product before using it.

- Do not use the product near open fire.

- Secure the product in extreme weather conditions e.g. in strong winds.

■ Only use the product for its intended purpose and as outdoor furniture when camping.

Please note the maximum load capacity (see "Technical data"). Exceeding these weight limits may result in injuries and / or property damage.
As this product can be set up simply and quickly, it is not as stable as a standard table. Do not load the table with more than 50 kg of weight and avoid loading it on one side, as this table can tip over faster than standard outdoor tables due to its low weight.
- Do not attach a parasol to the table. Only use a parasol with its own base frame.

RISK OF DAMAGE TO THE PRODUCT OR

PROPERTY! We are not liable for accidents resulting from failure to comply with the above safety instructions or from improper handling.

Assemble the product

☐ Take out the product from the carrying bag.
☐ Pull the table frame 1 slowly and steadily apart holding the opposite corners as shown in figure B.

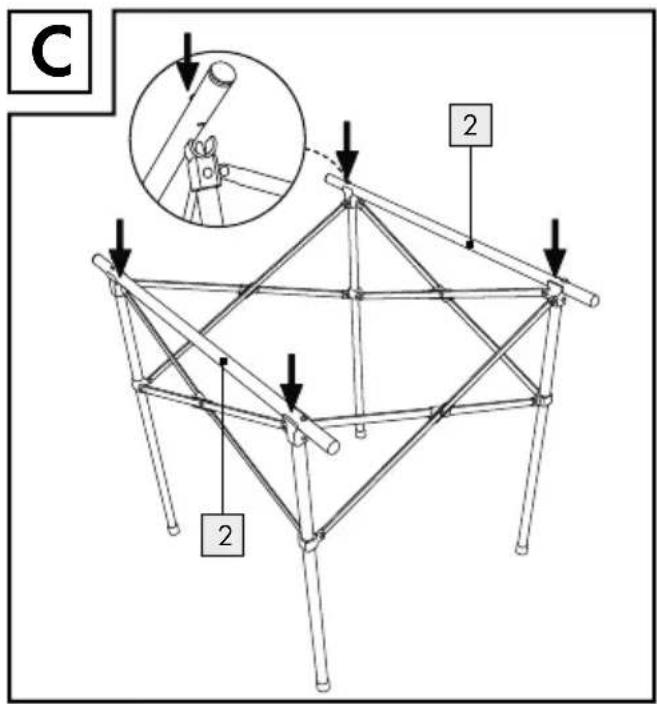

☐ Insert the two rods 2 into the designated holders on the table frame 1 (see fig. C).

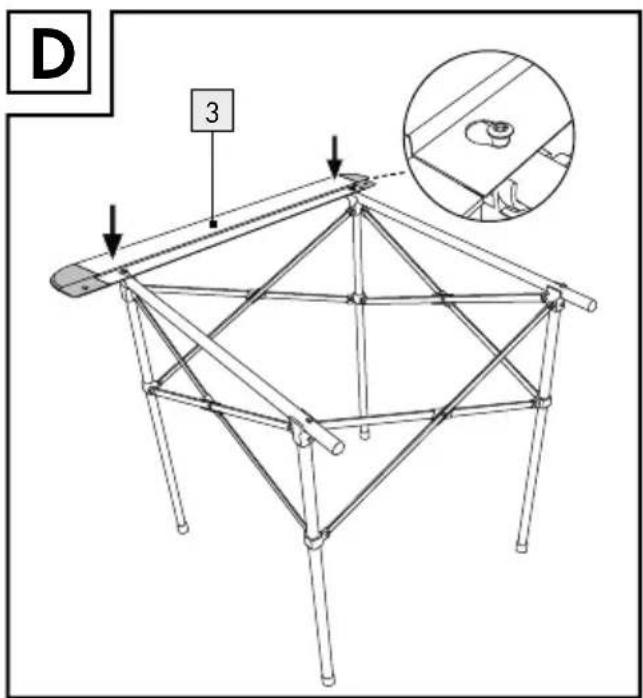

□ Apply the edge protection 3. Please ensure that the notches on the edge protection 3 are inserted into the rod 2 holders (see fig. D).

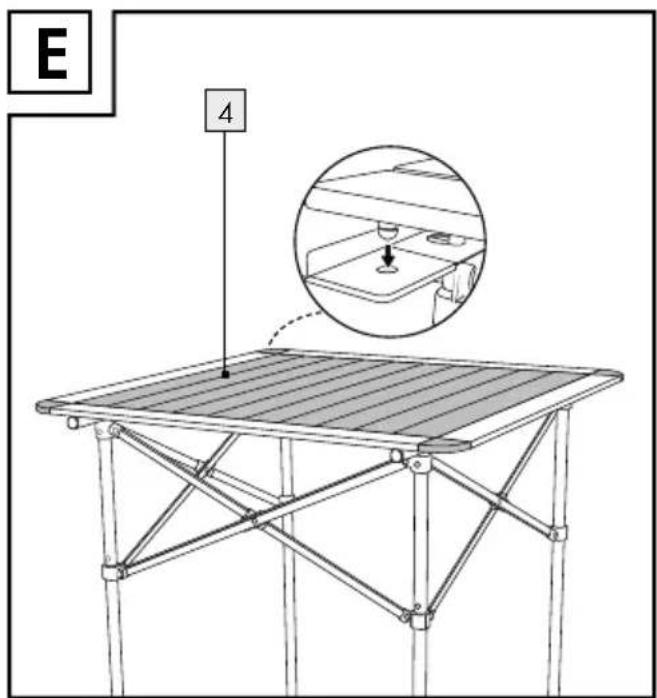

☐ Put on the slatted table top 4 and click the four corners into place (see fig. E).

Note: Ensure that the pins on the underside the slats fit exactly over the holes in the edge protection 3 so that they click correctly into place.

Dismantle the product

☐ To dismantle the product, follow the instructions in the "Assemble the product" section in reverse order.

Cleaning and care

- Do not clean the product with harsh cleaning agents.

□ Clean the product using a damp cloth and a mild detergent.
- Allow all the parts to dry thoroughly before you put the product away again. This will prevent the build-up of mould, odours and discolouration.

Storage

Store the product in a sheltered, dry room. Always store the dry and clean product at room temperature.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 384973_2107) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

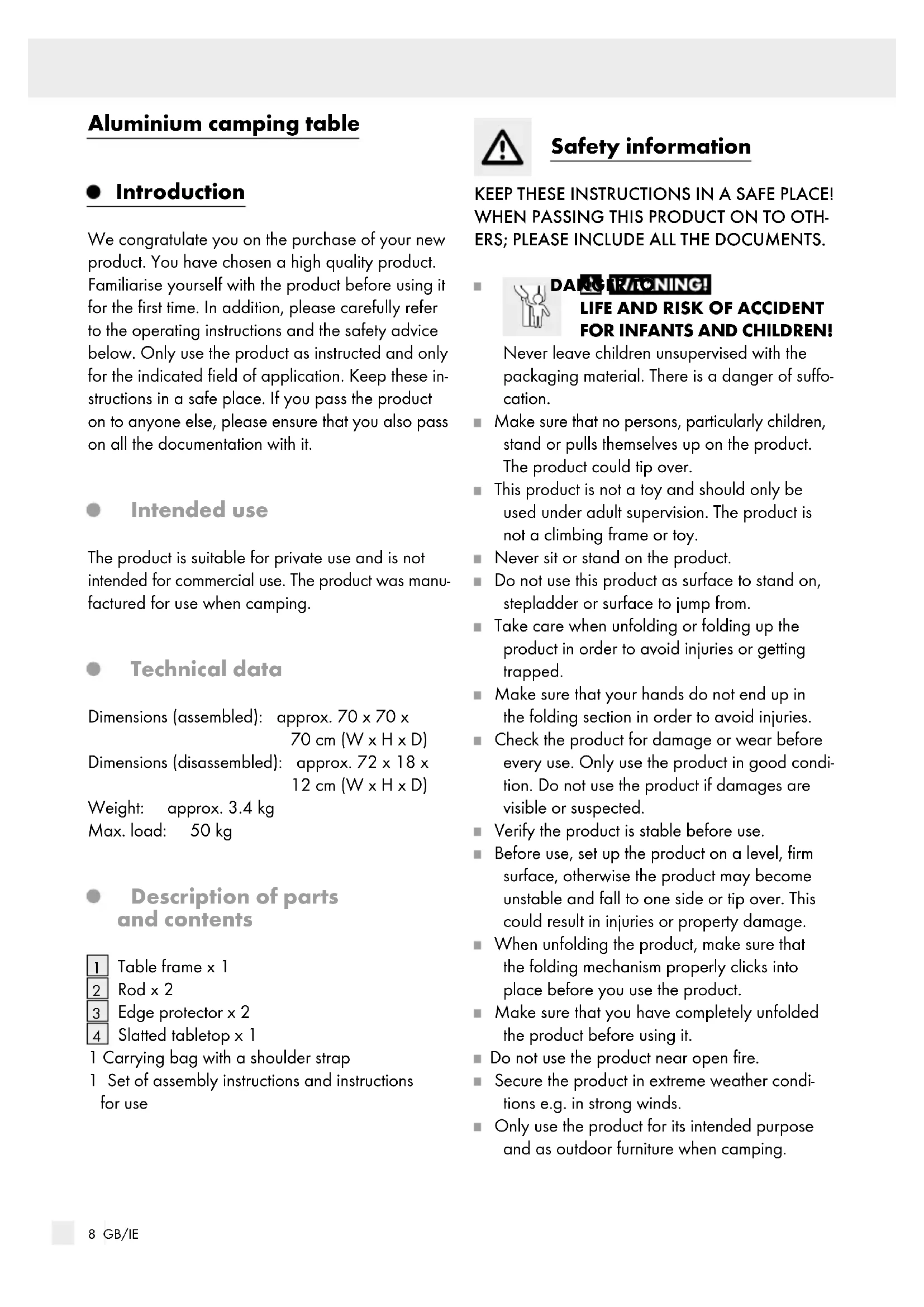

Table de camping en aluminium

- Introduction

LE- ⚠ WAARSCHUWING! VENSGEVAAR EN KANS OP ONGEVALLEN VOOR KLEUTERS

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA

Diagram of a geometric structure with intersecting lines and arrows, labeled 'B' and '1' (no text or symbols on the diagram itself)

C 2 2

D 3

E 4

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

GERMANY

Model-No.: HG06177

Version: 01 / 2022
