USER MANUAL WML55011HW WHIRLPOOL

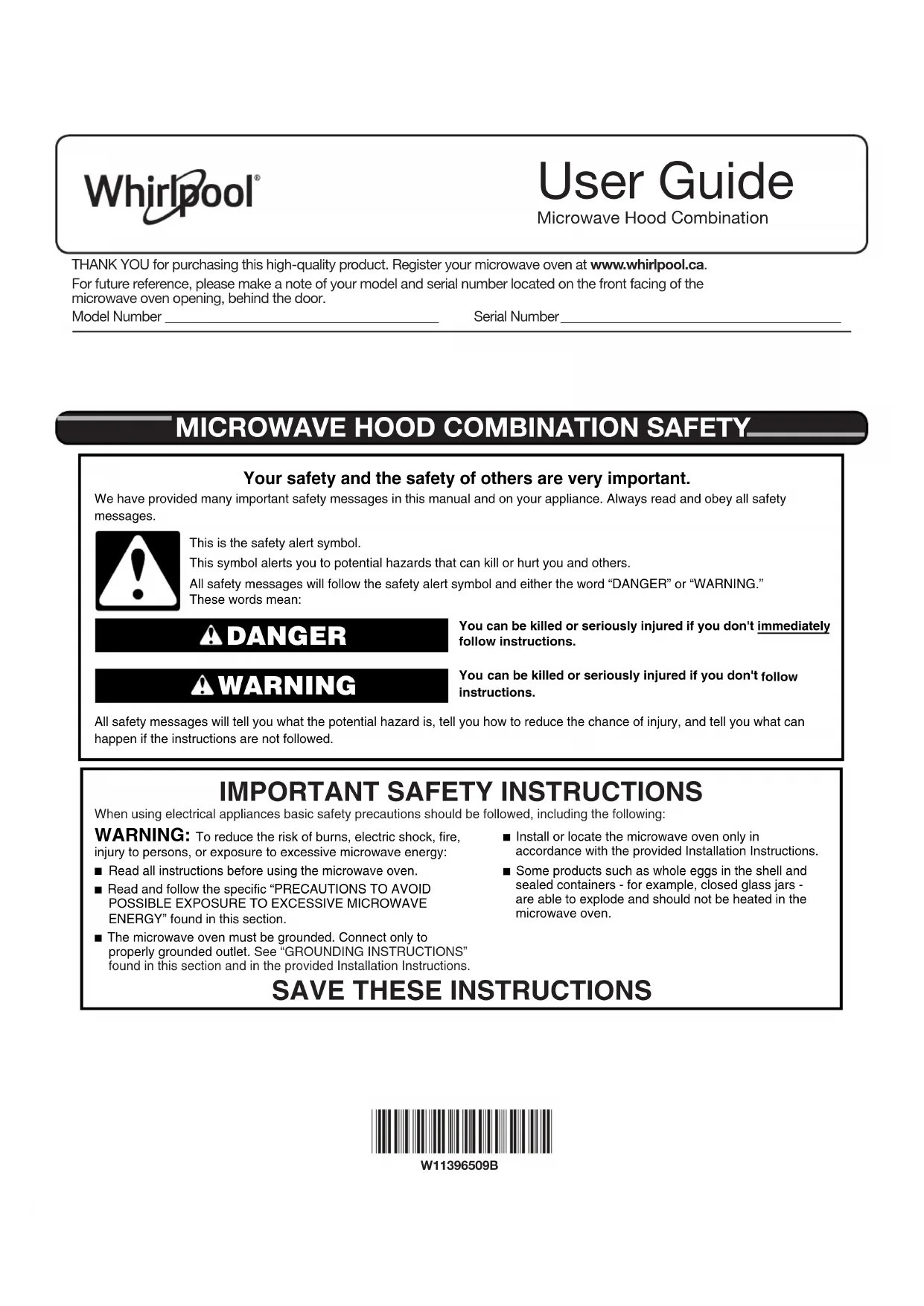

User Guide Microwave Hood Combination THANK YOU for purchasing this high-quality product. Register your microwave oven at www.whirlpool.ca. For future reference, please make a note of your model and serial number located on the front facing of the microwaveovenopening, behind the door. Model Number _________________________________________ Serial Number __________________________________________

MICROWAVE HOOD COMBINATION SAFETY

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.Your safety and the safety of others are very important.We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING When using electrical appliances basic safety precautions should be followed, including the following:

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of burns, electric shock, fire,

injury to persons, or exposure to excessive microwave energy: Read all instructions before using the microwave oven.■ Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section. ■ The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section and in the provided Installation Instructions.■ Install or locate the microwave oven only in accordance with the provided Installation Instructions.■ Some products such as whole eggs in the shell and sealed containers - for example, closed glass jars - are able to explode and should not be heated in the microwave oven. W11396509B2

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Use the microwave oven only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. ■ As with any appliance, close supervision is necessary when used by children. ■ Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. ■ The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment. ■ Do not cover or block any openings on the microwave oven. ■ Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. ■ Do not immerse cord or plug in water.

Keep cord away from heated surfaces.

Do not let cord hang over edge of table or counter. ■ See door surface cleaning instructions in the “Microwave Oven Care” section.

To reduce the risk of fire in the oven cavity: – Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. – Remove wire twist-ties from paper or plastic bags before placing bags in oven. – If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. – Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. ■ Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS

SUDDENLY BOILING OVER WHEN THE CONTAINER

IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: – Do not overheat the liquid. – Stir the liquid both before and halfway through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the microwave oven for a short time before removing the container. – Use extreme care when inserting a spoon or other utensil into the container.

Do not mount over a sink. ■ Do not store anything directly on top of the microwave oven when the microwave oven is in operation. ■ Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.

When flaming foods under the hood, turn the fan on.

Suitable for use above both gas and electric cooking equipment. ■ Intended to be used above ranges with maximum width of 36" (91.44 cm). ■ Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter.

(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.3 Electrical Requirements Observe all governing codes and ordinances.Required: ■ A 120 V, 60 Hz, AC-only, 15 A or 20 A electrical supply with a fuse or circuit breaker.Recommended: ■ A time-delay fuse or time-delay circuit breaker. ■ A separate circuit serving only this microwave oven.Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For all cord connected appliances:The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can

result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.This device complies with Part 18 of the FCC Rules.This device complies with Industry Canada ICES-001.

OPERATING YOUR MICROWAVE OVEN

Settings Clock The clock is a 12 hour (12:00-11:59) clock. Touch CLOCK, enter time, then touch CLOCK or the Start control. Timer With the microwave oven in Standby mode, touch the Timer control, enter time, then touch the Timer control or the Start control. Cook functions may be entered while the Timer is counting down. To cancel timer, touch Timer control while the Timer countdown is active in the display. Vent Fan Press the Vent Fan keypad once for High setting. You may press this keypad repeatedly and choose a different speed. There are three available speeds HIGH(“HI”)--->MEDIUM(“H-L”)--->LOW(“LO”)--->OFF. Choose the speed you want.To keep the microwave oven from overheating, the auto hood fan will automatically turn on at high speed if the temperature from the range or cooktop below the microwave oven gets too hot. When this occurs, the hood fan cannot be turned off. Vent Light Pressing Vent Light keypad adjusts the vent light setting among HIGH(“HI”) -> LOW(“LO”) -> OFF. Control Lock Activate to avoid unintended start. Touch and hold the Cancel keypad for about 3 seconds until 2 tones sound and the CONTROL LOCKED appears in the display. When locked, touching any button on the keyboard (except for the hood control buttons and Cancel) will not work. Repeat to unlock control. Tones Open door, press and hold number keypad “4” for 5 seconds to disable button tones. Repeat to turn buttons tones back on. End of cycle & timer tones will still be active. Demo Mode Activate to practice using the control without actually turning on the magnetron. To activate : 1. Open door, press and hold number keypad “3” for 5 seconds, “d” icon lights up in the display.2. Press the start button within 5 seconds to turn demo mode on.3. “dOn_” icon lights up in the display.Note: If start button wasn’t pressed within 5 seconds, return to idle normal mode.To deactivate:Repeat the procedure as activation during an idle state clock / standby. Once start is pressed, deactivate demo mode, display “dOff” for 5 seconds and return to normal operation. Standby Power Mode When no functions are working (12 hour clock is displayed or if the clock has not been set), oven will switch to Standby Power mode and dim the display brightness after 2 minutes. Press any button or open/close the door, and then display will return to the normal brightness. Turntable For best cooking results, do not operate the microwave oven without having the turntable in place. Turntable may be turned off for manual cooking only.4 Cookware and Dinnerware Microwave-Safe ■ Browning dish (Follow manufacturer recommendations) ■ Ceramic glass, glass ■ China, earthenware (Follow manufacturer recommendations) ■ Melamine (Follow manufacturer recommendations) ■ Paper towels, paper plates, napkins (Use non-recycled paper) ■ Plastic wraps, bags, covers, dinnerware, containers (Follow manufacturer recommendations) ■ Pottery and clay (Follow manufacturer recommendations) ■ Silicone bakeware (Follow manufacturer recommendations) ■ Wax paper Do Not Use ■ Metal cookware and bakeware ■ Straw or wicker ■ Gold, silver, or pewter ■ Non-approved meat thermometers, skewers ■ Twist ties ■ Foil liners, such as sandwich wrappers ■ Staples ■ Objects with gold or silver trim or with metallic glaze To Test Cookware/Dinnerware: Place dish in microwave oven with 1 cup (250 mL) of water beside it. Program 1 minute of cook time at100%. If dish becomes hot and the water stays cool, do not use the dish in the microwave oven. Microwave Oven Use For list of preset programs, see the Cooking Guide label on the front facing of the microwave oven opening, behind the door. Any invalid entry will cause an Invalid Tone and be corrected to a value that is within range and closest to the entered value. Manual Cooking Touch number keypads to enter time, touch POWER (if not 100%), touch number keypads to enter power level (10-90), then touch the Start control. Preset Cooking Touch COOK, enter number code of food item, enter quantity, then touch the Start control. Preset Reheating Touch REHEAT, enter number code of food item, enter quantity, then touch the Start control. Preset Defrosting Touch DEFROST, enter number code of food item, enter quantity, then touch the Start control. Frozen Entree Touch FROZEN ENTREE, enter quantity: 10, 20, 40, 60 oz (283, 567, 1134, 1701 g), then touch Start control. Popcorn Touch Popcorn repeatedly, bag size 1.75, 3.0 (default), 3.5 oz (50, 85 or 99 g), close the door, then touch Start control. Pop only 1 package of popcorn at a time. Listen for popping to slow to 1 pop every 1 or 2 seconds, then stop the cycle. Cooking results may vary by brand and fat content.

General Cleaning IMPORTANT: Before cleaning, make sure all controls are OFF and the microwave oven is cool. Always follow label instructions on cleaning products. To avoid damage to the microwave oven caused by arcing due to soil buildup, keep cavity, microwave inlet cover, cooking rack supports, and area where the door touches the frame clean. Clean with mild soap, water, and a soft cloth or sponge or as indicated below. ■ Grease lter: mild soap and water or dishwasher ■ Door and exterior: mild soap and water, or glass cleaner applied to paper towel ■ Control panel: sponge or soft cloth and water ■ Stainless steel (on some models): mild soap and water, then rinse with clean water and dry with soft cloth, or use stainless steel cleaner ■ Turntable: mild soap and water or dishwasher Installing/Replacing Filters and Light Bulbs ■ Grease lters: Grease lters are underside of microwave oven. The grease lters should be removed and cleaned at least once a month. See the “Settings” section to reset lter status. NOTE: For recirculation: Do not operate the microwave oven without the lters in place. For wall and roof ventilation: To ensure good performance of airow, remove the charcoal lter from the bottom plate before operating the microwave oven. Refer the following steps for replacing grease lter:

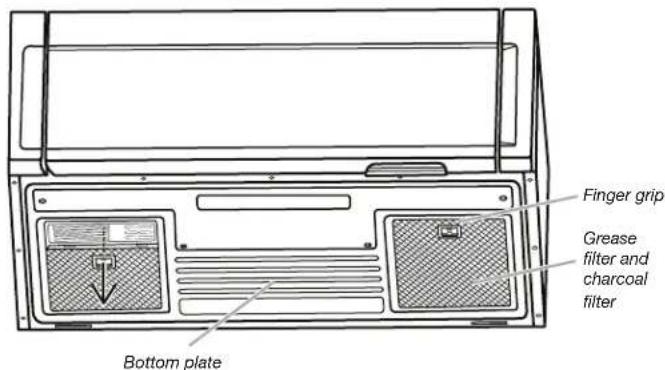

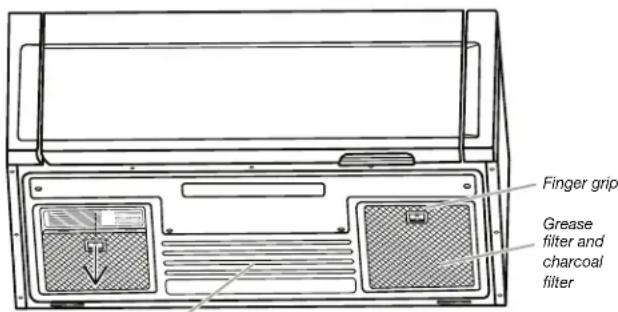

1. To remove the grease lter, push the nger grip back and then

pull down from the bottom plate. Finger grip Bottom plate Grease filter and charcoal filter5

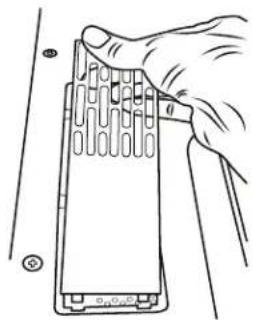

2. Clean the grease lter monthly, or replace with a new grease

3. Put the grease lter back to the bottom plate.

■ Charcoal lter: Charcoal lters are underside of microwave oven. The charcoal lter cannot be cleaned and should be replaced about every 6 months. See the “Settings” section to reset lter status. NOTE: For recirculation: Do not operate the microwave oven without the lters in place. For wall and roof ventilation: To ensure good performance of airow, remove the charcoal lter from the bottom plate before operating the microwave oven. Refer the following steps for replacing charcoal lter:

1. To remove the grease lter rst, push nger grip back and then

pull down from the bottom plate, and set aside.

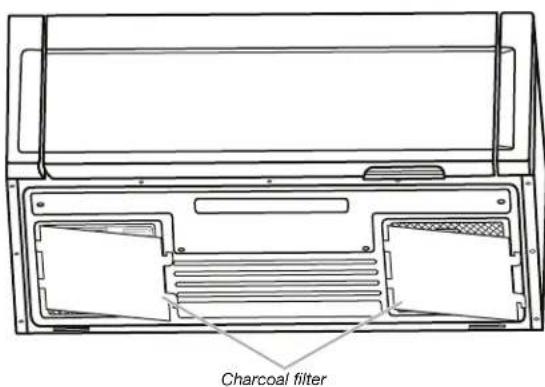

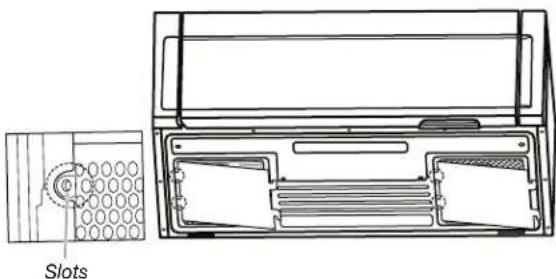

2. Take out the charcoal lter from the bottom plate.

3. Replace a new charcoal lter and reattach it back to the

bottom plate, and make sure both left and right sides insert to the bottom plate slots.

4. Put the grease lter back to the bottom plate.

■ Cooktop light: The cooktop light is located on the underside of the microwave oven and is replaceable. To replace the cooktop light, refer the following steps:

1. Using a Phillips screwdriver, remove the 4 screws from the “T”

shaped bottom lighting cover.

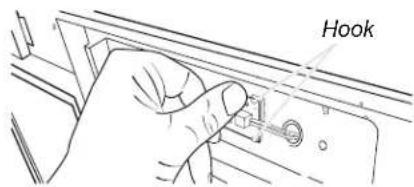

2. Push the 2 hooks backward, and take the LED out.

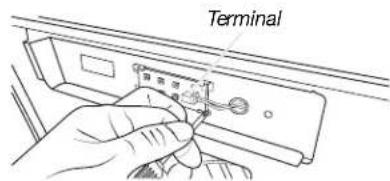

3. Unplug the terminal from the LED board.

4. Replace a new LED, press it back between two hooks and

plug in the terminal.

5. Using a Phillips screwdriver, reattach the 4 screws back to “T”

shape bottom lighting cover. Finger grip Bottom plate Grease filter and charcoal filter Charcoal filter Slots Hook Terminal Terminal6 ■ Cavity light: The cavity light bulb is located at the top front of the microwave oven, under the bulb cover, and is replaceable. To replace the cavity light, refer the following steps:

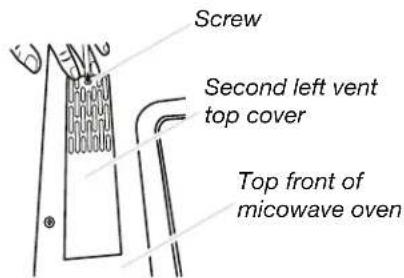

1. Using a Phillips screwdriver, remove the second left vent top

cover screw from the top front of the microwave oven.

2. Remove the second left top cover.

3. Pull out the halogen light from the light holder.

4. Insert a new halogen.

5. Reattach the second top vent cover with the screw removed in

step1. Screw Second left vent top cover Top front of micowave oven Screw Second left venttop coverTop front ofmicowave oven ACCESSORIES Following is a list of available parts and supplies which may be purchased separately. Please refer to the “Warranty” section for contactinformation. Cleaning Supplies ■ Heavy-duty degreaser ■ Affresh

Stainless Steel Cleaner ■ Affresh

Stainless Steel Wipes7 TROUBLESHOOTING If you experience Recommended Solutions Microwave oven will not operate Check the following: ■ Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Magnetron: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service. ■ Door: Firmly close door. On some models, if a packaging spacer is attached to inside of the door, remove it, then rmly close door. If a message about the door appears in the display, the door has been closed for 5 minutes or more without the microwave oven being started. This occurs to avoid unintended starting of the microwave oven. Open and close the door, then start the cycle. ■ Control: Make sure control is set properly. Make sure Control Lock is OFF. Make sure Demo mode (onsome models) is OFF. Arcing in the microwave oven Check the following: ■ Soil buildup: Soil buildup on cavity walls, microwave inlet cover, cooking rack supports, and area wherethe door touches the frame can cause arcing. See “General Cleaning” in the “Microwave Oven Care” section. Turntable alternates rotation directions ■ This is normal and depends on motor rotation at the beginning of the cycle. Display shows messages ■ A ashing “:” or “PF” means there has been a power failure. Reset the clock. ■ A letter followed by a number is an error indicator. Call for assistance. Fan running during cooktop usage ■ This is normal. The microwave oven’s cooling fan, which is separate from the vent fan, automatically comes on during microwave oven operation to cool the microwave oven. It may also automatically come on and cycle on and off to cool the microwave oven’s controls while the cooktop below is being used. Radio, TV, or cordless phone interference Check the following: ■ Proximity: Move the receiver away from the microwave oven, or adjust the radio or TV antenna. ■ Soil: Make sure the microwave oven door and sealing surfaces are clean. ■ Frequency: Some 2.4 GHz-based cordless phones and home wireless networks may experience static or noise while microwave oven is ON. Use a corded phone, a different frequency cordless phone or avoid using these items during microwave oven operation. First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual, or visit www.whirlpool.ca. Contact us by mail with any questions or concerns at the address below: Whirlpool Brand Home Appliances Customer eXperience Center

200 - 6750 Century Ave.

Mississauga Ontario L5N 0B7 Please include a daytime phone number in your correspondence.03/17 IF YOU NEED SERVICE: 1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.whirlpool.com. 2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to: Whirlpool Customer eXperience Center In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies. WHIRLPOOL

MAJOR APPLIANCE LIMITED WARRANTY ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE. Please have the following information available when you call the Customer eXperience Center: ■ Name, address, and telephone number ■ Model number and serial number ■ A clear, detailed description of the problem ■ Proof of purchase, including dealer or retailer name and address

ONE YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator,

or installation instructions.

2. In-home instruction on how to use your product.

3. Service to correct improper product maintenance or installation, installation not in accordance with

electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).

4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions).

5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.

6. Conversion of products from natural gas or propane gas.

7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not approved

8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,

alteration, or modification of the appliance.

9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes,

unless such damage results from defects in materials and workmanship and is reported to Whirlpool within 30 days.

10. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments including,

but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.

11. Food or medicine loss due to product failure.

12. Pickup or delivery. This product is intended for in-home repair.

13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool

servicer is not available.

14. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative panels,

flooring, cabinetry, islands, countertops, drywall) that interfere with servicing, removal, or replacement of the product.

15. Service or parts for appliances with original model/serial numbers removed, altered, or not easily

determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
