DXH1000TS - Heating DEWALT - Free user manual and instructions

Product Type	Electric Forced Air Heater
Brand	DeWalt
Model	DXH1000TS
Dimensions (L x W x H)	58.4 x 33.0 x 40.6 cm
Weight	16.8 kg
Power Supply	240 V AC, single phase
Heating Power	Selectable: 7 kW (23,861 BTU/h) or 10 kW (34,121 BTU/h)
Air Flow	325 ft³/min (approx. 552 m³/h)
Thermostat Range	-5 °C to 35 °C
Thermal Protection	Auto-reset overheat limit switch (77 °C)
Safety Distances (combustible materials)	Front: 1.8 m; sides and top: 0.6 m; base: non-combustible floor
Protection Rating	Indoor use only, do not expose to moisture
Cabinet Material	Coated steel sheet
Heating Elements	Metal coils
Fan	Sealed, maintenance-free motor
Wiring Type	Fixed wiring by qualified electrician, cable min. 10/3 AWG
Recommended Circuit Breaker	30 A double pole (7 kW configuration) or 50 A double pole (10 kW)
Carrying Handle	Integrated, removable
Maintenance	Exterior cleaning with soft cloth; interior dust removal with moderate compressed air
Warranty	1 year against material and workmanship defects
Customer Service	855-805-5745, www.dewalt.com

Frequently Asked Questions - DXH1000TS DEWALT

How to assemble the heater handle?

Remove the four mounting screws from the top housing, place the handle (located in the packaging) and secure it with the same screws. Do not overtighten to avoid cracking the handle.

What is the required supply voltage?

The DXH1000TS requires a 240 V AC single phase power supply. Wiring must be performed by a qualified electrician.

Can I use the heater outdoors?

No, this unit is designed for indoor use only. Do not expose it to moisture or water.

How to select the heating power?

The DXH1000TS is equipped with a 10kW/7kW selector switch located on the bottom right. Turn it to select the appropriate power. The circuit breaker must be sized accordingly (30 A for 7 kW, 50 A for 10 kW).

What to do if the heater stops suddenly?

Check if the overheat limit switch has tripped. Allow the unit to cool down for 10 to 15 minutes, then restart. If the problem persists, contact customer service.

What are the safety distances to observe?

Maintain a clear space of at least 1.8 m at the front and 0.6 m on the sides and above. The heater must rest on a non-combustible floor.

How to clean the heater?

Unplug the unit and allow it to cool. Use a dry cloth for the exterior. For the interior, blow dust with moderate compressed air. Do not use water.

Where can I buy spare parts?

Spare parts are available directly from the manufacturer. Call 855-805-5745 or visit www.dewalt.com. Use only original parts.

The heater emits a humming sound, is this normal?

A slight humming may be normal. If the noise is loud or persistent, check that the fan blades are not obstructed and the motor is functioning correctly. Contact a technician if necessary.

What is the warranty of this product?

DeWalt offers a one-year warranty against material and workmanship defects from the date of purchase. Keep the proof of purchase.

USER MANUAL DXH1000TS DEWALT

If you have questions or comments, contact us.

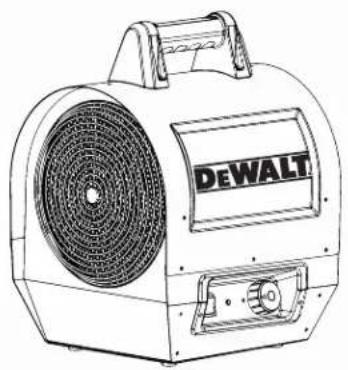

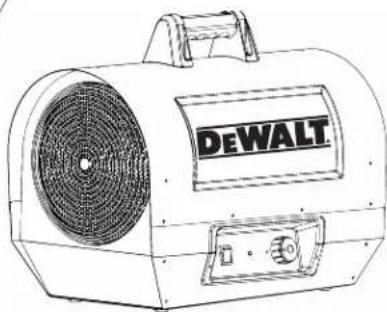

Electric Forced Air Heater DXH330 and DXH1000TS

Chauffage electrique à air force DXH330 and DXH1000TS

Calentador eletrico de aire forzado DXH330 and DXH1000TS

2016-41001-CB

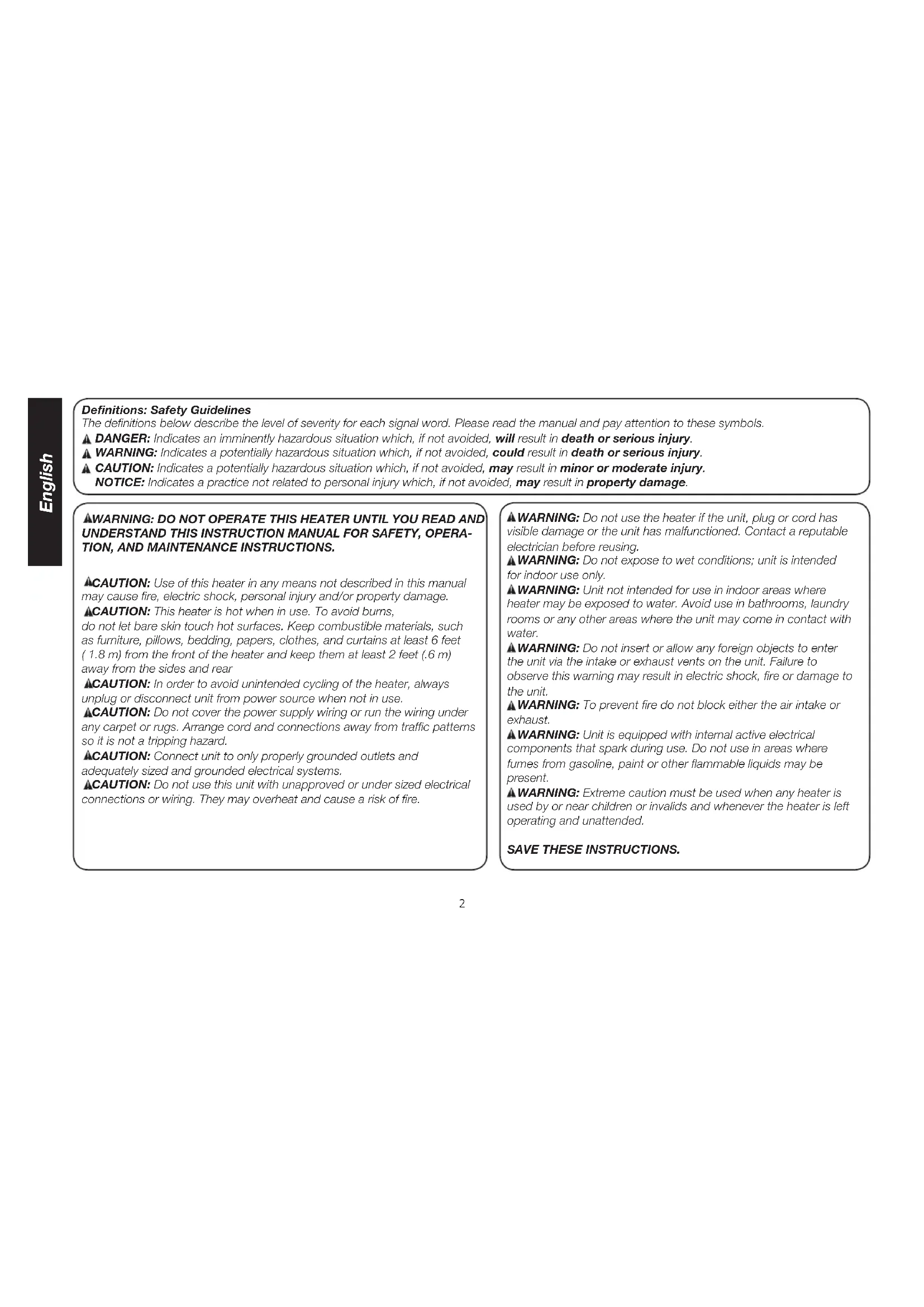

READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, adjust or operate the heater.

VEUILLEZ LIRE ATTENTIVEMENT LES INSTRUCTIONS :

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

WARNING: DO NOT OPERATE THIS HEATER UNTIL YOU READ AND UNDERSTAND THIS INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE INSTRUCTIONS.

CAUTION: Use of this heater in any means not described in this manual may cause fire, electric shock, personal injury and/or property damage.

CAUTION: This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 6 feet (1.8 m) from the front of the heater and keep them at least 2 feet (.6 m) away from the sides and rear

CAUTION: In order to avoid unintended cycling of the heater, always unplug or disconnect unit from power source when not in use.

CAUTION: Do not cover the power supply wiring or run the wiring under any carpet or rugs. Arrange cord and connections away from traffic patterns so it is not a tripping hazard.

CAUTION: Connect unit to only properly grounded outlets and adequately sized and grounded electrical systems.

CAUTION: Do not use this unit with unapproved or under sized electrical connections or wiring. They may overheat and cause a risk of fire.

WARNING: Do not use the heater if the unit, plug or cord has visible damage or the unit has malfunctioned. Contact a reputable electrician before reusing.

WARNING: Do not expose to wet conditions; unit is intended for indoor use only.

WARNING: Unit not intended for use in indoor areas where heater may be exposed to water. Avoid use in bathrooms, laundry rooms or any other areas where the unit may come in contact with water.

WARNING: Do not insert or allow any foreign objects to enter the unit via the intake or exhaust vents on the unit. Failure to observe this warning may result in electric shock, fire or damage to the unit.

WARNING: To prevent fire do not block either the air intake or exhaust.

WARNING: Unit is equipped with internal active electrical components that spark during use. Do not use in areas where fumes from gasoline, paint or other flammable liquids may be present.

WARNING: Extreme caution must be used when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.

SAVE THESE INSTRUCTIONS.

Assembly

• Remove the heater and all of the packaging material from the box.
• Check all of the packing material for loose parts and set aside.
• Remove and retain the four handle mounting screws that are threaded into the top shell.
• Throughly inspect the heater for damage. If any is found do not contact the place of purchase. Please call the Manufacturer at 855-805-5745.
• Use the four handle mounting screws to fasten the handle to the top of the heater

Note: Do not over tighten the screws as they can crack the handle.

The handle is located in the carton loose be sure not to throw out.

CONTENTS

WARNING 2

ASSEMBLY. 3

OPERATION 3-4

SPECIFICATIONS 4

CLEARANCES. 4

MAINTENANCE 4

TROUBLESHOOTING 5

WIRING DIAGRAMS 6

PARTS LIST/EXPLODED VIEWS. 7-10

WARRANTY 11

INSTRUCTIONS FOR ORDERING PARTS 11

Operational Information

The DeWalt Electric forced air heaters are designed to be used by professionals.

Heat is created by electric current passing through coiled metal elements bringing them up to very high temperatures. The fan then passes room air over the hot elements exchanging cold air for warm.

The air moving over the coils keeps them from reaching temperatures that are not safe for the normal operation of the heater. However it is important to keep all combustible materials and any objects that may be sucked into the fan blades at a safe distance (please refer to the table on the next page for appropriate distances). Make sure that the fan blades remain unobstructed at all times.

Keep unit clean and dust free. Do not block unit intake or exhaust at any time.

Operation

Review and understand all warnings in this manual. Follow all local codes. These heaters are designed to be used with 240v ac only.

Starting Instructions, After Heater Has Been Professionally Wired

1. Place the heater on a stable and level surface. Insure clearance to combustibles are observed (see table on this page).
2. Turn thermostat counter-clockwise to lowest setting.
3. Depress power switch into the on "1" position.

4. Turn thermostat knob up (clockwise) until desired temperature is reached. The heat "on" indicator light will illuminate when the knob reaches a temperature higher than that of the current room.

5. The heating element and fan will remain on until the temperature setting is reached. The heating element will cycle on and off as needed. The fan will remain on as long as the control switch is in the on position.

DXH1000TS ONLY: The DXH1000TS is equipped with 10kW/7kW power selection switch, located on the back of the heater in the lower right corner. The (7kW) setting requires a power source of 240Vac/28A on a 30 amp/2 pole circuit breaker. The high (10kW) setting requires a power source of 240Vac/42A on a 50 amp/2 pole circuit breaker. Always confirm your source and power selection switch setting prior to operating the heater.

To Stop Heating

1. Rotate the thermostat knob to the lowest position. 1a. Let cool for 10 minutes.
2. Flip the power switch into the off "O" position. NOTE: This heater is equipped with an overheat limit switch which may cause the heater to stop. If the power switch is in the on "I" position and the heat indicator light and fan are both off, the overheat limit switch has activated. Check and remove the cause of the overheating before restarting. This can take up to 15 minutes to cool before it can be restarted.

Maintenance

WARNING:

Never attempt to service the heater while the unit is hot, In use, or plugged in. Only qualified service technicians should service these units.

• Thoroughly inspect the unit prior to use.

• Keep heater clean and free of dust and debris.

• The use of an air compressor can be used to blow out the dust from the heater case. Be sure to only use moderate air pressure as to not damage any internal components.

• A soft dry cloth should be used for cleaning of outer shell and handle.
  The fan motor is sealed and does not need to be lubricated.

Specifications

Model: DXH330 DXH1000TS
Heat Output BTU/WATTS 1	1260/3300	22861/6.7kW-4121/10kW
Airflow (CFM) 200 325
Electrical Supply 240Vac 240Vac
Thermostat 23 F - 95 F 23 F - 95 F
Power Cord	Min. 14/3 AWG for 10' or Less	Min. 10/3 AWG for 10' or Less
Dimensions: (L"xW"xH")	14"x12"x15" 23"x13"x16"
Weight (Ibs.)	19 lb.	37 lb.

Clearance to Combustibles

Outlet (Feet)	6 (1.8m)
Rear (Feet)	2 (.6m)
Tom (Feet)	2 (.6m)
Bottom	Non-combustible floor

ON/OFF HEAT ON INDICATOR LIGHT THERMOSTAT

FIG. 1

Storage

When not in use, the heater must be disconnected from power source, dusted off and the cord should be loosely wound around the handle.

For service :

Please call Toll-Free 855-805-5745 www.dewalt.com

Our office hours are 8:00 AM - 5:00 PM, EST, Monday through Friday.

Please include the model number, date of purchase, and description of problem in all communication.

Troubleshooting

WARNING: USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE AGENCY.

Unit does not work · Defective thermostat or wrong thermostat setting · Open circuit breaker or fuse · Thermal overload switch has been tripped · Faulty Connection · Damaged or defective plug or outlet
Unit runs continuously · Defective thermostat or wrong thermostat setting · Heat losses higher than unit capacity (unit undersized)
Elements are on but motor does not rotate · Defective Motor · Blocked fan blades
Enclosure is extremely hot · Defective thermal protection · blocked air vents · Defective motor
Desired room temperature cannot be reached · One or more elements are defective · Defective thermostat or wrong thermostat setting · Voltage lower than that written on Rate tag · Heat losses higher than unit capacity (unit undersized)
Overheating · Defective thermostat or wrong thermostat setting · Defective Motor
Heater emits a humming sound · Defective motor · Fan blade blocked · Contact defective (10K only)

Maximum Overload Protection ... 15A/2-Pole
WIRING DIAGRAM Model DXH330

Ring Diagrams
WIRING DIAGRAM Model DXH1000TS
Maximum Overload Protection ... 5BA/2-Pole

SWI = Power suit with neon lamp 250 Vac 16 ampSUV - Folding unit with 375Vac 16
SNE = 1011Partial power switch 256 Vdc 16TC1 = Normally closed high limit switch 77° C
C1 = Contactor & contactor coil
R1 - R3 = Heating elements
M = Fan motor
MC1 = Motor capacitor
PCB1 = Heat on indicator printed circuit board

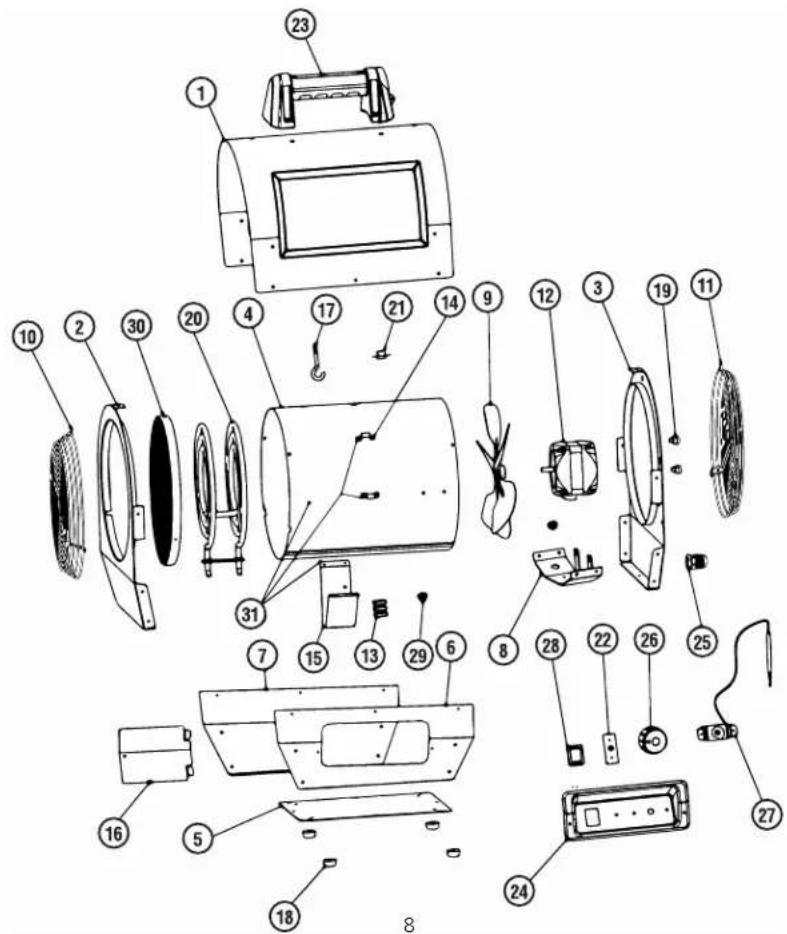

Parts List DXH330

REF. #.........ITEM#......... DESCRIPTION	REF. #..........ITEM#.......... DESCRIPTION
1.......41037.......COVER, TOP, SHELL, OUTER	16.......41051.......DOOR, ACCESS
2.......N/A.......PANEL, FRONT	17.......41029.......SUPPORT, HEATING ELEMENT
3.......N/A.......PANEL, REAR	18.......41030.......FOOT, RUBBER
4.......410 40.......SHIELD, RADIATION, TUBE	19.......41031.......CLIP, SENSOR, CAPILLARY TUBE
5.......N/A.......BASE, PLATE	20.......41052.......ELEMENT, HEATING
6.......N/A.......PANEL, SIDE, LEFT	21.......41032.......SWITCH,HIGH LIMIT, 77C
7.......N/A.......PANEL, SIDE, RIGHT	22.......41053.......BOARD, CIRCUIT, HEAT ON,INDICATOR
8.......410 44.......BRACKET, MOUNT, MOTOR	23.......40656.......HANDLE, CARRY
9.......410 45.......BLADE, FAN	24.......N/A.......PANEL, CONTROL, PLASTIC
10.......41046.......GUARD, GRILL, FRONT	25.......41025.......BUSHING, STRAIN, RELIEF
11.......41047.......GUARD, GRILL, REAR	26.......41027.......KNOB, THERMOSTAT, PLASTIC
12.......41048.......MOTOR, FAN	27.......41034.......THERMOSTAT, TEMPERATURE, AMBIANT
13.......41049.......BLOCK, TERMINAL, WIRING	28.......41035.......SWITCH, LIGHTED, ON/OFF
14.......N/A.......BRACKET, WIRE MOUNT	29.......41036.......BUSHING, PLASTIC, WIRE
15.......N/A.......BLOCK, TERMINAL, BRACKET	30.......N/A.......FRONT SCREEN ASSEMBLY
	31.......41098.......RADIATION SHIELD TUBE W/BRACKETS

WARNING:

Use only manufacturer's replacement parts. Use of any other parts could cause injury or death. Replacement parts are only available direct from the factory and must be installed by a qualified service agency.

For Service

Please call Toll-Free 855-805-5745 www.dewalt.com
Our office hours are 8:00 AM - 5:00 PM, EST, Monday through Friday.
Please include the model number, date of purchase, and description of problem in all communication.

DXH330

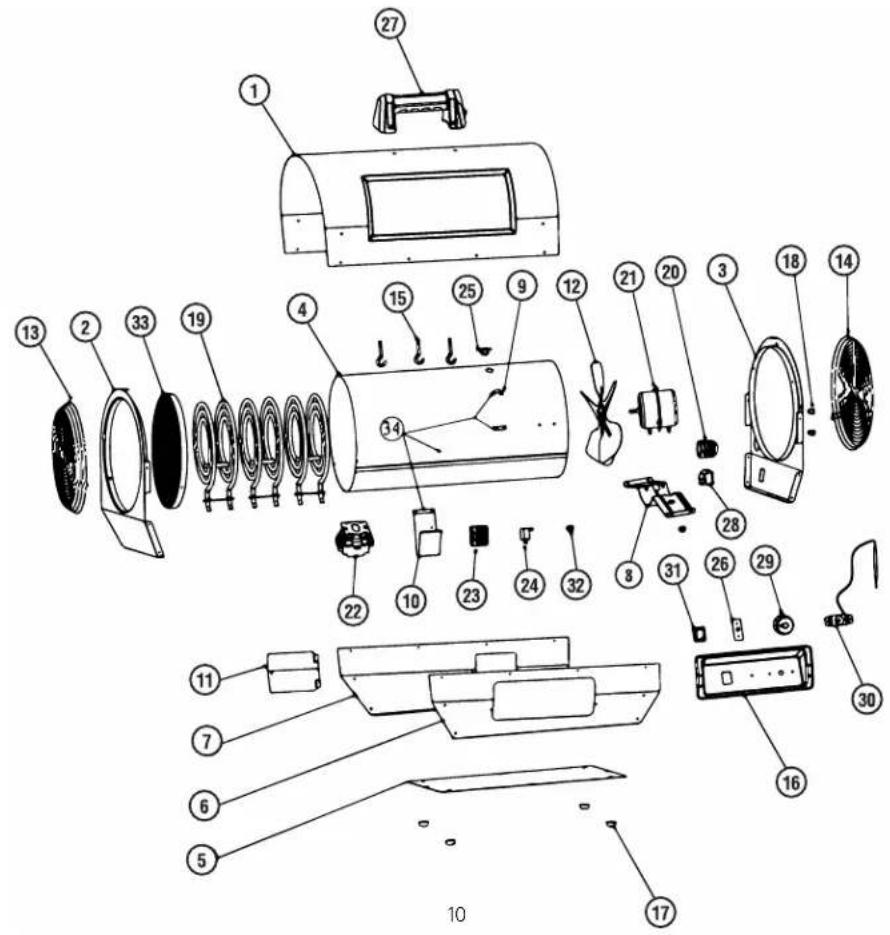

Parts List DXH1000

REF. #.........ITEM#......... DESCRIPTION	REF. #..........ITEM#.......... DESCRIPTION
1.......41054.......COVER, TOP, SHELL, OUTER	18.......41031.......CLIP, SENSOR, CAPILLARY TUBE
2.......N/A.......PANEL, FRONT	19.......41052.......ELEMENT, HEATING
3.......N/A.......PANEL, REAR	20.......41066.......BUSHING, STRAIN, RELIEF
4.......41057.......SHIELD, RADIATION, TUBE	21.......41067.......MOTOR, FAN
5.......41058.......BASE, PLATE	22.......41068.......CONTACTOR, ELEMENT, HEATING
6.......N/A.......PANEL, SIDE, LEFT	23.......41069.......BLOCK, TERMINAL, WIRING
7.......N/A.......PANEL, SIDE, RIGHT	24.......41070.......CAPACITOR, MOTOR, STARTER
8.......41061.......BRACKET, MOUNT, MOTOR	25.......41032.......SWITCH, HIGH LIMIT, 77C
9.......N/A.......BRACKET, WIRE MOUNT	26.......41053.......BOARD, CIRCUIT, HEAT ON, INDICATOR
10.......N/A.......BLOCK, TERMINAL, BRACKET	27.......40656.......HANDLE, CARRY
11.......41051.......DOOR, ACCESS	28.......41035.......SWITCH, LIGHTED, 10KW/7KW
12.......41063.......BLADE, FAN	29.......41027.......KNOB, THERMOSTAT, PLASTIC
13.......41064.......GUARD, GRILL, FRONT	30.......41034.......THERMOSTAT, TEMPERATURE, AMBIENT
14.......41065.......GUARD, GRILL, REAR	31.......41035.......SWITCH, LIGHTED, ON/OFF
15.......41029.......SUPPORT, HEATING ELEMENT	32.......41036.......BUSHING, PLASTIC, WIRE
16.......N/A.......PANEL, CONTROL, PLASTIC	33.......41062.......FRONT SCREEN ASSEMBLY
17.......41030.......FOOT, RUBBER	34.......41099.......RADIATION SHIELD TUBE W/BRACKETS

WARNING:

Use only manufacturer's replacement parts. Use of any other parts could cause injury or death. Replacement parts are only available direct from the factory and must be installed by a qualified service agency.

For Service

Please call Toll-Free 855-805-5745 www.dewalt.com

Our office hours are 8:00 AM - 5:00 PM, EST, Monday through Friday.

Please include the model number, date of purchase, and description of problem in all communication.

DXH1000TS

INSTRUCTION MANUAL

Electric Forced-Air Heater DXH330, DXH1000TS

Warning:

Use only manufacturer's replacement parts. Use of any other parts could cause injury or death. Replacement parts are only available direct from the factory and must be installed by a qualified service agency.

PARTS ORDERING INFORMATION:

PURCHASING: Accessories may be purchased at any DeWalt® local dealer or direct from the factory

FOR INFORMATION REGARDING SERVICE:

Please call Toll-Free 855-805-5745

www.dewalt.com

Our office hours are 8:00 AM - 5:00 PM, EST, Monday through Friday.

Please include the model number, date of purchase, and description of problem in all communication.

LIMITED WARRANTY:

DeWalt warrants its heaters and accessories to be free from defects in material and workmanship for a period of 1 year from date of purchase. DeWalt will repair or replace this product free of charge if it has been proven to be defective within the 1-year period, and is returned at customer expense with proof of purchase to DeWalt within the warranty period.

DEWALT, GUARANTEED TOUGH and the yellow and black color scheme are tradema of the DEWALT Industrial Tool Co., used under license. ©2015 DEWALT. EGI/Enerco Group Under license from Dewalt Industrial Tool Co.

If you have questions or comments, contact us.

MANUEL D'INSTRUCTIONS

Electric Forced Air Heater DXH330 and DXH1000TSp

MANUEL D'INSTRUCTIONS

If you have questions or comments, contact us.

Si you ave des questions ou commentaires, veuillez nous contacter. Liamenos si tiene alla pregunt o comenteario.

855-805-5745·www.dewalt.com

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

Electric Forced Air Heater DXH330 and DXH1000TS
