Record Product Information

Before setting up and operating your new equipment, please locate the model plate on the equipment and record the information in the provided area to the right. You can locate the model plate by lifting up the seat and looking under the seat pan. This information will be necessary, should you seek technical support via our web site or with your local authorized service dealer.

Model Number

Serial Number

WARNING

Read and follow all safety rules and instructions in this manual before attempting to operate this machine.

Failure to comply with these instructions may result in personal injury - SAVE THESE INSTRUCTIONS.

WARNING

CALIFORNIA PROPOSITION 65

Engine Exhaust, some of its constituents and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling. www.p65warnings.ca.gov

NOTE: This Operator's Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours.

SAFE OPERATION PRACTICES

WARNING

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbol, HEED ITS WARNING!

DANGER

This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating fingers, hands, toes, and feet and throwing debris. Failure to observe the following safety instructions could result in serious injury or death.

GENERAL INFORMATION

1. Read, understand, and follow all instructions on the tractor and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
2. Be familiar with all controls and their proper operation. Know how to stop the tractor and disengage them quickly.
3. Never allow children under 14 years of age to operate this tractor. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the tractor and should be trained and supervised by an adult.
4. Never allow adults to operate this tractor without proper instruction.
5. If situations occur which are not covered in this manual, use care and good judgment. Contact your customer service representative for assistance.
6. According to the U.S. Consumer Products Safety Commission (CPSC) and the U.S. Environmental Protection Agency (EPA), this product has an estimated useful life of seven (7) years, under ordinary use conditions. At the end of its useful life, have the product inspected annually to ensure all mechanical and safety systems are operating properly, safely, and are not worn excessively. Failure to do so may result in accident, injury, or death.

1. Thoroughly inspect the area where the tractor is to be used. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s). Thrown objects can cause serious personal injury.
2. To help avoid blade contact or a thrown object injury, keep helpers at least 75' (23 meters) from the tractor while it is in operation. Keep bystanders, children, and pets inside during operation. Stop tractor if anyone enters the area.
3. Be aware of the tractor discharge direction and do not point it at anyone.

4. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.

5. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Loose fitting clothes, jewelry, and long hair can be caught in moving parts. Never operate this tractor in bare feet or sandals.

6. Never over fill fuel tank. Fill tank to no more than 1/2" (13 mm) below bottom of filler neck to allow space for fuel expansion.
7. Replace gasoline cap and tighten securely.
8. Use only accessories and attachments approved for this tractor by the tractor manufacturer. Read, understand, and follow all instructions provided with the approved accessory or attachment.

OPERATING

1. Data indicates that operators, age 65 years and above, are involved in a large percentage of tractor-related injuries. These operators should evaluate their ability to operate the tractor safely enough to protect themselves and others from serious injury.
2. Disengage blade(s) and set the parking brake to the ON position before attempting to start the engine.
3. Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet.
4. Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could overturn the tractor. Tall grass can hide obstacles.
5. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, helpers, and the like. Avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.
6. Check overhead clearances carefully before driving under low hanging tree branches, wires, door openings, etc., where the operator may be struck or pulled from the tractor, which could result in serious injury.
7. Never leave a running tractor unattended. Always turn off blade(s), place drive control pedals in neutral, set parking brake, stop engine, and remove key before dismounting.

SAFE OPERATION PRACTICES

1. Disengage blade(s), place drive control pedals in neutral, set parking brake, stop engine, and wait until the blade(s) come to a complete stop before removing grass catcher, emptying grass, removing any grass or debris, unclogging chute, or making any adjustments.
2. Your tractor is designed to cut normal residential grass of a height no more than 10" (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g. pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the tractor deck presenting a potential fire hazard.
3. Back up slowly. Always look down and behind before and while backing to avoid a back-over accident. Be aware and pay attention to the safety system function that stops power to the blades when driving in reverse. If not functioning properly, contact an authorized dealer for safety system inspection and repair.
4. Never carry passengers.
5. Stay at least 10' (3 meters) from drop-offs, ditches, embankments, or the edge of water. The tractor could suddenly turn over if a wheel is over the edge of a cliff, ditch, or if an edge caves in.
6. A missing or damaged chute deflector can cause blade contact or thrown object injuries.
7. Do not operate the tractor without the chute deflector or entire grass catcher in its proper place.
8. Use extra care with grass catchers or other attachments. These can change the stability of the tractor. Always follow the attachment manufacturer's instructions.
9. Stop the blade(s) when crossing gravel drives, walks, or roads and while not cutting grass.
10. Watch for traffic when operating near or crossing roadways. This tractor is not intended for use on any public roadway.
11. Mow only in daylight or good artificial light.
12. Do not operate the tractor while under the influence of alcohol or drugs.
13. Slow down before turning. Operate the tractor smoothly. Avoid erratic operation and excessive speed.
14. The muffler and engine become very hot and can cause serious burn injuries. Do not touch. Allow the tractor to cool for five minutes before attempting any service.
15. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.

CHILDREN

1. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the tractor and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

2. Keep bystanders, children, and pets inside during operation under the watchful care of a responsible adult other than the operator. Stop tractor if anyone enters the area.

3. Never carry children, even with the blade(s) shut off. They may fall off and be seriously injured or interfere with safe tractor operation. Children who have been given rides in the past could suddenly appear in the mowing area for another ride and be run over or backed over by the tractor.

4. Be alert and turn tractor off if a child or bystander enters the area.
5. To avoid back-over accidents, always look behind and down for small children.
6. Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may block your vision of a child who may run into the path of the tractor.
7. Never allow children under 14 years of age to operate this tractor. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the tractor and should be trained and supervised by an adult.
8. Do not allow any child to joy ride on the tractor. The tractor is not a toy or a go-cart. Warn your children that the tractor can be dangerous and they must stay away from it at all times.
9. Keep children away from hot or running engines. They can suffer burns from a hot muffler.
10. Remove key when tractor is unattended to prevent unauthorized operation. Make certain the key is inaccessible to small children.

SLOPE OPERATION

1. Slopes are a major factor related to loss of control and tip-over accidents which can result in severe injury or death. All slopes require extra caution. If you cannot back up the slope or if you feel uneasy on it, do not mow it.
2. For your safety, measure any slope before using the tractor on the sloped area. Use a slope measuring device in addition to the slope gauge included as part of this manual to measure slopes before operating this tractor on a sloped or hilly area. Smart phone applications can also be utilized to measure slopes. If the slope is greater than 20^ (35%) as shown on the slope gauge or a slope measuring device, do not operate this tractor on that area or serious injury could result.
3. Do not mow on slopes greater than 20^ (35%).
4. Do not mow up or down slopes, only mow across slopes that are less than 20^ (35%). Use low speeds and avoid sudden turns.
5. Do not mow on wet grass. Reduced traction could cause sliding or a loss of control.
6. Do not operate tractor under any conditions where traction, steering, or stability is in question. Tires could slide even if the wheels are stopped.
7. Avoid starting and stopping on slopes. Avoid making sudden changes in speed or direction. Make turns slowly and gradually.

SAFE OPERATION PRACTICES

1. Use extra care while operating tractor with grass catcher or other attachment(s). They can affect the stability of the tractor. Do not use grass catcher on slopes greater than 10^ (17%).
2. Do not try to stabilize the tractor by putting your foot on the ground.
3. Keep all movement on the slopes slow and gradual. Do not make sudden changes in speed or direction. Rapid acceleration could cause the front of the tractor to lift and rapidly tip over backwards, which could cause serious injury or death.

SLOPE GAUGE (BACK COVER)

WARNING

Slopes are a major factor related to slip and fall accidents which can result in severe injury or death. All slopes require extra caution. If you feel uneasy on the slope, do not mow it. Do not mow on slopes greater than 20^ (35%). Only mow across slopes, never mow up and down slopes.

USE THE SLOPE GAUGE ON THE BACK COVER AS SHOWN TO DETERMINE IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!

To check the slope, proceed as follows:

1. Open manual to page and fold along the dashed line.
2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.).
3. Align either side of the slope gauge with the object.
4. Adjust gauge up or down until the left corner touches the slope.
5. If there is a gap below the gauge, the slope is too steep for safe operation.

FIRE & FUEL

1. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite. Wash your skin and change clothes immediately.
2. Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
3. Use only an approved gasoline container.
4. Never remove gas cap or add fuel while the engine is hot or running. Allow engine to cool at least five minutes before refueling.
5. Never fuel tractor indoors.
6. Never store the tractor or fuel container inside where there is an open flame, spark, or pilot light as on a water heater, space heater, furnace, clothes dryer, or other gas appliances.

7. If gasoline is spilled, wipe it off the engine and equipment. Clean up oil or fuel spillage and remove any fuel soaked debris. Move tractor to another area. Wait five minutes before starting the tractor.

8. To reduce fire hazards, keep tractor free of grass, leaves, or other debris build-up. Follow the Post-Operation Tractor Care instructions in the Product Care section.

9. Your tractor is designed to cut normal residential grass of a height no more than 10" (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the tractor deck presenting a potential fire hazard.
10. Never over fill fuel tank. Fill tank to no more than 1/2" (13 mm) below bottom of filler neck to allow space for fuel expansion.
11. Replace gasoline cap and tighten securely. Do not operate without fuel cap in place.
12. Allow tractor to cool at least five minutes before fueling or storing.
13. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
14. When practical, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
15. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.

HAULING

1. Use properly secured full width ramps for loading and unloading a tractor for transport.
2. Use extra care when loading or unloading the tractor into a trailer or truck. This tractor should not be driven up or down ramp(s), because the tractor could tip over, causing serious personal injury. The tractor must be pushed manually on ramp(s) to load or unload properly.
3. Raise the deck to the highest position for loading clearance.

TOWING

1. Do not tow a load that exceeds 250 lbs (113 kg) rolling weight and never exceed 50 lbs (22 kg) tongue weight.
2. Do not attach towed equipment except at the hitch point of the tractor.
3. Never allow children or others in or on towed equipment.
4. Do not tow on slopes greater than 5^ (9%). On slopes, the weight of the towed equipment may cause loss of traction, loss of control, and/or the ability to stop.
5. Always use extra caution when towing with a tractor capable of making tight turns (e.g. "zero-turn" ride-on tractor). Make wide turns to avoid jack-knifing.
6. Travel slowly and allow extra distance to stop.

SAFE OPERATION PRACTICES

SERVICE

1. Keep tractor in good working order. Do not use the tractor until worn or damaged parts are replaced.
2. To avoid serious injury or death, do not modify engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with factory setting of engine governor. Do not change the engine governor settings or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
3. Tractor blades are sharp. Wrap the blade or wear gloves and use extra caution when servicing them.
4. Tractors with hydraulic pumps, hoses, or motors; and/or diesel injections systems have fluid systems under pressure. Fluid escaping under pressure may have sufficient force to penetrate skin and cause serious injury. If fluid is injected into the skin, seek immediate medical attention. Keep body and hands away from pin holes or nozzles that eject fluid under high pressure. If a leak occurs, have the tractor immediately serviced by an authorized dealer.
5. Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Turn off the engine, remove the key, and disconnect the spark plug wire(s) and negative battery cable to prevent unintended starting.
6. Check to make sure the blades come to a complete stop in not more than five seconds after disengaging the blade disengagement control per the schedule shown on the Maintenance Schedule chart in the Product Care section of this manual. Measure the stopping time with a stop watch. If the blades do not stop completely in less than five seconds, your tractor should be serviced professionally by an authorized dealer.
7. Check the safety interlock system for proper function per the schedule shown on the Maintenance Schedule chart in the Product Care section of this manual. If the safety interlock system does not function properly, have your tractor serviced professionally by an authorized dealer.
8. Never tamper with the safety interlock system or other safety devices. Check their proper operation regularly.
9. Check the blade(s) and engine mounting bolt torque in accordance to the Maintenance Schedule chart in this manual. Also, visually inspect blade(s) for damage (e.g., excessive wear, bent, cracked). Replace the blade(s) with the original equipment manufacturer's (O.E.M.) blade(s) only.
10. Use of service parts which do not meet the original equipment specifications may lead to improper performance and compromise safety.

11. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition. Review the Maintenance Schedule chart in this manual for service interval information.

12. After striking a foreign object, stop the engine, remove the key, and disconnect the spark plug wire(s) and negative battery cable to prevent unintended starting. Thoroughly inspect the tractor for any damage. Repair the damage before starting and operating.

13. Never attempt to make adjustments or repairs to the tractor while the engine is running.
14. Grass catcher components and the chute deflector are subject to wear and damage which could expose moving parts or allow objects to be thrown. Frequently check components and replace immediately with original equipment manufacturer's (O.E.M.) parts only.
15. Maintain or replace safety and instruction labels, as necessary.
16. Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

NOTICE REGARDING EMISSIONS

Engines which are certified to comply with California and federal EPA emission regulations for SORE (Small Off Road Equipment) are certified to operate on regular unleaded gasoline and may include the following emission control systems: Engine Modification (EM) and Three Way Catalyst (TWC), if so equipped.

When required, models are equipped with low permeation fuel lines and fuel tanks for evaporative emission control. California models may also include a carbon canister. Please contact Customer Support for information regarding the evaporative emission control configuration for your model.

SPARK ARRESTOR

WARNING

This tractor is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered, or grass-covered land unless the engine's exhaust system is equipped with a spark arrestor meeting applicable local or state laws (if any).

If a spark arrestor is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands.

A spark arrestor for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131, Cleveland, Ohio 44136-0019.

SAFE OPERATION PRACTICES

SAFETY SYMBOLS

This page depicts and describes safety symbols that MAY APPEAR on this product.

SymbolDescription
OPESymbol.com	WARNING – READ THE OPERATOR’S MANUAL(S)Read, understand, and follow all the safety rules and instructions in the manual(s) and on the tractor before attempting to operate this tractor.Failure to comply with this information may result in personal injury or death. Keep this manual in a safe location for future and regular reference.Using a Smart Phone, scan the QR code symbol to learn more information concerning the warnings contained on this tractor. You can also go to www.OPESymbol.com for more information.
	DANGER – AVOID THROWN OBJECT INJURYKeep helpers at least 75’ (23 meters) from tractor during operation. Remove all stones, sticks, wire, bones, toys, and other foreign objects which could be picked up and thrown by the blade(s).Do not operate the tractor without the discharge cover or entire grass catcher in its proper place.

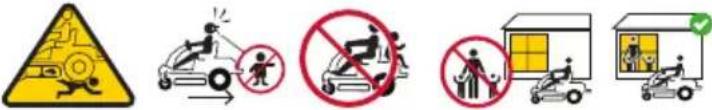

	WARNING – AVOID CHILD BACKOVER/RUNOVER/BLADE INJURYTo avoid back-over accidents, always look behind and down for small children. Never carry children, even with the blade(s) shut off.Keep bystanders, children, and pets inside during operation under the watchful care of a responsible adult other than the operator. Stop tractor if anyone enters the area.
	WARNING – AVOID TIP-OVER/ROLL-OVER INJURYDo not operate machine on a slope greater than 20° (35%). Do not mow up or down slopes, only mow across slopes that are less than 20° (35%).Use low speeds and avoid sudden turns on slopes. Stay at least 10’ (3 meters) from drop-offs, ditches, embankments, or the edge of water.

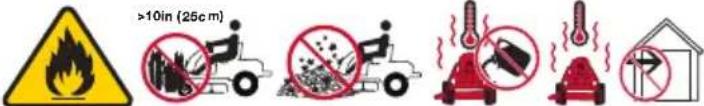

	WARNING – AVOID FIRESYour tractor is designed to cut normal residential grass of a height no more than 10” (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves.Allow tractor to cool at least five minutes before fueling or storing inside an enclosed garage or storage shed.

SAFE OPERATION PRACTICES

SymbolDescription

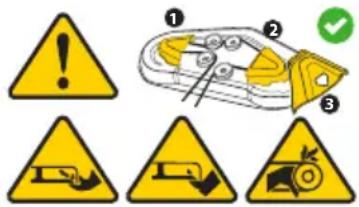

Warning symbols and a cartoon boat illustration with numbered labels and warning signs

Three warning symbols: an open book with airplane, a yellow warning triangle with exclamation mark, and a yellow warning sign with aircraft.

Diagram showing three symbolic actions: a keyhole, a car with a person holding a bat, and a walking figure.

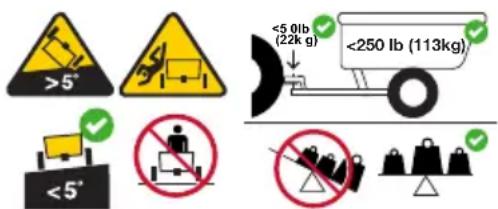

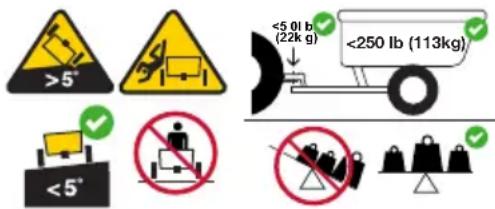

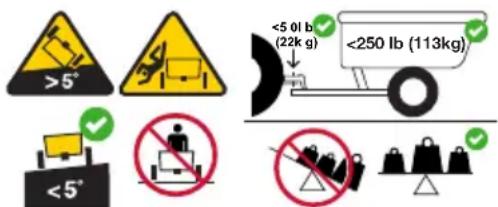

≥5° <5° <250 lb (113kg) <5 0lb (22kg)

WARNING – AVOID AMPUTATION INJURY

Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade(s) can amputate hands and feet. Ensure that all safety devices (guards, shields, switches, etc.) are in place and working. Belt and/or blade spindle contact can crush or injure body parts.

WARNING – AVOID CRUSH/PINCH POINT INJURY

Read, understand, and follow all the safety rules and instructions in the manual(s) and on the tractor before attempting to service this tractor. The deck lift system is spring-assisted and under tension. Always use the provided multi-tool to secure the lift system in the locked position before attempting to remove the mower deck.

WARNING — REMOVE KEY

Always turn off blade(s), move the drive pedals to neutral, stop engine, and remove key before dismounting. If you are leaving the tractor unattended, always remove the key to prevent unauthorized use by children or others.

WARNING – AVOID TOWING RELATED INJURY

Do not tow a load that exceeds 250 lbs (113 kg) rolling weight and never exceed 50 lbs (22 kg) tongue weight. Never allow children or others in or on towed equipment. Do not tow on slopes greater than 5° (9%). On slopes, the weight of the towed equipment may cause loss of traction, loss of control, and/or loss of the ability to stop. Travel slowly and allow extra distance to stop.

WARNING

Your Responsibility—Restrict the use of this power machine to persons who read, understand, and follow the warnings and instructions in this manual and on the machine - SAVE THESE INSTRUCTIONS!

ASSEMBLY

NOTE: This Operator's Manual covers several models. Tractor features may vary by model. Not all features in this manual are applicable to all tractor models and the tractor depicted may differ from yours.

NOTE: All references in this manual to the left or right side and front or back of the tractor are from the operating position only. Exceptions, if any, will be specified.

Preparation

MANUALLY MOVING THE TRACTOR

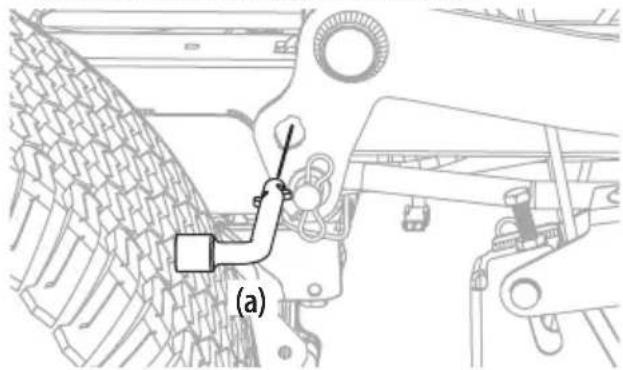

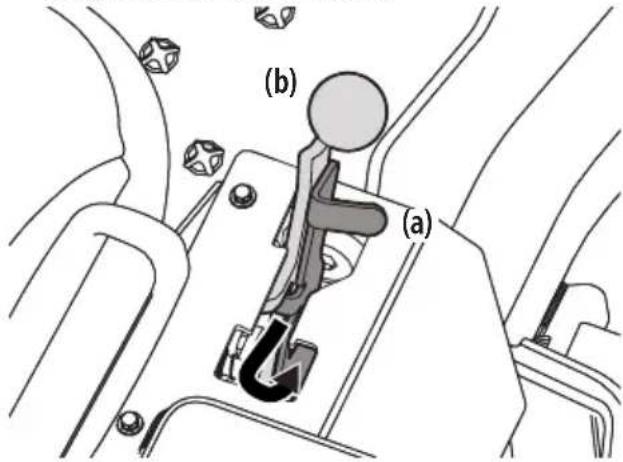

1. To engage the transmission bypass, pull the transmission bypass lever (a) located to the right of the operator's seat (next to the park brake lever (b)), back and into the notch on the right side of the slot. See Figure 1.

(b) (a)

Figure 1

1. After moving tractor, reverse Step 1 to disengage the transmission bypass.

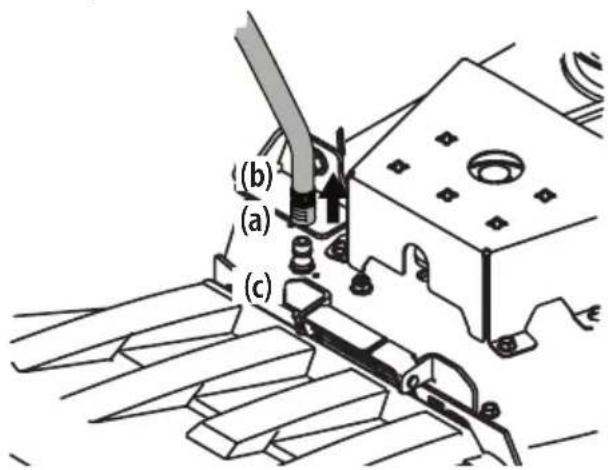

2. Remove the deck wash system nozzle adapter (if equipped) from the manual bag, store for future use.

INSTALL HITCH (IF NECESSARY)

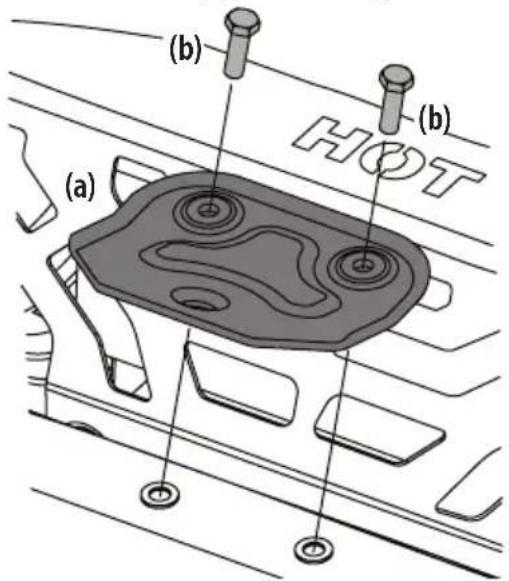

1. Locate hitch (a) and install on the rear of the frame using the two hex washer screws (b) provided. See Figure 2.

(a) (b) (b) HOT

Figure 2

NOTE: Hitch and hex washer screws will be in the hardware pack.

REPOSITION UPPER HOOP (IF NECESSARY)

Upper hoop may be positioned down for shipping purposes:

1. Remove the two hex washer screws (a) partially installed on the frame. See Figure 3.

(b) (b) (a)

Figure 3

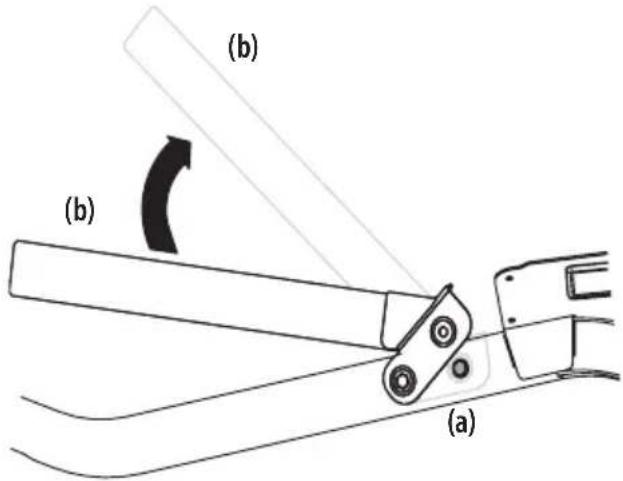

1. Rotate the upper hoop (b) into position. See Figure 3.
2. Secure hoop in place with the hex washer screws removed in Step 1. Torque the hex washer screws to 159-239 in-lbs (18-27 N-m).

Install Operator's Seat (If Necessary)

1. Remove any straps securing the seat assembly to the tractor. Remove all packing material.

NOTE: Be careful not to cut the seat wiring harness.

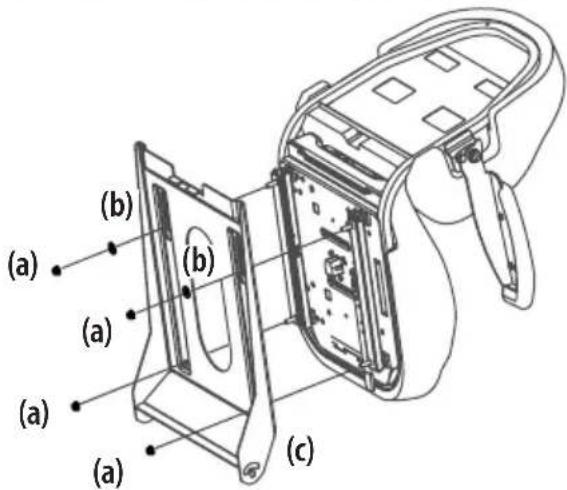

1. Install the seat onto the seat pan (c) using hardware provided. See Figure 4.

a. Use flange lock nuts (a) and flat washers (b). See Figure 4.

(a) (b) (a) (b) (a) (a) (c)

Figure 4

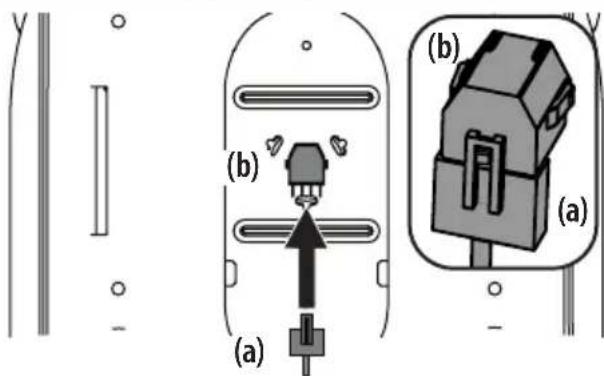

1. If necessary, securely connect the seat switch wiring harness (a) to the seat switch (b). See Figure 5 on page 9. Secure excess wire away from pinch points before continuing.

ASSEMBLY

Technical diagram showing three labeled components (a), (b), and (a) of a device or connector assembly with directional arrows and symbols.

Figure 5
NOTE: Tractor will not operate without the seat switch wiring harness connected.

Steering Wheel (If necessary)

IMPORTANT! Do not use impact tools to install or remove the steering wheel.

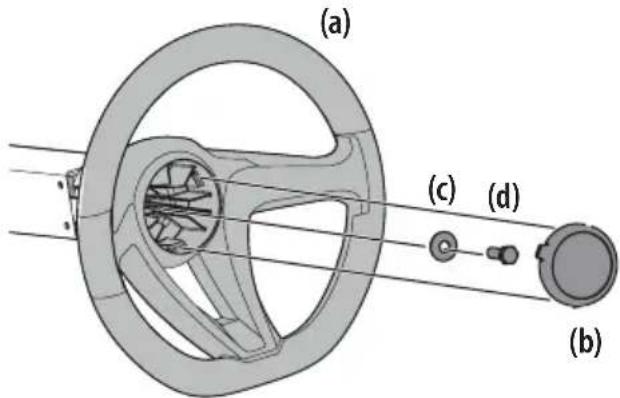

1. Remove the hardware for attaching the steering wheel (a) from beneath the steering wheel cover (b). Carefully remove the cover by inserting a small, bladed screwdriver into one of the three snap locations and slowly prying up on the steering wheel cover (b) to remove the hardware. See Figure 6.

1. With the wheels of the machine pointing straight forward, place the steering wheel (a) over the steering shaft. See Figure 6.
2. Place the Belleville washer (c) with the cupped side facing inward over the steering wheel and secure with the hex lock screw (d). See Figure 6.
3. Place the steering wheel cover (b) over the center of the steering wheel (a), align the three snaps with the tabs in the steering wheel and push downward until it "clicks" into place. See Figure 6.
4. Proper steering column and seat adjustment will result in the following (to adjust the seat, refer to Adjusting the Seat):

a. In the neutral position with hands on the steering wheel:

• Operator's upper arms should be relaxed and approximately vertical.
• Operator's forearms should be approximately horizontal.
• Operator's back should stay in contact with the seat back.

• Steering column should not contact operator's legs.

• Check the results of any adjustments to the conditions described above. Repeat any adjustment procedures as required until all conditions are met.

Steering Wheel Column

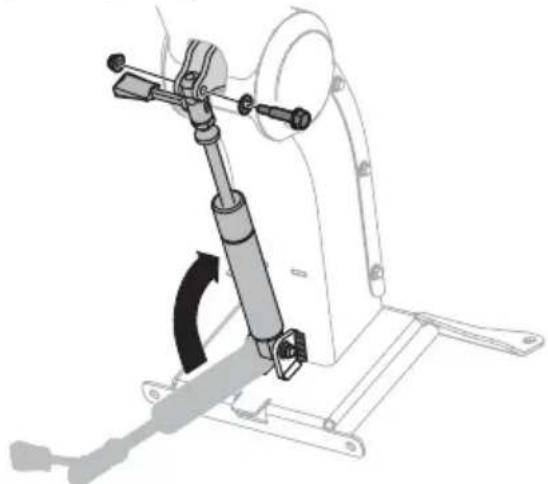

INSTALLING THE TILT LOCKING CYLINDER (IF NECESSARY)

1. Remove hardware from manual bag.
2. Sit in operator's seat.
3. With one hand, lift steering wheel column into a raised position.
4. While holding steering wheel column in a raised position, use other hand to raise tilt locking cylinder, aligning holes in top of cylinder with holes in cylinder mounting plates on the underside of the steering wheel column. See Figure 7.
5. Working from right to left, install flat washer and shoulder screw through holes aligned in Step 4 and secure with hex flange lock nut. Torque the shoulder screw to 120-144 in-lbs (14-16 N-m). See Figure 7.

Mechanical assembly diagram showing a lever mechanism with a curved arm and base plate (no text or symbols)

Figure 7

ADJUSTING THE STEERING WHEEL

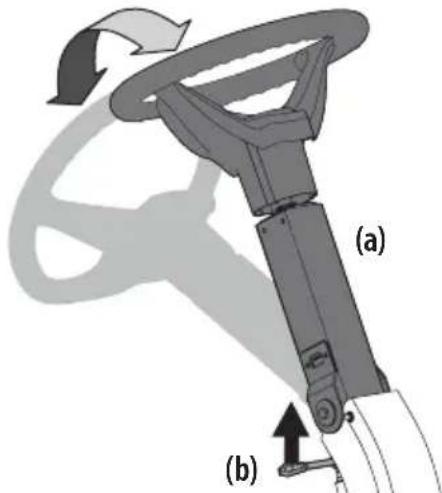

1. To tilt the steering wheel column (a) forward, lift the steering column adjustment lever (b), place the steering wheel column (a) in the desired position and then release the steering wheel column adjustment lever (b) to secure the steering wheel column in place. See Figure 8.

Mechanical device diagram showing a lever mechanism with labeled parts (a) and (b), no readable text or symbols present.

Figure 8

ASSEMBLY

NOTE: When the steering column adjustment lever is lifted, the steering wheel column will begin to raise up. Apply downward pressure on the steering wheel to lower the steering wheel column, if needed.

Lower Discharge Chute Deflector

WARNING

Never operate the mower deck without the chute deflector installed and in the down position.

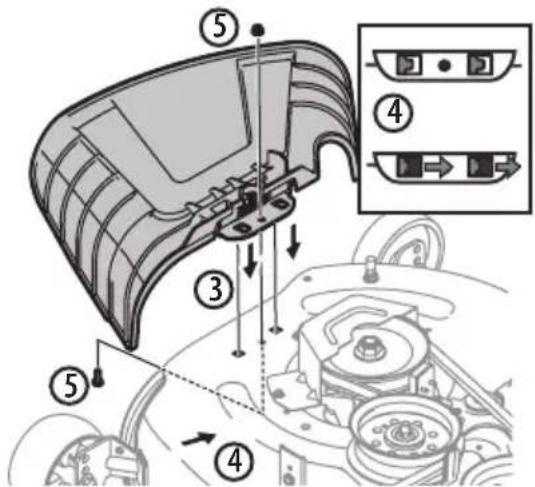

ATTACHING THE CHUTE DEFLECTOR (IF NECESSARY)

1. Remove the keys attached with a zip tie to the chute bracket.
2. Remove the flange lock nut and hex screw from the deck.
3. Place the chute deflector on the deck, be sure to insert the tabs on the chute deflector into the holes on the deck. See Figure 9.

Technical diagram of a car engine compartment with numbered parts and component labels

Figure 9

1. Slide the chute deflector toward the rear of the tractor until the bolt hole in the chute deflector aligns with the hole in the deck. See Figure 9.
2. Secure the chute deflector in place with the flange lock nut and hex screw removed in Step 2. Tighten to 102-124 in-lbs (12-14 N-m). Skip ahead to Setting Deck Wheels (If Equipped).

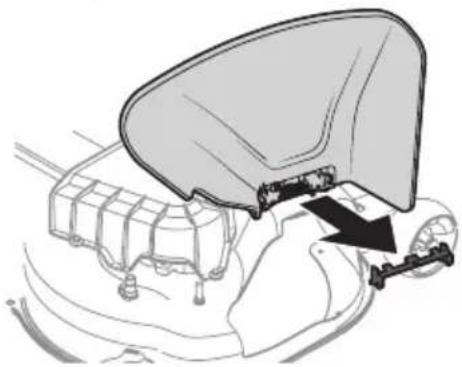

REMOVING THE STOP BRACKET (IF NECESSARY)

1. If the chute is shipped attached and with a stop bracket holding the chute upright, the stop brackets must be removed prior to operating the tractor.
2. Holding the chute deflector fully upward, remove the stop bracket. Lower the chute deflector and discard the stop bracket. See Figure 10.

Diagram of a mechanical component with a lever and handle, showing no text or symbols

Figure 10

Setting Deck Wheels (If Equipped)

NOTE: The deck wheels are an anti-scalp feature of the deck and are not designed to support the weight of the cutting deck.

1. Move the tractor to a level surface, preferably pavement.
2. Check tire pressure, adjust if necessary. See tire side wall for proper tire pressure.

3. Make sure the deck is level side-to-side and properly pitched. See the Product Care section for deck leveling information and instructions.

4. Place deck lift lever or knob in the desired mowing height position and lower deck.

5. Check the wheels for contact or excessive clearance with the surface below.

NOTE: The deck wheels should have between 1/4" (6.35 mm) and 1/2" (12.7 mm) clearance above the ground.

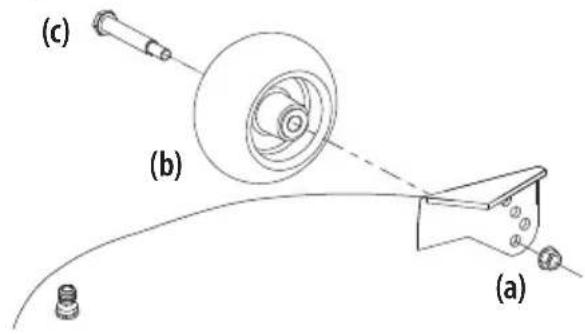

1. Remove the lock nut (a), gauge wheel (b) and shoulder screw (c) from the deck. See Figure 11.

(c) (b) (a)

Figure 11

1. Insert the shoulder screw (c) into one of four index holes on the deck wheel bracket. Allow a 1/4-1/2" (6.35-12.7 mm) clearance between the ground and gauge wheel. See Figure 11.
2. Note the index hole used on previously adjusted wheel. Repeat adjustment on opposite side to align both gauge wheels.

Battery Information

WARNING

California PROPOSITION 65 WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

WARNING

Should battery acid accidentally splatter into the eyes or onto the skin, rinse the affected area immediately with clean cold water. Seek prompt medical attention.

If acid spills on clothing, first dilute it with clean water, then neutralize with a solution of ammonia/water or baking soda/water.

NEVER connect (or disconnect) battery charger clips to the battery while the charger is turned on, as it can cause sparks.

Keep all sources of ignition (cigarettes, matches, lighters) away from the battery. The gas generated during charging can be combustible.

As a further precaution, only charge the battery in a well ventilated area.

Always shield eyes and protect skin and clothing when working near batteries.

Batteries contain sulfuric acid and may emit explosive gases. Use extreme caution when handling batteries. Keep batteries out of the reach of children.

The battery may present a risk of fire or chemical burn if misused. Do NOT open, disassemble, overheat, or incinerate the battery.

NOTE: The positive battery terminal is marked Pos. (+). The negative battery terminal is marked Neg. (−).

CONNECTING BATTERY CABLES

WARNING

Always connect the positive lead to the battery before connecting the negative lead. This will prevent sparking or possible injury from an electrical short caused by contacting the tractor body with tools being used to connect the cables.

For shipping reasons the factory may leave both battery cables disconnected from the terminals. To connect the battery cables, proceed as follows:

NOTE: Wiring harness should lay on top of battery hold down rod, otherwise damage to the wiring harness may result. See Figure 15 on page 12.

Models with Lead-Acid Battery

1. If present, remove the plastic cover from the positive battery terminal. Attach the red connector to the positive battery terminal (+) using the bolt (a) and hex nut (b). See Figure 12.
2. If present, remove the plastic cover from the negative battery terminal and attach the black cable to the negative battery terminal (−) with the bolt (a) and hex nut (b). See Figure 12.

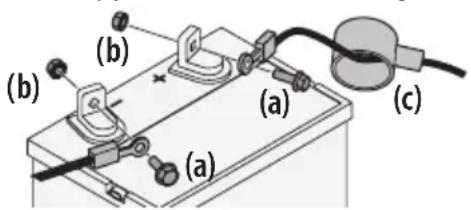

3. Position the red rubber boot (c) over the positive battery terminal to help protect it from corrosion. See Figure 12.

(b) (b) (a) (c) (a)

Figure 12

NOTE: If the battery is put into service after date shown on top/ side of battery, charge the battery as instructed in the Charging the Battery section, prior to operating.

Models with AGM Battery

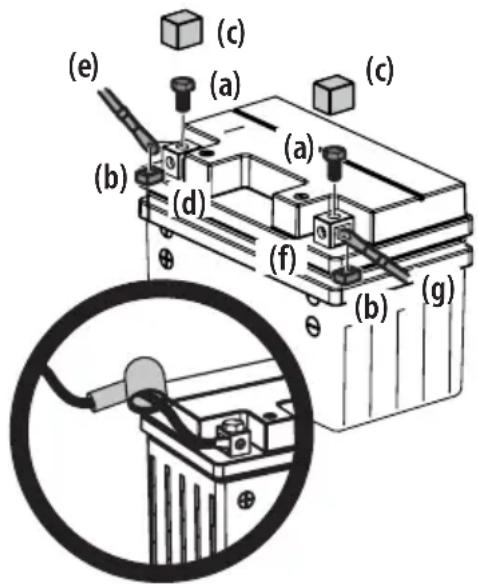

1. Remove the factory installed hex screws (a) and square nuts (b) located either on the end of the wiring harness or in the bag with this manual. Retain the hardware for later instructions. See Figure 13.
2. Remove the plastic cover (c), if present, from the positive battery terminal (d) and attach the red cable (e) to the positive battery terminal (d) with one of the hex screws (a) and square nuts (b), from Step 1. Use a Philips screw driver. See Figure 13.
3. Position the red rubber boot over the positive battery terminal to help protect it from corrosion. See inset in Figure 13.
4. Remove the plastic cover (c), if present, from the negative battery terminal (f) and attach the black cable (g) to the negative battery terminal (f) with the remaining hex screw (a) and square nut (b). See Figure 13.

NOTE: If the battery is put into service after date shown on top/ side of battery, charge the battery as instructed in Charging the Battery, prior to operating.

BATTERY MAINTENANCE

• Some batteries are filled with battery acid and then sealed at the factory. However, even a "maintenance free" battery requires some maintenance to ensure its proper life cycle.
• Spray the terminals and exposed wire with a battery terminal sealer or coat the terminals with a thin coat of grease or petroleum jelly, to protect against corrosion.
• Always keep the battery cables and terminals clean and free of corrosion.
• Some models are equipped with a battery containing a liquid electrolyte. Handle the battery with care and avoid tipping to prevent leakage.

ASSEMBLY

BATTERY STORAGE

• When storing the tractor for extended periods, disconnect the negative battery cable. It is not necessary to remove the battery.
• All batteries discharge during storage. Keep the exterior of the battery clean, especially the top. A dirty battery will discharge more rapidly.
• The battery must be stored with a full charge. A discharged battery can freeze sooner than a charged battery. A fully charged battery will store longer in cold temperatures than hot.
• Recharge the battery before returning to service. Although the tractor may start, the engine charging system may not fully recharge the battery.

BATTERY REMOVAL

WARNING

Battery posts, terminals, and related accessories contain lead and lead compounds. Wash hands after handling.

The battery is located beneath the seat frame. To remove the battery:

Models with Lead-Acid Battery

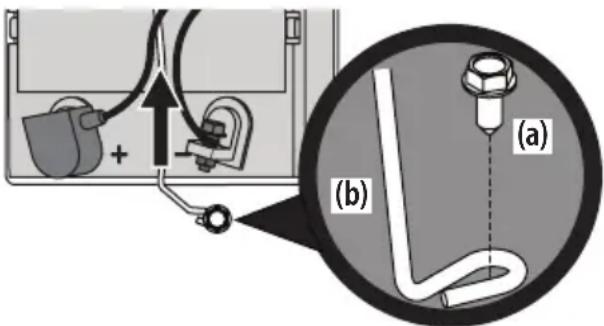

1. Remove the hex cap screw and sems nut securing the black negative battery lead to the negative battery post (marked NEG (-)). Move the cable away from the negative battery post.
2. Remove the hex cap screw and sems nut securing the red positive battery lead to the positive battery post (marked POS (+)).
3. Remove the hex washer screw (a) securing the battery hold-down rod (b) to the frame. Then flip the battery hold-down rod (b) up to free the battery. See Figure 14.

Diagram showing electrical connections with labeled parts and a magnified view of a pipe fitting labeled (a)

Figure 14

1. Carefully lift the battery out of the tractor.
2. Install the battery by repeating the above steps in the reverse order.

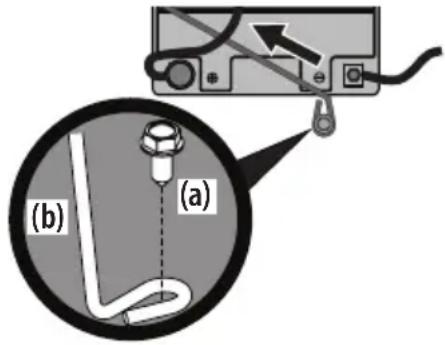

Models with AGM Battery

1. Remove the hex screw and square nut securing the black negative battery lead to the negative battery post (marked NEG (-)). Move the cable away from the negative battery post.

2. Remove the hex screw and square nut securing the red positive battery lead to the positive battery post (marked POS (+)).

3. Remove the battery hold down rod by pushing the hooked end out of the tab on the fender to the right side of the battery. Then flip the battery hold down rod up to free the battery. See Figure 15.

(b) (a)

Figure 15

1. Carefully lift the battery out of the tractor.
2. Install the battery by repeating the above steps in the reverse order.

CHARGING THE BATTERY

Test and, if necessary, recharge the battery after the tractor has been stored for a period of time.

Models with Lead-Acid Battery

• A voltmeter or load tester reading of 12.4 volts (DC) or lower across the battery terminals indicates that the battery needs to be charged.
• A lead-acid battery charger should be used. Recommended charge rate is 4A/14.7V.
• If your battery charger is automatic, charge the battery until the charger indicates that charging is complete. If the charger is not automatic, charge for no fewer than eight (8) hours.

Models with AGM Battery

- An AGM battery charger should be used. Recommended charge rate is 1.1A/14.8V.

IMPORTANT! Do NOT use an automotive charger.

- If your battery charger is automatic, charge the battery until the charger indicates that charging is complete. If the charger is not automatic, charge for no fewer than eight (8) hours.

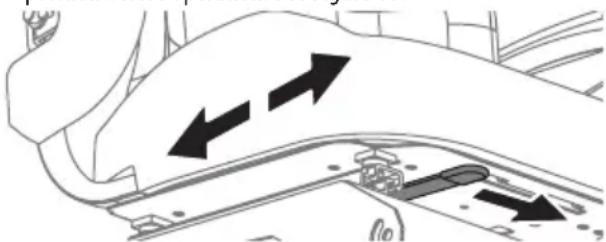

Adjusting the Seat

1. Push and hold the seat adjustment lever to the left to adjust the seat position.
2. Slide seat forward or rearward to desired position.
3. Release the adjustment lever. Ensure seat is locked into position before operation. See Figure 16.

Diagram of a car interior showing airflow direction arrows (no text or symbols)

Figure 16

OPERATION

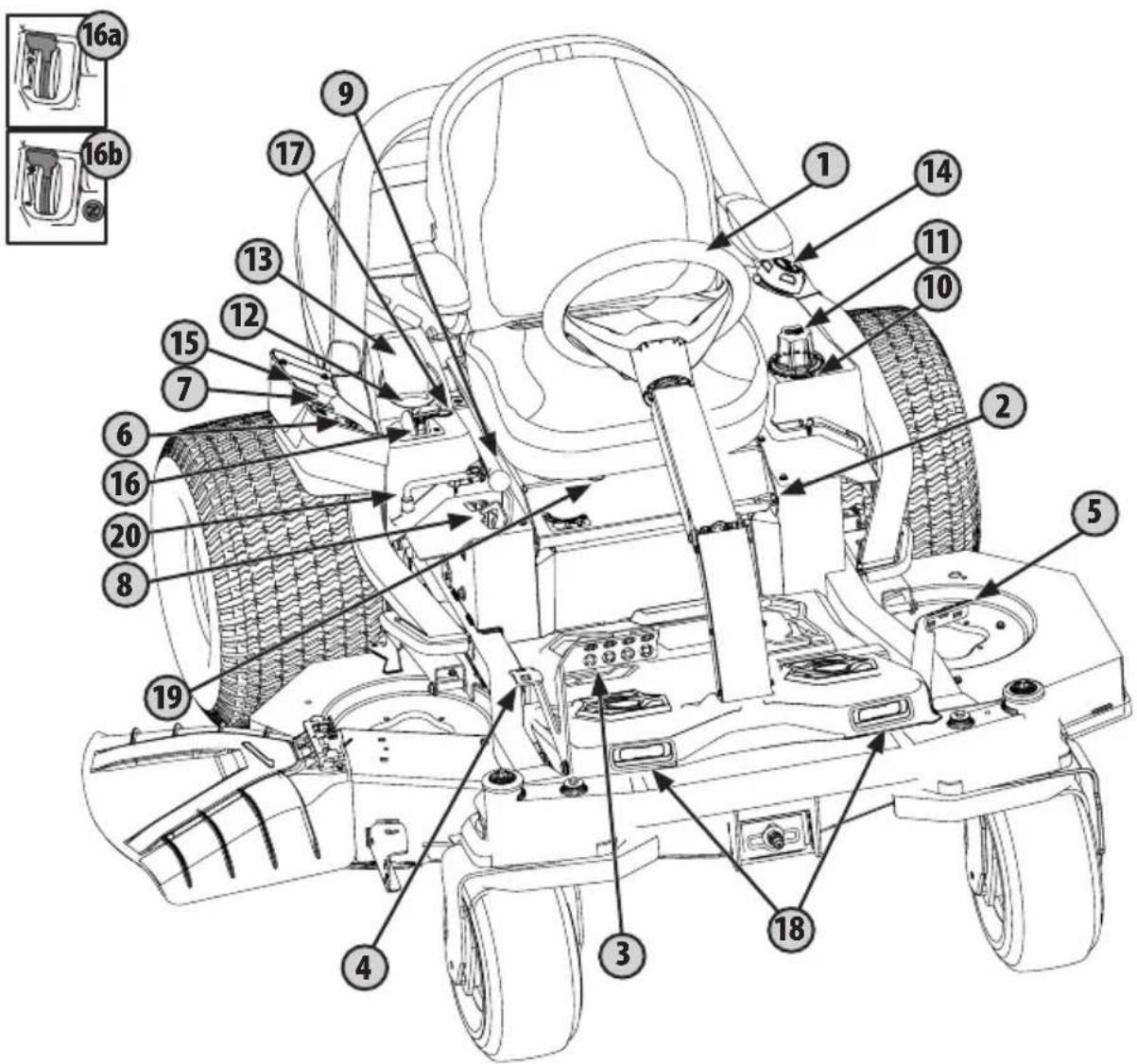

Technical diagram of a tractor's internal components with numbered parts and labeled parts (16a, 16b)

Figure 17

NOTE: This Operator's Manual covers several models. Tractor features may vary by model. Not all features in this manual are applicable to all tractor models and the tractor depicted may differ from yours.

NOTE: All references in this manual to the left or right side and front or back of the tractor are from the operating position only. Exceptions, if any, will be specified.

① Steering Wheel

The steering wheel is used to control the direction of the tractor.

② Steering Column Adjustment Lever

The steering column adjustment lever is located on the left side of the steering column. To adjust the column pull up on the steering column adjustment lever and move the steering column up into the desired position. Release the steering column adjustment lever to secure the steering column in the desired position.

③ Forward Drive Pedal

The forward drive pedal is located on the right side of the tractor, along the running board. Press the forward drive pedal forward to cause the tractor to travel forward. Ground speed is also controlled with the forward drive pedal. The further forward the pedal is pressed, the faster the tractor will travel. The pedal will return to its original/neutral position when it is released.

④ Reverse Pedal

The reverse drive pedal is located on the right side of the tractor along the running board. Ground speed is also controlled with the reverse drive pedal. The further downward the pedal is pressed, the faster the tractor will travel. The pedal will return to its original/neutral position when it is released.

Abstract black-and-white diagram with an upward arrow and a central geometric shape (no text or symbols)

Pure diagram of a mechanical or electrical component with a downward arrow, no text or symbols present.

OPERATION

5 Deck Lift Pedal

The deck lift pedal is located on the front, left corner of the platform. The pedal is used in conjunction with the deck lift knob to raise and lower the mowing deck. Push forward on the deck lift pedal, rotate the deck lift knob to the desired height and release the deck lift pedal.

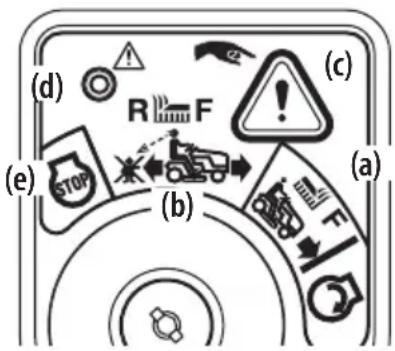

⑥ Ignition Module

WARNING

Never leave a running machine unattended. Always disengage PTO, set parking brake, stop engine, and remove key to prevent unintended starting.

To start the engine, insert the key into the ignition switch and turn clockwise to the START position. Release the key into the NORMAL MOWING MODE position once the engine has fired.

To stop the engine, turn the ignition key counter-clockwise to the STOP position.

CAUTION

Prior to operating the tractor, refer to both Safety Interlock System and Starting the Engine in the Operation section of this manual for detailed instructions regarding the Ignition Module and operating the tractor in REVERSE CAUTION MODE

NOTE: To prevent accidental starting and/or battery discharge, remove key from the ignition switch when tractor is not in use.

⑦ Power Take-Off (PTO)

The PTO switch is located on the RH console to the left of the hour meter/indicator panel.

The PTO switch operates the electric PTO clutch mounted on the bottom of the engine crankshaft. Pull the switch knob upward to engage the PTO clutch or push the knob downward to disengage the clutch.

OFF ↑ -/- ON

The PTO switch must be in the "OFF" position when starting the engine.

⑧ Transmission Bypass Lever

The transmission bypass lever is located to the right of the operator's seat, next to the park brake lever. When engaged, the lever opens a bypass within the hydrostatic transmissions, which allows the tractor to be pushed short distances by hand. Refer to the Assembly section for additional instructions.

CAUTION

Never tow your tractor. Towing the tractor with the rear wheels on the ground may cause severe damage to the transmissions.

⑨ Park Brake Lever

The park brake lever is located to the right of the operator's seat, next to the transmission bypass lever. It is used to engage the parking brake when the tractor is at rest. Refer to the Driving the Tractor section of this manual for detailed instructions regarding the parking brake.

NOTE: The parking brake must be set if the operator leaves the seat with the engine running or the engine will automatically shut off.

10 Deck Height Index

Each rotation represents a 1/4" (6.35 mm) change in deck height. Positions range from 1" (2.5 cm) to 4-1/2" (11.4 cm) at the highest point.

11 Deck Lift Knob

The deck lift knob is used in conjunction with the deck lift pedal to raise and lower the mowing deck. Push forward on the deck lift pedal, rotate the deck lift knob to the desired height and release the deck lift pedal.

12 Cup Holder

The cup holder is located on the top of the console.

13 Storage Tray

The storage tray is located to the rear of the console.

14 Fuel Tank Cap

Turn the fill cap counter-clockwise and pull upward to remove. The fuel cap is tethered to the tractor to prevent its loss. Do not attempt to remove the cap from the tractor. Fill tank to 1/2" (12.7 mm) below the bottom of the filler neck, allowing some space in the tank for fuel expansion. Do not overfill the tank.

Push the cap downward on the fuel tank fill neck and turn at least two clicks clockwise to tighten. Always re-install the fuel cap tightly onto the fuel tank after removing.

WARNING

Never fill the fuel tank when the engine is running. If the engine is hot from recently running, allow to cool for at least five minutes before refueling. Highly flammable gasoline could splash onto the engine and cause a fire.

OPERATION

⑮ Hour Meter & LCD Service Minder (If Equipped)

The hour meter & LCD service minder will remind the operator of maintenance intervals for changing the engine oil, air filter service, low engine and low battery warnings. When the key is rotated out of the STOP position but is not in the START position, the hour meter & LCD service minder will briefly display the battery voltage, followed by the tractor's accumulated hours.

1/10

NOTE: When the ignition key is out of the STOP position the hourglass symbol is illuminated/blinks to indicate it is recording the hours of tractor operation, regardless of whether the engine has been started.

CHANGE OIL

The LCD screen will alternate the letters "CHG", followed by "OIL", followed by "SOON", followed by the meter's accumulated time. "CHG/OIL/SOON/TIME" will alternate on the display for 7 minutes after the meter reaches 50 hours. This oil service minder interval will occur every 50 hours. Before the interval expires, change the engine oil as instructed in the Engine Operator's Manual.

LOW OIL

NOTE: The low oil pressure function only works if the engine is equipped with an oil pressure switch.

The LCD screen will alternate the letters "LO" followed by "OIL", followed by the meter's accumulated time, which indicates the engine has low oil pressure. This is common when starting an engine. The indicator will remain active until the engine sufficiently builds pressure after starting. If it remains on with the engine at full speed, and after a few minutes of operation, stop the tractor immediately and check the engine oil level and add as instructed in the Engine Operator's Manual. If the oil level is correct and the indicator persists, contact an authorized service dealer.

LOW BATTERY

At startup, the battery voltage will briefly display, then changes to accumulated hours. The letters "LO" followed by the letters "BATT" will display, followed by the meter's accumulated time. "LO/BATT/TIME" is displayed on the LCD when the voltage drops below 11.5 volts. When this occurs, the battery is in need of a charge or the engine's charging system is not generating sufficient amperage. Charge the battery as instructed in the Assembly section of this manual or have the charging system checked by your local service dealer.

AIR FILTER SERVICE

The LCD screen will display the letters "CLN" followed by the letters "AIR", followed by "FILT", followed by the meter's accumulated time. "CLN/AIR/FILT/TIME" will alternate on the display for 7 minutes after the meter reaches 25 hours. This air filter service minder time interval will be every 25 hours. On intervals that are common with oil service, the oil message will be displayed first followed by the air filter message.

⑯ Throttle/Choke Control Lever or Throttle Control

NOTE: When set in a given position, a uniform engine speed will be maintained.

A. THROTTLE/CHOKE CONTROL LEVER (IF EQUIPPED)

Push the throttle/choke control lever forward to increase the engine speed. The tractor is designed to operate with the throttle/choke control lever at full throttle (FAST) when the tractor is being driven and the mower deck is engaged. Pull the throttle/choke control lever rearward to decrease the engine speed. When starting the engine, push the control lever fully forward into the CHOKE position. After starting and warming the engine, move the control lever rearward until you feel it move past the choke detent. Throttle is not meant to control unit speed, throttle should remain in high speed while operating blades.

B. THROTTLE CONTROL (IF EQUIPPED)

Push the throttle control lever forward to increase the engine speed. The tractor is designed to operate with the throttle control lever at full throttle (FAST) when the tractor is being driven and the tractor deck is engaged. Pull the throttle control lever rearward to decrease the engine speed.

17 Choke Control (If Equipped)

The choke control determines the position of the engine choke. Pull the knob out to choke the engine; push the knob in to open the choke.

AUTO TO CHINE

18 Headlights

The headlights are located on the front of the frame. The headlights are ON whenever the ignition key is rotated out of the STOP position and OFF when the ignition key is moved to the STOP position.

19 Seat Adjustment Lever

The seat adjustment lever is located under the seat. The seat adjustment lever allows for adjustment forward or backward of the operator's seat. Refer to the Assembly section for instructions on adjusting the seat position.

OPERATION

20 Multi-Tool

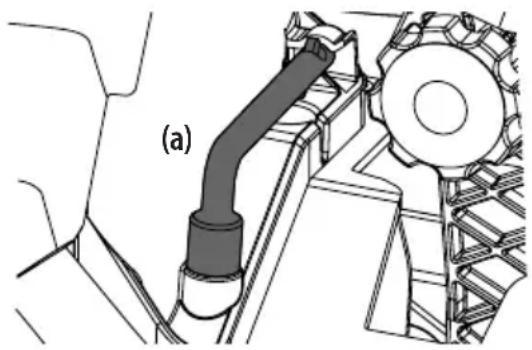

The multi-tool (a) is located on the front of the right console. The multi-tool (a) can be used as a deck lift lockout, to remove the footpan bolt, and can be used as a removal tool with the 1/2" socket end. See the Product Care section for more information on multi-tool (a) usage. See Figure 18.

Technical line drawing of a mechanical assembly with a labeled component (a), showing no text or symbols beyond the label.

Figure 18

Operation

• Before operation, refer to the Maintenance Schedule chart located in this manual for regularly scheduled service items.
• This engine is certified to operate only on clean, fresh, unleaded gasoline. Fill only with clean, fresh, unleaded gasoline with a pump sticker octane rating of 87 or higher.
• Do not use gasoline left over from the previous season, to minimize gum deposits in the fuel system.
• Gasohol (up to 10% ethyl alcohol, 90% unleaded gasoline by volume) is an approved fuel. Other gasoline/alcohol blends are not approved.
• Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline blends (up to a maximum of 15% MTBE by volume) are approved fuels. Other gasoline/ether blends are not approved.

SAFETY INTERLOCK SYSTEM

WARNING

Do NOT operate the tractor if the safety interlock system is malfunctioning. This system was designed for your safety and protection.

This tractor is equipped with a safety interlock system for the protection of the operator. If the interlock system should ever malfunction, do not operate the tractor. Contact an authorized service dealer.

• The safety interlock system prevents the engine from cranking or starting unless the parking brake is engaged and the PTO switch is in the DISENGAGED (OFF) position.
• The engine will automatically shut OFF if the operator leaves the seat before engaging the parking brake.

- The engine will automatically shut OFF if the operator leaves the tractor's seat with the PTO switch in the ENGAGED (ON) position, regardless of whether the parking brake is engaged.

CHECKING THE SAFETY INTERLOCK CIRCUITS

Periodically check the safety interlock circuits to ensure they are working properly. If a safety circuit is not working as designed, contact an authorized service dealer to have the tractor inspected. Do NOT operate the tractor if any safety circuit is not functioning properly. To check the safety circuits, proceed as follows:

1. Pull the PTO upward to the ENGAGED (ON) position. Momentarily turn the ignition switch to the START position; the engine should not crank.
2. With the tractor running move both drive pedals to the neutral position; then lift upward from the operator's seat. The engine should stop.
3. With both drive pedals in the neutral position and the parking brake engaged, engage the PTO. Lift upward from the operator's seat; the engine should stop.

STARTING THE ENGINE

WARNING

This tractor is equipped with a safety interlock system designed for the protection of the operator. Do not operate the tractor if any part of the interlock system is malfunctioning. Periodically check the functions of the interlock system for proper operation.

WARNING

The operator should be sitting in the tractor seat when starting the engine.

NOTE: Refer to the Engine Operator's Manual for gasoline and oil fill-up instructions.

1. Operator must be sitting in the tractor seat.
2. Engage the parking brake by placing drive control pedals in neutral, pushing the park brake lever to the right out of the "off" position (a) and pulling the lever back until it locks into the "on" position (b). See Figure 19.

(a) (b)

Figure 19

OPERATION

1. Make certain the PTO switch is in the disengaged (down) position.
2. Move the throttle control to midway between its SLOW and FAST positions.
3. Move the choke control into the CHOKE position (if equipped).

NOTE: If the engine is warmed up, it may not be necessary to choke the engine.

1. Turn the ignition key clockwise to the START position. After the engine starts, release the key. It will return to the NORMAL MOWING position.

CAUTION

Do not hold the key in the START position for longer than ten seconds at a time. Doing so may cause damage to your engine's electric starter.

1. As the engine warms up, gradually push the choke control downward.
   NOTE: Do not leave the choke control in the CHOKE position while operating the tractor. Doing so will result in a "rich" fuel mixture and cause the engine to run poorly.
2. Allow the engine to run for a few minutes at mid-throttle before putting the engine under load.
3. Observe the hour meter/indicator panel. If the battery indicator light or oil pressure light come on, immediately stop the engine. Have the tractor inspected by your authorized dealer.

COLD WEATHER STARTING

When starting the engine at temperatures near or below freezing, ensure the correct viscosity motor oil is used in the engine and the battery is fully charged. Start the engine as follows:

1. Be sure the battery is in good condition. A warm battery has much more starting capacity than a cold battery.
2. Use fresh winter grade fuel. Winter grade gasoline has higher volatility to improve starting. Do not use gasoline left over from summer.
3. Follow the previous instruction for Starting the Engine.

Batteries contain sulfuric acid and produce explosive gases. Make certain the area is well ventilated, wear gloves and eye protection, and avoid sparks or flames near the battery.

If the battery charge is not sufficient to crank the engine, recharge the battery. If a battery charger is unavailable and the tractor must be started, the aid of a booster battery will be necessary. Connect the booster battery as follows:

1. Connect one end of the red cable to the disabled tractor battery's positive terminal; then connect the other end of that cable to the booster battery's positive terminal.
2. Connect one end of the black cable to the booster battery's negative terminal; then connect the other end of that cable to the frame of the disabled tractor, as far from the battery as possible.
3. Start the disabled tractor following the normal starting instructions previously provided; then disconnect the jumper cables in the exact reverse order of their connection.
4. Have the tractor's electrical system checked and repaired as soon as possible to eliminate the need for jump starting.

STOPPING THE ENGINE

1. Place the PTO switch in the disengaged position.
2. Engage the parking brake.
3. Move the throttle to the SLOW position and allow the engine to idle for about one minute.
4. Turn the ignition key to the STOP position and remove the key from the ignition switch.

NOTE: Always remove the key from the ignition switch to prevent accidental starting or battery discharge if the equipment is left unattended.

Driving the Tractor

WARNING

Avoid sudden starts, excessive speed, and sudden stops.

WARNING

Sharp turns can affect control of the tractor. ALWAYS slow the tractor before making sharp turns.

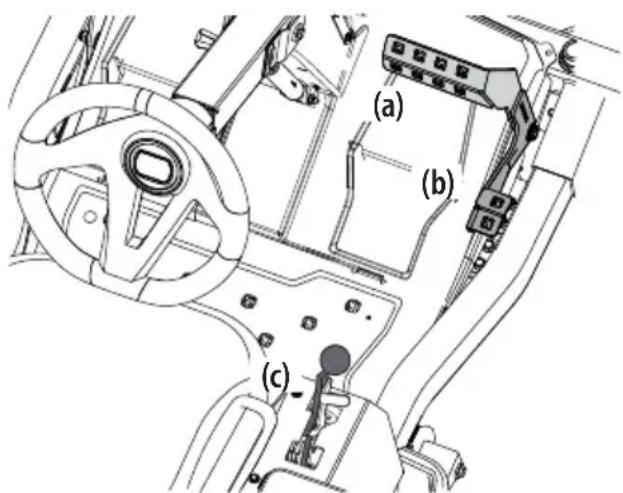

1. Release the parking brake. Move the throttle/choke control lever into the FAST position.
2. To travel FORWARD, slowly press the forward drive pedal (a) forward until the desired speed is achieved. See Figure 20.

(a) (b) (c)

Figure 20

OPERATION

1. To stop or slow down the tractor, take your foot off of the forward (a) or reverse drive (b) pedal. To lock the parking brake, place drive control pedals in neutral and pull the park brake lever (c) back until it locks into the "on" position. See Figure 20 on page 17.
2. To travel in reverse, check that the area behind is clear then slowly push down on the reverse drive pedal (b) with the ball of your foot (NOT your heel) until the desired speed is achieved. See Figure 20 on page 17.

CAUTION

Do NOT attempt to change the direction of travel when the tractor is in motion. Always bring the tractor to a complete stop before moving the tractor from forward to reverse or vice versa.

WARNING

Do not leave the seat of the tractor without first placing the PTO knob in the disengaged (OFF) position and engaging the parking brake. If leaving the tractor unattended, also turn the engine off and remove the key.

REVERSE CAUTION MODE

The REVERSE CAUTION MODE position of the ignition module allows the tractor to be operated in reverse with the blades (PTO) engaged.

NOTE: Mowing in reverse is not recommended.

WARNING

Use extreme caution while operating the tractor in the REVERSE CAUTION MODE, always look down and behind before and while backing. Do not operate the tractor when children or others are around. Stop the tractor immediately if someone enters the area.

To use the REVERSE CAUTION MODE

NOTE: The operator MUST be seated in the tractor seat.

1. Start the engine as previously instructed.

2. Turn the key from the NORMAL MOWING position to the REVERSE CAUTION MODE (b) position of the ignition module. See Figure 21.

1. Press the REVERSE PUSH BUTTON (c) at the top, right corner of the ignition module. The red indicator light (d) at the top, left corner of the ignition module will be ON while activated. See Figure 21.
2. Once activated (indicator light ON), the tractor can be driven in reverse with the cutting blades (PTO) engaged.
3. Always look down and behind before and while backing to make sure no children are around. After resuming forward motion, return key to the NORMAL MOWING position. See Figure 21.
4. The REVERSE CAUTION MODE (b) will remain activated until (see Figure 21):
   a. The key is placed in either the NORMAL MOWING position or STOP (and position, or
   b. The operator leaves the seat.

OPERATING THE PTO

Operate the PTO clutch as follows:

NOTE: During your tractor's initial break-in period, in order to engage the PTO and avoid engine stall, allow the engine to warm before engaging the PTO. Break-in period varies depending on your engine.

1. Move the throttle control lever to the FAST position.
2. Pull the PTO switch upward to the ENGAGED position.
3. The operator must remain in the tractor seat at all times. If the operator should leave the seat without disengaging the PTO, the tractor's engine will shut off.
4. The PTO clutch will not operate when the tractor is driving in the reverse direction without the use of the REVERSE CAUTION MODE. See REVERSE CAUTION MODE section.

Mowing

WARNING

To help avoid blade contact or a thrown object injury, keep bystanders, helpers, children, and pets at least 75' (23 meters) from the machine while it is in operation. Stop machine if anyone enters the area.

WARNING

Make certain the area to be mowed is free of debris, sticks, stones, wire, or other objects that can be thrown by the rotating blades.

WARNING

Plan your mowing pattern to avoid discharge of materials toward roads, sidewalks, bystanders, and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.

OPERATION

WARNING

Be careful when crossing gravel paths or driveways. Disengage the PTO and raise the deck to the highest position before crossing.

NOTE: Do not engage the mower deck when lowered in grass. Premature wear and possible failure of the 'V' belt and PTO clutch will result. Fully raise the deck or move to a non-grassy area before engaging the mower deck.

• Mow across slopes, not up and down. If mowing a slope, start at bottom and work upward to ensure turns are made uphill.
• Do not mow at high ground speed, especially if a mulch kit or grass collector is installed.
• Do not cut the grass too short. Short grass is prone to weed growth and yellows quickly in dry weather.
• Always operate the tractor with the throttle in the FAST position while mowing.

- On the first pass pick a point on the opposite side of the area to be mowed. Follow the point to maintain a straight line.

- Move the throttle control or throttle/choke control to the FAST position and engage the PTO.

- Lower the mower deck to the desired height setting.

- Slowly and evenly push the forward drive control pedal forward to move the tractor forward, and keep the tractor headed directly toward the alignment point.

- For best results it is recommended that the first two laps be cut with the discharge thrown towards the center. After the first two laps, reverse the direction to throw the discharge to the outside for the balance of cutting. This will give a better appearance to the lawn.

NOTE: The speed of the tractor will affect cut quality of the lawn. Mowing at full speed will adversely affect a high quality cut lawn. Control the ground speed with the drive pedals.

• Your tractor is designed to cut normal residential grass of a height no more than 10" (25 cm). Do not attempt to mow through unusually tall, dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the tractor.
• Do not attempt to mow heavy brush and weeds or extremely tall grass. Your tractor is designed to mow lawns, NOT clear brush.
• Keep the blades sharp and replace the blades when worn.
• When approaching the other end of the strip, slow down or stop before turning. A U-turn is recommended unless a pivot or zero turn is required.
• Align the mower with an edge of the mowed strip and overlap approximately 3" (7.6 cm).
• Direct the tractor on each subsequent strip to align with a previously cut strip.
• To prevent rutting or grooving of the turf, if possible, change the direction that the strips are mowed by approximately 45^ for the next and each subsequent mowing.

When stopping the tractor for any reason while on a grass surface, always:

• Engage the parking brake.
• Shut engine off and remove the key.
• Doing so will minimize the possibility of having your lawn "browned" by hot exhaust from your tractor's running engine.

PRODUCT CARE

WARNING

Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Turn off the engine, remove the key, disconnect the spark plug wire(s) and the negative battery cable to prevent unintended starting. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes.

Follow the maintenance schedule given below. This chart describes service guidelines only.

Refer to the Engine Operator's Manual for engine maintenance items listed in the table below.

NOTE: Maintenance schedule continues onto the next page.

	Before Each Use	After First 5 Hours	Every 10 Hours	Every 25 Hours	Every 50 Hours	Every 100 Hours	Every 200 Hours	Prior to Storing	See Engine Manual
Check/Clean Engine Intake Screens & Cooling Fans #	√							√
Check/Clean Exhaust Manifold, Muffler Pipe, & Muffler Shields #	√							√
Check/Clean Top and Underside of Deck, Under & Around Spindle Covers, Belt Area #	√							√
Check/Clean Around Fuses, Wiring & Wiring Harnesses #	√							√
Check/Clean Around Transmission, Axle & Fans #	√							√
Check/Add/Change Transmission Fluid as needed							√
Check Air Filter for Dirty, Loose or Damaged Parts	√
Check Engine Oil Level	√
Clean Battery Terminals			√					√
Grease All Lubrication Points			√					√
Check Engine Intake Screen/Clean as Needed			√					√
Check Blades/Sharpen or Replace as Needed			√					√
Check Tire Pressure			√					√
Check/Clean Underside of Deck	√		√
Check Safety Interlock System			√					√
Check Mower Blade Stop Time			√					√
Inspect & Lube Deck Wheels				√				√
Inspect & Lube Steering Joint				√
Check Deck Level/Pitch				√				√

PRODUCT CARE

	Before Each Use	After First 5 Hours	Every 10 Hours	Every 25 Hours	Every 50 Hours	Every 100 Hours	Every 200 Hours	Prior to Storing	See Engine Manual
Check Belts & Pulleys for Damage/Wear					√
Check That All Hardware is in Place & Secure						√
Check Engine Mounting Bolt Torque (Tighten to 325-450 in-lbs (37-50 N-m))		√	√	√	√
Check Blade Mount Nut Torque (Tighten to 70-90 ft-lbs (95-122 N-m))		√	√	√
Check Spark Plug Condition & Gap						√	√	√
Engine Break-In Oil Change		√							√
Change Engine Oil					√	√	√
Check Fuel System (Lines, Tank, Cap, Fittings)		√	√	√	√
Check Spark Arrestor		√	√	√	√
Replace Oil Filter					√	√	√
Clean or Change Air Filter					√				√
Replace Fuel Filter					√				√
Have Valve Lash Checked & Adjusted*									√

* -- Have this item performed by an authorized service dealer
NOTE: This Operator's Manual covers several models. Tractor features may vary by model. Not all features in this manual are applicable to all tractor models and the tractor depicted may differ from yours.

Post-Operation Tractor Care

After each operation of the tractor, to ensure safe operating conditions refer to Maintenance Schedule chart in this manual for proper tractor care.

WARNING

Failure to follow these recommendations may result in serious injury to yourself or others and may cause damage to the tractor.

Cleaning the Underside of the Deck

DECK WASH SYSTEM (IF EQUIPPED)

Your tractor's deck may be equipped with a water port on its surface as part of its deck wash system.

Use the deck wash system to rinse grass clippings from the deck's underside and prevent the buildup of corrosive chemicals. Complete the following steps AFTER EACH MOWING:

# -- Perform more often in dry conditions and/or when mulching

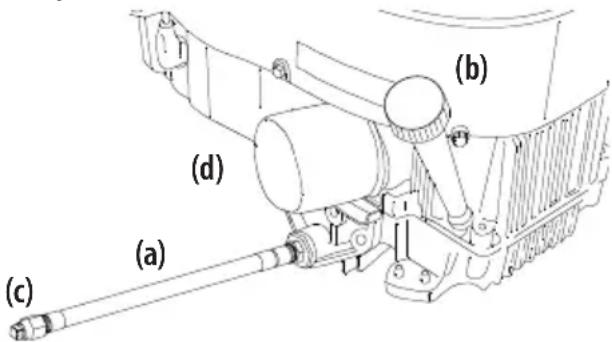

1. Attach the nozzle adapter to a standard garden hose connected to a water supply.
2. Move the tractor to an area within reach of the hose where the dispersal of wet grass clippings is acceptable. Disengage the PTO, engage the parking brake and stop the engine.
3. Pull back the lock collar (a) of the nozzle adapter (b) and push the nozzle adapter onto the deck wash nozzle (c). Release the lock collar to lock the nozzle adapter on the deck wash nozzle. See Figure 22.

(b) (a) (c)

Figure 22

PRODUCT CARE

1. Turn on the water supply.
2. From the tractor operator's seat, start the engine and engage the PTO. Allow to run as needed. Disengage the PTO and stop the engine.
3. Turn off the water supply.
4. Pull back the lock collar of the nozzle adapter to disconnect the nozzle adapter from the deck wash nozzle.

Cleaning the Tractor

WARNING

If the tractor has been recently run, the engine, muffler, and surrounding metal surfaces will be very hot and can cause burns to the skin. Let the engine cool for at least five minutes. Exercise caution to avoid burns.

Your tractor must be cleaned after each use and under certain conditions, i.e. dry conditions and/or mulching situations, additional cleaning may be necessary.

One of the best ways to keep your tractor running efficiently and to reduce fire risk is to regularly remove debris buildup from the tractor. Follow the recommendations below and contact your authorized dealer with any questions.

• Allow the machine to cool for at least five minutes in an open area before cleaning.
  NOTE: Using a pressure washer or garden hose is not recommended for cleaning your tractor other than to clean the underside of the deck. It may cause damage to electrical components, spindles, pulleys, bearings or the engine. The use of water will result in shortened life and reduce serviceability.
• Keep both sides of transmission cooling slots, exhaust manifold, around fuses, all wiring and harnesses, muffler pipe, muffler shield, engine intake screens and cooling fins, etc., clear of grass clippings and leaves. See Figure 23.

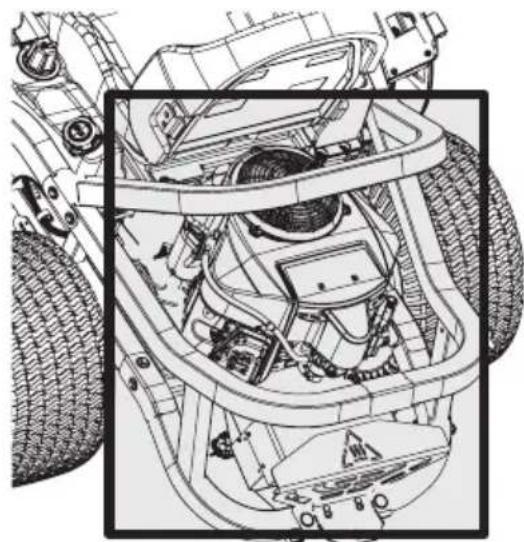

Technical line drawing of a vehicle's internal components, showing hoses, wheels, and structural elements (no text or labels)

Figure 23

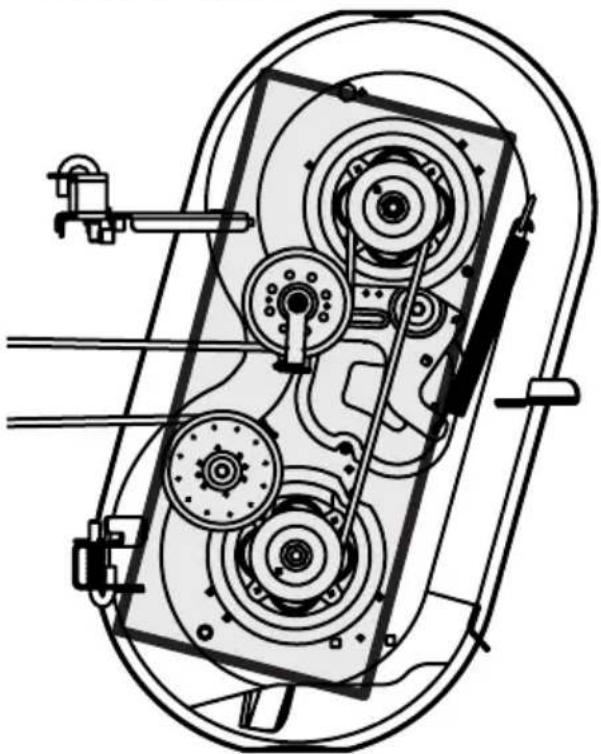

- Clean the top of the mower deck, under the spindle covers and belt area. See Figure 24.

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Figure 24

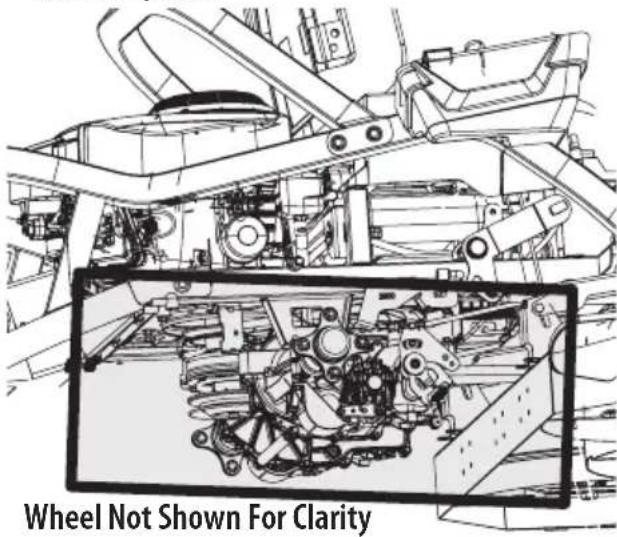

- Clean around and near the transmission, axle and the fan area. See Figure 25.

Wheel Not Shown For Clarity

Figure 25

• Debris can accumulate anywhere on the tractor, especially on horizontal surfaces. Additional cleaning may be necessary when mowing in dry conditions or when mulching.
• Fuel leaks/spills, oil leaks/spills and excess lubrication can also become collection sites for debris. Immediate repair and cleaning up oil or fuel spills can help reduce fire hazards.
• In addition to cleaning the tractor before operating and storing, do not attempt to mow unusually tall grass (10" (25.4 cm) or higher), dry grass (e.g., pasture) or piles of dry leaves. Dry grass or leaves may contact the engine exhaust and/or build up on the mower deck presenting a potential fire hazard.

PRODUCT CARE

Storing the Tractor

• Allow the machine to cool in an open area for at least five minutes before storing.
• Do not park the tractor near any flammable materials (wood, cloth or chemicals) or any open flames or other potential source of ignition (furnace, water heater or any other type of heater).
• Remove all combustible materials from the tractor before storing. Empty cargo boxes, grass catchers or containers.
• Always shut off fuel flow when storing or transporting if tractor is equipped with a fuel shutoff.
• Check the fuel system (lines, tank, cap and fittings) per the Maintenance Schedule for cracks or leaks. Repair and clean as necessary.

Maintenance

REMOVING THE FLOOR PANEL

WARNING

Do not operate tractor with floor panel removed.

The floor panel can be removed for maintenance, service and cleaning. To remove the floor panel:

1. Using the multi-tool or a 1/2" socket, remove the hex screw (a) that secures the floor panel in place. See 1 in Figure 26.

(a) ① ② ③ ④

Figure 26

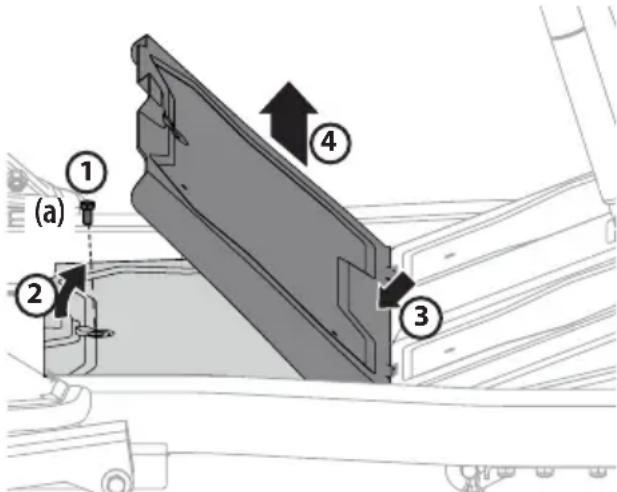

1. Carefully lift the rear of the floor panel. See 2 in Figure 26.
2. Slide the floor panel rearward to free the front of the floor panel. See 3 in Figure 26.
3. Lift it off the tractor. See 4 in Figure 26.
4. To place the floor panel back on the tractor, carefully put the floor panel back in place and re-install the hex screw removed in Step 1. Torque to 108-132 in-lbs (12-15 N-m).

ENGINE

WARNING

Allow machine to cool in an open area for at least five minutes before storing or refueling.

Refer to the Engine Operator's Manual for all engine maintenance procedures and instructions.

NOTE: Maintenance, repair or replacement of the emission control devices and systems which are being done at owner's expense may be performed by any engine repair establishment or individual. Warranty repairs must be performed by an authorized dealer.

CHANGING THE ENGINE OIL

WARNING

If the tractor has been recently run, the engine, muffler, and surrounding metal surfaces will be very hot and can cause burns to the skin. Let the engine cool for at least five minutes. Exercise caution to avoid burns.

NOTE: The oil filter should be changed at every oil change interval.

To complete an oil change, proceed as follows:

1. Locate the oil drain hose (a) on the side of the engine. See Figure 27.
2. Place an appropriate oil collection container with at least a 2.5 quart (2.37 liter) capacity below the opening of the oil drain hose, to collect the used oil. Remove the oil fill cap/dipstick (b) from the oil fill tube. See Figure 27.
3. While holding the free end of the oil drain hose over the oil collection container, unscrew the square head hose plug (c) from the end of the oil drain hose. See Figure 27. Drain the engine oil into the collection container.

1. After draining the oil, wipe any residual oil from the oil drain hose. Thread the square head hose plug into the oil drain hose fitting and tighten the square head hose plug to 16 ft-lbs (22 N-m).
2. Remove the oil filter (d) and drain into the collection container. See Figure 27.
3. Replace the oil filter (d) and refill the engine with new oil as instructed in the Engine Operator's Manual. See Figure 27.

NOTE: Place an absorbent towel beneath the oil filter to keep oil off the clutch.

NOTE: Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.

NOTE: Maintenance, repair or replacement of the emission control devices and systems which are being done at owner's expense may be performed by any engine repair establishment or individual. Warranty repairs must be performed by an authorized dealer.

PRODUCT CARE

LUBRICATION

Using a quality lubricating oil, lubricate all lubrication points. Refer to Maintenance Schedule chart located in this manual for proper service intervals.

SPARK ARRESTOR MAINTENANCE (IF EQUIPPED)

Spark arrestor assemblies must be inspected and cleaned periodically (see the Maintenance Schedule chart in this manual). Visually inspect the screen for tears, broken wires or loose welds. Replace the spark arrestor assembly if any of these conditions exist. If the screen is in good condition, clean the screen by brushing away loose dirt or carbon particles.

GREASE POINTS

Front Wheels

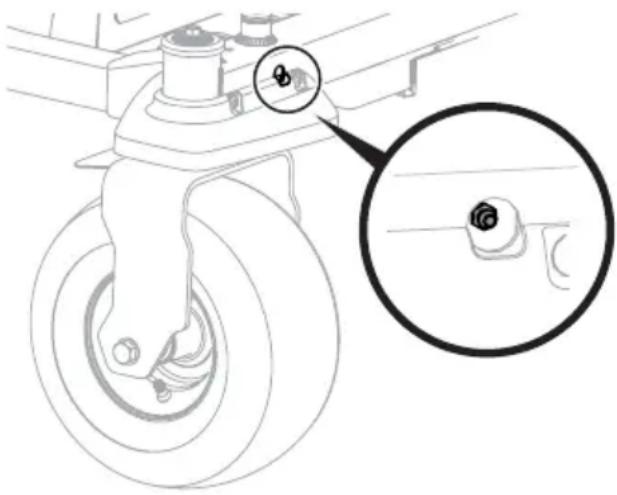

Each of the front wheel axles is equipped with grease fittings. See Figure 28. Lubricate with a No. 2 multi-purpose grease applied with a grease gun after every 25 hours of tractor operation.

Technical line drawing of a mechanical component with two circular annotations highlighting features (no text or symbols present)

Figure 28

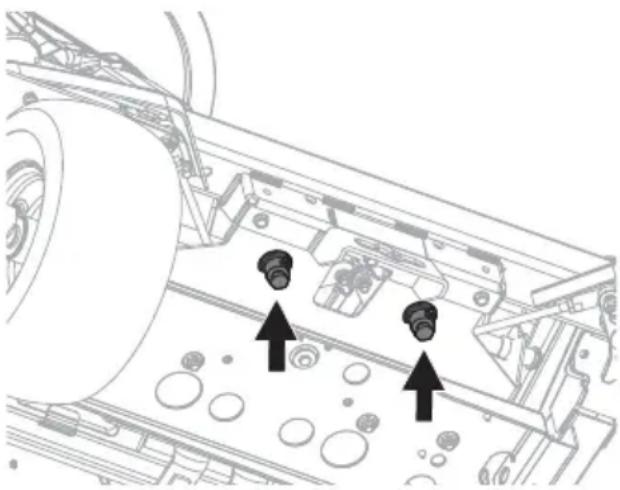

Steering Joint

The steering joint is equipped with two grease fittings. See Figure 29. Lubricate with a No. 2 multi-purpose grease applied with a grease gun after every 25 hours of tractor operation.

Technical diagram of a mechanical assembly with three arrows pointing to component parts (no text or symbols present)

Figure 29

TIRES

Keep the tires inflated to the recommended pressures. Improper inflation will shorten the tire service life. See the tire side wall for proper inflation pressures. Refer to Maintenance Schedule chart located in this manual for proper service intervals.

Observe the following guidelines:

• Do not inflate a tire above the maximum pressure shown on the sidewall of the tire.
• Do not reinflate a tire that has been run flat or seriously under-inflated. Have it inspected and serviced by a qualified tire mechanic.

HYDROSTATIC TRANSMISSION

Your zero-turn tractor is equipped with two hydrostatic pumps/transaxles. Under normal operating conditions, the oil level does not need to be checked.

Changing the Transmission Oil

Please see your authorized service dealer for transmission oil changes.

Off-Season Storage

If your tractor is not going to be operated for an extended period of time (30 days or more), the tractor should be prepared for storage. Store the tractor in a dry and protected location. If stored outside, cover the tractor (including the tires) to protect it from the elements. The procedures outlined below should be performed whenever the tractor is placed in storage.

1. Change the engine oil and filter following the instructions provided in this manual as well as the Engine Operator's Manual provided with this tractor.

WARNING

Never store the tractor with fuel in the tank indoors or in poorly ventilated enclosures, where fuel fumes may reach an open flame, spark, or pilot light as on a furnace, water heater, clothes dryer, etc.

1. If storing the tractor for 30 days or more:

a. To prevent gum deposits from forming inside the engine's carburetor and causing possible malfunction of the engine, the fuel system must be either completely emptied or the gasoline must be treated with a stabilizer to prevent deterioration.
b. Using a fuel stabilizer for storage between 30 and 90 days:
- Read the product manufacturer's instructions and recommendations.
- Add to clean, fresh gasoline the correct amount of stabilizer for the capacity (approximately 3 gallons) of the fuel system.
- Fill the fuel tank with treated fuel and run the engine for 2-3 minutes to get stabilized fuel into the carburetor.
- Fuel left in the fuel tank deteriorates and will cause serious starting problems.

PRODUCT CARE

c. Emptying the fuel system for storage of more than 90 days:

• Prior to putting the tractor in storage, monitor fuel consumption with the goal of running the fuel tank empty.
• Run the engine until it begins to stall. Use the choke to keep the engine running until all fuel in the carburetor has been exhausted.

• Referring to the Engine Operator's Manual, drain the fuel from the carburetor bowl.

• Clean the engine and the entire tractor thoroughly.

NOTE: Using a pressure washer or garden hose is not recommended for cleaning your tractor other than to clean the underside of the deck. It may cause damage to electrical components, spindles, pulleys, bearings or the engine. The use of water will result in shortened life and reduce serviceability.

1. Fully charge the battery, then disconnect the negative cable at the battery to prevent possible discharge. Recharge the battery periodically when in storage.

NOTE: Remove the battery if exposed to prolonged periods of sub-freezing temperatures. Store in a cool, dry location where temperatures are above freezing.

1. Lubricate all lubrication points.

Removing the Tractor from Storage

1. Check the engine oil.
2. Fully charge the battery and inflate the tires to the recommended pressure. See tire side wall for proper tire inflation pressure.
3. Fill the fuel tank with clean, fresh gasoline.
4. Start the engine and allow to idle for a few minutes to ensure engine is operating properly.
5. Drive the tractor without a load to make certain all the tractor systems are functioning properly.

Adjustments

ADJUSTING DECK LIFT PEDAL

1. Set the deck to the transport position.

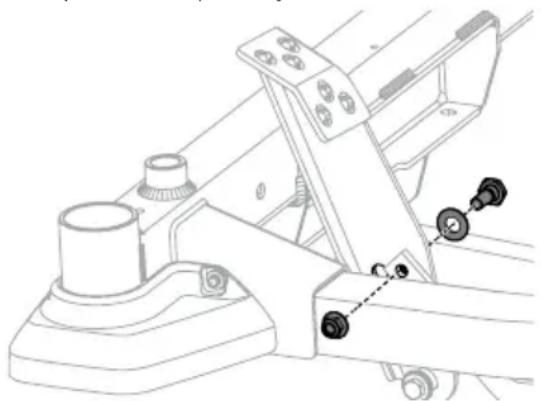

2. Remove the hex bolt, washer and hex nut near the center of the pedal assembly. See Figure 30.

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 30

1. Position the pedal to the optimal position based on operator preference. See Figure 31.

Diagram of a mechanical lever mechanism with rotating arm and pivot point (no text or symbols)

Figure 31

1. Re-install the hardware previously removed and torque the nut to 28-35 ft-lbs (38-47 N-m). See Figure 30.

DECK LEVELING

If the cutting deck appears to be mowing unevenly, leveling adjustments can be performed.

WARNING

If the tractor has been recently run, the engine, muffler, and surrounding metal surfaces will be very hot and can cause burns to the skin. Let the engine cool for at least five minutes. Exercise caution to avoid burns.

WARNING

Tractor blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.

LEVELING THE DECK (SIDE-TO-SIDE)

1. Place the deck lift knob in a middle mowing position and rotate both outside blades so they are perpendicular with the tractor.
2. Measure the distance from the outside of the left blade tip to the ground and the distance from the outside of the right blade tip to the ground. Both measurements taken should be equal. If they are not, proceed to the next step.
3. Locate the adjustment bolts (a) on the left and right side of the deck. See Figure 32.

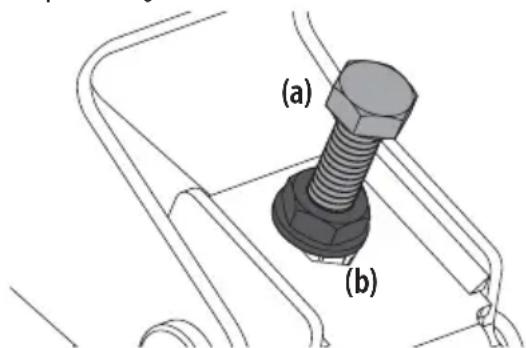

4. Loosen, but do not remove, the jam nuts (b) on the adjustment bolt. Adjust either the right or left adjustment bolt up or down as necessary until the side-to-side heights are equal. See Figure 32.

Technical diagram of a bolt and nut assembly (no text or symbols)

Figure 32

PRODUCT CARE

NOTE: Continue to check the front-to-back leveling as you make the side-to-side adjustment as the side-to-side adjustment can affect the front-to-back level. If necessary, adjust front-to-back.

1. When proper adjustment is achieved, re-tighten the jam nuts (b). Tighten to 57 ft-lbs (77 N-m). See Figure 32 on page 25.

LEVELING THE DECK (PITCH/FRONT-TO-REAR)

The front of the deck should be between 1/16-1/4" (2-6 mm) lower than the rear of the deck. Adjust if necessary as follows:

1. Park the tractor on a firm, level surface and place the deck lift knob in a middle position.
2. Rotate the blade nearest the discharge chute so that it is parallel with the tractor.
3. Measure the distance from the front of the blade tip to the ground and the rear of the blade tip to the ground. The first measurement taken should be between 1/16-1/4" (2-6 mm) less than the second measurement.
4. Determine the approximate distance necessary for proper adjustment and proceed, if necessary.

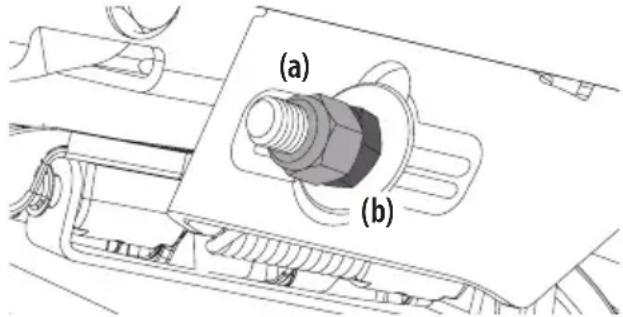

5. To raise the front of the deck, remove the end cap, loosen the outer jam nut (a) then tighten (thread inward) the inner nut (b) against the front hanger bracket. See Figure 33. When proper adjustment is achieved, re-tighten the outer jam nut (a) and replace the end cap.

(a) (b)

Figure 33

1. To lower the front of the deck, remove the end cap, loosen the outer jam nut (a) then loosen (thread outward) the inner nut (b), away from the front hanger bracket. See Figure 33. When proper adjustment is achieved, re-tighten the outer jam nut (a) to 57 ft-lbs (77 N-m) and replace the end cap.

ADJUSTING THE DECK WHEELS

WARNING

Keep hands and feet away from the discharge opening of the cutting deck.

NOTE: The deck wheels are an anti-scalp feature of the deck and are not designed to support the weight of the cutting deck. The deck wheels should be approximately 1/4-1/2" (6.35-12.7 mm) above the ground when the deck is set in the desired height setting. To adjust the deck wheels, see the Assembly section for instructions.

Service

ELECTRICAL SYSTEM

A fuse is installed to protect the tractor's electrical system from damage caused by excessive amperage. Always use the same capacity fuse for replacement. If the electrical system does not function, check for a blown fuse.

If you have a recurring problem with blown fuses, have the tractor's electrical system checked by your authorized service dealer.

RELAYS AND SWITCHES

There are several safety switches in the electrical system. If a function of the safety interlock system described earlier is not functioning properly, have the electrical system checked by your authorized service dealer.

If the tractor does not come to a complete stop when the control pedals are in the neutral position, engaging the parking brake, or if the tractor's rear wheels can roll with the parking brake engaged (and the hydrostatic relief valve open), the brake is in need of adjustment. See your authorized dealer to have the brake properly adjusted.

DECK REMOVAL

Remove the tractor deck from the tractor as follows:

1. Move the tractor to a level surface, disengage the PTO, stop the engine, place the drive pedals in the neutral position and engage the parking brake.
2. There are two methods for removing the belt, to remove the belt by releasing belt tension go on to Step 3, to remove the belt by rolling the belt off the PTO pulley skip ahead to Step 4.

WARNING

Use caution to avoid pinching your fingers when rolling the belt off the PTO pulley.

1. Releasing belt tension with the idler pulley:

a. Using the deck lift pedal and knob, raise the deck to the position that provides the most horizontal run of the belt between the deck idler pulleys and the PTO pulley on the bottom of the engine. See Figure 34 on page 27.
b. Working from the middle of the tractor, pivot the idler bracket (a) and movable idler pulley (b) rearward just far enough to lift the belt up and over the spindle pulley. See Figure 34 on page 27.

PRODUCT CARE

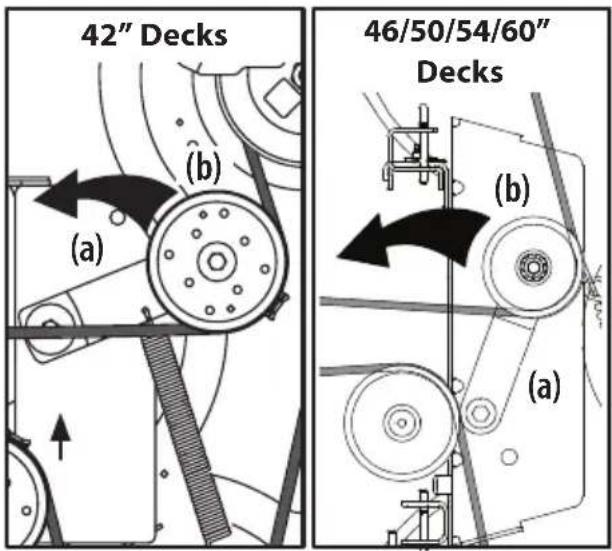

42" Decks (a) (b) 46/50/54/60" Decks (b) (a)

Figure 34

c. From beneath the rear of the tractor, slide the belt off of the PTO pulley on the bottom of the engine.
d. Lower the deck into the lowest mowing position.
e. Skip ahead to Step 5.

1. Rolling the belt off the PTO pulley:

a. Raise the deck to the position that provides the most horizontal run of the belt between the deck idler pulleys and the PTO pulley on the bottom of the engine.
b. Sitting behind the tractor facing forward, reach beneath the tractor to grasp the belt at the front of the PTO pulley.
c. Pull the left side of the belt rearward and downward while manually turning the PTO pulley to the right until the belt rides out onto the edge of the lower sheave of the pulley.

NOTE: If pulling the right side of the belt, turn the pulley left.

d. While still holding the PTO belt (a) downward, continue turning the PTO pulley (b) until the PTO belt (a) is rolled off the PTO pulley (b). See Figure 35.

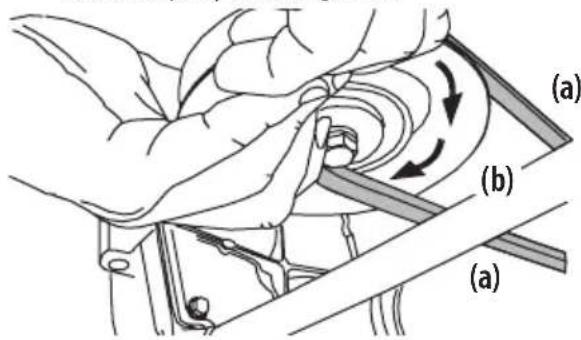

(a) (b) (a)

Figure 35

e. Lower the deck into the lowest mowing position.
f. Move on to Step 5.

WARNING

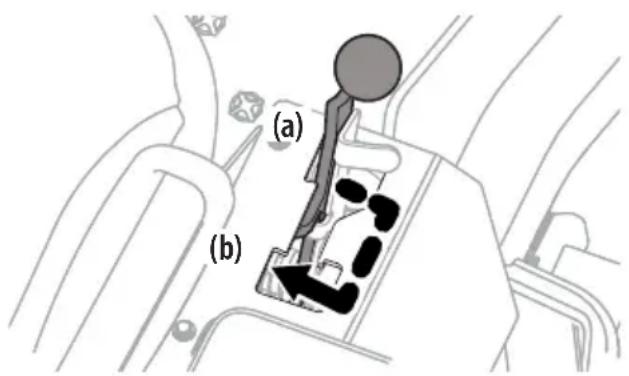

The deck lift on tractors with the deck lift knob is spring-assisted and under tension. Injury can occur if spring-assisted deck lift is released suddenly. Always use the multi-tool to secure the deck lift in place.

1. Use the deck lift pedal and deck lift knob to place the deck in the lowest position and use the multi-tool (a) to lock the deck lift components in place as shown in Figure 36.

Technical line drawing of a mechanical assembly with labeled component (a), showing no readable text or symbols.

Figure 36

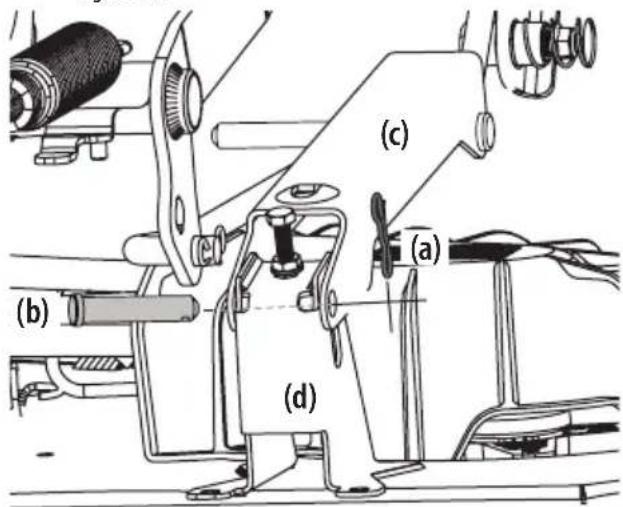

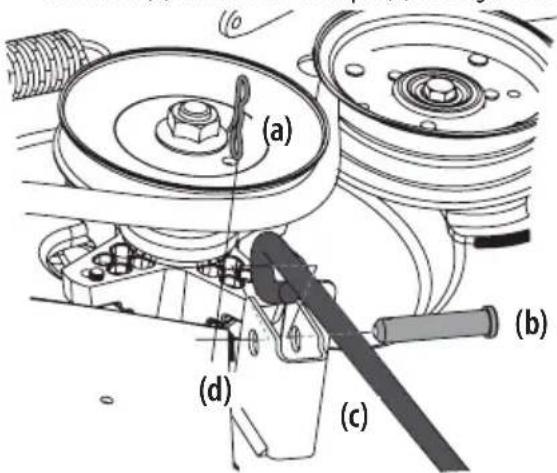

a. Remove the two bow-tie pins (a) from the clevis pins (b) that secure the lift link brackets (c) to the rear deck lift brackets (d) on the deck. Remove the clevis pins (b). See Figure 37.

b. Remove the third bow-tie pin (a) from the clevis pin (b) that secures the front deck control rod (c) to the front deck lift bracket (d). Remove the clevis pin (b). See Figure 38.

c. Carefully maneuver the deck out from beneath the tractor.

PRODUCT CARE

DECK INSTALLATION

Install the deck on the tractor as follows:

1. Carefully maneuver the deck under the tractor from the right side, lining up the deck hanger brackets and the deck lift arms on deck lift rod/deck release pin tractors and align the lift link brackets and front deck control rod with the deck lift brackets on three-pin tractors.
2. Once the deck is under the tractor, move the deck lift to the lowest mowing position.

NOTE: To line the brackets up properly, it may be necessary to place a small block of wood under each side of the deck.

1. Re-install the applicable hardware for your tractor.
2. Make certain the 'V' belt is in the spindle pulleys on the deck; then route the belt rearward beneath the tractor frame, above the transmission tube(s), to the PTO pulley on the bottom of the engine.
3. Raise the deck to the position that provides the most horizontal run of the belt between the deck idler pulleys and the PTO pulley on the bottom of the engine.
4. Make certain the belt is in the spindle pulleys of the deck and that the backside of the belt is against both the fixed and movable idler pulleys.
5. Sitting behind the tractor, facing forward, make certain the belt is not twisted; then reach beneath the tractor to grasp the belt and pull it toward the PTO pulley.

WARNING

Use caution to avoid pinching your fingers when rolling the belt onto the PTO pulley.

1. Pull the right side of the PTO belt rearward and place the narrow V-side of the PTO belt into the PTO pulley. See Figure 35 on page 27.
2. While holding the PTO belt and PTO pulley together, rotate the PTO pulley to the left (see Figure 35 on page 27). Continue holding and rotating the PTO pulley and PTO belt until the PTO belt is fully rolled into the PTO pulley.

NOTE: Before using the tractor double-check the belt routing to make sure that the belt has been routed properly.

REPLACING THE BELT

1. Remove the deck from beneath the tractor, (refer to Deck Removal).

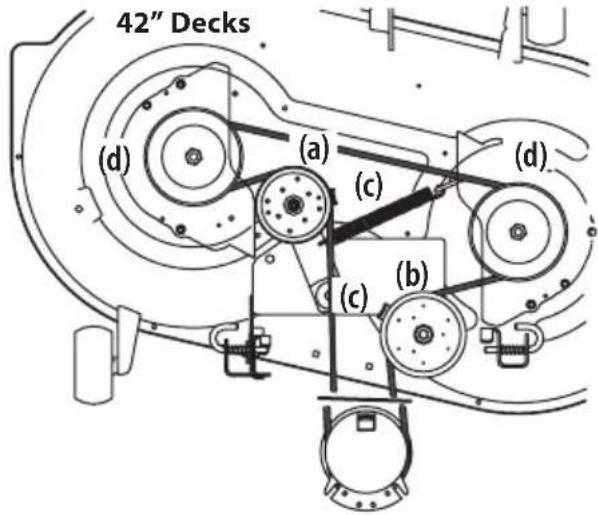

2. Loosen, but do not remove the hardware on the right (a) and left idler pulley (b). Refer to Figure 39 for 42" decks, Figure 40 for 46" decks, Figure 41 for 50" and 54" decks and Figure 42 on page 29 for 60" decks.

NOTE: Take note of the position of the belt guards (c) to ensure they are properly re-installed.

NOTE: On some decks it may be necessary to remove the spindle covers to remove and/or install the new belt. To remove the spindle covers, remove the screws securing them to the deck.

1. Carefully remove the belt from around the idler pulleys (a & b) and the spindle pulleys (d).

2. Install the new belt pulleys as shown and re-install the belt covers.

3. Place the belt around the idler pulleys removed in Step 3 with the 'V' side facing in. Once in place, re-install all the hardware and tighten the flange lock nut to secure the assembly.
4. Route the belt as shown and then re-install the deck (refer to Deck Installation).

Tractor blades are sharp. Wrap the blade or wear gloves and use extra caution when servicing them.

The cutting blades must be kept sharp at all times. Sharpen the cutting edges of the blades evenly so that the blades remain balanced and the same angle of sharpness is maintained.

If the cutting edge of a blade has already been sharpened many times or if any metal separation is present, it is recommended that new blades be installed. New blades are available at your authorized dealer.

The blades may be removed as follows:

1. Remove the deck from beneath the tractor, (refer to Deck Removal) then gently flip the deck over to expose its underside.
2. Use a 15/16" wrench to hold the hex nut on top of the spindle assembly when loosening the hex nut (a) and washer (d)* securing the blade (b). A block of wood (c) may be placed between the deck housing and the cutting edge of the blade (b) to help in breaking loose the hex nut (a) and washer (d)*. See Figure 43.

(a) (c) (d)* (b) * If equipped

Figure 43

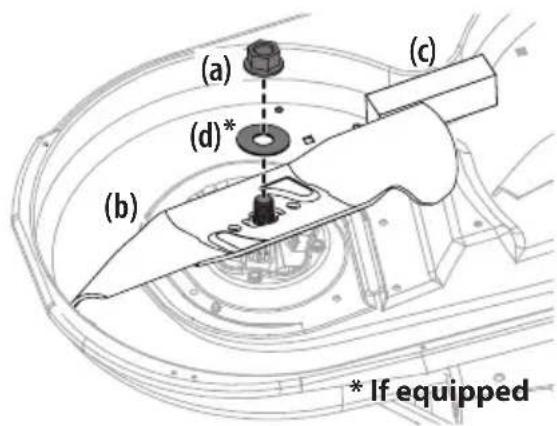

1. When re-installing the blades, be sure of the following (see Figure 43):

a. Blades (b) are installed so wings are pointing upward toward the top of the deck.
NOTE: When replacing or installing the blades, be sure to install with the side marked "Bottom" or "Grass Side" (or with a part number stamped on it) facing the ground when mower is in operating position.
b. Washer (d)* is placed between bottom of blade (b) and hex nut (a).

IMPORTANT! Align "S" shaped cutout with matching "S" shape on spindle for secure fit.

1. Tighten the hex nuts (a) to 70-90 ft-lbs (95-122 N-m).
2. Re-install the deck (refer to Deck Installation).

Changing the Transmission Drive Belt

Several components must be removed and special tools used in order to change the tractor's transmission drive belt. See your authorized service dealer to have the transmission drive belt replaced.

Tractor Creeping

Creeping is the slight forward or backward movement of the tractor when the throttle is on and the speed control pedals are in the neutral position. If your tractor creeps, see an authorized service dealer.

PRODUCT CARE

Troubleshooting

WARNING

Before cleaning, repairing, or inspecting, make certain the blade(s) and all moving parts have stopped. Turn off the engine, remove the key, disconnect the spark plug wire(s) and the negative battery cable to prevent unintended starting. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes.

THIS SECTION ADDRESSES MINOR SERVICE ISSUES. TO LOCATE THE NEAREST AUTHORIZED SERVICE CENTER CONSULT THE SEPARATE SUPPLEMENT SHEET FOR CONTACT INFORMATION.

PROBLEM CAUSE REMEDY
Engine fails to start 1. PTO/Blade Engage knob engaged.2. Parking brake not engaged.3. Spark plug wire disconnected.4. Throttle control lever not in correct starting position.5. Fuel tank empty or stale fuel.6. Blocked fuel line or fuel filter.7. Faulty spark plug.8. Engine flooded.9. Fuse(s) blown.	1. Place knob in disengaged (OFF) position.2. Engage parking brake.3. Connect wire to spark plug.4. Place Throttle control lever halfway between the SLOW and FAST positions.5. Fill tank with clean, fresh (less than 30 days old) gas.6. Replace fuel line. See a qualified service dealer. Replace fuel filter.7. Clean, adjust gap or replace plug.8. Crank engine with throttle in FAST position.9. Replace fuse.
Engine runs erratically	1. Tractor running with Choke activated.2. Spark plug wire loose.3. Blocked fuel line or stale fuel.4. Vent in gas cap plugged.5. Water or dirt in fuel system.6. Dirty air cleaner.	1. Check for proper throttle/choke cable adjustment. See a qualified service dealer.2. Connect and tighten spark plug wire.3. Replace fuel line. See a qualified service dealer. Fill tank with clean, fresh gasoline and replace fuel filter.4. Clear vent or replace cap if damaged.5. Drain fuel tank. Refill with clean, fresh gasoline.6. Clean or replace air cleaner paper element or clean foam pre-cleaner.
Engine overheats 1. Engine oil level low.2. Air flow restricted.	1. Fill engine with proper amount and type of oil.2. Clean grass clippings and debris from around the engine's cooling fins and blower housing.
Engine hesitates at high RPMs	1. Spark plug gap set too close.	1. Remove spark plug and adjust gap.
Engine idles poorly 1. Fouled spark plug.2. Dirty air cleaner.	1. Replace spark plug and adjust gap.2. Clean or replace air cleaner element and/or clean pre-cleaner.
Excessive vibration 1. Cutting blades loose or unbalanced.2. Damaged, dull or bent cutting blade.	1. Tighten blade and spindle. Balance blade.2. Replace blade.
Uneven cut 1. Deck not leveled properly.2. Dull blade.3. Uneven tire pressure.	1. Perform side-to-side deck adjustment.2. Sharpen or replace blade.3. Check tire pressure in all four tires.

MANUAL DEL OPERADOR

Volante Tractor de radio de giro cero

Warning symbols and vehicle diagram showing warning signs, a car, and three yellow warning triangles with icons.

Diagram showing a target with weights and a car, alongside a person holding a tool, indicating a goal or target.

>5° <5 01 b (22kg) <250 lb (113kg) <5° <5°

ADVERTENCIA - EVITE INCENDIOS

(a) (b) (a) (b) (a) (a) (c)

Figura 4

MONTAJE

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols present)

Figura 7

MONTAJE

AJUSTE DEL VOLANTE

Mechanical device with labeled parts (a) and (b), showing a lever mechanism and motion arrow (no text or symbols beyond labels)

Figura 8

Technical diagram of a car engine compartment with numbered parts and component labels

Figura 9

Diagram of a car's engine compartment showing structural components and a directional arrow (no text or labels)

Figura 10

(c) (b) (a)

Figura 11

(b) (a) (c)

Figura 12

Diagram showing electrical wiring connections in a device with labeled parts (a) and (b), including a plus sign and a magnified view.

Figura 14

Diagram of a car intake manifold showing airflow direction arrows (no text or symbols)

Figura 16

FUNCIONAMIENTO

Technical diagram of a tractor's internal components with numbered parts and labeled parts (16a, 16b)

Figura 17

TITLE TO CHOLE W/CHOLE

18 Faros delanteros

Technical line drawing of a mechanical assembly with a curved pipe and gear (no text or symbols)

Figura 18

Funcionamiento

ANTES DE HACER FUNCIONAR EL TRACTOR

(a) (b) (c)

Figura 20

(b) (a) (c)

Figura 22

Technical line drawing of a vehicle's internal components, showing hoses, wheels, and wiring (no text or labels)

Figura 23

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Figura 24

(a) ① ② ③ ④

Figura 26

Mechanical assembly diagram showing a wheel and pivot point with magnified detail (no text or symbols)

Figura 28

Technical diagram of a vehicle's internal components with three arrows pointing to specific parts (no text or labels present)

Figura 29

NEUMÁTICOS

Technical line drawing of a mechanical assembly with no visible text or symbols

Figura 30

Mechanical diagram showing a lever mechanism with rotating arm and pivot point (no text or symbols)

Figura 31

Mechanical assembly diagram showing a bolt inserted into a bracket, labeled (a) and (b), with no visible text or symbols beyond labels.

Figura 32

(a) (b) (a)

Figura 35

Espagnol (Spanish) Page 31

Français......Page 64

Warning symbols and a vehicle diagram with numbered warning signs and icons

Three warning signs: an open book icon with a wrench, a yellow warning triangle with an exclamation mark, and a yellow triangular warning sign with a firearm.

Diagram showing three symbolic representations: a target with arrows, a car with wheels, and a person holding a bat.

≥5° <5° <5 01 b (22kg) <250 lb (113kg) <5°

AVERTISSEMENT

(a) (b) (a) (b) (a) (a) (c)

Figure 4

ASSEMBLAGE

Technical diagram showing three labeled components (a), (b), and (a) of a mechanical or electrical component with directional arrows indicating movement.

Figure 5

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols present)

Figure 7

ASSEMBLAGE

RÉGLAGE DU VOLANT DE DIRECTION

Mechanical device diagram showing a lever mechanism with labeled parts (a) and (b), no readable text or symbols present.

Figure 8

Technical diagram of a car engine bay with numbered components and labeled parts in Chinese

Figure 9

Diagram of a mechanical component with a curved cover and attached parts, showing no text or symbols.

Figure 10

(c) (b) (a)

Figure 11

ASSEMBLAGE

(b) (b) (a) (c) (a)

Figure 12

Diagram of a vehicle's exhaust system showing airflow direction with arrows (no text or labels)

Figure 16

UTILISATION

Technical diagram of a tractor's internal components with numbered parts and labeled parts (16a, 16b)

Figure 17

Abstract black-and-white diagram with upward arrow and geometric shapes (no text or symbols)

Pure diagram of a cross-shaped symbol with a downward arrow, no text or labels present

UTILISATION

OFF ↑ -1 ON

Technical line drawing of a mechanical assembly with a pipe fitting and gear mechanism (no text or symbols)

Figure 18

Utilisation

AVANT D'UTILISER VOTRE APPAREIL

(a) (b) (c)

Figure 20

(b) (a) (c)

Figure 22

Technical line drawing of a vehicle's internal components, showing suspension parts and wiring (no text or labels)

Figure 23

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Figure 24

(a) ① ② ③ ④

Figure 26

Technical line drawing of a mechanical component with two circular insets highlighting specific parts (no text or symbols present)

Figure 28

Technical diagram of a mechanical assembly with three bolted components and mounting holes (no text or labels)

Figure 29

PNEUS

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 30

Diagram of a mechanical lever mechanism with rotating arm and pivot point (no text or symbols)

Figure 31

Mechanical diagram showing a bolt inserted into a bracket, labeled (a) and (b), with no visible text or symbols beyond labels.

Figure 32

(a) (b) (a)

Figure 35

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 36

PROBLÈME CAUSE SOLUTION
