USER MANUAL DEHS1010UB PIONEER

• In the following instructions, a USB memory or USB audio player are referred to as “USB device”. Table of Contents Thank you for purchasing this PIONEER productTo ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference. The Safety of Your Ears is in Your Hands Get the most out of your equipment by playing it at a safe level—a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving.Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.ESTABLISH A SAFE LEVEL: • Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

• Once you have established a comfortable sound level, set the dial and leave it there. BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:• Do not turn up the volume so high that you can’t hear what’s around you.• Use caution or temporarily discontinue use in potentially hazardous situations.
• Do not use headphones while operating a motorized vehicle; the use of headphones may create a traffic hazard and is illegal in many areas. Before You Start This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:–Reorient or relocate the receiving antenna.–Increase the separation between the equipment and receiver.–Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.–Consult the dealer or an experienced radio/TV technician for help.3En English WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.
• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the device. CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result. Also, damage to this unit, smoke, and overheating could result from contact with liquids.•Always keep the volume low enough to hear outside sounds.
• This product is evaluated in moderate and tropical climate condition under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065. After-sales service for Pioneer products Please contact the dealer, distributor from where you purchased this unit or the authorized PIONEER Service Station for after-sales service or any other information. In case the necessary information is not available, please contact the companies listed below:Please do not ship your unit to the companies at the addresses listed below for repair without contacting them in advance.For warranty information please see the Limited Warranty sheet included with this unit.CAUTION:USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.CAUTION:THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.CAUTIONThis product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.U.S.A. and CANADAPioneer Electronics (USA) Inc.CUSTOMER SUPPORT DIVISIONP.O. Box 1760Long Beach, CA 90801-1760800-421-1404

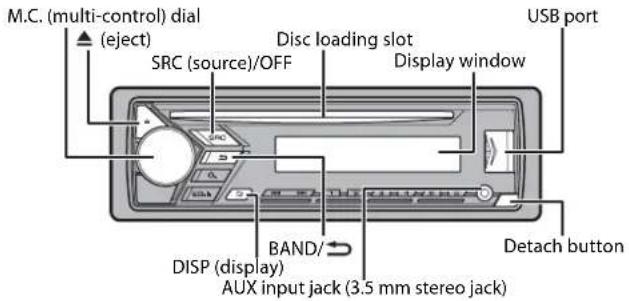

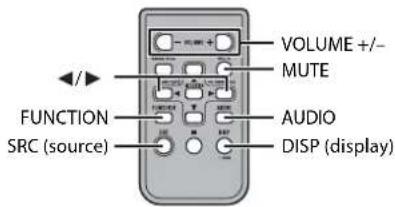

Remote Control Getting Started Basic operation Detach buttonDisplay windowM.C. (multi-control) dialBAND/DISP (display)SRC (source)/OFFUSB port (eject)AUX input jack (3.5 mm stereo jack)Disc loading slot

SRC (source)VOLUME +/– MUTE DISP (display)FUNCTIONAUDIO4En Frequently used operations

• When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal, the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the source off. Display indication Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it. PurposeOperationHead Unit Remote Control Turn on the power* Press SRC/OF F to turn on the power.Press and hold SRC/OFF to turn off the power.Press SRC to turn on the power.Press and hold SRC to turn off the power.Adjust the volume Turn the M.C . dial. Press VOLUME + or –. Press MUTE to mute the unit. Press MUTE again or press VOLUME + or – to unmute. Select a source Press SRC/OF F repeatedly. Press SRC repeatedly. Change the display info rmation Press DISP repeatedly. Press DISP repeatedly. Return to the previous isplay/list Press BAND/ . Press / to select the next/previous folder.Return to the normal display fro m the menuPress and hold BAND/ . Indication Description Appears when a lower tier of the menu or folder exists.Appears when the button is pressed. Appears when the local seek tuning function is set (page 8). Appears when the sound retriever function is set (page 8). Appears when random play is set.Appears when repeat play is set. Detaching the front panel Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.

• Always store the detached front panel in a protective case or bag. Remove the insulation sheet before use. WARNING

• Do not ingest the battery, Chemical Burn Hazard. (The remote control supplied with) This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Do not expose the battery or remote control to excessive heat such as direct sunlight or fire. Preparing the remote control Detach Attach How to replace the battery Insert the CR2025 (3 V) battery with the plus (+) and minus (–) poles orientated properly.5En English CAUTION

• There is a potential danger of explosion if the battery is incorrectly replaced. When replacing the battery, replace it with the same type.• Do not handle or store the battery with metallic tools or objects.
• If the battery leaks, remove the battery and wipe the remote control completely clean. Then install a new battery.
• When disposing of used batteries, please comply with governmental regulations or environmental public institutions’ rules that apply in your country/area.• “Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. (Applicable to California, U.S.A.)” Important

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal. When you turn the ignition switch to ON after installation, [SET UP :YES] appears in the display. 1 Press the M.C. dial. The setup menu disappears after 30 seconds of no operation. If you prefer not to set at th is time, turn the M.C. dial to select [NO], then press to confirm. 2 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 3 Turn the M.C. dial to adjust the minute, then press to confirm. [QUIT] appears. 4 Turn the M.C. dial to select [YES], then press to confirm. NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• This setting can be made at any time. See page 9 for more details. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [SYSTEM], then press to confirm. 3 Turn the M.C. dial to select [DEMO OFF], then press to confirm. 4 Turn the M.C. dial to select [YES], then press to confirm. Setting the clock (CLOCK SET) Canceling the demonstration display (DEMO OFF) 1 Press and hold SRC/OFF until the unit turns off. 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [INITIAL], then press to confirm. 4 Turn the M.C. dial to select an option, then press to confirm. The tuner frequencies on this unit are allocated for use in North America. Use in other areas m ay result in poor reception. 1 Press SRC/OFF to select [RADIO]. INITIAL settings Menu Item DescriptionSP-P/O MODE Select when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/SUB.W][SUB.W/SUB.W] Select when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.[REAR/REAR] Select when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].S/W UPDATE Select to confirm the latest system information on the unit.[SYSTEM INFO][SYSTEM UPDATE] Select to update the unit to the latest software and initialize the nit settings. For details on the latest software and updating, visit our website.SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be restarted automatically.(Some of the settings may be retained even after resetting the unit

[YES], [NO] Radio Receiving preset stations6En 2 Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM]. 3 Press a number button (1/ to 6/ ). TIP The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 8). The six strongest stations are stored on the number buttons (1/ to 6/ ). 1 After selecting the band, press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select [FUNCTION], then press to confirm. 3 Turn the M.C. dial to select [BSM], then press to confirm. To seek a station manually 1 After selecting the band, press / to select a station. Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press / . NOTE [SEEK] needs to be set to [MAN] in the FUNCTION settings (page 8). To store stations manually 1 While receiving the station you want to store, press and hold one of the number buttons (1/ to 6/ ) until it stops flashing. Disconnect headphones from the device before connecting it to the unit.

1 Insert a disc into the disc loading slot with the label side up. To eject a disc, stop playback first then press . Best stations memory (BSM)

Playing back USB devices (including Android™) 1 Open the USB port cover. 2 Plug in the USB device using an appropriate cable. NOTE To automatically switch to [USB] source when a USB device is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 9). CAUTION Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.Before removing the device, stop playback.AOA connectionsFor details on AOA connection, see page 7.MTP connectionA device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats, and cannot be used with the MIXTRAX function. NOTE If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 9). AUX 1 Insert the stereo mini plug into the AUX input jack. 2 Press SRC/OFF to select [AUX] as the source. NOTE If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 9). You can make various adjustments in the FUNCTION settings (page 8). Note that the following operations do not work for an AUX device. To operate an AUX vice, use the device itself. Operations Purpose Operation Select a folder*1 Press 1/ or 2/ . Select a track/song (chapter) Press or . Fast forward or reverse*2 Press and hold or .7En English *1 Compressed audio files only*2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct. The MIXTRAX function creates a non-stop mix of your music library. For details on MIXTRAX settings, see page 9. NOTES

• This function is not compatible with an Android device connected via MTP.
• When USB is selected as a source and the MIXTRAX function is in use, the sound retriever function is disabled.• Depending on the file/song, sound effects may not be available. 1 Press 3/MIX to turn MIXTRAX on/off. Search for a file from a list 1 Press to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm.3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.View a list of the files in the selected folder/category*1Press the M.C. dial when a folder/category is selected.Play a song in the selected folder/ cat egory*1Press and hold the M.C. dial when a folder/category is selected.Repeat play Press 6/ .Random play Press 5/ . Pause/resume playback Press 4/PA USE.Return to root folder (CD/USB only)*1 Press and hold .Switch between compressed audio and CD-DA (CD only)Press BAND/ .Change drives in USB device(Devices that support the USB mass storage device class protocol only)Press BAND/ . About MIXTRAX (USB only) Purpose Operation You can operate the unit from Pioneer ARC APP installed on an Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit. For details on what operations are available on the application, see the application’s help section. WARNING Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application. For Android device users This function is compatible with devices that have Android OS 4.1 or later installed and

lso support AOA (Android Open Accessory) 2.0. You can download Pioneer ARC APP on Google Play™. NOTE Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version. 1 Connect this unit with the mobile device.

• An droid device via USB (page 6) 2 Press the M.C. dial to display the main menu. 3 Turn the M.C. dial to select [SYSTEM], then press to confirm. 4 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm. 5 Turn the M.C. dial to select [APP CONTROL] for an Android device connected via USB. If [ON] is selected in [P.APP AUTO ON] (page 9), Pioneer ARC APP on the Android device starts automatically, and all the steps are finished. NOTE If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 9). 6 Press SRC/OFF to select any source. 7 Launch Pioneer ARC APP on the mobile device. Using Pioneer ARC APP Making a connection with Pioneer ARC APP8En 1 Press SRC/OFF to select [ANDROID]. Basic operations You can adjust various settings in the main menu. 1 Press the M.C. dial to display the main menu. 2 Turn the M.C. dial to select one of the categories below, then press to confirm.

• MIXTRAX settings (page 9) 3 Turn the M.C. dial to select the options, then press to confirm. The menu items vary according to the source. Listening to music on Android Purpose OperationSelect a track Press or . Fast forward or reverse Press and hold or . Pause/resume playback Press 4/PA USE. Settings FUNCTION settings Menu Item Description BSM Store the six strongest stations on the number but tons (1/ to 6/ ) automatically. LOCAL FM: [OFF], [LV1], [LV2], [LV3], [LV4]AM: [OFF], [LV1], [LV2]Restrict the tuning station according to the sig nal strength. SEEK [MAN], [PCH] Assign or buttons to seek the stations one by one (manual tuning) or select a station rom the preset channels.S.RTRV [1] (effective for low compression tes),[2] (effective for high mpression rates),[OFF]Enhance compressed audio and restore rich

und. Not available when:• USB is selected as a source and the MIXTRAX function is set to on.• CD-DA/CD-TEXT is played back. AUDIO settings Menu Item DescriptionFADER*1Adjust the front and rear speaker balance.BALANCEAdjust the left and right speaker balance.EQ SETTING[SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT]Select an equalizer band and level for further customizing.Equalizer band: [80HZ], [250HZ], [800HZ], [2.5KHZ], [8KHZ]Equalizer level: [+6] to [–6]Select or customize the equalizer curve.[CUSTOM1] can be set separately for each source. owever, each of the below combinations are set to the same setting automatically.[CUSTOM2] is a shared setting used for all urces.You can also switch the equalizer by pressing repeatedly.LOUDNESS [OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume. SUB.W*2[NOR], [REV], [OFF] Select the subwoofer phase.Menu Item Description USB9En English *1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *3 Not available when [OFF] is selected in [SUB.W]. You can also access to these menus when the unit is turned off.

Cut-off frequency: [50H Z], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [–24] t o [+6] Slope level: [ –12], [–24] Only frequencies lower than those in the selected range are output from the subwoofer. BASS BOOST [0] to [+6] Select the bass boost level. HPF SETTING Cut-off frequency: [O FF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [ –12], [–24] Only frequencies higher than the high-pass filter

HPF) cutoff are output from the speakers. SLA [+4] to [–4] Adjust the volume level for each source except

SYSTEM settings Menu Item Description CLOCK SET Set the clock (page 5). 12H/24H [12H], [24H] Select the time notation. AUX [ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit. ANDROID WIRED [MEMORY], [APP CONTROL] Select the appropriate connection method for an

ndroid device. Menu Item Description P.A P P A U TO O N [ON], [OFF] Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Not available when [MEMORY] is selected in [ANDROID WIRED].) USB AUTO [ON], [OFF] Select [ON] to automatically switch to [USB]

ource when a USB device is connected to the unit. Select [OFF] when a USB device is being

nnected to the unit just for charging. ILLUMINATION settings Menu Item Description DIM SETTING [SYNC CLOCK], [MANUAL] Change the display brightness. BRIGHTNESS [1] to [10] Change the display brightness. The available setting ranges differ depending on

Select the length of the playback time. MIX PATTERN [SOUND LEVEL] Change the MIXTRAX special effects according

the audio level. The mix pattern changes according to the

und level. [LOW PASS] The mix pattern changes according to the bass

vel. [RANDOM] The mix pattern changes randomly according

o the sound level mode and low pass mode. Menu Item Description10En DISPLAY FX [ON], [OFF] Set the MIXTRAX special effects on/off.

[ON], [OFF] Turn the MIXTRAX sound effects on/off while manually changing the tracks. Menu Item Description WARNING

• When speaker output is used by 4 channels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.

• When rear speaker output is used by 2 Ω of subwoofer, use speakers over 70 W (maximum input power).

• Please refer to connections for a

• The bl ack cable is ground. When installing this unit or power amp (sold separately), make sure to connect the ground wire first. Ensure that the ground wire is properly connected to metal parts of the car’s body. The ground wire of the power amp and the one of this unit or any other device must be connected to the car separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire, generation of smoke or malfunction. Important

• When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.

• Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction.

• T o prevent a short-circuit, overheating or malfunction, be sure to follow the directions below. –Disconnect the negative terminal of the bat tery before installation. –Secure the wiring with cable clamps or

hesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring. – Place all cables away from moving parts, such as the shift lever and seat rails. –Place all cables away from hot places, such as near the heater outlet. –Do not connect the yellow cable to the bat tery by passing it through the hole to the engine compartment. –Cover any disconnected cable

nnectors with insulating tape. –Do not shorten any cables. –Never cut the insulation of the power cabl e of this unit in order to share the power with other devices. The current capacity of the cable is limited. –Use a fuse of the rating prescribed. –Never wire the negative speaker cable

rectly to ground. –Never band together negative cables of

• When t his unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote Connections/Installation Connections Ground wire POWER AMPOther devices (Another electronic device in the car)Metal parts of car’s body *1 Not supplied for this unit ACC position No ACC position11En English control of an external power amp or the vehicle’s auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.• Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.• The graphical symbol placed on the product means direct current. This unit Power cord inputRear output or subwoofer outputAntenna inputFuse (10 A) Power cord Perform these connections when not connecting a rear speaker lead to a subwoofer.Perform these connections when using a subwoofer without the optional amplifier. Important In the case of above, two 4 Ω subwoofers wired in parallel will represent a 2 Ω load. To power cord input Left RightFront speakerRear speakerWhiteWhite/black Gray Gray/blackGreenGreen/blackVioletViolet/blackBlack (chassis ground)Connect to a clean, paint-free metal cation.Yel lowConnect to the constant 12 V supply rminal. Red Connect to terminal controlled by the ign ition switch (12 V DC).Blue/whiteConnect to the system control terminal of the power amp or auto-antenna relay control terminal (max. 300 mA 12 V DC).Subwoofer (4 Ω)When using a subwoofer of 2 Ω, be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.Not used.Subwoofer (4 Ω) × 2 NOTE Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 5). The subwoofer output of this unit is monaural. Power amp (sold separately) Perform these connections when using the optional amplifier.System remote controlConnect to blue/white cable.Power amp (sold separately)Connect with RCA cables (sold separately)To rear output or subwoofer outputRear speaker or subwoofer Important
• Check all connections and systems before final installation.• Do not use unauthorized parts as this may cause malfunctions.• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.• Do not install this unit where:– it may interfere with operation of the vehicl – it may cause injury to a passenger as a esult of a sudden stop.• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.• Optimum performance is obtained when the unit is installed at an angle of less than 60°.• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents. DIN mount installation 1 Insert the supplied mounting sleeve into the dashboard. 2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90°) into place.DashboardMounting sleeve• Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions. Installation Leave ample space 5 cm 5 cm12En When not using the supplied mounting sleeve 1 Determine the appropriate position where the holes on the bracket and the side of the unit match. 2 Tighten two screws on each side. ScrewMounting bracketDashboard or console• Use either truss (5 mm × 9 mm) or flush surface (5 mm × 9 mm) screws, depending on the bracket screw holes.Removing the unit (installed with the supplied mounting sleeve) 1 Remove the trim ring. Trim ringNotched tab• Releasing the front panel allows easier access to the trim ring.• When reattaching the trim ring, point the side with the notched tab down. 2 Insert the supplied extraction keys into both sides of the unit until they click into place. 3 Pull the unit out of the dashboard. To secure the front panel The front panel can be secured with the supplied screw. Screw The display automatically returns to the normal display.→ No operations have been made for about 30 seconds.– Perform an operation.The repeat play range changes unexpectedly.→ Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.– Select the repeat play range again.A subfolder is not played back.→ Subfolders cannot be played when [FLD] (folder repeat) is selected.– Select another repeat play range.The sound is intermittent.→ You are using a device, such as a cellular phone, that may cause audible interference.– Move electrical devices that may be ausing the interference away from the unit. Common AMP ERROR→ This unit fails to operate or the speaker connection is incorrect.→ The protective circuit is activated.– Check the speaker connection.– Turn the ignition switch OFF and back o ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.NO XXXX (NO TITLE, for example)→ There is no embedded text information.– Switch the display or play another ack/file. CD player ERROR-07, 11, 12, 17, 30→ The disc is dirty.–Clean the disc.→ The disc is scratched.– Replace the disc.ERROR-07, 10, 11, 12, 15, 17, 30, A0→ There is an electrical or mechanical error.– Turn the ignition switch OFF and back ON, or switch to a different source, then back to the CD player.ERROR-15→ The inserted disc is blank.– Replace the disc.ERROR-23→ Unsupported CD format.– Replace the disc.FORMAT READ→ Sometimes there is a delay between the start of playback and when you start to hear any sound.– Wait until the message disappears and ou hear sound.NO AUDIO→ The inserted disc does not contain any playable files.– Replace the disc.SKIPPED→ The inserted disc contains DRM protected files.– The protected files are skipped. Additional Information Troubleshooting Error messages13En English PROTECT

• All the files on the inserted disc are embedded with DRM. – Replace the disc. USB device FORMAT READ

• Sometimes there is a delay between the start of playback and when you start to hear any sound. – Wait until the message disappears and

• There are no songs. – Transfer the audio files to the USB

• The co nnected USB device has security enabled. – Follow the USB device instructions to

isable the security. SKIPPED

• The connected USB device contains DRM protected files. – The protected files are skipped. PROTECT

• All the files on the connected USB device are embedded with DRM. – Replace the USB device.

• The connected USB device is not supported by this unit. – Disconnect your device and replace it wit h a compatible USB device. HUB ERROR

• The USB device connected via a USB hub is not supported by this unit. – Connect the USB device directly to this

• The USB connector or USB cable has short-circuited. –Check that the USB connector or USB cable is not caught in something or damaged.

• The co nnected USB device consumes more than maximum allowable current. –Disconnect the USB device and do not use it . Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices. ERROR-19

• Communication failed. –Perform one of the following

erations, then return to the USB source.

• T urn the ignition switch OFF and back to ON.

• Di sconnect the USB device.

• C hange to a different source. ERROR-23

• USB device was not formatted properly. –Format the USB device with FAT12, FAT 16 or FAT32. STOP

• There are no songs in the current list. –Select a list that contains songs. Discs and player

• Use only discs that feature either of the following two logos.

• U se only conventional, fully circular discs.

• T he following types of discs cannot be used with this unit: –DualDiscs Handling guidelines –8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction. –Oddly shaped discs –Discs other than CDs –Damaged discs, including discs that are cra cked, chipped or warped –CD-R/RW discs that have not been

• D o not write on or apply chemicals to the surface of the discs.

• T o clean a CD, wipe the disc with a soft cloth outward from the center.

• C ondensation may temporarily impair the player’s performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

• When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.

• D o not attach commercially available labels or other materials to the discs. –The discs may warp making the disc unpl ayable. –The labels may come off during play back and prevent ejection of the discs, which may result in damage to the equipment. USB storage device

• Connections via USB hubs are not supported.

• F irmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.

• D epending on the USB storage device, the following problems may occur. –Operations may vary. –The storage device may not be reco gnized. – Files may not be played back properly. – The device may cause audible int erference when you are listening to the radio.

• On ly the first 32 characters can be displayed as a file name (including the file extension) or a folder name.

• T he unit may not work properly depending on the application used to encode WMA files.

• T here may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies. CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.

• Do not leave discs or a USB storage device in any place that is subject to high temperatures. WMA files Compressed audio compatibility File extension .wmaBit rate 48 kbps to 320 kbps (CBR), 48 kbps to 384 kbps (VBR)Sampling frequency 32 kHz, 44.1 kHz, 48 kHz Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with videoNot compatible14En MP3 files WAV files
• WAV file formats cannot be connected via MTP. Disc
• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs. USB device
• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.The user cannot assign folder numbers and spec ify playback sequences with this unit. Sequence of audio file depends on the connected device.Note that the hidden files in a USB device can not be played back. Example of a hierarchy WMA Windows Media is either a registered rademark or trademark of Microsoft File extension .mp3Bit rate 8 kbps to 320 kbps (CBR), VBRSampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)Compatible ID3 tag version1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)M3u playlist Not compatibleMP3i (MP3 interactive), mp3 PRONot compatibleFile extension .wavQuantization bits 8 and 16 (LPCM), 4 (MSADPCM)Sampling frequency 16 kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)Playable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 99Playable files Up to 999File system ISO 9660 Level 1 and 2, Romeo, JolietMulti-session playbackCompatiblePacket write data transferNot compatiblePlayable folder hierarchyUp to eight tiers (A practical hierarchy is less than two tiers.)Playable folders Up to 500Playable files Up to 15 000Playback of copyright-protected filesNot compatiblePartitioned USB deviceOnly the first partition can be played. Sequence of audio files Copyright and trademark FolderCompressed audio file to : Playback sequence01 to 05: Folder number Corporation in the United States and/or other countries.This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.Android & Google PlayAndroid, Google Play, and the Google Play log o are trademarks of Google Inc.MIXTRAXMIXTRAX is a trademark of the PIONEER RPORATION. General Power source: 14.4 V DC (10.8 V to 15.1 V allowable)Grounding system: Negative typeMaximum current consumption: 10.0 ADimensions (W × H × D): DIN Chassis: 178 mm × 50 mm × 165 mm (7 i n. × 2 in. × 6-1/2 in.) Nose: 188 mm × 58 mm × 17 mm (7-

8 in. × 2-1/4 in. × 5/8 in.)

Chassis: 178 mm × 50 mm × 165 mm (7 i n. × 2 in. × 6-1/2 in.) Nose: 170 mm × 46 mm × 17 mm (6-

4 in. × 1-3/4 in. × 5/8 in.)Weight: 1 kg (2.2 lbs) Audio Maximum power output:• 50 W × 4 ch/4 Ω (for no subwoofer) 50 W × 2 ch/4 Ω + 70 W × 1 ch/2 Ω (for subwoofer)Continuous power output: 22 W × 4 (50 Hz to 15 000 Hz, 5 %

D, 4 Ω load, both channels driven)Load impedance: 4 Ω (4 Ω to 8 Ω allowable)Preout maximum output level: 2.0 VLoudness contour: +10 dB (100 Hz), +6.5 (10 kHz) (volume: –30 dB)Equalizer (5-Band Graphic Equalizer):Frequency: 80 Hz/250 Hz/800 Hz/2.5 kHz /8 kHzEqualization range: ±12 dB (2 dB step)Subwoofer (mono):Frequency: 50 Hz/63 Hz/80 Hz/100 z/125 Hz/160 Hz/200 HzSlope: –12 dB/oct, –24 dB/octGain: +6 dB to –24 dBPhase: Normal/Reverse CD player System: Compact disc audio systemUsable discs: Compact discSignal-to-noise ratio: 94 dB (1 kHz) (IHF-A twork)Number of channels: 2 (stereo)MP3 decoding format: MPEG-1 & 2 Audio yer 3WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch aud io) WAV signal format: Linear PCM & MS PCM (Non-compressed) USB USB standard specification: USB 2.0 full speedMaximum current supply: 1.5 AUSB Protocol:MSC (Mass Storage Class)MTP (Media Transfer Protocol)AOA (Android Open Accessory) 2.0File system: FAT12, FAT16, FAT32MP3 decoding format: MPEG-1 & 2 Audio yer 3WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch aud io) WAV signal format: Linear PCM & MS PCM (Non-compressed) FM tuner Frequency range: 87.9 MHz to 107.9 MHzUsable sensitivity: 11 dBf (1.0 μV/75 Ω, mon o, S/N: 30 dB)Signal-to-noise ratio: 72 dB (IHF-A network) Specifications15En English AM tuner Frequency range: 530 kHz to 1 710 kHz Usable sensitivity: 25 μV (S/N: 20 dB) Signal-to-noise ratio: 62 dB (IHF-A network) CEA2006 Specifications Power output: 14 W RMS × 4 Channels (4 Ω and 1 % THD+N) S/N ratio: 91 dBA (reference: 1 W into 4 Ω) NOTE Specifications and the design are subject to modifications without notice.
