LZ792B - Sink SMEG - Free user manual and instructions

Brand	Smeg
Model	LZ792B
Product Type	Sink
Installation	Standard, to be carried out by a qualified professional
Material	Non-porous, stain-resistant surface
Daily cleaning	Soft non-abrasive sponge and regular dish soap
Stubborn stains (light surfaces)	Bleach and warm water solution (3/4 - 1/4), leave for 8 h
Stubborn stains (dark surfaces)	Soft sponge and dish soap in circular motions
Lime scale stains	Descaling and anti-corrosion agent diluted in warm water
Preventive maintenance	Dry daily, treat with anti-limescale once a week
Usage precautions	Do not cut directly on the surface, use a cutting board
Heat resistance	Do not place hot objects directly (temperature up to 500 °C possible)
Boiling liquids	Turn on cold water and ensure at least 1 cm of water at the bottom before pouring
Prohibited products	Alkaline detergents, ammonia, caustic soda, drain cleaners, abrasive sponges
Warranty	Manufacturer's standard warranty (conditions in the manual)
Repairability	Interventions by qualified personnel according to current standards
Package contents	Sink and mounting accessories (silicone not included)

Frequently Asked Questions - LZ792B SMEG

How do I clean my Smeg LZ792B sink daily?

Use a soft non-abrasive sponge with regular dish soap. Rinse thoroughly with warm water and dry with a microfiber cloth.

What to do about stubborn stains on a light-colored sink?

Apply a solution of bleach and warm water (3/4 and 1/4). Leave for about 8 hours (preferably overnight), then rinse thoroughly and dry carefully. If necessary, repeat 1-2 times.

How to remove persistent stains on a dark-colored sink?

Gently scrub with a soft non-abrasive sponge and regular dish soap in small circular motions. Rinse with warm water and dry. If stains persist, repeat 1-2 times.

How to remove lime scale stains on the sink?

Use a descaling and anti-corrosion agent diluted in warm water. Spread evenly, scrub with a soft sponge in circular motions, let sit for a few minutes, rinse with warm water and dry.

Can I cut food directly on the sink surface?

No, it is not recommended to cut or chop directly on the surface, as this could cause irreparable scratches. Always use a cutting board.

Can I place hot pans on the sink?

No, never place hot dishes, coffee makers, or pans directly on the sink. This could cause discoloration or damage. Let utensils cool down before placing them.

How to pour boiling liquids into the sink without damaging it?

Before pouring boiling liquids, turn on the cold water tap and ensure there is at least 1 cm of water at the bottom of the sink to avoid thermal shock.

Which cleaning products should be absolutely avoided?

Avoid detergents containing alkaline substances, ammonia, caustic soda, drain cleaners, as well as steel wool or abrasive sponges that could scratch the surface.

How to maintain the sink to prevent limescale stains?

Perform a descaling treatment at least once a week. Fill the basin with warm water, add two tablespoons of liquid or powder laundry detergent (or a tablet), leave for 5 to 6 hours, then rinse thoroughly and dry.

Does the sink installation require a professional?

Yes, it is recommended to call a qualified professional for installation and support operations, in accordance with current standards. Silicone is not supplied with the sink.

USER MANUAL LZ792B SMEG

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. MANUTENZIONE STRAORDINARIA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.

Rinse the sink thoroughly and dry it using a microfibre cloth.

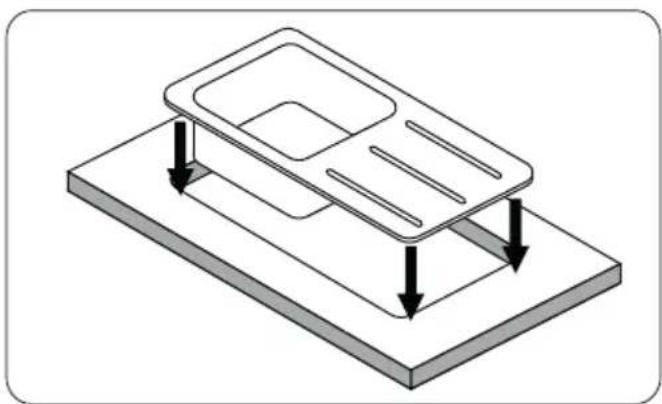

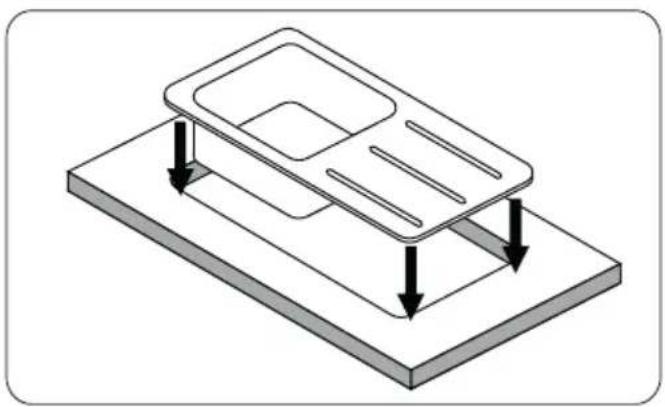

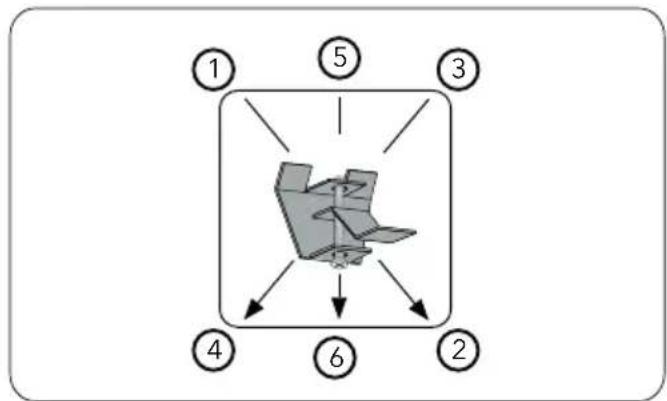

STANDARD INSTALLATION

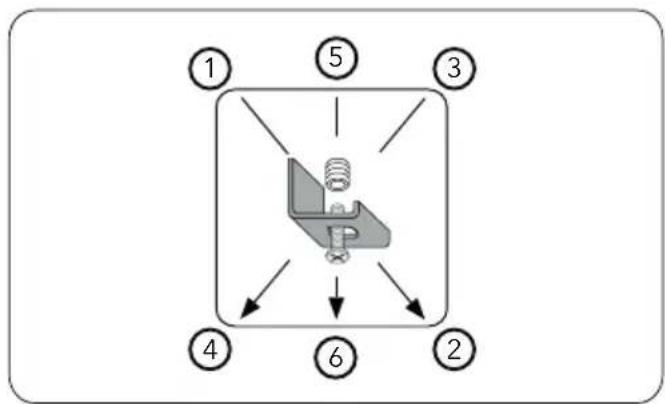

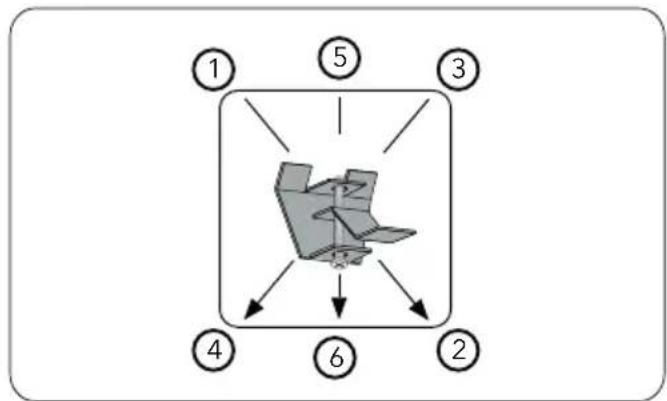

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


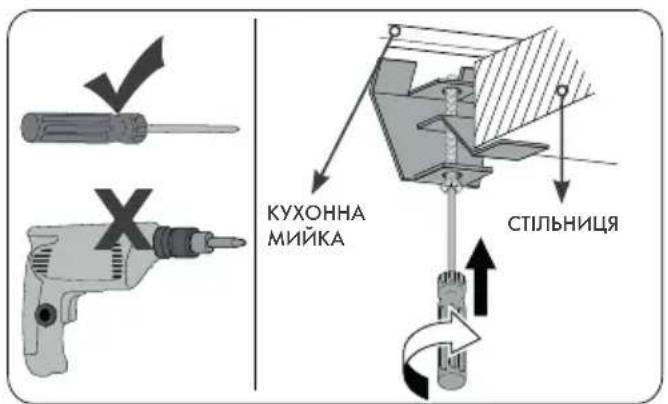

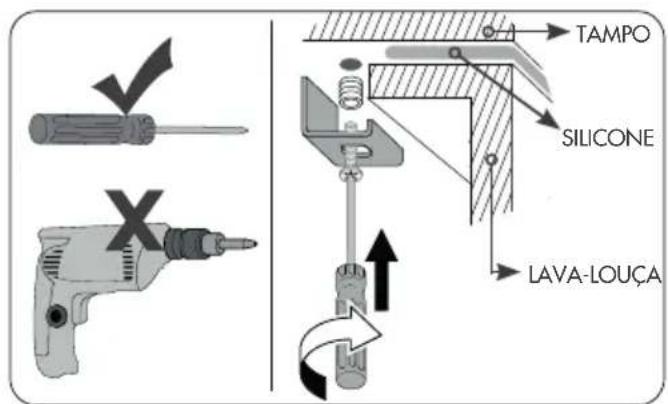

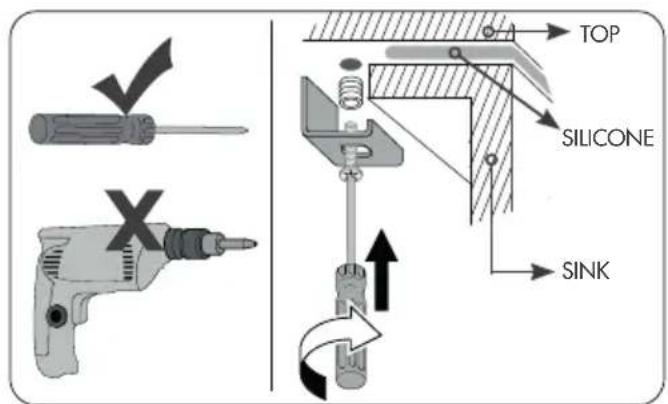

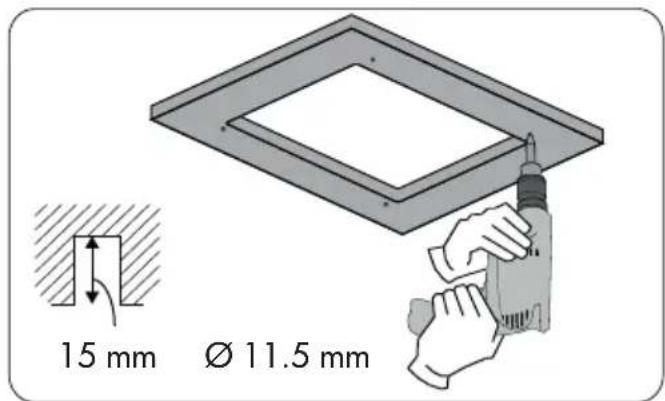

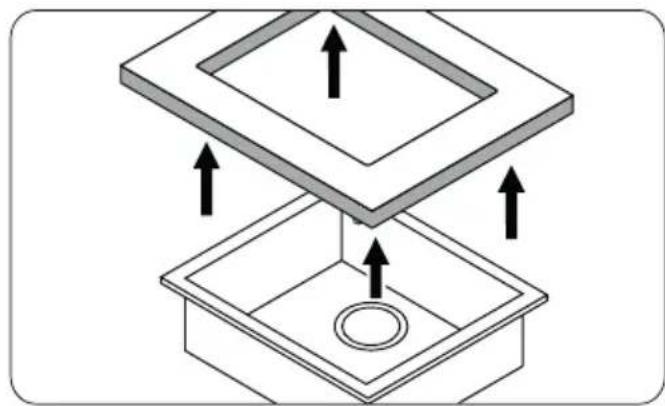

UNDERMOUNT INSTALLATION

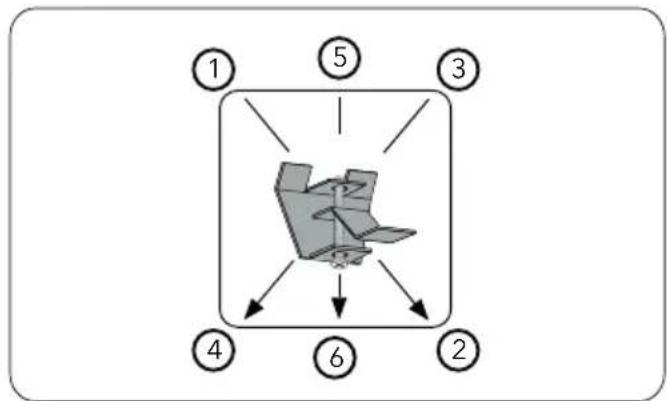

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.

Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

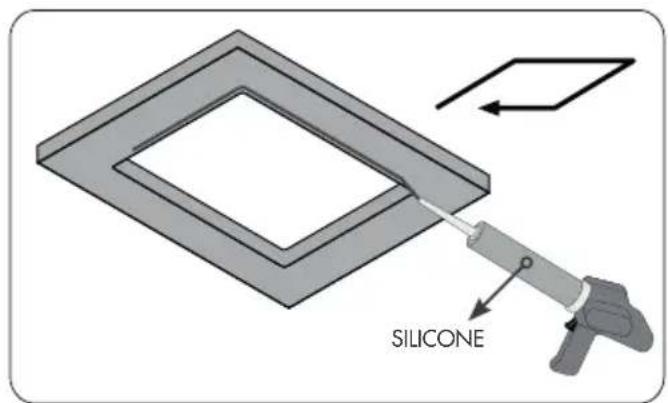

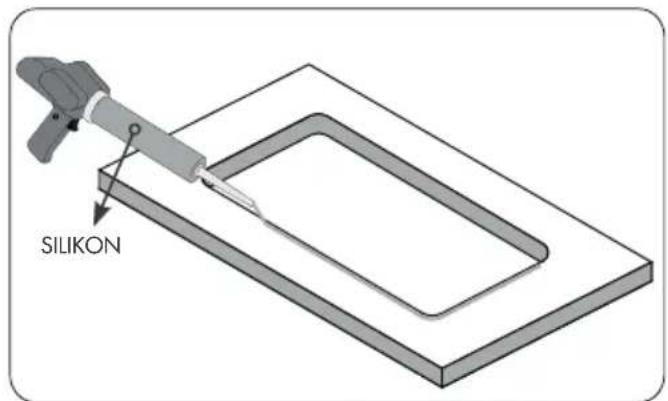

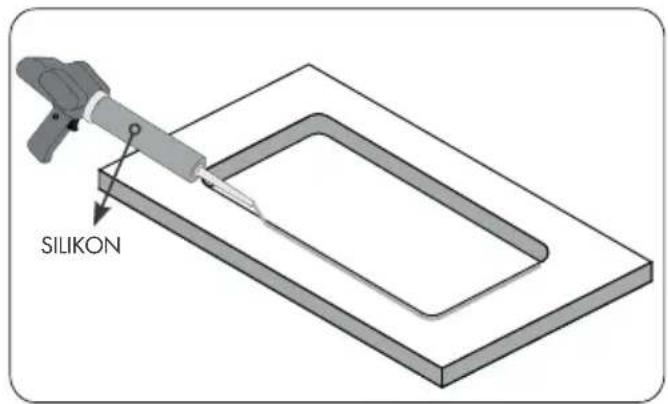

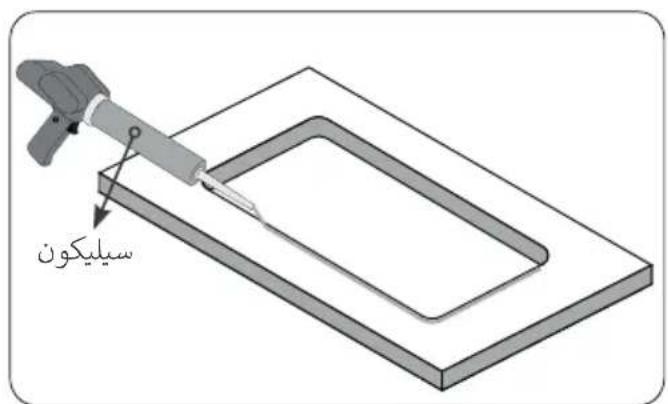

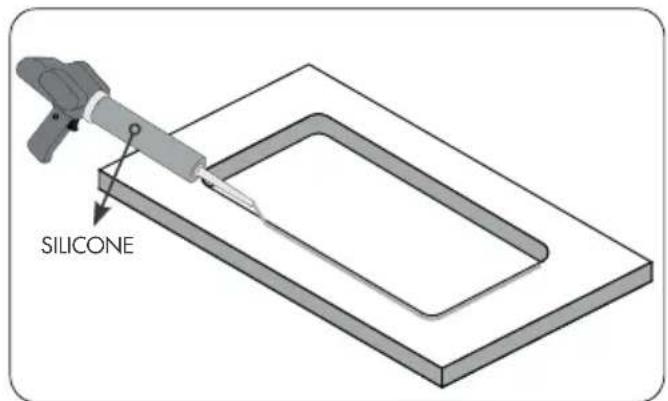

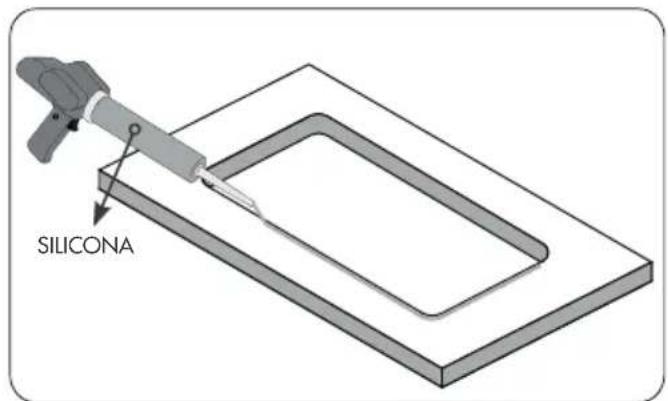

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.

1. ROUTINE MAINTENANCE

Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

2. NON-ROUTINE MAINTENANCE

Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.

For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water ( 34 to 14 ), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.

Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.

To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:

- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains

- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)

- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface

- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)

- avoid accidental knocks that could cause irreparable micro-damage

- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed

- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product

• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising from a stove, crossed out by a diagonal line (no text or symbols)

Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


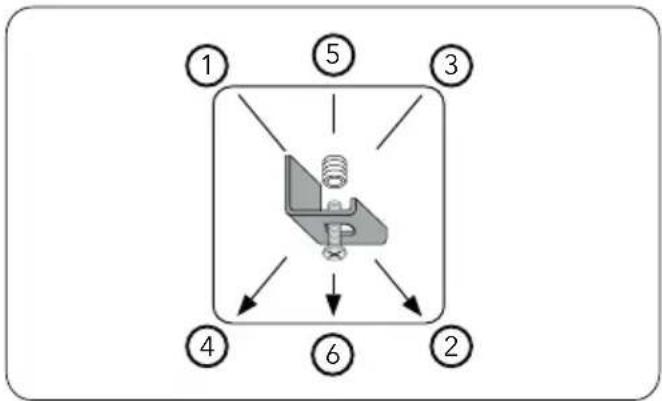

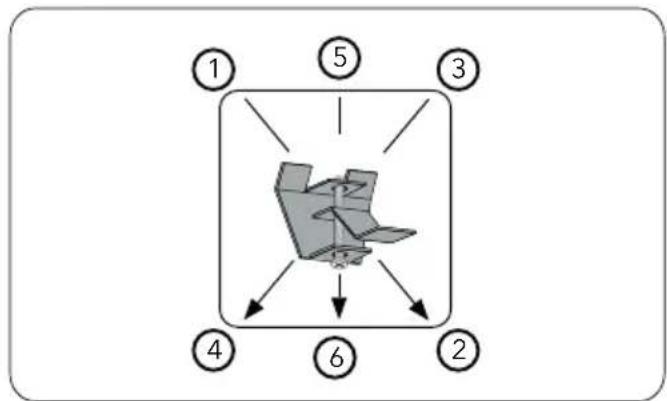

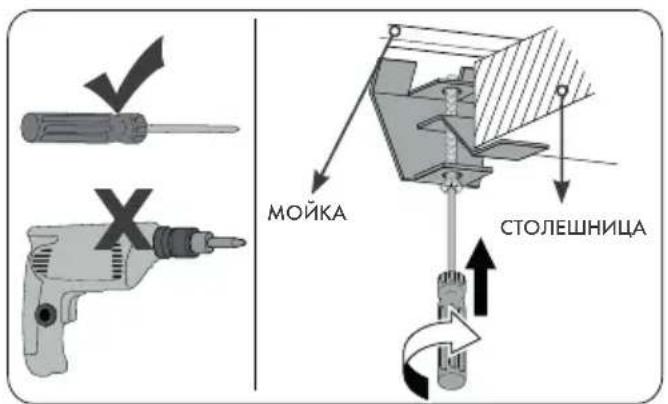

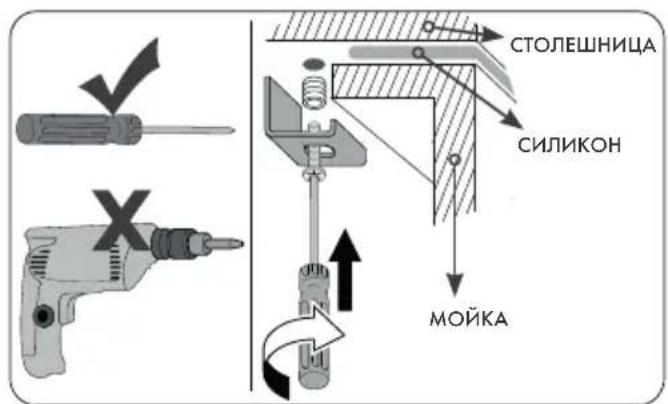

INSTALLATION SOUS LE PLAN SUPÉRIEUR

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising, crossed by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


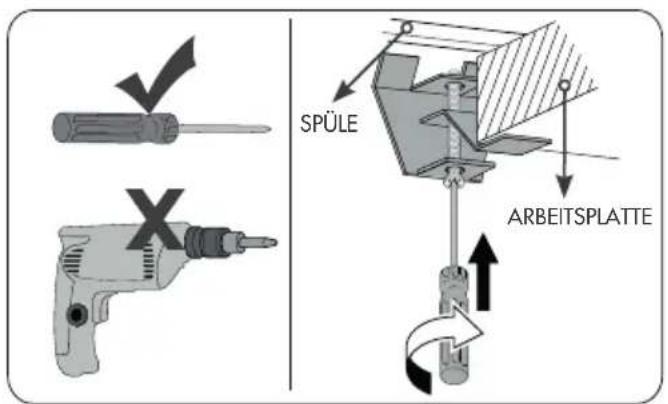

UNTERBAU-INSTALLATION

Diagram of a mechanical assembly with two stacked components and upward arrows indicating force or movement (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out diagonals (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out kitchen panes (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen counter with a crossed-out black cross symbol (no text or labels)

Simple line drawing of a bowl with steam rising from a sink, crossed out by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. НЕПЛАНОВЫЙ УХОД

Simple line drawing of a stove with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)


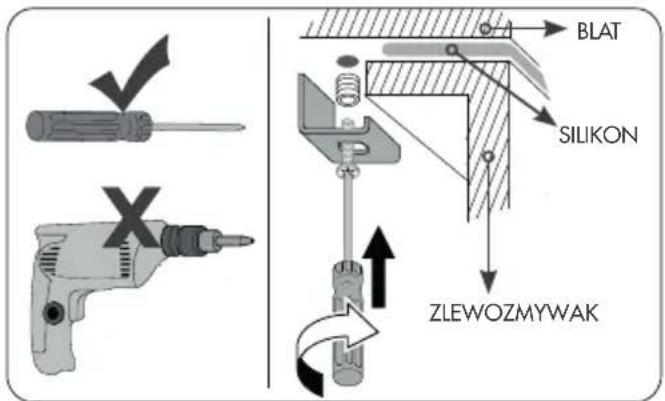

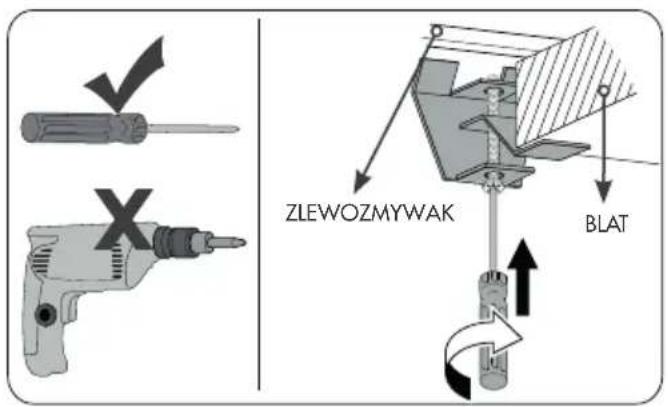

MONTAŻ POD BLATEM

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

2. KONSERWACJA DORAŻNA

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising from a stove, crossed out by a diagonal line (no text or symbols)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black symbol (no text or numbers)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Two hand icons with different textures, one covering a cloth and the other covering a surface (no text or symbols)

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with crossed-out black lines (no text or symbols)
