Product type	Upright freezer
Brand	Haier
Model	H3F330SEH1
Dimensions (H x W x D)	191 x 59.5 x 67.5 cm
Power supply	220-240 V ~/50 Hz, 1.0 A
Energy class	E
Freezer net volume	330 L
Freezing capacity	22 kg/24h
Storage time in case of power failure	12 h
Climate class	SN-T (10°C to 43°C)
Noise level	38 dB(A)
Refrigerant	R600a (isobutane)
Main functions	No Frost, Super Freeze, Eco Mode, Fridge Mode, Fresher Zone, Wi-Fi, Child Lock
Defrost	Automatic (No Frost)
Reversible door	Yes

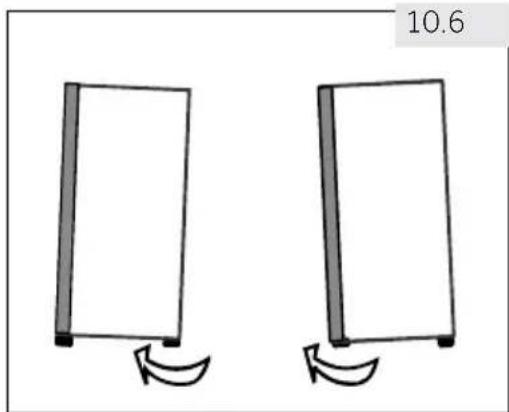

Adjustable feet	Yes
Lighting	LED, 1.5 W
Child safety	Yes (panel lock)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.2
Included accessories	Ice maker, ice cream scoop, reversible door hinge

Frequently Asked Questions - H3F330SEH1 HAIER

How to set the freezer temperature?

Make sure the display is unlocked. Press the temperature buttons to select -16°C (Eco), -18°C, -20°C, or -24°C. The default setting is -18°C.

How to activate the Super Freeze function?

When the display is unlocked, press and hold the -24°C button for 3 seconds. The indicators light up. The function stops automatically after 50 hours or can be stopped manually.

What to do in case of an audible alarm?

The alarm may be due to an open door or high temperature. Check that the door is properly closed. Press any button to stop the beeping. If the alarm persists, contact customer service.

How to clean the freezer?

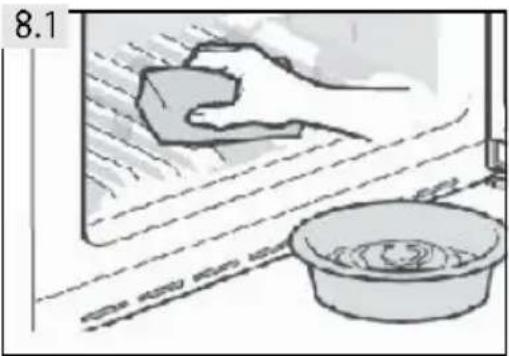

Unplug the appliance. Use a damp sponge with warm water and a mild detergent. Do not use abrasive cleaners or solvents. Clean the door gaskets regularly.

What to do in case of a power outage?

Food stays cold for about 12 hours. Open the door as little as possible. After power returns, the appliance resumes with previous settings.

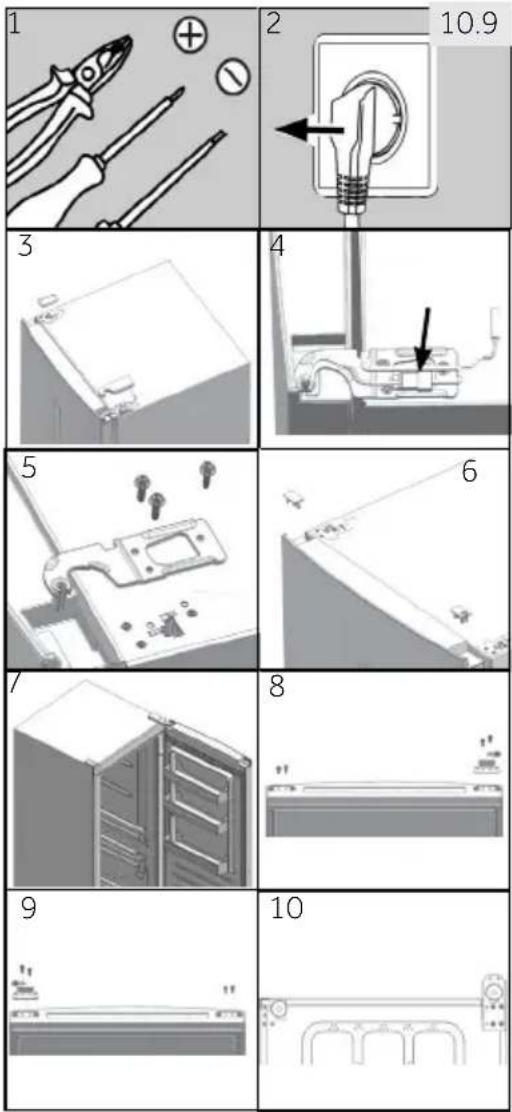

Can I change the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to reverse the door. It requires two people and appropriate tools.

How to activate Eco mode?

When the screen is unlocked, touch the -16°C button (B) to switch to Eco mode. This mode reduces energy consumption while maintaining good freezing.

How to connect the freezer to Wi-Fi?

Download the hOn app. Press the Fresher Zone button for 3 seconds to activate Wi-Fi. Follow the app instructions to pair the device.

What does the flashing of lights mean?

Flashing accompanied by beeps indicates high temperature or an error. Check the door closure and the amount of warm food. If the problem persists, contact after-sales service.

What is the maximum freezing capacity?

The freezing capacity is 22 kg per 24 hours. For large quantities, activate Super Freeze 24 hours in advance.

USER MANUAL H3F330SEH1 HAIER

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

General information and tips

Warning – Important Safety information

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Warning!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the door, the door catch and seals, to prevent children and pets to get closed in the appliance.

1 - Safety ....4
2 - Intended Use ....8
3 -ProductDescription ......9
4 - Control panel 10
5 - Use 11
6 - Energy saving 11
7 - Equipment 11
8 - Care and Cleaning 15
9 - Troubleshooting 17
10 - Installation 20
11 - Technical Data 24
12 -CustomerService.... 25
13-Connectivity Wi-fi....26

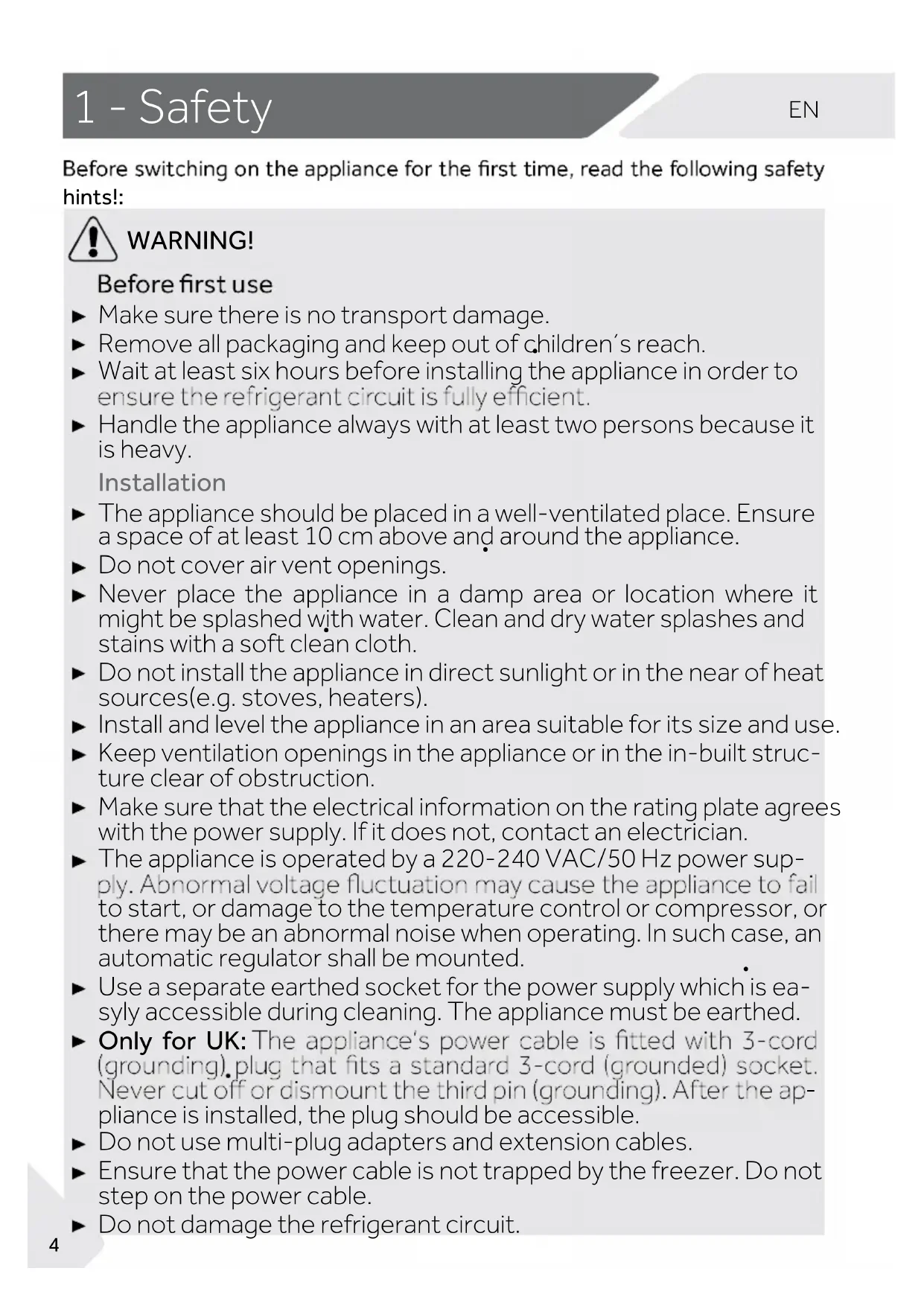

Before switching on the appliance for the first time, read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

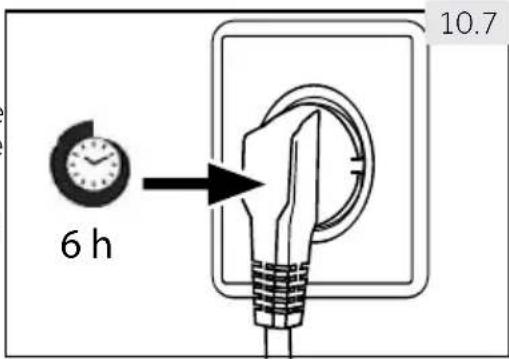

▶ Wait at least six hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

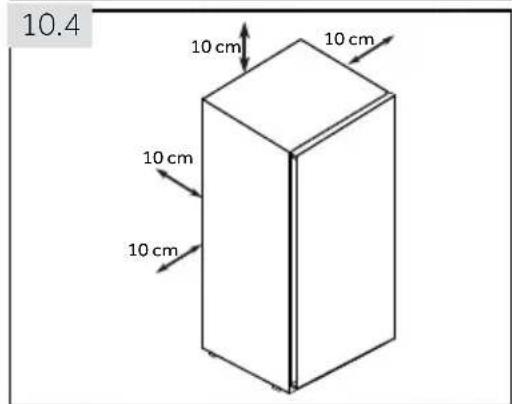

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Do not cover air vent openings.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources(e.g. stoves, heaters).

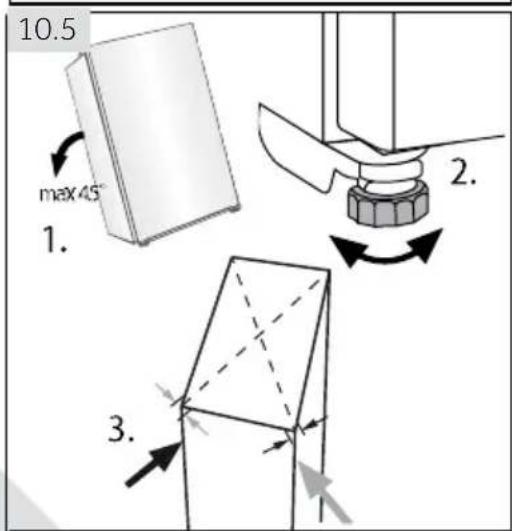

▶ Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Use a separate earthed socket for the power supply which is easily accessible during cleaning. The appliance must be earthed.
▶ Only for UK: The appliance's power cable is fitted with 3-cord (grounding). plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.
▶ Do not use multi-plug adapters and extension cables.
▶ Ensure that the power cable is not trapped by the freezer. Do not step on the power cable.
▶ Do not damage the refrigerant circuit.

WARNING!

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶ Children shall not play with the appliance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the freezer or any other appliance.
▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43 °C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the freezer, to ovoid personal injury caused by falling or electric shock caused by contact with water.
▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the freezer doors only when there are no children standing within the range of door movement.
▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment: this freezing appliance is not suitable for refrigerating foodstuffs.
▶ Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the freezer compartment. Attention: Bottles can burst.

WARNING!

Daily use

• Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
• Do not touch the inside surface of the freezer when in operation, especially with wet hands. Your hands may freeze onto the surface.
  ▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.
  ▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  If the illuminating lamps is damaged, it must be replaced by the manufacturer or by the qualified person at the specified maintenance provider.

Maintenance/cleaning

▶ Make sure children are supervised if they carry out cleaning and maintenance.

▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 5 minutes before restarting the appliance, as frequent starting may damage the compressor.

▶ Hold the plug, not the cable, when unplugging the appliance.

▶ Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

▶ Do not spray or flush the appliance during cleaning.

▶ Do not use water spray or steam to clean the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTHANE (R600a). Ma ke sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

WARNING!

▶ Taking care to avoid causing a fire by igniting flammable material.
▶ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
▶ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
For flammable refrigerants is used in the freezer, please be careful when installing, handling, serving and recycling the appliance.
▶ Please contact to the service agent to dispose the appliance because the flammable blowing gas was used.

2 - Intended use

2.1 Intended Use

"This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

This appliance is intended for freezing food. It has been designed exclusively for use in dry interior house-holds. It is not intended for commercial or industrial use. On demand this appliance can be used as fresh food compartment.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

2.2 Accessories

Check the accessories and literature in accordance with this list:

2.2

Energy label

Warranty card Connectivity Quick Guide

User manual

Technical line drawing of a mechanical component with three circular cavities (no text or symbols)

Twist Ice Maker

Technical line drawing of two mechanical components (no text or symbols)

Upper left hinge for door reversibility
Upper left hinge cover

Two mechanical clamping components shown in line drawing (no text or symbols)

Axe covers

Notice: Differences

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

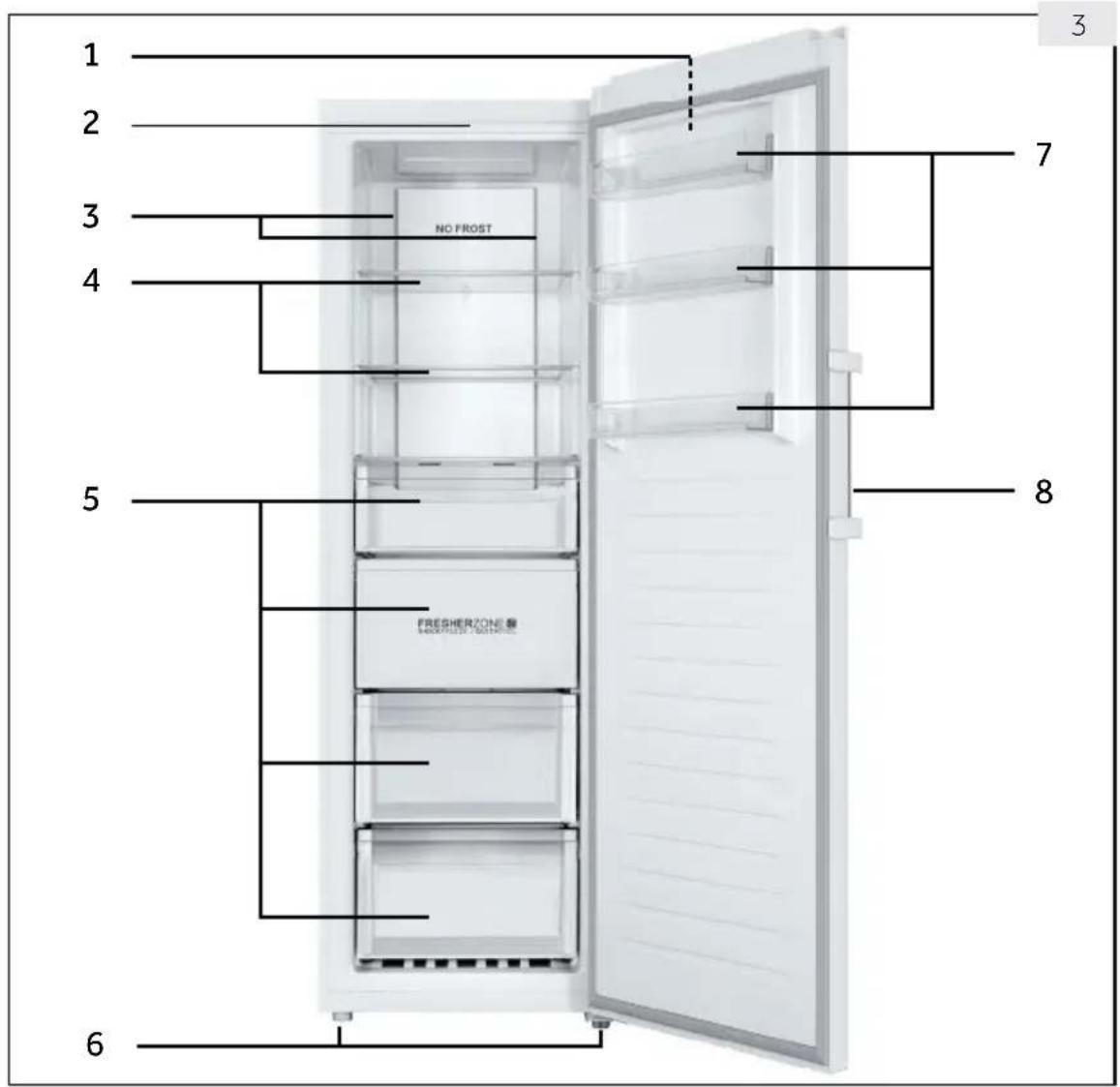

Picture of appliance (Fig. 3)

1 2 3 4 5 6 7 8 NO FROST FRESHERZONE FRESHROOMS & BATHROOMS

1 Control panel
2 LED light
3 Multi-air flow
4 Glass shelves

5 Drawers
6 Adjustable feet
7 Removable door racks
8 Door handle

Note: This product contains a light source of energy efficiency class .

4 - Control panel

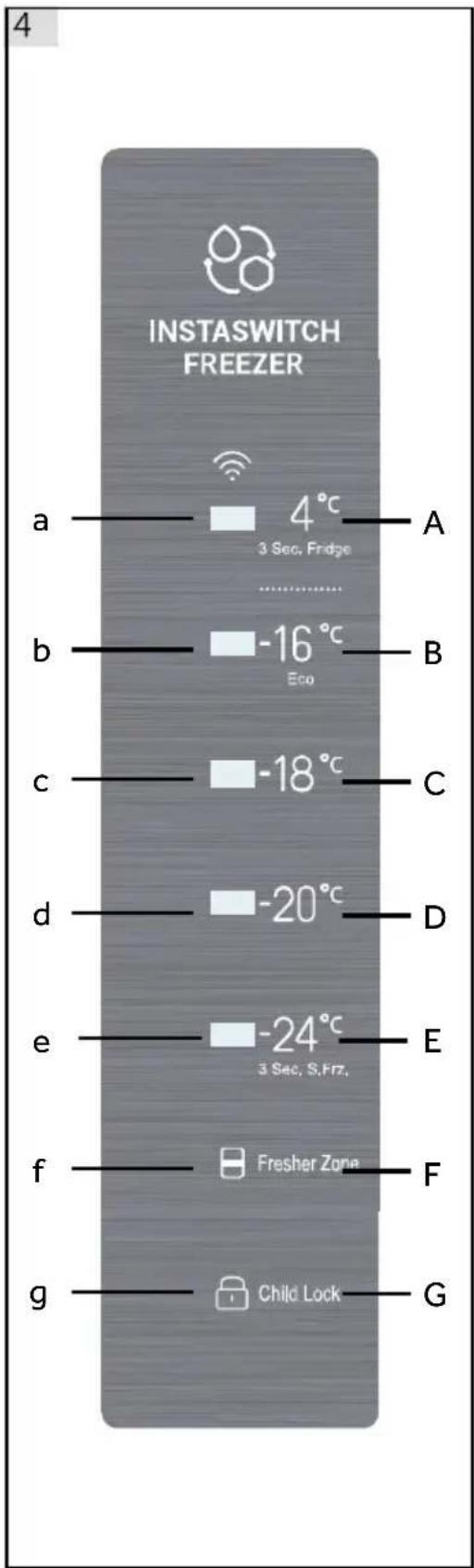

Control panel (Fig. 4)

INSTASWITCH FREEZER a — 4°C — A 3 Sec. Fridge b — -16°C — B Eco c — -18°C — C d — -20°C — D e — -24°C — E 3 Sec. S.Frz. f — Fresher Zone — F g — Child Lock — G

A Fridge mode

B Freeze temperature - Eco

C Freeze temperature

D Freeze temperature
E Freeze temperature and
Super freeze mode
F Fresher zone
G Child lock

5.1 Before first Use

Remove all packaging materials, keep them out of childrens reach and dispose them in an environmentally friendly manner.
Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it.

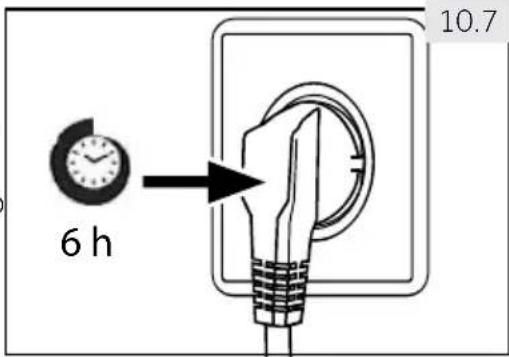

After the appliance has been levelled and cleaned, wait for at least 6 hours before connecting it to the power supply. See Section INSTALLATION.
▶ Precool the compartment for 2 hours at high settings before loading with food. To do so, please set the temperature to -20 °C or -24 °C.

5.2 Switching the appliance on /off

The appliance is in operation as soon as it is connected to the power supply.

The freezer temperature is automatically set to -18°C. This is the recommended setting and the ideal temperature for frozen goods. If desired, you can change the temperatures manually. Please see ADJUSTING THE TEMPERATURE.

Indicators (a-g) will flash once consecutively. If the door is closed, the display switches off after 30 seconds. The panel lock might be active.

ce: Presettings

The appliance is preset to the recommended temperature of -18^ . Under normal ambient condition you don't need to set a temperature.
When the appliance is switched on after being disconnected from the main power supply, it may take up to 12 hours for the correct temperature to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out off the power socket.

5.3 Standby-mode of display

When the door is closed the display screen turns off automatically 30 seconds after without operation. The display locks automatically. It lights up automatically when touching any but ton or opening the door.

5.4 Display lock and unlock

Automatic locking

Display is automatically locked after 30 seconds without operation.

Manual locking

When the display is unlocked, press "Child lock" (G) and hold for 3 seconds, after a beep, "Child lock"(g) indicator is light, display is locked. When the display is locked, press "Child lock" (G) and hold for 3 seconds, after a beep, "Child lock"(g) indicator is off, display is unlocked.

ce: Displ

ay lock

When display is locked, functions such as temperature setting or super freeze are disabled. When above operation is attempted, Child lock indicator will blink for 3 times, to remind that the display is locked.

5.5 Temperature setting

When display is unlocked, by touching different temperature buttons, different temperature could be set, this process will be accompanied by beeps.

Freeze and Fridge (4°C)(A) mode has big difference in temperature, and is for different food storage. Prior to making any mode change, please make sure to change the food inside the freezer, so that food will not be damaged because of mode change.

5.6 Freeze mode (-16°C to -24°C) (B - E)

When display is unlocked, by touching different freeze temperature buttons, different temperature could be set, indicators on left of the touch button will be light and others will be off. Temperature could be set to "-16°C", "-18°C", "-20°C" and "-24°C".

5.7 Fridge mode(4°C) (A)

When display is unlocked, by touching (4°C) (A) and hold for 3 seconds, indicators "4°C" (a) will be light, the freezer works in fridge mode. After stabilization, temperature is around 4°C.

5.8 Super freeze mode (E)

Super freeze mode is optimal for preserving food nutrition, it could freeze food in less time. Before putting lots of food inside the freezer, activate super freeze function to have lower temperature, to make sure better freeze result.

When display is unlocked, touch and hold (-24°C) (E) for 3 seconds, indicators (b - e) will be light, the freezer works in super freeze mode. To deactivate manually super freeze function, repeat steps above. If not deactivated manually, the function will be deactivated automatically after 50 hours.

If you have a large amount of food to freeze at one time, it is recommended that the function is activated 24 hours before inserting food. Function will stop automatically after 50 hours or manually. Power consumption will increase when this function is on.

ce: Super freeze

In super freeze mode, temperature could not be adjusted. If you do so, super freeze indicator will blink for 3 times to remind that the freezer is in super freeze mode.

5.9 Fresher Zone (F)

In the Freezer mode, FresherZone works as SHOCK FREEZE, the entire zone can be quickly cooled to the freezing temperature.

When temperature is set at -16^ or lower, touch FresherZone button(F), the FresherZone indicator(f) illuminates, then the blast function is activated. When activated, the functions will be automatically deactivated when temperature is reached or after 24 hours.

Repeat the operation to deactivate manually.

In the Fridge mode, FresherZone works as QUICKCOOL, the entire zone can be quickly cooled to the freezing temperature.

When temperature is set at 4^ C, touch FresherZone button (F), the FresherZone indicator(f) illuminates, then the FresherZone function is activated. When activated, the functions will be automatically deactivated when temperature is reached or after 3 hours.

Repeat the operation to deactivate manually.

Deactivate FresherZone before switching from freezer to fridge temperature, or switching from fridge to freezer temperature.

5.10 Eco mode (-16°C) (B)

When display is unlocked, by touching (-16°C) (B) the appliance is set into Eco mode. In this mode the energy consumption is lower, while appropriate freezing performance is still guaranteed. To exit the Eco mode select other temperature.

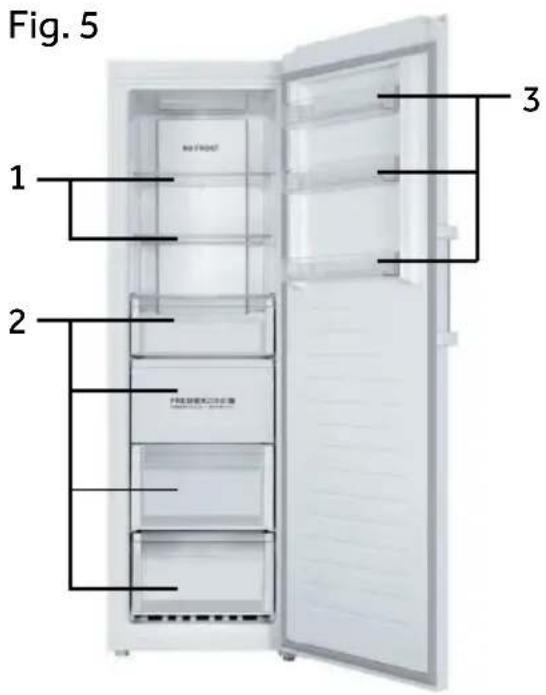

Fig. 5 1 2 3

Different foods should be placed in different areas according to their properties (Fig. 5).

1 Pickled foods, canned food, fruit, vegetables, salad, etc.
2 Eggs, canned food, spices, drinks and bottled foods, etc.
3 Meat products, snack foods, etc.

On refrigerating mode without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs; on freezing mode with a 4-star compartment this freezing appliance is not suitable for refrigerating foodstuffs.

Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on

its properties (e.g., meat: 3-12 months, vegetables: 6-12 months).

In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods.

5.11 Power-off memory

This freezer has power-off memory, settings before power-off will be memorized. When power is back on, freezer will return to settings before power-off and continue to function. Child lock is not memorized, after power back on, display is unlocked.

5.12 Door open alarm

When freezer is kept open for more than 1 minute, beeper will make 3 beeps with interval of 0.5 second. The beeps will be repeated every 30 seconds if door is kept open. The beeps will stop until door is closed or after 7 mins of door opening. The beeper stops bee ping and freezer light goes off.

5.13 High temperature alarm

This freezer is equipped with high temperature alarm. In freeze mode or super freeze mode, if current temperature setting indicator blinks with beeps, touch any button, the beep will stop, but current temperature setting indicator keeps blinking, that means temperature in the freezer is too high. Please check if freezer door is tightly closed or if large amount of warm food is put inside the freezer. After a period, current temperature indicator will stop blinking. If it does not stop blinking for a long period, and beeps that are manually cancelled come back, please contact aftersales service.

5.14 Error indication

This freezer is equipped with error indication. When an error is encountered, display will blink every 1/4 second different codes for different errors. In this situation, the freezer could still freeze butuser should contact aftersales service as soon as possible for optimal control of the freezer.

5.15 Wi-Fi

When the appliance is connected with Wi-Fi, it could be controlled from distant [temperature setting adjustment, activation and deactivation of super freeze and FresherZone function]. When the door is left open or when there is temperature deviation, real time information could be informed through the application.

6 - Energy saving tips

EN

Energy saving tips

Make sure the appliance is properly ventilated (see INSTALLATION).
Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
Make sure the door always closes correctly and unimpaired by food position. Keep door seals clean.
▶ Defreeze frozen food in a fridge.
Clean the rear of the appliance regularly. Dust increases energy consumption.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.

7 - Equipment

7.1 ① ① ②

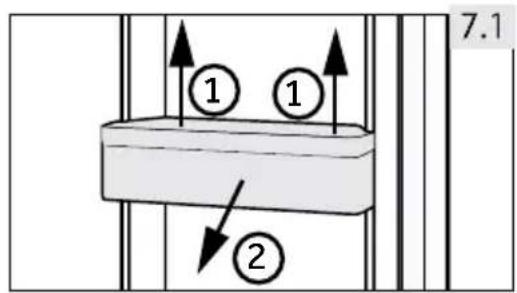

7.1 Removable door racks

The door rack can be removed for cleaning:

Place hands on each side of the rack, lift it upwards (1) and pull it out (2) (Fig. 7.3).

In order to insert the door rack, the above steps are carried out in reverse order.

7.2 ① ②

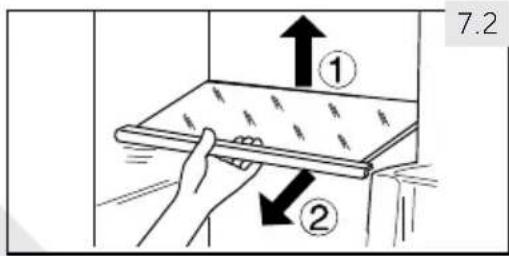

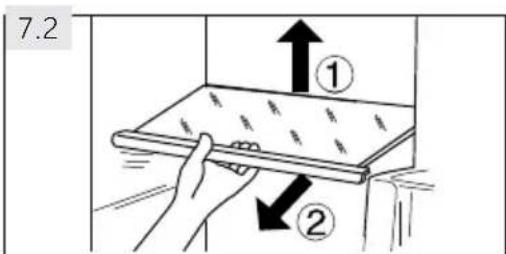

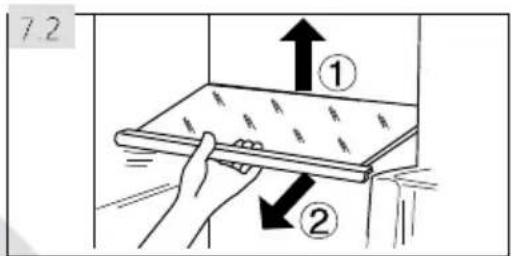

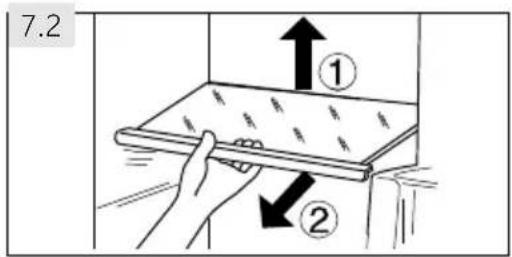

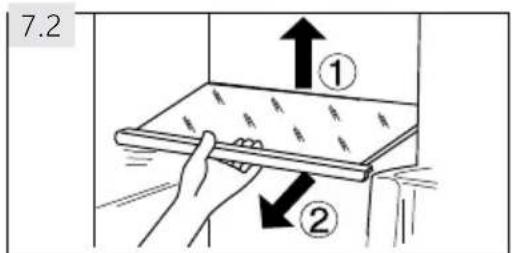

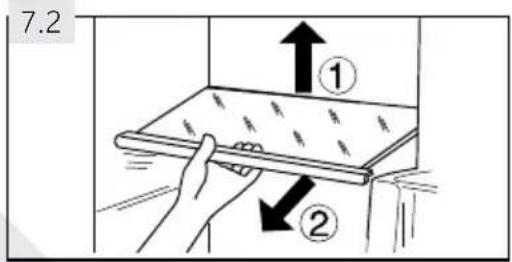

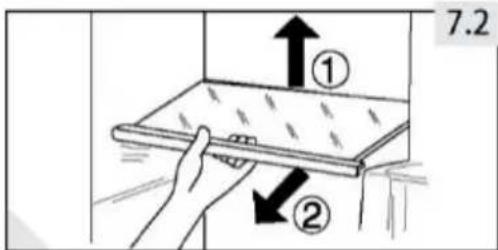

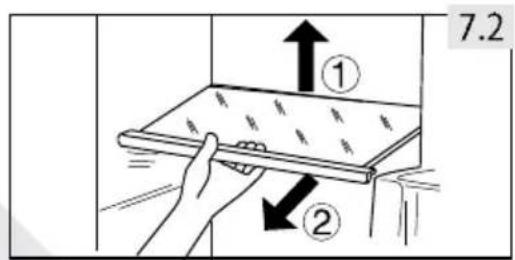

7.2 Glass shelves

1. To take out a shelf, remove it first by uplifting its hind edge (1) and pulling it out (2) (Fig. 7.2).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

WARNING!

Disconnect the appliance from the power supply before cleaning.

8.1 General

Clean the appliance when only little or no food is stored.

WARNING!

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special freezer detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not scrape off frost and ice with sharp objects.
Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.
In case of heating check the condition of frozen goods.
Do not try to repair the appliance by yourself. In case of repair please contact our customer service.

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a soft cloth or sponge dampened in warm water and neutral detergent (Fig. 8.1).
▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
▶ Clean the accessory only with warm water and mild neutral detergent.

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

8- Care and Cleaning

8.2 Non-use for a longer period

If the appliance is not used for an extended period of time:

▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
▶ Keep the door and freezer drawers open to prevent the creation of bad odours inside.

Remove the door of the appliance (open the door and hold it before removing the screws) to avoid children entering into the appliance and getting locked in.

Notice: Switch off

To ensure the service life of the appliance, only turn it off only if strictly necessary.

8.3 Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the freezer with adhesive tape.
3. Close the door and secure it with tape.
4. Do not tilt the freezer more than 45^ to avoid damaging the refrigerating system.
5. Wrap the feet of the freezer to avoid scratching the floor. Never move the freezer forcefully.

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The acoustic alarm can be switched off by pressing any button..

9.1 Troubleshooting

Problem Possible Cause Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.	Connect the mains plug.
The appliance runs frequently or for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.The door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting is too low.The door gasket is dirty, worn, cracked or mis-matched.The required air circulation is not guaranteed.The interior is covered in ice.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door too frequently.Set the temperature higher until a satisfactory temperature is obtained. It takes 24 hours for the temperature to become stable.Clean the door gasket or replace them by the customer service.Ensure adequate ventilation.Defrost the appliance.
The appliance makes abnormal sounds.	The appliance is not located on level ground.The appliance touches an object close to it.The appliance stands on a wooden floor or near wooden walls.	Level the appliance.Remove objects around the appliance.Wood amplifies the sound. Set the appliance somewhere else.

9 - Troubleshooting

Problem Possible Cause	Possible Solution
The appliance makes a clicking sound	This is normal. It is caused by the refrigeration unit switching on or off.	-
A slight sound is to be heard similar to that of flowing water.	This is normal.	-
The appliance makes a motor sound	The refrigeration unit has just turned itself on. This is normal	-
It is not cold enough inside the appliance.	The temperature is set too high.Goods that are too warm have been stored.Too much food has been stored at a time.The goods are too close to each other.The door is not tightly closed.The door has been opened too frequently or for too long.	Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door.Do not open the door too frequently.
It is too cold inside the appliance.	The temperature is set too low.The Fast-freezing function is activated or has been running too long.	Reset the temperature.Switch off the Fast-freezing function.
Moisture accumulates on the surface of the appliance.	The climate is too warm and too damp.	This is normal in damp climate and will change when the humidity decreases. Wipe dry with a cloth.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.The door is not tightly closed.The door has been opened too frequently or for too long.The door gasket is dirty, worn, cracked or mis-matched.Something on the inside prevents the door from closing properly.	Always pack the goods well.Close the door.Do not open the door too frequently.Clean the door gasket or replace them by the customer service.Reposition the shelves, door racks, or internal containers to allow the door to close.
The cooling system does not work.	Mains plug is not connected to the mains socket.The power supply is not intact.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!
Problem Possible Cause Possible Solution
The sides of the cabinet and door strip get warm.	This is normal.	-
You hear an alarm signal.	The door is openThe temperature inside product is too high	Close the door or silence the alarm manually.
The door is difficult to open.	Once the appliance runs, it has an internal vacuum.	Open the door seal gently to let air enter the appliacne.
The door can't be closed properly. It always leaves a gap.	Because of the appliances's low temperature, the door seal can easily get hard and deformed.	Use a hair dryer or put a hot towel on the spot where the gasket is deformed.When the gasket is soft once again, close the door and compress it tightly.

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market.

9.2 Power Interruption

In the event of a power cut, food should remain safely cold for about 18 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door as few times as possible.
Do not put additional food into the freezer during a power interruption.
If prior notice of a power interruption is given and the interruption duration is longer than 15 hours, make some ice and put it in a container in the top of the freezer compartment.
As temperature in the freezer will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Notice: Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

10.1 Unpacking

RNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of childrens reach and dispose them in an environmentally friendly manner.

▶ Take the appliance out of the packaging.

▶ Remove all packaging materials.

10.2 Environmental conditions

The room temperature should always be between 18 °C and 43 °C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

10.3 W1 D4 D1 D2 D3 W2

10.4 10 cm 10 cm 10 cm 10 cm

10.5 max45° 1. 2. 3.

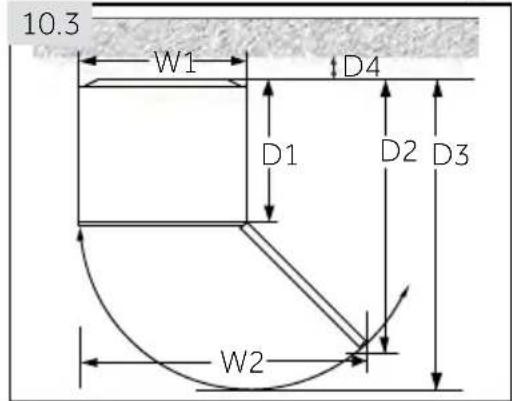

10.3 Space requirements

Required space to open the door (Fig. 10.3):

Widthin mm		Depthin mm		Distance to wallin mm
W1	W2	D1	D2	D3 D4
595	955	592	1105	1215 100

FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance.

10.4 Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed (Fig. 10.4).

10.5 Aligning the appliance

The appliance should be placed on a fat and solid surface. If the appliance is placed on a pedestal, strong and fire-resistant materials must be used. Never use the foam packing material as a pedestal.

1. Tilt the appliance slightly backwards (Fig. 10.5).
2. Set the feet to the desired level.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear eases the closing of the door.

10.6 Using adjustable feet

If the freezer is unstable, the feet can be adjusted: Rotate the adjustable feet according to the direction of arrow (Fig. 10.6) to turn them up or down:

▶ Turning the feet clockwise raises the appliance.
▶ Turning the feet counterclockwise lowers it.

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

10.7 Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 6 hours (Fig. 10.7) so that the oil runs back into the capsule.

6 h 10.7

10.8 Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

10 - Installation

10.9 Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability.

NING!

The appliance is heavy. You need two persons to carry out the door reversibility.
Before any operation, first unplug the appliance from the mains.
▶ Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

1 2 10.9 3 4 5 6 7 8 9 10

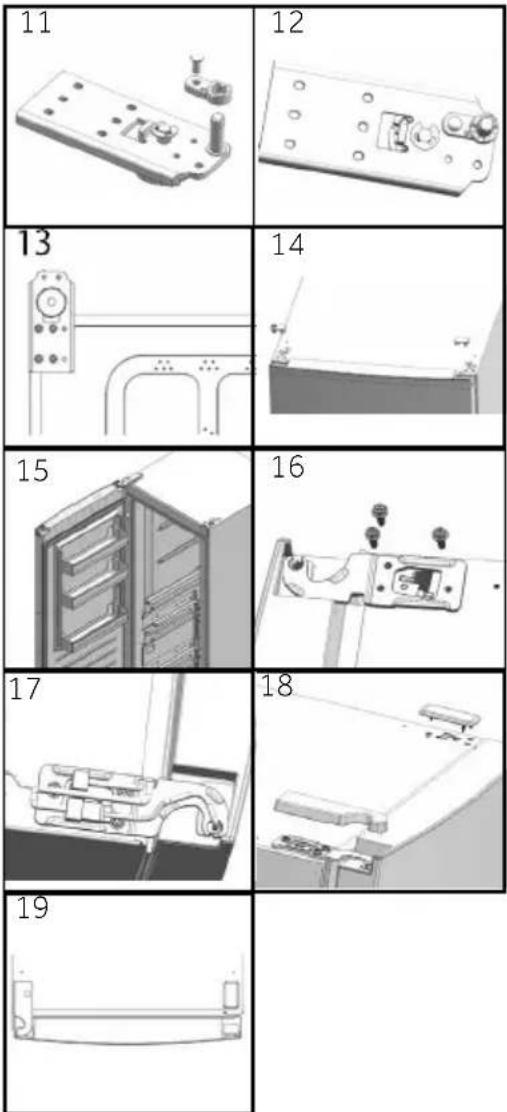

Assembly steps (Fig. 10.9):

1. Provide necessary tool.
2. Unplug the appliance.
3. Remove hinge hole cover and hinge cover.

4. Unplug the connection cable.

5. Removes screws and hinge

6. Remove cover on door. Remove axe cover on door

7. Open and remove the door.

8. Turn the door upside down, remove 2 screws on the bottom of the door. Remove 2 screws, door stopper and axe cover on the bottom of the door.

9. Take door stopper from last step and the thinner axe cover from the accessory bag, fix them with 2 screws. Fix 2 screws also on the other side of the door.

10. Tilt slightly backwards the cabinet, remove 4 screws and then the lower hinge.

1. Remove screw and axe cover. Remove hinge axe and fix it into the hole next to it.
2. Take the thicker axe cover from the accessory bag. Fix it with screw from last step.
3. Fix the hinge to the opposite position of the cabinet with 4 screws.
4. On opposite side of the door, pull out left side connection cable and put it through the axe cover from step 5, mount axe cover. Mount the hole cover on the right side.
5. Mount the door.
6. Fix upper right upper hinge with 3 screws.
7. Connect the cable connectors:
8. Fix hinge hole cover and upper left hinge cover.
9. Finished.

For further information about the product, please consult.

https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.

To contact the technical assistance, visit our website:

https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country.

You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

11 - Technical Data

11.1 Product fiche according to regulation (EU) 2019/2016

Trade mark	Haier
Model identifier	H3F-280*SAAU1	H3F285*EH1	H3F-320*SAAU1	H3F-320*TAAU1	H3F330*EH1
Category of the model	Upright freezer
Energy efficiency class	F	E	F	D	E
Annual energy consumption (kWh/year) 1) 300		248 266	328 212
Storage volume cooling(L)	not applicable
Storage volume freezing(L)****	285 330
Star rating ****
Temperature of other compartments>14 °C	not applicable
Frostfree system	yes
Power cut safe (h)	13		12	19	12
Freezing capacity (kg/24h)	18.5 2223
Climate classThis appliance is intended to be used at an ambient temperature between 10 °C and 43 °C	SN-T
Airborne acoustical noise emissions(dB(A) re 1pW)	38
Construction type	freestanding

^1) based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
Regarding specification details, please consult the rating plate and energy label inside the product.
This appliance is intended to be used at an ambient temperature indicated below:

SN	+10°C~+32°C
N	+16°C~+32°C
ST	+16°C~+38°C
T	+16°C~+43°C

11.2 Additional Technical Data

Voltage / Frequency 220-240V ~/ 50Hz
Main fuse (A)	1.0
Coolant R600a	•
Dimensions (H/W/D in mm) H3F-280*SAAU1/285*EH1	171/59.5/67.5
Dimensions (H/W/D in mm)H3F-320*(S/T)AAU1/330*EH1	191/59.5/67.5
Light power/Light voltage 1.5W/ DC 12V

11.3 Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING

If you cannot find a solution there, please contact

▶ your local dealer or
the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____ Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find below our addresses in Europe:

European Haier addresses

Country*	Postal address	Country* Postal address
Italy	Haier Europe • Trading SRLVia De Cristoforis, 1221100 VareseITALY .	France	Haier France SAS3-5 rue des Graviers92200 Neuilly sur SeineFRANCE
Spain Portugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
Germany Austria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreece.RomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
United Kingdom	Haier Appliances UK Co.Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

*For more information please refer to www.haier.com

Wireless parameters

Technology	Wi-Fi	Bluetooth
Standard	IEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401~2483	2402~2480
Maximum power [mW]Band(s) [MHz]	100	10

Product information

How to activate Wi-Fi module:

• Press the Fresher Zone button for 3 seconds to activate the Wi-Fi.
• The Wi-Fi module is switched on the Wi-Fi icon starts to blink.
• If the freezer is enrolled and connected, the Wi-Fi icon is always on.
  • To reset the Wi-Fi, press the Fresher Zone for 3 seconds.

In APP pairing procedure

Step 1

. Download the hOn app on the stores.

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Step 2

- Log in or sign up.

Welcome! Copyrighted in user home. GO FREE START Welcome to Facebook! © your website's new platform http://www.123.com

Step 3

. Add a new appliance, selecting the freezer from the list.

Select your appliance Echbowther Erauser Refrigerator Wine Color

Step 4

- Scan the QR or insert manually the serial number.

Float the QR Code and serial number

Step 5

- Press the Fresher Zone button on the product for 3s to activate the Wi-Fi.

Wake up your fridge What the fridge has, you can be a free time. You can be ready to get it.

Step 6

• The Wi-Fi icon will blink, the pairing process is in progress.
  • You will have 5 minutes to complete the pairing process.
• When the process is completed the Wi-Fi icon will stop blinking and it will remain always on.

Add nutrients Wake up your fridge I'll be ready to keep your fridge on your minutes. You can't get your check up your fridge.

H3F-280/320_AAU1_V01_EN_210702

Haier

Bedienungsanleitung

Tiefkühlschrank

H3F285*EH1

H3F330*EH1

* - Farbcode

DE

Technical line drawing of a mechanical component with three circular cavities (no text or symbols)

Technical line drawing of two mechanical components (no text or symbols)

Two mechanical clamping components shown in line drawing (no text or symbols)

Achsenabdeckungen

7.1 ① ① ②

7.2 ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

10.7 Wartezeit

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Schritt 2

Wellcome! Start to access your account.

Schritt 3

Select your appliance: Limit Dylmachim Fleeve Refrigerator White Cellar

Schritt 4

Find the QR Code and serial number 单击

Schritt 5

Wake up your Fridge Made in the first 12 months of the year. Made in the second 12 months of the year.

Schritt 6

Wake up your fridge A New York will have seen that the picking experience is very + - OK

H3F-280/320_AAU1_V01_DE_210702

Haier

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

FR Creative Commons

Légende

Technical line drawing of a rectangular container with internal compartments (no text or symbols)

Two mechanical clamping components shown in line drawing (no text or symbols)

Couverture des axes

① ① ② 7.1

7.2 ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Étape 2

Welcome! Make your account to your computer 2001-04 2001-05 Pass to account?/ Click to access to your account.

Étape 3

Select your appliance Light Dishwasher Firebox Refrigatooler White Color

Étape 4

Find the QR Code and serial number

Étape 5

Wake up your Fridge Where the battery is open and be able to keep your battery in your Fridge.

Étape 6

Wake up your Fridge I starting your fridge from the starting point to you

H3F-280/320_AAU1_V01_FR_210702

Haier

Technical line drawing of a mechanical component with three circular cavities and a rectangular housing (no text or symbols)

Two mechanical clamping components shown in line drawing (no text or symbols)

Copripunti

7.1 ① ① ②

7.2 ① ②

Illustration of a hand cleaning a window with a sink, no text or symbols present

Two identical rectangular objects with curved arrows indicating rotation, no text or symbols present

10.7 Tempo d'attesa

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Passo 2

Welcome! Login to account, access to account 2019-06 2021-07 Pre-start/Cancel/ Get your account to account the account.

Passo 3

Select your appliance dishwasher Firebox Micropods Wine Column

Passo 4

Find the QR Code and footer buttons

Passo 5

Wake up your fridge Wake up your fridge

Passo 6

Wake up your fridge I starting off the next week for the going home to this store

H3F-280/320_AAU1_V01_IT_210702

Haier

Manual del usuario

Congelador vertical

H3F285*EH1

H3F330*EH1

* - Código de color

ES

Technical line drawing of a mechanical component with three circular cavities and a rectangular housing (no text or symbols)

Technical line drawing of two mechanical clamping components (no text or symbols)

7.1 ① ① ②

7.2 ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular objects with curved arrows indicating rotation, no text or symbols present

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Paso 2

Welcome! Sign to account access information 2014 2015.6 Pre-men's care? What is your home? or your family? My group

Paso 3

Select your appliance Literate Dishwasher Freezer Refrigerator Wire Color

Paso 4

Find the QR Code and serial number + 5

Paso 5

Wake up your fridge Where the fridge is open, you can make up your fridge to save it on your window.

Paso 6

Wake up your fridge I'm looking at you, how to make it, you're looking at you.

H3F-280/320_AAU1_V01_ES_210702

Haier

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Verwijdering

Technical line drawing of a mechanical component with three circular cavities (no text or symbols)

Technical line drawing of two mechanical clamping components (no text or symbols)

As afdek- kingen
Afdekking bo- venste scharnier links

elet: Verschillen

5.12 Deur opening alarm

7.1 ① ① ②

7.2 ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular panels with curved arrows pointing downward, no text or symbols present

6 h 10.7

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Stap 2

Welcome! Get to account for your own Add Remove Add to add Remove to add Add to add Add to add

Stap 3

Select your appliance Finisher Freezer Refrigerator White Color

Stap 4

Find the QR Code and serial number

Stap 5

Wake up your fridge @www.fridge.com @www.fridge.com

Stap 6

Wake up your fridge A saving WiFi you have like the serving package or more.

H3F-280/320_AAU1_V01_NL_210702

Haier

Technical line drawing of a mechanical component with four circular cavities (no text or symbols)

Two mechanical clamping components shown in line drawing (no text or symbols)

Ostony sworznia

7.1 ① ① ②

7.2 ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

Welcome! Help to access your website 2001.04 2001.05 Post-mail: Caiqi? Online access to the website is available.

Krok 3

Select your appliance Embrace

Krok 4

Find that QR Code and social number 禁止

Krok 5

Wake up your fridge Make your keyboard to get your keyboard on the keyboard in the home.

Krok 6

Wake up your fridge I'm looking up your home to get your your fridge.

H3F-280/320_AAU1_V01_PL_210702

Haier

Návod k použití

Vertikářnám znič

H3F285*EH1

H3F330*EH1

* - Barevní kód

Technical line drawing of a mechanical component with internal cavities (no text or symbols)

Otoční vyráběč ledu

Technical line drawing of two mechanical components (no text or symbols)

Two mechanical clamping components shown in line drawing (no text or symbols)

① ① ② 7.1

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

10.7 Čekací doba

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

Welcome! Post at www.niuniun.com L00146 200118 Post-mail: lany? Click to send you to your email. http://www.niuniun.com

Krok 3

Select your appliance Local Disinaclear Freezer Refrigerator White Color

Krok 4

Find the QR Code and serial number

Krok 5

Wake up your Fridge A offering 80% free or more free for the minutes of your fridge.

H3F-280/320_AAU1_V01_CZ_210702

Haier

Manual do Utilizador

Congelador vertical

H3F285*EH1

H3F330*EH1

* - Código de cor

PT

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Eliminação

Technical line drawing of a mechanical housing or enclosure with internal compartments (no text or symbols)

Máquina de gelo com concha de gelado

Technical line drawing of two mechanical clamping components (no text or symbols)

When the appliance is connected with Wi-Fi, it could be controlled from distant [temperature setting adjustment, activation and deactivation of super freeze and FresherZone function]. When the door is left open or when there is temperature deviation, real time information could be informed through the application.

Illustration of a hand cleaning a window with a sink, no text or symbols present

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Passo 2

Wellcome! Start to access your account.

Passo 3

Select your appliance: Light Dylmachex Fleeve Refrigerator White Cedar

Passo 4

• Digitalize o QR ou insira manualmente o número de série.

Find the Google Code and social number

Passo 5

Wake up your fridge A-12 www.4887.com

Passo 6

Wake up your fridge A New! 10% has closed the picking session in active

H3F-280/320_AAU1_V01_PT_210702

Haier

Návod na použtie

Interior view of a modern refrigerator with visible door and front panel (no text or symbols on the main subject)

Symbol of a trash bin crossed with diagonal lines, representing waste or discharge (no text or labels)

Likvidácia

Technical line drawing of a mechanical component with internal cavities (no text or symbols)

Výrobník du

Technical line drawing of two mechanical components (no text or symbols)

Layhorný zá ves preto čn de ve

Technical line drawing of two mechanical clamping components (no text or symbols)

7.1 ① ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

8- Starostlivost a čistenie

Two identical rectangular objects with curved arrows indicating rotation, no text or symbols present

10.7. Čakacia doba

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Krok 2

- Prihláste sa alebo sa zaregistrujte.

Welcome! Help to access your website 2023-04 2023-05 Post - access - Open? Access to the website is not allowed. © 2023-04

Krok 3

- Pridajte nový spotrebič a vyberte mrazničku zo zoznamu.

Select your appliance Dishwasher Enzyme Refrigerator Wine Color

Krok 4

Wake up your Fridge For your application and continue to make your Fridge Take up SOME LEAFY

Krok 6

Wake up your Fridge I'm looking at your home. You can't get your home. OK

Haier

Brugervejledning

Skabsfryser

H3F285*EH1

H3F330*EH1

* -Farvekode

DA

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Bortskaffelse

7.1 ① ① ②

Illustration of a hand cleaning a window with a soap block and a basin nearby (no text or symbols)

Two identical rectangular objects with curved arrows below, no text or symbols present

10.7 Ventetid

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Trin 2
- Log på eller tilmeld dig.

Welcome! App store: www.wk.com Login Add OK App store: www.wk.com App store: www.wk.com App store: www.wk.com

Select your appliance Add Add User Add User Add Camera Add Camera

Trin 4

Fused the QR Code next set left reminder

Trin 5

- Tryk på knappen Fresher Zone på apparatet i 3 sekunder for at aktivere Wi-Fi.

Wake up your Fridge Made in your kitchen, you have a quick to keep your food. You are you ready to keep your food. You are you ready to keep your food.

Trin 6

Wake up your fridge I'm looking up your home to the your computer.

H3F-280/320_AAU1_V01_DA_210702

Haier

Käyttöopas

Pystypakastin

H3F285*EH1

H3F330*EH1

* -Värikoodi

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Hävittäminen

Technical line drawing of a mechanical housing or enclosure with internal compartments (no text or symbols)

Twist-jääpalakone

Technical line drawing of two mechanical components (no text or symbols)

Technical line drawing of two mechanical clamping components (no text or symbols)

7.1 ① ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular objects with curved arrows indicating rotation, no text or symbols present

6 h 10.7

10.8 Sähköliitäntä

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Vaihe 2

Welcome! Sign to access your account Login Add up New user login! App is required to access your account.

Vaihe 3

Search your app/Marker Browse Download Browse Download Write Color

Vaihe 4

Find up OK! Goodly and Inform Instruction

Wake up your refrigerator Wake up your refrigerator Wake up your refrigerator

Waters up your food A small food item is called the cigarette food of you. A cooking food can be made a combination of foods.

H3F-280/320_AAU1_V01_FI_210702

Haier

Brukerhåndbok

Stående fryser

H3F285*EH1

H3F330*EH1

* -Fargekode

NO

Takk for at du kjøpte et Haier-produkt.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Kassering

Technical line drawing of a mechanical housing or enclosure with internal compartments (no text or symbols)

Twist Ice Maker

Technical line drawing of two mechanical components (no text or symbols)

∅vre venstre hengsel for dørvendbarhet
∅vre venstre hengseldeksel

Two mechanical clamping components shown in line drawing (no text or symbols)

Aksedeksler

7.1 ① ① ②

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular objects with curved arrows indicating rotation, no text or symbols present

10.7 Ventetid

Til den vedlikeholdsfrie smøreoljen er det plassert i kapselen til kompressoren. Denne oljen kan komme gjennor det lukkede rørsystemet under skråtransport. Før du kobler apparatet til strømforsyningen må du vente 6 timer (fig. 10.7) slik at oljen renner tilbake i kapselen.

6 h 10.7

10.8 Elektrisk tilkobling

I APP-paringsprosedyren

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

- Logg på eller registrer deg.

Welcome! Your website is your home Welcome Add OK Cancel Thank you to your website at www.westsec.com

Trinn 3

Select if your appliance Cleaner 100% of the Cleaner Recycle Recycle White Cartier

Trinn 4

- Skann QR-en eller sett inn serienummeret manuelt.

Read the QR Code and set of customer + - 2021/08 2021/09

Trinn 5

Wake up your refrigerator Please use your refrigerator to make up your refrigerator. Please use your refrigerator to make up your refrigerator.

Trinn 6

Wake-up your fridge I have been replaced by the computer. You can get your keyboard to access your keyboard to your home. A New York 2005 version has been replaced by your keyboard.

H3F-280/320_AAU1_V01_NO_210702

Haier

Bruksanvisning

Frysskåp

H3F285*EH1

H3F330*EH1

* -Färgkod

SV

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Bortskaffande

Technical line drawing of a mechanical housing or enclosure with internal compartments (no text or symbols)

Ismaskin

Technical line drawing of two mechanical components (no text or symbols)

Two mechanical clamping components shown in line drawing (no text or symbols)

Axelskydd

① ① ② 7.1

7.1 Avtagbara dörrhyllor

Illustration of a hand cleaning a window with a soap block and a basin (no text or symbols)

Two identical rectangular objects with curved arrows indicating rotation, no text or symbols present

6 h 10.7

10.8 Elanslutning

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Steg 2

- Logga in eller registrera dig.

Welcome! App Store Welcome OPEN Add OK Cancel New store (new) Add to store or add to account

Steg 3

Select your Application Custom Credit Card Credit Card Credit Card Credit Card

Steg 4

- Skanna QR-koden eller ange serienumret manuellt.

Find the QR code and we call to account

Steg 5

Wake up your fridge You can be satisfied with you to get your customers. You can be satisfied with you to get your customers. You can be satisfied with you to get your customers. You can be satisfied with you to get your customers.

Steg 6

Wake up your fridge I'm going to get your fridge at the start of the year. I'm going to get your fridge at the end of the year.

H3F-280/320_AAU1_V01_SV_210702

Haier

Εγχειρίδιο χρήσης

'Ορθιος καταψύκτης

H3F285*EH1

H3F330*EH1

Technical line drawing of a mechanical housing or enclosure with internal compartments (no text or symbols)

Technical line drawing of two mechanical components (no text or symbols)

Technical line drawing of two mechanical clamping components (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas including 'FRESHERZONE' and 'NO FROST'.

Elk. 5 1 2 3

7.1 ① ① ②

7.1

7.2 ① ②

Illustration of a hand cleaning a window with a cloth and a basin (no text or symbols)

Two identical rectangular panels with curved arrows indicating rotation, no text or symbols present

6 h 10.7

GET IT ON Google Play Download on the App Store EXPLORE IT ON AppGallery

Bñμα 2

Welcome! Begin to account or access your Welcome Import OK Next session: Please? Ask you to access your product. OK Cancel

Bñμα 3

Select your appliance Dishwasher Pressure Refrigeration Window Color

Bñua 4

Find the QR Code and serial number

Bήμα 5

Wake up your fridge When you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking to you, you're looking out

Βήμα 6

Wake up your Fridge • Explaining 100% of the new food, which is used to create a new food.

Haier
