Table of Contents

DISHWASHER SAFETY .... 1

WHAT'S NEW IN YOUR DISHWASHER....3

PARTS AND FEATURES 4

START-UP/QUICK REFERENCE ....5

QUICK STEPS 5

DISHWASHER USE 6

CYCLE AND OPTION DESCRIPTIONS....8

DISHWASHER FEATURES 11

DISHWASHER CARE....13

TROUBLESHOOTING....14

WARRANTY....17

Dishwasher Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
  ■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal; and
2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.

- Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■ Do not touch the heating element during or immediately after use.

■ Do not operate the dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.

■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher:

The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■ For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

Energy

Congratulations on purchasing your water- and energy-efficient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and pauses for exceptional cleaning. Your dishwasher contains an optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. The first cycle using the sensor will run longer to calibrate the optical sensor.

Performance

Rinse Aid

Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy-efficient dishwashers use less water and energy, so they depend on the water "sheeting" action of rinse aid for total optimal performance.

Pre Wash RIDE

Detergent

The United States and Canada have passed regulations limiting the amount of phosphorus (phosphates) in the household dishwasher detergents. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these changes, we recommend quality tablets and packs for convenience and improved performance.

Pre Wash SLCT ON Purchase amount Outside amount and Order SLFT

Filtration System

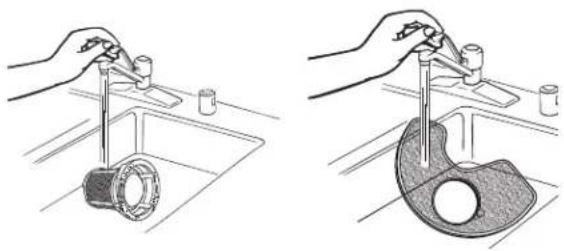

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Maintenance of your filters regularly will sustain peak cleaning performance. We suggest you clean both your upper and lower filters and rinse under running water at least once a month.

Two technical illustrations showing hands operating a mechanical component on a platform, with no visible text or symbols.

Parts and Features

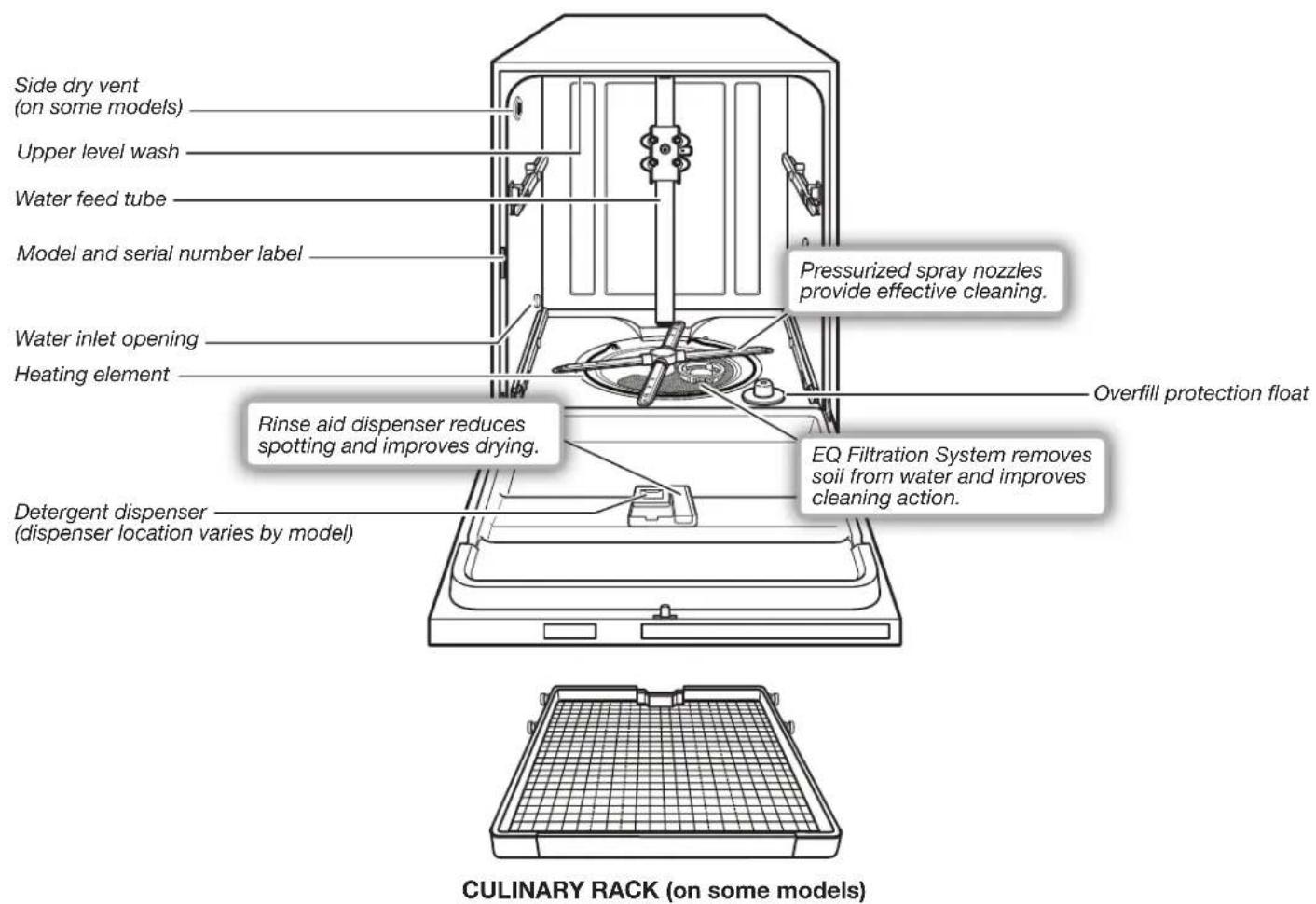

Side dry vent (on some models) Upper level wash Water feed tube Model and serial number label Pressurized spray nozzles provide effective cleaning. Water inlet opening Heating element Overfill protection float Rinse aid dispenser reduces spotting and improves drying. EQ Filtration System removes soil from water and improves cleaning action. Detergent dispenser (dispenser location varies by model) CULINARY RACK (on some models)

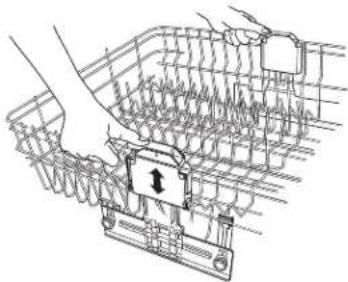

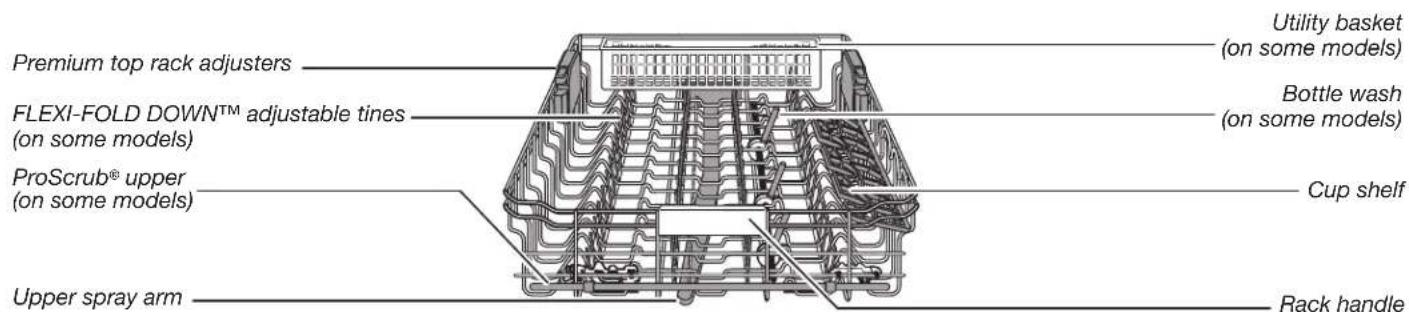

Premium top rack adjusters FLEXI-FOLD DOWN™ adjustable tines (on some models) ProScrub® upper (on some models) Upper spray arm Utility basket (on some models) Bottle wash (on some models) Cup shelf Rack handle

TOP RACK

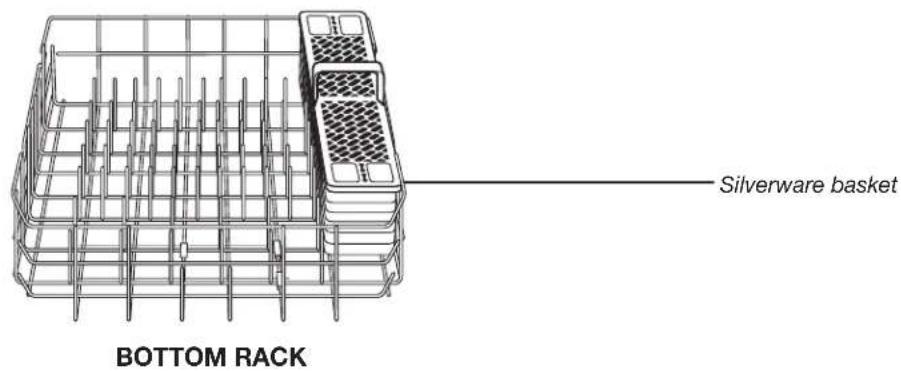

BOTTOM RACK Silverware basket

Start-Up/Quick Reference

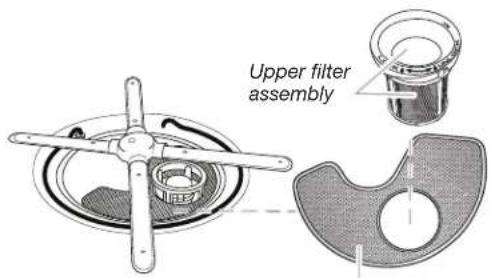

Clean EQ Wash System removable filters to maintain peak performance

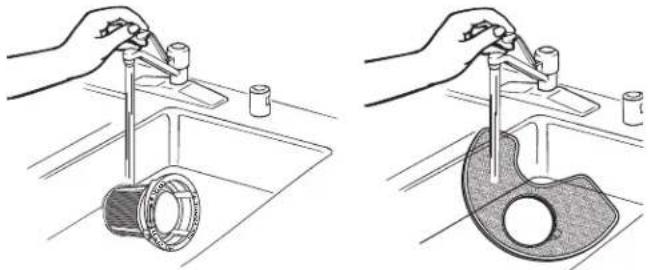

Cleaning the filters periodically helps keep the dishwasher working at peak performance. The filters can be found at the bottom center of your dishwasher.

See "Filtration System" section for information on removing and maintaining the filters.

Technical drawing of a mechanical component with a flange and cylindrical housing (no text or symbols)

Drying - Rinse aid is essential

You must use a drying agent such as a rinse aid for good drying performance. Rinse aid along with the Heat Dry, Extended Heat Dry, ProDry™, or Extended ProDry™ option will provide best drying and avoid excessive moisture in dishwasher interior.

Line drawing of a hand operating a camera lens on a device (no text or symbols visible)

Express Wash - When you need fast results

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. When you need fast results, the Express Wash will clean your dishes using slightly more water and energy. Select the Heat Dry or ProDry™ option to include automatic drying (adds approximately 38 to 45 minutes to the Express Wash cycle).

Express Wash

ProWash™ cycle for optimal cleaning

The most advanced and versatile cycle. ProWash ^™ cycle senses the soil amount and toughness of soil to adjust the cycle for optimal cleaning using only the amount of water and energy needed. The ProWash ^™ and Tough cycles are recommended for tough soil. No need to pre-rinse dishes; just scrape leftover food into the trash or disposal and load.

ProWash

Soil - Sense

Touch Start/Resume every time you add a dish

IMPORTANT: If anyone opens the door (such as for adding a dish, even during the Delay option), Start/Resume must be touched each time.

Start RESUME

Push the door firmly closed within 4 seconds of touching Start/Resume. If the door is not closed within 4 seconds, the Start/Resume keypad LED will flash, an audible tone will be heard, and the cycle will be canceled.

Proper Detergent Dosing

High-quality premeasured tablets and packs are recommended for improved performance.

It is possible to use too much detergent in your dishwasher. This can lead to etching of your dishes. See "Add Detergent" and "Add Rinse Aid" in the "Dishwasher Use" section, to determine the amount of detergent needed based on your water hardness.

Quick Steps

1 Remove bulk food and load dishwasher.

Scrape off excess food into garbage or food disposer.

3D wireframe model of a mechanical component with cylindrical and toroidal features (no text or symbols)

Load dishes so that water spray will reach every surface.

2 Add detergent and rinse aid.

Dura Mioan A1.0m

Line drawing of a hand holding a mounted device with a control panel and display (no text or symbols visible)

3 Select a cycle and options (varies by model).

SOIL CYCLES •ProWash | • Tough | • Normal | • Express Wash | • Rinse Only Soil - Sense OPTIONS • Extended Heat Dry | • Bottle Wash | • Hi-Temp Wash | • Sani Rinse | • 2-4-8 Hr. Delay • Heat Dry Sound On/Off Hold 3 Sec

4 Start the dishwasher.

To start and resume a cycle, press START/RESUME and close the door within 4 seconds. If the door is not closed within 4 seconds, the Start/Resume LED will flash, and the cycle will not start.

Start RESUME

Dishwasher Use

STEP 1

Prepare and Load the Dishwasher

IMPORTANT: Remove leftover food, bones, toothpicks, and other hard items from the dishes. Remove labels from containers before washing.

3D wireframe model of a mechanical component with internal cavities and mounting holes (no text or symbols)

Illustration of a multi-tiered cylindrical device with internal components and a separate panel (no text or symbols visible)

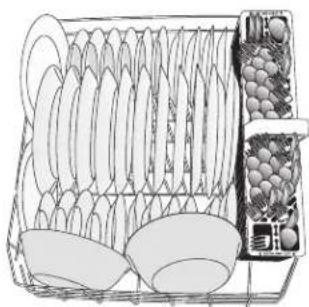

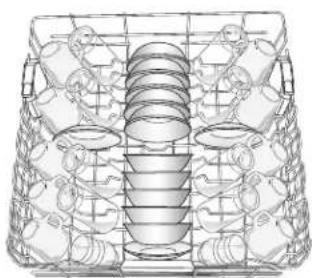

10-place load - upper rack 10-place load - lower rack

3D wireframe diagram of a basket filled with various objects, no text or symbols present

Illustration of a container with coiled plates and a fruit basket (no text or symbols)

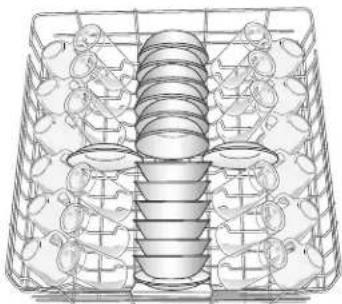

12-place load – upper rack 12-place load – lower rack

■Check that nothing blocks the upper or lower spray arm.

Items in rack can block the spray arms.

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or force.

■Make sure when the dishwasher door is closed no items are blocking detergent dispenser.
■Items should be loaded with soiled surfaces facing down and inward to the spray as shown in the graphics above. This will improve cleaning and drying results. Angle dirtiest dish surface downward, allowing space for water to flow up through rack and between dishes.
■Avoid overlapping items, like bowls or plates that may trap food.

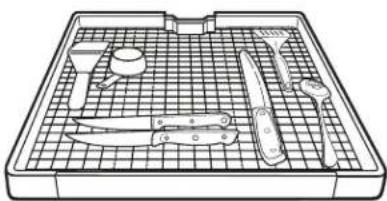

■Place plastics, small plates, and glasses in upper rack.
■Wash only items marked "dishwasher safe."
■To avoid thumping/clattering noises during operation: Load dishes so they do not touch one another. Make sure lightweight load items are secured in racks.

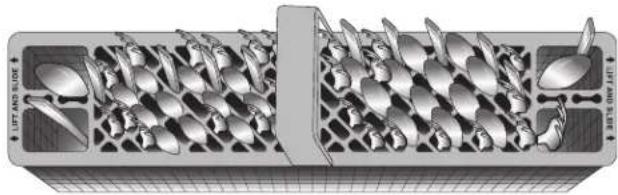

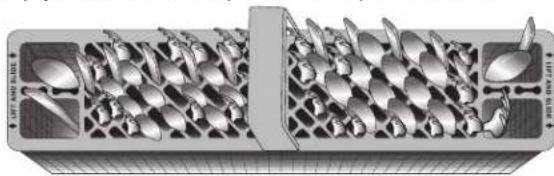

■When loading silverware, always place sharp items pointing down and avoid nesting, as shown. If your silverware does not fit into the designated slots, lift and slide covers off to remove them and mix silverware types to keep them separated.
■Use the slots in the covers and suggested loading patterns to keep your silverware separated for optimum wash.

Cross-sectional illustration of a mechanical component with multiple teeth and a central slot (no text or symbols)

STEP 2

Add Detergent

Premeasured Detergents

High-quality premeasured tablets and packs are recommended for improved performance.

Quality tablets and packs have been proven better than powder, liquid, or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film.

They are suitable for all hardness and soil levels. Also, by using a rinse aid, you can minimize repeat buildup of white film (not all packs and tablets contain rinse aid). Always place premeasured detergents in main compartment and slide lid closed.

NOTE: Follow instructions on the package when using other dishwasher detergent types.

■Use automatic dishwasher detergent only. Add detergent just before starting a cycle.
■Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool dry place.

Pre Wash GNTN For last month, and GNTN Pumpers and GNTN New-All LPT

Pre Wash SLIDE For load results Wash SLIDE OPEN

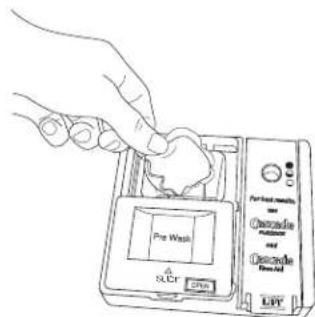

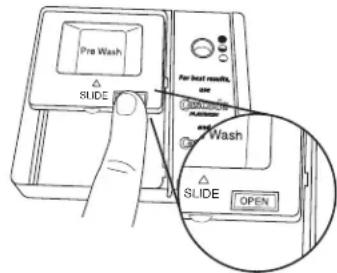

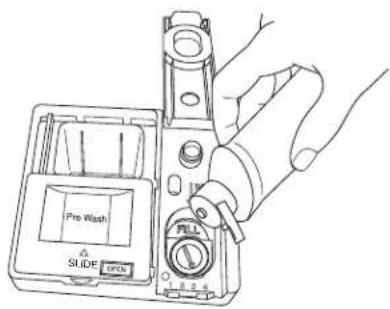

Place selected detergent in the dispenser. Place finger, as shown, and slide lid closed. Press firmly until it clicks.

Push OPEN, as shown, and the lid will slide open.

Powders and Gels

Water Hardness	Soil Level P	Prewash Compartment*	Main Wash Compartment
Soft(0-4 grains per U.S. gallon)	Light None “	Soft” fill line
	Normal None “	Soft” fill line
	Heavy Full “	Soft” fill line
Medium(5-9 grains per U.S. gallon)	Light None “	Soft” fill line
	Normal Full	Full**
	Heavy Full	Full**
Hard(10-14 grains per U.S. gallon)	Light Full	Full**
	Normal Full	Full**
	Heavy Full	Full**

*The prewash compartment is on top of the sliding door of the dispenser.

**A full main wash compartment contains 2 Tbsp (30 mL).

IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results.

NOTE: Follow instructions on the package when using other dishwasher detergent types.

STEP 3

Add Rinse Aid

Pre Wash SUDE FELL

IMPORTANT: Your dishwasher is designed to use rinse aid. The use of rinse aid greatly improves drying by allowing water to drain from the dishes after the final rinse. Rinse aid also keeps water from forming droplets that can dry as spots or streaks.

Filling the dispenser

The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions, this will last one to three months.

NOTE: Indicator reads correct fill level when door is completely opened.

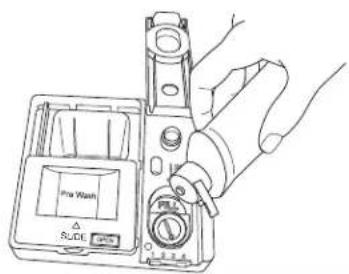

1. To add rinse aid, open the rinse dispenser lid by gently pushing in the center of the lid with your thumb and pulling up on the edge.

2. Pour rinse aid into the opening until the dispenser is full. Do not overfill.

3. Clean up any spilled rinse aid. Spilled rinse aid can create excessive suds.

4. Close the dispenser by pushing down gently on the lid.

Diagram showing a hand inserting a card into a device with labels like 'F' and 'R'

Rinse Aid Setting

Your rinse aid dispenser is adjustable. For most water conditions, the factory setting will give good results. If you have hard water and notice calcium buildup on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting.

To adjust the setting:

Turn the arrow adjuster to a higher number to increase the amount of rinse aid.

STEP 4

Select a Cycle

Efficient dishwashers run longer to save water and energy, just as driving a car slower saves gas. Cycle times may increase or decrease, depending on selections. Estimated cycle times after calibration are listed in the "Cycle and Option Descriptions" chart in the following section.

SOIL CYCLES — SPEED CYCLES •ProWash | • Tough | • Normal | • Express Wash | • Rinse Only Soil - Sense

Select Options (varies by model)

See the "Cycle and Option Descriptions" chart in the following section.

You can customize the cycles by selecting the options desired and pressing the Start/Resume keypad.

OPTIONS • Extended |• Bottle |• Hi-Temp |• Sani |• 2-4-8 Hr. Heat Dry Wash Wash Rinse Delay • Heat Dry Sound On/Off Hold 3 Sec

STEP 5

Start or Resume a Cycle

■If needed, run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.
■For best dishwashing results, water should be 120°F (49°C) as it enters the dishwasher.
■Select the wash cycle and options desired. To repeat the same cycle and options used previously, press the START/RESUME keypad twice. Within 4 seconds of pressing Start/Resume, you must firmly push the door closed. If the door is not closed within 4 seconds, the Start/Resume LED will flash and the cycle will not start.
■You can add an item at the beginning of the cycle. Open the door slowly and add the item. Press the START/RESUME keypad and close the door firmly within 4 seconds. If the door has been open more than 4 seconds, the LED will flash and the dishwasher will not resume unless you press Start/Resume again.

IMPORTANT: If the door has been opened after starting a cycle (even during the Delay option), Start/Resume must be pressed again.

Cycle and Option Descriptions

KitchenAid SOIL CYCLES SPEED CYCLES • PreWash | Tough | Normal | Express Wash | Rinse Only Start RISKLE Order 2 hr 6 hr 8 hr Washing Drying Cause Sandload Cancel downs Extended ProDry Bottle Wash • Free Dry Sound Day Off • Hard 3 sec OPTIONS • Hi-Temp Wash | Sani Rinse | 2-4-8 Hz Delay Fan-drilled Predry System

KDTE334G, KDPE334G

KitchenAid SOIL CYCLES SPEED CYCLES • ProWash | Tough | Normal | Express Wash | Rinse Only Start Stop Delay 2 hr 4 hr 8 hr Waiting Drying Case Untreated Cancel stop OPTIONS • Extended Heat Dry | Hi-Temp Wash | Santi Rinse | 2-6-8 Ps. Heat Dry Sound But Off Wash 3 Pc

KDTE234G, KDPE234G

Estimated cycle times may increase or decrease, depending on water temperature, soil conditions, dish load size, and options selected. You can customize your cycle by selecting an option.

See option selections. If you change your mind, press the option again to turn off the option or select a different option. You can change an option any time before the selected option begins. At each stage of the wash cycle, you may hear noises that you are not used to hearing in your previous dishwasher. Each cycle will provide a series of pauses and water sprays throughout the wash cycle. This is normal and will provide optimal cleaning performance.

CYCLE SELECTIONS

This information covers several different models. Your dishwasher may not have all of the cycles and options described.

IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat, and water as needed.

CYCLES ESTIMATED		WASH TIME W/O OPTIONS	WATER USAGE GALLONS (LITERS)
ProWashSoil - Sense	This cycle senses the load size, soil amount, and toughness of soil, to adjust the cycle for improved cleaning, using only the amount of water and energy needed. The ProWashTMcycle is automatically selected if you first touch Start/Resume. Includes a heated drying option.*	2:30 to 3:30 3.8	to 7.7(14.4 to 29.3)
Tough	Use for hard-to-clean, heavily soiled pots, pans, casseroles, and regular tableware. Includes a heated drying option.	2:20 to 3:30 8.4	(31.7)
Normal	This cycle is recommended for daily, regular, or typical use to completely wash and dry a full load of normally soiled dishes. This dishwasher's government energy certifications were based on the Normal cycle with only the Heat Dry or ProDryTMoption selected.**	1:50 to 3:30 2.7	to 7.9(10.4 to 30.0)
Express Wash	When you need fast results, the Express Wash will clean dishes using slightly more water and energy. Select a heated drying or extended dry option to speed drying times.	0:55 to 1:05 6.2	(23.5)
Rinse Only	Use for rinsing dishes, glasses, and silverware that will not be washed right away.Do not use detergent.	0:15 to 0:20 2.4	(9.0)

*The government energy certifications are not based on this cycle. See the Normal cycle description for the government energy certification cycle. Using the Sensor cycle may increase your energy usage.
**No other washing and drying temperature options were selected, and the dishwasher was not subjected to truncated testing. Rinse aid was not used, and there was no detergent used in the prewash.

OPTION SELECTIONS

OPTIONS CAN BE		SELECTED WITH	WHAT IT DOES ADDED TIME TO CYCLE	ADDED WATER GALLONS (LITERS)
Extended ProDryProDry(on some models)	Dries dishes with heat and a fan. This option, with the use of rinse aid, will provide the best drying performance. Plastic items are less likely to deform when loaded in the top rack. Turn the ProDry^TM option off for an air dry.	Available with any cycle except Rinse Only	Uses the heating element, vents, and a fan to speed drying times. ProDry^TM option defaults to On when any cycle is selected, except for Express Wash and Rinse Only.	0
Extended Heat DryHeat Dry(on some models)	Dries dishes with heat. This option, with the use of rinse aid, will provide the best drying performance. Plastic items are less likely to deform when loaded in the top rack. Turn the Heat Dry option off for an air dry.	Available with any cycle except Rinse Only	Activates the heating element at the end of a wash cycle to speed drying times. Heat Dry defaults to On when any cycle is selected, except for Express Wash and Rinse Only.	0

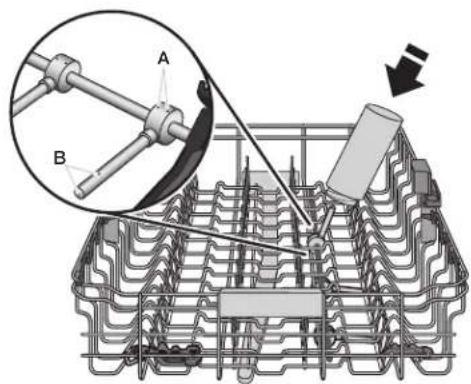

Bottle Wash(on some models)	The upper rack has flip-up spray nozzles that reach into deeper items such as sports bottles, baby bottles, or oddly shaped items. Flip the nozzles up to use them and down to move them out of the way.	ProWash^TM Express Wash Tough Normal	Bottle Wash nozzles ensure interior wash and rinse coverage inside taller items, such as bottles.	0:07 0
Hi-Temp WashSound On/Off Hold 3 Sec	Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food.	ProWash^TM Tough Normal	Raises the main wash temperate from 105°F (41°C) to either 130°F (55°C) or 140°F (60°C).	0:00 to 0:30 0 to 3.0(0 to 11.2)
Sani Rinse	Sanitizes dishes and glassware in accordance with NSF International NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. Only sanitizing cycles have been designed to meet the requirements of the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy. There is no intention, either directly or indirectly, that all cycles on a NSF/ANSI 184 certified dishwasher meet the NSF/ANSI 184 performance standard for soil removal and for sanitization efficacy.The Sani Rinse indicator glows at the end of the cycle if the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.	ProWash^TM Tough Normal	Increases the main wash temperature from 105°F (41°C) to 140°F (60°C) and the final rinse from 140°F (60°C) to 155°F (68°C).	0:00 to 2:20 1.2 to 6.2(4.8 to 23.3)
2-4-8 Hr.Delay	Runs the dishwasher at a later time or during off-peak electrical hours. Select a wash cycle and options. Touch the Delay keypad. Touch START/RESUME. Close the door firmly.NOTE:Any time the door is opened (such as to add a dish), the Start/Resume keypad must be touched again to resume the delay countdown.	Available with any cycle	Delays the start of a cycle to the specified time.	0

CONTROLS AND CYCLE STATUS

Control Purpose Comments
StartRESUME	To start or resume a wash cycle.	If the door is opened during a cycle or the power is interrupted, the Start/Resume indicator flashes.NOTE: Push door firmly closed within 4 seconds of touching Start/Resume. If the door is not closed within 4 seconds, the Start/Resume keypad LED will flash, an audible tone will be heard, and the cycle will not start.
CancelDRAIN	To reset any cycle or options during selection.To cancel a wash cycle after it has been started	Touch and hold CANCEL/DRAIN to reset any control selections made.
Hi-TempWashSound On/OffHold 3 Sec	To turn the audible tones on or off.	Touch and hold HI-TEMP WASH for 3 seconds to turn the audible tones on or off. Only audible tones for confirming keypad touches can be turned on/off. Important audible tones, such as indicating a cycle has been interrupted, cannot be deactivated.
Washing ○ Drying ○ Clean ○ Sanitized ○	To follow the progress of the dishwasher cycle and to indicate the success of the Sani Rinse.	If you select the Sani Rinse option, when the cycle is finished, the Sanitized indicator on the control panel glows. If your dishwasher did not properly sanitize your dishes, the Sanitized indicator flashes at the end of the cycle. This can happen if the cycle is interrupted or if water could not be heated to required temperature.The light goes off when you open and close door or touch CANCEL/DRAIN.

Canceling a Cycle

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop before completely opening the door.
2. Press and hold CANCEL/DRAIN once. The Cancel/Drain light will light up.
3. Close the door and the dishwasher starts a drain cycle (if water remains in bottom of dishwasher). Let the dishwasher drain completely. The Cancel/Drain light turns off after 2 minutes.

Changing a Cycle After Dishwasher Is Started

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure:

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.
2. Check that detergent dispenser cover is still closed. If cover is open, you will need to refill the detergent dispenser before restarting your new cycle.
3. Press CANCEL/DRAIN and wait approximately 2 minutes until the machine drains and the Cancel/Drain light turns off.
4. Select new cycles and options.
5. Press START/RESUME.

Adding a Dish After Dishwasher Is Started

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop and then completely open the door.
2. If the detergent dispenser door is closed you may add a dish. If the detergent dispenser door is already opened an added dish might not be cleaned.
3. Press START/RESUME and close the door. If the door is not closed within 4 seconds, you will hear a series of beeps and the dishwasher will not start.

Dishwasher Features

Silverware Basket

Cross-sectional diagram of a mechanical component with multiple blades and central slots (no text or symbols)

Silverware basket lids:

Use silverware basket lids to provide optimal spacing and best cleaning performance.

NOTE: If your silverware does not fit into the designated slots, push tabs inward on either end and lift lid off of the silverware baskets. Mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons for best cleaning results.

Easy-to-Remove Third-Level Rack (on some models)

If additional space is needed in the upper rack, the third-level rack can easily be removed.

To remove, fully extend rack until it stops. Then, open the track stops on each side and slide the rack out to remove.

Low-profile items such as serving utensils and silverware may be loaded on the third level rack.

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a component or assembly.

A. Track stop

B. Track

Line drawing of a toolbox with various kitchen utensils arranged on a grid-lined tray (no text or symbols)

Cup and Stemware Holder

Fold down the extra shelf on the top rack to hold additional cups, stemware, or long items such as utensils and spatulas. For best results on cups, stagger the spacing so that the cups on the shelf are not directly above the cups below.

Technical line drawing of a mechanical assembly with multiple components and piping (no text or symbols)

Technical illustration of a mechanical assembly with internal components and mesh structure (no text or symbols)

FLEXI-FOLD DOWN™ Adjustable Tines

The row of tines on the left-hand and right-hand sides of the top rack can be adjusted to make room for a variety of dishes.

To adjust the fold-down tines:

1. Grasp the tip of the tine that is in the tine holder.
2. Gently push the tine out of the holder.
3. Lay the tines down, toward the center of the rack.

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component's direction.

Premium Adjustable 2-Position Top Rack

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack.

To raise the rack:

Press both rack adjuster thumb levers and lift the rack until it is in the up position and level.

To lower the rack:

Press both rack adjuster thumb levers and slide the rack to its down position and level.

Technical line drawing of a mechanical component with spring-loaded housing and a directional arrow (no text or symbols)

NOTE: The top rack must be level.

Removable Top Rack

The removable top rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack.

IMPORTANT:

Remove dishes prior to removing the top rack from the dishwasher.

To remove the rack:

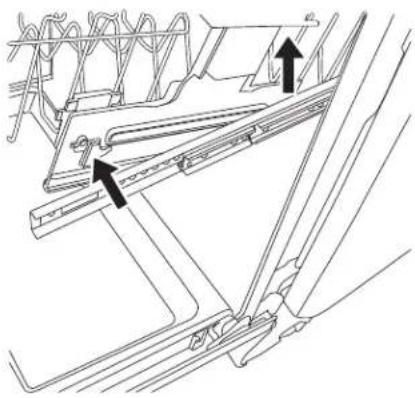

To gain access to the removable tabs on the tracks/rails, pull the upper rack forward about halfway out of the tub.

Technical line drawing of a mechanical assembly with no visible text or symbols

On one side, press the tab on the track in and pull up the front end of the rack, out of the track. Then repeat this step on the other side to completely remove the front end of the rack.

Then remove the rack by pulling the back end out using a forward and upward motion.

To replace the rack:

Pull the tracks forward about halfway out of the tub.

Along the sides of the racks are round attachment tabs. Align the rack's back end attachment tabs with the cutout in the track. Push down into place.

Pull the tracks completely out, and align the rack's front end attachment tabs with the cutout in the track. Push down into place. You will hear a snap when the front end of the rack is secured into place on each side.

Using the Bottle Wash feature (on some models)

Up to three sports bottles, baby bottles or other narrow items may be washed in the upper rack with this feature.

To wash bottles:

1. Select BOTTLE WASH on the control panel.
2. Flip up any or all three of the nozzles just far enough to fit inside your particular item.
3. Securely place items over the nozzles.

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a component.

A. Water flows through these holes when the nozzle is flipped down.
B. Water flows through these holes when the nozzle is flipped up.

When you do not need to wash bottles, flip the nozzles down until they stop.

Filtration System

Your dishwasher has the latest technology in dishwasher filtration. This filtration system minimizes sound and optimizes water and energy conservation while providing superior cleaning.

The filter system consists of two parts, an upper filter assembly and a lower filter.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without filters properly installed. Be sure lower filter is securely in place and upper filter assembly is locked into place. If upper assembly turns freely, it is not locked into place.

The filters may need to be cleaned when:

■Visible objects or soils are on the upper filter assembly.
■Dishes feel gritty to the touch.

Upper filter assembly

Lower filter

It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

RECOMMENDED TIME INTERVAL TO CLEAN YOUR FILTER
Number of Loads Per Week	If you only scrape before loading*	If you scrape and rinse before loading	If you wash before loading
8–12 Every 2 months Every	4 months Once per year
4–7 Every 4 months Once	per year Once per year
1–3 Twice per year Once	per year Once per year

*Scrape excess food into the trash or food disposer prior to loading the dishwasher. We recommend this practice because it will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Buildup of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the "Troubleshooting" section.

Filter Removal Instructions

1. Turn the upper filter assembly a quarter turn counterclockwise and lift out.

Locating tab

Technical line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

To remove upper filter assembly

1. Separate the upper filter assembly by gently pulling apart.
2. Clean the filters as shown.

Cleaning Instructions

IMPORTANT: Do not use wire brushes, scouring pads, etc., as they may damage the filters.

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Two technical illustrations showing hands using a tool to clean a mechanical component in a sink (no text or symbols present)

Filter Reinstallation Instructions

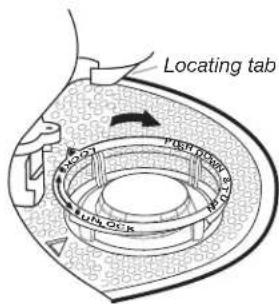

1. Noting the previous illustrations, place the lower filter under the locating tabs in the bottom of the dishwasher, so the round opening for the upper filter assembly lines up with the round opening in the bottom of the tub.

2. Insert the upper filter assembly into the circular opening in the lower filter.

Technical line drawing of a mechanical component with no visible text or symbols

To replace upper filter assembly

Locating tab FISH POWER L LOCK

1. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place.

NOTE: The upper filter assembly arrow does not have to align with the arrow in the lower filter as long as the filter is locked.

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the filters properly installed. Be sure the lower filter is securely in place and the upper filter assembly is locked into place. If the upper filter assembly turns freely, it is not locked into place.

Dishwasher Care

Cleaning the Exterior

Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, it has a coating that is resistant to fingerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh® Dishwasher Cleaner can help to remove the residue. Monthly use of affresh® Dishwasher Cleaner is recommended to help maintain the dishwasher.

To Use:

1. If cleaning without dishes, place one tablet in the detergent dispenser. Do not add detergent (If significant buildup is noticeable, a second tablet can be placed in the bottom of the dishwasher.)

2. If cleaning with dishes, place one tablet in the bottom of the dishwasher. Place detergent in the dispenser.

3. Run a Normal wash cycle.

Another method to remove white residue is to use a vinegar rinse. However, vinegar is an acid and using it too often could damage your dishwasher.

Place (do not pour), 2 cups (500 mL) white vinegar in a glass or dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry or an energy-saving dry option. Do not use detergent. Vinegar will mix with the wash water.

NOTE: KitchenAid recommends the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care.

If you have a drain air gap, check and clean it if the dishwasher isn't draining well.

Illustration of a kitchen sink with a faucet and a cylindrical sink, showing a downward arrow indicating a drop (no text or symbols present)

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

■Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home.

■Damage from freezing is not covered by the warranty.

■When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Troubleshooting

First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call, refer to the warranty page in this manual, or visit producthelp.kitchenaid.com In Canada, visit www.kitchenaid.ca.

Contact us by mail with any questions or concerns at the address below:

In the U.S.A.:

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

In Canada:

KitchenAid Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in the correspondence.

PROBLEM SOLUTION
DISHWASHER DOES NOT RUN	NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.If the Start/Resume light is blinking, press START/RESUME and close the door within 4 seconds.Be sure the door is closed and latched.■ Check that there is not an interference between large casserole dishes and the wash system at the back of the dishwasher.■ Check to see if any items are protruding through the bottom or back of the rack. Also check to see if tall items are hitting the upper rack or spray arm. Adjust loading as necessary to ensure door is closed and latched.Press START/RESUME or CANCEL/DRAIN, or open and close the door before selecting your cycle/option. Controls must be awakened after a period of inactivity.Be sure you have selected a cycle. See “Cycle and Option Descriptions” section.Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped.If lights other than Start/Resume blink and the unit will not run, you will need to call for service.If the numeric display shows a code “F2E2,” you will need to call for service.
DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB	Check for dishware, such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly.Be sure your detergent is fresh and lump-free.Be sure the cycle has completed (the Clean light is on). If it has not completed, you will need to resume the cycle by closing the door and pressing Start/Resume.
CYCLE RUNS TOO LONG NOTES	■ To use less water and reduce energy consumption, you will encounter cycles that typically run for up to 3 hours.■ A water heater setting of 120°F (49°C) is best the dishwasher will delay longer while heating cooler water.■ Some options will add time to the cycle. See the “Cycle and Option Descriptions” section.The Heat Dry or ProDryTM option adds approximately 45 minutes.Try the Express Wash cycle.Run the hot water at a faucet close to the dishwasher before starting the cycle.
DISHWASHER NOT DRYING	NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary.Use of rinse aid along with the Heat Dry or ProDryTM option is needed for proper drying.Proper loading of items can affect drying. (See specific loading instructions within this guide.)Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.■Unload the bottom rack first.■ Locate these items on the more slanted side of the rack for improved results.
WILL NOT FILL Be sure the water to the dishwasher is turned on.Check that the overfill protection float is free from obstructions. See the “Parts and Features” section.Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not fill with water. See “Blinking Lights” in the “Troubleshooting” section.
WATER REMAINS IN THE TUB/WILL NOT DRAIN	Be sure the cycle has completed (the Clean indicator is on). If it has not, you will need to resume the cycle by pressing Start/Resume and closing the door within 4 seconds.If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.Check for kinks in the drain hose.Check for food obstructions in the drain or disposer.Check your house fuse or circuit breaker.
HARD WATER(WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)	NOTE:Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help:Use a commercial cleaner designed for dishwashers once per month.Clean the upper and lower filters at least once per month. See “Cleaning Instructions” in the “Filtration System” section.Always use a rinse aid.Always use a high-quality, fresh detergent.Use a detergent booster/water softener additive designed for dishwashers.
ODORS	NOTE:If the dishwasher is not used daily, you can run a rinse cycle with the partial load until a full load is ready to run.Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry or ProDryTM option turned off. Do not use detergent.The dishwasher may not be draining properly, see “Water Remains In The Tub/Will Not Drain” in the “Troubleshooting” section.
NOISY	Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.Normal water valve hissing may be heard periodically.A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle.Improper installation will affect noise levels.Be sure the filters are properly installed.A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.
FOOD SOILS REMAIN ON DISHES	Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance. See the “Dishwasher Use” section.Check filter to ensure it is properly installed. Clean it if needed. See “Cleaning Instructions” in the “Filtration System” section for details.Select the proper cycle and option for the type of soils. The Tough cycle with the Hi-Temp Wash option can be used for tougher loads.Be sure the incoming water temperature is at least 120°F (49°C).Use the proper amount of fresh detergent. More detergent is needed for heavier soiled loads and hard water conditions.Scrape food from dishes prior to loading (do not prerinse).
DISHES DIRTY/SUDS IN DISHWASHER/CYCLE NOT COMPLETE	If foam or suds are detected by the dishwasher sensing system, the dishwasher may not operate properly or may not fill with water.Suds can come from:Using the incorrect type of detergent, such as dish detergent for hand washing dishes, laundry detergent, or hand soap.Not replacing the rinse aid dispenser cap after filling (or refilling) the rinse aid.Using an excessive amount of dishwasher detergent.Inadequately rinsing off detergent from dishes washed by hand before loading them into the dishwasher.Call for service.If no water was present in the machine at any time during a heated wash cycle, the cycle will end and the Clean indicator will not come on. See “Will Not Fill” in the “Troubleshooting” section.
DID NOT SANITIZE	If the Sanitized light is blinking, the load is NOT sanitized. The cycle was interrupted in the final rinse or the temperature for your water heater is set too low. Set your water heater to 120°F (49°C).
DAMAGE TO DISHWARE	Improper loading can cause dishes to become chipped or damaged. (See specific loading instructions within this guide.)
BLINKING LIGHTS	Blinking indicators will occur when the cycle is paused or when the cycle has been interrupted by opening the door. If the Start/Resume light is blinking, press the START/RESUME keypad and close the door within 4 seconds.See “Start or Resume a Cycle” in the “Dishwasher Use” section.If the Clean light or any other lights are blinking and the dishwasher will not run, call for service.
CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)	Add or adjust the amount of liquid rinse aid for better drying and to reduce spotting. See the “Add Rinse Aid” section.Use the correct amount of detergent.Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid. See “Hard Water (White Residue on Dishwasher Interior or Glassware)” in the “Troubleshooting” section. If it does not come clear, it is due to etching (see below).Be sure the incoming water temperature is set at 120°F (49°C).Try using the Hi-Temp Wash and Sani Rinse options.To remove spotting, run a vinegar rinse through the dishwasher:■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack. Run a Normal cycle with the Heat Dry option turned off. No detergent is needed.
ETCHING (PERMANENT CLOUDINESS)	This is an erosion of the surface of the glassware and can be caused by a combination of water that is too hot, using too much detergent with soft water, or pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49°C).
LEAKING WATER Be sure dish	washer has been installed properly and is level.Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.
TUB IS DISCOLORED High iron	content in the water can discolor the tub.Tomato-based foods can discolor the tub or dishware. Large amounts of tomato-based foods should be removed from the dishes before loading.A citrus-based cleaner can be used to clean.

KITCHENAID® DISHWASHER LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address, and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■ Proof of purchase, including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.kitchenaid.com.
2. All warranty service is provided exclusively by our authorized KitchenAid Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

KitchenAid Customer eXperience Center

In the U.S.A., call 1-800-422-1230. In Canada, call 1-800-807-6777.

If outside the 50 United States or Canada, contact your authorized KitchenAid dealer to determine whether another warranty applies.

LIFETIME LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)

For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “KitchenAid”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

SECOND THROUGH FIFTH YEAR LIMITED WARRANTY (CERTAIN COMPONENT PARTS ONLY - LABOR NOT INCLUDED)

In the second through fifth years from the date of original purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified replacement parts for the following components to correct non-cosmetic defects in materials or workmanship in these parts that prevent function of this major appliance and that existed when this major appliance was purchased. This is a limited five year warranty on the below named parts only and does not include repair labor.

■ Nylon dish racks

■ Electronic controls

LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB AND INNER DOOR LINER ONLY)

For the lifetime of the product from the date of original purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, KitchenAid will pay for factory specified replacement parts and repair labor for the following components to correct non-cosmetic defects in materials or workmanship that existed when this major appliance was purchased:

■ Stainless steel tub

■ Inner door liner

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a KitchenAid designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator, or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).
4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions).
5. Defects or damage caused by the use of non-genuine KitchenAid parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not approved by KitchenAid.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration, or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes, unless such damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days.
9. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments including, but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.
10. Pickup or delivery. This product is intended for in-home repair.
11. Travel or transportation expenses for service in remote locations where an authorized KitchenAid servicer is not available.
12. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative panels, flooring, cabinetry, islands, countertops, drywall) that interfere with servicing, removal, or replacement of the product.
13. Service or parts for appliances with original model/serial numbers removed, altered, or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO FIVE YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

KitchenAid makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask KitchenAid or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

03/17

Pre Wash SLIDE

Detergente

Pre Wash SLIDE OPEN Part heart conditions and Close Air Condition and Close Air Condition MPY

Two technical illustrations showing hands operating a sink and a mechanical component (no text or symbols present)

Line drawing of a rectangular tray with a grid pattern and a small bracket at the top (no text or symbols)

Technical line drawing of a wire mesh structure with a small device on top (no text or symbols)

CANASTA INFERIOR

Technical drawing of a mechanical component with a circular hole and a cylindrical housing (no text or symbols)

Line drawing of a handheld device with a handle and control panel (no text or symbols)

Illustration of a hand pouring liquid into a container with multiple cups (no text or symbols)

Pro Room A 20.00 Control on Dissociate and Dissociate Borel

Line drawing of a hand holding a small electronic device with a screen and control panel (no text or symbols visible)

3D wireframe model of a mechanical component with multiple cylindrical components (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and a tray (no text or symbols)

Technical line drawing of a mechanical component with threaded base and grid pattern (no text or symbols)

Diagram of a container with coiled plates and two side dishes (no text or symbols)

Diagram illustrating food preparation steps with labeled components and directional arrows indicating processing or storage.

Cross-sectional diagram of a mechanical component with internal gear-like structures (no text or symbols)

PASO 2

Agregue detergente

Pre Wash SLIDE For best results ON Customize PUMBER Wash SLIDE OPEN

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

1 2 3 4

PASO 4

Seleccione un ciclo

KitchenAid SOIL CYCLES — SPEED CYCLES — • Pro Wash | • Tough | • Normal | • Express Wash | • Rinse Only Start STOP 2 hr 4 hr 6 hr Waiting Doing Cham Settled Cancel Stop OPTIONS Extended Heat Dry Bottle Wash Hi-Temp Wash Sanf Rinse 2-4-8 Hz. Delay • Heat Dry Stand Day Off Hold 1 Hz

KDTE204G, KDPE204G, KDTE304G

Cross-sectional illustration of a mechanical screw with multiple teeth and central bore (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a gear or cam mechanism.

Line drawing of a mechanical tool set with a grid tray and multiple blades (no text or symbols)

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a mechanical component with internal structure and grid lines (no text or symbols)

Puntas regulables FLEXI-FOLD DOWN™

Diagram of a mechanical assembly with a magnified inset showing a lever mechanism (no text or labels)

Line drawing of a shopping cart interior with hand and arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a component.

Technical line drawing of a mechanical component with a central rotating shaft and surrounding blades (no text or symbols)

Two technical illustrations showing hands operating a mechanical component, one with a flange and the other with a circular component (no text or symbols present)

Technical line drawing of a mechanical component with a central fan and base (no text or symbols)

Illustration of a kitchen sink with a faucet and a cylindrical water dispenser (no text or symbols)

KitchenAid Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

En Canadá:

KitchenAid Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Pre Wash SLIDE

Détergent

Pre Wash SL15 OPEN For next month, and Outside rooming and Outside room aid LVP7

Two-step diagram showing hands using a tool to lift a mechanical component into a sink (no text or symbols present)

Line drawing of a rectangular tray with a grid pattern and side handles (no text or symbols)

Technical drawing of a mechanical component with a circular hole and a cylindrical housing (no text or symbols)

Illustration of a hand pouring liquid into a container with multiple cups (no text or symbols)

Technical line drawing showing hands operating a device with labeled buttons and a close-up view of the device's internal components.

3D wireframe model of a mechanical component with cylindrical and toroidal elements (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Technical line drawing of a mechanical component with internal threading and mesh structure (no text or symbols)

Illustration of a food stall with plates, utensils, and fruit boxes (no text or symbols)

Technical diagram of a kitchen appliance with labeled parts and directional arrows indicating assembly or inspection.

Cross-sectional diagram of a mechanical component with internal gear-like structures (no text or symbols)

ÉTAPE 2

Ajout de détergent

Fire Wash A SLIP FOR BENT COOKS, and Domestic Aluminum and Domestic Steel

Pre Wash OPEN For best results and Ceande Nutrition and Ceande Entire Aid LIFT

Pre Wash SIDE For best results, use Wash SIDE OPEN

Pre Wash SLIDE OPEN

OPTIONS • Extended |• Bottle |• Hi-Temp |• Sani |• 2-4-8 Hr. Heat Dry Wash Wash Rinse Delay • Heat Dry Sound On/Off Hold 3 Sec

ÉTAPE 5

KitchenAid SOIL CYCLES — SPEED CYCLES — • PreWash | • Trough | • Normal | • Express Wash | • Rinse Only Start Stop 21p 43p 83p Working Drying Churn Verified Cancel Hold 5% Inc Options Extended: Bottle Wash | Hi-Temp Wash | Sani Rins | 2-6-Hz Delay • PreDry Speed Day Off Hold 3% Inc Fan-Installed Freight System

KDTE334G, KDPE334G

KitchenAid —— SOIL CYCLES ——— SPEED CYCLES — • ProWash | • Tough | • Normal | • Express Wash | • Rinse Only Left Tone Start KIME Delay 2 hr 6 hr 8 hr Washing 0 driving Clean 1 feed/lock Cancel 254N OPTIONS • Extended/ Hi-Temp / San Head Dry / Wash / Rinse / 2-6.8 Hz • Thru Day 1 mgd By Off Head & Net

KDTE234G, KDPE234G

KitchenAid SOIL CYCLES — SPEED CYCLES— • Pro-Wash • Tough • Normal • Express Wash • Rins Only Start 2 min 4 hr 8 min Washing Brying Don Limited Cancel • Extended | Heat Dry | Bottle Wash | Sanil Rinse | 2-4-8 Ht. Delay • Heat Dry Sound On/Off 100% 3 sec

KDTE204G, KDPE204G, KDTE304G

Cross-sectional diagram of a mechanical component with multiple teeth and screw holes (no text or labels)

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a component or assembly.

Line drawing of a toolbox with various kitchen utensils arranged on a grid tray (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and a grid structure (no text or symbols)

Tiges réglables FLEXI-FOLD DOWN™

Diagram showing a mechanical device with a magnified inset highlighting a specific component or feature, including a downward arrow and circular annotation.

Line drawing of a hand using a tool to adjust or install a product container (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with labeled parts A and B, including a magnified inset view of a tool interacting with a component.

Technical line drawing of a mechanical component with no visible text or symbols

Two-step diagram showing hands using a tool to lift a mechanical component in a sink (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a kitchen sink with a faucet and a drop in the sink (no text or symbols)

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7
