USER MANUAL KDTF924PPA KITCHENAID

STAINLESS STEEL TUB DISHWASHER OWNER'S MANUAL

GUIDE D'UTILISATION DU LAVE-VAISSELE AVEC CUVE EN ACIER INOXYDABLE

Table of Contents/Table des matieres

DISHWASHER SAFETY 2

Dishwasher Safety 2

DISHWASHER MAINTENANCE AND CARE 4

User-Maintenance Instructions 4

INSTALLATION REQUIREMENTS. 8

Tools and Parts 8

Location Requirements

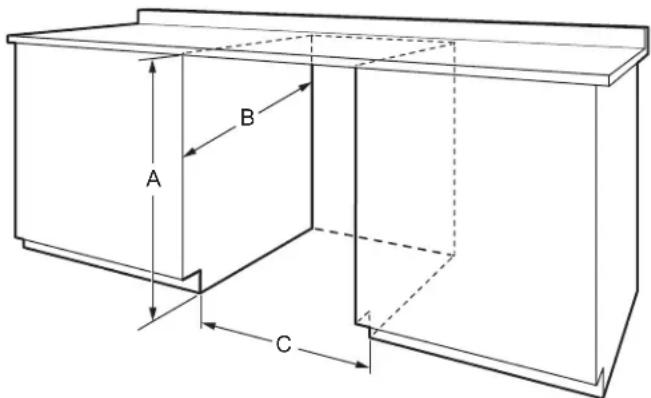

Cabinet Opening Dimensions 11

Drain Requirements 11

Water Supply Requirements. 11

Electrical Requirements 12

INSTALLATION INSTRUCTIONS 12

Before You Begin. 13

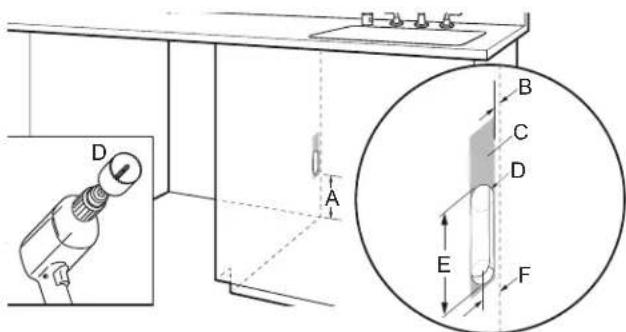

Prepare Cabinet Opening - New Utilities

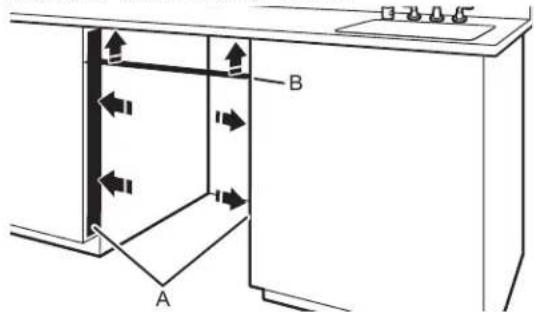

Install Moisture Barrier (Recommended for Wood Countertops) 14

Prepare Dishwasher. 14

Remove Access and Toe Panels 14

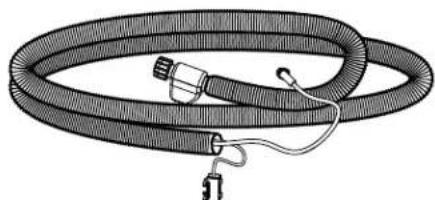

Connect Water Line to Fill Valve. 15

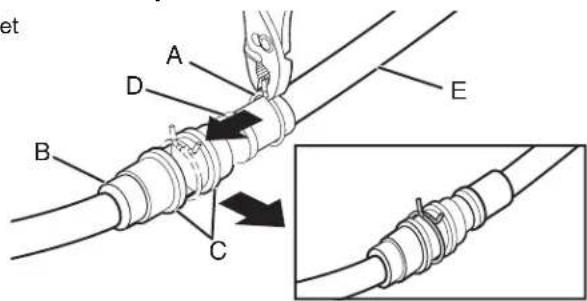

If a Drain Hose Extension is Required

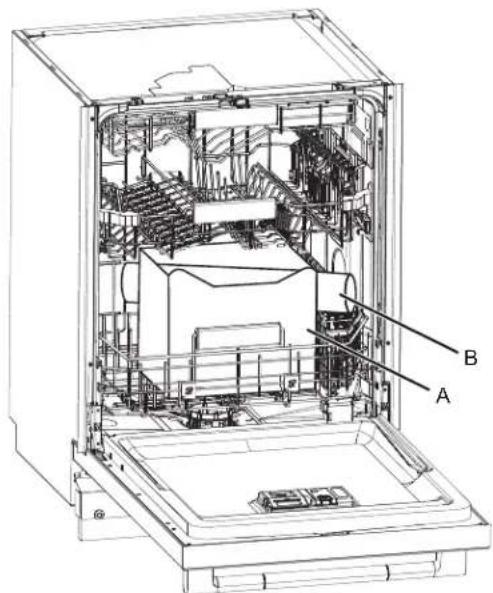

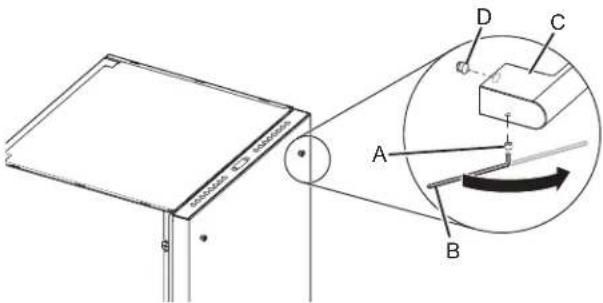

Install Door Handle (on some models)

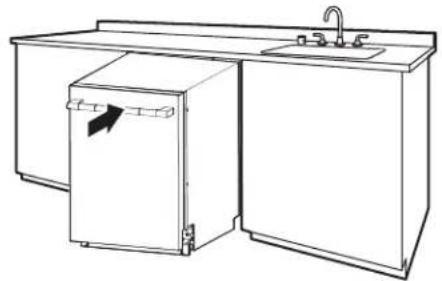

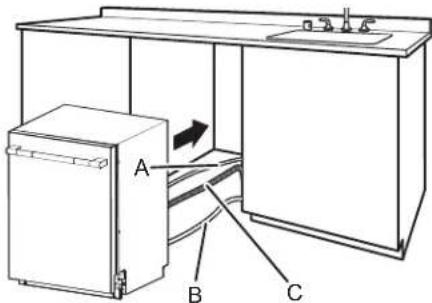

Place Dishwasher in Cabinet 16

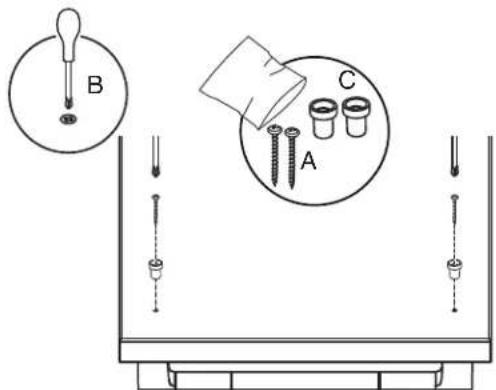

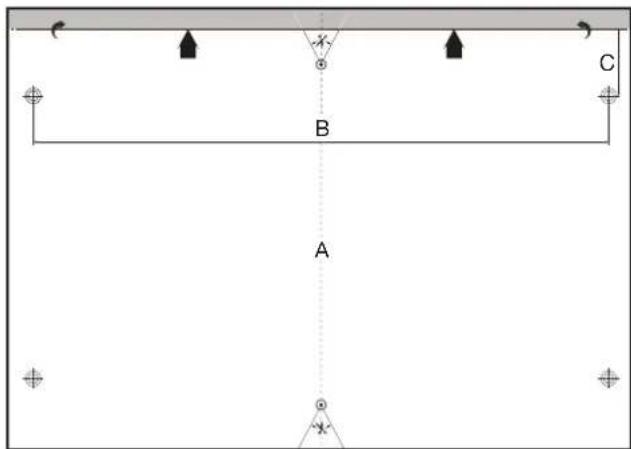

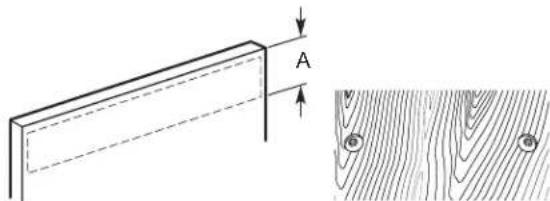

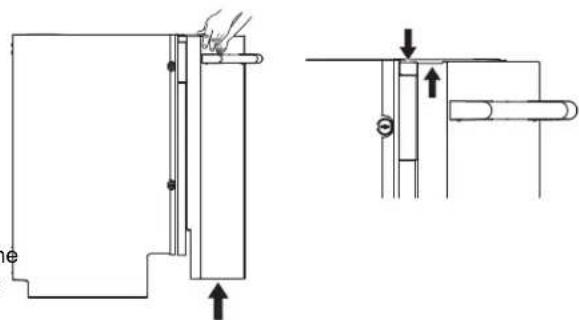

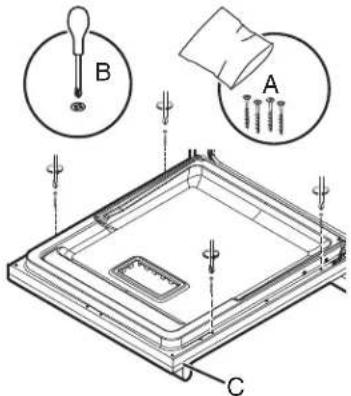

Custom Panel Installation (on some models)

Electrical Connection. 19

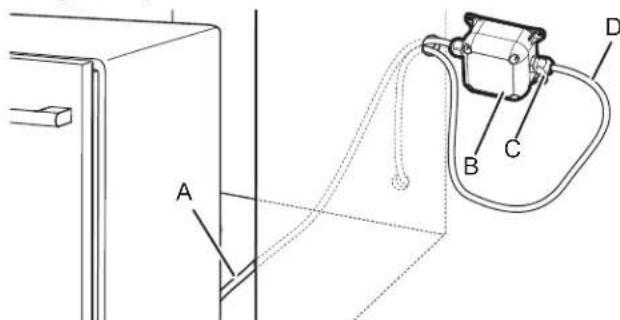

Direct Wire Connection 19

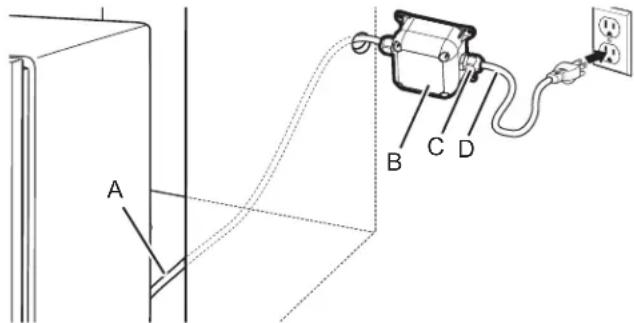

Power Cord Connection 20

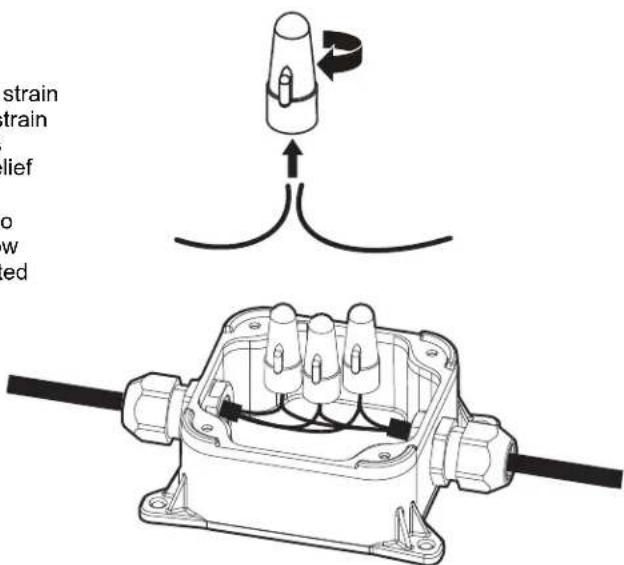

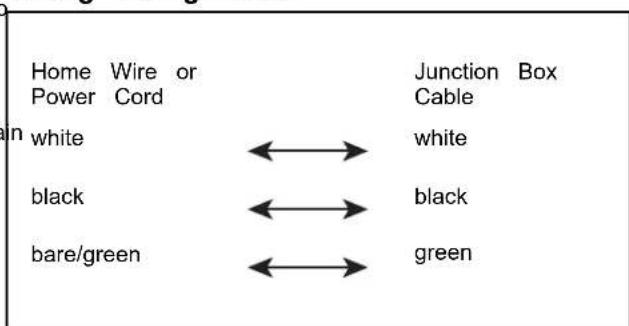

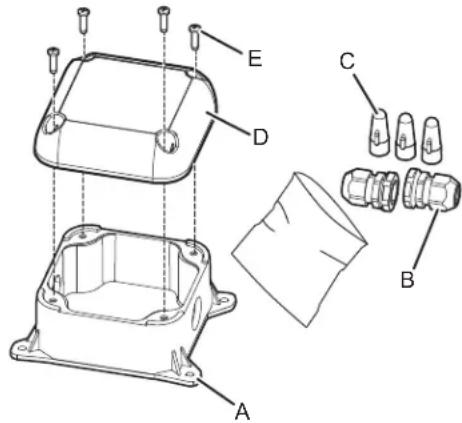

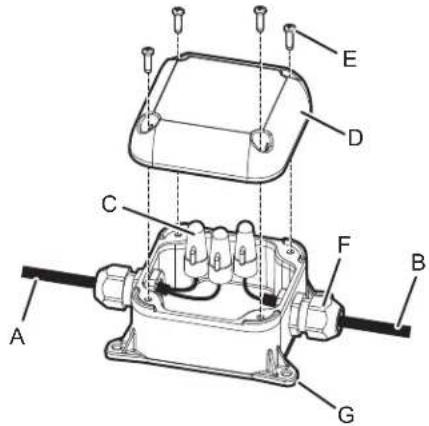

Junction Box Assembly 20

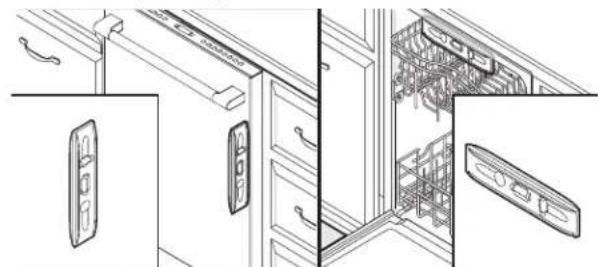

Final Installation Check 22

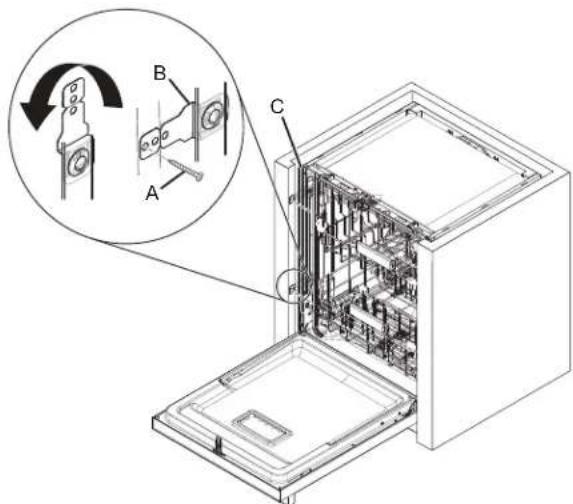

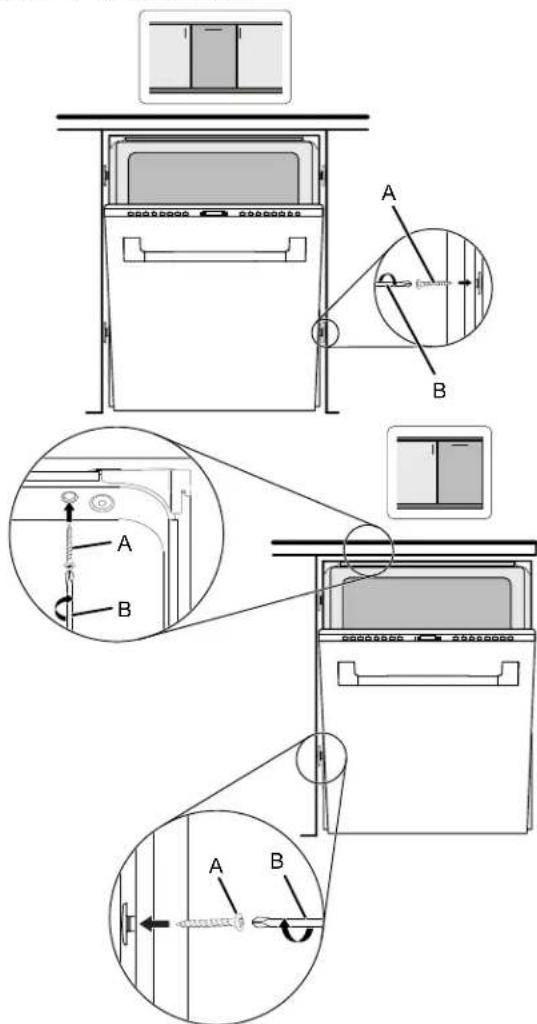

Secure Dishwasher in Cabinet Opening 23

Choose Anchor Attachment Method 25

Connect Water Line to House Shutoff Valve.

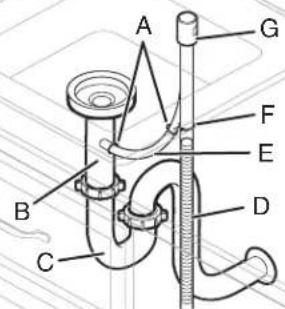

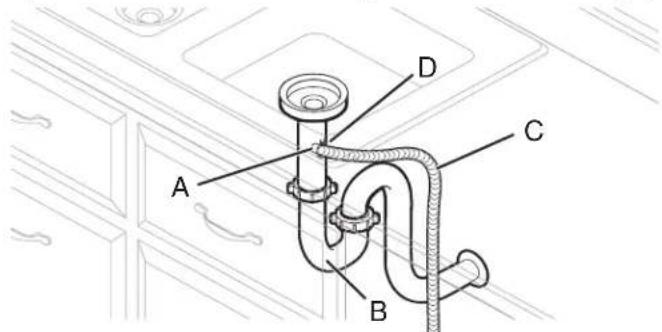

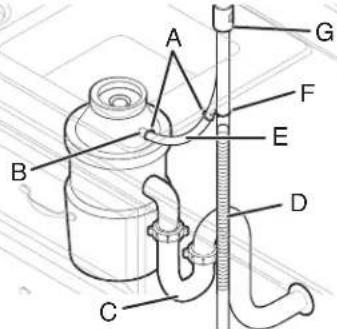

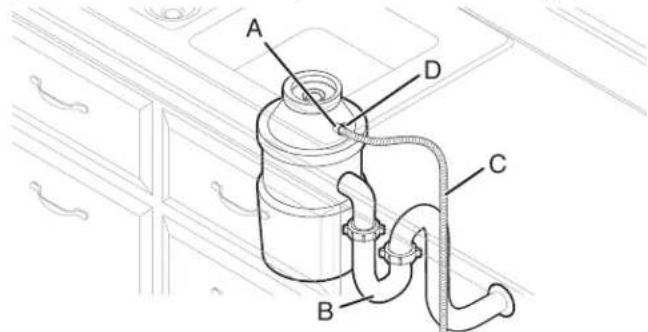

Connect Drain Hose 25

Complete Installation 28

Install Access Panel 28

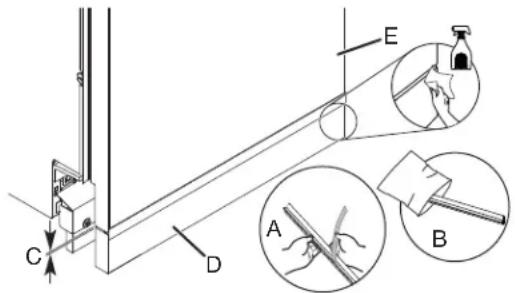

T-Gasket Installation (on some models)

Check Operation 29

If Dishwasher Does Not Operate

Additional Tips. 29

SECURITE DU LAVE-VAISSELLE 30

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all s. messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." The words mean:

ADANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using your dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.
Use the dishwasher only for its intended function.
Use only detergents or wetting agents recommended use in a dishwasher and keep them out the reach children.

When loading items to be washed:

1. Locate sharp items so that they are not likely to damage the door seal; and

2. Load sharp knives with the handles up to reduce the risk of cut-type injuries.

3. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not marked, check the manufacturer's recommendations.

4. Do not touch the heating element during or immediately after use.
5. Do not operate your dishwasher unless all enclosure panels are properly in place.

Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door or dish racks. the dishwasher.
To reduce the risk of injury, do not allow children to play or on a dishwasher.

Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is hot, it can smell, do not smoke or use an open flame during this time.

Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
- Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

For a grounded, cord-connected appliance:

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinance.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance — If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

SAVE THESE INSTRUCTIONS

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

DISHWASHER MAINTENANCE AND CARE

User-Maintenance Instructions

Cleaning the Exterior

Clean the exterior of the dishwasher with only a soft, damp and mild detergent. If your dishwasher has a stainless steel exterior, it may have a coating that is resistant to fingerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior

Many detergents may leave white spots or a white residue dishwasher and on the interior of the dishwasher. Over time residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh ^®+ Dishwasher Cleaner can help to remove the residue. Monthly use of affeshdishwasher Cleaner is recommended to help maintain the dishwasher. Follow package directions.

Another method to remove white residue is to use a vinegar. However, vinegar is an acid and using it too often could damage your dishwasher.

Place (do not pour) 2 cups (500 mL) white vinegar in a dishwasher-safe measuring cup on the bottom rack. Run the dishwasher through a complete washing cycle using an air-dry an energy-saving dry option. Do not use detergent. Vinegar mix with the wash water.

NOTE: We recommend the use of high-quality, premeasured detergent tablets or packs and the use of rinse aid for dist cleaning and daily care.

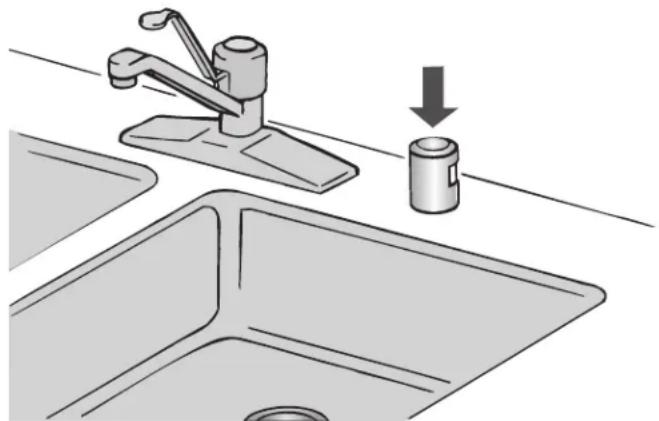

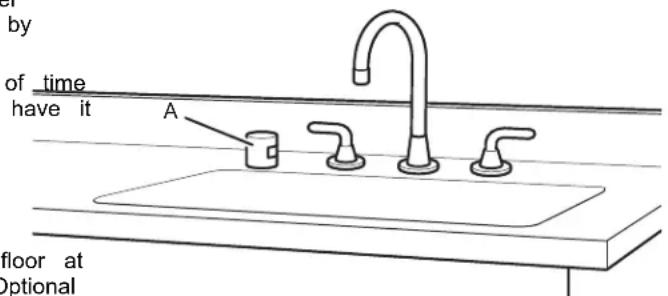

If you have a drain air gap, check and clean it if the di
not draining well.

To Reduce Risk of Property Damage During Vacation or Extended Time Without Use

■ When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.
Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered the warranty.
- When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

Setting Menu

1. Press and hold the "Hi Temp" button for 5 seconds.
2. Release "Hi Temp" and press the "Start/Resume" button within 2 seconds. If you do not press Start within 2 seconds, the display will turn off and you will need to start over and go to step 1.

Step3. click go to a feature other than Water Hardness Level, press OK "Normal" button to move to the feature you would like to change. Change (Rinse Aid Level, Sound Level, Light in Tub, Kosher in the Friendly, Factory Reset). See the table for what is shown on the display to indicate these features.
4. Press the "Start/Resume" button to select the feature and enter the sub-menu. The display will change to show the current setting of the feature. (For example, if you selected Sound Level and you haven't changed it before, then "S1" show).

1. Press "Normal" button to change the value of the feature setting. (For example, if you want to turn the sound off, then press the "Normal" button and "S0" shows on display model. 6. Press the "Start/Resume" button to confirm the new selection frame. The feature setting will not be changed until the "Start/Resume" button is pressed.

The dishwasher will return to the Off state when the Start but! pressed.

LENDER S will	SETTING (Features varies by model)	VALUES (Default - in bold)
shwasher	Water Hardness Level (see "SETTING THE WATER HARDNESS" and "WATER HARDNESS TABLE")	0 | 1 | 2 | 4 | 5
shwasher is
[ ]	Rinse Aid Level (see "ADJUSTING THE DOSAGE OF RINSE AID")	0 | 1 | 2 | 4 | 5 | 6
[ ]	Sound “1” = On, “0” = Off	1 | 0
[ ]	Light in the Tub (on some models) “1” = On, “0” = Off	1 | 0
[ ]	Kosher Friendly mode “1” = On, “0” = Off	1 | 0
summer washer.	Display on the floor (on some models) “1” = On, “0” = Off	1 | 0
d by ed	Factory Settings Press START/Pause to restore to the factory default all the values of the settings included in the settings menu.	-

NOTE: Refer to the online Cycle Guide for complete cycle and setting details.

Water Softening System

IMPORTANT: If you have hard water (above 15 grains) and have a whole house water softener, the water softener and heating element may be damaged as a result of limescale accumulation. In such instances of hard water, the water so in the dishwasher should be used.

The water softener reduces water hardness thereby reducing calcium buildup on the heater, inside the dishwasher, and o dishes. Soft water also allows your detergent to operate more efficiently. This system regenerates using salt, so it is nec

to keep the salt reservoir filled. The regeneration process can be as needed during a cycle to keep the water softener operating properly. The frequency of regeneration depends on the water hardness level setting. The water softener system is "OFF" if default from the factory, so if the water softener is to be used, the system must be set to "ON" by selecting a water hardness value using setting menu. See water hardness setting table.

Water Hardness Setting

Determine your water hardness by obtaining information from water quality report from your water supplier or purchase a hardness test kit at a hardware store.

The water softening system is turned off from the factory (hardness setting "0"). To turn on your water softener, you set the water hardness level in the "SETTING MENU" using hardness setting value from the following "WATER HARDNES TABLE". Once the system is turned on, the salt reservoir is filled with special dishwasher softener salt and water.

Water Hardness Table
Level Grains per gallon (gpg)		Parts per million (ppm)
0	Water softener off (factory setting)
1	0-6 0-100
2	6-12 100-200
3	12-18 200-300
4	18-36 300-600
5	>36 >600

Filling The Salt Reservoir

The salt reservoir is located in the lower part of the dishwesh. Clean the filters as shown. (under the lower rack on the left side). Once your water softener

system is turned on, you must fill the reservoir with dishwa softener salt and water. As the salt supply is used up with a successive system regenerations, a low-salt indicator will light the control panel indicating it's time to refill the salt. Once refilled, the light will turn off.

1. Remove the lower rack and unscrew the reservoir cap (by, turning the cap counter-clockwise).

2. Position a funnel (comes along with your dishwasher) and fill the salt reservoir right up to its edge (approximately 0.5kg ); it is not unusual for a little water to leak out.

3. If filling the reservoir for the first time, it is also necessary to do not the reservoir with water after filling with salt. When refilling the salt, there is no need to add more water.

4. Remove the funnel and wipe any salt residue away from the softener opening. Make sure the cap is screwed on tightly so that no detergent or food can get into the reservoir during the dishwasher use (this could damage the water softener beyond repair).

IMPORTANT: Run a cycle every time as soon as you complete the salt reservoir to avoid corrosion.

Cleaning the Filters

filter is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.

Recommended Time Interval to Clean Your Filter
Number of loads per week water	If you only scrape before loading*	If you scrape and rinse before loading	If you wash before loading
8-12 Every two months	two months	Every four months	Once per year
4the Every two months be	wo months	Once per year	Once per year
1-3 Twice per year	per year	Once per year	Once per year

*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains) and you do not have whole house water softener system, be sure to turn on and use the water softener in the dishwasher. Also clean your filter at once per month. Building up of white residue on your dishwasher indicates hard water. For tips on removing spots and stains, see the online "Troubleshooting" section.

NOTE: Online references can be found in the Quick Start Guid

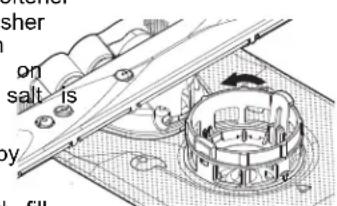

Filter Removal Instructions

1. Turn the upper filter assembly 1/4 turn counterclockwise and lift out.
2. Separate the upper filter assembly by gently pulling apart.

Clean the filters as shown.

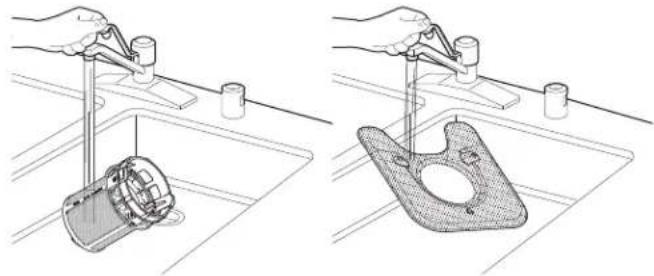

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they're more detailed instructions may damage the filters.

Rinse filter under running water until most soils are removed. Cleaning, watch the video by you have hard-to-remove soils or calcium deposits from hard scanning the QR code: water, a soft brush may be required.

Error Codes/Blinking Lights

Issue Code	Shown(7 Seg Display)(if present)	Code Shown on Front Panel LED *(# blinks, Pause, # blinks)	What will happen?	What to do?
Dishwasher fails to operate fill valve correctly	F1E1/F1E5	Pause 1Pause - pause, repeat	Drain sequence will begin, machine operation will be prevented.	Turn off water to unit (if possible).Turn off po unit. If the water cannot be turned off, DO N off power and keep door closed. Press Cace one time to silence alarm tone. Call service.
Motor controller failure	F1E2 1 Pause	2 Pause, repeat	Cycle ends. Call service.
No water preser at dishwasher	H2O 8 Pause	1 Pause - pause, repeat	Cycle is paused. Ensure fill hose is connected to product. Ensure supply is turned ON. Press Start to resume alarm still present, call service.
User interface service communication fault	F6E1 6 Pause	1 Pause - pause, repeat	Product will not able start or resume cycles.	Call service.
Wash motor failure	F7E2 7 Pause	1 Pause, repeat/7 Pause 2 Pause repeat	Cycle ends. Call service.
Sensor detects water left in the sump	F7E3 7 Pause	3 Pause - pause, repeat	Cycle ends. Call service.
Dishwasher overfills	F8E4 8 Pause	Pause 4Pause - pause,repeat	Drain sequence will begin, machine operation will be prevented.	For Professional InstallersTurn off water to unit (if possible). Turn off group unit. If the water cannot be turned off, DO N off power and keep door closed. Press Cancel one time to silence alarm tone. Call service.For Self Installers■ Press CANCEL button twice or cycle power may clear the issue.■ Check to see if the wire connector is conn the float switch on the drip tray. If the wire reconnect and then hit the cancel button tw■ Check to see if there is any water in the water is in the drip tray, remove the water reinstall the drip tray. Make sure to connect wiring to the float. Check to see where wa have leaked into the drip tray (Check the inlet fittings to see if they are leaking).■ If water was in the tray and no leaks were run the product on the shortest installation while checking for leaks. The access panel be off to observe any leaks.■ If problem still exists, call for service.
Fill valve stuck on	F8E5 8 Pause	Pause 5Pause - pause,repeat	Drain sequence will begin, machine operation will be prevented.	Turn off water to unit (if possible).Turn off power unit. If the water cannot be turned off, DO N off power and keep door closed. Press Cancel one time to silence alarm tone. Call service.
Dishwasher will not drain	F9E1 9 Pause	Pause 1Pause - pause,repeat	Cycle ends. If drain	hose is connected to a garbage disposal, confirm that drain hose is not clogged and dis plug has been knocked out. If unit still will no call service.
Variable Speed Drain Motor Fault - Locked Rotor Not Primed	F9E3 9 Pauseor	Pause, 3Pause - pause,repeat	Cycle ends. Call service.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the recommended tools and parts before starting installation. Read and follow the instructions provided with tools listed here.

Tools Needed:

Pliers Flat-blade screwdriver

2 Phillips screwdriver Utility knife

5/16" (8 mm) and 1/4" S (6.35 mm) nut drivers or hex sockets

Small level ex
Measuring tape

Safety Glasses

10" (254 mm) adjustable wrench that opens 1 (29 mm)
Awl

Oscillating Tool Sand paper

Pliers

Wire strippers

With 12 (38 mm) Forstner Double sided adhesive

Drill Bit, 3/4" (19 mm) Forstner Drill Bit, and 1/16" (2.38 mm)

Drill Bit, 3 / 4^ - 2^ (45-50 mm)
Forstner Drill Bit
Portable vacuum cleaner

Other Useful Items You May Need:

Flashlight

Bucket or Shallow pan

Bath towel

Moving blanket

Floor protector Laser level

Air shim (3)

Combination square

Parts Supplied:

Drain hose clamps (2) One Door handle (on some models)
Large (Black) and One Small (Silver)

3.5 mm x 18 mm Phillips screw (2)

reaction box

Cable fittings (2) inside the Wire nuts (3) inside the junction junction box

Plastic thick spacers (4) Metal brackets (4)

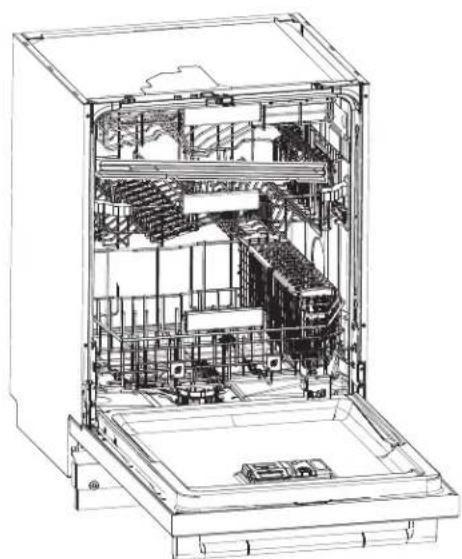

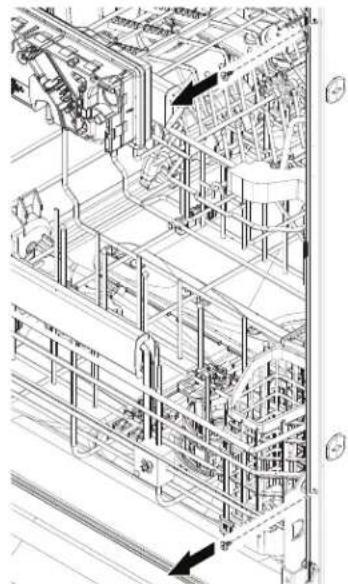

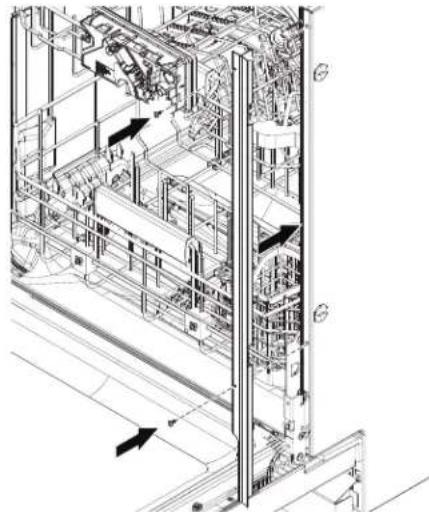

Side gap covers (2) #4 x 38 mm screws (4) for Panel ready mount

Water Inlet Adapter for hoseAdditional/tall Toe Panel with Leak Detection System shipped uninstalled at the back (on some models) of the dishwasher.

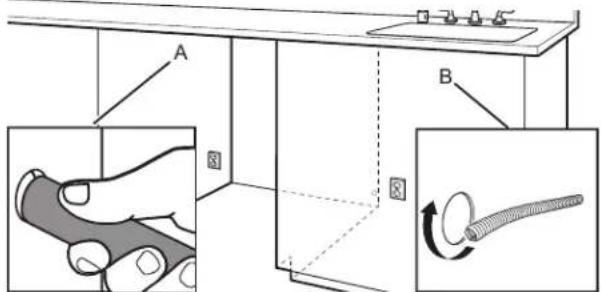

Cabinet Grommet (corrugated Moisture Barrier Tape

tubing)

For _2^ (38 mm) hole in cabinet

NOTE: Required for metal cabinets.

NOTE: Moisture barrier tape is recommended if installing a dishwasher under a wooden countertop.

3.5 x 18 mm screws (4)
Cabinet mount

salt funnel

Floor insulation (on some models)

Studs (on some models)

T-Gasket (on some models)

Make sure all these parts are included in the literature package.

Optional Accessory Parts Available:

Call us at our toll-free number or visit our website listed on t! Quick Start Guide for optional accessory part information.

First-Time Installations

Check local codes. Check existing electrical supply. See the "Electrical Requirements" section. It is recommended that electrical connections be made by a licensed electrical installer.

Additional Parts Needed (not provided):

3/8" (9.5 mm) to 3/4" (19 mm) elbow fitting adapter with inlet hose

Whirlpool Part Number, W10278635RP, 6 ft (1.8 m) inlet hose

Whirlpool Part Number, 8212486, 12ft (3.6 m) inlet hose

Screw-Type Clamps

11/2"-2" (38 mm-50 mm)

(3 maximum)

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

For Power Cord

Power Cord Kit

Kit typically includes power cord (Cord Kit - Straight: Whirlpool Part Number W11670634, Right Angle: Whirlpool Part Number W11645183), Cable fitting.

NOTE: The Cord Kit - Straight: Whirlpool Part Number W11670634 is recommended for most installations.

For proper installation, refer to the installation instructions provided with the kit.

NOTE: Be sure to purchase only Whirlpool factory-certified parts and accessories for your appliance. Your installation may require additional parts. To order, refer to the contact information referenced in your Quick Start Guide.

Location Requirements

Dishwasher must be fully enclosed (top, sides, back, an upon installation.

An optional moisture barrier accessory is also available for installing underneath a wooden countertop.

• Check location where dishwasher will be installed. The local must provide:

• Convenient access for loading and unloading dishes. Corner locations require a 2" (51 mm) minimum clearance between the side of the dishwasher door and the wall or cabinet.

Easy access to water, electricity, and drain:

• Grounded electrical supply is required.
• This dishwasher has a water-heating feature and also requires a connection to a hot water supply line.
• Make sure pipes, wires, and drain hose are within the shaded area shown in the "Cabinet Opening Dimensions" section.
• Do not run drain lines, water lines, or electrical wiring they can interfere with or contact dishwasher legs.
• Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

NOTE: If dishwasher will be left unused for a period or in a location where it may be subject to freezing, winterized by authorized service personnel.

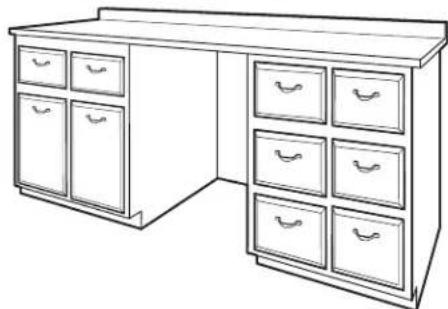

A square opening for proper operation and appearance.
The cabinet front to be perpendicular to floor.
A level floor

Helpful Hint: If floor at front of opening is not level with floor at rear of opening, shims may be used to level dishwasher. Optional alignment method using a laser square; review the product help videos.

NOTE: To avoid shifting during dishwasher operation, shims be securely attached to the floor.
■ Do not install dishwasher over carpeted flooring.

Cabinet Opening Dimensions

Clearances

Check that all surfaces have no protrusions that would dishwasher installation.

A. 32^5 / 16 - 35^5 / 16 (820-900 mm) measured from the lowest point on the underside of the countertop.
B. 22^1 / 16 (560 mm) Minimum
C. 235 / 8 (600 mm) Minimum, measured from narrowest point of opening.

Drain Requirements

dorA new drain hose is supplied with your dishwasher. If drain hose is not long enough, use a drain hose extension with maximum length of 12 ft (3.7 m).
■ Make sure to connect drain hose to waste tee or dispenser at above drain trap in house plumbing and 20^ (508 mm) section minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the upper underside of the counter or be connected to an air gap.

IMPORTANT: This product is not equipped with a high loop on side of the dishwasher. The installer is responsible for adding a high loop in the adjacent cabinet. A high loop is required if the dishwasher will drain into a floor drain. This prevents water drain off from the dishwasher during operation. When the drain is connected to a sink drain, counter-top air-gap or dispenser, the high loop is generally not required. An check valve internal to drain prevents back-flow into the dishwasher.
Make sure to use an air gap if the drain hose is connected where plumbing lower than 20^ (508 mm) above subfloor or floor.

A. Air gap

■ If required, the air gap should be installed in accordance with the air gap installation instructions. When you are connecting the air gap, a rubber hose (not provided) will be needed to connect to the waste tee or dispenser inlet.
Use 1 / 2" (12.7 mm) minimum I.D. drain line fittings.

Water Supply Requirements

This dishwasher maybe fitted with a smart inlet hose with a water cut off valve. Do not cut the water inlet hose for an reason, to install, adapt or shorten.

This dishwasher has a water heating feature and also requires a connection to a hot water supply line.
A hot water line with 20 psi to 120 psi (138 kPa to 827 water pressure can be verified by a licensed plumber.
120°F (49°C) water at dishwasher
3/8" (9.5 mm) O.D. tubing with compression fitting or flexible braided or non braided water supply line.
■ Included water inlet hose with Leak Detection System for son models.
■ Included 3/8" (9.5 mm) Compression x 3/4" (19 mm) Water inlet adapter (only for models with Leak Detection System).
If installed in new construction, make sure the house water supply lines have been flushed prior to connecting the dishwasher to remove any debris that may exist in the supply line.

Electrical Requirements

INSTALLATION INSTRUCTIONS

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code,

ANSI/NFPA 70 - latest edition, and all local codes and ordinances.

For a fee, a copy of the above code standards can be obtained from:

National Fire Protection Association

1 BatteryMarch Park

Quincy, MA 02169-7471

You Must Have:

120 V, 60 Hz, AC-only, 15 A or 20 A, fused electrical supply.
Copper wire only.
A maximum of 2 field wiring supply conductors (12 AWG largest size) plus 1 grounding conductor are permitted in terminal box.
An included junction box for electrical connection.

Tip Over Hazard

Do not use dishwasher until completely installed.

do not push down on open door.

Doing so can result in serious injury or cuts.

We Recommend:

Install the dishwasher on a circuit with appropriate interrupt per your local code. The dishwasher is compatible with th delay fuses, standard circuit breakers, and GFCI and AFCI circuit breakers.

You Need To:

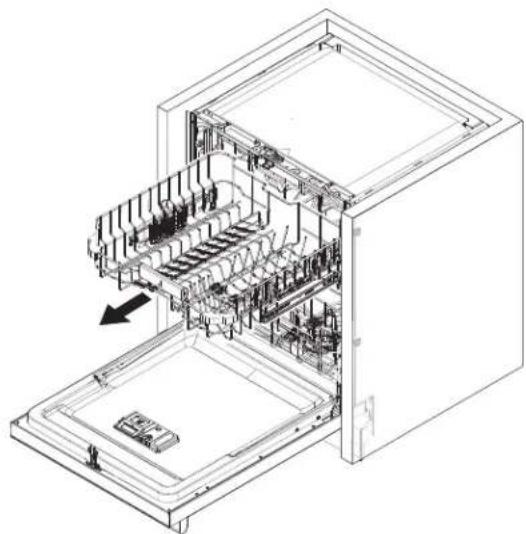

Slowly open the dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials. Place included parts and literature aside in a safe place for later. Close dishwasher door until latched.

C

Circuit Requirement:

The dishwasher may be installed on the same circuit as a garbage disposal providing that the branch circuit cannot exceed rated circuit load and must comply with all governing codes and regulations such as but not limited to National Electrical Code, ANSI/NFPA 70 - latest edition.
- No electrical connections other than the dishwasher power and ground connections can be made inside of the dishwasher junction box.

If Connecting Dishwasher with a Power Cord:

D E

Use a UL-listed power cord kit marked for use with dishwasher. See the "Tools and Parts" section for part details.
Plug into a grounded 3-prong outlet. Outlet must meet all local codes and ordinances.

B

A

If Connecting Dishwasher with Direct Wiring:

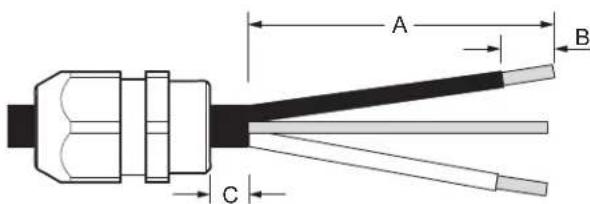

Use flexible, armored, or nonmetallic sheathed copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.

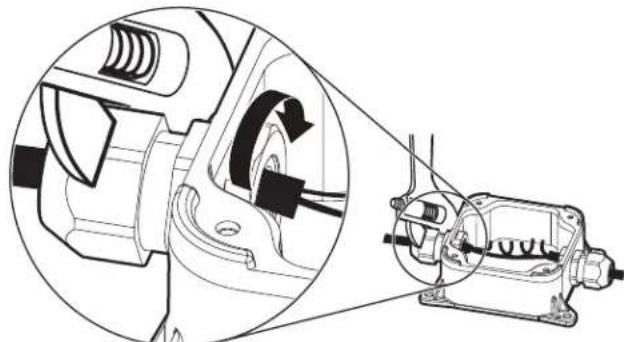

- Use only the supplied plastic cable fittings for flexible and non-metallic sheathed wiring (Romex, etc.). Do not use metallic strain reliefs for these wire constructions.
Use a UL-listed/CSA-approved metallic strain relief for armored cable installations (21 mm diameter) if using armchair cable. Install the strain relief per the strain relief manufacturer's installation instructions.
Use a UL-listed/CSA-approved metallic strain relief for flexi metal conduit installations if using flexible metal conduit. In the strain relief per the strain relief manufacturer's installation instructions.

A.Cardboard box containing the Accessories
B.Cardboard tube containing the Handle (on some models)
C. 3 / 8'' to 3 / 4'' (9.5 mm to 19 mm) Water Inlet Adapter
D. Assembly accessories
E.Junction box

IMPORTANT: Do not throw away the Cardboard box. It contains installation materials inside.

NOTE: Each dishwasher is tested at the factory and may contain some residual water in the tub as a result of the t

eObserve all governing codes and ordinances.

To install this dishwasher as specified in these instructions.

The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.

■ Be sure when installing or moving the appliance that the 4poDrill hole locations for Water Supply and Drain cord is not kinked or damaged. hose (Optional hole type)

WARNING: To reduce the risk of electric shock, fire or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation.

Before You Begin

AWARNING

Electrical Shock Hazard

Disconnect electrical power at the fuse box or circuit breaker box before installing appliance. Failure to do so can result in death or electrical shock.

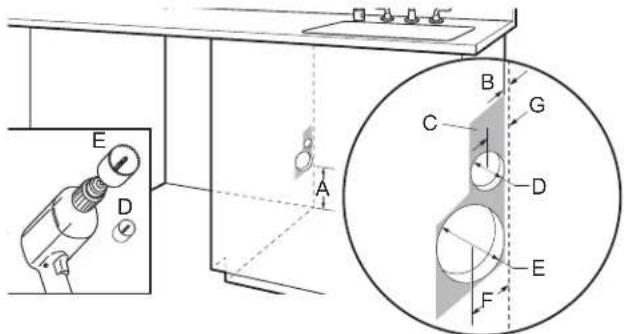

A. 6'' (152 mm), minimum height of allowable area from bottom for utility connections.
B. 1 / 2'' (12.7 mm). Thickness of back cabinet wall.
C. 31 / 2'' width × 6'' height (88.9 x 152.4 mm). Allowable area for utility connections.
D. 1 1 / 2" (38.1 mm), Diameter for drain hose hole.
E. 31 / 2 (88.9 mm), Diameter for water supply hose hole.
F. 2^1/4 (57.1 mm), Distance between center of water supply hose to the back of the cabinet wall.
G. 1^1 / 4 (31.7 mm), Distance between center of Drain hose hole to the back of the cabinet wall.

1. Disconnect power

Disconnect electrical power at the fuse box or circuit break drill location for Electrical conduit hole box before installing dishwasher.

2. Shut off water supply

Shut off water supply to the dishwasher.

Prepare Cabinet Opening - New Utilities

NOTE: The electric and water holes may or may not be on the same cabinet wall. It will depend on the location of water and electric connections.

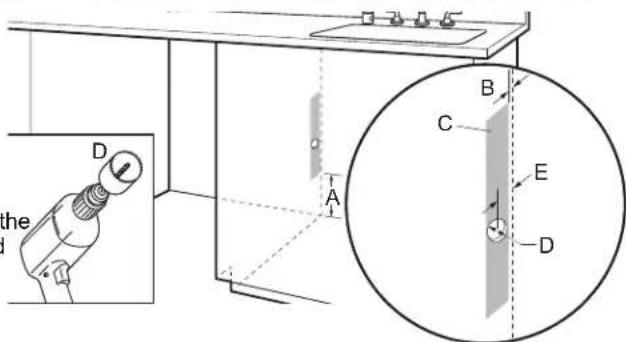

3. Drill hole location for Water Supply and Drain hose (Preferred hole type)

A. 6'' (152 mm), minimum height of allowable area from bottom for utility connections.
B. 1 / 2'' (12.7 mm), Thickness of back cabinet wall.
C. 2^1 / 4 "width × _16^ height (57.20 x 154.40 mm), Allowable area for utility connections.
D. 1^3 / 4 (44.4 mm), Diameter of Oval hole for water supply and drain hose.
E. 3^3/4 (95.3 mm), Height of Oval hole for water supply and drain hose.
F. 2^1/4 (57.1 mm), Distance between center of Oval hole to the back of the cabinet wall.

A. 6'' (152 mm), minimum height of allowable area from bottom for utility connections.
B. 1 / 2'' (12.7 mm), Thickness of back cabinet wall.
C. 11 / 2'' width x 12" height (38.1 x 304.8 mm), Allowable area for utility connections.
D. 1 1 / 2" (38.1 mm), Diameter for Electrical conduit hole.
E. 1 / 4'' (31.7 mm), Distance between center of Electrical conduit hole to the back of the cabinet wall.

6. Sand holes smooth

A. Wood cabinet
B. Metal cabinet

Wood cabinet: Sand the hole until smooth.

Metal cabinet: Cover edges of hole with grommet (tubing) included with installation materials inside the dishwasher. Cut length to match hole perimeter.

Install Moisture Barrier (Recommended for Wood Countertops)

Moisture barrier/Wood shims

A. Install wood shims
B. Moisture barrier

Make sure the area under the countertop is clean and dry for installation of the moisture barrier. Remove the backing of the moisture barrier and apply to underside of the countertop along using the front edge of the counter. Trim the moisture barrier as required.

NOTE: Install wood shims if side anchoring and the gap between sides of the dishwasher are greater than 1/2'' (12.7 mm) on each side or are greater than the length of the anchor screws.

7. Built-up floors - add shims as needed

Built-up floors: If the kitchen floor is higher than the cabinet opening's floor—for example, the kitchen floor tile does not extend into the cabinet opening—add shims, as needed, in the area shown to bring the dishwasher up to 34" (864 mm) below the countertop.

NOTE: Shims must be securely attached to floor to avoid movement when the dishwasher is in use.

Prepare Dishwasher

AWARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

AWARNING

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Remove Access and Toe Panels

8. Access panel

Excessive Weight Hazard

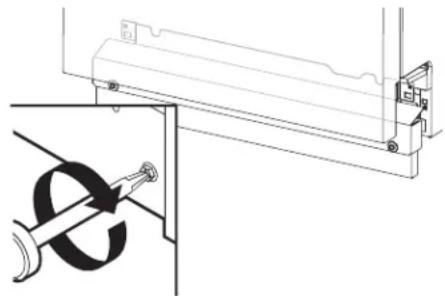

Using a 1/4" (6.35 mm) nut driver or Phillips screwdriver, remove 4 screws attaching Access panel to dishwasher.

Slowly lift and remove the Access panel from the hooks of dishwasher.

1. Toe panel

After removing the access panel remove the toe panel.

1. Measure cabinet opening

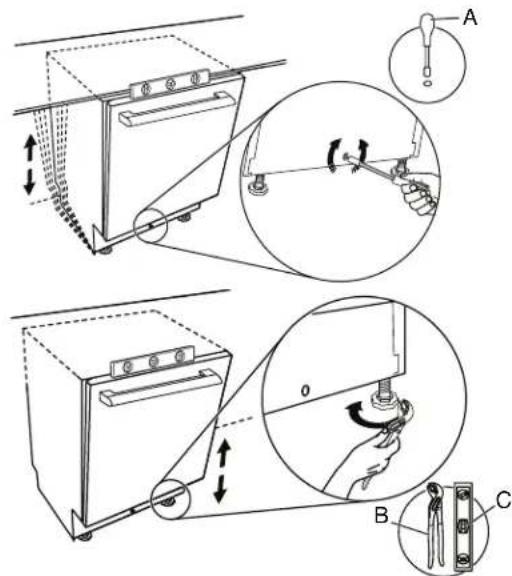

There is a leveling system on the front of the base carri. Once the dishwasher is within the cabinet space, use the leveling adjuster to adjust the dishwasher up to the height the cabinet.

Adjust both front and back leveling legs to the same

Connect Water Line to Fill Valve

The dishwasher may come with the inlet hose already attached with a threaded connection. It needs to be connected to the inlet end on the house connection.

1. Leak Detection System Hose (on some models)

Use the Leak Detection System hose with included 3/8" (9.5 mm) to 3/4" (19 mm) water inlet adapter.

1. Add 3/8'' (9.5 mm) to 3/4'' (19 mm) water inlet adapter to the Leak Detection System Hose (on some models)

Connect the 3/8'' (9.5 mm) compression fitting of the water inlet adapter to the water supply line and attach the 3/4'' (19 mm) connection to the Leak Detection System hose.

1. Accessory inlet hose

See the "Tools and Parts" section at the front of the guide part details and order. Connect the 3/8'' (9.5 mm) compression fitting to the water supply line and Attach the 3/4'' (19 mm) elbow fitting connection to the dishwasher facing upward as shown above. Confirm the flexible braided or non braided line is long enough to reach the house with connection. If the hose is not long enough, have a plumber install a supply valve closer to the dishwasher.

Ifighta Drain Hose Extension is Required

14 Slide clamp onto connector

A. Silver clamp

D. Drain hose stop

B. Rubber drain hose connector

E. Drain hose

C. Stop

Using pliers, squeeze open the silver drain hose clamp, and slide it onto the connector between stops.

Install Door Handle (on some models)

15. Install Door Handle

A.Cardboard box containing the Accessories
B. Cardboard tube containing the Door Handle (on some models)

A. Setscrew (in the bottom of the handle)
B. Hex key
C. Handle
D. Mounting stud

IMPORTANT: Do not scratch the front panel during this procedure. If door panel has a protective film, peel film b past the point of the handle studs before installing handle. Handle is easiest to install while unit is on its back. Remove the door handle and hex key from the packaging. Setscrews are already installed in the handle. Place handle on mounting studs with the setscrews facing towards the bottom of dishwasher. Push the door handle tightly against the door. Insert the short end of the hex key into the setscrews. Tighten the setscrews 1/4 turn past snug. Retain hex key with Owner's Manual.

Place Dishwasher in Cabinet

Refer to the section "Electrical Connection" in this Owner's Manual for connecting to the power supply before placing the dishwasher in the cabinet.

AWARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

NOTE: Route water supply, drain hose, and power cord out the rear of the dishwasher.

16. Move dishwasher close to cabinet opening

A. Water line
B. Junction box cable

C. Drain hose

Route the utilities through the holes in the cabinet and put the slack out at the same time as the dishwasher is push into the cabinet.

NOTE: Route electrical lines only through the electrical conduit hole that was previously sanded or protected by a grommet.

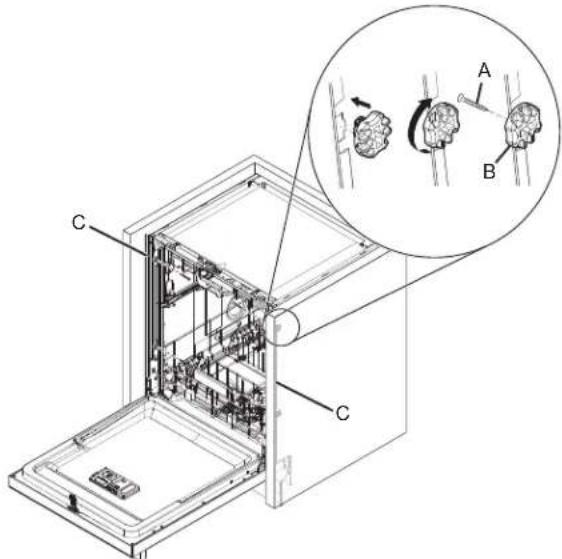

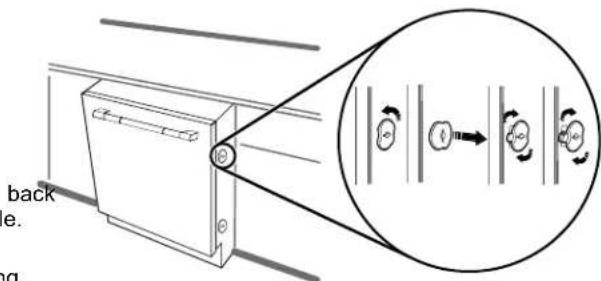

17. Adjust side spacers

Measure the top and bottom width of opening of the frame less cabinet. Remove and adjust the 4 included dishwasher spacers, by turning 90 degrees, and removing with a slotte screwdriver. Each spacer has 3 positions.

NOTE: If the cabinets are not frame less, additional spacer will be required (included) and need to be applied by the installer.

Types of Cabinets	Types of Attachment
Frame less cabinets	Plastic spacers
Face frame cabinets	Metal brackets

See section "Secure Dishwasher in Cabinet Opening" in this Owner's Manual for Securing dishwasher with different types of cabinets.

1. Move Dishwasher into final position

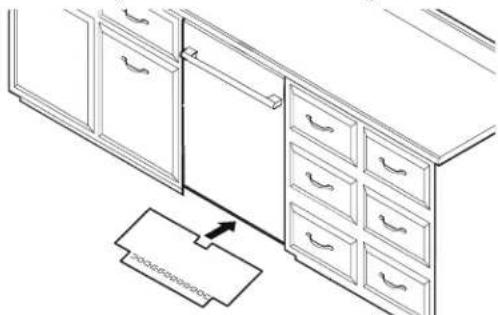

1. Place foam insulation pad below the dishwasher (on some models)

After pushing the dishwasher in the cabinet opening, the leveling feet to standard height of (mm) and up. Then take the floor insulation pad and slide it front (gap between the floor & the drip tray). The floor pad is designed to go around the leveling

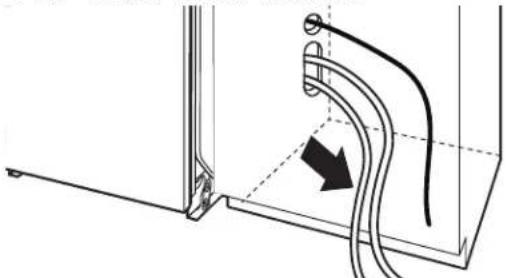

1. Pull slack from utilities

NOTE: Pull slack out of utilities at the same time the dishwasher is pushed into the cabinet opening to avoid any kinks.

Custom Panel Installation (on some models)

Custom Panel Dimension

Make sure that the custom panel is as per the recommended dimensions. See below image for the recommended dimensions.

A. 239 / 16 (598 mm)
B. 283 / 8^-30 - 30 (720-762 mm)
C. 5 / 8^ - 1^ (16-25 mm)

A customer supplied door panel must weigh no more than 16 (7.3 kg) with the handle (together). And must be made to speed dimensions as given above. It is recommended that a cabinet maker cut the custom panel because of the precise dimensions needed.

NOTE: The handle for the custom panel is not included.

Custom Panel Installation steps

lets. In an area that is flat and clear of debris, place down a as a work surface.

1. Attach the custom panel handle as you would any other cabinet handle. Be sure to protect the finished surface with painters tape when preparing and recessing the rear panel 1 conceal attachment hardware.
2. Install the custom hardware handle(s) on the front of the custom panel, inside dotted line as shown below

A. 6'' (152.4 mm)

IMPORTANT: If the handle is attached from the back of the custom panel, the screw holes should be countersunk for the screw heads to be flush with the panel. If the handle is attached to the front of the custom panel, the screw length cannot exceed the panel thickness.

1. Place the custom panel with the face side down on the9. Attach double sided adhesive to the door panel in the lowe blanket, and note the planned top and bottom of the panelhaff, to temporarily aid in door alignment. These pieces of applicable. adhesive can be removed later after getting all the holes

A. 23 % 8" (600 mm)
B. 22% (560 mm)
C. 2^9 / 16 (65 mm)

1. Using a tape measure, measure the top, center and bottom width of the panel, and mark the center location with either the edge of a tape piece or with a fine point pencil.
2. Using the straight edge draw a line connecting all the marked center lines so that the center of the panel is identified.
3. Using the provided template, align the centerline of the template with the center line of the door.

Awl Center punch

1. Using a center punch or awl, mark the 2 locations on the template to be used for attaching the door studs. Remove the template. Attach the 2 door studs to custom panel using the included screws.

A. 3.5 mm × 18 mm Phillips head screw (2)
B. #2 Phillips screwdriver
C. Studs

Double sided adhesive

1. Insert one of the wood blocks from the packaging across door opening to prop the door slightly open.
2. Align the two door studs to the referenced tracks on the lifting up the door until the top panel is flush with the top dishwasher door.

1. While holding the alignment, press on the lower section of door, to allow the double sided tape to grab and hold you alignment.

1. If this process needs adjusting, Use a plastic putty knife between the panel and the door to relieve the double sided tape and free the panel.

2. Open the door and panel together to the fully open positi making sure the panel has not shifted.

3. Consider the material choice of the custom panel and the 1st of the 4 included door panel screws using a screwdriver. Check to ensure the door panel is still able to repeat the screw installation for the hole2

A. 4 × 38 ~mm Phillips head screw (4)

B. #2 Phillips screwdriver
C.Custom panel

1. Check to ensure the door panel is still aligned.
2. Repeat the screw installation for the last 2 screws.
3. If desired, remove the screws and the panel to remove temporary double sided tape.
4. If the door to cabinet gaps are not even, make an ad to the dishwasher by loosening all 4 screws mounted to adjacent cabinets. Make the position adjustment.
5. Retighten all 4 screws mounted to the adjacent cabinets screws need to be tight to prevent the dishwasher from moving.

Electrical Connection

Phillips
If house wiring does not reach into the adjacent cabinet to the shedwasher junction box mounting location, the house wiring will first need to be corrected by a qualified electrician in conforma with the National Electrical Code, ANSI/NFPA 70 - latest edition and all local codes and ordinances.

AWARNING

Fire Hazard

Use only the junction box supplied with the product when making electrical connections.

Do not bypass the junction box.

Failure to follow these instructions can result in death, fire, or electrical shock.

AWARNING

ustiment

the

All

Electrical Shock Hazard

Electrically ground appliance.

Connect wires together inside the junction box using the supplied wire nuts.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Direct Wire Connection

1. Route the junction box cable from the dishwasher through the electrical conduit hole in the cabinet wall. Also route the ho wiring through the same hole as shown below.

A. Junction box cable
B. Junction box
C. Cable fittings (2)
D. Home wiring

1. Refer to "Junction Box Assembly" section of this Owner's Manual to attach cable fitting to the home wiring and its assembly.
2. After the complete assembly of Junction box with home wiring, Secure the junction box to the back of the cabinet wall using four screws (not provided). Be sure to avoid driving screw into utility lines possibly located in the wall behind the box.

Power Cord Connection

1. Use power cord kit (sold separately per Whirlpool Part Number W11670634) and Junction box assembly (included) for connecting the dishwasher to the power supply as shown below. The power cord kit includes a straight plug that is recommended for most installations.

NOTE: To ease some installations, a power cord with a angle plug is also available per Whirlpool Part Number W11645183.

A. Junction box cable
B. Junction box
C. Cable fittings (2)
D. Power cord

IMPORTANT: Do not plug cord into an outlet until instructed to do so.

1. Refer to "Junction Box Assembly" section of this Owner's Manual to attach cable fitting to the power cord and its assembly.
2. After complete assembly of Junction box with Power cord, Secure the junction box to the back of the cabinet wall using four screws (not provided). Be sure to avoid driving screws into utility lines possibly located in the wall behind the junction box.

Junction Box Assembly

The junction box comes in a plastic bag located inside a cardboard box in the lower rack of the dishwasher (previous moved at the beginning of the installation process).

using

ADANGER

Electrical Shock Hazard

connect power before servicing.

Fully assemble cable fittings.

Place all wiring inside junction box.

Replace cover before reconnecting power.

Failure to do so can result in death, fire, or electrical shock.

1. Route the junction box cable from the dishwasher through the electrical conduit hole in the cabinet wall.
2. Use a #2 Phillips screwdriver to remove the Junction box from the junction box (4 screws).
3. Remove the plastic bag containing cable fittings and wire nut from the inside of the junction box. Take out the cable fittings and wire nuts from plastic bag.

A. Junction box base
B. Cable fittings (2)
C. Wire nuts (3)

D. Junction box lid
E. Screws (4)

1. Remove the mounting nuts from cable fittings as shown below.

A. Elongated (strain relief) nut
B. Strain relief body
C. Mounting nut

1. Attach one cable fitting to the junction box cable from the dishwasher paying thorough attention to the orientation (see below figure). The cable fitting shall tighten against the secondary insulation (PVC jacket).

A. 0.25^ * ( 6.35 mm) minimum

Use wrench and/or pliers to fully tighten the elongated (str relief) nut against the strain relief body.

1. For Direct (home) wire connection (12-2/14-2 non-metallic sheathed/Romex), Strip jacket insulation of the home wire to expose the wires to the length"of(129.3 mm) as shown below. Strip each wire end by 0.75" (19 mm). Attach the second cable fitting to home wiring paying attention to the orientation (see below figure). Use wrench and/or pliers to fully tighten the elongated (strain relief) nut against the strain relief body.

A. 3^3 / 4 (95 mm)
B. 0.75'' (19 mm)
C. 0.25^ ( 6.35 mm) minimum

1. For Direct (home) wire connection using armored cable or flexible metal conduit use only a UL/CSA-approved metallic strain relief for the type of conduit being used. Ensure 4" (101.6 mm) of wire is extending out past the end of the strain relief. Strip each wire end by 0.75" (19 mm). Attach the strain relief to the home wiring per the strain relief manufacturer's instructions. Attach strain relief to the box per the strain relief manufacturer's installation instructions.
2. For power cord connection, attach the second cable fitting to the power cord paying attention to the orientation (see below figure). Use wrench and/or pliers to fully tighten the elongated (strain relief) nut against the strain relief body.

A. 0.25^ ( 6.35 mm) minimum

NOTE: Non-metallic sheathed wire is for direct wire connection only.

Route wire ends into the junction box through the round h on the sides. Securely attach the cable fittings to the juncti box using plastic mounting nuts supplied with the cable fittings. Hand tighten the mounting nuts to the cable fittings and then use a crescent wrench to tighten another 1/4 turn Use a second wrench or pliers to secure the cable fitting when tightening the mounting nut.

1. Connect wires together inside the junction box using the supplied wire nuts. Connect wires of the same color together (black to black, white to white, and bare/green to green). NOTE: Do not pre-twist wires before making connections.

Wiring configuration

1. To apply a wire nut, hold the stripped/bare ends of wires parallel to each other with their ends aligned. Firmly push wires into a wire nut and twist clockwise until secure (the insulated wires outside the connector begin to twist). Gently tug on each wire making sure they are secure.

1. Re-attach the junction box lid using a #2 Phillips screw23verCheck for plumb and adjust legs if needed

Ensure that wires are not being pinched between the lid and base of the junction box. The Junction box lid must be attached with the 4 screws removed in step 3 and ensure the lid is fully closed and snugly attached to base.

A. Junction box cable

E. Screws (4)

B. Power cord or Home wiring

F. Cable fittings (2)

C. Wire nuts (3)

G. Junction box base

D. Junction box lid

1. The junction box is not intended to be used with rigid me conduit.

A. 5 / 16'' (8 mm) nut drivers or hexsockets
B. Pliers - Adjustable upto 2" (5.0 cm)
C. Small level

metal Use an adjustable wrench to adjust the front feet and a 9 (8 mm) socket to adjust the rear foot. Raise the dishwasher to 1/8'' (3 mm) of the counter top. Check that the dishwasher is centered from left to right in the opening. If needed, add the leveling legs until the dishwasher is plumb.

Helpful Tip: If the front leveling feet are hard to adjust, protect the customer's floor and use an adjustable wrench. Or alternately, use of 2 or more air shims to temporarily the front of the dishwasher.

Final Installation Check

Align dishwasher flush to cabinet.

Secure Dishwasher in Cabinet Opening

24. Double-check dishwasher alignment in cabinet opening

Check that dishwasher is still level front to back and side to side in the cabinet opening.

Open dishwasher door and place towel over pump assembly and spray arm of dishwasher. For some models, you may have to remove lower dish rack. This will keep screws from falling into pump area when you are securing dishwasher to countertop or cabinet.

25. Side Gap Covers

1. Remove the Side Gap Covers from level track of the dishwasher.

1. Remove the four screw from dishwasher.

1. Position the Side Gap Cover as shown below and make sure to install the top screw first and the bottom screw last.

1. Repeat above step to install the other Side Gap Cover the dishwasher.

26. For Frame less Cabinets

1. Remove upper rack for easier access.

1. Use four Thick plastic (included) spacers between cabinet wall and the side wall panels of the dishwasher.
2. Each spacers has three positions depending on the gap available, insert the spacer into the side panel of the dishwasher and turn the spacer by 90 degrees.

A. 3.5mmx18mm B.Thick plastic spacers (4) Phillips-head screws (4) C. Side gap covers (2)

1. Once the spacers are locked into the position. Secure the dishwasher to cabinet with four 3.5 mm x 18 mm Phillips-head screws (included).

NOTE:

The dishwasher must be secured to keep it from shifting when the door is opened or closed.
Do not drop screws into bottom of dishwasher.

27. For Face Frame Cabinets

1. Use four Metal brackets (included) between Face frame and the side wall panels of the dishwasher.
2. Each bracket needs to be inserted into the slots at the side panel of the dishwasher and turn the brackets by 90 degrees towards the cabinet opening.
3. Once the spacers are locked into position, Secure the dishwasher to cabinet with four 3.5 mm x 18 mm Phillips-head screws (included).

A. 3.5mm× 18mm Phillips-head screws (4)

B. Metal brackets (4) C. Side gap covers (2)

NOTE:

The dishwasher must be secured to keep it from shifting when the door is opened or closed.
- Do not drop screws into bottom of dishwasher.

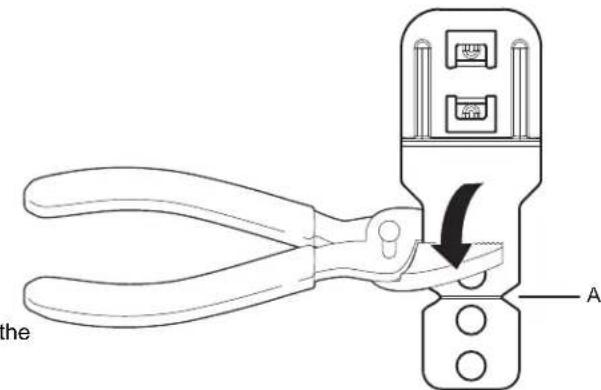

28. Break end of the brackets

Depending on the depth of the gap between dishwasher and the face of the frame, Break off the end of the brackets the scored line using pliers to adjust the required length o the bracket. Use sandpaper to smooth any burrs.

A. Score line

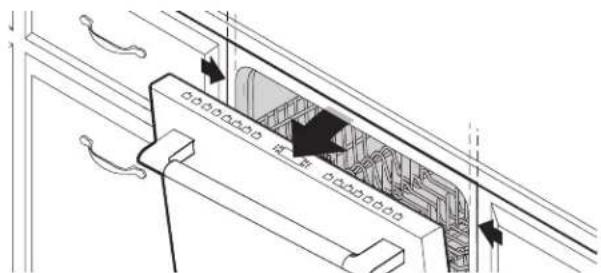

29. Check inner spacing

Open door and check that space between dishwasher cabinet opening and tub is equal on both sides. If spacing is not equal, loosen bracket screws and shift tub. Tighten bracket screws.

Remove the short screws from the package and insert them into four of the six mounting holes provided. Using a Philli head screw driver, screw them into the cabinet. If longer screws are needed, the installer will need to provide.

Connect Water Line to House Shutoff Valve

31. Attach water supply line

Choose Anchor Attachment Method

IMPORTANT: The dishwasher must be secured to the cabinet one of the final steps. Prepare the dishwasher for this by att the dishwasher to the cabinets using at least 4 of the 6 av screw holes.

30. Cabinet Attachment:

A. #3.5 x 18 mm screws (4) for Cabinet mount
B. #2 Phillips screwdriver

Ailch the water supply line (flexible braided line) to the h water line using a connection configuration that is in compliance with local codes and ordinances. The water supply to the dishwasher should have a manual shutoff val located under the sink.

Connect Drain Hose

32. Connect drain hose

Connect drain hose to waste tee or waste dispenser using of the following options:

Option A: Waste处理器 - no air gap
Option B: No waste dispenser - no air gap
Option C: Waste dispenser - with air gap
Option D: No waste dispenser - with air gap

IMPORTANT: The drain hose connection of the dispenser or waste tee must be made before the drain trap and at least 20^ (508 mm) above the floor where the dishwasher will be installed.

Helpful Tip: To reduce vibration of the hose, keep the hose away from the floor.

Option A: Waste disposer - no air gap

A. Disposer inlet

B. Drain trap

C. Drain hose

D. Drain hose clamp (black color)

Option B: No waste dispenser - no air gap

A. Waste tee

B. Drain trap

C. Drain hose

D. Drain hose clamp (black color)

Helpful Tip: Remove dispenser knockout plug.

1. Fit rubber end (A) of drain hose to waste tee and cut if needed. needed.

A. Two cut lines

NOTE: Do not cut ribbed section.

1. Using a hammer and screwdriver, knock plug into disposer.

1. Use needle-nose pliers to remove plug.

1. Attach drain hose to dispenser inlet with drain hose clamp (black color) (provided). Use pliers to squeeze clamp open and move into position.

A. Two cut lines

NOTE: Do not cut ribbed section.

1. Attach rubber end of drain hose to waste tee with a drain ser. clamp (black color) (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut, use 1^1/2 to 2 (38 mm to 50 mm) screw-type clamp (not provided).

Option C: Waste disposer - with air gap

A. Screw-type clamps

E. Rubber hose connector

B. Disposer inlet

F. Drain hose clamp (black color)

C. Drain trap

G. Air gap

D. Drain hose

Helpful Tip: Remove disposer knockout plug.

1. Using a hammer and screwdriver, knock plug into disposer.

1. Use needle-nose pliers to remove plug.

1. Connect rubber end (A) of drain hose to air gap and cut if needed.

A. Two cut lines

NOTE: Do not cut ribbed section.

1. Attach drain hose to air gap with drain hose clamp (black color) (provided). Use pliers to squeeze clamp open and move into position. If the drain hose was cut/2" use 2" 1 (38 mm to 50 mm) screw-type clamp (not provided). 3. Use

1. Use a rubber hose (not provided) with screw-type clamps (n provided) to connect from air gap to dispenser inlet.

Option D: No waste dispenser - with air gap

A. Screw-type clamps

E. Rubber hose connector

B. Waste tee

F. Drain hose clamp (black color)

C. Drain trap

G. Air gap

1. Connect rubber end (A) of drain hose to air gap and cut needed.

A. Two cut lines

NOTE: Do not cut ribbed section.

1. Attach drain hose to air gap with drain hose clamp (black color) (provided). Use pliers to squeeze clamp open and into position. If the drain hose was cut, "use 2" 1 (38 mm to 50 mm) screw-type clamp (not provided).

1. Use a rubber hose (not provided) with screw-type clamps (n provided) to connect from waste tee to air gap.

Complete Installation

AWARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

33. Power supply cord - Plug into a grounded 3 prong outlet

A. Junction box cable

C. Cable fittings (2)

B. Junction box

D. Power cord

Plug into a grounded 3-prong outlet.

34. Reconnect power

Reconnect electrical power at the fuse box or circuit breaker box.

NOTE: With the access panel off, start the dishwasher 37 Install access panels

allow it to complete the shortest wash cycle. After the first

2 minutes, unlatch door, wait 5 seconds, and then open door.

Check that there is water in the bottom of the dishwasher tub.

Check that dishwasher is working properly.

Install Access Panel

35. Install the toe panel

Install the toe panel as shown in the above image.

36. Check toe panel edge

Check that the lower edge of the toe panel touches the f Adjust if necessary.

IMPORTANT: If there is visible gap to the floor after insta the toe panel, replace it with alternate (tall) toe panel supplied with dishwasher, shipped at the back of the dishwasher.

3nd Install access panels

Place the access panel against dishwasher legs. Using a Phillips screwdriver or 1/4 nut driver, reinstall the screws through the holes in the access panel.

38. Tighten screws

Tighten access panel screws.

T-Gasket Installation (on some models)

If an installer will be using a custom access panel to be on top of the unit's access panel and if the installer chockover the seam gap then the T-Gasket bottom could be between the custom front panel & the access panel. Custom access panel can be attached to the top of the dishwasher access panel. Installer can use T-Gasket to fill between custom access panel and custom panel door (as below).

A. T-Gasket
B. Polybag
C. 3 / 16'' (5 mm)

D.Custom Access Panel

E.Custom Panel Door

Check Operation

■ Read the dishwasher Quick Start Guide that came with your dishwasher.
- Check that all parts have been installed and no steps were skipped.

If the dishwasher is not working properly, disconnect power or unplug dishwasher and refer to the "If Dishwasher Does Not Operate" section.

If Dishwasher Does Not Operate

First try the solutions suggested here to possibly avoid the cost of a service call.

■ Has the circuit breaker tripped or the house fuse blown?
■ Is the door closed tightly and latched?
■ Has the cycle been set correctly to start the dishwasher?
■ Is the water turned on?

Amounted of these possible solutions work, refer to the contact details in the information referenced in your Quick Start Guide.

Additional Tips

How longer you will have to clean your dishes?
- How long a dishwasher will take to clean the dishes?
- How long a dishwasher will take to clean the dishes?
- How long a dishwasher will take to clean the dishes?

Rinse aid is necessary for good drying results:

This dishwasher is designed to be used with rinse aid for good drying performance and controlling hard-water-deposit buildup. Energy-efficient dishwashers use less water and energy, so they depend on the water sheeting action of rinse aid for good dry performance.

Start/Resume light may flash:

When pressing Start/Resume, you must make sure the door is closed within 4 seconds. If you do not close the door within 4 seconds, the Start/Resume light will flash until you press it again. (You must also do this when adding a dish during the middle of a cycle.)

1. Remove the adhesive strips from the T-Gasket and attach to the top surface of custom access panel. Start along the left or right edge and continue along that edge.
2. Using a paper towel or cloth, press along the front surface of the T-Gasket to ensure it is flushed well.

SECURITE DU LAVE-VAISSELL

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

INSTRUCTIONS D'INSTALLATION

A VERTISSEMENT
