Comfort Therm HPS20 - Heated blanket/cushion TAURUS - Free user manual and instructions

USER MANUAL Comfort Therm HPS20 TAURUS

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a rectangular container with two circular holes and a curved pipe at the bottom (no text or symbols)

COMFORT THERM CPH-20

Simple line drawing of a rectangular object with a labeled point A and two curved lines at the bottom (no text or symbols beyond basic markings)

Technical line drawing of a mechanical component with labeled point B (no text or symbols beyond label)

Simple line drawing of a rectangular object with a vertical line and a circular marker labeled 'A' above it, no text or symbols present.

Simple diagram of a rectangle with two dots and a labeled point B above it, no text or symbols present.

E D C

COMFORT THERM HPS-20

Fig.1

Fig.2

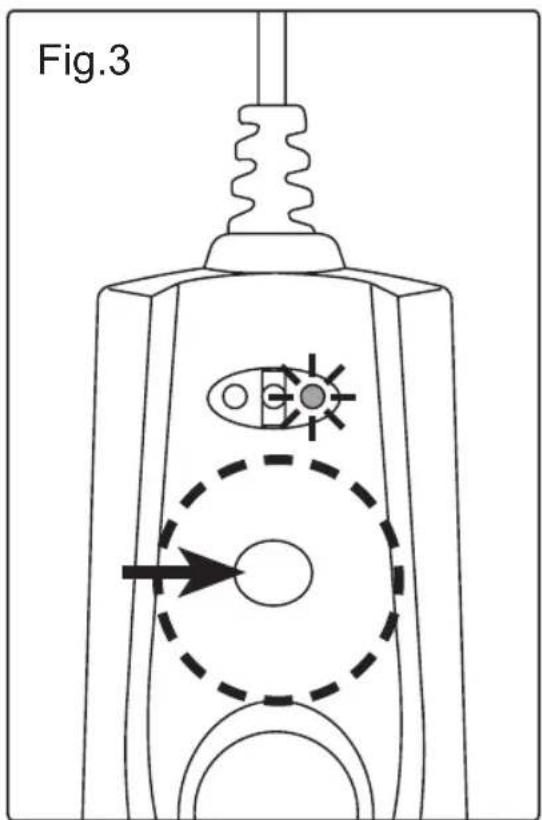

Fig.3

Español

Heating pad Neck heating pad

ComfortTherm CPH-20

ComfortTherm HPS-20

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

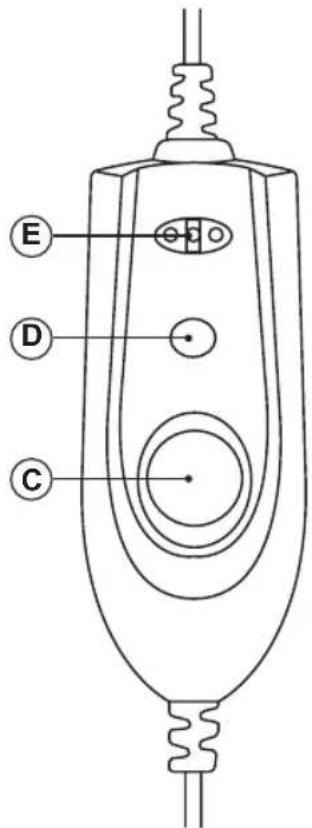

DESCRIPTION

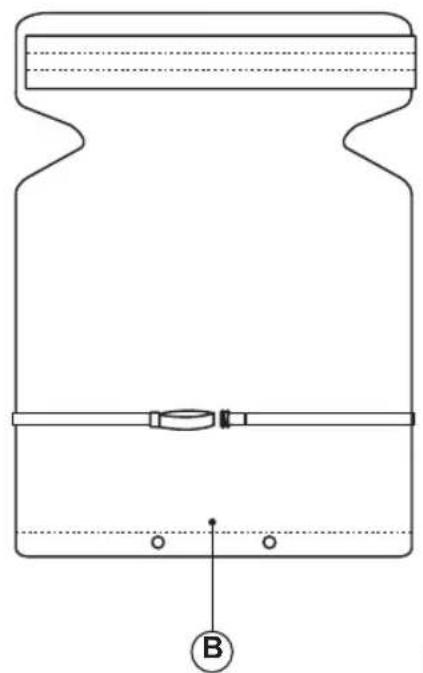

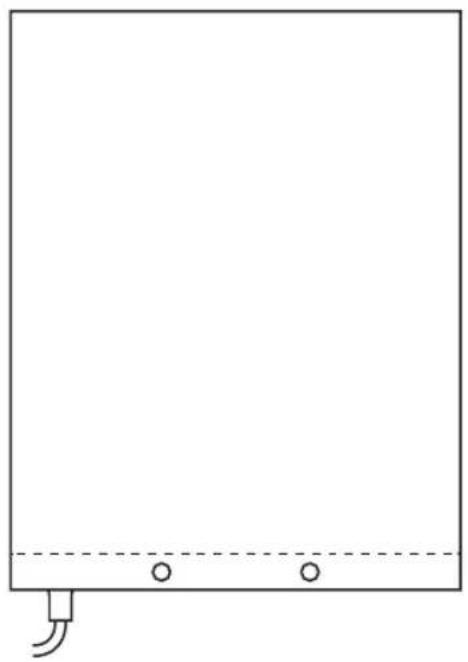

A Heating pad/Neck heating pad
B Removable cover
C Start/stop switch
D Power selector
E Pilot light indicating power level

- IMPORTANT INSTRUCTIONS. RETAIN FOR FUTURE USE.

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

SAFETY ADVICE AND WAR- NINGS

• This appliance is not for professional or industrial or medical/hospital use, it is intended for household use only.
• This appliance must not be used by persons insensitive to heat and other very vulnerable persons who are unable to react

to overheating.

• Children under the age of three are not to use this appliance due to their inability to react to overheating.
• This appliance is not to be used by young children over the age of three unless the controls have been pre-set by a parent or guardian, or unless the child has been adequately instructed on how to operate the controls safely.
• This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are supervised.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Do not insert pins.

- Appliance is not designed for a continuous use or for an extended period. As a security measure, this appliance is programmed to disconnect itself automatically after 90 minutes.

- Do not store the appliance if it

is still hot; allow it to cool down before folding.

• Do not crease the appliance by placing items on top of it during storage
• Examine the appliance frequently for signs of wear or damage. If there are such signs, if the appliance has been misused or does not work, take the appliance to an authorised technical support service before switching it on again.

- Do not use the appliance if wet

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal protector, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the

appliance, this will increase the risk of electric shock.

• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance near bathtubs, showers or swimming pools.
• Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• Check the condition of the electrical connection cable. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• CAUTION: Do not sleep while using this appliance, as there is risk you could be harmed.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTRUCTIONS FOR USE USE:

• Connect the appliance to the mains.

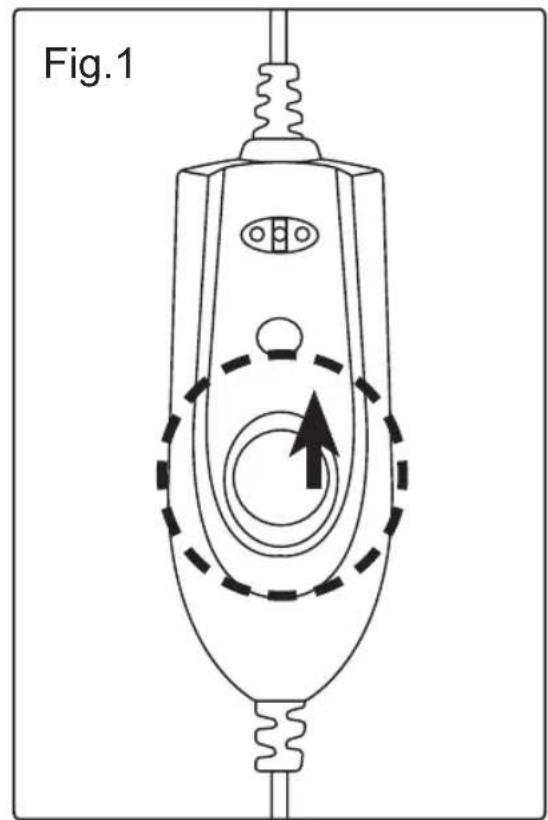

• Turn the appliance on using the on/off switch. (Fig. 1)

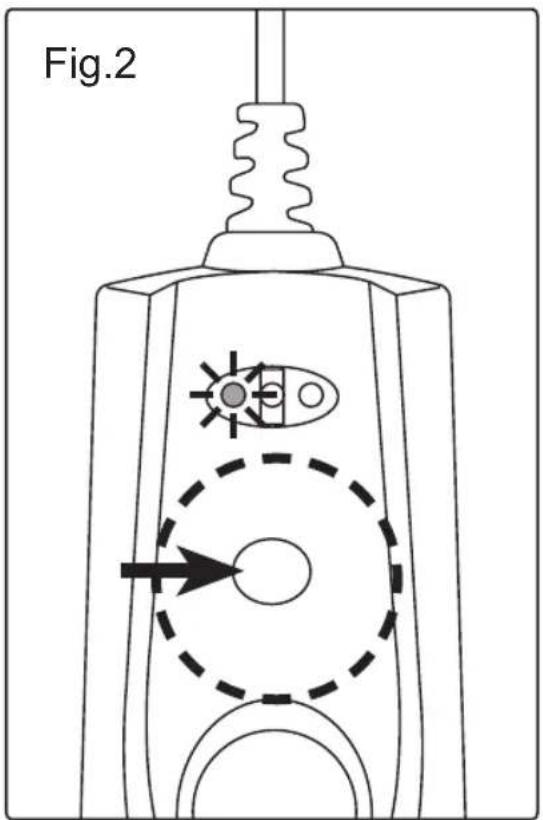

• Press the power switch (Fig. 2) and the unit will start on power level 1 (Min. green). If pilot lights are not on, the appliance is not operating.
• Each time the switch is pressed the power level increases until it reaches a maximum of 3 (Max. red). (Fig. 3)
• When the appliance is set to power level 3 (red), by pressing the power switch again, the appliance goes back to level 1 (green).
• As a security measure, the appliance is programmed to turn off automatically after 90 min of continuous use. If the appliance is stopped

in this way, press the power switch again to reheat.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off, using the on/off switch.
• Unplug the appliance to the mains.

CLEANING

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• The pad has a removable cover that can be washed by hand or machine at a temperature that does not exceed 40^ .
• Do not under any circumstances wash the inside of the appliance.
• Do not use the pad if the removable cover is not completely dry.
• Do not immerse the appliance in water or any other liquid, or put it under the tap.

WHEN NOT IN USE, STORE AS FOLLOWS:

• Let the appliance cool down before storing and fold so that it is flat without creases.
• When not in use, store the appliance in a dry place and avoid placing heavy objects on top of it, as this could damage the cables.
• Make sure that there are no folds or creases. Examine the appliance regularly to ensure they are in perfect condition.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate

public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

Carefully read the warnings and indications in the instruction manual

Do not put needles or pins in the pad.

Do not use the electric pad if it is folded or creased.

Not suitable for children aged 3 and under.

Must not be dried in the tumble dryer

Can be dried in the tumble dryer at a reduced temperature

Do not iron

Can be ironed

Do not dry clean

Do not wash

Do not use bleach

Machine wash without exceeding indicated temperature, on an automatic wash programme and normal spin

This appliance complies with Directive 2006/95/EC on Low Voltage, Directive 2004/108/EC on Electromagnetic Compatibility, Directive 2011/65/EC on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements for energy-related products.

Français

VOOR PRODUCTEN AFKOMSTIG UIT DE EUROPESE UNIE EN/OF INDIEN DE WETGEVING VAN HET LAND WAARUIT HET PRODUCT AFKOMSTIG IS DIT VEREIST:

MILIEUVRIENDELIJKHEID EN RECYCLEER-BAARHEID VAN HET PRODUCT

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
