Product type	Blender and juicer
Brand	Taurus
Model	Succo Easy
Bowl capacity	1500 ml (max)
Bowl material	Glass
Number of speeds	2 speeds + Pulse function + Turbo
Pulse function	Yes, P command for pulses
Turbo function	Yes, H command
Blades	Stainless steel, removable for cleaning
Safety system	Thermal safety device anti-overheating
Integrated filter	Yes, in the lid for filtering juices
Included accessories	Measuring cup, lid, glass, knife set, fixing ring
Self-cleaning function	Yes, with water and detergent
Dishwasher safe	Glass, lid and measuring cup (delicate cycle)
Power supply	230 V ~ 50 Hz
Warranty	Legal warranty, Taurus authorized service
Certifications	CE, WEEE, low voltage and EMC compliance
Electrical compatibility	Grounded outlet, minimum 10 A
Use	Domestic only

Frequently Asked Questions - Succo Easy TAURUS

How to use the pulse function?

Place the selector on the P position and press to activate. Release to stop. Work in cycles of 3 seconds until desired result.

Can I blend hot or boiling foods?

No, never use very hot or boiling foods. Fill at most to half to avoid burns and thermal shock that could break the glass.

How to clean the blades?

The blades are removable: turn the fixing ring to the right to release them. Wash them by hand carefully as they are very sharp. You can also use the self-cleaning function with water and detergent.

What to do if the appliance stops by itself?

It is probably the thermal safety device that cut off the power in case of overheating. Unplug the appliance and contact an authorized technical support service.

Can I put the parts in the dishwasher?

Yes, the glass, lid and measuring cup are dishwasher safe on delicate cycle. The blades must be washed by hand.

What is the maximum capacity of the bowl?

Do not exceed the MAX level indicated on the glass, which is 1500 ml. For hot liquids, fill only half.

How to assemble the blender?

First fix the blades in the glass by turning the ring to the left. Place the glass on the motor and turn clockwise until you hear a click. Add ingredients, close the lid (click), then plug in.

Can I blend frozen ingredients or bones?

No, do not use frozen foods or bones. Cut the food into pieces before placing them in the glass.

How to detach the glass from the motor?

After stopping and unplugging the appliance, turn the glass counterclockwise to unlock and remove it from the motor base.

What to do if the lid does not close properly?

Make sure the lid is properly aligned and press until you hear a click. If the problem persists, check that the measuring cup is in place and that the blades are correctly installed.

USER MANUAL Succo Easy TAURUS

Line drawing of a blender with handle and side legs (no text or symbols)

_

| _

一

1

Line drawing of a blender with an arrow indicating rotation and a lock icon, no text or symbols present

Español

Batidora de vaso

Succo Easy / PTJBF500

Many thanks for choosing to purchase a Taurus brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARNINGS

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

- This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

- This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy.

Children should be supervised to ensure that they do not play with the appliance.

- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

- Blades are sharp and could cause harm, be careful and avoid direct contact with the blades' cutting edges.

- Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.

- Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

- This appliance is for household use only, not professional, industrial use.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a socket that can supply a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- The appliance must be used and placed on a flat, stable surface.

- Do not use the appliance if the cable or plug is damaged.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not clip or crease the power cord.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- Do not use or store the appliance outdoors.

- Do not touch the plug with wet hands.

- Take the necessary measures to avoid starting the appliance involuntarily.

- Before using the appliance ensure that the blade is properly fixed in place.

- Do not touch any of the appliance's moving parts while it is operating.

- Exercise precaution after employing the stop operation on the appliance as the blade/s will continue moving from the effect of its own mechanical inertia.

USE AND CARE:

- Fully unroll the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance while the jug is empty.

- Do not use the appliance if the on/off switch does not work.

- Do not move the appliance while in use.

- Do not use the appliance if it is tipped up and do not turn it over.

- Do not force the appliance's work capacity.

- Respect the MAX level indicator. (1500 ml).

- Do not add very hot or boiling food in the jar to avoid possible burns and, in any case, avoid that they exceed half the capacity of the jar. In addition, sharp temperature contrasts could break the jar.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Make sure that dust, dirt or other foreign objects do not block the fan grill on the appliance.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

- Never use boiling liquids.

- Check that the lid is closed properly before starting the appliance.

- Never leave the appliance unattended while in use.

- Do not use the appliance for more than 2 minutes at a time. In case of operate in cycles; allow the appliance a resting period of at least 1 minute between each cycle. Under no circumstances should the appliance be operated for more time than necessary.

- Do not use the appliance with frozen goods or those containing bones.

- CAUTION: Do not use the appliance if the glass is cracked or broken.

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

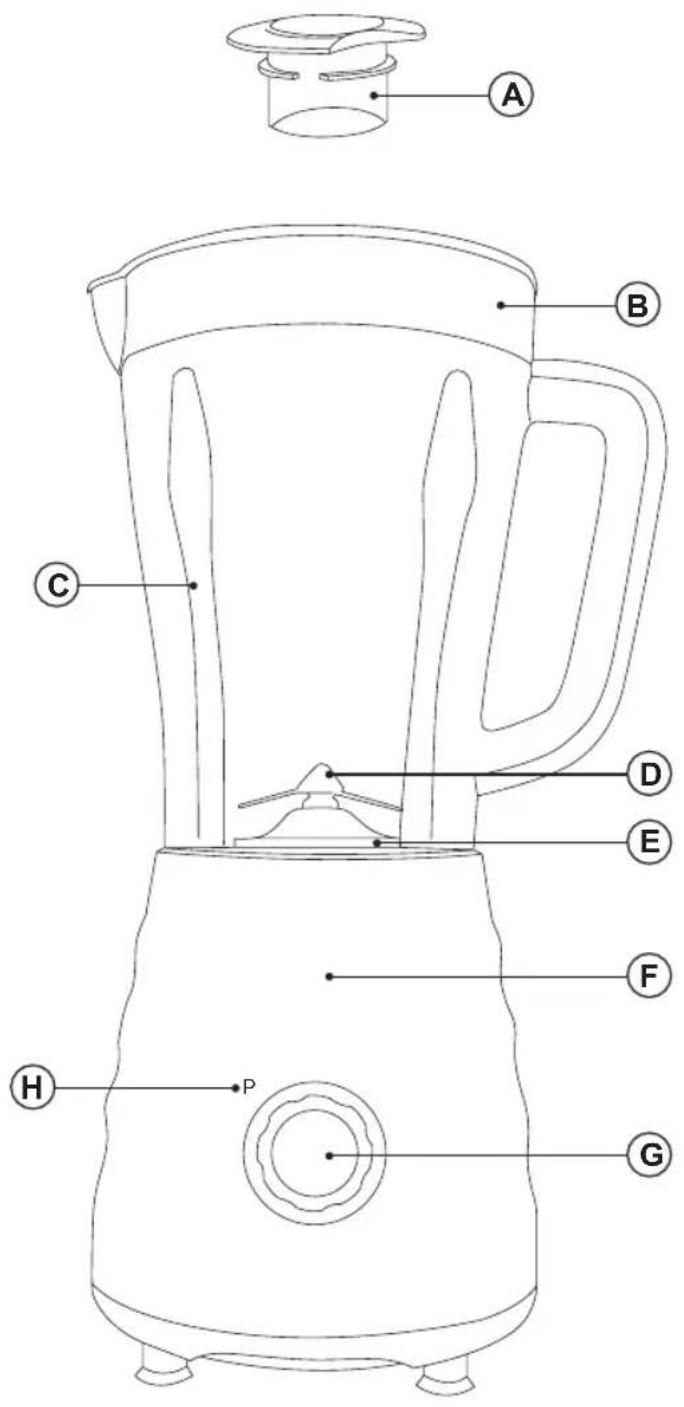

DESCRIPTION

A Measuring cup

B Lid

C Jar

D Blade set

E Fixing ring blades

F Motor body

G Speeds knob

H Turbo Function

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

USE:

• Unroll the cable completely before plugging it in.

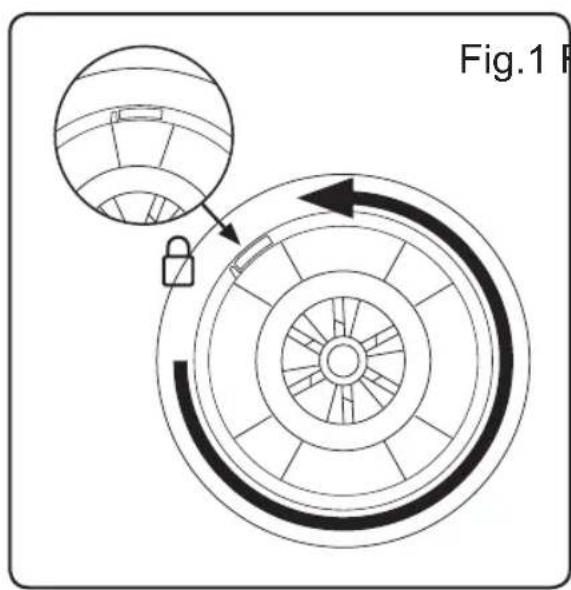

• Ensure the blade set is fixed properly to the jar (by turning counter clockwise) before putting on the motor body. (Fig. 1).

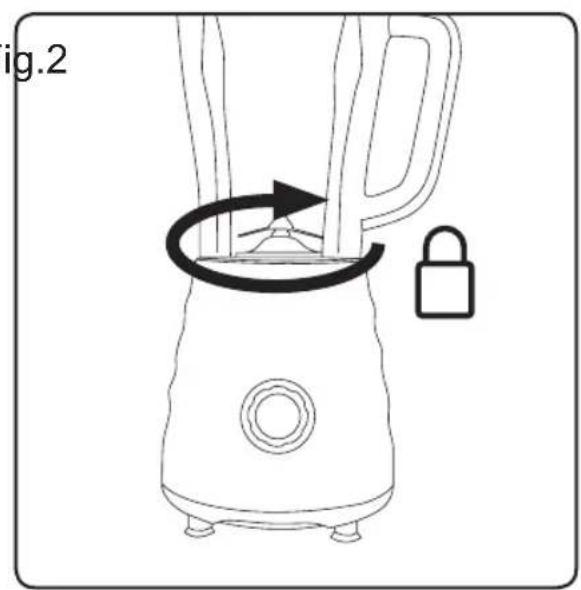

• Place the jar onto to the motor unit; turn clockwise until the lock clicks into place. (Fig. 2).
• Put the ingredients, after having first chopped them into small piece, into the jar with liquid (do not exceed the maximum marker).
• Put the lid on the jar until you hear the click; make sure it is properly fixed in place.
• Put the measuring cup in the lid.
• Connect the appliance to the mains.
• Start the appliance by operating the speed control knob.
• To avoid a fierce, start up of the appliance, it is advisable to start off from the lowest speed position "1" and, once the fan has been switched on, and progressively once the unit has started, increase the power to "2".
• If you wish to add more ingredients pull out the measuring cup.
• Add the ingredients and replace the measuring cup.
• To stop the appliance set the speed back to "0".
• Serve the drink through the grate on the lid, that will filter the mixture.

ELECTRONIC SPEED CONTROL:

- The speed of the appliance can be regulated by using the speed regulator control (G). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance, selecting position 0 on the selector control.
• Unplug the appliance from the mains.
• Turn the mixing jar anticlockwise and remove it from the motor body.
• Lift the jar from the motor body.
• Clean the appliance.

"PULSE" FUNCTION

• The appliance works in highest speed to achieve optimal performance.
• Select the option "P" in the speed knob to operate and release the button when you wish to stop operating.
• We recommend working in cycles of 3 seconds and repeating the operation until you obtain the desired result.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• If the device disconnects itself and does not reconnect, unplug it from the network and contact one of the authorized technical assistance services.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.

• The following pieces may be washed in a dishwasher (using a soft cleaning program):

• Jug.

• Lid.
• Measuring cup

- The draining/drying position of the articles

washable in the dishwasher or in the sink must allow the water to drain away easily.

- Then dry all parts before its assembly and storage.

SELF-CLEANING FUNCTION:

- Put water and a small amount of washing up liquid in the jar.

- Select the function "turbo".

REMOVABLE BLADES FOR EFFECTIVE CLEANING

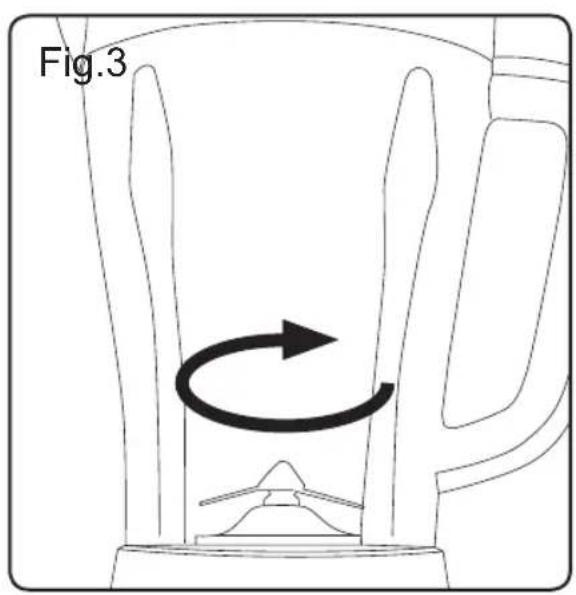

- Loosen the blade set by turning it in clockwise direction. (Fig.3).

- Remove the blade set and the sealing ring and clean them.

- After cleaning, replace the blade set and turn it in opposite direction.

ANOMALIES AND REPAIR

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on

the ecodesign requirements for energy-related products.

Français

Mixeur avec verre

Succo Easy / PTJBF500

Cher Client,

ELEKTRISCHE SNELHEIDSCONTROLE:

- التceived والامت lethal

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Benin 359 Av. Steinmetz, 1930, Cotonou 0299-21313798
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Burkina Faso Avenue Bassawarga, 01 BP915, Ouagadougou 226 25301038
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus	20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos	35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Democratic Republic of the Congo	AV. Pont Canale N° 3440, Kinshasa	00243-991223232
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]		902 118 050
Ethiopia Lideta Sub City Kebele 10 H.NO 124, Addis Ababa		[phone]
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Gabon	BP 574, Port-Gentil Centre-ville	24101552689 / 24101560698
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar 11 Horse Barrack Lane, 54000, Gibraltar 00350 200 75397 / 00350 200
		41023
Greece Sapfous 7-9, 10553, Athens [phone]
Guinea BP 206, GN, Conakry (224) 622204545
Hong Kong Unit H,13/F., World Tech Centre, Hong kong (852) 2448 0116 / 9197 3519
Hungary Késmárk utca 11-13, 1158, Budapest [phone]
India C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi		([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Jordan 28 Basman St Down town, Amman [phone]
Kuwait	P.O. BOX 3379 hawally, 32034, Hawally	[phone]
Lebanon Damascus Highway; Sciale Building, Jamhour	9615922963
Luxembourg	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Mali	BP E2900, Dravela Bolibana	223227216 / 223227259
Marruecos	Avenue 2 Mars, Résidence Nassrallah, Appt n° 2 1er, Casablanca	([phone]
Mauritania	134 Avenue Gamal Abdener Ilot D, Nouakchott	2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro	Rastovac bb, 81400, Niksic	[phone]
Netherlands	Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos	23408023360099
Paraguay	Denis Roa 155 c/ Guido Spano, Asunción	21665100
Peru	Calle los Negocios 428, Surquillo, Lima	[phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
United Arab Emirates	P.O.BOX 8543, Dubai	14506246200
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam Lot 7 Ind. Zone for, Ha Noi		84437658111 / 84437658110

_

| _

一

1
