71212 - Toaster WestBend - Free user manual and instructions

Product Type	2-Slice Toaster
Brand	WestBend
Model	71212
Power Supply	120 V AC, 60 Hz (polarized plug)
Rated Power	Not specified (estimated ~800 W)
Main Functions	Toasting, Defrost, Bagel, Cancel, adjustable browning control
Capacity	2 slices of bread, bagels, English muffins, etc.
Material	Plastic and metal exterior
Color	Not specified (estimated white or silver)
Dimensions	Not specified (estimated compact)
Weight	Not specified (estimated ~1 kg)
Crumb Tray	Removable, empty regularly
Maintenance and Cleaning	Clean exterior with a damp cloth; do not use abrasive pads; turn appliance over to remove crumbs
Electrical Safety	Polarized plug; do not immerse; unplug before cleaning; do not use with damaged cord
Fire Prevention	Do not use near flammable materials; do not leave unattended; clean crumb tray
Warranty	1 year limited (parts and labor) by Focus Electrics, LLC
Spare Parts and Repairability	Parts available at www.focuselectrics.com; customer service at [phone]
Country of Manufacture	Not specified
Intended Use	Household indoor only
Included Accessories	None (except user guide)

Frequently Asked Questions - 71212 WestBend

What power supply does the WestBend 71212 toaster require?

The toaster operates on a 120 V AC mains socket only. It has a polarized plug (one wider blade) for added safety.

How to use the Defrost function?

Place frozen foods into the slots, lower the lever, then press the Defrost button. The indicator lights up. The cycle adjusts the toasting time to defrost and toast in one step.

Can you toast bagels with this toaster?

Yes, use the Bagel function: lower the lever, then press the Bagel button. The inner elements turn off to toast only the cut side of the bagel facing outward.

How to clean the crumb tray?

Unplug the appliance and let it cool. Slide out the crumb tray located under the toaster, empty it and wipe it with a damp cloth. Replace it before next use to avoid any fire risk.

What safety precautions should be followed?

Read all instructions. Do not leave the appliance unattended, do not immerse it, use it away from flammable materials, and do not attempt to dislodge food when plugged in.

What to do if the lever does not lock?

Ensure the toaster is plugged into a working mains socket. The lever only locks when the appliance is powered. If the problem persists, contact customer service.

Can I use an extension cord?

Using an extension cord is not recommended. If necessary, choose an extension cord with a power rating at least equal to that of the appliance and arrange it to avoid tripping hazards.

How to get spare parts?

Order parts on the website www.focuselectrics.com or contact customer service at [phone]. Have the model number (71212) ready.

Why is there smoke and odor during first use?

This is normal. The smoke and odor come from the burning of residual manufacturing oils. Let the toaster run empty once on the darkest setting to eliminate them before first use.

Can I toast buttered or glazed foods?

No, this is dangerous. Melted butter or glazes can drip and cause a fire. Toast only dry, untopped foods.

USER MANUAL 71212 WestBend

Modern kitchen toaster with black and white design (no visible text or symbols)

Register this and other Focus Electrics products through our website: www.focuselectrics.com

Important Safeguards....2

Fire Precautions 2

Electricity Precautions....3

Precautions For Use Around Children....4

Heat Precautions....4

Using Your Toaster 4

Cleaning Your Toaster 5

Warranty....6

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not use appliance for other than intended use.
• The use of accessory attachments not recommended by Focus Electrics may cause injuries.
• Do not operate any appliance with a damaged cord or plug. Do not operate when the appliance is not working properly or when it has been damaged in any manner. For service information see warranty page.
• Do not attempt to repair this appliance yourself.
• For household use only.

CAUTION

To prevent fire, personal injury or property damage, read and follow all instructions and warnings.

FIRE PRECAUTIONS

• Do not use around or near flammable materials. A fire may occur if the toaster is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not leave appliance unattended when in use.
• Failure to clean crumb tray may result in fire hazard.
• Do not toast oversized foods in toaster. Only toast foods that fit loosely in toaster slots.
• Avoid toasting foods with frostings or fillings that may run or that are made with open fillings. Frostings and fillings can catch fire.
• Do not toast buttered foods. Melted butter can cause fire.
• Remove any plastic wrapping from food before toasting.
• Unplug toaster if fire or smoke is observed.

CAUTION

To prevent electrical shock, personal injury or property damage, read and follow all instructions and warnings.

ELECTRICITY PRECAUTIONS

• To protect against electric shock, do not immerse cord, plugs, or other electric parts in water or other liquids.
• Do not operate any appliance with a damaged cord or plug.
• Do not operate when the appliance is not working properly or when it has been damaged in any manner. For service information see warranty page.
• Do not use this appliance outdoors.
• Always assure the toaster is OFF (press 'Cancel' button) and unplug the appliance from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. While use of an extension cord is not recommended, if you must use one, the marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord. The cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Oversized foods, metal foil packages, or metal utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.
• Do not attempt to dislodge food when toaster is plugged in.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
• To avoid circuit overload, do not operate another high wattage appliance on the same circuit at the same time.

CAUTION

To prevent burns or other personal injuries to children, read and follow all instructions and warnings.

PRECAUTIONS FOR USE AROUND CHILDREN

• Close supervision is necessary when any appliance is used by or near children.
• Do not allow children to operate or be near the toaster, as the outside surfaces are hot during use.
• Do not allow cord to hang over any edge where a child can reach it.

CAUTION

To prevent burns, personal injury or property damage, read and follow all instructions and warnings.

HEAT PRECAUTIONS

• Do not touch hot surfaces. Use handles or knobs provided.
• Allow to cool before cleaning or removing crumb tray.
• Carefully remove toasted food from the toaster. Some of the appliance surfaces are hot during and after use.

SAVE THESE INSTRUCTIONS

USING YOUR TOASTER

Before using for the first time, wipe outside of toaster with a damp soapy cloth, and then dry thoroughly. Operate the toaster the first time without any food in the toaster slots and with the browning setting set to darkest setting (dial turned clockwise to the furthest point). This will eliminate any residual manufacturing oils.

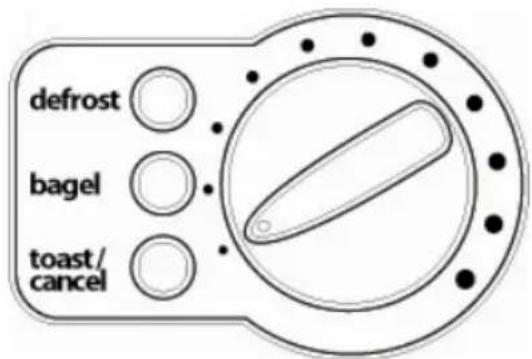

defrost bagel toast/ cancel

1. Place toaster on a dry, level, heat-resistant surface, away from any edge or flammable materials. Plug cord into 120 volt AC outlet only.
2. Place up to two slices of bread, bagels, English muffins, pastry slices (1 piece in each slot), etc., into bread slots. Select toast color setting. The darkness control is identified by small dots on the extreme left (lightest color), then increasing in size to the largest dot on the far right (darkest color).

3. Press the toast lever down until it locks into place. Toasting cycle will automatically begin. Toaster must be plugged in for toast lever to lock in place. Toast will pop up and toaster will turn off when the selected color is reached. The toast cycle can be stopped any time by pressing the cancel button. Note: Do not attempt to dislodge food when toaster is plugged in.

4. Unplug the cord from wall outlet when not in use and allow to cool before cleaning.

Bagel Setting: The bagel setting automatically turns off the inside toasting elements. The cut-side of bagel will be toasted when placed toward the outside of the toaster. To use, press toast lever down and press the bagel button. The bagel and toast/cancel indicator lights will both illuminate when activated.

Defrost Setting: The defrost setting will take the bread/frozen pastry from frozen to toasted in one step. To use, press toast lever down and press the defrost button. The defrost and toast/cancel indicator lights will both illuminate when activated.

Note: The above settings can only be activated after the toast lever is pushed down and locked. If you are defrosting a frozen bagel, all three settings will be activated and all three lights will illuminate.

• Some smoke and/or odor may occur upon first heating due to the release of manufacturing oils – this is normal
• Some expansion/contraction sounds may occur during heating and cooling – this is normal.

CLEANING YOUR TOASTER

1. Unplug toaster from outlet and allow to cool before cleaning. Slide crumb tray out from under toaster, empty and wipe clean with damp cloth if necessary. Replace the crumb tray. Note: Failure to clean crumb tray regularly may result in fire hazard. As a safeguard, be sure to re-insert the crumb tray to prevent crumbs from falling onto countertop to avoid any other potential fire risks.
2. Wipe the outside surfaces of toaster with a damp cloth and dry thoroughly. Do not use any metal or abrasive scouring pads or cleansers on any toaster surfaces. To clean the inside of toaster, turn toaster upside down over sink and shake crumbs free.
3. Wrap cord around clips on underside of toaster for storage if desired.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

Focus Electrics, LLC (“Focus Electrics”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided the appliance is operated and maintained in conformity with the provided Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at Focus Electrics discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by Focus Electrics if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HERBY EXCLUDED. IN NO EVENT SHALL FOCUS ELECTRICS, LLC BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL, ARISING OUT OF OR IN CONNECTION WITH ITS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Focus Electrics Customer Service Department at (866) 290 –1851 or e-mail us at [e-mail]. Return shipping fees are non-refundable. A receipt proving original purchase date will be required for all warranty claims. Hand-written receipts are not accepted. Focus Electrics, LLC is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from Focus Electrics, LLC online at www.focuselectrics.com. Or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

Focus Electrics, LLC

Attn: Customer Service

P. O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this include your name, mailing address, Visa/MasterCard number, expiration date and the name as it appears on the card. Checks can be made payable to Focus Electrics, LLC. Call Customer Service to obtain purchase amount. Your state's sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.

This manual contains important and helpful information regarding the safe use and care of your new Focus Electrics, LLC product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known:

Item number and Date Code (shown bottom/back of product) ____
