Product Type	Breakfast Station (Toaster and Egg Cooker)
Brand	WestBend
Model	78500
Category	Toaster with Egg Cooker
Number of Slots	2
Egg Cooking Capacity	Up to 8 hard-boiled eggs or 2 poached eggs
Functions	Toast (TOAST), cook eggs (EGG), poach eggs, combined eggs+toast function (EGG/TOAST), cancel (CANCEL)
Controls	Touch buttons (CANCEL, TOAST, EGG, EGG/TOAST) and browning dial (7 levels)
Browning Levels	7 positions (from 1 to 7)
Removable Parts	Steam tray, poaching trays (2), warming plate, lid, crumb tray
Power	120 V, 60 Hz, AC only
Material	Stainless steel and plastic
Cleaning	Trays dishwasher safe (top rack); descaling with vinegar
Safety	Auto shut-off, polarized plug, do not immerse, do not use with metallic foods
Warranty	1 year limited (parts and labor)
Customer Service	[phone], [e-mail]
Spare Parts	Available at westbend.com

Frequently Asked Questions - 78500 WestBend

How to clean the toaster?

Unplug the appliance and let it cool. Empty the crumb tray by sliding it out. Wipe the exterior with a damp cloth. Wash the removable trays with warm soapy water or in the dishwasher (top rack).

How to use the egg function to cook hard-boiled eggs?

Add the recommended amount of water (see table) into the heating plate. Place the steam tray with eggs, then the lid. Press EGG. The indicator turns off when done.

What to do if the toaster lever does not stay down?

Make sure the appliance is plugged into a 120 V outlet. If the lever does not stay down, the appliance is not powered. Check the outlet and the TOAST button.

Can I use an extension cord with this toaster?

Use of an extension cord is not recommended. If necessary, use an extension cord with a power rating equal to or greater than the appliance and a grounded plug. Place it to avoid tripping hazard.

How to descale the egg cooker?

Add 1 tablespoon of white vinegar and 1/2 cup of water into the heating plate. Put the lid on and boil for 10 minutes by pressing EGG. Press CANCEL, unplug, let cool, then empty and wipe.

What does the flashing light on the TOAST button mean?

The flashing light indicates that the TOAST function is selected but the lever is not yet lowered. Lower the lever to start the toasting cycle.

Can I toast bread and cook eggs at the same time?

Yes, use the EGG/TOAST function. Place bread in the slots, set browning, prepare eggs in the trays, then press EGG/TOAST and lower the lever. The bread will be kept warm until the eggs are cooked.

How to adjust the browning of the bread?

Turn the browning dial from 1 (light) to 7 (dark). Recommended setting for whole wheat bread is between 3 and 5. Factors like humidity and bread thickness influence the result.

What types of eggs can I cook with this appliance?

You can cook hard-boiled, soft-boiled, poached or scrambled eggs. Use the water quantity table to adjust cooking. The cooker can poach up to 2 eggs at a time using the poaching trays.

What is the warranty of this appliance?

The appliance has a 1-year limited warranty from the date of purchase, covering defects in materials and workmanship. Keep your proof of purchase. Contact customer service at [phone] for any claims.

USER MANUAL 78500 WestBend

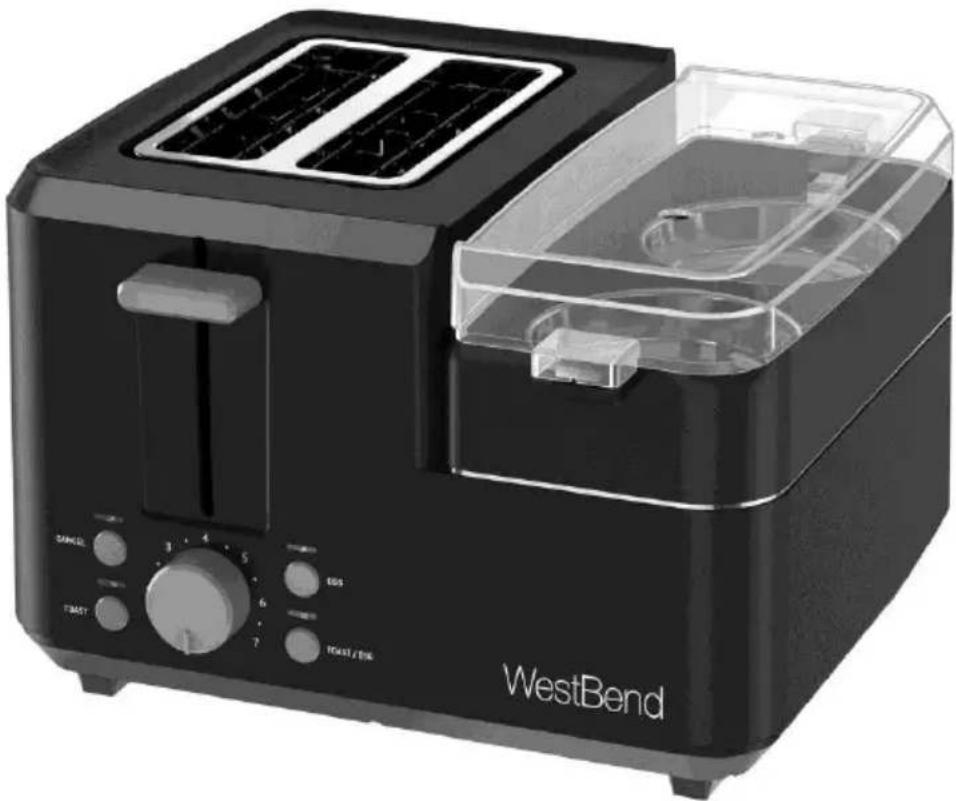

Black WestBend toaster with two 2-tanterners and a transparent display case (no visible text or symbols on main body)

Register this and other West Bend products through our website:

http://registerproducts.online

Product registration is not required to activate warranty.

Important Safeguards....2

Before Using for the First Time .... 3

Using Your 2-Slice Breakfast Station™ 4

Helpful Hints....6

Cleaning Your 2-Slice Breakfast Station™ 7

Recipes 8

Warranty....9

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

IMPORTANT SAFEGUARDS

CAUTION

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed including:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons do not immerse cord, plugs, or other electric parts in water or other liquids.
• Close supervision is necessary when this appliance is used by or near children.
• Always unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.
• Do not operate any appliance with a damaged cord or plug, after the appliance malfunctions, or has been damaged in any manner. For service information see warranty page.
• The use of accessory attachments not recommended by West Bend may cause fire, electric shock, or injury.
• Do not use this appliance outdoors.
• Do not let cord hang over the edge of the table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to "OFF," then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not attempt to repair this appliance yourself.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
• Longer extension cords are available, but care must be exercised in their use. While use of an extension cord is not recommended, if you must use one, ensure that the marked electrical rating of the extension cord is equal to or greater than that of the appliance. If the plug is of the grounded type, the extension cord must be a grounding-type 3-wire cord. To avoid pulling, tripping or entanglement, position the extension cord so that it does not hang over the edge of the counter, table or other area where it can be pulled on by children or tripped over.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.

• Oversized foods, metal foil packages, or metal utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.

• A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.

• Do not attempt to dislodge food when toaster is plugged in.
• Avoid toasting foods with frostings or fillings that may run or that are made with open fillings. Frostings and fillings can catch fire.
• Do not toast pastries, tarts and the like at any setting other than the lowest or lightest setting and never toast twice as these items can ignite if over-heated and cause fire.
• Failure to clean and replace crumb tray after each use may result in fire hazard.
• Lift and open the egg cooker lid carefully to avoid scalding.
• Do not attempt to operate the egg poacher without water in the reservoir.
  • For household use only.

SAVE THESE INSTRUCTIONS

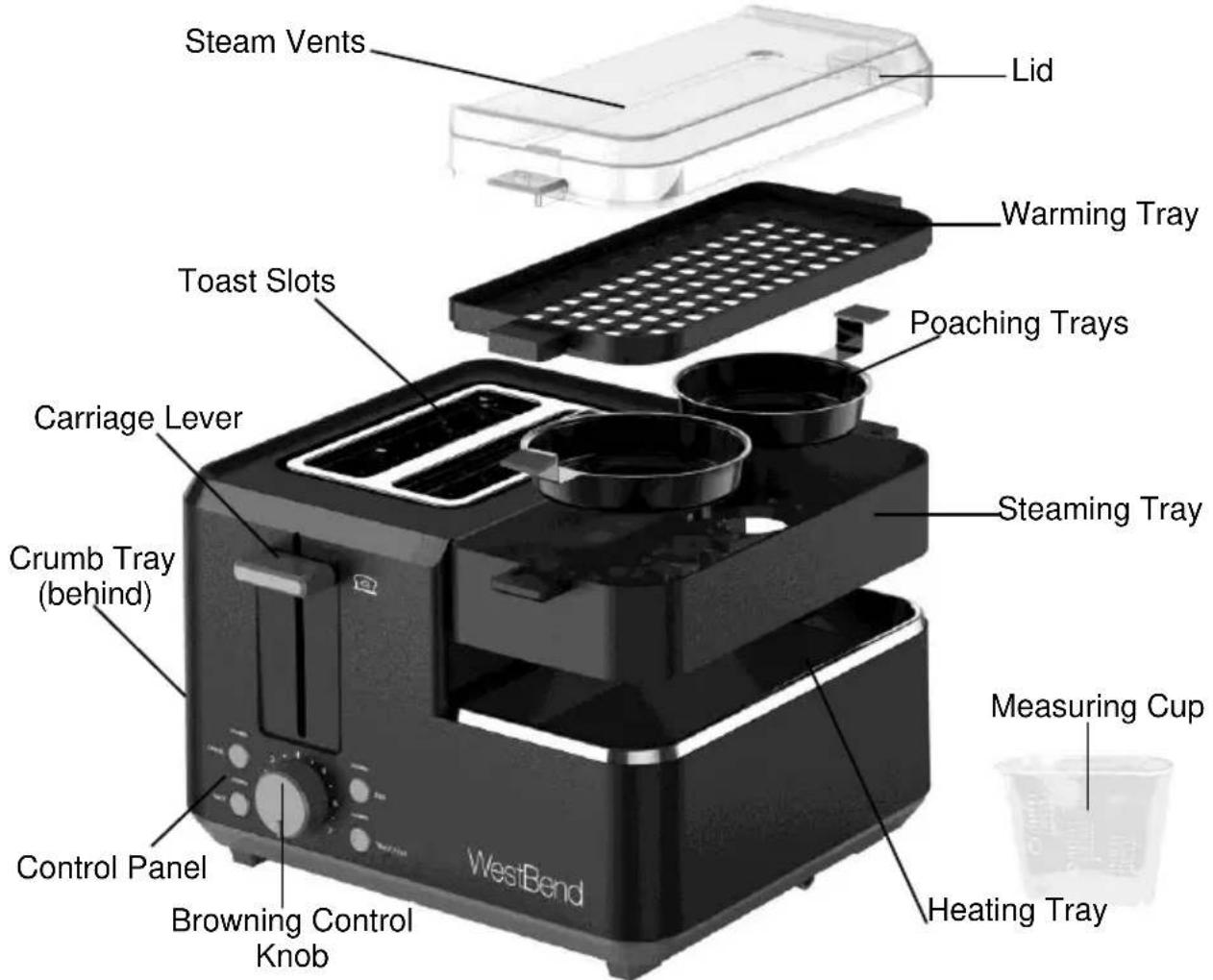

Steam Vents Lid Warming Tray Toast Slots Poaching Trays Carriage Lever Crumb Tray (behind) Steaming Tray Measuring Cup Control Panel Browning Control Knob Heating Tray WestBend

BEFORE USING FOR THE FIRST TIME

Please check all packaging material carefully before discarding. Accessory parts may be contained within the packaging material.

Wash the heating tray, steaming tray, poaching trays, warming tray, and the lid in warm, soapy water. Rinse and dry thoroughly. The steaming tray, poaching tray, warming tray and lid can be washed in the dishwasher, top rack only. Wipe down the exterior of the appliance with a damp cloth.

CAUTION: Do not immerse any part of the base appliance (including the heating-tray) in water or any other liquid.

English - 3

Before placing any food items in the toaster slots, plug in the appliance, select the "TOAST" function and run an initial cycle. Make sure the toasting slots are free of any debris or packing materials. Press the carriage lever down until it locks in position. This initial toasting cycle will clean residue from the heating elements. Please note that a small amount of smoke and/or odor may occur upon heating due to the release of manufacturing oils - this is normal. Some minor expansion/contraction sounds may occur during heating and cooling - this is also normal.

USING YOUR 2-SLICE BREAKFAST STATION™

2-Slice Breakfast Station™ Control Buttons

CANCEL TOAST 3 4 5 2 6 1 7 EGG TOAST / EGG

"CANCEL" - Turns the appliance off at any time during the cooking cycle.

"TOAST" - Operates the toaster only.

"EGG"- Operates the egg function only.

"TOAST / EGG" - Operates the toasting and egg poaching/cooking functions together. Note: Bread will toast at the same time as the eggs cook. Toast will remain in the slots to keep warm until the eggs have completed cooking. When eggs are done, the toast will pop up.

Toaster Only Function:

1. Place the appliance on a clean, dry, flat surface.
2. Place the food to be toasted into one or both of the slots.
3. Select the desired level of darkness by adjusting the browning control lever.
4. Plug the appliance into a 120 volt, AC electrical outlet only.
5. Push the "TOAST" button. The "TOAST" button will flash, indicating the function is selected.
6. Press the carriage lever down until it locks in position. The "TOAST" and "CANCEL" buttons will be illuminated to indicate the toasting cycle is in operation.
   Note: The carriage lever will not stay down if the appliance is not plugged into an electrical outlet.
7. When the pre-selected browning level of toast is reached, the toast will automatically pop up and the "TOAST" and "CANCEL" lights will turn off.
8. To remove the toast from the toasting slots, push up on the carriage lever.
9. Unplug the appliance from the electrical outlet after each use.

The “CANCEL” Function: Press the “CANCEL” button to stop the toasting cycle before it is finished. Do not pull up on the carriage lever to stop the toasting process, this may damage the appliance.

English - 4

Egg Poaching:

CAUTION: Use extreme care when operating the egg poacher, as hot steam is released through the steam vents.

1. Place the appliance on a clean, dry, flat surface and remove the lid and trays. Use the soft boiled water level markings on the measuring cup; fill with cold water to the 7&8 mark and pour into the heating tray, or add 2 to 3 tablespoons of water into the heating tray.
2. Place the steaming tray on top of the heating tray.
3. We recommend applying a small amount of butter or oil to the poaching trays. Break an egg into each poaching tray and place them on top of the steaming tray. If desired, break the egg yolk by poking it with a non-metallic utensil. The egg may also be scrambled.
4. Place the lid on top of the steaming tray.
5. Plug the appliance into a 120 volt, AC electrical outlet only.
6. Push the "EGG" button. The "EGG" button will illuminate.
7. When the poaching is complete, the light will turn off.
8. Remove the poaching tray and lid. CAUTION: Use extreme caution when removing parts to avoid scalding.
9. Unplug the appliance from the electrical outlet after each use.

Egg Cooking:

1. Place the appliance on a clean, dry, flat surface and remove the lid and trays from the appliance.
2. Select the cooked consistency and number of eggs to be cooked. This appliance can cook up to 8 eggs at a time. Use the provided measuring cup or the below chart, add the corresponding amount of water to the heating tray to achieve desired results.
3. Place the steaming tray on the heating tray. Clean the eggs to be cooked by rinsing, then place them in the holes in the steaming tray.
4. Place the lid on top of the steaming tray.
5. Plug the appliance into a 120 volt, AC electrical outlet only.
6. Push the "EGG" button on the touch pad. The "EGG" button will illuminate.
7. When cooking is complete, the light will turn off.
8. Remove the steaming tray and lid from the heating tray. CAUTION: Use extreme caution when removing parts to avoid scalding.
9. Unplug the appliance from the electrical outlet after each use.

Note: To get the best results, use the measuring cup included with the egg cooker which has water level markings to use as a guide. These amounts are approximate and can be varied to suit individual preferences. Use less water for softer cooked eggs and more water for harder cooked eggs.

Boiled Egg	Soft	Medium	Hard
# of Eggs	Tbsp. Water	Tbsp. Water	Tbsp. Water
1	412	5	7
4	312	4	6
8	3	312	512

Egg & Toast Function (for breakfast sandwich):

1. Place the appliance on a clean, dry, flat surface and remove the lid and trays from the appliance.
2. Place the food to be toasted into one or both of the slots.
3. Select the desired level of darkness by adjusting the browning control dial.
4. Use the soft boiled water level markings on the measuring cup; fill with cold water to the 7&8 mark and pour into the heating tray, or add 2 to 3 tablespoons of water into the heating tray.
5. Place the steaming tray on top of the heating tray.
6. We recommend applying a small amount of butter or oil to the poaching tray. Break an egg into the poaching tray and place the poaching tray on top of the steaming tray. If desired, break the egg yolk by poking it with a non-metallic utensil. The egg may also be scrambled.
7. Place the warming tray on top of the poaching tray and add pre-cooked meat, if desired. Note: DO NOT use raw or uncooked meats in this appliance.
8. Place the lid on top of the warming tray.
9. Plug the appliance into a 120 volt, AC electrical outlet only.
10. Push the "EGG/TOAST" button. The "EGG/TOAST" and "CANCEL" buttons will flash.
11. Press the carriage lever down until it is locked in position. The “EGG,” “TOAST,” and “EGG/TOAST” buttons will illuminate. Note: Neither the egg cooking, or the toasting process will start until the carriage lever is locked down.
    The “EGG/TOAST” function enables synchronized toasting and egg cooking. The bread will toast to the color set by the browning control lever but will not pop up until the egg cycle has completed. The carriage will remain down, keeping the bread warm until the egg has completed cooking.
12. When both the egg cycle and toasting are complete, the appliance will automatically shut off and the toast will pop up. The “EGG,” “TOAST,” and “EGG/TOAST” button lights will no longer be illuminated, which signals the appliance has turned off.
13. To remove the toast from the toasting slots, lift up on the carriage lever and remove the toast.
14. Remove the lid and trays from the heating tray. Allow the remaining steam to dissipate. CAUTION: Use extreme caution when removing parts to avoid scalding.
15. Unplug the appliance from the electrical outlet after each use.

HELPFUL HINTS

• Use caution when removing the trays from the toaster, steam will be released and could cause scalding.
• The egg cooker timing is controlled by the amount of water placed in the heating tray. The more water added, the longer the appliance will cook.
• We do not recommend using most non-stick cooking sprays in the poaching tray. If you do use a non-stick spray, be sure that it is a 100% oil cooking spray with no flours or binders.

• This toaster does not have a bagel setting; both sides of the food being toasted will brown.

• Please note that many variables factor into making toast; moisture content of the bread, thickness, sugars and starches, and grains can all affect the browning of the bread when making toast.

• Wheat and whole grain breads tend to require longer toasting times. We recommend toasting somewhere between settings 3 and 5.
• When toasting, you may notice variations in toast color from side to side and top to bottom. This is normal, especially when toasting one slice of bread.

CLEANING YOUR 2-SLICE BREAKFAST STATION™

1. Unplug the appliance from the electrical outlet and allow to cool completely before cleaning. Slide crumb tray out from under toaster, empty and wipe clean with damp cloth if necessary. Replace the crumb tray. Note: Failure to clean crumb tray regularly may result in a fire hazard.
2. Wipe down the exterior of the appliance with a damp cloth.
3. Thoroughly wash the heating tray, steaming tray, poaching trays, warming tray, and the lid with warm, soapy water.
4. The steaming tray, poaching trays, warming tray and the lid can be washed in the dishwasher when placed on the top rack.
5. The heating tray may accumulate mineral deposits after use. To remove these deposits, add 1 tablespoon concentrated vinegar and 12 cup water to the heating tray. With the lid in place, turn on the egg cooker function and allow the solution to boil for approximately 10 minutes. CAUTION: The water will be hot! After 10 minutes, press the "CANCEL" button, unplug the appliance, and let cool. When cooled, carefully dump out the remaining water, then wipe clean with a soft cloth.

CAUTION: Do not immerse any part of the appliance base (including the heating-tray) in water or any other liquid.

This appliance has no user serviceable parts.

RECIPES

Egg & Muffin Sandwich

1 English muffin
1 Poached egg
1 Slice of Cheddar cheese
1 Slice of pre-cooked Canadian Bacon, Ham, or Sausage Patty (optional)
To assemble: Lay the poached egg on top of the English muffin half followed by the pre-cooked meat and then the slice of cheese. Top the sandwich with the other half of the English muffin.

Eggs Benedict

2 English muffins, split and open
Salt and pepper to taste
4 Poached eggs
Hollandaise sauce to taste (see recipe)
4 Slices of pre-cooked Canadian bacon
To assemble: Lay a slice of Canadian bacon on top of each English muffin half followed by a poached egg. Season with salt and pepper. Spoon Hollandaise sauce over the eggs.

Hollandaise Sauce

2 Egg yolks
Pinch of salt
4 tbs. Heavy cream
Pinch of sugar
2 tbs. Butter
Chicken-broth (optional)
1 tbs. Lemon juice
Dash of hot sauce
1 tbs. White vinegar

Combine all ingredients except the white vinegar and chicken broth in the top of a double boiler, over boiling water. Stir until thick, about 3 minutes. Note: Do not reheat or cover the pot. Thin if needed with the chicken broth. Stir in the vinegar immediately.

Eggs Benedict with Chicken

Prepare Eggs Benedict as directed except omit the Canadian bacon. Cut one skinless, boneless chicken breast into bite-size strips. Add 2 tbs. cooking oil to a medium skillet; cook and stir for 2 to 3 minutes or until no longer pink. Assemble the Eggs Benedict as usual.

Eggs Florentine

2 English muffins, split and open

Steamed spinach leaves

4 Eggs

Hollandaise sauce

Salt and pepper to taste

To assemble: Prepare this just like the Eggs Benedict recipe but replace the Canadian bacon with the spinach leaves. Lay the spinach leaves on top of each English muffin half followed by a poached egg. Season with salt and pepper.

Spoon Hollandaise sauce over the eggs.

Smoked Salmon (lox) Bagel

1 Toasted plain bagel (or any bagel you like) Thin slices of lox (smoked salmon)
1 Tomato slice (optional)
Plain cream cheese
1 Onion slice
Capers

To assemble: Spread cream cheese on one half of the bagel. Add thin slices of smoked salmon on top of the cream cheese. Top with a slice of tomato and onion; sprinkle with capers. Spread the other half of the bagel with cream cheese and place on top.

PRODUCT WARRANTY

Appliance 1 Year Limited Warranty

West Bend ^® (“the Company”) warrants this appliance from failures in the material and workmanship for one (1) year from the date of original purchase with proof of purchase, provided that the appliance is operated and maintained in conformity with the Instruction Manual. Any failed part of the appliance will be repaired or replaced without charge at the Company’s discretion. This warranty applies to indoor household use only.

This warranty does not cover any damage, including discoloration, to any non-stick surface of the appliance. This warranty is null and void, as determined solely by the Company, if the appliance is damaged through accident, misuse, abuse, negligence, scratching, or if the appliance is altered in any way.

THIS WARRANTY IS IN LIEU OF ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE, WHICH ARE HEREBY EXCLUDED. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY DAMAGES, WHETHER DIRECT, INDIRECT, INCIDENTAL, FORSEEABLE, CONSEQUENTIAL, OR SPECIAL ARISING OUT OF OR IN CONNECTION WITH THIS APPLIANCE.

If you think the appliance has failed or requires service within its warranty period, please contact the Customer Care Department at [phone], or e-mail us at [e-mail]. A receipt proving the original purchase date will be required for all warranty claims, hand written receipts are not accepted. You may also be required to return the appliance for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns lost in transit.

Valid only in USA and Canada

REPLACEMENT PARTS

Replacement parts, if available, may be ordered directly from the Company several ways. Order online at www.westbend.com, e-mail [e-mail], over the phone by calling [phone], or by writing to:

West Bend

Attn: Customer Care Dept.

P. O. Box 53

West Bend, WI 53095

To order with a check or money order, please first contact Customer Care for an order total. Mail your payment along with a letter stating the model or catalog number of your appliance, which can be found on the bottom or back of the appliance, a description of the part or parts you are ordering, and the quantity you would like.

Your state/province's sales tax and a shipping fee will be added to your total charge. Please allow two weeks for processing and delivery.

This manual contains important and helpful information regarding the safe use and care of your product. For future reference, attach dated sales receipt for warranty proof of purchase and record the following information:

Date purchased or received as gift: ____

Where purchased and price, if known: ____

Item number and Date Code (shown bottom/back of product):

WestBend®

BREAKFAST STATION™ À 2 TRANCHES

Mode d'emploi

Black WestBend toaster with two 2-to-4 grilles and a transparent display case (no visible text or symbols on main body)

Attn: Customer Care Dept.

P. O. Box 53

West Bend, WI 53095

Black WestBend toaster with dual grates and a transparent display case (no visible text or symbols on main body)
