IAN 419744 - Light toy Playtive - Free user manual and instructions

Brand	Playtive
Model	IAN 419744
Product type	Flying light toy (flying ball with LED lighting)
Recommended age	From 6 years
Power supply	Rechargeable built-in battery via USB cable
Charging time	25 to 45 minutes
Battery life	Approximately 8 minutes
Max charging current	1 A
Usage	Indoor only
Main functions	Directional flight by wrist rotation, LED lighting, motion detection (shake to activate/deactivate blades)
Package contents	1 flying ball, 1 USB cable, 1 user manual
Care and cleaning	Clean with a damp cloth, no harsh chemicals
Safety	Not suitable for children under 36 months (choking hazard), may trigger epileptic seizures, adult supervision required, no modification
Battery	Non-replaceable, do not dispose of with household waste
Warranty	3 years from date of purchase (excluding wear parts)
Customer service (France)	Phone: [phone], Email: [e-mail]
Customer service (Belgium)	Phone: [phone], Email: [e-mail]

Frequently Asked Questions - IAN 419744 Playtive

How to charge the flying ball?

Connect the included USB cable to the device's charging port and to a USB port on a computer or charger (output current ≤ 1 A). The indicator lights up during charging and turns off when complete. Let it cool down for 5 to 10 minutes after use before charging.

How to make the device fly?

Turn on the device by pressing the button, hold it with the UP inscription facing upward. When the LED bar flashes, shake it gently to start the blades. Turn or tilt your wrist in the desired direction and release it gently.

How to stop flight?

Catch the device, then shake it several times. The blades stop and the LED turns off after a brief flash. The device enters standby mode. You can also press the button once the blades are still.

What are the important safety precautions?

Not suitable for children under 36 months (choking hazard). Use under adult supervision. This toy may trigger epileptic seizures. Use indoors only, do not modify the device, do not cover during charging.

Can the battery be replaced?

No, the battery is built-in and non-replaceable. At the end of its life, the device must be disposed of according to the WEEE directive. Do not dispose of with household waste.

How to clean the flying ball?

Clean the device with a damp cloth, then wipe it dry. Never use harsh cleaning products. Store it in a dry, clean place at room temperature.

What is the battery life and charging time?

The battery life is approximately 8 minutes. The charging time is 25 to 45 minutes. Do not use a charger with an output current greater than 1 A.

What to do if the battery catches fire during charging?

Do not extinguish with water, but with dry sand or a suitable fire extinguisher. In case of electrolyte leakage, rinse affected areas with clean water and consult a doctor.

What are the after-sales service and warranty?

3-year warranty on material and manufacturing defects. Contact customer service: in France at 0800 919270 or [e-mail], in Belgium at 0800 12089 or [e-mail].

Can the flying ball be used outdoors?

No, the device is designed for indoor use only. Make sure you have enough clear space.

USER MANUAL IAN 419744 Playtive

FLYING BALL WITH LED LIGHTS Instructions for use

NL BE

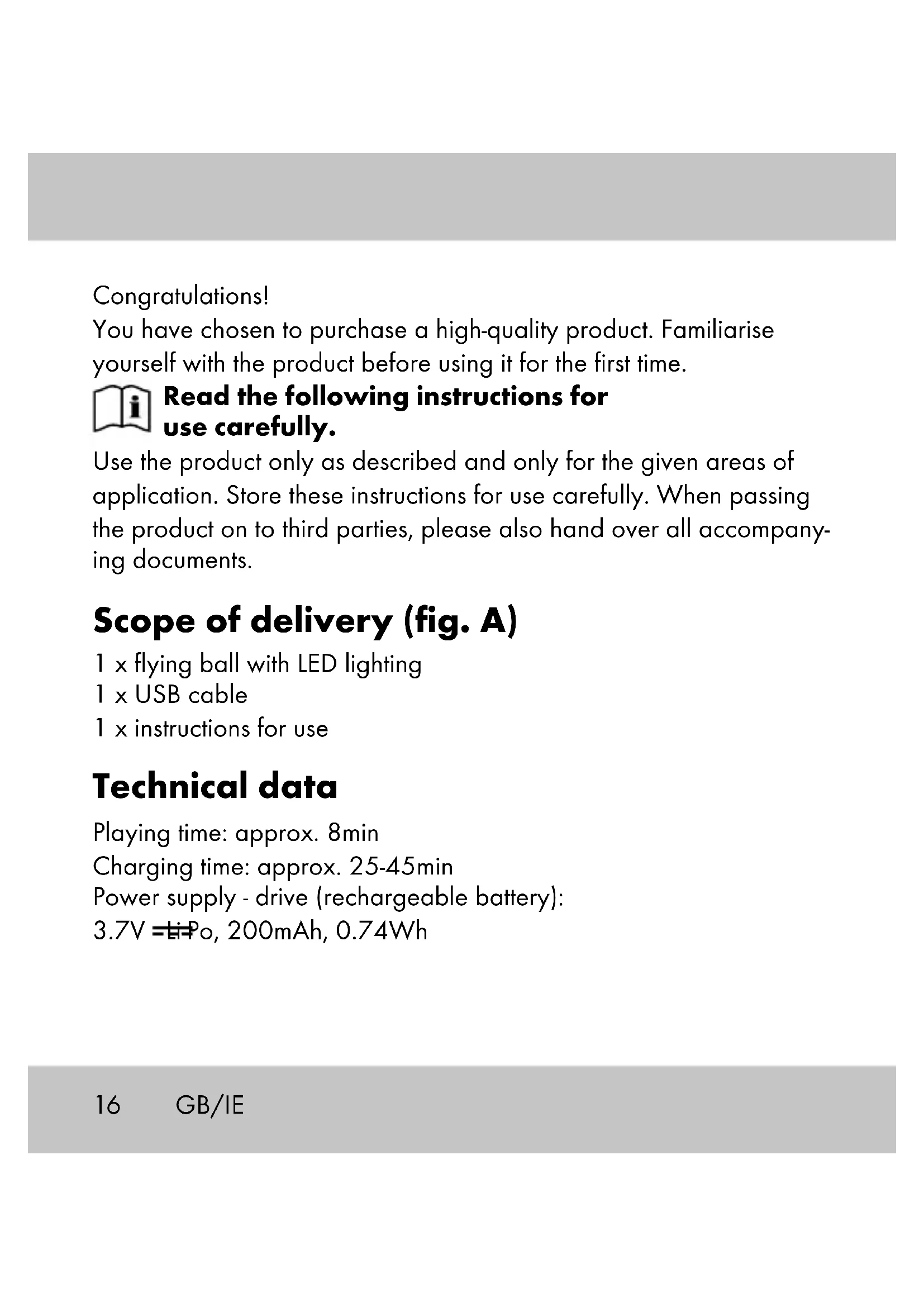

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Scope of delivery (fig. A)

1 x flying ball with LED lighting

1 x USB cable

1 x instructions for use

Technical data

Playing time: approx. 8min

Charging time: approx. 25-45min

Power supply - drive (rechargeable battery):

3.7V = LiPo, 200mAh, 0.74Wh

USB cable (Type C):

Input: 5 V = A

Do not use any power supply units with an output current greater than >1A .

= Protection Level II

This product may be connected only to Protection Level II devices bearing this symbol.

Symbol for DC voltage

CE

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic requirements, as well as other important regulations:

2009/48/EC - Toy Safety Directive

2014/30/EU - EMC Directive

2011/65/EU - RoHS Directive

Date of manufacture (month/year):

08/2022

Intended use

This product is a toy for children over the age of 6 and is for private use.

Safety instructions

• Warning. Not suitable for children under 36 months. Suffocation hazard. Small parts.
• Warning. This toy produces flashes that may trigger epilepsy in sensitised individuals.
• Warning. None of the packaging and fastening materials are considered part of the toy and must always be removed for safety reasons before the product can be given to children to play with.
  Children may only play with the product under adult supervision.
• Inspect the product for damage and wear. The product may be used only when in good working order and condition!
• Warning. The product is intended for use indoors.
• Do not make any modifications to the product!
• Do not hang any objects on the product.
• This toy contains non-replaceable batteries.

Warnings regarding integrated rechargeable battery

• Never charge the rechargeable battery immediately after use. Always allow the rechargeable battery to cool down first (min. 5-10 minutes).

• To charge the rechargeable battery use only the USB charging cable supplied.

• Since the rechargeable battery gets hot during charging, ensure adequate ventilation. Never leave the product covered!
• Should electrolyte solution leak from the rechargeable battery and the product, avoid contact with eyes, mucous membranes, and skin. Rinse off affected areas with plenty of clean water and consult a doctor immediately. The electrolyte solution may cause irritations.
• Disconnect the product from the charging cable when it is fully charged.
• The product may be charged only in dry, enclosed interior spaces. Never charge and store the product near major sources of heat or near open flame as this could lead to explosion of the rechargeable battery.
• If the rechargeable battery catches fire during charging, do not use water to extinguish it, but use for example dry sand.
• Do not leave the product unattended during charging and be sure to guard against any possible overheating.

• Charge the rechargeable battery only at an ambient temperature of between 10 and 45^ .

• The charging contacts on the device may not come into contact with metallic objects.

• If the product has received a heavy blow, store it for the next 30 minutes in a very safe location (e.g. in a metal box).
• Never try to manipulate, modify, or repair a rechargeable battery or the product.
• When the rechargeable battery has reached the end of its life, the product must be disposed of. Do not attempt to replace the rechargeable battery.

Charging the rechargeable battery (fig. B)

1. Connect the USB plug (2a) of the USB cable (2) to the rechargeable battery plug connector (1a) of the product (1).
2. Connect the USB plug (2b) of the USB cable to a USB port of a switched-on laptop/ notebook or of a charging station with a USB port.
3. The product's charge indicator light switches on during the charging process. When the charging process has ended the charge indicator light switches off.

Note: Charging takes about 25-45 minutes.
4. After charging disconnect all plug connections.

Use

By turning your wrist slightly when you throw the product you can make it fly in the desired direction. Use the product in indoor areas. Make sure you have sufficient space.

Starting flight

1. Switch the product on using the button (1b).
2. Hold the product in such a way that both the marking UP and the button (1b) and the USB plug connection face upwards.
3. As soon as the LED lighting strip (1c) begins flashing shake the product gently. The rotor blades begin to turn.
4. Turn or tilt your wrist in the direction in which you want the product to fly and give it a little push before releasing it.

Ending flight

1. To end flight you must catch the product in your hand.
2. Shake the product several times. The rotor blades stop turning and the LED lighting strip (1c) flashes briefly before switching off. The product is now in stand-by mode.

Note: You can also press the button (1b) after the rotor blades have stopped turning. Do not throw the product to the ground.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Only clean the product with a damp cloth and wipe dry afterwards.
IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

The accompanying symbol indicates that this device complies with Directive 2012/19/EU. This directive indicates that you may not dispose of this device along with basic household waste at the end of its useful life and instead must hand it in

to specifically designated collection sites, valuable substance collection stations, or waste disposal facilities.

Look after the environment and dispose of waste properly.

Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

For further information about disposal of the product no longer needed, contact your local council. Dispose of the product and the packaging in an environmentally friendly manner. Store the

packaging materials (foil bags, for example) out of the reach of children.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning: 1-7: plastics /

20-22: paper and cardboard / 80-98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste.

The Triman logo only applies to France.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects.

The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances. Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN:419744_2201

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]

Felicitations!

Alimentation propulsion (battery) :

3,7V=LiPo,200mAh,0,74Wh

Cable USB (Type C):

Entrée:5V=4A

2011/65/UE - Directive RoHS
