Product Type RapidCrisp Digital Oven with Air Fryer
Brand Oster
Model TSSTTVDAF2
Power Supply 120 V AC, 60 Hz
Power Approximately 1500 to 1800 W
Cooking Functions Air Fry, Toast, Bake, Convect, Broil, Keep Warm, Defrost, Dehydrate, Fries, Pizza, Wings, Veggies
Heating Elements Top and bottom elements, intermittent operation
Cooking Heights 3 adjustable rack positions
Included Accessories Fry basket, baking pan, metal rack, removable crumb tray
Interior Light Yes, with control button
Digital Timer Yes, arrow adjustment
Temperature Adjustment Digital arrow adjustment (up and down)
Body Material Steel (not specified precisely)
Door Tempered glass
Maintenance Wipe with a damp cloth; do not immerse. Accessories (basket, rack, pan) are dishwasher safe (top rack). Removable crumb tray should be emptied after each use.
Safety Polarized plug, hot surfaces, 15 cm clearance around, do not use near water, tempered glass door to be checked regularly
Warranty 1 year limited (parts and labor)
Repairability Parts not user serviceable; contact an authorized service center

Frequently Asked Questions - TSSTTVDAF2 OSTER

Should I preheat the oven before use?
For air frying, preheating is not necessary. For other modes (baking, broiling, etc.), it is recommended to preheat according to the instructions: set the temperature and let it heat for about 5 to 6 minutes before placing food inside.
Do I need to oil food for air frying?
It is not mandatory. Fatty foods (chicken wings, bacon) or frozen foods do not need oil. For homemade fries or fresh vegetables, toss them with about 15 ml of oil for a crispy result.
Can I use metal pans in the oven?
Yes, but avoid oversized pans that might touch the heating elements or hinder air circulation. The provided baking pan and rack are suitable.
How do I clean the oven after use?
Unplug and let it cool completely. Wipe the inside and outside with a damp cloth and mild detergent. Never immerse the oven. Accessories (basket, rack, pan) are dishwasher safe (top rack). Empty the crumb tray regularly.
What is convection cooking?
The Convect function activates a fan that circulates hot air inside the cavity, ensuring even temperature distribution. This reduces cooking time by approximately 30% compared to a conventional oven.
How do I use the Broil function?
Place food in the baking pan on the upper or middle rack. Close the door to the first stop (slightly open). Select the Broil function, set temperature and time. Turn food halfway through.
Can I make frozen french fries?
Yes, use the Air Fry or Fries function. Arrange a single layer of fries in the basket, place it on the baking pan, and select the appropriate function. No additional oil is needed for frozen fries.
How do I defrost food with this oven?
Use the Defrost function. Place food on the rack or in the pan. Set time (about 15 to 20 minutes per side for meat/fish). Temperature is preset and cannot be changed. Cook food immediately after defrosting.
What if the oven does not turn on?
Check that the cord is properly plugged into a working 120 V outlet. If the problem persists, contact Oster customer service (USA: 1 800 334.0759, Canada: 1 800 667.8623). Do not attempt to repair yourself.
Is it safe to leave the oven unattended?
No, never leave the oven unattended while it is operating, especially for Air Fry, Broil, or any high-temperature cooking. Always monitor cooking to avoid fire or burn hazards.

User questions about TSSTTVDAF2 OSTER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Oven in PDF format for free! Find your manual TSSTTVDAF2 - OSTER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TSSTTVDAF2 by OSTER.

USER MANUAL TSSTTVDAF2 OSTER

For product questions contact: Sunbeam Consumer Service

USA:1.800.334.0759

Canada : 1.800.667.8623

www.oster.com

www.oster.ca

© 2020 Sunbeam Products, Inc. All rights reserved. Distributed by Sunbeam Products, Inc., Boca Raton, Florida 33431. Distributed in Canada by Newell Brands Canada ULC, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1.

natural_image Exterior view of a modern stainless steel countertop oven (no visible text or symbols)

Visit us at www.oster.com / www.oster.ca Visitenos en www.oster.com / www.oster.ca Visitez en www.oster.com / www.oster.ca

P.N. 202255

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

  1. Read all instructions before using this product.
  2. This appliance generates heat during use. Do not touch hot surfaces. Use handles or knobs. Always protect your hands with non-slip oven mitts or similar.
  3. 'To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
  4. This appliance is not to be used by children or by persons with reduced physical, sensory or mental capabilities.
  5. Close supervision is necessary when any appliance is used near children. Children should not play with the appliance.
  6. Unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning. To disconnect, turn any control to OFF, then unplug power cord from outlet. Do not disconnect by pulling on cord. Always grasp the plug and pull to disconnect.
  7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
  8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
  9. Do not use outdoors or for commercial purposes.
  10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
  11. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric burner, or in a heated oven.
  12. Extreme caution must be used when moving an appliance or removing a pan, containing hot oil or other hot liquids. Always protect your hands with non-slip oven mitts or similar.
  13. Do not use appliance for other than intended use. Misuse can cause injuries. Intended for household countertop use only. Keep 6 inches (152 mm) clear from the wall and on all sides. Always use appliance on a dry, stable, level surface.
  14. Oversize foods or metal utensils must not be inserted in a countertop oven as they may create a fire or risk of electric shock.
  15. A fire may occur if the countertop oven is covered, touching or near flammable materials, including curtains, draperies, towels, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation.
  16. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.
  17. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.
  18. Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use.
  19. Do not place any of the following materials in the oven: paper, cardboard, plastic, or any materials that may catch fire or melt.
  20. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
  21. Empty the crumb tray after each use.

  22. The glass door is made of tempered glass. Always inspect the glass door for chips, cracks or any other damage. Do not use the countertop oven if the glass door is damaged, as the glass may shatter during use.

  23. Do not use with a programmer, timer, wireless plug adapter or outlet that allows control remotely, or connect to a circuit that is regularly switched on and off by the utility.
  24. Hot steam is released during air fryer operation. Keep your hands and face at a safe distance from the vent.
  25. If your toaster oven is equipped with a STAY-ON feature, toaster oven will stay ON if knob is turned counter-clockwise past zero. Exercise caution when using this feature and do not operate unattended for long periods.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

North American models with polarized plugs:

OSTER TSSTTVDAF2 - HOUSEHOLD USE ONLY - 1

POLARIZED PLUG

This appliance has a polarized plug, (one blade is wider than the other). As a safety feature to reduce the risk of electrical shock, this plug is

intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a

qualified electrician. Do not attempt to defeat this safety feature or modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.

POWER CORD INSTRUCTIONS:

A short power-supply cord or detachable power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a long detachable power-supply cord or extension cord is used:

a. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance;
b. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
c. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

Do not pull, twist or otherwise abuse the power cord.

NOTICES

  1. Some countertop and table surfaces are not designed to withstand the prolonged heat generated by certain appliances. Do not set the heated unit on a finished wood table. We recommend placing a hot pad or trivet under your countertop oven to prevent possible damage to the surface.
  2. During initial use of this appliance, some slight smoke and/or odor may be detected. This is normal with many heating appliances and will not recur after a few uses.

OSTER TSSTTVDAF2 - NOTICES - 1

WELCOME

Congratulations on your purchase of an OSTER® Countertop Oven! If you require service on your OSTER® Countertop Oven, do not return to place of purchase. Please contact us at www.osier.com or 1.800.334.0759.

LEARNING ABOUT YOUR COUNTERTOP OVEN
Function Setting Select cooking function by turning knob to desired setting. Temperature Setting Select cooking time by pressing up and down arrows Timer/Toast Shade Setting Select timer/toast shade by pressing up and down arrows Interior Light (if equipped) Select to turn on interior light Removable Crumb Tray Pulls out for easy cleaning. Three Rack Positions Glass Door Allows you to see food cooking. Baking Pan The baking pan can be used to accommodate a wide variety of foods. Air Fry Basket Position on top of baking pan for all your air frying needs.

Wire Rack

Use for toasting, baking, and broiling needs.

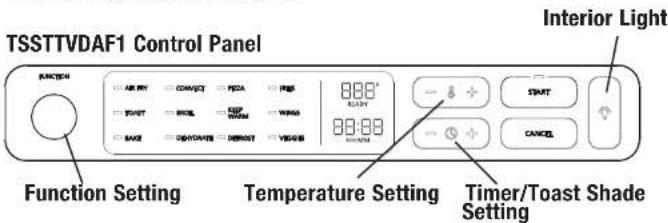

TSSTTVDAF1 Control Panel Function Setting Temperature Setting Timer/Toast Shade Setting Interior Light FUNCTION AB PHY CONJECT PECA PBS START 888° ACZY 88:88 SINEMA START CANCEL Function Light

TSSTTVDAF2 Control Panel
FUNCTION → AIR TAY → CONNECT → STOP WARM → TOAST → BANIL → SWITCH → BASE → SWITCHATE → REDS 888° READY 88:88 FIU VAM - ↓ + - START - ⓞ + CANCEL

English-3 | oster.com / oster.ca

PREPARING TO USE YOUR COUNTERTOP OVEN FOR THE FIRST TIME

NOTE: During initial start up you may detect a slight smell and/or smoke. Turn the temperature to max and let run for approximately 5 minutes.

If you are using your Countertop oven for the first time, please be sure to:
- Remove any stickers from the surface of the oven.
- Open oven door and remove all printed documents and paper from inside the Countertop Oven.
- Clean the rack, pan and air fry basket with hot water, a small amount of dishwashing liquid and a non-abrasive cleaning pad.
CAUTION: DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.
• Dry the unit thoroughly before using.
- Select a location for the Countertop Oven. The location should be in an open area on a flat counter where the plug will reach an outlet.
- Plug the Countertop Oven into a 120 Volt AC electrical outlet.

WARNING: When Countertop Oven is in use or cooling down, please be sure there is a 6-inch clearance between the Countertop Oven and any other surface including cords. Be sure the cord is not resting against the back of the Countertop Oven.

TO OPEN THE OVEN DOOR:

Step 1: Grab the center of the handle underhanded with fingertips (See Figure 1).

OSTER TSSTTVDAF2 - TO OPEN THE OVEN DOOR: - 1
Figure 1

Step 2: Pull down the oven door carefully (See Figure 2).

OSTER TSSTTVDAF2 - TO OPEN THE OVEN DOOR: - 2
Figure 2

CAUTION: This appliance generates heat during use. Do not touch hot surfaces. Always use handles or knobs per above instructions.

GENERAL INFORMATION

Heating Elements

The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature. You may not see the heating elements glowing.

Positioning Rack

To accommodate a wide variety of foods the oven has three rack positions. (See Figure 3)

Positioning of the rack will depend on the size of the food and desired browning.

Before removing the rack allow the unit to cool.

The oven rack may tilt downward causing

food to shift when the rack is pulled out, proceed with caution.

OSTER TSSTTVDAF2 - Positioning Rack - 1

natural_image Line drawing of a vintage kitchen appliance with control panel and side-mounted dish (no text or symbols)

Figure 3

PREHEATING THE OVEN

• Select the desired Function.

- Use the temperature arrows to adjust to the desired temperature.

- Use the timer arrows to adjust to the desired time and allow 5-6 minutes for the oven to preheat.

Removing Food

Always open door fully and remove food carefully with oven mitt.

USING YOUR COUNTERTOP OVEN

TO USE THE AIR FRY FUNCTION

- Arrange food on the Air Fry Basket and position on top of the Baking Pan.

- Insert the Baking Pan into the middle rack position.

- Set function to AIR FRY.

- Use the temperature arrows to adjust to the desired temperature.

- Use the timer arrows to adjust to the desired time.

- Press the Start button to begin cooking.

NOTE: The top heating elements will cycle ON and OFF to maintain the desired temperature.

NOTE: Toss food evenly in oil if desired before placing food in oven.

WARNING: Cooked food, air fry basket, baking pan, and door can be very hot, handle with care. Do not leave the unit unattended.

English-5 | oster.com / oster.ca

AIR FRY COOKING CHART

FOODWEIGHTFUNCTIONTEMPERATURE (°F)TIME (MIN)OIL?
POTATOES
Hand-Cut Fries1 lbAIR FRY400 degrees20 minYes
Hand-Cut Sweet Potato Fries1 lbAIR FRY400 degrees20 minYes
Frozen Hash Brown1.3 lbsAIR FRY400 degrees15 minNo
Frozen Fries (Thick Cut)1.5 lbsAIR FRY450 degrees20-2.5 minNo
Frozen Fries (Thin Cut)1 lbAIR FRY450 degrees10-15 minNo
MEAT/POULTRY/FISHI
Chicken Wings1.7 lbsAIR FRY400 degrees25 minNo
Steak8 ozAIR FRY450 degrees5-8 minNo
Pork Chops8 ozAIR FRY400 degrees20 minNo
Hamburger4 ozAIR FRY400 degrees10-15 minNo
Breaded Chicken Breast1 lbAIR FRY350 degrees10 minNo
Breaded Fish1 lbAIR FRY400 degrees10 minNo
Bacon8 ozAIR FRY400 degrees8-10 minNo
SNACKS
Frozen Chicken Nuggets1 lbAIR FRY400 degrees10-15 minNo
Frozen Mozzarella Sticks1 lbAIR FRY400 degrees8-10 minNo
Frozen Onion Rings10 ozAIR FRY400 degrees10 minNo
Fresh Mixed Vegetables1.5 lbsAIR FRY400 degrees20 minYes

Note: The oven does not need to be pre-heated for Air Frying.

Note: Cook times are estimates and may vary based on food type and preparation.

FAQS ABOUT AIR FRYING

Should I toss my food in oil?

ANSWER: Not all foods will benefit from being tossed in oil prior to being air fried. Frozen foods and foods with a high fat content such as chicken wings or bacon do not require oil. To achieve crispy and browned results on foods such as hand-cut fries or vegetables, evenly coat food with about one tablespoon of oil.

Do I need to flip or toss my food halfway through the cooking cycle?

ANSWER: Large quantities of food can benefit from being tossed halfway through the cooking cycle to ensure even cooking and browning.

English-6 | oster.com / oster.ca

To Use the Toast Function

NOTE: Different types of bread require different settings. Lighter breads and waffles require a lighter setting. Darker breads, muffins, and English muffins require a darker setting.

- Arrange food on the wire rack in the middle rack position.

  • Set function to TOAST. When in Toast mode, both the top and bottom heating elements will operate once the timer has been set.
  • Use the timer arrows to adjust to the desired toast shade 1-5.
  • Press the Start button to begin cooking.

NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use the Bake Function

  • Arrange food on the wire rack or in the baking pan. Select rack position depending on food size and type.
  • Set function to BAKE. When in Bake mode, both the top and bottom heating elements will operate once the timer has been set.
  • Use the temperature arrows to adjust to the desired temperature.
    • Use the timer arrows to adjust to the desired time.

NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use The Convection Bake Function

  • Arrange food on the wire rack or in the baking pan. Select rack position depending on food size and type.
  • Set function to CONVECT. When in CONVECT mode, both the top and bottom heating elements will operate once the timer has been set.
  • Use the temperature arrows to adjust to the desired temperature.
  • Use the timer arrows to adjust to the desired time.

NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

English-7 | oster.com / oster.ca

FAQS ABOUT CONVECTION BAKE

What is Convection Bake?

Answer: In your Countertop Oven there is a built in fan that circulates the hot air in the oven chamber to better heat the food.

How do I adjust the time for Convection Bake?

Answer: On average, convection will shorten the cooking time by 30% but it varies by food. It is suggested to go with a shorter cooking time to start with and then add time if it is needed.

What are the best foods to use with Convection Bake?

Answer: While a shorter cook time is often desirable, baked goods in particular benefit from convection cooking as the circulating air keeps oven temperature consistent throughout.

To Use the Adjustable Broil Function

  • Arrange food on the baking pan, and place in the top or middle rack position depending on the size of the food.
  • Close the door to the first notch, leaving a small gap at the top. This will ensure adequate airflow during broiling.
  • Set function to BROIL. When in Broil mode, the top heating elements will operate once the timer has been set.
  • Use the temperature arrows to adjust to the desired temperature.
  • Use the timer arrows to adjust to the desired time. Turn food over about halfway through the broiling cycle.
    NOTE: The top heating elements will cycle ON and OFF to maintain the desired temperature. WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use the Keep Warm Function

NOTE: The Warm Function is for warming and keeping food warm after heating.
- Arrange food on the wire rack, in the baking pan, or in the air fry basket.
- Set Function to KEEP WARM.
- Use the temperature arrows to adjust to the desired temperature.
- Use the timer arrows to adjust to the desired time.
NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.
WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use The Defrost Function

NOTE: Temperature control is set and cannot be adjusted.

  • Arrange food on the wire rack, in the baking pan, or in the air fry basket.
  • Set function to DEFROST.
  • Use the timer arrows to adjust to the desired time. Allow 15 to 20 minutes per side for meats or fish to defrost.
  • Press the Start button to begin defrosting.

NOTE: Always cook food promptly after thawing

NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

English-8 | oster.com / oster.ca

To Use The Dehydrate Function

NOTE: Temperature control is set and cannot be adjusted.

  • Arrange food on the air fry basket.
  • Set function to DEHYDRATE.
  • Use the timer arrows to adjust to the desired time. Dehydrate time can be adjusted up to 12 hours.
  • Press the Start button to begin dehydrating.

NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use THE FRIES FUNCTION

  • Arrange fries on a single layer on the Air Fry Basket and position on top of the baking pan. Insert the Baking Pan into the middle rack position.
  • Set function to FRIES.
  • Use the timer arrows to adjust to the desired time if necessary.
  • Use the temperature arrows to adjust to the desired temperature if necessary.
  • Press the Start button to begin cooking.

NOTE: The top heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use THE PIZZA FUNCTION (IF EQUIPPED)

  • Arrange pizza on the wire rack in the middle rack position.
  • Set function to PIZZA.
  • Use the timer arrows to adjust to the desired time if necessary.
  • Use the temperature arrows to adjust to the desired temperature if necessary.
  • Press the Start button to begin cooking.

NOTE: The top and bottom heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

To Use The Wings Function (IF EQUIPPED)

  • Arrange wings in a single layer on the Air Fry Basket and position on top of the baking pan.
  • Set function to WINGS.
  • Use the timer arrows to adjust to the desired time if necessary.
  • Use the temperature arrows to adjust to the desired temperature if necessary.
  • Press the Start button to begin cooking.

NOTE: The top heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

English-9 | oster.com / oster.ca

To Use The Veggies Function (IF EQUIPPED)

  • Arrange veggies in a single layer on the Air Fry Basket and position on top of the baking pan. Insert the Baking Pan into the middle rack position.
  • Set function to VEGGIES.
  • Use the timer arrows to adjust to the desired time if necessary.
  • Use the temperature arrows to adjust to the desired temperature if necessary.
  • Press the Start button to begin cooking.

NOTE: The top heating elements will cycle ON and OFF to maintain the desired temperature.

WARNING: Cooked food, metal rack, and door can be very hot, handle with care. Do not leave the unit unattended.

CLEANING YOUR COUNTERTOP OVEN

  1. Before cleaning your OSTER ^® countertop oven, unplug it and allow it to cool.
  2. To clean, wipe with damp cloth.

CAUTION: DO NOT IMMERSE IN WATER. Make sure to use only mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners will damage the unit.

Empty crumb tray frequently to avoid accumulation of crumbs. Air fry basket, wire rack, and baking pan arc dishwasher safe. (top of dishwasher only).

This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See Warranty Section.

STORING YOUR COUNTERTOP OVEN

Allow the appliance to cool completely before storing. If storing the countertop oven for long periods of time, make certain that the countertop oven is clean and free of food particles. Store the countertop oven in a dry location such as on a table or countertop or cupboard shelf. Other than the recommended cleaning, no further user maintenance should be necessary.

English-10 | oster.com / oster.ca

HELPFUL TIPS / TROUBLESHOOTING

PROBLEMPOTENTIAL CAUSESOLUTION
Overcooked / Undercooked FoodsIncorrect temperature or time settingYou may have to adjust the time and temperature to desired taste.
Because your countertop oven is smaller than your regular oven, it will heat up faster and generally cook in shorter periods of time.
Rack placement Refer to “Positioning Rack” Section, Page English-5. Rack may need to be adjusted to accommodate food type.
Burnt Smell First Use It is recommended to heatcountertop oven to 450° for approximately 15 minutes to eliminate any manufacturing residue that may remain after shipping.
Food build-up inside oven, on heating elements or in crumb tray.
Oven does not turn ONUnit is unplugged Plug theCountertop oven into a 120-volt AC electrical outlet.
Only one heating element is heating upFunction setting selection determines which heating element will operate.Refer to instructions for each function to confirm which heating elements will operate.
Heating elements do not stay ONHeating elements will cycle ON and OFF to maintain proper heat.You may not see elements glowing.Be certain that function is as desired.
The oven light is not onThe oven light timer has timed out and automatically shut the light off.The light bulb has burned out.Please press the light key on the control panel to turn the light back on. Note the light will automatically shut off.Please contact the service center for replacement parts.

RECIPES

GARLIC PARMESAN ROASTED POTATOES

½ teaspoon dried rosemary
5 cloves garlic, minced
2 lb russet potatoes, cut into quarters
Kosher salt and ground pepper, to taste
2 tablespoons olive oil
½ cup parmesan cheese, grated

Peel and cut the potatoes into quarters. Rinse well to remove starch. Pat dry. In a large bowl, mix the potato quarters with the rest of the ingredients. Mix well. Place the potatoes onto the air fry basket and cook on air fry for 25-30 mins at 400^ , or until potatoes are crisp and golden, tossing halfway through cook time.

COCONUT SHRIMP

20 large shrimp, peeled and deveined
2 large eggs, beaten
1 cup shredded coconut, dried, sweetened
1 cup panko breadcrumbs
1 cup flour, all-purpose white
Kosher salt and ground pepper, to taste

In a large bowl, mix shredded coconut and panko. Season to taste with salt and pepper. Place flour and eggs in 2 separate bowls. Dredge the shrimp in flour and then egg. Coat the shrimp thoroughly with the coconut mixture. Lay shrimp out evenly on air fry basket and drizzle olive oil on top. Cook on air fry for 8-10 minutes at 350^ , or until shrimp is cooked through.

RECIPES

HONEY GARLIC CHICKEN WINGS

Ingredients

12 chicken wings

12 cup corn starch

1 teaspoon Kosher salt

1 teaspoon Garlic powder

Garlic Honey Sauce

1 tablespoon unsalted butter

4 teaspoons minced garlic

14 cup honey

Season chicken wings lightly with kosher salt and garlic powder. Place corn starch in a bowl and coat the chicken wings on all sides, shaking off any excess starch. Evenly lay the wings on the air fry basket and cook on air fry for 30 minutes, at 375^ , flipping halfway through cooking cycle. While the wings are cooking, heat the butter and garlic in a small sauccpan. Once melted, add the rest of the ingredients and bring to a light boil for about 2 minutes. Once the wings are crispy and cooked, toss them in a large bowl with the finished sauce until fully coated.

PANCETTA ROASTED BRUSSEL SPROUTS

1 pound Brussel sprouts, trimmed and halved

4 oz chopped Pancetta

Salt and pepper to taste

2 tablespoons olive oil

2 teaspoons minced garlic

1 tablespoon balsamic vinegar

In a large bowl, combine all ingredients and evenly lay on air fry basket. Cook mixture on air fry for 15 minutes at 350^ , or until cooked thoroughly, tossing halfway through cooking cycle.

English-13 | oster.com / oster.ca

One Year Limited Warranty

Sunbeam Products, Inc., or if in Canada, Newell Brands Canada ULC, (collectively "Sunbeam") warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will void this warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty.

This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on Sunbeam's Liability?

Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition.

Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.

Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.

Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.

Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from province to province, state to state or jurisdiction to jurisdiction.

How To Obtain Warranty Service

In the U.S.A.

If you have any question regarding this warranty or would like to obtain warranty service, please call 1.800.334.0759 and a convenient service center address will be provided to you.

In Canada

If you have any question regarding this warranty or would like to obtain warranty service, please call 1-800-667-8623 and a convenient service center address will be provided to you.

In the U.S.A., this warranty is offered by Sunbeam Products, Inc., located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Newell Brands Canada ULC, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please write our Consumer Service Department.

PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES OR TO THE PLACE OF PURCHASE.

English-14 | oster.com / oster.ca

PRECAUCIONES IMPORTANTES

natural_image Line drawing of a portable oven with control panel and rack inside (no text or symbols)

INSTRUCTIONS RELATIVES AU CORDON

natural_image Line drawing of a kitchen appliance with a side panel and control buttons (no text or symbols)

Figure 3

PRÉCHAUFFAGE DU FOUR

RANGEMENT DU FOUR POSABLE

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : OSTER

Model : TSSTTVDAF2

Category : Oven
