USER MANUAL RZ32M71107F SAMSUNG

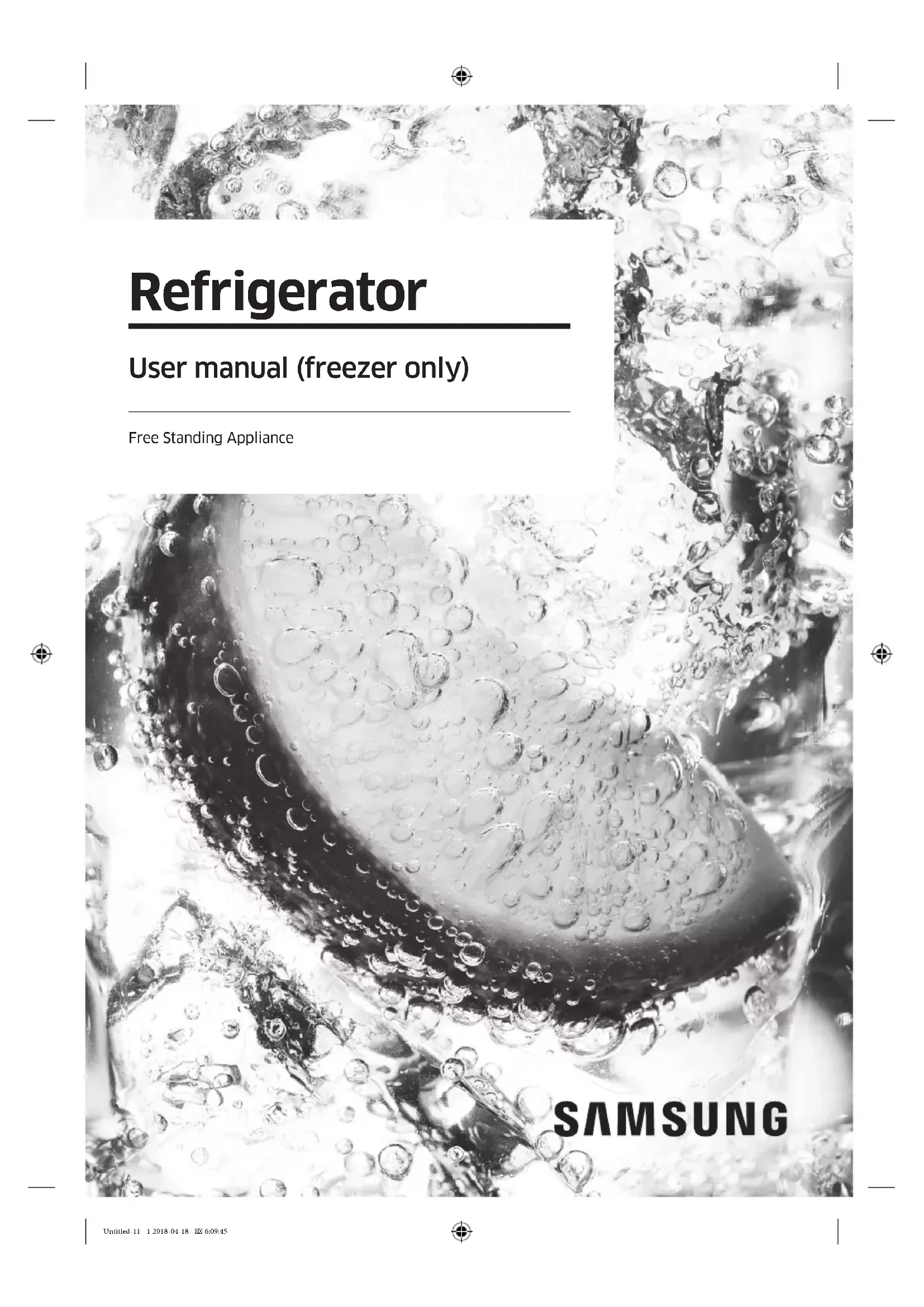

Refrigerator User manual (freezer only) Free Standing Appliance Untitled-11 1 2018-04-18 6:09:45English2 Contents Contents Safety information 3 Important safety symbols and precautions: 5 Severe warning signs for transportation and site 6 Critical installation warnings 6 Installation cautions 10 Critical usage warnings 10 Usage warning 15 Usage cautions 16 Cleaning cautions 18 Critical disposal warnings 19 Additional tips for proper usage 20 Saving Energy Tips 21 This appliance is intended to be used in household and similar applications such as 22 Instructions about the WEEE 22 Installation 23 Refrigerator at a glance 23 Step-by-step installation 24 Operations 31 Feature panel 31 Samsung Smart Home 34 Special features 36 Maintenance 41 Door reversal (applicable models only) 41 Handle and care 58 Cleaning 61 Replacement 61 Troubleshooting 62 General 62 Do you hear abnormal sounds from the refrigerator? 64 Samsung Smart Home 66 Untitled-11 2 2018-04-18 6:09:45English 3 Safety information

• Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance. Safety information Untitled-11 3 2018-04-18 6:09:45Safety information English4 Safety information

• Because these following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or nd help and information online at www.samsung.com.

• In order to avoid the creation of a ammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1 m³ in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identication plate inside the appliance.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked ames and move anything ammable away from the product and ventilate the room immediately. - Failing to do so may result in re or explosion.

• It is hazardous for anyone other than an Authorised Service Person to service this appliance.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. Warning; Risk of re / ammable materials Untitled-11 4 2018-04-18 6:09:45English 5 Safety information Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. NOTE Useful information that helps users understand or benet from the refrigerator. These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. Untitled-11 5 2018-04-18 6:09:46Safety information English6 Safety information Severe warning signs for transportation and site WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Critical installation warnings WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances. Untitled-11 6 2018-04-18 6:09:46English 7 Safety information

• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could cause a re hazard from overheated wires.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock of re.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or re.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, re, and/ or electric shock.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance. Untitled-11 7 2018-04-18 6:09:46Safety information English8 Safety information

• Do not install this appliance near a heater or inammable material.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or re.

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a re or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• The appliance must be positioned so that the plug is accessible after installation. - Failing to do so may result in an electric shock or re due to electric leakage.

• Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). - Deteriorated insulation of electrical parts may cause an electric shock or re.

• If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re. Untitled-11 8 2018-04-18 6:09:46English 9 Safety information

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, re, problems with the product, or injury.

• You need to remove all the protective plastic lm before you initially plug the product in.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. - This may result in an electric shock, re, explosion, or problems with the product.

• Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re.

• If the power cord is damaged, have it replaced immediately by the manufacturer or one of its service agents.

• The fuse on the refrigerator must be changed by a qualied technician or service company. - Failing to do so may result in an electric shock or personal injury. Untitled-11 9 2018-04-18 6:09:46Safety information English10 Safety information

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Installation cautions CAUTION

• Allow sufcient space around the refrigerator and install it on a at surface. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• Allow the appliance to stand for 2 hours before loading foods after installation and turning on.

• We strongly recommend you have a qualied technician or service company install the refrigerator. - Failing to do so may result in an electric shock, re, explosion, problems with the product, or injury.

• Overload on any one door may fell the refrigerator, causing physical injury. Critical usage warnings WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock. Untitled-11 10 2018-04-18 6:09:46English 11 Safety information

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Do not put a container lled with water on the refrigerator. - If spilled, there is a risk of re or electric shock.

• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator. - This refrigerator is for storing food only. - This may result in re or explosion.

• Children should be supervised to ensure that they do not play with the appliance. - Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped. Untitled-11 11 2018-04-18 6:09:46Safety information English12 Safety information

• Do not insert your hands into the bottom area under the appliance. - Any sharp edges may cause personal injury.

• Do not store pharmaceutical products, scientic materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.

• If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center.

• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not let children step on a drawer. - The drawer may break and cause them to slip.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter inside the refrigerator.

• Do not allow babies or children go inside the drawer. - It can cause death from suffocation by entrapment or personal injury.

• Do not overll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage. Untitled-11 12 2018-04-18 6:09:46English 13 Safety information

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, re, or problems with the product.

• Do not use or place any substances sensitive to temperature such as ammable sprays, ammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator for removing bad odours. - This may result in an electric shock or re.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, re, problems with the product, or injury. Do not put a container lled with water on the appliance. - If spilled, there is a risk of re or electric shock.

• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays.

• Do not put freezer shelf in upside down. Shelf stopper could not work. - It may cause a personal injury because of glass shelf drop. Untitled-11 13 2018-04-18 6:09:46Safety information English14 Safety information

• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in explosion or re.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall out.

• This product is intended only for the storage of food in a domestic environment.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself. - Unauthorized modications can cause safety problems. To reverse an unauthorized modication, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest service center. - Failing to do so may result in an electric shock, re, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest service center. Untitled-11 14 2018-04-18 6:09:46English 15 Safety information

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center. - Failing to do so may result in an electric or re hazards.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator. - Otherwise, there is a risk of electric shock.

• If you experience difculty changing a non-LED light, contact a Samsung service center.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself. - Contact a Samsung service center.

• Plug the power plug into the wall socket rmly.

• Do not use a damaged power plug, damaged power cord or loose wall socket. - This may result in an electric shock or re. Usage warning WARNING

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Untitled-11 15 2018-04-18 6:09:46Safety information English16 Safety information Usage cautions CAUTION

• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or zzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Do not place glass bottles or carbonated beverages into the freezer. They can freeze and break. Broken beverage containers can cause injury. - Please observe maximum storage times and expiration dates of frozen goods.

• Do not place glass or bottles or carbonated beverages into the freezer. - The container may freeze and break, and this may result in injury.

• Do not place carbonated or zzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury and property damage. Untitled-11 16 2018-04-18 6:09:46English 17 Safety information

• Service Warranty and Modication. - Any changes or modications performed by a 3rd party on this nished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modications.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled.

• Wipe excess moisture from the inside and leave the doors open. - Otherwise, odor and mold may develop.

• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes before plugging it back in.

• When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

• Be careful that your ngers are not caught in.

• If the refrigerator is ooded, make sure to contact your nearest service center. - There is a risk of electric shock or re. Untitled-11 17 2018-04-18 6:09:46Safety information English18 Safety information Cleaning cautions CAUTION

• Do not spray water directly on the inside or outside the refrigerator. - There is a risk of re or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center. - Failing to do so may result in an electric shock or re.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of re or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox, Chloride for cleaning. - They may damage the surface of the appliance and may cause a re.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or re. Untitled-11 18 2018-04-18 6:09:46English 19 Safety information Critical disposal warnings WARNING

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the freezer to see which refrigerant is used for your refrigerator. If this refrigerator contains ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• When disposing of this refrigerator, remove the door/ door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. If trapped inside, a child may get hurt or suffocate to death. - If trapped inside, the child may become injury and suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. Untitled-11 19 2018-04-18 6:09:46Safety information English20 Safety information Additional tips for proper usage

• In the event of a power failure, call the local ofce of your electric company and ask how long the failure is going to last. - Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. - Should the power failure last more than 24 hours, remove and discard all frozen food.

• The refrigerator might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) if sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.

• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.

• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.

• Temperature rise during defrosting complies with ISO requirements. If you want to prevent an undue rise in the temperature of frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.

• Do not re-freeze frozen foods that have thawed completely. Untitled-11 20 2018-04-18 6:09:46English 21 Safety information Saving Energy Tips

• Install the appliance in a cool, dry room with adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (a radiator, for example).

• Not to block any vents and grilles is recommended for energy efciency.

• Allow warm food to cool down before placing it in the appliance.

• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator.

• Do not keep the door of the refrigerator open for too long when putting food in or taking food out. The shorter the time the door is open, the less frost build-up you’ll have in the freezer.

• It is recommended to install the refrigerator with clearance to the back and sides. This will help reduce power consumption and keep your energy bills lower.

• For the most efcient use of energy, please keep the all inner ttings such as baskets, drawers, shelves on the position supplied by manufacturer. Untitled-11 21 2018-04-18 6:09:46Safety information English22 Safety information This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, ofces and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications. Instructions about the WEEE Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Untitled-11 22 2018-04-18 6:09:46English 23 Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING

• Use the refrigerator only for its intended purpose as described in this manual.

• Any servicing must be performed by a qualied technician.

• Dispose of the product packaging material in compliance with the local regulations.

• To prevent electric shock, unplug the power cord before servicing or replacements. Refrigerator at a glance The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

01 Door guard 02 Top shelf cover * 03 Freezer shelf 04 Freezer drawer 05 Slim Ice Maker * 06 Ice cube guard * 07 Bottom drawer

• applicable models only NOTE

• For best energy efciency, make sure all of shelves, drawers, and baskets are placed in their original position. Installation Untitled-11 23 2018-04-18 6:09:47Installation English24 Installation Step-by-step installation STEP 1 Select a site Site requirements:

• Solid, level surface without carpeting or ooring that may obstruct ventilation

• Away from direct sunlight

• Adequate room for opening and closing the door

• Away from a heat source

• Room for maintenance and servicing

• Temperature range: between 10 °C and 43 °C Effective temperature range The refrigerator is designed to operate normally in the temperature range specied by its class rating. Class Symbol Ambient Temperature range (°C)

IEC 62552 (ISO 15502) ISO 8561

Extended Temperate SN +10 to +32 +10 to +32 Temperate N +16 to +32 +16 to +32 Subtropical ST +16 to +38 +18 to +38 Tropical T +16 to +43 +18 to +43 NOTE The cooling performance and power consumption of the refrigerator may be affected by the ambient temperature, the door-opening frequency, and the location of the refrigerator. We recommend adjusting the temperature settings as appropriate. Untitled-11 24 2018-04-18 6:09:47English 25 Installation Clearance See the pictures and table below for space requirements for installation.

Depth “A” 694 Width “B” 595 Overall Height “C” 1853 (unit : mm) Untitled-11 25 2018-04-18 6:09:47Installation English26 Installation

01 more than 50 mm recommended 02 130°

(unit : mm) NOTE The measurements in the above table may differ, depending on the measuring method. STEP 2 Spacing (applicable models only)

1. Open the door and locate the provided

2. Unpack both spacers and attach them

to the rear of the refrigerator as shown. They help ventilate air to the rear wall and save power consumption. Untitled-11 26 2018-04-18 6:09:47English 27 Installation STEP 3 WiFi connection You can control the refrigerator remotely using the Smart Home Dongle that is sold separately. To purchase the Smart Home Dongle, visit www.samsung.com and follow the product information about the dongle. CAUTION

• The Samsung Smart Home Dongle comes in two types: one that is dedicated to Samsung smart TVs, and the other one that is dedicated to Samsung home appliances.

• You must purchase the Samsung Smart Home Dongle dedicated to home appliances. Any other dongles may cause system failure.

1. Open the freezer door, and pull up to

open the dongle cover at the top of the door.

2. Insert the Smart Home Dongle into the

dongle port in the correct direction. Untitled-11 27 2018-04-18 6:09:47Installation English28 Installation

3. Push down to close the dongle cover.

• The surface to install the refrigerator must support a fully loaded refrigerator.

• To protect the oor, put a large piece of cardboard on each foot of the refrigerator.

• Once the refrigerator is in its nal position, do not move it unless necessary to protect the oor. If you have to, use a thick paper or cloth such as old carpet along the movement path. Untitled-11 28 2018-04-18 6:09:48English 29 Installation STEP 5 Adjust the levelling legs CAUTION

• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause damage to the refrigerator or physical injury.

• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.

• For safety reasons, adjust the front side a little higher than the rear side. The refrigerator can be levelled using the front legs that have a special screw (leveller) for levelling purposes. Use a at-head screwdriver for levelling. To adjust the height of the left side: Insert a at-head screwdriver into the leveller of the front left leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower. To adjust the height of the right side: Insert a at-head screwdriver into the leveller of the front right leg. Turn the leveller clockwise to raise, or turn it counter clockwise to lower. Untitled-11 29 2018-04-18 6:09:48Installation English30 Installation STEP 6 Initial settings By completing the following steps, the refrigerator should be fully functioning.

1. Remove the PE foam sheet on each shelf corner, which is attached to protect the

refrigerator during transportation.

2. Plug the power cord into the wall socket to turn the refrigerator on .

3. Open the door, and check if the interior light lights up.

4. Set the temperature to the lowest, and wait until the refrigerator reaches the set

temperature. Now the refrigerator is ready for use. NOTE When the refrigerator powers on, the alarm will sound. To turn off the alarm, press Freezer. STEP 7 Final check When installation is complete, conrm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.

• The refrigerator is installed on a at, level surface with a reasonable clearance from the wall or the cabinet.

• The refrigerator is level and is sitting rmly on the oor.

• The door opens and closes freely, and the interior light turns on automatically when you open the door. Untitled-11 30 2018-04-18 6:09:48English 31 Operations Feature panel TYPE A

Operations Untitled-11 31 2018-04-18 6:09:48Operations English32 Operations 01 Freezer 02 Power Freeze 03 Door Alarm 04 Control Lock 05 Network connection 01 Freezer Freezer The Freezer button can be used to set the freezer temperature. Available temperatures are between -15 °C and -23 °C (default: -19 °C). 02 Power Freeze (3 sec) Power Freeze Power Freeze speeds up the freezing process at maximum fan speed. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature.

• To activate Power Freeze, press and hold Power Freeze for 3 seconds. The corresponding indicator ( ) lights up, and the refrigerator will speed up the freezing process for you.

• To deactivate, press and hold Power Freeze for 3 seconds again. The freezer returns to the previous temperature setting.

• To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer. NOTE

• Using Power Freeze increases power consumption. Make sure you turn it off and return to the previous temperature if you do not intend to use it.

• To quickly freeze large quantities of food, remove the drawers and use the provided shelf. 03 Door Alarm Door Alarm You can set the alarm for a reminder. If the door is left open for more than 2 minutes, the alarm will sound with the Alarm indicator blinking. You can toggle to enable and disable the alarm by pressing Door Alarm. 04 Control Lock (3 sec) Control Lock To prevent accidental manipulation, press and hold Control Lock for 3 seconds to activate the Control Lock. All controls will be disabled with the indicator ( ) on. To deactivate, press and hold again for 3 seconds. The controls will be enabled as normal. Untitled-11 32 2018-04-18 6:09:49English 33 Operations 05 Network connection You can use the optional Smart Home Dongle (sold separately) to control and monitor your refrigerator through the Samsung Smart Home app. For more information about Samsung Smart Home, see the Samsung Smart Home section. NOTE

• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or unstandardized Wi-Fi authentication protocols are not supported.

• Wireless networks may be affected by the surrounding wireless communication environment.

• If your Internet service provider has registered the MAC address of your PC or modem for identication, your Samsung Smart Refrigerator may fail to connect to the Internet. If this happens, contact your Internet service provider for technical assistance.

• The rewall settings of your network system may prevent your Samsung Smart Refrigerator from accessing the Internet. Contact your Internet service provider for technical assistance. If this symptom continues, contact a local Samsung service center or retailer.

• To congure the wireless access point (AP) settings, see the user manual of the AP.

• Samsung Smart Refrigerators featuring the Samsung Smart Home Dongle support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols (IEEE 802.11 n is recommended).

• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart Refrigerators. Untitled-11 33 2018-04-18 6:09:49Operations English34 Operations Samsung Smart Home Installation Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung Smart Home”. Download and install the Samsung Smart Home app provided by Samsung Electronics to your smart device. NOTE

• The Samsung Smart Home app is designed for Android 4.0 (ICS) or higher, or iOS 8.0 or higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series). On other smartphone models, some functions may operate differently.

• For improved performance, the Samsung Smart Home app is subject to change without notice, or discontinued support according to the manufacturer’s policy. Samsung account You are required to register your Samsung account to use the app. If you don’t have a Samsung account, follow the app’s onscreen instructions to create a free Samsung account. Getting started

1. Insert the Smart Home Dongle into the corresponding port of your refrigerator.

2. Run the Samsung Smart Home app and log in with your Samsung account. iPhone users

are required to provide the login information each time they access the app.

3. Tap Add Device > Refrigerator.

4. Follow the onscreen instructions to provide the necessary information about the router,

5. Press and hold Freezer for more than 5 seconds until the "AP" message appears on the

display. Your refrigerator will be registered with the app.

6. When the device registration is complete, the refrigerator icon will appear on the

8. When a network connection is established, the Wi-Fi icon lights up on your refrigerator.

Refrigerator app Integrated control You can monitor and control your refrigerator at home as well as while on the move.

• Tap the refrigerator icon on the Samsung Smart Home to open the refrigerator page.

• Check the operation status or notication of your refrigerator, and change options or settings if necessary. NOTE Some options or settings of the refrigerator may not be available for remote control. Untitled-11 34 2018-04-18 6:09:49English 35 Operations Category Item Description Monitoring Freezer temperature Displays the current temperature setting of the freezer. Diagnosis Detects abnormal operations of the freezer. Energy monitoring Checks the accumulated power consumption of the freezer for the last 180 days. Functions Power Freeze You can turn Power Freeze on or off, and check the current settings. Alarms Abnormally high temperature This alarm is triggered when the freezer has abnormally high temperatures. Door opening This alarm is triggered if the freezer door is open for a specic time. Untitled-11 35 2018-04-18 6:09:49Operations English36 Operations Special features The actual image and special functions of your refrigerator may differ depending on the model and the country. Slim Ice Maker (applicable models only)

01 Water bin 02 Ice maker lever 03 Ice bucket 04 Ice template 05 Ice template cover NOTE If you do not intend to make ice, remove the Slim Ice Maker to secure more room for storage. In this case, you can use the ice bucket (03) as a multipurpose storage bin. Untitled-11 36 2018-04-18 6:09:49English 37 Operations To dispense ice manually

1. Pull up the handle of the water bin (01)

to open, and then ll the bin with water up to the max line. Gently close the bin so that water does not drop or leak. CAUTION

• Do not exceed the max line. Excessive water causes the ice to jam and not dispense well.

• Use only potable water. Other liquids, such as green tea or milk may not dispense well.

• Gently close the water bin. Otherwise, the water may drop or leak. NOTE

• If you encounter a water leak, open the water bin and check if the water bin’s passage to the ice template is frozen. If this is the case, pour lukewarm water into the water bin up to the max line. Let the passage melt.

• It is recommended to clean the water bin’s passage to the ice template on a regular basis because the passage is likely to freeze.

2. Check if the ice freezes completely. Only

when the ice has frozen completely, pull up the ice maker lever (02). Then, the ice template (04) rotates and dispenses ice to the ice bucket (03). CAUTION

• Do not pull up the lever until the ice has frozen completely. Half-frozen ice may jam and damage the ice bucket. Untitled-11 37 2018-04-18 6:09:49Operations English38 Operations

3. To dispense ice, slightly lift up the ice

bucket and tilt to the front. CAUTION

• Do not tilt without lifting the ice bucket. The ice bucket may break.

• Do not pour water directly into the ice bucket for ice making. The ice bucket may break.

• Do not leave the freezer door open. The ice in the ice bucket melts and jams.

• In case of a power failure, make sure to empty the ice bucket before making ice.

• Use only potable water. NOTE

• The ice cubes may not dispense at once, depending on the ice state. In this case, try pulling the lever several times.

• If the ice does not dispense because an excessive amount of water was lled, remove the ice template and empty. If this issue continues, uninstall the Slim Ice Maker unit and empty. Untitled-11 38 2018-04-18 6:09:49English 39 Operations To open the top shelf cover (applicable models only)

1. Fully pull up the front end of the top

2. Then, push the cover inwards to the end.

• To remove or put an item from the freezer, you must fold up the top shelf cover rst.

• The top shelf cover is removable. You can remove it if you do not intend to use it. Untitled-11 39 2018-04-18 6:09:50Operations English40 Operations To secure more storage space (applicable models only) If you need more storage space, remove the top shelf cover and all 4 drawers and insert the provided shelf (see the gure) in the inner bottom of the main unit. Then, remove the Slim Ice Maker. NOTE

• Removal of the top shelf cover and the drawers does not affect thermal and mechanical characteristics of the freezer.

• A declared storage volume of the freezer is based on the conditions where the top shelf cover and all the drawers are removed and the provided shelf is inserted. Untitled-11 40 2018-04-18 6:09:50English 41 Maintenance Door reversal (applicable models only) Reversing the door must be performed by Samsung-approved servicing personnel at your own expense because this kind of servicing is not covered by the Warranty. WARNING

• Reversing failure or property damage that may occur by unapproved agencies will not be covered by the Warranty.

• Make sure that the refrigerator is disconnected from the power source before doing the reversal.

• You must wait for at least an hour after door reversing is complete. This is to prevent electric shock that could occur. Tools required (not provided) Phillips screwdriver Flat-head screwdriver 10 mm spanner (for top hinge shaft) 8 mm socket wrench (for bolts) 12 mm spanner (for bottom hinge shaft) Accessories The appearance of the accessories listed below may differ with the model. Hinge cover (L) Space cover (L) CAUTION Throughout the entire reversing procedure, keep all the small parts (screws, caps, etc.) of the refrigerator away from children or infants for safety reasons. Maintenance Untitled-11 41 2018-04-18 6:09:50Maintenance English42 Maintenance Step-by-step instructions STEP 1 Remove the handle

1. Unlock the handle cap and put it aside.

2. Remove each screw on the upper and

lower side of the handle.

3. Use a at-head screwdriver to remove

the handle screw caps (x2). Then, insert the handle screw caps in the opposite side. CAUTION To prevent physical damage, use caution when removing the handle screw caps. NOTE Keep the handle safe for later use. Untitled-11 42 2018-04-18 6:09:51English 43 Maintenance STEP 2 Remove the freezer door

1. Open the dongle cover, and remove the

2. While holding down the lower areas

(marked in the gure) of the wire cover with both hands, lift up the wire cover.

3. Turn the wire cover to the front by 90

degrees, and then push up to remove. NOTE Keep both the space cover and the wire cover in a safe place. They are necessary when you return the door to the initial position (before reversing the door). NOTE Put the dongle cover on the door guard for later use. Untitled-11 43 2018-04-18 6:09:51Maintenance English44 Maintenance Display Type A

1. Remove the top frame cover from the

right side rst. Then, pull out to the front.

2. Pull out the left side of the hinge cover

to remove, and then slightly lift up the bottom to pull out. CAUTION When removing the hinge cover, use caution not to damage the connectors and wires on or around the freezer door. NOTE Keep the hinge cover in a safe place. It is necessary when you return the door to the initial position (before reversing the door).

3. Disconnect the connectors on or around

the freezer door. Loosen the screws from the top hinge to remove. CAUTION To prevent the freezer door from falling, make sure to hold the freezer door tight while removing the top hinge. Untitled-11 44 2018-04-18 6:09:52English 45 Maintenance

4. When the top hinge is removed, lift up

to remove the freezer door. Keep the door in a safe place. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door. Display Type B

1. Use a at-head screwdriver to insert in

the holes one after another on the top of the door to remove the top frame cover. NOTE Start with the hole farthest from the hinge.

2. Pull out the left side of the hinge cover

to remove, and then slightly lift up the bottom to pull out. CAUTION When removing the hinge cover, use caution not to damage the connectors and wires on or around the freezer door. NOTE Keep the hinge cover in a safe place. It is necessary when you return the door to the initial position (before reversing the door). Untitled-11 45 2018-04-18 6:09:52Maintenance English46 Maintenance

3. Disconnect the connectors on or around

the freezer door. Loosen the screws from the top hinge to remove. CAUTION To prevent the freezer door from falling, make sure to hold the freezer door tight while removing the top hinge.

4. When the top hinge is removed, lift up

to remove the freezer door. Keep the door in a safe place. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door. Untitled-11 46 2018-04-18 6:09:52English 47 Maintenance STEP 3 Reverse the auto closer

1. From the freezer door, remove the auto

closer lever by loosening the screws on the lever and the screws in the opposite side.

2. Insert the auto closer lever in the

opposite side, and tighten the screws. Untitled-11 47 2018-04-18 6:09:53Maintenance English48 Maintenance STEP 4 Reverse the bottom hinge

1. Lay down the refrigerator with care.

Then, remove the screws from the bottom hinge on the right side and the levelling leg on the left side, respectively.

the rear bolt next to the shaft.

4. Use a Phillips screwdriver to remove the

5. Insert the shaft in the opposite side.

side and tighten with screws. Mount the levelling leg in the opposite side and tighten with screws.

9. Stand the refrigerator with care.

Untitled-11 48 2018-04-18 6:09:53English 49 Maintenance STEP 5 Reattach the freezer door Display Type A

1. Remove the screw and pull out the

2. Move the connectors and wires to the

opposite side. Insert the control cover, and then tighten the screws on the opposite side. Untitled-11 49 2018-04-18 6:09:53Maintenance English50 Maintenance

3. Remove the shaft from the top hinge.

Then, reassemble the shaft as shown.

4. Insert the bottom of the door rst into

5. Insert the top hinge and tighten it with

• Move the wires to the opposite side and x them on the inner hook of the opposite side. Untitled-11 50 2018-04-18 6:09:54English 51 Maintenance

6. Reinsert the dongle cover in the original

7. Connect the connectors from the freezer

door and the main unit. Then, x the wires on the inner hook of the optional hinge cover (L).

8. Insert the hinge cover in the top hinge

with the right side rst. Then, press the bottom of the cover to t. CAUTION Make sure all of the wires and connectors are not stuck in the middle. Untitled-11 51 2018-04-18 6:09:54Maintenance English52 Maintenance

9. Insert the top frame cover with the part

(b) tting in the part (a) diagonally.

10. Insert the wire cover through the

opened dongle cover. Turn the cover by 90 degrees to the front, and then push down to t in.

11. Insert the space cover (L) into the

original position, and then close the dongle cover. NOTE The appearance of the covers differ with the model. Display Type B

1. Remove the screw and pull out the

control cover. Untitled-11 52 2018-04-18 6:09:54English 53 Maintenance

2. Move the connectors and wires to the

opposite side. Insert the control cover, and then tighten the screws on the opposite side.

3. Remove the shaft from the top hinge.

Then, reassemble the shaft as shown. Untitled-11 53 2018-04-18 6:09:55Maintenance English54 Maintenance

4. Insert the bottom of the door rst into

5. Insert the top hinge and tighten it with

• Move the wires to the opposite side and x them on the inner hook of the opposite side.

6. Reinsert the dongle cover in the original

7. Connect the connectors from the freezer

with the right side rst. Then, press the bottom of the cover to t. CAUTION Make sure all of the wires and connectors are not stuck in the middle.

9. Insert the top frame cover with the

part (b) tting in the part (a) diagonally. Then, slide the end of the cover to the left to lock. Untitled-11 55 2018-04-18 6:09:55Maintenance English56 Maintenance

• For models that have the display panel on the top of the freezer, push in the left end of the top frame cover then the right side by locking the lower and upper areas in this sequence.

10. Insert the wire cover through the

opened dongle cover. Turn the cover by 90 degrees to the front, and then push down to t in.

11. Insert the space cover (L) into the

original position, and then close the dongle cover. NOTE The appearance of the covers differ with the model. Untitled-11 56 2018-04-18 6:09:56English 57 Maintenance STEP 6 Reattach the handle

1. Insert the handle in the opposite side,

and then tighten the screw.

2. Close the handle cover as shown.

NOTE You might want to return the doors to the initial position (before reversing the door). In that case, refer to the instructions above but switch the doors, hinges, and covers back to the initial position. Untitled-11 57 2018-04-18 6:09:56Maintenance English58 Maintenance Handle and care Shelves Slightly lift up the rear side of the shelf to pull out. Door guards Slightly lift up and pull out the door guard. CAUTION To prevent accidents, empty the door guards before removing. Top shelf cover (applicable models only)

1. Push the right side of the cover inwards

to unhook the cover.

2. Then, pull up the cover to the front to

remove. Untitled-11 58 2018-04-18 6:09:56English 59 Maintenance Slim Ice Maker (applicable models only) NOTE

• When cleaning the component parts of the Slim Ice Maker such as the water bin, ice bucket, and ice template, make sure they are completely dry after cleaning.

• When cleaning the Slim Ice Maker unit, make sure to completely dry the inner and outer parts of the unit after cleaning. Incomplete dryness may cause the ice maker lever to fail. In this case, dry the Slim Ice Maker completely for 2-3 days. Then, try again. To remove the component parts Water bin Fully open the water bin, and then pull out. Ice template

1. Open the ice template cover to reveal

2. Slightly pull out the left side of the ice

which is immediately above the Slim Ice Maker.

2. While holding the marked area on either

side of the Slim Ice Maker unit with both hands, lift up the unit and pull out to the front. To reinsert the component parts Water bin Fit either side of the water bin into the corresponding hook on the water bin housing. Make sure to t until you hear a clicking sound. Untitled-11 60 2018-04-18 6:09:57English 61 Maintenance Cleaning Interior and exterior WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a re.

• Do not spray water onto the refrigerator. This may cause electric shock. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.

2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior

3. When done, use a dry cloth or paper towel to dry well.

4. Plug in the power cord.

Replacement LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service centre. WARNING

• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock. Untitled-11 61 2018-04-18 6:09:57English62 Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution Freezer does not operate. Freezer temperature is warm.

• Power cord is not plugged in properly.

• Properly plug in the power cord.

• Temperature control is not set correctly.

• Set the temperature lower.

• Refrigerator is located near a heat source or direct sunlight.

• Keep the refrigerator away from direct sunlight or a heat source.

• Not enough clearance between refrigerator and sides/rear.

• We recommend that the gap between the refrigerator and nearby walls (or cabinets) is more than 50 mm.

• The refrigerator is overloaded. Food is blocking the refrigerator vents.

• Do not overload the refrigerator. Do not allow food to block ventilation. Freezer is over- cooling.

• Temperature control is not set correctly.

• Set the temperature higher. Interior wall is hot.

• Refrigerator has heat-proof piping in the interior wall.

• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure. Troubleshooting Untitled-11 62 2018-04-18 6:09:57English 63 Troubleshooting Odors Symptom Possible causes Solution Refrigerator has odors.

• Clean the refrigerator and remove any spoiled food.

• Food with strong odors.

• Make sure strong smelling food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the vents.

• Food is blocking the vents.

• Make sure no food blocks the refrigerator vents. Frost on interior walls.

• Door is not closed properly.

• Make sure food does not block the door. Clean the door gasket. Fruits or vegetables are frozen.

• Fruits or vegetables are stored in the Fresh/Chef Zone.

• The Fresh/Chef Zone is only for meat/sh. Condensation Symptom Possible causes Solution Condensation forms on the interior walls.

• If door is left open, moisture enters the refrigerator.

• Remove the moisture and do not open the door for a long time.

• Food with high moisture content.

• Make sure food is wrapped airtight. Untitled-11 63 2018-04-18 6:09:57Troubleshooting English64 Troubleshooting Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal.

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease. Clicking! or Chirping!Buzzing!

• While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur. SSSRRR!Whir!

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds. HiSS! Untitled-11 64 2018-04-18 6:09:58English 65 Troubleshooting

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling!

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working. Cracking!

• For ice maker models: When the water valve opens to ll the ice maker, buzzing sounds may occur.

• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur. Untitled-11 65 2018-04-18 6:09:58Troubleshooting English66 Troubleshooting Samsung Smart Home Symptom Action Could not nd “Samsung Smart Home” on the app market.

• The Samsung Smart Home app is available on smartphones that run Android 4.0 (ICS) or higher, or iOS 8.0 or higher. The Samsung Smart Home app fails to operate.

• The Samsung Smart Home app is available on applicable models only.

• The old Samsung Smart Refrigerator app cannot connect with Samsung Smart Home models. The Samsung Smart Home app is installed but is not connected to my refrigerator.

• You must log into your Samsung account to use the app.

• Make sure that your router is operating normally.

• If you have not connected your refrigerator to the Samsung Smart Home App after the app was installed, you must make connection using the device registration function of the app. Could not log into the app.

• You must log into your Samsung account to use the app.

• If you don’t have a Samsung account, follow the app’s onscreen instructions to create one. An error message appears when I try to register my refrigerator.

• Easy Connection may fail due to the distance from your access point (AP) or electrical interference from the surrounding environment. Wait a moment and try again. The Samsung Smart Home app is successfully connected to my refrigerator but does not run.

• Exit and restart the Samsung Smart Home app, or disconnect and reconnect the router.
