USER MANUAL Hightower Heat Deluxe Klarstein

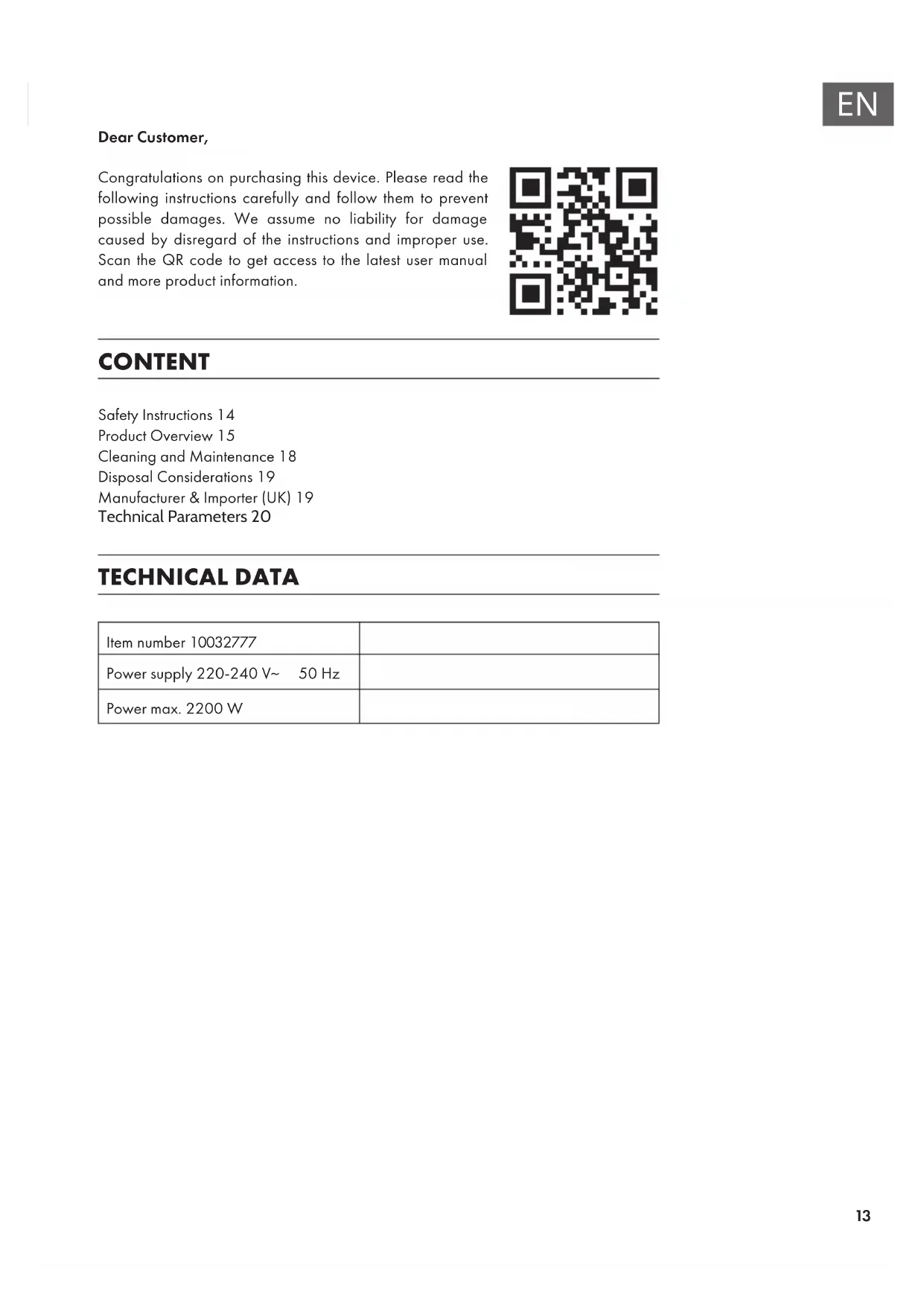

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions 14 Product Overview 15 Cleaning and Maintenance 18 Disposal Considerations 19 Manufacturer & Importer (UK) 19 Technical Parameters 20 TECHNICAL DATA Item number 10032777 Power supply 220-240 V~ 50 Hz Power max. 2200 W14

SAFETY INSTRUCTIONS Read the safety instructions carefully and keep them for future reference. To prevent the risk of re, electric shock, burns and other injuries, it is important to take basic measures when using equipment.

• In order to avoid overheating, do not cover the heater.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The heater must not be located immediately below a socket-outlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.15

Control panel Rear shell Air outlet Display screen Power switch Remote-control unit take-in PRODUCT OVERVIEW16

Display “+”key On-off key “-”key Timing key Mode key Sway key Display screen Key Function Description On/off On the idle mode, press on-off key to enter the power-on mode, the warmer starts working and the whole machine runs under the previous remembered mode and tempera- ture. On the power-on mode, press on-off key to enter the idle mode, the warmer stops working. (Note: On the heat- ing mode, draught fan will operate for 15 seconds at low wind speed after power off.). Heating level After power-on, the warmer is in the intelligent mode by de- fault. Repeatedly press the “mode key”, the warmer shifts in circular order among “intelligent mode, low warm wind, high warm wind, strong warm wind, breeze, and gentle breeze. + and - On the working state, press “+” or “-” keys to set the work- ing temperature. The temperature setting range is 5 °C - 35 °C and every temperature value is of 1 °C difference. The machine conrms and displays the set temperature value if without opera- tion within 3 seconds after the setting. After room temperature reaches the set temperature, display screen blinks for 10 seconds and heating unit stops working; when temperature is below the set temperature, machine restarts to heat. In low warm wind, high warm wind, and strong warm wind modes, it can be set to without temperature control, whose display icon is “--”.17

Timer In the power-on mode, press this key to select the timed shutdown setting. The timing indicator lightsup, the temperature display icon lights off, and display screen blinks and shows the rest time of last setting. Press “+” or “-” keys to set shutdown time, the set- ting range is 0~24 hours. The machine conrms the time and quits the timing setting state if without pressing within 5 seconds. If the set time is 0, it means cancelling the timing setting; if the set time is not 0, the machine shuts down automatically, enter the idle mode and turns off the timing icon when reaching the set time. Set again the time after time setting, and the machine is retimed. In the idle mode, press this key to set timing power-on, of the same operation as timing shutdown. The time unit of the timer is hour. Sway key In the power-on mode, press this key to start sway- ing, and press again to stop swaying. Light screen off function When the machine is on the working state, the screen automatically lights off and operating mode icon retains up if without operation within 1 minute. Press at the same time the key and “-” key for 2 seconds to close the light screen off function. Press again at the same time the key and “-” key for 2 seconds to open the light screen off function. Temperature sensor short circuit and open circuit protection In whatever mode, when short circuit or open circuit protection occurs to the temperature sensor, digital screen displays E1 or E2 and blinks unceasingly, any key does not work, and buzzer rings for 10 times. Safety protection In the power-on mode, when room temperature Th exceeds 50 °C, the system closes all outputs, the digital screen displays “FF” and blinks at the frequency of 1 time per second, any key does not work, and only power-off can quit protection. [Toppling over protection function] No matter in power-on or power-off mode, when the machine topples over, the system immediately shuts down all heating components and displays “E3”, any key does not work. Close key fancy light and buzzer In the power-on mode, press at the same time the “timing key” and “shift key” for 2 seconds to close key fancy light and buzzer output. Repeat this action to open them. Children lock function No matter in power-on or power-off mode, press “+” and “-” keys simultaneously18

for the rst time for 2 seconds to open the children lock function. Repeat this action to close it. Automatic power-off function Screen displays “--” if the heater is not under Temperature Control mode. When the timer function is off, the heater will automatically shut off with no operation during 12hours. Remote-control unit The use of remote-control unit: Key function is consistent with machine body control panel. Intelligent mode In the Intelligent mode, press “+” and “-” keys to set wanted temperature. When environment temperature is lower than set temperature (by more than 2 °C), the product heats in high warm wind mode; when environment temperature is close to the set temperature (by less than 2 °C or more), the product heats on low warm wind mode; when environment temperature is higher than set temperature, the product stops heating.

CLEANING AND MAINTENANCE

1. Light accumulated dust may be removed from the heater with a soft cloth. Wipe the

exterior surfaces of the heater occasionally with a cloth moistened (not dripping wet) with a solution of mild detergent and water. Dry the case thoroughly with a soft dry cloth before operating the heater.

2. The fan motor is lubricated by the factory, and will require no further lubrication.

3. No other user maintenance is required or recommended. If service is required, send

your heater to the nearest authorized servicedepot.

4. Store heater in a clean and dry place when not in use.

REMEMBER - Portable electric heaters are designed for spot heating, or as a supplementary heat source. They are not intended to be main sources of heat during the normal heating season. Note: There may be trace of smoke or odour when unit is rst operated. Do not be on the heating coil during the manufacturing process. It will quickly evaporate, and should not reoccur.19

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United KingdomModel identier(s):

Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only Nominal heat output Pnom 2.2 kW manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin 1.2 kW manual heat charge control with room and/or outdoor temperature feedback

Maximum continuous heat output Pmax,c 2.25 kW electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output no At nominal heat output (fan motor) elmax 2.2 kW Type of heat output/room temperature control At minimum heat output (fan motor) elmin 1.2 kW single stage heat output and no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control no electronic room temperature control plus day timer yes electronic room temperature control plus week timer

Other control options (multiple selections possible) room temperature control, with presence detection

room temperature control, with open window detection

with distance control option no with adaptive start control no with working time limitation no with black bulb sensor no Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany TECHNICAL PARAMETERS21
