USER MANUAL IFP8601 V7
Screen Casting by Client Application 9
Floating window. 13
Screen rearrange 13
Photo/Video sharing 14
Desktop sync. 14
Screen copy 15
Remote Control 15
Remote Camera 17
Device Management 18
Settings 21
About 22
User Guide 24
#

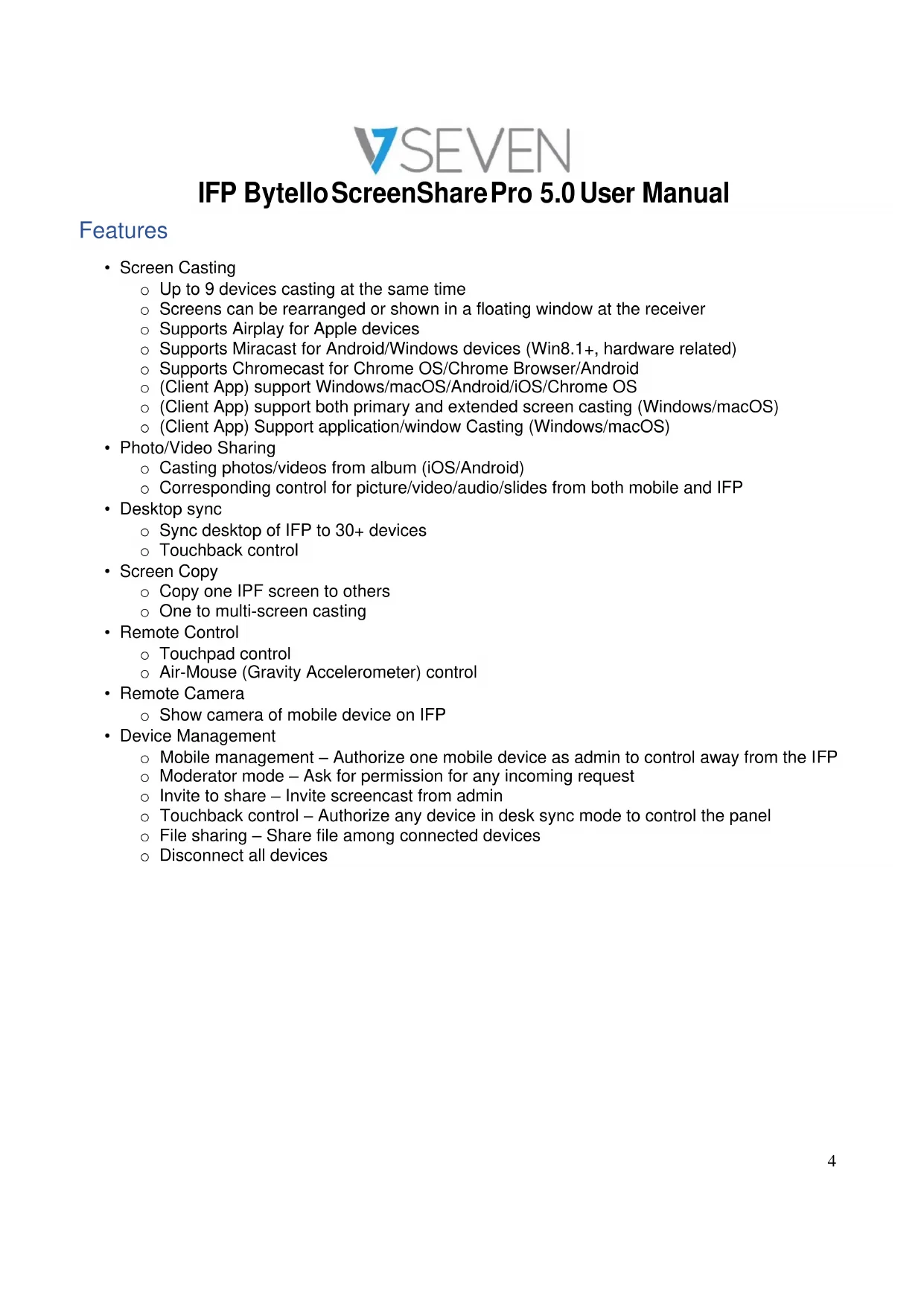

IFP Bytello ScreenSharePro 5.0 User Manual
Features
Screen Casting
O Up to 9 devices casting at the same time
- Screens can be rearranged or shown in a floating window at the receiver
Supports Airplay for Apple devices
Supports Miracast for Android/Windows devices (Win8.1+, hardware related)
Supports Chromecast for Chrome OS/Chrome Browser/Android
O (Client App) support Windows/macOS/Android/iOS/Chrome OS
(Client App) support both primary and extended screen casting (Windows/macOS)
(Client App) Support application-window Casting (Windows/macOS)
- Photo/Video Sharing
Casting photos/videos from album (iOS/Android)
Corresponding control for picture/video.audio/slides from both mobile and IFP
Desktop sync
○ Sync desktop of IFP to 30+ devices
Touchback control
- Screen Copy
O Copy one IPF screen to others
One to multi-screen casting
Remote Control
Touchpad control
○ Air-Mouse (Gravity Accelerometer) control
Remote Camera
Show camera of mobile device on IFP
Device Management
- Mobile management - Authorize one mobile device as admin to control away from the IFP
○ Moderator mode - Ask for permission for any incoming request
○ Invite to share - Invite screencast from admin
Touchback control - Authorize any device in desk sync mode to control the panel
File sharing - Share file among connected devices
Disconnect all devices
#
IFP Bytello ScreenSharePro 5.0 User Manual
Screen Casting via Standard Protocol
Airplay Mirroring
For security consideration, Airplay support is disabled by default, it could be enable in sever settings.
When Apple device is in the same network with BytelloShare server. You can simply cast the screen by choosing the "Screen Mirroring" from Control Center (the entry may different due to the OS versions).
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Android Miracast/Chromecast
For security consideration, Miracast/Chromecast support is disabled by default, it could be enable in sever settings.
For Miracast, please make sure the client device is nearby the server device;
For Chromecast, please make sure the client and server are in the same network.
Android Device:
Find "Wireless Display" in Quick Setting menu or settings, then choose the target device.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual

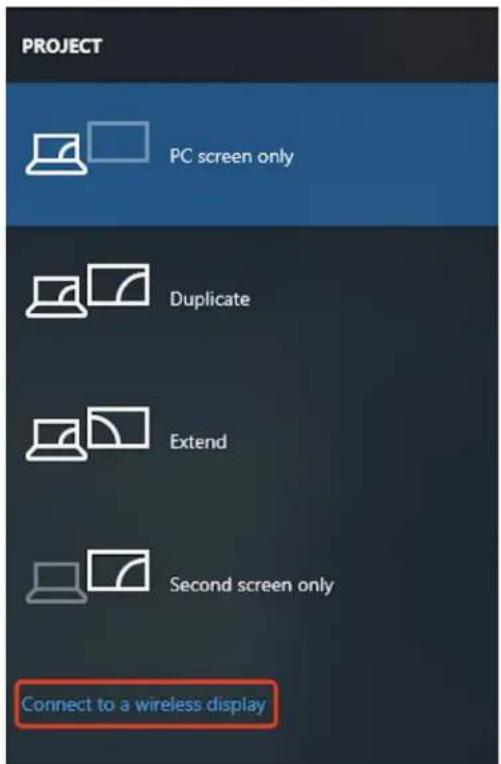

Windows Device:
Press Win+P, click "Connect to a wireless display", choose the target device.
Not all windows devices support Miracast, please check the below link:
https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Chrome OS/Browser:
Choose "Cast..." from the menu.
| New Tab | HT | |
| New Window | EN | |
| New Incognito Window | EN | |
| History | ||
| Downloads | ||
| Bookmarks | ||
| Zoom | - 100% + | |
| Print... | ||
| Cast... | ||
| Find... | ||
| More Tools | ||
| Edit | Cut | Copy |
| Settings | ||
| Help |
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Screen Casting by Client Application
Connect (with a code)
A connection code is displayed on the server.
Input the connection code on client to connect to the server.
Note: If the connection code on the server is 9-digits, please switch to 9-digits input mode on the sender.
MacOS
iOS
VSEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Connect (by services discovery)
Available server devices can be found in connection page. Simply connect by choosing the right server.
macOS
iOS
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual

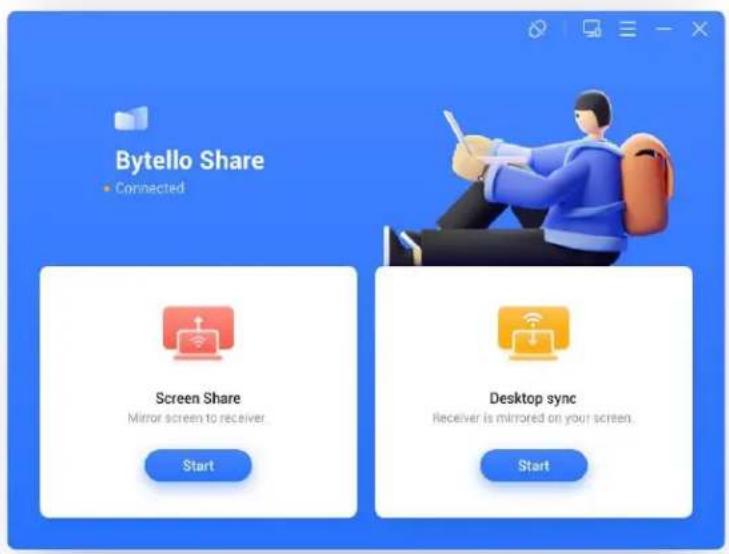

Mirroring
Click "Start" will casting the client to the server.
Windows
Android

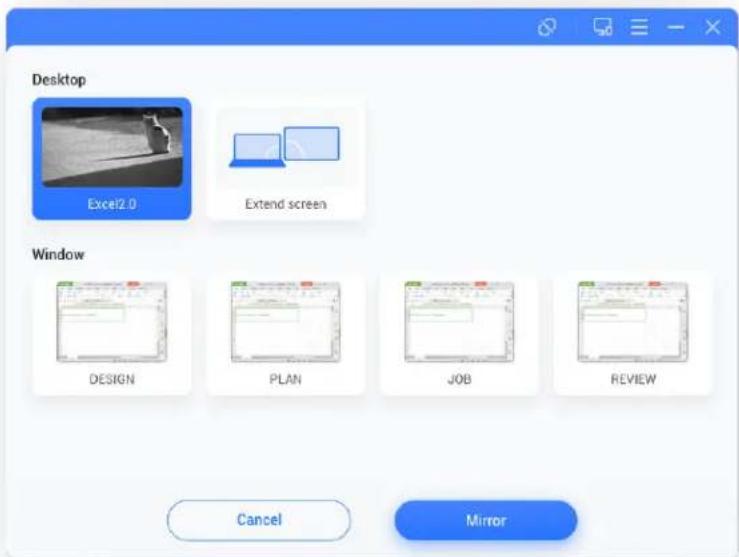

For Windows/macOS, you can share one application or window instead of entire desktop, or you can choose to share primary or extended screen.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Notes:
- Touchback control is only available when casting entire desktop and needs to be authorized from the server-side in device management page.
- When multi-screen sharing at the same time, touchback only available on the maximized screen.
- Touchback could not be used on mobile systems (Android, iOS) due to system limitation.
- For the IFP system that supports free-form mode, the sharing content could be shown as a window by sliding down from the top of the screen.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Floating window
Click this button on touch panel to turn the casting screen into a floating window.
Screen rearrange
Long press the casting screen and drag the window to adjust the order.
VSEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Photo/Video sharing
For mobile device, user could choose sharing photos or videos from album, operations like zoom in/out, adjusting playback progress can be made from the mobile devices or IFP.
Desktop sync
Mobile device could sync the desktop of the server.
Annotation could be made by enter the annotation mode from the icon besides the connection code.
Touchback is disabled by default for safety consideration, could be enabled from the device management page.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual

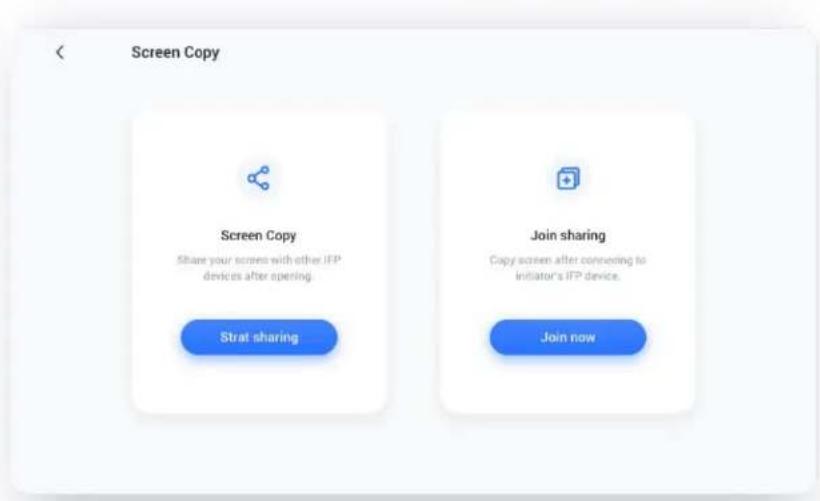

Screen copy
Make a group of displays, copy one screen to others to make them show the same content. The content may from a sender device or it can be anything on the display.
Choose "Screen Copy" - "Start Sharing" from the source device.
Choose "Screen Copy" - "Join now" from the target device.
All target device will sync the desktop from the source.
Remote Control
Android phone or iPhone could be used as a touchpad or air-mouse to control the server.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Remote Camera
Android phone or iPhone could share the camera view to the server.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual

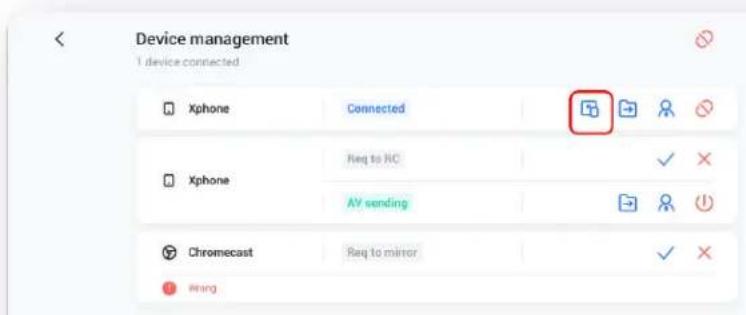

Device Management
Device management page shows all connected devices status, and allow you to perform several quick controls.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Invite to share
One could invite connected device to casting their desktop from the server.
File sharing
File on the server could be send to any connected device.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Admin authorizes
Set one device to administrator to accept or reject further casting requests.
Stop sharing / disconnect one or all devices
Stop sharing or disconnect from admin.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Settings
<
Settings
Permission
Allow connection via search without verification
Permission mode
Screen sharing requires permission.
No-client mirroring
Support Chromecast device
Support Airplay device
Support Miracast cast
This function may be used to obtain the result. Once it is done, then it does not need to use
General
Device name
Start automatically on boot
Code refresh rate
Floating window size
Help and improvement
User experience plan
We will collect general statistics about how you use the products to help us improve our products and service
About User Experience Improvement Program
Share>
Device name
Change the device name of the server, for any clients to identify.
Allow this device to be discovered
The server can be searched by the sender device.
Permission mode
When enable "Screenshare requires permission" option in settings, any casting request will ask for permission.
VSEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
Support Chromecast/Airplay device
Make the server discoverable for Chromecast/Airplay supported device.
Support Miracast device
Make the server discoverable for Miracast supported device.
Start automatically on boot
The server application will run as the system start.
Code refresh rate
The connection code will change every several minutes to prevent user from remembering.
Floating windows size
Normal (connection code with icon), small (only icon), minimize (disabled)
About
Update the software version or view the legal agreement. When there is a new version, please click "Update" to upgrade.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
About
Bytello Share V5.0
V5.1 is available.
Here is the update instructions.
Update
Terms of Service
Ethics Policy
Copyright © 2017-2021 ByEo. All Rights Reserved
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
User Guide
Including how to use the app client for connection and how to cast screen via AirPlay, ChromeCast, Miracast.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
How to share screen without client?
Airplay
Chromecast
Miracast
iPhone
1 Please down the system menu from the top of the phone and click the [Screen Mirroring].
② Making sure to connect to the same Wi-Fi, then select [Bytello Share] to start mirroring.

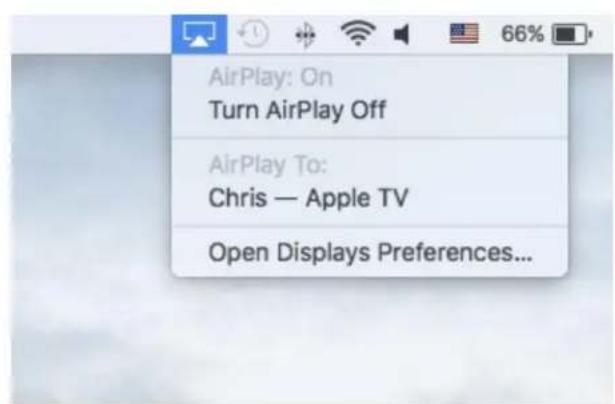

Mac
Making sure to connect to the same Wi-Fi
② Select Airplay in the status bar at the top of the system
Select the receiver device to mirror.
How to share screen without client?
Airplay
Miracast
Chrome Browser
Select [cast] in the chrome browser menu.
② Making sure to connect to the same Wi-Fi, then select [Bytello Share] in the cast tab.
7SEVEN
IFP Bytello ScreenSharePro 5.0 User Manual
How to share screen without client?
Airplay
Chromecast
Miracast
①Turn on Wi-Fi and enter Display.
Android Device
③ Turn on Wireless display.
② Enter Wireless display.
Search for devices and connect.
#
https://www.tenforums.com/tutorials/59107-check-miracast-support-windows-10-pc.html
7SEVEN
