Product type	Mobile and compact LED projector
Brand	Brennenstuhl
Model	JARO 5050 M
Power supply	220-240 V ~ 50/60 Hz
Protection rating	IP65
Impact resistance	IK08
Temperature range	-20 °C to +50 °C
Light source	Integrated non-replaceable LED
Angle adjustment	Yes, with quick lock
Tripod mounting	Possible via bracket holes (tripod not included)
Indoor/outdoor use	Yes, indoor and outdoor
Minimum lighting distance	Observe to avoid overheating of objects
Dimmer compatibility	Not compatible
Cleaning	Dry or slightly damp cloth, without solvent
Maintenance	No components requiring maintenance
Repairability	Not repairable, replace the entire unit at end of life
Disposal	According to directive 2012/19/EC, do not dispose of with household waste
Safety	Do not look directly into the beam, do not use in explosive atmospheres

Frequently Asked Questions - JARO 5050 M BRENNENSTUHL

How to adjust the angle of the projector?

Loosen the quick lock, tilt the projector to the desired position, then tighten the quick lock to lock it.

Can I use this projector with a dimmer?

No, the projector is not suitable for use with external dimmers.

What to do if the power cable is damaged?

The cable cannot be replaced. If the cable is damaged, the projector must be disposed of and replaced.

Can I replace the LED bulb?

No, the light source is not replaceable. When it reaches its end of life, replace the entire projector.

How to clean the projector?

Unplug the projector, then use a dry or slightly damp cloth. Do not use solvents or abrasive products.

What is the operating temperature range?

The projector operates from -20°C to +50°C.

Is this projector suitable for outdoor use?

Yes, thanks to the IP65 protection rating, it is dust-tight and resistant to water jets, but do not use in explosive atmospheres.

Can I mount the projector on a tripod?

Yes, the holes in the bracket allow mounting on a Brennenstuhl tripod (not included).

What do IP65 and IK08 mean?

IP65 provides protection against dust and water jets. IK08 indicates resistance to mechanical impacts.

How to dispose of the projector at end of life?

Do not dispose of the projector with household waste. According to directive 2012/19/EC, take it to a collection point for electrical appliances or contact your local authority.

USER MANUAL JARO 5050 M BRENNENSTUHL

GB Operating instructions 7

GB Operating Instructions Mobile LED Light

JARO

Attention: Before using the product, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Always check the product for damage before use. Never use the product in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the product in potentially explosive atmospheres – danger of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.
3. Please never look directly into the light.
4. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.
5. The external flexible cable of this lamp cannot be exchanged; if the cable is damaged, the lamp has to be scrapped.

Not suitable for applications with external dimmers.

If the minimum distance is not complied with, illuminated objects may overheat.

TECHNICAL DATA

Protection class: I

IP class/shock resistance: IP65, IK08

Nominal voltage: 220-240 V\~ 50/60 Hz

Temperature range: -20 °C to +50 °C

Connection cable: H07RN-F 3G1,0

This product is suitable for indoor and outdoor lighting purposes.

COMMISSIONING

Place the floodlight on a dry and level surface. The inclination of the floodlight is adjustable. To do so, loosen the lateral quick release, turn the lamp head into the desired position and lock the quick release again.

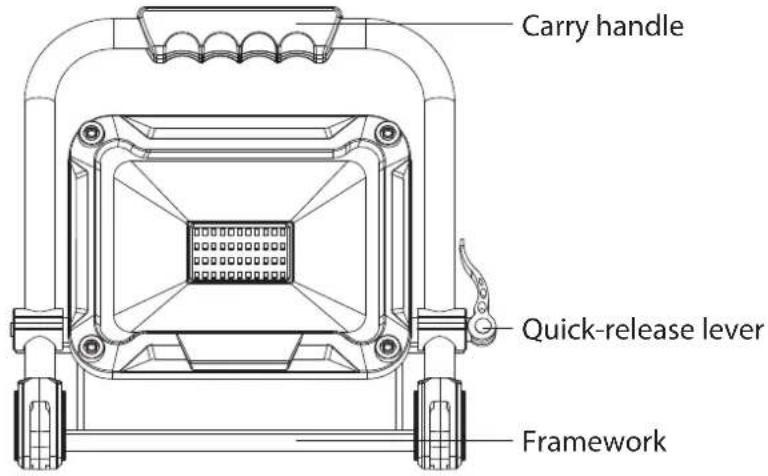

CONTROL ELEMENTS

TRIPOD MOUNTING

By means of the holes in the holding bracket, the floodlight can be mounted on a Brennenstuhl tripod (fastening material not included in the scope of delivery).

ACCESSORIES

Suitable accessories are available on our homepage www.brennenstuhl.com

MAINTENANCE

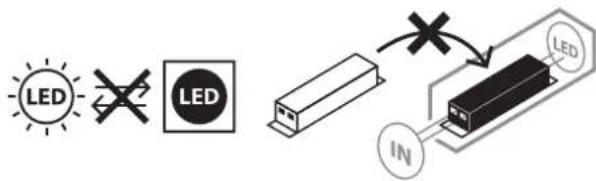

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power. Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

EU DECLARATION OF CONFORMITY

UK DECLARATION OF CONFORMITY

The declaration of conformity is deposited at the manufacturer.

ADRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.
