USER MANUAL Deli 306055 BARTSCHER

Read these instructions before using and keep them available at all times!

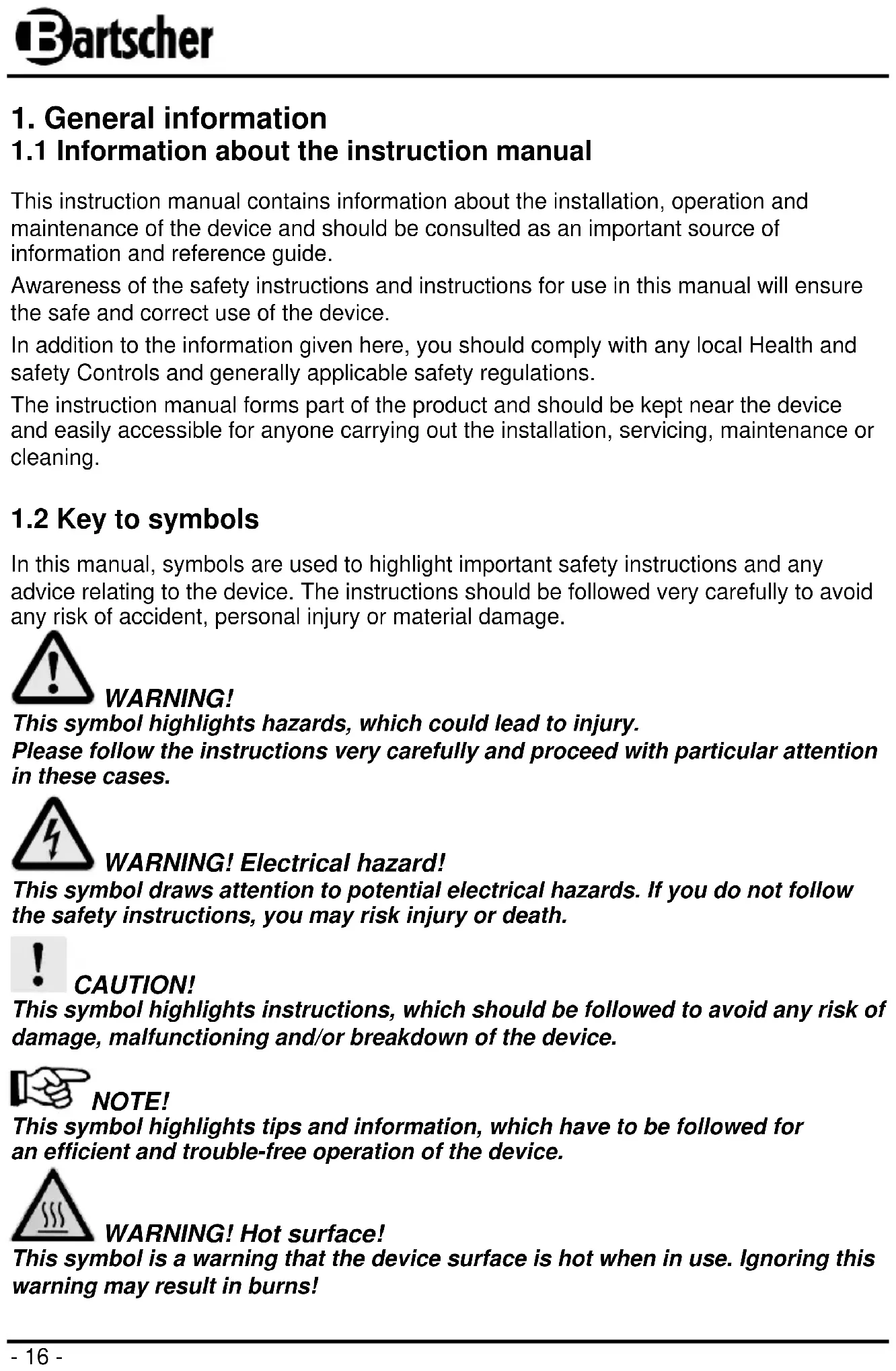

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations. The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning.

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage. WARNING! This symbol highlights hazards, which could lead to injury. Please follow the instructions very carefully and proceed with particular attention in these cases. WARNING! Electrical hazard! This symbol draws attention to potential electrical hazards. If you do not follow the safety instructions, you may risk injury or death. CAUTION! This symbol highlights instructions, which should be followed to avoid any risk of damage, malfunctioning and/or breakdown of the device. NOTE! This symbol highlights tips and information, which have to be followed for an efficient and trouble-free operation of the device. WARNING! Hot surface! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!- 17 -

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive. If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. If you have any questions, you should contact the manufacturer. NOTE! Read the instruction manual carefully before using the device. The manufacturer does not accept liability for any damage or malfunction resulting from not following the instructions for use. The instruction manual should be kept near the device, easily accessible for anyone wishing to work with or using it. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved. NOTE! The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.- 18 - 2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. By following all the important safety advice you gain an optimal protection against all hazards as well as the assurance of a safe and trouble-free operation.

This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately. Knowing the contents of the instruction manual as well as avoiding mistakes and thus operating this device safely and in a fault-free manner is very essential to protect yourselves from the hazards. To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken. This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the European Union applicable at the time of manufacturing the device. If the device is used commercially, the user is obliged to ensure that the said industrial safety measures concur with the state of the rules and regulations applicable at the time in question for the entire period of use of the device and to comply with the new specifications. Outside the European Union, the industrial safety laws applicable at the place of installation of the device and the regional territorial provisions must be complied with. Besides the industrial safety instructions in the instruction manual, the general safety and accident prevention regulations as well as environment protection regulations applicable for area of application of the device must be followed and complied with.- 19 - CAUTION! o The device can be used by children 8 years and up, as well as by people with disabilities and those with limited experience/knowledge as long as they are under supervision or have been instructed on proper use of the device and its possible dangers. o Children should not play with the device. o Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision. o Children under the age of 8 years old must be kept away from the device and its power cord. o Please keep these instructions and give them to future owners of the device. o All people using the device should follow the instructions and tips contained in these instructions. o Only use the device indoors.

Safe operation is only guaranteed when using the device for its intended purpose. Any technical interventions, as well as assembly and maintenance are to be made by a qualified customer service only. The hot cabinet is intended only for heating and maintaining the temperature of food products placed in appropriate containers. CAUTION! Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional. Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible. The operator is liable for all damages resulting from inappropriate use.- 20 -

3. Transport, packaging and storage

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation. NOTE! If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling. Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings. Packages should be stored under consideration of the following: - Do not store outdoors. - Keep it dry and dust-free. - Do not expose it to aggressive media. - Do not expose it to direct sunlight. - Avoid mechanical shocks and vibration. - In case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly. If required refresh or renew.- 21 -

4.1 Overview of parts

Temperature indicator Water tray

Shelves Feet Housing Rear sliding glass doors Front sliding glass doors Upper LED lighting Side LED lighting Side LED lighting Shelf guides- 22 - Controls

ON/OFF switch LED lighting switch Temperature dial Heating control light (orange) Power cord- 23 -

5. Installation and operation

5.1 Safety instructions

WARNING! Risk of electric shock! The device must only be connected to a properly installed single socket with protective contact. Never remove the power cable by pulling the cable itself; always grab the plug housing.

• Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.

• The power cable must not be folded, bent or tangled, and must always remain fully unrolled.

• Never place the device or other objects on the power cable.

• Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep away the cable from operating range and do not dunk it into water.

• Do not use the device in case it does not function properly, has been damaged or dropped.

• Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

• Do not move or tilt the device when in operation.

• Never use the device with wet or moist hands.

• Never leave the device unattended when in use. WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! Take note of the security advice!- 24 -

5.2 Installation and connection

CAUTION! Any installation, maintenance and repair work should be executed only by an authorized installation engineer!

• Unpack the device and dispose adequately all packaging material.

• Place the device on a flat, safe surface which can withstand the weight of the device and is not heat sensitive.

• Never place the device on an inflammable surface.

• Do not place the device near open fireplaces, electric ovens, heating stoves or other heat sources.

• Do not place the device near walls or other objects made of combustible materials. Keep a minimum distance of 10 cm on all sides.

• Do not place any objects on the device.

• The electrical circuit of the socket must be secured to at least 16A. Only connect the device to a wall outlet; do not use any extension cords or power strips.

• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.- 25 -

Preparing the device

• Prior to using the device, clean it thoroughly in accordance with the instructions in 6.2 "Cleaning".

• Place the shelves in the guides at the desired height.

• Insert the plug into a single grounded outlet.

• Turn the device on using the ON/OFF switch on the control panel.

Heating and maintaining temperature of food products NOTE!

• Preheat the cabinet to the desired temperature without water in the water tray and without food. Preheating also heats the glass panes and glass doors, which prevents condensation from forming on glass panes and doors after food is placed inside.

• Use the temperature dial to set the temperature between 30 °C and 90 °C.

• The orange heating control light next to the temperature dial will come on. When the desired temperature has been reached, the heating device will go off and the orange light will go out. If the temperature in the device begins to fall, the heater will come back on and the light will come on as well.

• The cabinet’s internal temperature can be checked by reading the temperature indicator at the front of the device. Ensure the set operating temperature has been reached before inserting food products into the device.

• Prepare the food products in the meantime.

• Pour water into the tray (approx. 0.6 liters) and replace the tray inside the device. The water tray is designed to generate humidity inside the cabinet to prevent food from drying out (especially important for baked goods). NOTE! Monitor the level of water in the tray and add water as necessary.- 26 -

• Place food in appropriate containers on the shelves in the cabinet. CAUTION! Never place food directly on the shelves, always use appropriate containers or dishes for heating food!!

• For easier use, the device has been equipped with sliding front and rear glass doors allowing food to be placed inside at the rear and removed at the front. After inserting or removing food from the cabinet, close the glass doors to keep heat from escaping the cabinet.

• Food will remain warm at the set temperature. WARNING! Hot surface! When in use, some parts of the device get very hot. To avoid burns, wear protective gloves when touching hot surfaces!

• The device is equipped with lighting at the left and right sides of the front sliding doors frame. You can turn the lighting on with the switch on the control panel.

• When the device is no longer to be used, turn it off via the ON/OFF switch and remove the plug from its socket.

6. Cleaning and maintenance

o Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids. CAUTION! The device is not suited for direct washing via water jets. Therefore, you must not use any kind of pressure water jet for cleaning the device!- 27 -

o Regularly wash the device at the end of the day or if it will remain unused for a longer period of time. o Prior to washing, remove the plug from its socket and leave the device to cool. o Remove the shelves and water tray from the cabinet. Wash these elements in warm water with a gentle cleaning agent. Rinse in running water and dry thoroughly. o If the water tray has calcium deposits, remove them regularly using commercially available chemicals. o Wash the inside and outside of the device, the sliding doors and control panel with a soft, moist cloth and gentle cleaning agent. WARNING! Ensure no water gets in the place where the water tray is situated. o Use only soft cloths, never use any abrasive scrapers as they may damage the surface of the device. o After washing, dry and polish the device’s surface with a soft, dry cloth.

6.3 Safety instructions for maintenance

o Inspect the power cable regularly for damage. Never use the device if the cable is damaged. If the power cable is damaged, have an authorised service center or qualified electrician replace it. o In case of damage or malfunction, please contact your stockist or our customer service centre. o Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.- 28 -

Discarding old devices At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community. WARNING! To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device. NOTE!

For the disposal of the device please consider and act according to the national and local rules and regulations.
