Product type	Low-level plate warming cabinet
Model	258160
Brand	Bartscher
Power supply	220-240 V ~ 50/60 Hz
Power consumption	2000 W
Maximum current	10 A
Temperature range	30 °C to 90 °C
Temperature control	Rotating thermostat (clockwise: increasing temperature)
Heat distribution	Integrated fan for forced air circulation
Capacity	Designed for 2 stacks of plates with 80 mm space for air circulation
Material	Stainless steel (estimated)
Dimensions (approx.)	600 × 600 × 850 mm (W × D × H)
Weight (approx.)	30 kg
Protection	IPX4 (protected against water splashes)
Standard	IEC EN 60335-1:2000
Power cable	H05RN-F 3×1.5 mm²
Installation	By a qualified electrician, mandatory grounding
Cleaning	Hot water + mild detergent, soft sponge, no water jet
Intended use	To heat and keep warm dishes from dishwasher
Spare parts	Contact the manufacturer with the CE marking

Frequently Asked Questions - 258160 BARTSCHER

How to install the Bartscher 258160 heating cabinet?

The electrical installation must be carried out by a qualified electrician. Check that the voltage matches that on the rating plate (220-240 V). Connect an effective earth connection. If the connection is direct, install a compliant disconnection device.

What is the temperature range of the device?

The temperature is adjustable from 30 °C to 90 °C approximately via the rotary knob. Turn clockwise to increase the temperature, counterclockwise to decrease.

How to turn the device on and off?

Press the 'A' button to position 'I' to turn on. The temperature is set with the 'C' knob. To turn off, turn the knob to 'O' then press the 'A' button to cut the power.

Can I use the device to heat food?

No, the device is designed only for heating and keeping dishes warm (plates, washer). Any other use is considered improper and may damage the device.

How to clean the heating cabinet?

Unplug the device. Clean the inside and outside with hot water and mild detergent using a soft brush or sponge. Rinse with a damp cloth. Do not use high-pressure cleaners or abrasive products.

What to do if the device does not heat up?

Check that the device is plugged in and that the 'A' button is in position 'I'. Make sure the thermostat is not set to 'O'. If the problem persists, contact a qualified electrician or the after-sales service.

Is there a risk of burns with this device?

Yes, risk of burns from contact with hot surfaces and hot dishes. Always handle with adequate protection (thermal gloves).

What is the capacity of the device?

It is recommended to arrange the plates in two stacks leaving about 80 mm space between them for air circulation. Do not block the ventilation slots.

How to obtain spare parts?

Note the data on the rating plate (model, serial number) and contact the manufacturer. The CE marking is essential for identification.

How to dispose of the device at the end of its life?

According to local regulations, disassemble the device and recycle the components separately. Do not dispose of the device with household waste.

USER MANUAL 258160 BARTSCHER

Exterior view of a stainless steel kitchen cabinet with two doors and a control panel (no text or symbols visible)

347107	348107
347127	348127
347147	348147
347167	348167
347187	348187
347207	348207

ISTRUZIONI ORIGINALI - ORIGINAL INSTRUCTIONS- ORIGINALANLEITUNG - INSTRUCTIONS ORIGINAUX

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

1. INTRODUCTION

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright. It concerns heated cupboards.

For further informaon refer to paragraph "Technical data" (2).

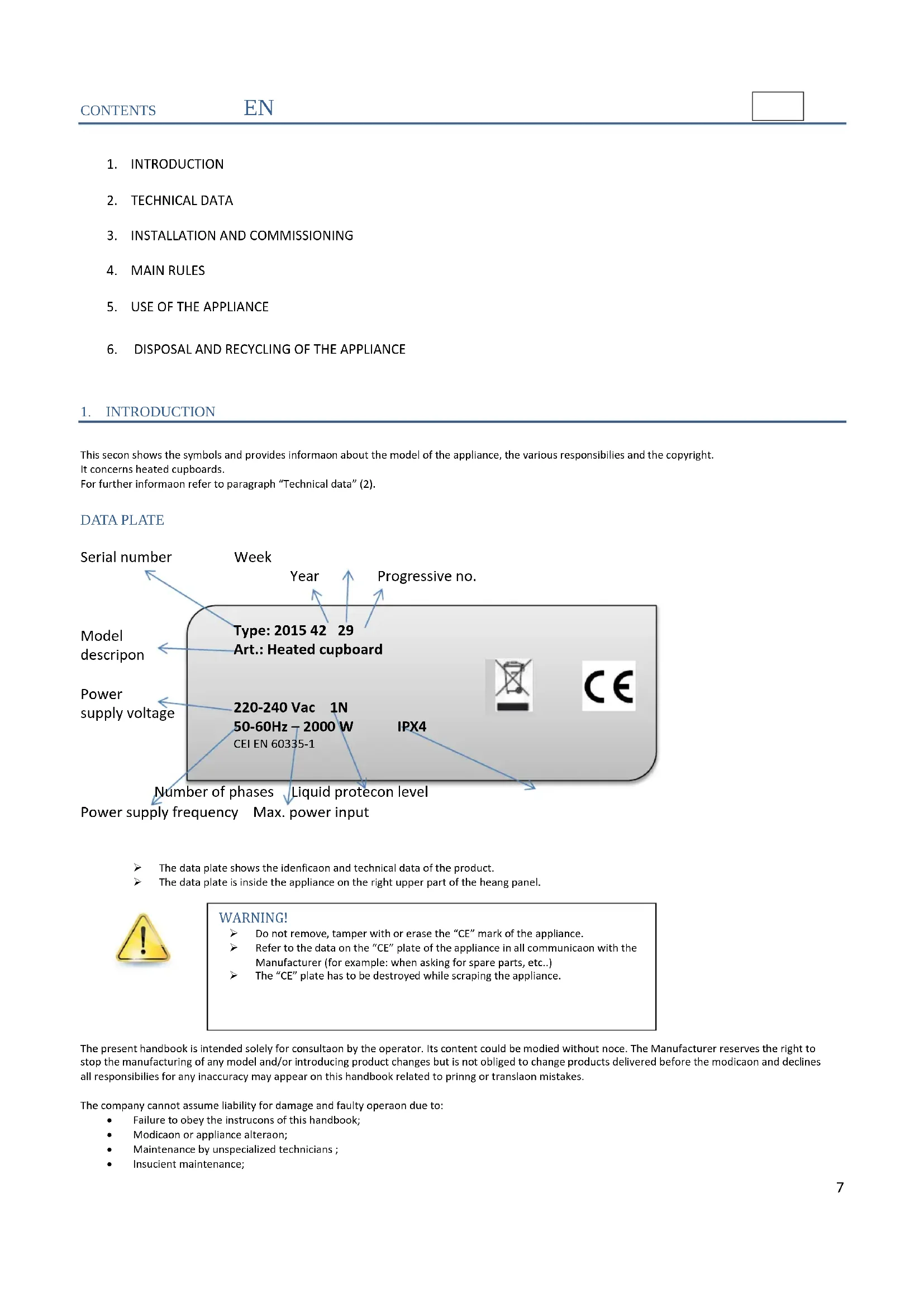

DATA PLATE

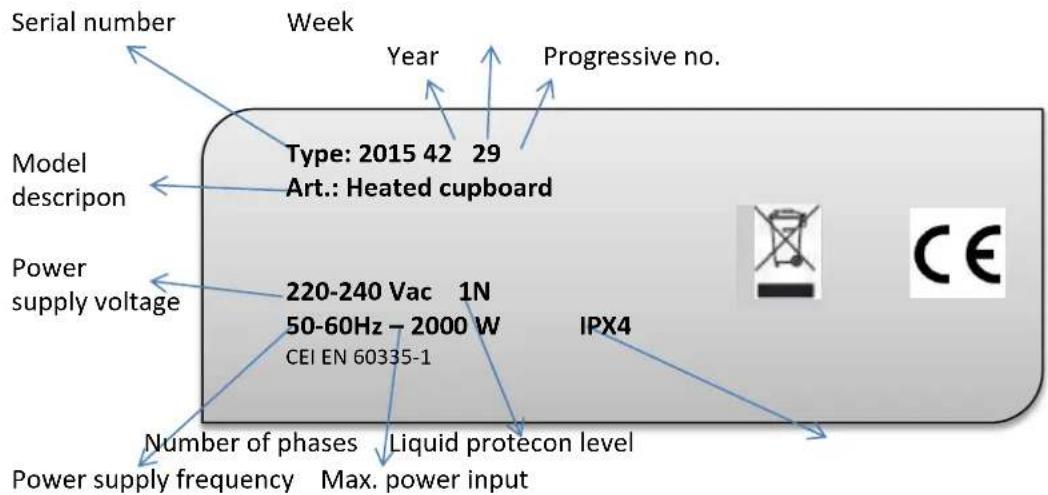

The data plate shows the identicaon and technical data of the product.

The data plate is inside the appliance on the right upper part of the heang panel.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.

Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc..)

The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultaon by the operator. Its content could be modified without noce. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prinng or translaon mistakes.

The company cannot assume liability for damage and faulty operaon due to:

• Failure to obey the instrucons of this handbook;

• Modicaon or appliance alteraon;

• Maintenance by unspecialized technicians;

• Insucient maintenance;

• Improper use of the appliance;
  • Exceponal and unforeseeable events;
  • Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  • The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevenon.

2. TECHNICAL DATA

RANGE OF HEATED CUPBOARDS

Supply voltage	V	220-240
Frequency	Hz	50-60
Max. power input	W	2000
Max. current requirement	A	10
Power cord	Mmq-H05RN-F	3x1,5
Max. supply Voltage variaon		+/- 10%
Max. Frequency variaon	connuous	+/-1%
Max. Frequency variaon	Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislaon on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3. INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protective lm taking care not to scratch the surface;
➢ Arrange the appliance and adjust its height and level by means of the adjustable feet;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct conncon to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconncon according to overvoltage III rate and accordingly to installaon rules;
Have the system tested by a qualified electrician, if operaon of the equipotenal earth conncon or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal conncon:

The Manufacturer declines all responsibilities in case of connecan made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulaons.

This appliance is designed and optimized to ensure high performance and efficiency. The sole use of this appliance is to store and heat tableware. Any other use is not permitted (e.g. heang food).

WARNING!

Contact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable cauon.

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

5. USE AND CLEANING OF THE APPLIANCE

OPERATING ELEMENTS

USE

Connect the appliance to the electric current.

Press the main switch on the supply panel that powers the appliance.

Switch on the buon "A" to posion "I". When the buon "A" is switched on, it is lighted up and the appliance is under power.

Turn the thermostat control knob "C" to reach the desired temperature (30/90°C). Turn the control knob clockwise to increase the temperature.

To decrease the temperature turn the thermostat control knob "C" to "O" posion. The heang is so disconnected but the appliance is under power.

The fan inside the appliance grants an equally distributed air circulaon.

In order to use the appliance correctly, arrange the plates in two rows inside the compartment, leaving a gap of approx. 80 mm between them so that the air can circulate.

Avoid amassing plates around the holes for air circulaon

Switch o the boom "A" to posion "O" and switch o finally the main power supply line ahead of the appliance.

CLEANING

WARNING!

Before cleaning the appliance turn it o and suspend the power source (take the plug o). The appliance is not suitable to a direct cleaning with a water stream. Don't use high pressure water streams to clean the appliance. Be careful so that the water doesn't leak in the appliance.

Before cleaning take the dishes o. Clean the stainless steel surfaces inside with a damp rag with warm water and neutral soap, rinse thoroughly and dry carefully. Clean the stainless steel surfaces outside with lukewarm water and neutral soap, rinse thoroughly and dry carefully. Don't use abrasive products, steel wools, brushes, etc.

In case of long period of inactivity, store the appliance in a cool and dry place.

Dispose of the appliance responsibly and respect the environment at the end of its useful life. Proceed with its disposal in accordance with domesc regulaon.

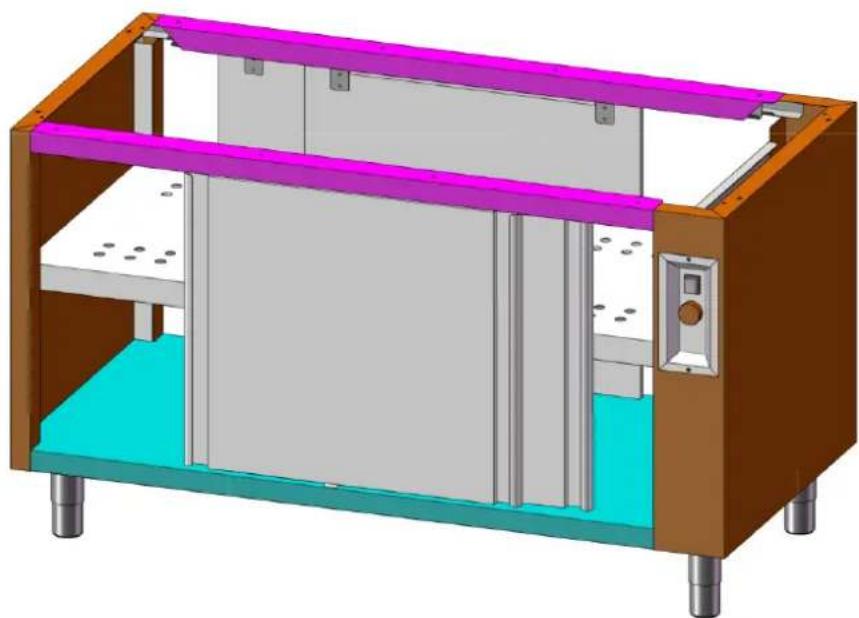

3D CAD rendering of a mechanical assembly with colored components and mounting feet (no text or symbols visible)

POS./POS. CODICE/ITEM NO. DESCRIZIONE/DESCRIPTION/BESCHREIBUNG/DESCRIPTION POS./POS. ART.NR./REFERENCE

1 PORTA SCORREVOLE/SLIDING DOOR/SCHIEBETÜR/PORTE COULISSANTE
2 NS2PST010010 PIASTRINA CON RUOTA/WHEEL SUPPORT FOR SLIDING DOOR/RAD ZUR SCHIEBETÜR/SUPPORT POUR GLISSEMENT PORTE COULISSANTE
3 TRAMEZZA/MIDDLE SHELF/ZWISCHENBORD/ETAGERE
4 NS5MOT010001 CORPO RISCALDANTE/FAN/HEIZELEMENT/ELEMENT CHAUFFANT
5 NS3CRU010001 CRUSCOTTO/CONTROL PANEL/SCHALTBRETT/PANNEAU DE CONTRÔLE
6 NS5INT010001 INTERRUTTORE BIPOLARE LUMINOSO/SWITCH ON-OFF/SCHALTER/INTERRUPTEUR
7 NS5TER010001 TERMOSTATO/THERMOSTAT/THERMOSTAT/THERMOSTAT
8 NS4PIE010001 PIEDINO/FOOT/FÜB/VERIN
9 PANNELLO/PANEL/DECKUNGSBLECH/PANNEAU
