258140 - Basket BARTSCHER - Free user manual and instructions

Product type	Heating unit (warming cabinet)
Brand	Bartscher
Model	258140
Supply voltage	220-240 V / 50-60 Hz
Max. power consumption	2000 W
Max. current consumption	10 A
Power cable	H05RN-F 3x1.5 mm²
Temperature range	30 °C to 90 °C (adjustable via thermostat)
Ventilation	Integrated fan for even distribution of hot air
Capacity	2 levels for plates, recommended spacing 80 mm
Installation	On adjustable feet, mandatory earth connection
Estimated dimensions (W x D x H)	600 x 600 x 800 mm
Estimated weight	30 kg
Material	Stainless steel (estimated)
Safety	Safety thermostat, bipolar switch, burn protection
Maintenance	Clean with hot water and neutral detergent, do not use water jet
Disposal	Comply with local recycling regulations
Use	Warming and keeping dishes warm (dishwasher)
Manual available in	French, German, English, Italian

Frequently Asked Questions - 258140 BARTSCHER

What is the required supply voltage for the Bartscher 258140 heating unit?

The supply voltage is 220-240 V with a frequency of 50-60 Hz. The maximum power consumption is 2000 W.

How to adjust the temperature on the heating unit?

Turn the thermostat knob (mark C) clockwise to the desired setting between 30°C and 90°C. Turning to the left increases the temperature. In position 'O', the heating stops but the device remains powered.

How to correctly install the heating unit?

Place the device on a stable floor, adjust the height with the adjustable feet. Connect to an effective earth socket and install a compliant circuit breaker. Ensure the mains voltage matches that on the rating plate.

Can the heating unit be used to warm food?

No, the device is designed only for warming dishes (from dishwasher) and keeping them warm. Any other use, such as warming food, is considered improper and dangerous.

How to clean the heating unit?

Before cleaning, disconnect the device and remove the plug. Use hot water and a neutral detergent with a soft sponge. Never use water jets, abrasive detergents, or steel wool. Rinse with a damp cloth.

What to do in case of thermostat malfunction?

Check that the thermostat is properly set. If the problem persists, contact a qualified technician. Do not attempt to repair the device yourself, as this voids the warranty and poses an electrical risk.

Where is the rating plate of the heating unit located?

The rating plate is located inside the device, in the upper right part of the heating panel. It contains identification and technical data (voltage, power, etc.).

What is the capacity of the warming cabinet?

The cabinet can accommodate plates on two levels. It is recommended to leave a space of about 80 mm between levels to allow hot air circulation.

Can the heating unit be used continuously?

Yes, the device is designed for continuous professional use. However, if you plan not to use it for a long period, store it in a dry place away from moisture.

How to dispose of the heating unit at end of life?

Dismantle the device in accordance with the regulations in force in your country regarding electronic waste recycling. Contact your local recycling center for more information.

USER MANUAL 258140 BARTSCHER

1. INTRODUCTION
2. TECHNICAL DATA
3. INSTALLATION AND COMMISSIONING
4. MAIN RULES
5. USE OF THE APPLIANCE
6. DISPOSAL AND RECYCLING OF THE APPLIANCE

1. INTRODUCTION

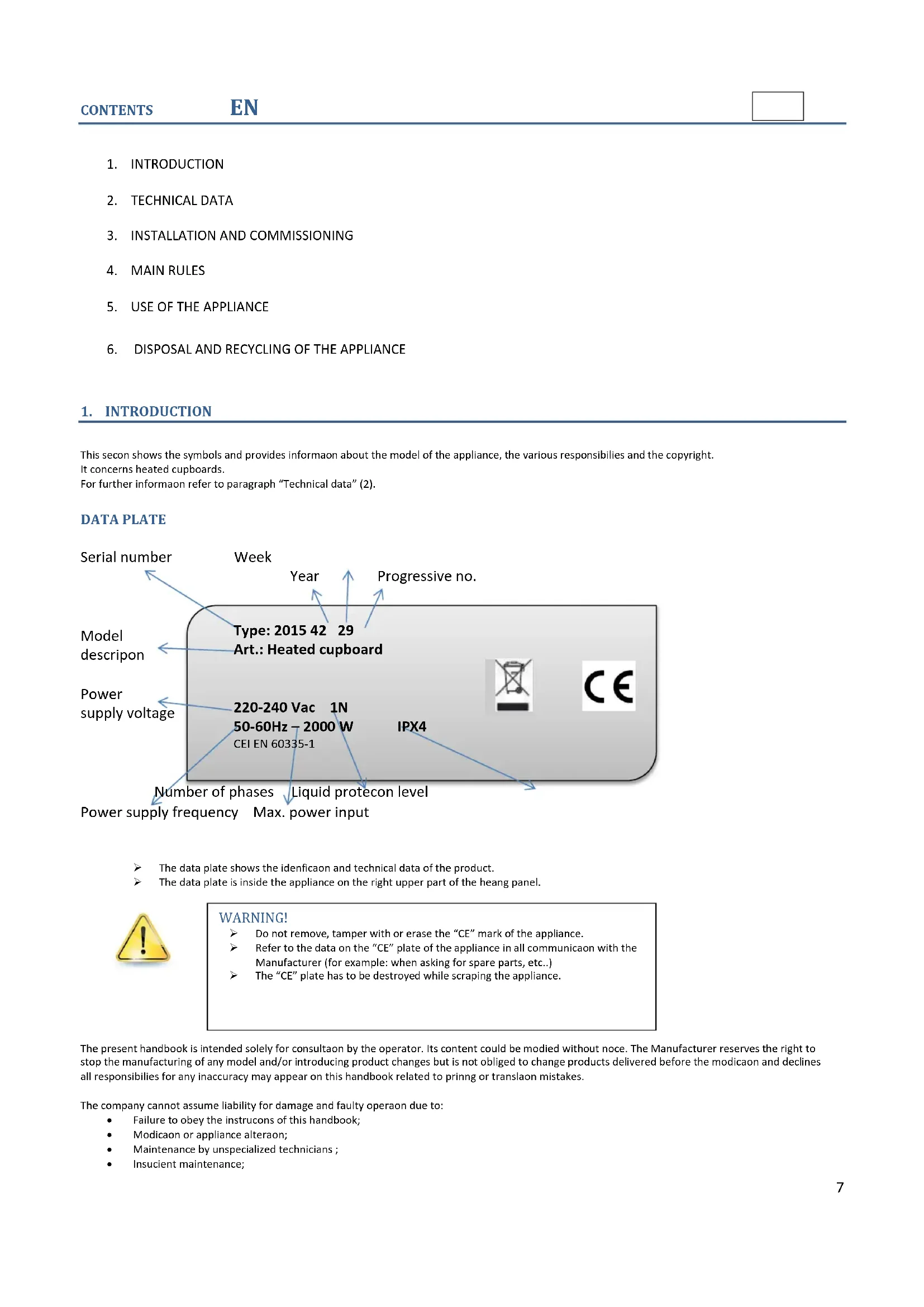

This secon shows the symbols and provides informaon about the model of the appliance, the various responsibilities and the copyright. It concerns heated cupboards. For further informaon refer to paragraph "Technical data" (2).

DATA PLATE

The data plate shows the identificaon and technical data of the product.
The data plate is inside the appliance on the right upper part of the heang panel.

WARNING!

Do not remove, tamper with or erase the "CE" mark of the appliance.
Refer to the data on the "CE" plate of the appliance in all communicaon with the Manufacturer (for example: when asking for spare parts, etc..)
The "CE" plate has to be destroyed while scraping the appliance.

The present handbook is intended solely for consultancy by the operator. Its content could be modied without noise. The Manufacturer reserves the right to stop the manufacturing of any model and/or introducing product changes but is not obliged to change products delivered before the modicaon and declines all responsibilities for any inaccuracy may appear on this handbook related to prning or translaon mistakes.

The company cannot assume liability for damage and faulty operon due to:

• Failure to obey the instrucons of this handbook;
  Modicaon or appliance alteraon;

• Maintenance by unspecialized technicians;
  Insucient maintenance;

• Improper use of the appliance;

• Exceponal and unforeseeable events;
  Unrespect to domestic legislation on health, hygiene and safety at the workplace;
  The employer is responsible for the periodic training of the operators about the correct use, safety rules and re prevenon.

2. TECHNICAL DATA

RANGE OF HEATED CUPBOARD

Supply voltage

Frequency

Max. power input

Max. current requirement

Power cord

Max. supply Voltage variaon

Max. Frequency variaon

Max. Frequency variaon

V	220-240
Hz	50-60
W	2000
A	10
Mmq-H05RN-F	3x1,5
	+/- 10%
connnuous	+/-1%
Short period	+/- 2%

WARNING!

The electric power system and the rooms where the appliance is placed have to respect domesc legislao on safety, accident prevenon and re regulaons. On the contrary the Manufacturer won't assume liability for direct and indirect damages to people or things.

3.

INSTALLATION AND COMMISSIONING

WARNING!

Intervenon on the electric power system must be solely performed by specialized electricians.

Proceed according to the following instrucon before connecng the appliance:

Remove the packaging and then the protece Im taking care not to scratch the surface;
Arrange the appliance and adjust its height and level by means of the adjustable feet;
Make sure the power supply of the appliance shown on the data plate is compatible with the grid voltage;
Check the power supply of the system is set up and able to take the current load, and meets the legal requirements and domestic standards;
The appliance must be earthed;
In case of direct connec to the electricity grid (without plug), it's necessary providing for a wall switch or a contactor, which grant the complete disconnec on according to overvoltage III rate and accordingly to installaon rules;
Have the system tested by a qualified electrician, if operaon of the equipotenal earth connecn or the safety of the electrical system is in doubt, the symbol below idenes the equipotenal connecn:

The Manufacturer declines all responsibilities in case of connecn made by the user or unspecialized sta

WARNING!

Aer installaon dispose of the packaging according to current regulaons.

This appliance is designed and optimized to ensure high performance and ciency. The sole use of this appliance is to store and heat tableware. Any other use is not permied (e.g. heang food).

WARNING!

Contact with hot tableware can cause burns.
Use always suitable safety equipment while handling objects

4. MAIN RULES

The Manufacturer does not assume responsibility for faults or damage due to tampering the appliance. This appliance must be used by skilled persons that must be periodically trained for its correct use and according to the safety regulaons and prevenon of accidents. Contact with hot tableware in the appliance can cause health risks. In order to prevent them use safety equipment and act with suitable caun.

WARNING!

Intervention on the electric power system must be solely performed by specialized electricians.

5. USE AND CLEANING OF THE APPLIANCE

OPERATING ELEMENTS

USE

Connect the appliance to the electric current.

Press the main switch on the supply panel that powers the appliance.

Switch on the buon "A" to posion "I". When the buon "A" is switched on, it is lighted up and the appliance is under power.

Turn the thermostat control knob "C" to reach the desired temperature (30 / 90^) . Turn the control knob clockwise to increase the temperature.

To decrease the temperature turn the thermostat control knob "C" to "O" posion. The heang is so disconnected but the appliance is under power.

The fan inside the appliance grants an equally distributed air circulaon.

In order to use the appliance correctly, arrange the plates in two rows inside the compartment, leaving a gap of approx. 80mm between them so that the air can circulate.

Avoid amassing plates around the holes for air circulaon

Switch o the boom "A" to posion "O" and switch o finally the main power supply line ahead of the appliance.

CLEANING

WARNING!

Before cleaning the appliance turn it o and suspend the power source (take the plug o). The appliance is not suitable to a direct cleaning with a water stream. Don't use high pressure water streams to clean the appliance. Be careful so that the water doesn't leak in the appliance.

Before cleaning take the dishes o. Clean the stainless steel surfaces inside with a damp rag with warm water and neutral soap, rinse thoroughly and dry carefully. Clean the stainless steel surfaces outside with lukewarm water and neutral soap, rinse thoroughly and dry carefully. Don't use abrasive products, steel wools, brushes, etc.

In case of long period of inactivity, store the appliance in a cool and dry place.

Dispos of the apianr sboiy and rce the enmert at the end of its useful life. Proced wth its disposal in accordance with domsc reglaon.
