Product type	Digital vacuum gauge
Brand	Testo
Model	552
Vacuum measurement range	0 to 26.66 mbar / 0 to 20,000 microns
Sensor overload (relative)	5 bar / 72 psi
Vacuum resolution	1 µm (0-1000 µm), 10 µm (1000-2000 µm), 100 µm (2000-5000 µm), 500 µm (5000-10000 µm), 5000 µm (10000-20000 µm)
Vacuum accuracy (at 22°C)	±(10% of reading + 10 µm) for 100 to 1000 microns
Operating temperature	-10 to 50°C / 14 to 122°F
Storage temperature	-20 to 50°C / -4 to 122°F
Temperature resolution	0.1°C / 0.1°F
Protection class	IP 42
Power supply	2 AA batteries (1.5 V)
Battery life	50 hours (without backlight or Bluetooth)
Connections	2 x 7/16" UNF, 1 x MiniDIN
Bluetooth	Yes, range up to 15 m (outdoors)
Display	LCD screen with backlight
Main functions	Vacuum pressure and temperature measurement, adjustable alarm, AutoOff function
Sensor	1 x Pirani sensor
Measurement interval	Every 0.5 seconds
Maintenance	Clean with alcohol, do not use sharp objects
Safety	Follow operating instructions, do not open the device
Accessories	Connection cable (ref. 0554 5520)
Compliance	CE, FCC Part 15C

Frequently Asked Questions - 552 Testo

How to turn on or off the Testo 552?

Press the on/off button (power symbol). The device turns on or off.

How to change the pressure unit?

In the Settings menu, press △ to select the desired unit (mbar, hPa, micron, etc.), then confirm with set.

How to activate Bluetooth connection?

Press and hold the set and △ buttons simultaneously for 3 seconds. The Bluetooth symbol appears on the screen.

What if measurements are inconsistent?

Check the connection of the testo 552, the tightness of the hoses, and clean the sensor as described in the Cleaning section.

What does the display 'oooooo' mean?

The measured pressure is outside the measuring range (0 ... 20,000 microns). Check the installation.

How to clean the vacuum sensor?

Turn off the device, pour a few drops of cleaning alcohol into a connection, shake, then drain the alcohol. Repeat 2 times and let dry for 1 hour.

How to replace the batteries?

Turn off the device, open the battery compartment by unfolding the hook, replace the used batteries with two new AA batteries observing polarity, then close.

Can I use the testo 552 as a sensor with the testo 570?

Yes, connect the testo 552 to the testo 570 via the connection cable 0554 5520 and activate the Evacuation mode on the testo 570. The testo 552 switches to slave mode.

What is the vacuum measurement accuracy?

The accuracy is ±(10% of the measured value + 10 microns) in the range of 100 to 1000 microns at 22°C.

Where can I buy accessories or spare parts?

Accessories like the connection cable (ref. 0554 5520) are available from Testo dealers or on the website www.testo.com.

USER MANUAL 552 Testo

Technical diagram of a medical device with numbered parts and labeled parts in Chinese

Technical diagram of a medical or diagnostic device with labeled parts including set, warning symbol, and power button

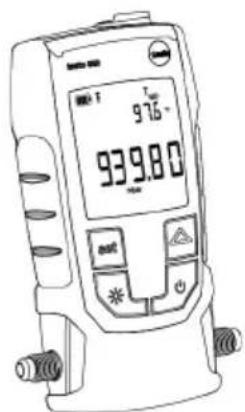

Line drawing of a medical or laboratory device with control buttons and display screen (no text or symbols)

Line drawing of a medical or laboratory device with control buttons and ports (no text or symbols)

Line drawing of a medical device with control buttons and ports (no text or symbols)

Line drawing of a medical or laboratory device with control panel and buttons (no text or symbols)

℃

On RUT OFF

T 976- 93.9.8.0 ###

976 93.980

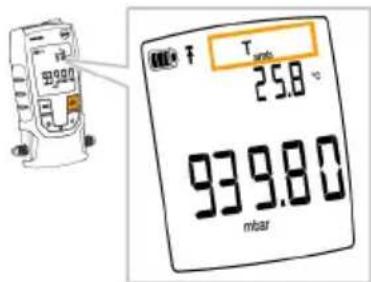

T 25.8 ° 93.9.80 mbar

Technical diagram of a mechanical device with a hook and internal orange component, no visible text or symbols

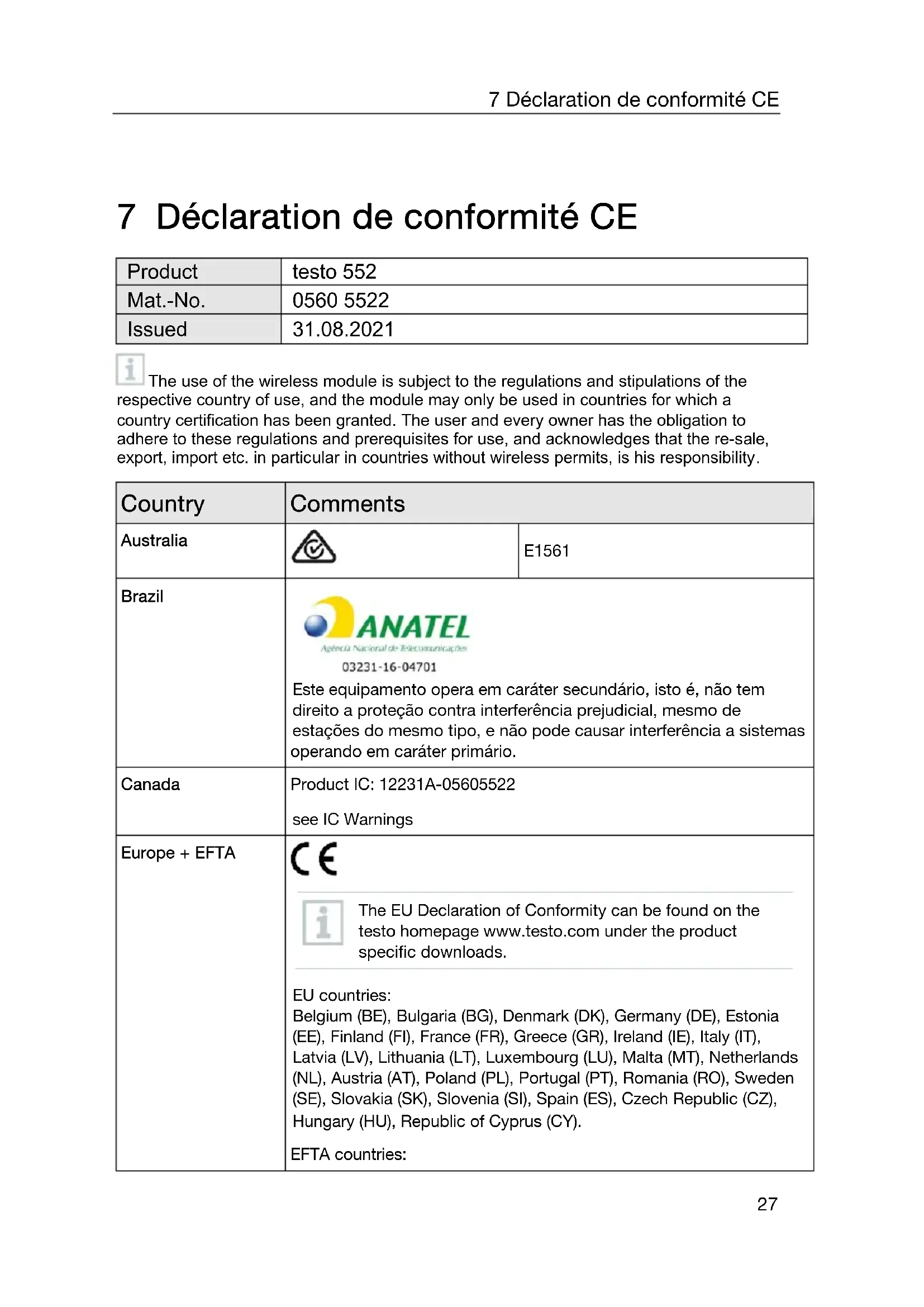

The use of the wireless module is subject to the regulations and stipulations of the respective country of use, and the module may only be used in countries for which a country certification has been granted. The user and every owner has the obligation to adhere to these regulations and prerequisites for use, and acknowledges that the re-sale, export, import etc. in particular in countries without wireless permits, is his responsibility.

	Iceland, Liechtenstein, Norway, Switzerland
Japan	204-640004see Japan Information
Korea	MSIP-CRM-Toi-552see KCC Warning
Malaysia	Authorized
South Africa	ICASA ID: TA-2016/1706
Turkey	Authorized
UAE	TRA number: ER79893/20
United Kingdom (GB)	The UK Declaration of Conformity can be found on the testo homepage www.testo.com under the product specific downloads.
USA	Product FCC ID: 2ACVD05605522see FCC Warnings
Bluetooth SIG Listing	Feature	Values
	Bluetooth Range	< 20 m (free field)
	Bluetooth type	L Series BLE module (08 May 2013) based on TI CC254X chip
	Qualified Design ID	B016552
	Bluetooth radio class	Class 3
	Bluetooth company	LSD Science & Technology Co., Ltd
	RF Band	2402-2480MHz
	Output power	0 dBm

FCC Warnings

Information from the FCC (Federal Communications Commission)

For your own safety

Shielded cables should be used for a composite interface. This is to ensure continued protection against radio frequency interference.

FCC warning statement

This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Shielded interface cable must be used in order to comply with the emission limits.

Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

IC Warnings

This instrument complies with Part 15C of the FCC Rules and Industry Canada RSS-210 (revision 8). Commissioning is subject to the following two conditions:

(1) This instrument must not cause any harmful interference and
(2) this instrument must be able to cope with interference, even if this has undesirable effects on operation.
