Pastaio Elegance G20137 - Food Processor G3 Ferrari - Free user manual and instructions

Product type	Food processor (stand mixer)
Brand	G3 Ferrari
Model	Pastaio Elegance G20137
Power supply	AC 220-240 V, 50-60 Hz
Rated power	1800 W (max 2300 W)
Bowl capacity	8 liters
Bowl material	Stainless steel
Included accessories	Dough hook, whisk, paddle
Optional accessories	Pasta machine G20138
Speeds	10 adjustable speeds with ⊕ and ⊖ buttons
Timer	Yes, countdown with automatic stop
Max ingredient weight (soft dough)	3.5 kg
Max ingredient weight (hard dough)	2.5 kg
Max ingredient weight (fresh pasta)	2 kg
Max continuous use time	20 minutes
Recommended rest time	At least 10 minutes
Cleaning	Motor unit: damp cloth; accessories, bowl and lid: hand wash, not dishwasher safe
Safety	Do not use by children under 8 years; do not immerse motor unit; use on a flat, stable surface
Display	Touch screen with icons for speed, timer and controls
Country of origin	Not specified

Frequently Asked Questions - Pastaio Elegance G20137 G3 Ferrari

What is the maximum capacity of the bowl?

The stainless steel bowl has a capacity of 8 liters. Use it without exceeding the recommended ingredient weights: 3.5 kg for soft dough, 2.5 kg for hard dough (pizza, bread) and 2 kg for fresh pasta.

Can I use the appliance continuously for a long time?

To prevent motor overheating, do not use the appliance for more than 20 minutes continuously. After this time, let it rest for at least 10 minutes before using again.

Are the bowl and accessories dishwasher safe?

No, the bowl, lid and accessories (dough hook, whisk, paddle) are not dishwasher compatible. Wash them by hand with a non-abrasive sponge and mild detergent, then dry thoroughly.

How to clean the motor unit?

Never immerse the motor unit in water. Clean it with a damp cloth and non-abrasive detergent. Avoid any water infiltration into the motor housing.

What types of dough can I prepare?

You can prepare soft doughs (cakes), hard doughs (bread, pizza, pasta) and fresh pasta. Use the appropriate accessory: the dough hook for hard doughs, the paddle for soft doughs, the whisk for beating or whipping.

How to adjust speed and timer?

Use the touch screen: press the speed icon, adjust from 1 (slow) to 10 (fast) with the ⊕ and ⊖ buttons. For the timer, press SET and set the desired time. Press the start button to begin.

Can I use the pasta machine accessory simultaneously with kneading?

No, the pasta machine accessory (model G20138, sold separately) cannot be used simultaneously with kneading. This could damage the appliance due to overload.

Is the appliance suitable for children?

This appliance should not be used by children, even those over 8 years old. Keep the appliance and power cord out of reach of children under 8 years.

What to do if the appliance does not work?

First check that the plug is connected and the circuit breaker has not tripped. If the problem persists, do not intervene yourself. Contact an authorized service center by the manufacturer for any repairs.

How long is the warranty?

The manual does not specify the warranty duration. Check the conditions provided with your appliance or contact the retailer. To keep the warranty, use the appliance according to the instructions and entrust repairs to an approved service.

USER MANUAL Pastaio Elegance G20137 G3 Ferrari

Technical model: SM-1525M

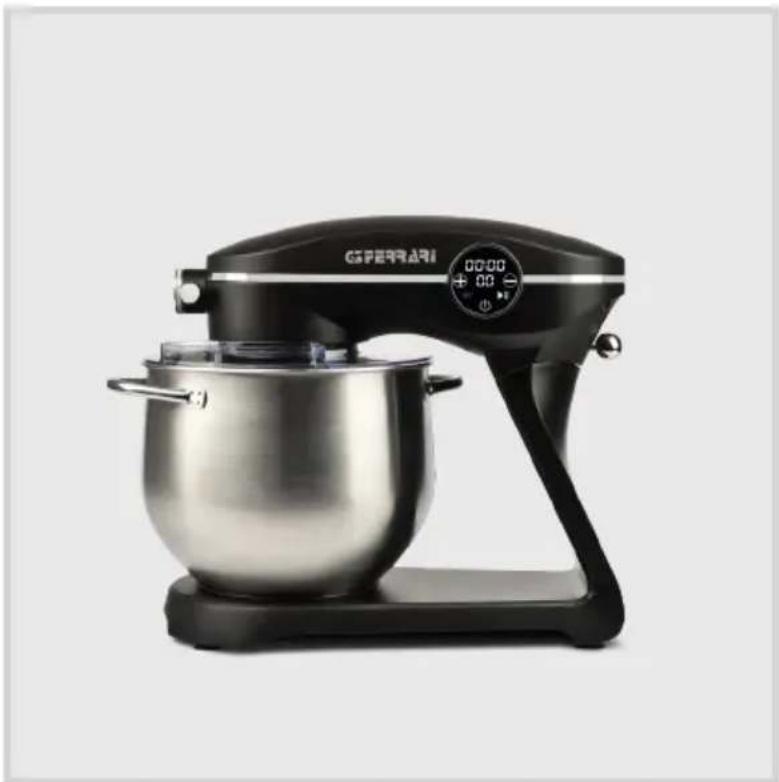

Exterior view of a Ferrari stand mixer with black control panel and stainless steel bowl (no text or symbols visible)

Impastatrice planetaria - Stand mixer

PASTAIO ELEGANCE

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

G20137 p. 11

Kneading.... p. 11

Display touch screen.... p. 12

Select the attachment.... p. 12

Pasta Maker (optional)....p. 12

Cleaning.... p. 13

Technical features.... p. 13

Waste of Electric and Electronic Equipment (WEEE

Directive)....p. 34

PORTUGUES:....p. 13

ESPAÑOL p. 18

DEUTSCH: p. 23

FRANCAIS: p. 28

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

Simple line drawing of a cylindrical object with a flanged top and a labeled number 11 (no text or symbols on the object itself)

PGI

PG2

PG3

Line drawing of a rectangular mechanical component with a cylindrical protrusion (no text or symbols)

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper,

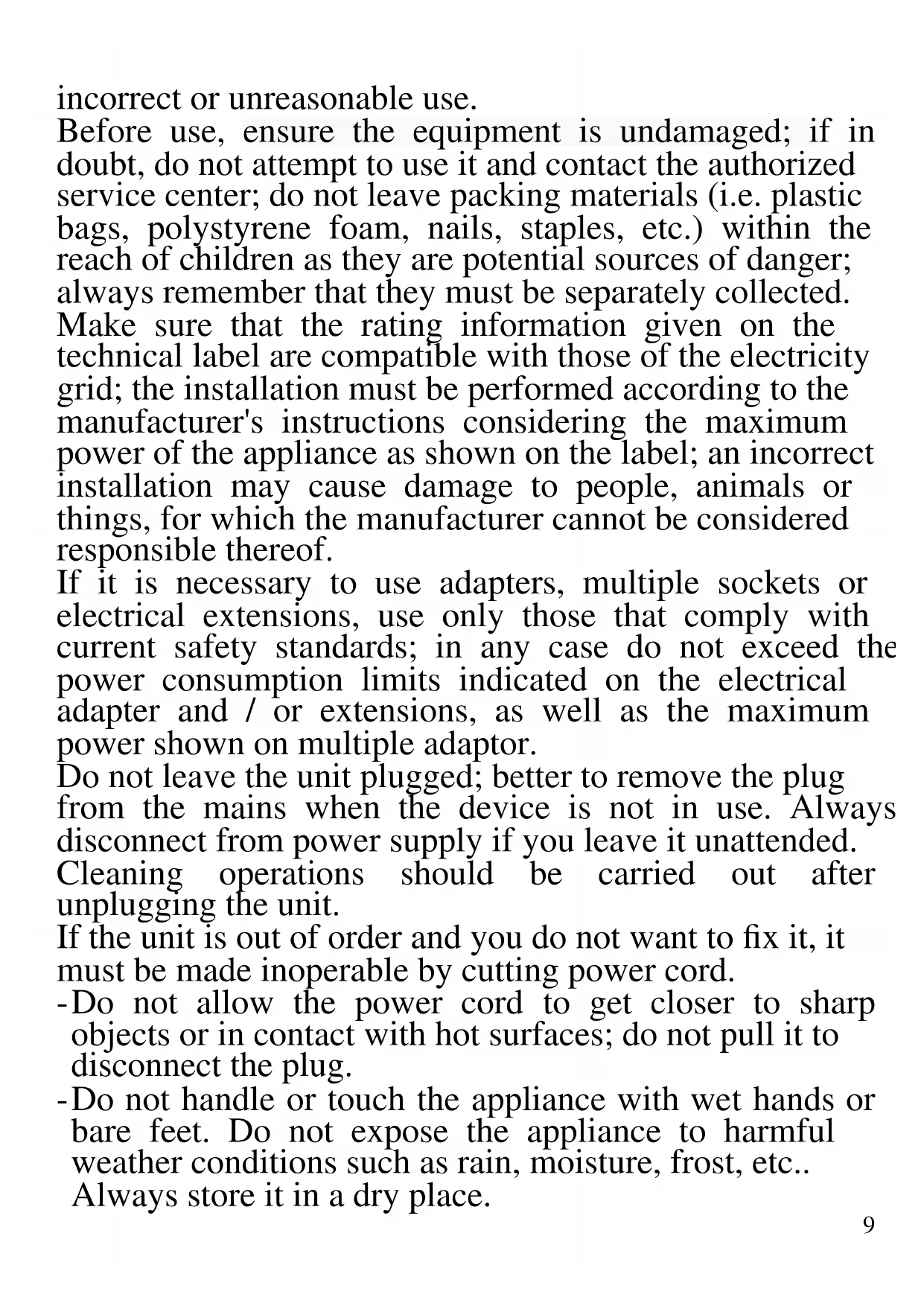

incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• This appliance cannot be used by children, even if they're more than 8 years old.
• Children must not play with the appliance.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

- Before first use, wash carefully the parts in touch with

food: container, cover and accessories.

- To avoid the overheating of the engine does not use the appliance running continuously for more than 20 minutes; in this case interval with at least 10 minutes of rest. Do not use without food inside the container.

- Do not put your fingers inside the container of food while the unit is operating. Keep hair and thing away from moving parts. Do not insert ects or ingredients while the machine is running.

- Place the unit on a flat, stable and not slippery surface.

- Before operating, check that the parts are assembled correctly. Disconnect plug from electrical outlet after use and before install or remove any accessory.

- Clean accessories after each use. The use of non-original accessory may damage the unit and invalidate warranty.

- Never leave the appliance unattended while it is running.

- Do not immerse the main unit in water or other liquids; clean it with a damp cloth.

WARNING!!! Do not overload appliance. Total weight of ingredients in the container cannot be 3.5 Kg, in case of soft dough, or 2.5 Kg, in case of d pastes like pizza, or 2 Kg for fresh made pasta.

- When using pasta maker, do not insert fingers or hair or clothes on the reels.

WARNING!!! Do not use the appliance as kneading machine and with one of the optional accessories at the same time. This may result in damage due to overload.

DESCRIPTION G20137

1. Transmission
2. Main housing
3. Mixer accessory
4. Lid

5. Pasta maker accessory (not included)

6. Head release lever

7. Stainless steel bowl
8. Beater

9. Accessories gear

10. Display touch screen

11. Hook

PG1

PG2

FUNCTION

• Raise the main body using the release lever (2), image PG1.

• Mount the lid (9) on housing (4) (img. PG2).

• Fit the container (5) in place by turning it until it blocks. (img. PG3).

• Install the accessory by entering the joint in the drive shaft of the unit (PG4), and then turn it until it locks (PG5).
• Place the ingredients inside the bowl. The total weight of ingredients cannot exceed 3.5 Kg, in case of soft dough, or 2.5 Kg, in case of hard pastes, like pizza paste, or 2 Kg for fresh made pasta.
• Lower the arm by releasing the lever (2). (Img. PG6).
• Connect the plug into an electrical outlet.
• Start the product with the display touch screen (3). It is advisable to use lower speed at the beginning, and then go to higher speeds. If the dough is hard do not use high speeds.

CAUTION: To avoid overheating do not use continuously for more than 20 minutes; in this case interval with at least 10 minutes of rest. Do not use the appliance without food inside the container.

- When the work is finished, stop the machine

After the process, release the arm with the button (2) and lift it, remove the accessory and the container with food. Remove the dough using a spatula.

Clean the product by following the instructions you will find in "Cleaning" section.

• Connect the plug into an electrical outlet. On display appears icon
• Press icon ☐ on display the 2 digits of the speed get flashing.
• Set the speed with ⊕ and ⊖; “1” is the lowest, “10” is the highest.
• Press start operation. While machine is working:

○ on display the timer shows the time passed from switch on
○ can change the speed with a.
○ Can switch off pressing icon .

Switch on with Timer

To set a countdown after which the stand mixer stops automatically:

• Connect the plug into an electrical outlet. On display appears icon
• Press icon 1 on display the 2 digits of the speed get flashing.
• Set the speed with ⊕ and ⊖; “1” is the lowest, “10” is the highest.
• press SET: timer flashes. Set the desired time with ⊕ and ⊖
• Press 📄 start operation. While machine is working:

o on display the timer shows the time remaining
○ can change the speed with a.
○ Can switch off pressing icon .

SELECT THE ACCESSORY

There are three accessories included, to be used depending on the situation.

HOOK (6). Use this accessory with hard dough, like bread, pizza, pasta, etc...

MIXER (7). Use it with soft dough, such as sweets, or for blending, mixing BEATER (8). Use it for beating eggs or whipping.

PASTA MAKER (optional)

The pasta maker attachment is not included in the package and is provided separately. You can order it from your dealer, asking for model G20138 (pasta maker). Assemble the attachment to the front gear (10):

• Unscrew the lateral knob and remove the lid in order to discover the gear.
• Insert properly the pasta maker in the gear (10).
• Fix the pasta maker screwing the lateral knob.

Line drawing of a rectangular electronic component with a cylindrical body and threaded end (no text or symbols)

The pasta maker has 8 thickness regulations that can be set by rotating the knob of pasta maker. Start from the bigger thickness (8) and go thinner step by step, until you have the desired thickness.

CLEANING - Unplug the unit.

Do not immerse the main body in water, only wash it with a damp cloth and non-abrasive detergent. Avoid any infiltration of water inside motor housing.

The attachments, the container and the lid cannot be washed in the dishwasher, wash them by hand with non-abrasive sponge and mild detergent. Dry them thoroughly before assembling them to the unit.

After having washed the pasta maker, lubricate the rollers with vegetable oil.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. Power: Rated 1800W, Locked 2300W
• 10 speeds and timer
• Stainless steel container 8 L capacity, up to 3.5 Kg of ingredients
- Accessories: hook, beater, mixing attachment, container, lid
- Optional accessories: pasta maker mod. G20138

PORTUGUES: ADVERTÊNCIAS

FUNCIONAMENTO

DISPLAY DIGITAL

Line drawing of a rectangular mechanical component with a cylindrical protrusion (no text or symbols)

Line drawing of a kitchen mixer with Step ⑦ label (no text or symbols on the device itself)

PG6

FUNCIONAMIENTO

Line drawing of a rectangular mechanical component with a cylindrical protrusion (no text or symbols)

Line drawing of a kitchen mixer with a bowl and stand (no text or symbols)

PG5

Line drawing of a kitchen mixer with a step indicator (no text or symbols on the device itself)

PG6

KNETEN

Betrieb mit timer

WÄHLEN SIE DAS ZUBEHÖR

Line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

SÉLECTIONNER L'ACCESSOIRE

Line drawing of a rectangular mechanical component with a cylindrical protrusion (no text or symbols)

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

TREVIDEA S.r.l. reserves the right to make ELECTRICAL, TECHNICAL and AESTHETIC changes to the devices and / or replace parts without prior notice to always offer more reliable, durable and advanced technology. TREVIDEA S.r.l. also would like to apologize for any possible printing errors.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
