USER MANUAL Pastaio Shake G20134 G3 Ferrari

Black G Ferrari brand mixer with stainless steel bowl and control knob (no visible text or symbols)

Impastatrice planetaria

Stand mixer

PASTAIO SHAKE

ITA: INDICE

Simbologia.... p. 2

Safety instructions.... p. 8

General information.... p. 10

G20134.... p. 11

Kneading.... p. 11

Select the attachment.... p. 12

Blender.... p. 12

Cleaning....p. 12

Technical features.... p. 12

Waste of Electric and Electronic Equipment (WEEE

Directive)....p. 32

PORTUGUES:......p. 12

ESPAÑOL......p. 17

DEUTSCH: p. 22

FRANCAIS: p. 26

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

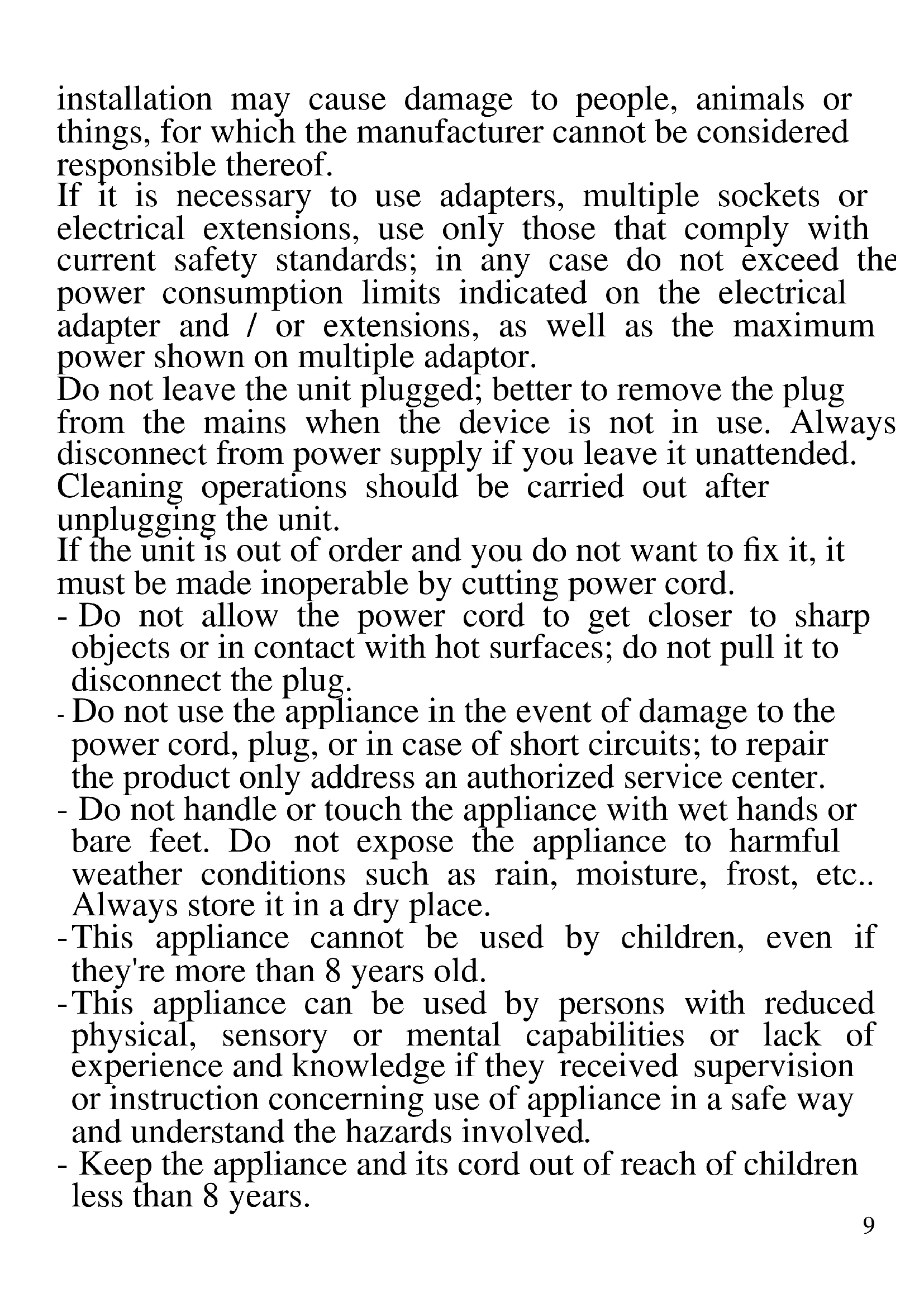

Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect

installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

- Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

- Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

- Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance cannot be used by children, even if they're more than 8 years old.

- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Children must not play with the appliance.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result. Don’t use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

• Before first use, wash carefully the parts in touch with food: container, cover and accessories.
• To avoid the overheating of the engine does not use the appliance running continuously for more than 20 minutes; in this case interval with at least 10 minutes of rest. Do not use without food inside the container.

- Do not put your fingers inside the container of food while the unit is operating. Keep hair and thing away from moving parts. Do not insert ects or ingredients while the machine is running.

• Place the unit on a flat, stable and not slippery surface.
• Bring knob on "0" (OFF) position before inserting the plug in the socket.
• Before operating, check that the parts are assembled

correctly. Before connecting the plug, mount the proper accessory.

• Before removing the accessories always turn off the unit. Clean the accessories after each use.
• The use of non-original accessories may damage the unit and invalidate the warranty.
• Never leave the appliance unattended while it is running.
• Disconnect plug from electrical outlet after use and before install or remove any accessory.
• Do not immerse the main unit in water or other liquids; clean it with a damp cloth.

WARNING!!! Do not overload the appliance. The total weight of ingredients in the container cannot be over 2.5Kg for soft dough, or 1.6Kg, in case of hard pastes, like pizza paste, or 1.3Kg for fresh made pasta. When using the blender attachment, do not insert fingers or hair or clothes in the glass. Always close the blender lid before operating

WARNING!!! Do not use the appliance as kneading machine and as blender at the same time. This may result in damage due to overload.

DESCRIPTION G20134

1. Transmission

2. Main housing

3. H accessory (mixer)

4. Cover and blender gear

5. Head release lever

6. Stainless steel bowl

7. Beater

8. Measuring cup

9. Blender lid

10. Knob 6 speeds

11. Hook

12. Lid

13. Blender jar

KNEADING

• Fit the container (5) in place by turning it in the direction of LOCK until it blocks.
• Raise the main body using the release lever (2). Install the accessory by entering the joint in the drive shaft of the unit, and then turn the locking ring until it stops. Mount the lid (9) on the bowl.
• Place the ingredients inside the bowl. The total weight of ingredients cannot exceed 2.5 Kg, in case of soft dough, or 1.6 Kg, in case of hard pastes, like pizza paste, or 1.3 Kg for fresh made pasta.
• Lower the arm by releasing the lever (2). Connect the plug into an electrical outlet.
• Start the product with the knob (3) and choose a speed between 1 and 6. It is advisable to use lower speed at the beginning, and then go to higher speeds. If the dough is hard do not use high speeds.

CAUTION: To avoid overheating do not use continuously for more than 20 minutes; in this case interval with at least 10 minutes of rest. Do not use the appliance without food inside the container.

- When the work is finished, stop the machine taking the knob (3) to "0"

After the process, release the arm with the button (2) and lift it, remove the accessory and the container with food. Remove the dough using a spatula.

Clean the product by following the instructions you will find in “Cleaning” section.

SELECT THE ACCESSORY

There are three accessories included, to be used depending on the situation. HOOK (6). Use this accessory with hard dough, like bread, pizza, pasta, etc... MIXER (7). Use it with soft dough, such as sweets, or for blending, mixing BEATER (8). Use it for beating eggs or whipping.

BLENDER ACCESSORY

Assemble the blender attachment (13) to the main body (4) by removing the cover (10) in order to discover the gear. Link the gear of blender to the gear on the stand mixer by rotating anti-clockwise. Always close the lid of blender before operating.

CLEANING - Unplug the unit.

Do not immerse the main body in water, only wash it with a damp cloth and non-abrasive detergent. Avoid any infiltration of water inside motor housing.

The attachments, the container and the lid cannot be washed in the dishwasher, wash them by hand with non-abrasive sponge and mild detergent. Dry them thoroughly before assembling them to the unit.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50/60Hz. Power: Rated 1400W, Locked 1800W
- 6 speeds
• Stainless steel container 5.5 L capacity, up to 2.5 Kg of ingredients
- Safety device
• Accessories: blender, hook, beater, mixing attachment, container, lid

PORTUGUES: ADVERTÊNCIAS

WÄHLEN SIE DAS ZUBEHÖR

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

TREVIDEA S.r.l. reserves the right to make ELECTRICAL, TECHNICAL and AESTHETIC changes to the devices and / or replace parts without prior notice to always offer more reliable, durable and advanced technology. TREVIDEA S.r.l. also would like to apologize for any possible printing errors.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY
