Product type	Wooden light box
Brand	Playtive
Model	IAN 389693
Recommended age	From 3 years
Power supply of the box	USB port (5 V, 1 A max)
Remote control power supply	1 CR2025 battery (3 V) included
Light source type	Integrated non-replaceable LED
Number of color filters	6
Number of digits	10
Remote control functions	On/off, mode change, speed, brightness, color, demo
Lighting modes	Several modes (fixed, demo, etc.)
Brightness adjustment	Yes
Speed adjustment	Yes in demo mode
Color selection	White, red, green, blue, yellow, turquoise, purple
Intended use	Private toy, learning colors and numbers
Safety instructions	Not suitable for children under 36 months, small parts, choking hazard
Cleaning	Dry cloth, no harsh cleaning products
Warranty	3 years from date of purchase
After-sales service France	Tel. [phone], Email: [e-mail]
After-sales service Belgium	Tel. [phone], Email: [e-mail]
Declaration of conformity	Directives 2009/48/EC and 2014/53/EU
Protection class	II

Frequently Asked Questions - IAN 389693 Playtive

How to replace the remote control battery?

Use a pointed object to press into the hole under the remote control to release the battery compartment. Replace the used battery with a new CR2025 battery, respecting polarity. Make sure the battery is firmly inserted.

How to turn on the light box?

Connect the USB cable to a USB port of a powered computer or charging station, then press the ON/OFF button on the remote control.

What lighting modes are available?

The remote control allows you to choose several modes: press MODE +/- to cycle through modes. The DEMO mode displays a sequence of different lighting effects.

How to clean the light box?

Wipe the surface with a dry, clean cloth. Do not use harsh cleaning products or abrasives.

Is the device suitable for children?

Yes, from 3 years under adult supervision. Beware of small parts (choking hazard). Not suitable for children under 36 months.

What to do if the remote control does not work?

First check that the remote control battery is correctly inserted (polarity respected) and that it is not depleted. Remove the protective film from the battery compartment if present.

Can I use a different power adapter?

Yes, provided it is protection class II and delivers a maximum of 5 V and 1 A. Do not use an adapter with an output current higher than 1 A.

Are the batteries included?

Yes, a CR2025 battery is already installed in the remote control. A protective film must be removed before first use.

How to use the color filters?

Place the different color filters on the lit box to observe changes in color and intensity. Combine with the numbers for an educational game.

What is the warranty period?

The warranty is 3 years from the date of purchase, covering defects in materials and workmanship. Keep the original receipt.

USER MANUAL IAN 389693 Playtive

Illustration of a wooden box with numbered footprints and accessories (no text or symbols)

PDF ONLINE www.lidl-service.com

HOLZ-LICHTBOX WOODEN LIGHT BOX BOÎTE LUMINEUSE EN BOIS

DE AT CH

HOLZ-LICHTBOX

Gebrauchsanweisung

FR BE

BOÎTE LUMINEUSE EN BOIS

Instructions for use

NL BE

HOUTEN LIGHTBOX

Gebruiksaanwijzing

CZ

DŘEVĚNÝ SVĚTELNÝ BOX

Návod k použití

ES

CAJA LUMINOSA DE MADERA

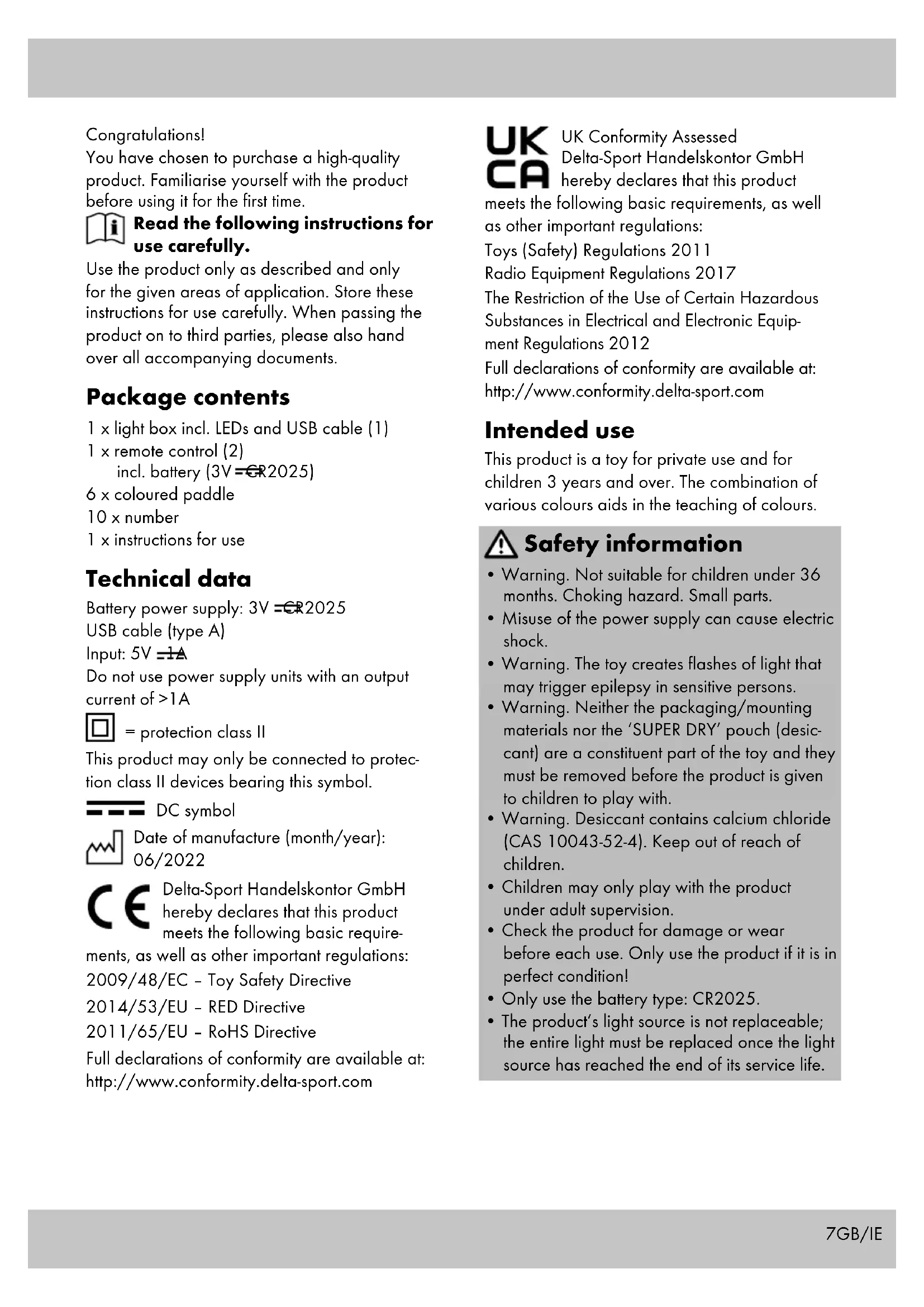

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x light box incl. LEDs and USB cable (1)

1 x remote control (2) incl. battery (3V=CR2025)

6 x coloured paddle

10 x number

1 x instructions for use

Technical data

Battery power supply: 3V = CR2025

USB cable (type A)

Input: 5V =1A

Do not use power supply units with an output current of >1A

□ = protection class II

This product may only be connected to protection class II devices bearing this symbol.

DC symbol

Date of manufacture (month/year): 06/2022

Delta-Sport Handelskontor GmbH hereby declares that this product meets the following basic require-

ments, as well as other important regulations:

2009/48/EC - Toy Safety Directive

2014/53/EU - RED Directive

2011/65/EU - RoHS Directive

Full declarations of conformity are available at: http://www.conformity.delta-sport.com

UK Conformity Assessed

Delta-Sport Handelskontor GmbH hereby declares that this product

meets the following basic requirements, as well as other important regulations:

Toys (Safety) Regulations 2011

Radio Equipment Regulations 2017

The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

Full declarations of conformity are available at: http://www.conformity.delta-sport.com

Intended use

This product is a toy for private use and for children 3 years and over. The combination of various colours aids in the teaching of colours.

Safety information

• Warning. Not suitable for children under 36 months. Choking hazard. Small parts.
• Misuse of the power supply can cause electric shock.
• Warning. The toy creates flashes of light that may trigger epilepsy in sensitive persons.
• Warning. Neither the packaging/mounting materials nor the 'SUPER DRY' pouch (desiccant) are a constituent part of the toy and they must be removed before the product is given to children to play with.
• Warning. Desiccant contains calcium chloride (CAS 10043-52-4). Keep out of reach of children.
  • Children may only play with the product under adult supervision.
• Check the product for damage or wear before each use. Only use the product if it is in perfect condition!
• Only use the battery type: CR2025.

• The product's light source is not replaceable; the entire light must be replaced once the light source has reached the end of its service life.

• No modifications may be made to the product!

• The power supply used with the electrical toy must regularly be checked for damage to the power cable, plug, housing or other parts, and if it is damaged, must not be used until the damage has been repaired.
• The toy must only be used with a power supply designed for toys.

Battery warning notices

• Remove the batteries when they are flat, or if the product is not in use for an extended period.
• Do not use different types or brands of battery or new and used batteries together or batteries with different capacities as these can leak and cause damage.
• Ensure the polarity (+/-) is correct when inserting the batteries.
• Replace all batteries at the same time and dispose of the old batteries as prescribed.
• Warning! Batteries must not be charged or re-activated by other means, taken apart, thrown into fire or short-circuited.
  • Always keep batteries out of reach of children.
• Do not use rechargeable batteries!
• Cleaning and maintenance must not be carried out by children without supervision.
• Clean the battery and device contacts as needed and before inserting.
• Do not expose the batteries to extreme conditions (e.g. radiators or direct sunlight). Otherwise there is an increased risk of leakage.
• Warning. This product contains a coin battery (button cell with lithium). If swallowed, a coin battery can cause internal chemical burn injuries.
• Warning. Dispose of used batteries immediately. Keep new and used batteries out of the reach of children. Seek medical help immediately if you suspect that batteries have been swallowed or ingested.

Danger!

- Handle damaged or leaking batteries with extreme caution and dispose of them properly as soon as possible. Wear gloves when doing so.

• If you come into contact with battery acid, wash the affected area with soap and water. If battery acid gets in your eye, rinse it with water and seek medical attention immediately!
• The connection terminals must not be short-circuited.

Replacing the battery (Fig. B)

WARNING! Observe the following instructions to avoid mechanical and electrical damage.

There is one battery inside the product.

You can replace the battery (2e) when it is flat.

1. Press a suitable object (not included in the package contents) into the hole (2c) on the underside of the remote control (2) to open the battery compartment (2a).

Note: pressing this object in, pushes the battery compartment out from the remote control a little.

1. Remove the battery compartment from the remote control.
2. Remove the old battery (2e) and insert the new battery (not included in the package contents) carefully into the battery compartment. The battery must be completely fitted into the battery compartment.

Note: pay attention to the plus/minus poles on the battery and insert the battery accordingly.

1. Insert the battery compartment into the remote control until it is completely inside the remote control.

Use

Before using the product for the first time, remove the protective film (2b) from the battery compartment (2a) of the remote control (2) (Fig. B).

Turning on the product

1. Plug the USB connector (1b) of the USB cable (1a) into a USB port of a powered-on computer or a charging station with USB port (Fig. A).
2. Press the button (2f) on the remote control (2) to turn the product (1) on (Fig. C).

Turning off the product

1. Press the button (2f) on the remote control (2) to turn the product off.
2. Remove the USB connector (1b) of the USB cable (1a) from a USB port of a powered-on computer or a charging station with USB port (Fig. A).

Remote control (Fig. C)

The remote control has the following button functions:

• MODE +/- (2g): press the buttons to change the various light modes in demo mode.
• SPEED +/- (2h): press the buttons to change the speed of the light mode in demo mode.
• BRIGHT +/- (2i): press the buttons to adjust the brightness of the product.
• COLOR +/- (2j): press the buttons to see a different hue.
• Colour buttons (2k): press the desired colour button white, red, green, blue, yellow, turquoise or violet.
• DEMO (21): press the button to see a demonstration of the various light modes.

Game

The objective of the game is to place the various coloured paddles on the product (1) while it is turned on, and to observe how they change depending on the brightness/rhythm and colour combination. The coloured numbers combine the learning of numbers and colours, while making it fun.

Storage, cleaning

When not in use, always store the product dry, clean, without batteries and at room temperature. Wipe clean with a dry cloth only.

IMPORTANT! Never clean the product with harsh cleaning agents.

Use the carrying cord (1c) to transport the product.

Disposal

In the interest of protecting the environment, do not throw your product into the household waste once you are finished with it, but rather take it to a specialty disposal facility. Find out about collection sites and their hours of operation from your local authority.

Defective or used batteries must be recycled pursuant to Directive 2006/66/EC and changes to it. Return batteries and/or the product via the collecting sites provided. Packaging materials, such as plastic bags, must be kept away from children. Keep the packaging materials out of reach of children.

Environmental damage caused by improper disposal of batteries! Batteries may not be disposed of with household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. Dispose of used batteries at a municipal collection site.

Dispose of the product and packaging in an environmentally friendly manner.

Note the label on the packaging materials when separating waste, as these are labelled with abbreviations (a) and numbers (b) with the following meaning: 1–7: plastics/20–22: paper and cardboard/80–98: composite materials.

The product and the packaging materials can be recycled, dispose of them separately for better treatment of waste. The Triman logo only applies to France. Find out how to dispose of the used product from your municipal or city administration.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions.

The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 389693_2201

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

E-Mail: [e-mail]
