Product Type	Right angle grinder (straight grinder)
Brand	Fein
Model	GSZ 4280 EL
Main Applications	Dry grinding of metal, milling (carbide burrs), cutting
Power Supply	Mains, 230 V, 50 Hz
Power Input (P1)	Approx. 400 W (estimated)
No-load Speed (n0)	Approx. 2800 rpm (estimated)
Weight	Approx. 2.5 kg (according to EPTA)
Chuck Type	Collet chuck (grinding wheel shank)
Max. Wheel Diameter	∅ D = max diameter specified by manufacturer
Electrical Protection	Double insulation, residual current device 30 mA recommended
Safety	Overload protection, anti-blocking protection, start-up lock (depending on version)
Sound Pressure Level (LpA)	See manual (not specified in the extract)
Vibration (grinding)	Values according to EN 60745 (not specified)
Maintenance	Blow ventilation slots with dry compressed air, clean regularly
Spare Parts	List available at www.fein.com; collet chuck replaceable by user
Warranty	Statutory warranty + FEIN manufacturer warranty
Included Accessories	Collet chuck (depending on version)
Recycling	Follow environmental guidelines for recycling

Frequently Asked Questions - GSZ 4280 EL Fein

What types of grinding wheels can I use with the Fein GSZ 4280 EL?

You can use mounted points for dry grinding of metal, carbide burrs for milling, and cutting discs. Use only accessories recommended by FEIN and suitable for the tool speed.

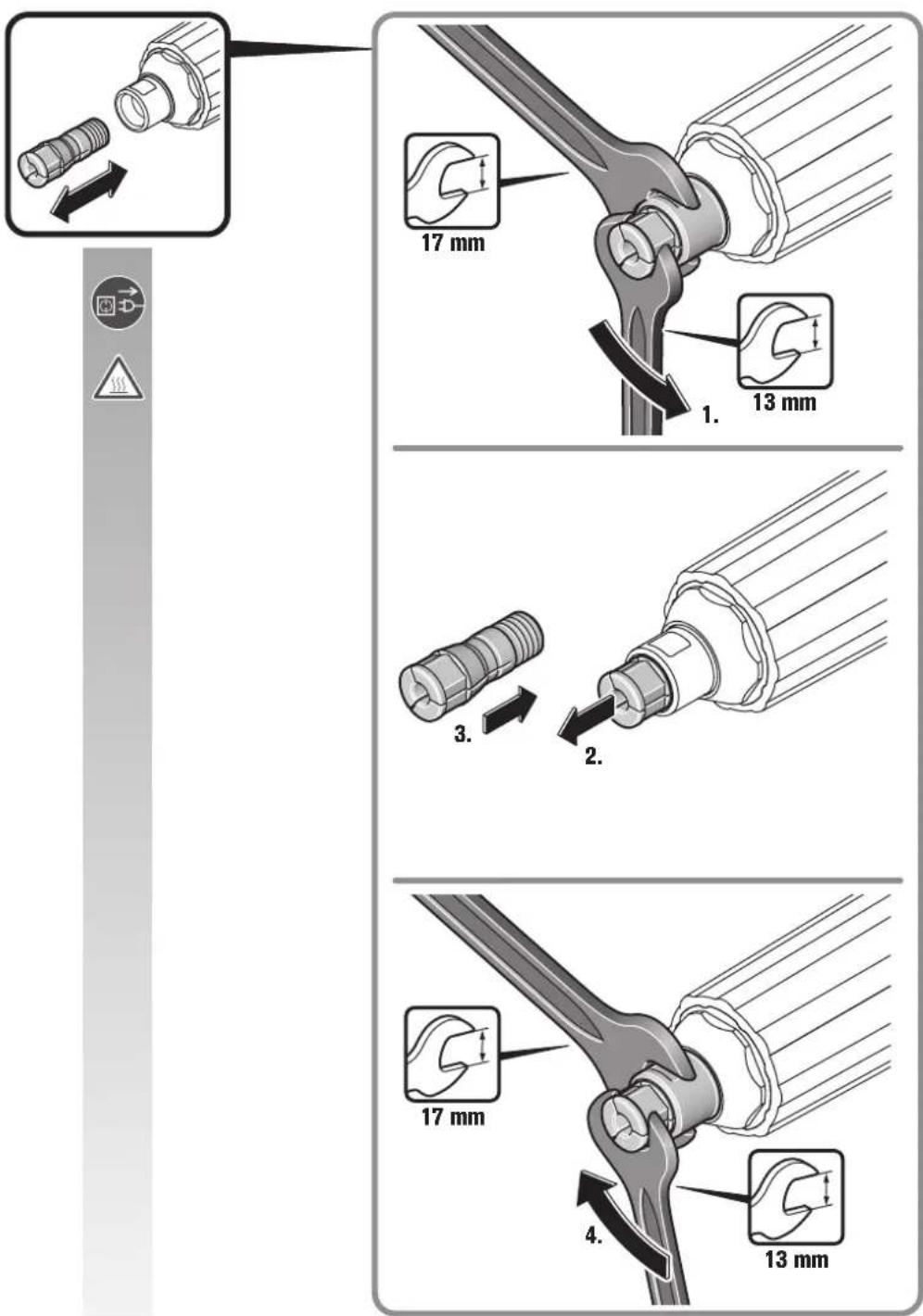

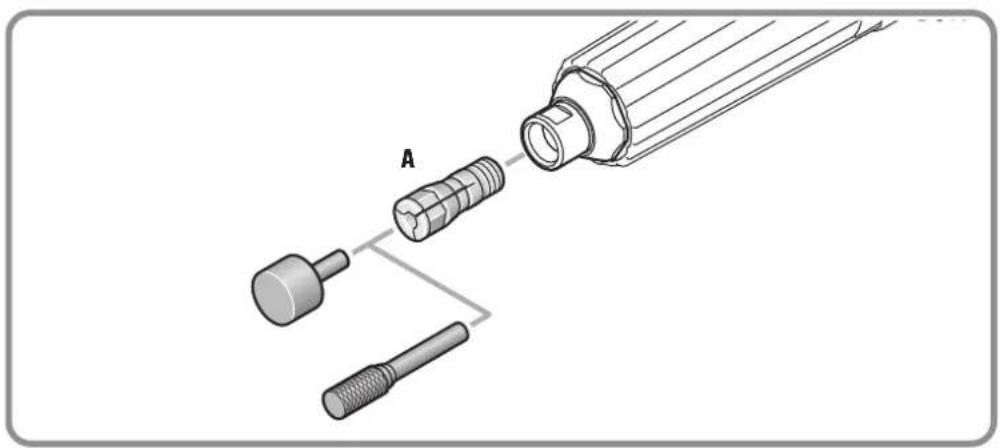

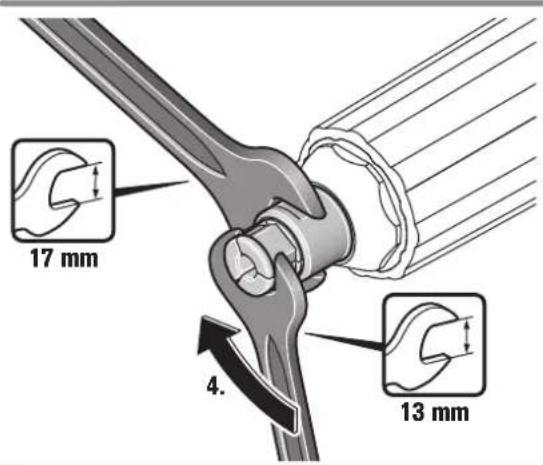

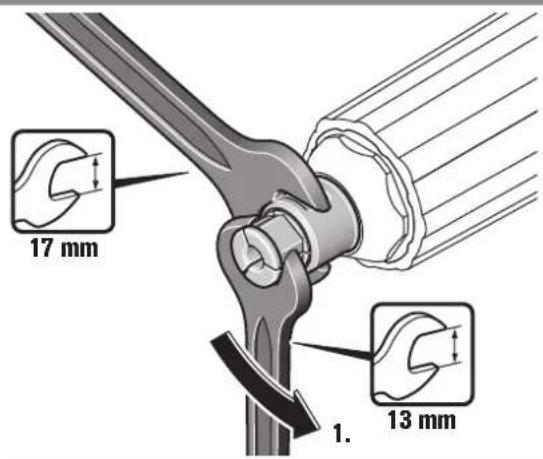

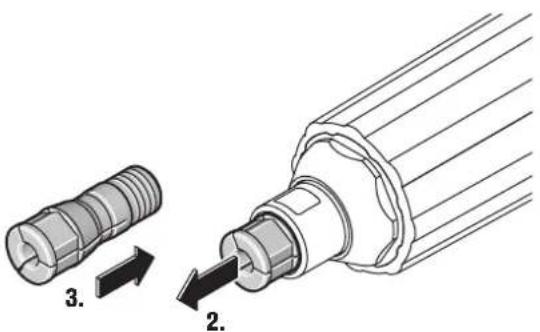

How do I change the collet chuck?

Unplug the tool. Loosen the collet nut using the supplied wrench, remove the old wheel and collet. Insert the new collet suitable for the wheel shank, then tighten the nut firmly. Ensure the wheel is pushed in to the stop.

What should I do if the tool jams?

The tool is equipped with anti-blocking protection and overload protection. In case of jamming, power is interrupted. Turn off the tool, remove it from the workpiece, inspect the accessory, then restart. If the problem persists, contact after-sales service.

How do I clean the ventilation slots?

Regularly blow dry, oil-free compressed air through the ventilation slots to remove metal dust. This prevents accumulation of conductive dust and protects the double insulation.

Can I use this tool with a generator?

Yes, provided the generator complies with ISO 8528, class G2, with a harmonic distortion factor less than 10%. If in doubt, consult the generator manufacturer.

What hearing and eye protection should I wear?

Always wear appropriate safety goggles and hearing protection. Also use a dust mask if necessary, and gloves to protect your hands.

The tool does not restart after a power cut, what should I do?

The start-up lock prevents automatic restart. Set the switch to off position, then turn the tool on normally. If the problem persists, check the power supply.

How should I store the tool when not in use?

Store the tool in a dry, clean place, protected from knocks. Clean it before storage. Keep the instruction manual and accessories handy.

Where can I find the spare parts list?

The updated spare parts list is available on www.fein.com. You can replace the collet chuck yourself; for the power cord, contact FEIN after-sales service.

What is the warranty on this tool?

Statutory warranty applies according to the country of sale. In addition, FEIN offers a manufacturer warranty. See the warranty statement included with the tool or on the FEIN website.

USER MANUAL GSZ 4280 EL Fein

ORI_IXK1-1000004196-001.fm Page 1 Thursday, January 29, 2015 9:32 AM

▶ GSZ4-280EL 7 223 24

▶ GSZ4-90EL 7 223 25

▶ GSZ8-280P 7 223 16

▶ GSZ8-280PE 7 223 17

▶ GSZ8-280PL 7 223 18

▶ GSZ8-280PEL 7 223 19

▶ OSZ8-90PEL 7 223 20

▶ OSZ11-320PRL 7 223 21

▶ GSZ11-320PERL 7 223 22

▶ GSZ11-00PERL 7 223 23

CE

EN 60745, EN 55014, EN 61000-3-2, EN 61000-3-3

2011/65/EU, 2006/42/EG, 2004/108/EG (→ 2016-04-19),

2014/30/EU (2016-04-20→)

07121

Hammersdorf

Quality Manager

Chunib

Dr. Schreiber

Manager of R&D department

FEIN Service

C. & E. Fein GmbH

Hans-Fein-Straße 8

Illustration of six different types of industrial sensors or drill heads (no text or symbols visible)

2

GSZ4-280EL GSZ4-90EL
7 223 24 7 223 25

P_1	W 350 350
P_2	W 170 170
n	/min, min ^-1 , rpm, r/min 28000 8500
n_0	/min, min ^-1 , rpm, r/min 13000-28000 3500-8500
	mm 20 20
	mm 12 12
	mm -	50 x 10
	kg	1,5 1,5
L_pA	dB 83 83
K_pA	dB 3	3
L_wA	dB 94 94
K_wA	dB 3	3
L_pCpeak	dB 95 95
K_pCpeak	dB 3	3
a_h,SG (0 25 mm)	m/s ^2	4,8 1,0
a_h,SG (0 50 mm)	m/s ^2	-
a_h,P	m/s ^2	- 1,5
K_u	m/s ^2	1,5 1,5

		GSZ8-280P	GSZ8-280PE	GSZ8-280PL	GSZ8-280PEL
		7 223 16	7 223 17	7 223 18	7 223 19
P_1	W	750	750	750	750
P_2	W	400	400	410	410
n	/min, min ^-1 , rpm, r/min	28000	28000	28000	28000
n_0	/min, min ^-1 , rpm, r/min	-	8500–28000	-	8500–28000
	mm	45	50	45	50
	mm	12	12	12	12
	mm	-	-	-	-
	kg	1,4	1,4	1,8	1,8
L_pA	dB	84	84	84	84
K_pA	dB	3	3	3	3
L_wA	dB	95	95	95	95
K_wA	dB	3	3	3	3
L_pCpeak	dB	97	97	97	97
K_pCpeak	dB	3	3	3	3
a_h,SG (0.25 mm)	m/s ^2	4,7	4,7	5,3	5,3
a_h,SG (0.50 mm)	m/s ^2	-	7,9	-	11,4
a_h,P	m/s ^2	-	-	-	-
K_a	m/s ^2	1,5	1,5	1,5	1,5

3

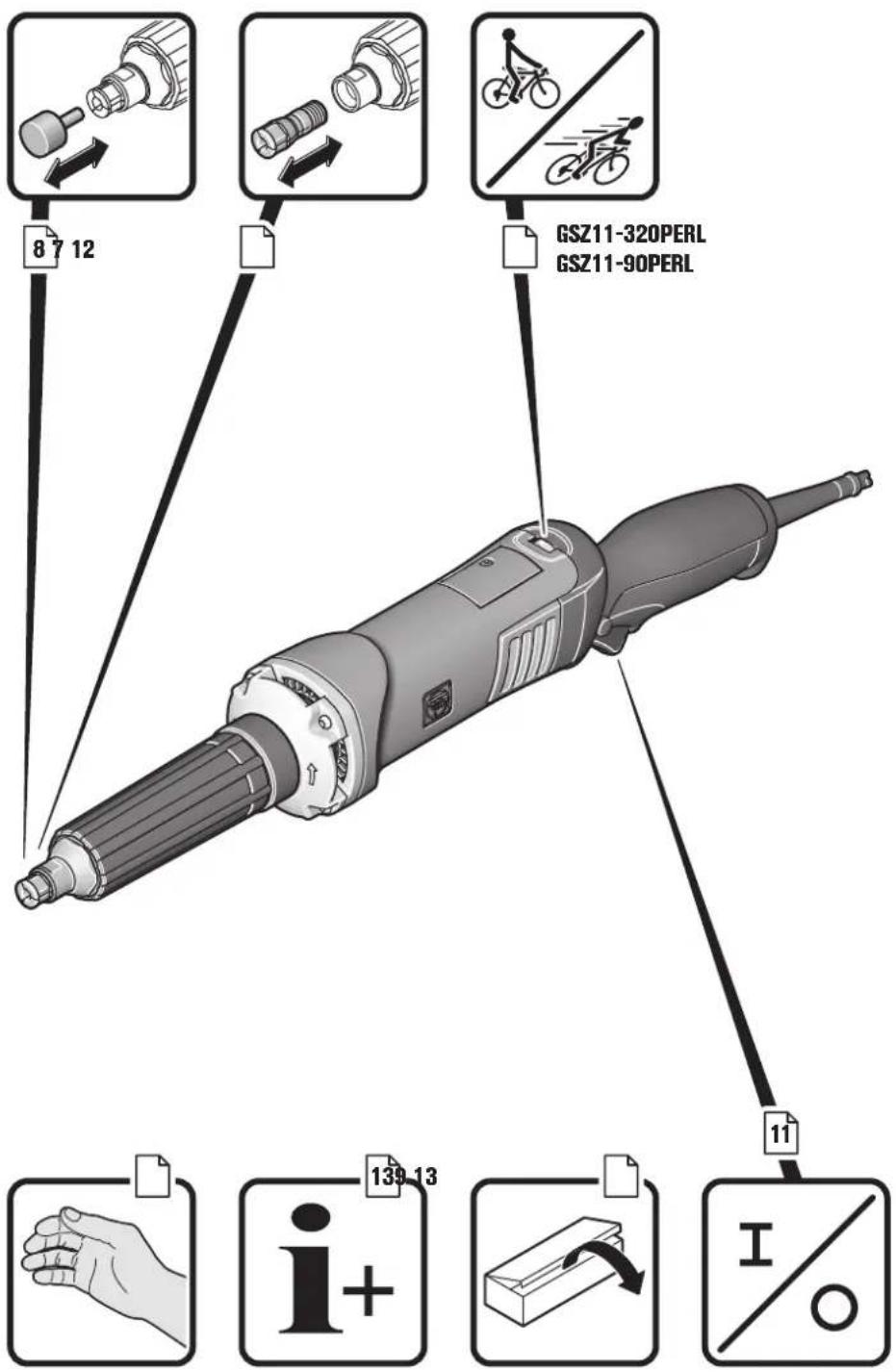

		GSZ8-90PEL	GSZ11-320PRL	GSZ11-320PERL	GSZ11-90PERL
		7 223 20 7 223 21 7 223 22 7 223 23
P_1		W 710 1010 1010 1010
P_2		W 420 620 620 620
n	/min, min ^-1 , rpm, r/min	9000	32500	32500	9900
n_0	/min, min ^-1 , rpm, r/min	2500-9000		-	9500-32500
	_D	mm 50	45	45 50
	_D	mm 12	12	12 12
	_D	mm 80	-	-80
		kg	1,8	2,1	2,1
L_pA		dB 84	85	85 85
K_pA		dB	3	3	3
L_wA		dB 95	96	96 96
K_wA		dB	3	3	3
L_pCpeak		dB 97	98	98 98
K_pCpeak		dB	3	3	3
a_h,SG (0 25 mm)		m/s ^2	1,9	9,7	9,7
a_h,SG (0 50 mm)		m/s ^2	2,9	-	-
a_h,P		m/s ^2	2,9	-	-
K_u		m/s ^2	1,5	1,5	1,5

6

OBJ BUCH-0000000167-001.book Page 8 Tuesday, January 27, 2015 9:01 AM

OBJ BUCH-0000000167-001.book Page 9 Tuesday, January 27, 2015 9:01 AM

9

Diagram of a mechanical assembly showing a shaft connected to two threaded pins, with no visible text or symbols.

10

12

de

Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Do not touch the rotating parts of the power tool.
	Observe the instructions in the text or graphic opposite!
	General prohibition sign. This action is prohibited.
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
	Use ear protection during operation.
	Use protective gloves during operation.
	A surface that can be touched may be very hot and thus hazardous.

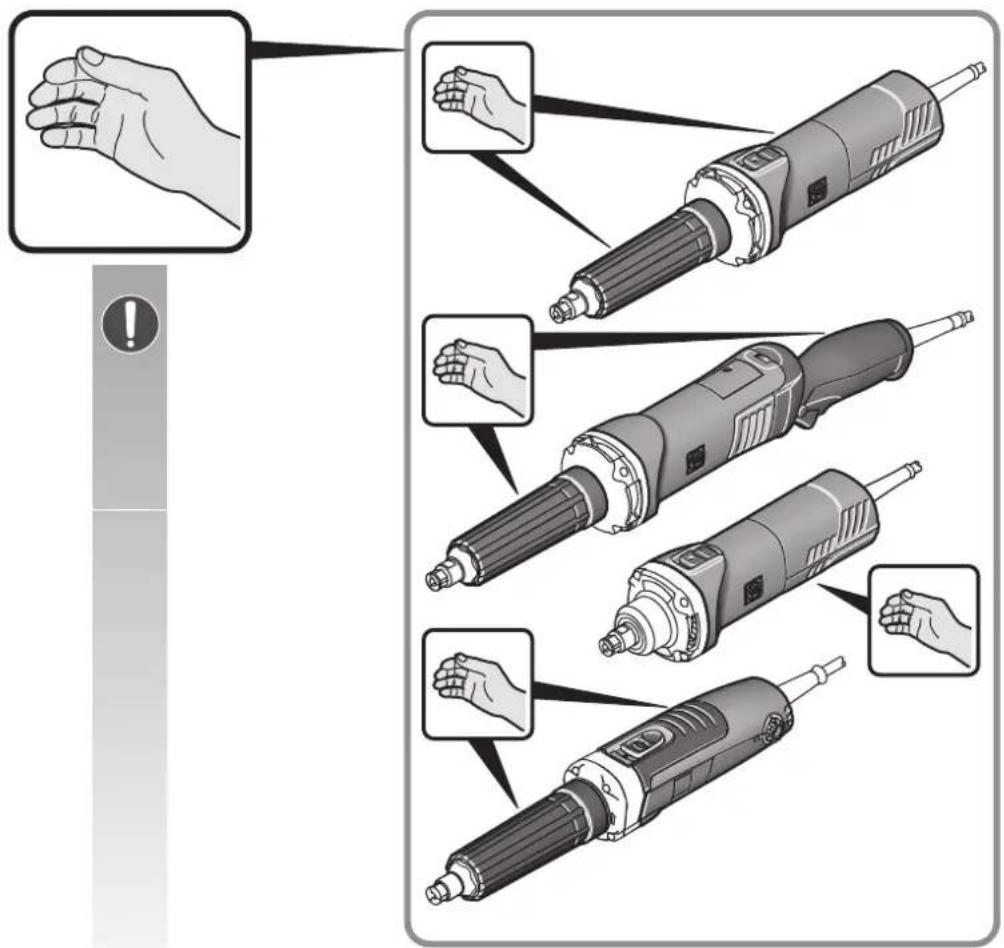

	Gripping surface
	Additional information.
	Confirms the conformity of the power tool with the directives of the European Community.
[684C]WARNING	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Product with double or reinforced insulation

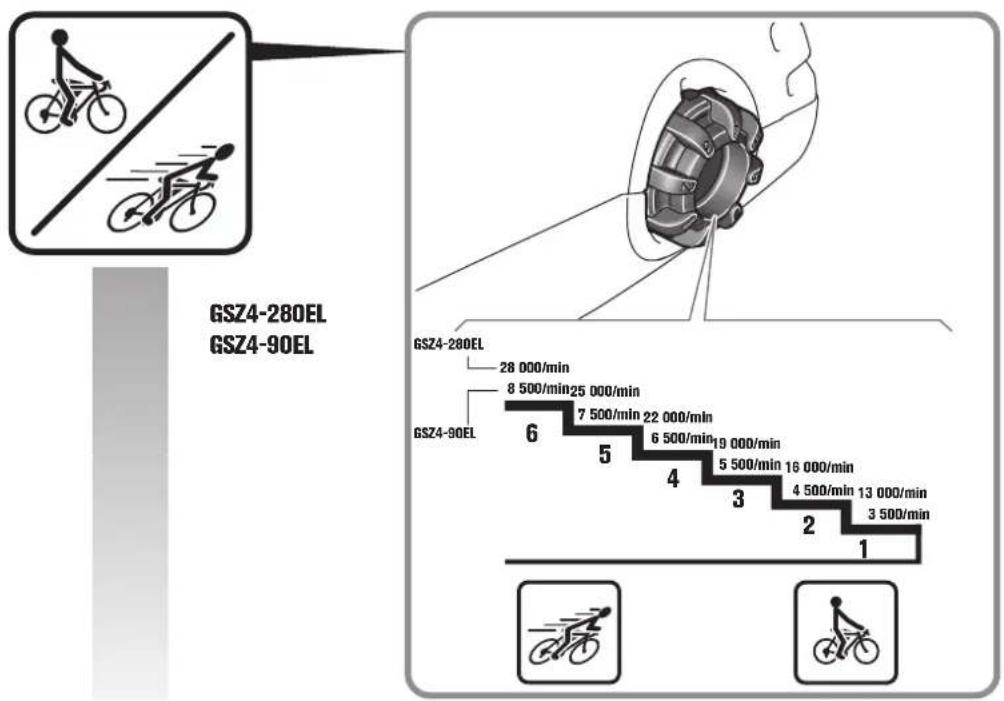

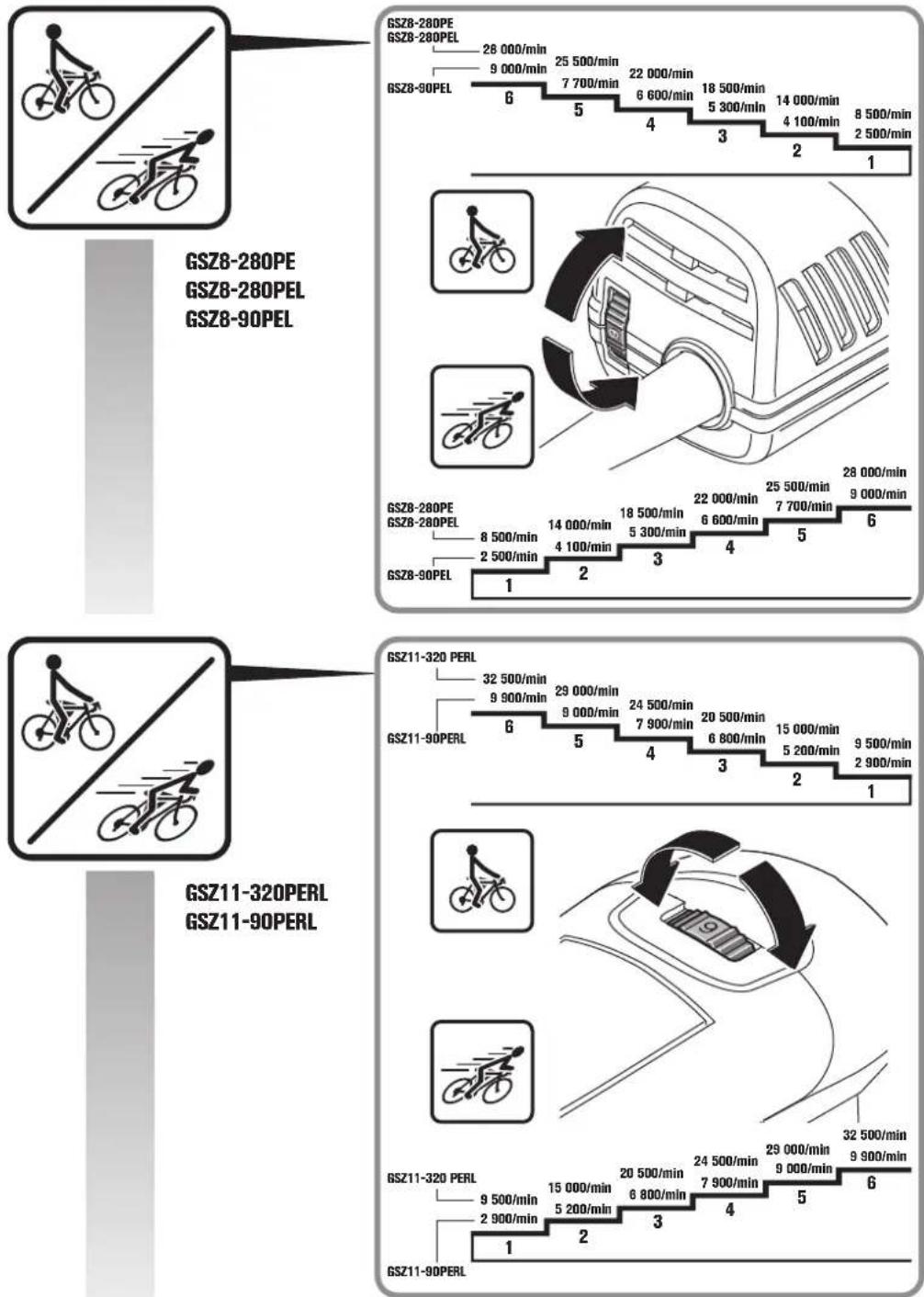

[HWDS]	Low speed
	High speed

Character Unit of measurement, international	Unit of measurement, national	Explanation
n	/min, min ^-1 , rpm, r/min rpm Rated speed
n_0	/min, min ^-1 , rpm, r/min rpm No-load speed
P_1	W W Power input
P_2	W W Output
UV	V	R
/Hz Hz Frequency
M...	mm mm Size of metric thread
∅	mm mm Diameter of a round part
	mm mm ∅
⊆	mm mm ∅
	mm mm ∅
	kg kg Weight according to EPTA-Procedure	01/2003
L_pA	dB dB Sound pressure level
L_wA	dB dB Sound power level
L_pCpeak	dB dB Peak sound pressure level
K...		Uncertainty
a	m/s ^2	m/s ^2
a_h,SG	m/s ^2	m/s ^2
a_h,P	m/s ^2	m/s ^2
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number 3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended use of the power tool:

hand-guided straight grinder for dry grinding of metal with small grinding accessories (grinding points) for shaping metal with hard metal cutters and for cut-off grinding. GSZ8-90PEL, GSZ11-90PERL, GSZ4-90EL: These power tools are additionally intended for brushing and polishing in weather-protected environments with the accessories recommended by FEIN.

This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10% . When in doubt, please refer to the generator instruction/specification guide.

Safety warnings common for sanding, working with wire brushes, polishing, grinding, sanding with sanding discs or cut-off grinding:

This power tool is to be used as a grinder, wire brush, polisher, for grinding, sanding with sanding discs and as a cut-off grinder. Observe all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation.

The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

Grinding wheels, sanding drums or other accessories must exactly fit the grinder spindle or collet of your power tool. Application tools that do not fit exactly in the tool holder of the power tool will run out of balance, vibrate excessively and may cause loss of control.

Grinding wheels, sanding drums or cutting tools mounted on a mandrel, or other accessories must be fully inserted into the collet or chuck. The "projecting end" as well as the free part of the mandrel between the grinding accessory and the collet/chuck must be minimal. If the mandrel is insufficiently clamped or if the overhang of the grinding accessory is too long, the application tool may become loose and ejected at high velocity.

Do not use damaged application tools. Before each use, check application tools such as grinding wheels for chips and cracks, sanding drums for cracks, wear or heavy use, and wire brushes for loose or broken wires. If the machine or application tool is dropped, inspect for damage or install an undamaged application tool. After inspecting and installing the application tool, position yourself and bystanders away from the plane of the rotating application tool and run the machine at maximum no-load speed for one minute. Damaged application tools will normally break apart during this test time.

en

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Always hold the power tool firmly when starting it. The reaction torque of the motor, as it accelerates to full speed, can cause the power tool to twist.

If possible, use clamps to fasten or affix the workpiece. Never hold a small workpiece in one hand and the power tool in the other hand while in use. Clamping small workpieces allows you to use both hands for better control the power tool. Round material such as dowel rods, pipes or tubing have a tendency to roll away while being cut, and may cause the application tool to jam or bind and be thrown toward you.

Keep the connection cable away from rotating application tools. When losing control over the machine, the mains cable can be cut through or get caught, and your hand or arm can come in contact with the rotating application tool.

Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.

After changing application tools or making adjustments on the tool, tighten the collet nut, chuck or any other fastening elements. Loose fastening elements can unexpectedly misadjust and lead to loss of control; unfastened, rotating components will be violently thrown.

Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.

Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

Do not operate the power tool near flammable materials. Sparks could ignite these materials.

Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Further safety warnings for all applications Kickback and related warnings

Kickback is the sudden reaction to a pinched or snagged rotating application tool, such as a grinding wheel, sanding belt, wire brush, etc. Pinching or snagging causes the rotating application tool to rapidly stop. This causes an uncontrolled power tool to be forced in the direction opposite of the application tool's rotation direction.

For example, if a grinding wheel is snagged or pinched in the workpiece, the edge of the grinding wheel that is entering into the workpiece can be caught, causing the grinding wheel to break out or cause kickback. The grinding wheel may either jump toward or away from the operator, depending on the direction of the wheel at the point of blocking. Grinding wheels can also break under these conditions.

Kickback is the result of power tool misuse or incorrect operating procedures. It can be avoided by taking proper precautions as described below.

Maintain a firm grip on the power tool and position your body and arms to allow you to resist kickback forces. The operator can control torque reactions or kickback forces, if proper precautions are taken.

Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

Do not use toothed saw blades. Such application tools create frequent kickback or loss of control over the power tool.

Always feed the application tool into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Guiding the power tool in the wrong direction causes the cutting edge of the application tool to climb out of the workpiece and pull the tool in the direction of this feed.

Always clamp the workpiece when using rotating files, cutting discs, carbide (TC) or high-speed grinding tools. These application tools will pinch or grab if they become slightly canted in the groove, and can kickback. When a cutting disc grabs, the disc itself usually breaks. When rotating files, carbide (TC) or high-speed grinding tools pinch or grab, the tool insert may jump from the groove and you could lose control of the tool.

Never place your hand near the rotating accessory. Accessory may kickback over your hand.

Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

Additional safety warnings for grinding and cut-off grinding

Safety warnings specific for grinding and cut-off grinding:

Use only grinding accessories that are approved for your power tool and only for the recommended applications. Example: Never grind with the lateral surface of a cutting disc. Cutting discs are intended for material removal using the edge of the disc. Lateral force exerted on these grinding accessories can cause them to break.

For threaded conical and straight grinding points/accessories, use only undamaged mandrels of correct size and length with an unrelieved shoulder flange. Suitable mandrels will reduce the possibility of breakage.

Do not jam or seize the cutting disc or apply excessive pressure. Do not make excessively deep cuts. Overstressing the cutting disc increases the loading and susceptibility to wedging or binding in the cut, and thus increases the possibility of kickback or disc breakage.

Keep your hands clear of the area in front and behind the rotating cutting disc. When moving the cutting disc in the workpiece away from your hand, possible kickback may propel the power tool with the spinning disc directly at you.

If the cutting disc should become jammed or when interrupting work, switch the power tool off and hold it motionless until the disc has come to a complete stop. Never attempt to remove a still running cutting disc from the cut, otherwise there is danger of kickback. Determine and correct the cause for the jamming.

Do not switch the power tool on again as long as the disc is still in the workpiece. Allow the cutting disc to reach its full speed first before carefully continuing with the cut. Otherwise the disc can bind, be forced out of the workpiece or cause kickback.

Support panels or large workpieces to minimise the risk of kickback from a jammed cutting disc. Large workpieces tend to sag under their own weight. The workpiece must be supported on both sides of the cutting disc, near the cut and also at the edges of the workpiece.

Use extra caution when making "pocket cuts" into existing walls or other blind areas. The protruding cutting disc may cut gas or water pipes, electrical wiring or other objects that can cause kickback.

Additional safety warnings for working with wire brushes

Safety warnings specific for wire brushing operations (GSZ8-90PEL, GSZ11-90PERL, GSZ4-90EL):

Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin.

Allow brushes to run at operating speed for at least one minute before using them. During this time, make sure that no one is standing in front or in line with the brush. Loose bristles or wires can be discharged or thrown off during the run-in time.

Direct the rotating wire brush away from yourself. Small particles and tiny wire fragments may be discharged at high velocity during the use of these brushes, and may penetrate through your skin.

Safety warnings specific for polishing operations (GSZ8-90PEL, GSZ11-90PERL, GSZ4-90EL):

Do not allow for any loose parts of the polishing bonnets, especially fastening cords. Stow away or shorten the fastening cords. Loose, rotating fastening cords can take hold of your fingers or become caught or entangled in the workpiece.

Further safety warnings

Make sure that the application tools are mounted in accordance with the manufacturers instructions. The mounted application tools must be able to rotate freely. Incorrectly mounted application tools can become loose during operation and be thrown from the machine.

Handle grinding accessories carefully and store them according to the manufacturer's instructions. Damaged grinding accessories can develop cracks and burst during operation.

When using application tools with a threaded insert, take care that the thread in the application tool is long enough to hold the spindle length of the power tool. The thread in the application tool must match the thread on the spindle. Incorrectly mounted application tools can loosen during operation and cause injuries.

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp or hot application tools.

Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e. g. with a metal detector.

Use a stationary extraction system, blow out ventilation slots frequently and connect a residual current device (RCD) on the line side. When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended.

Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ.

en

This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

The vibrational emission values are given for dry grinding of metal with grinding points. Other applications, such as shaping with hard metal cutters, can lead to other vibrational emission values.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Operating Instructions.

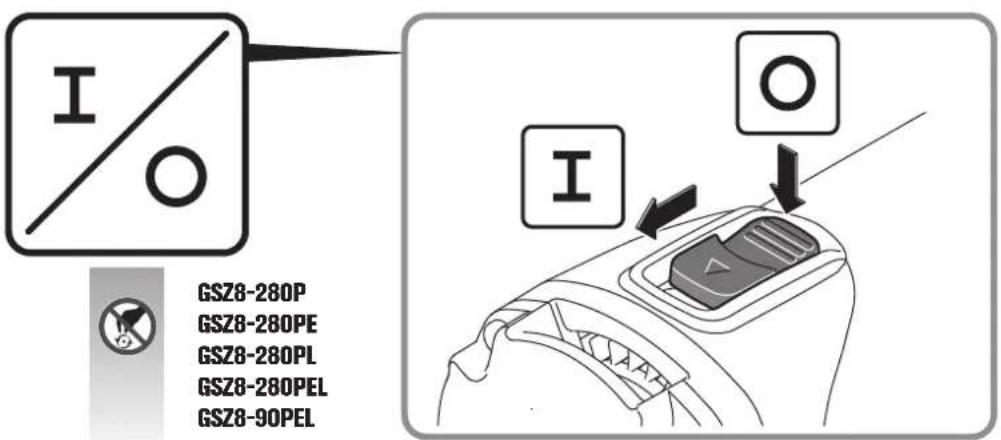

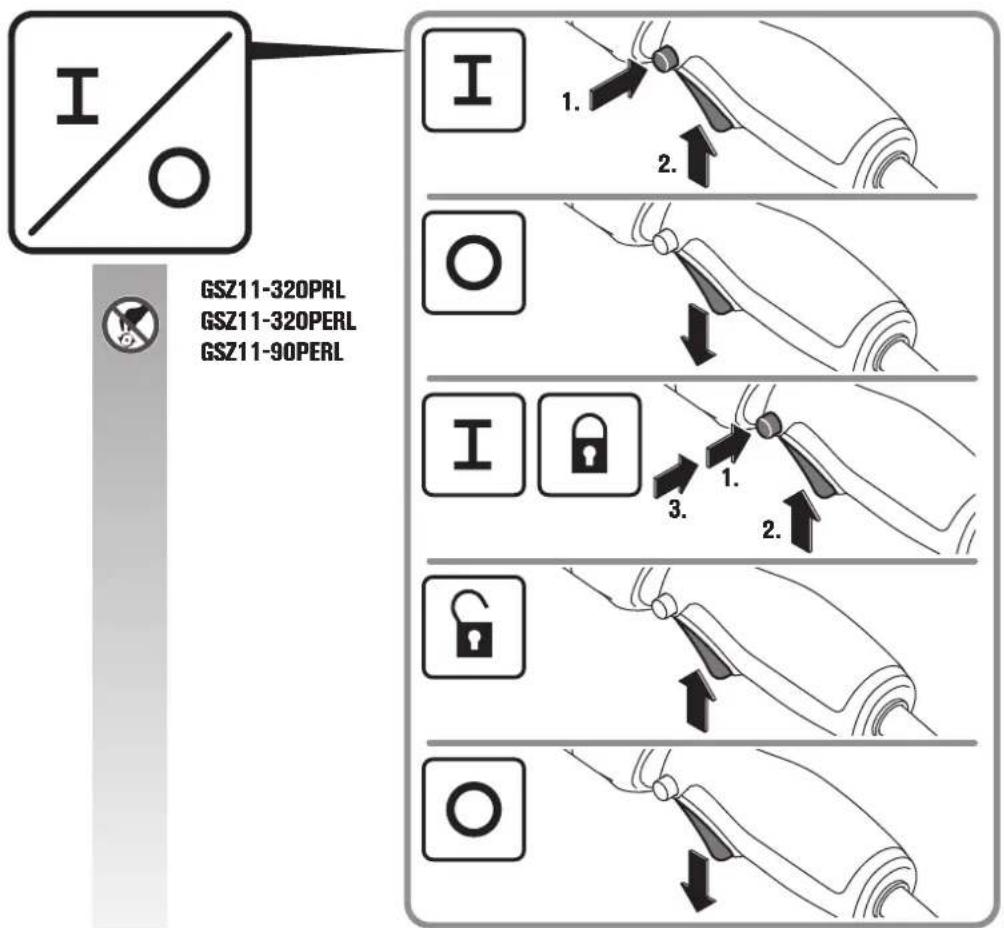

The self-start lock (for GSZ8..., GSZ11...) prevents the straight grinder from automatically restarting again, even after a brief interruption of the power supply during operation, e. g., from a pulled mains plug.

The straight grinder is fitted with overload and blocking protection (for models GSZ8..., GSZ11...). In case of overload or blocking of the application tool, the power supply is interrupted. In this case, switch the power tool off, remove it from the workpiece and check the application tool. Afterwards, switch the power tool on again. Use a collet that fits the grinding accessory.

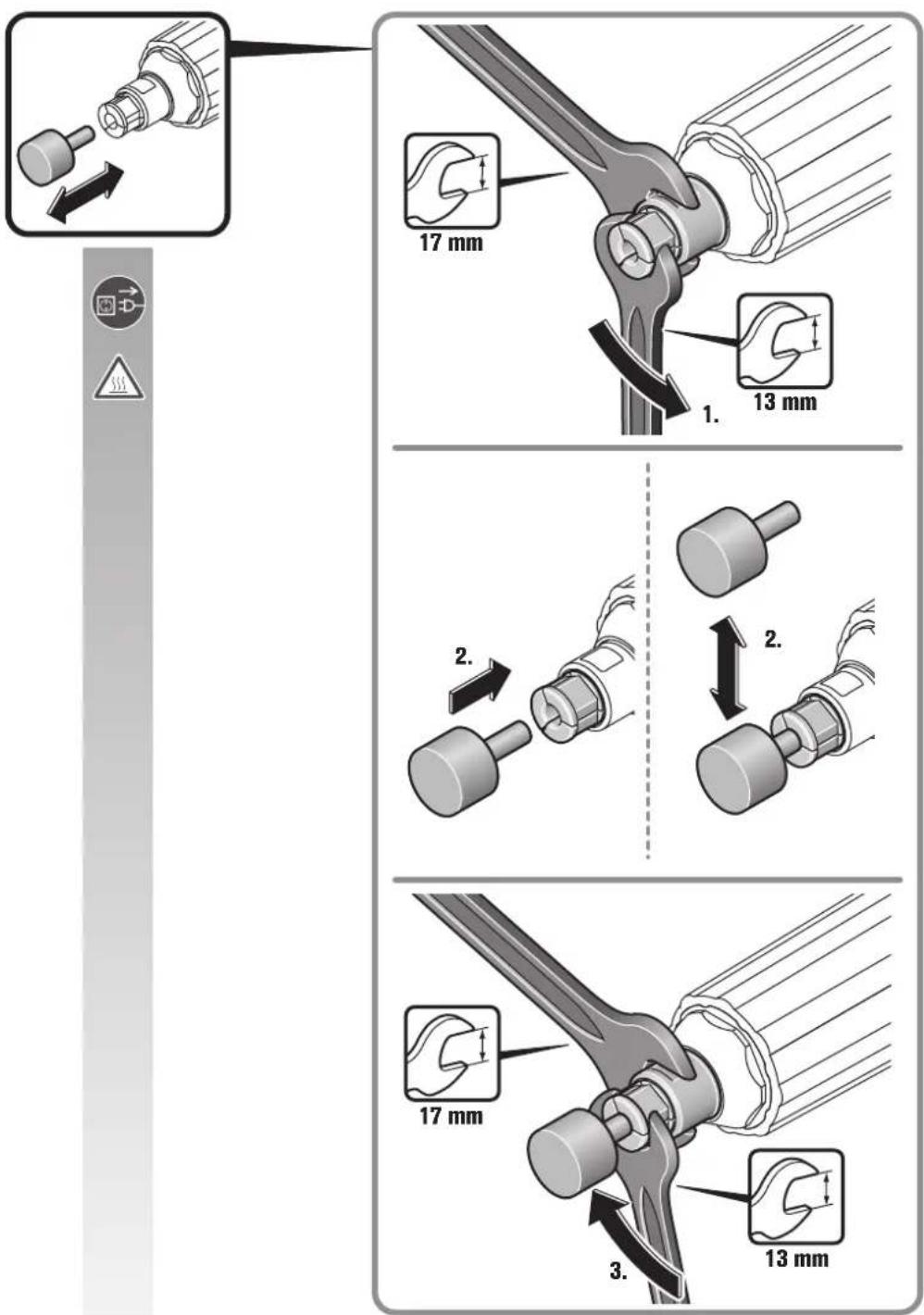

Insert the clamping shaft of the grinding accessory to the stop into the collet chuck.

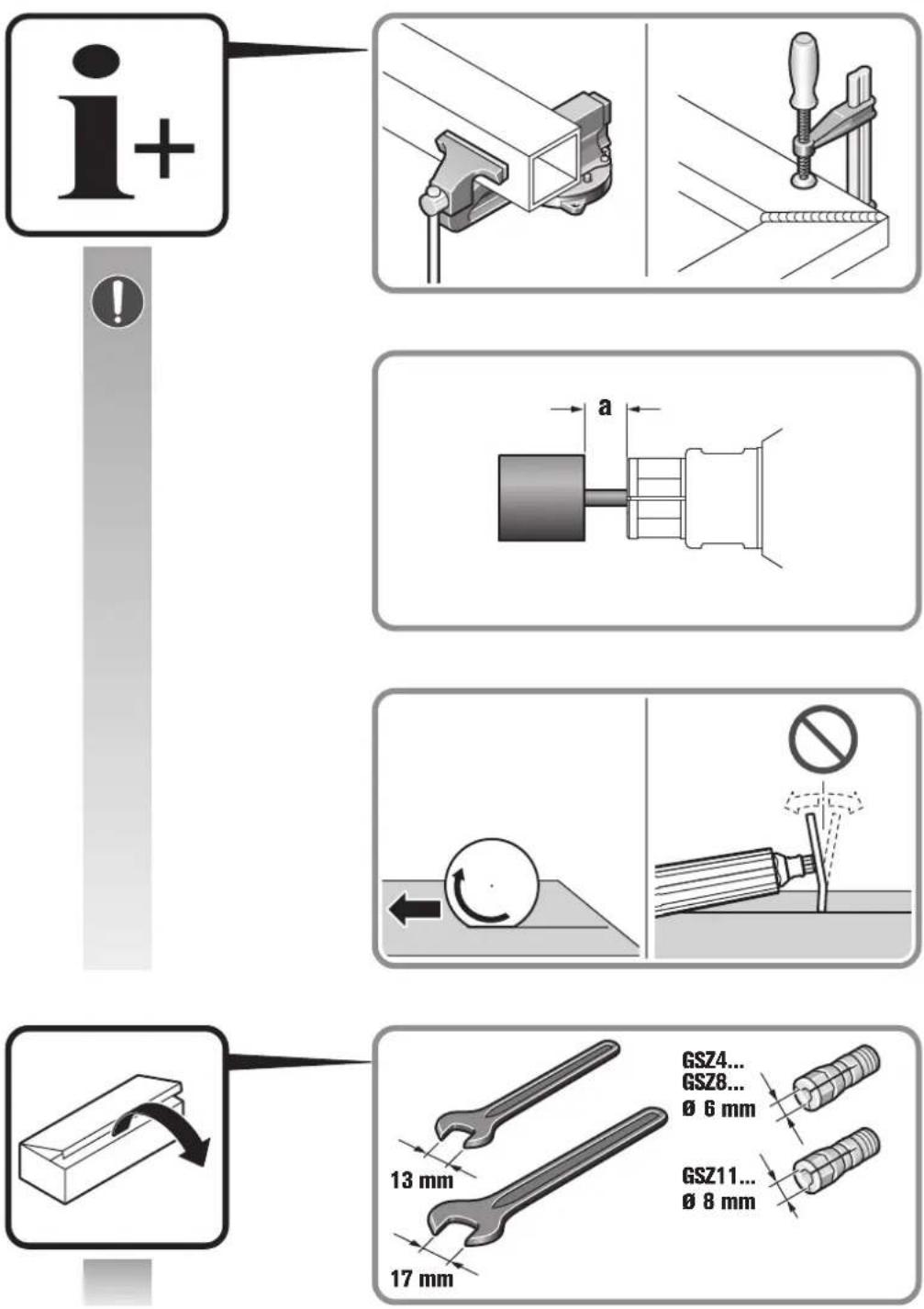

Observe the maximum permitted projecting shaft length (a) of the grinding accessory according to the manufacturer's instructions (see page 13).

Move the power tool back and forth applying uniform pressure, so that the workpiece surface does not become too hot.

Repair and customer service.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool.

The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the FEIN customer service centre.

The current spare parts list for this power tool can be found in the Internet at www.fein.com.

If required, you can change the following parts yourself: Application tools, collet

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at: C. & E. Fein GmbH, C-DB_IA, D-73529 Schwäbisch Gmünd

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.

Selection of accessories (see page 13).

Use only original FEIN accessories. The accessories must be intended for the power tool type.

A Collet

Notice originale.

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

nl

Miljøvern, deponering.

Pure geometric diagram with crosshair and circular shapes, no text or symbols present

ro

∅D ∅D ∅D
∅D ∅D ∅D
∅D ∅D ∅D
∅D ∅D ∅D
∅D ∅D ∅D

hr

Znak Međunarodna jedinica Nacionalna jedinica Objasnjenje
	kg kg Težina prema EPTA postupku 01/2003
L_pA	dB dB Razina zvučnog tlaka
L_wA	dB dB Razina učinka buke
L_pCpeak	dB dB Razina max. zvučnog tlaka
K...			Nesigurnost
a	m/s ^2	m/s ^2	Vrijednost emisija vibracija prema EN 60745 (vektorski zbroj u tri smjera)
a_h,SG	m/s ^2	m/s ^2	Vrijednost emisija vibracija (površinsko brušenje ravnom brusilicom)
a_h,P	m/s ^2	m/s ^2	Vrijednost emisija vibracija (poliranje i ravno brušenje)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, mln, m/s ^2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, mln, m/s ^2	Osnovne i izvedene jedinice iz Međunarodnog sustava jedinica SI.

Za vašu sigurnost.

APOZORENJE

Pročitajte sve upute za sigurnost i upute za uporabu. Propusti kod poštivanja napomena za sigurnost i uputa mogu prouzročlti strujni udar, požar i/ili teške ozljede. Sve napomene za sigurnost i upute spremite za buduću uporabu.

Ovaj električni alat ne koristite prije nego što ste temeljito pročitali i razumjeli ove upute za rukovanje kao i priložene „Opće napomene za sigurnost“ (br. tiska. 3 41 30 054 06 1). Spomenutu dokumentaciju spremite za kasniju uporabu i predajte je novom vlasniku kod predaje ili prodaje električnog alata. Također, pridržavajte se važećih nacionalnih propisa zaštite pri radu.

Definicija električnog alata:

ručne ravne brusilice za suho brušenje metala s malim brusovima (štapnim brusovima), za glodanje metala s glodalima s tvrdim metalom i za rezanje brusnim pločama za rezanje.

GSZ8-90PEL, GSZ11-90PERL, GSZ4-90EL: Ovi električni alati dopušteni su samo za rad s četkama i za poliranje s priborom odobrenim od FEIN, u okolini zaštićenoj od vremenskih utjecaja.
