USER MANUAL VPKK170Z Veripart

VPKK170Z

Zilver - Silver - Argent - Silber

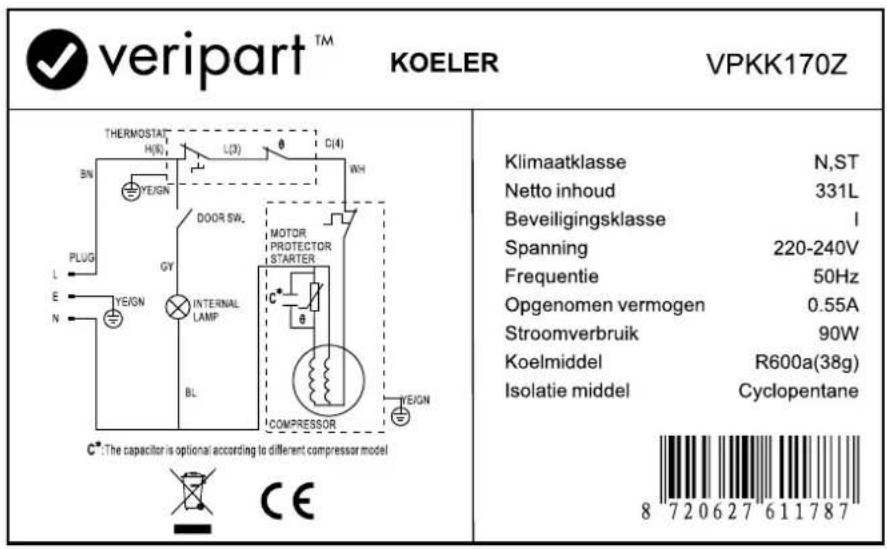

veripart™ KOELER VPKK170Z THERMOSTAT H(R) LN(3) C(H) BN YEIGN PLUG GY DOOR SW. MOTOR PROTECTOR STARTER INTERNAL LAMP BL COMPRESSOR YEIGN C*.The capacitor is optional according to different compressor model Klimaatklasse N,ST Netto inhoud 331L Beveiligingsklasse I Spanning 220-240V Frequentie 50Hz Opgenomen vermogen 0.55A Stroomverbruik 90W Koelmiddel R600a(38g) Isolatie middel Cyclopentane CE 8 720627 611787

INHOUDSOPGAVE

VOORWOORD 4

1. VEILIGHEID 6
2. PRODUCTEIGENSCHAPPEN 11
3. INSTALLATIE 13
4. STARTEN 18
5. REINIGING 23
6. STORINGEN OPLOSSEN 25
7. BUITEN GEBRUIK STELLEN 28
8. VEILIG AFVOEREN

29

VOORWOORD

Over dit document

1.1 VEILIGHEIDSWAARSCHUWINGEN EN -VOORSCHRIFTEN

!WAARSCHUWING!

Two vertical panels with checkmark and cross symbols, likely indicating approval or rejection status.

Technical line drawing of a mechanical support structure with no visible text or symbols

Technical line drawing of a mechanical structure with ladder and frame (no text or symbols)

Line drawing of a server cabinet with doors and rack (no text or symbols)

Technical line drawing of a mechanical lifting device with a magnified inset showing internal components (no text or symbols)

Diagram showing a mechanical clamp or lever mechanism before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Two technical line drawings of metal bracket components with mounting holes and a tool, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a document with arrows indicating rotational movement, no text or symbols present

4. STARTEN

Testen

Recycling symbol with recycling triangle and crossed-out trash bin (no text or labels)

1. SAFETY: 35
2. PRODUCT FEATURES 40
3. INSTALLATION 42
4. START 47
5. CLEANING AND MAINTENANCE 52
6. TROUBLESHOOTING 54
7. TAKING OUT OF SERVICE 57
8. SAFE DISPOSAL

58

FOREWORD

About this document

• This manual contains all information for the correct, efficient and safe use of the appliance.
• This manual is intended for the end user and/or buyer of this appliance.
• Make sure you have read and understood the instructions in this manual completely before installing or using the appliance. Keep this document for future use as long as you use and/or own the appliance.
• Coolblue B.V. cannot in any way be held liable for material or immaterial damage to you or to others, the appliance, your other belongings or belongings of others caused by not following the instructions in this manual.
• The warnings and safety instructions in this manual do not cover all possible circumstances and situations.
• If you contact our customer service, make sure you have the model number ready. The information can be found on the type plate or on the front of this manual.

Original instructions

This manual was originally written in Dutch. All other languages are translated documents. In the case of translation errors, the Dutch version is leading.

Symbols used

SYMBOL DESCRIPTION
	DANGER!	Fire hazard and/or flammable materials
	WARNING!	Indicates a dangerous situation which, if not avoided, may result in serious immaterial damage to you or others.
	CAUTION!	Indicates a dangerous situation which, if not avoided, may result in slight immaterial damage to you or others.
	ATTENTION!	Indicates a situation related to material damage.
	NOTE	Indicates useful additional information.

Copyright

The data depicted in this manual, including texts, photographs, graphic drawings, trademarks, (trade) names and logos, are the property of Coolblue B.V. and are protected by copyright, trademark law and/or any other intellectual property right, unless these data belong to a third party. You are never allowed to reproduce, transfer, distribute, store or make the contents of the manual available to third parties, in whole or in part, without the prior written consent of Coolblue B.V. and/or the third party to whom the data belong.

NOTE

- You can also find the latest version of this manual online, at www.coolblue.nl if you search for the article number.

Veripart contact details

Veripart is a registered brand of Coolblue B.V. Customer service can be reached at: https://www.coolblue.nl/en/customer-service

1. SAFETY:

1.1 SAFETY WARNINGS AND REGULATIONS

!WARNING!

• Keep the vents in the appliance housing open in both freestanding and built-in fridges.
• Do not use mechanical devices, electrical appliances (such as a hairdryer or heater) or other means to defrost your refrigerator.
• Ensure that no components of the cooling circuit are damaged during transport and installation of the appliance (only in cases where the cooling circuit is freely accessible).
• Do not place electrical appliances in the food storage compartments of the refrigerator (such as ice cream machines) unless they are of a type expressly declared suitable by the manufacturer.
• When positioning the appliance, ensure that the power cable is not stuck or damaged.
• Do not use an extension lead or socket for this appliance.

CAUTION!

• Packaging with flammable gases or liquids may leak at low temperatures, do not store flammable gases or liquids in the appliance.
• Do not store containers containing flammable materials, propellant or explosive substances such as aerosols, refill cartridges for fire extinguishers, etc. in the appliance.
• Do not place carbonated or sparkling drinks in the freezer compartment.
• Do not remove objects from the freezer compartment if your hands are wet/damp as this may cause grazes or frostbite.
• If you want to avoid forming a combustible gas-air mixture in the event of a leak in the cooling circuit, consider the size of the space in which the appliance is located and the amount of refrigerant used.
• It is dangerous for people other than authorised technicians to carry out maintenance or repairs with cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.

- This appliance may be used by children from eight years of age and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been trained in the safe use of the appliance and that they understand the associated dangers.

! ATTENTION!

- This appliance is intended for domestic use and similar applications such as:

- staff kitchens in shops, offices and other work environments;

- farms and guests in hotels, motels, B&B and other residential environments;

- catering and similar non-retail applications.

- It is dangerous to change the characteristics or specifications of the appliance or to try to modify this product in any way.

- Food storage times recommended by the food manufacturer must be observed.

- Never pull the power cable to disconnect the plug from the socket. Always hold the plug firmly and pull it straight out of the socket.

1.2 SAFETY INSTRUCTIONS: INSTALLATION

DANGER!

Risk of fire / flammable materials.

! CAUTION!

• The appliance is heavy. Take care when handling and wear protective gloves and closed footwear.
• It is dangerous for persons other than authorised service technicians to carry out maintenance on electrical components (plug, power cable, compressor, etc.) or to carry out repairs with the cover plates removed. To avoid the risk of electric shocks, do not attempt to repair this appliance yourself.
• If you detect any damage to the appliance or the power cable, do not connect the appliance but contact the service department (see contact details on page 41).
• The power cable must be attached behind the appliance and must not be exposed or loose.
• Make sure that the power cable of the installed appliance is always easily accessible.
• This appliance requires a standard 220-240V 50Hz socket with 2-pole earthing. The power cable of this appliance is equipped with a 2-pole plug suitable for standard wall sockets with earthing to minimise the risk of electric shocks.
• On first installation (or after turning the door) wait at least four hours before connecting the appliance to the power. This allows the oil to flow back into the compressor.
• Ensure that air can circulate around the appliance.
• Pull the plug out of the socket before carrying out any actions on the appliance (e.g. turning the door).
• Incorrect use of the earthed plug may cause an electric shock.
• This appliance is not intended for use as a built-in refrigerator.

• The correct operation of the appliance can only be guaranteed if the specified temperature range is respected. If, as a result of another installation, the correct ventilation requirements are not met, the appliance

• will function correctly, but energy consumption may increase slightly.

• This appliance is not suitable for use with an inverter.
• Do not install the appliance near radiators, stoves, ovens or hobs.
• Do not install the appliance in direct sunlight.
• Do not install this appliance in spaces that are too damp or too cold.
• Do not expose the appliance to rain.
• The total volume of the space in which the appliance is installed divided by the amount of refrigerant of the appliance must not be less than 8 g/m ^3 . The amount of refrigerant contained in the appliance can be found on the type plate.
• The lamp supplied with this appliance is only for use in this appliance and is not intended for other applications.
• The appliance may not operate optimally if it is in a place where the ambient temperature is below the minimum or above the maximum of the temperature range for which the appliance is designed for a longer period of time. Please refer to the “Climate Range” table below.

Climate Range

The information about the climate range of the appliance is stated on the type plate. It indicates at which ambient temperature (or room temperature) the operation of the appliance is optimal (correct).

This type of refrigerator has climate range N and ST.

CLIMATE RANGE PERMISSIBLE AMBIENT TEMPERATURE
SN From +10°C to +32°C
N From +16°C to +32°C
ST	From +16°C to +38°C
T	From +16°C to +43°C

1.3 SAFETY INSTRUCTIONS: USE

! CAUTION!

Observe the following instructions to avoid food contamination:

• When the door is open for a long time, the temperature in the compartments of the appliance can rise considerably.
• Clean surfaces that may come into contact with food and accessible drainage systems regularly.
• Store raw meat and fish in suitable containers in the appliance so that they do not come into contact with or drip on other foods.
• If the appliance remains empty for a long time, switch it off, clean and dry it and leave the door open to prevent mould forming in the appliance.

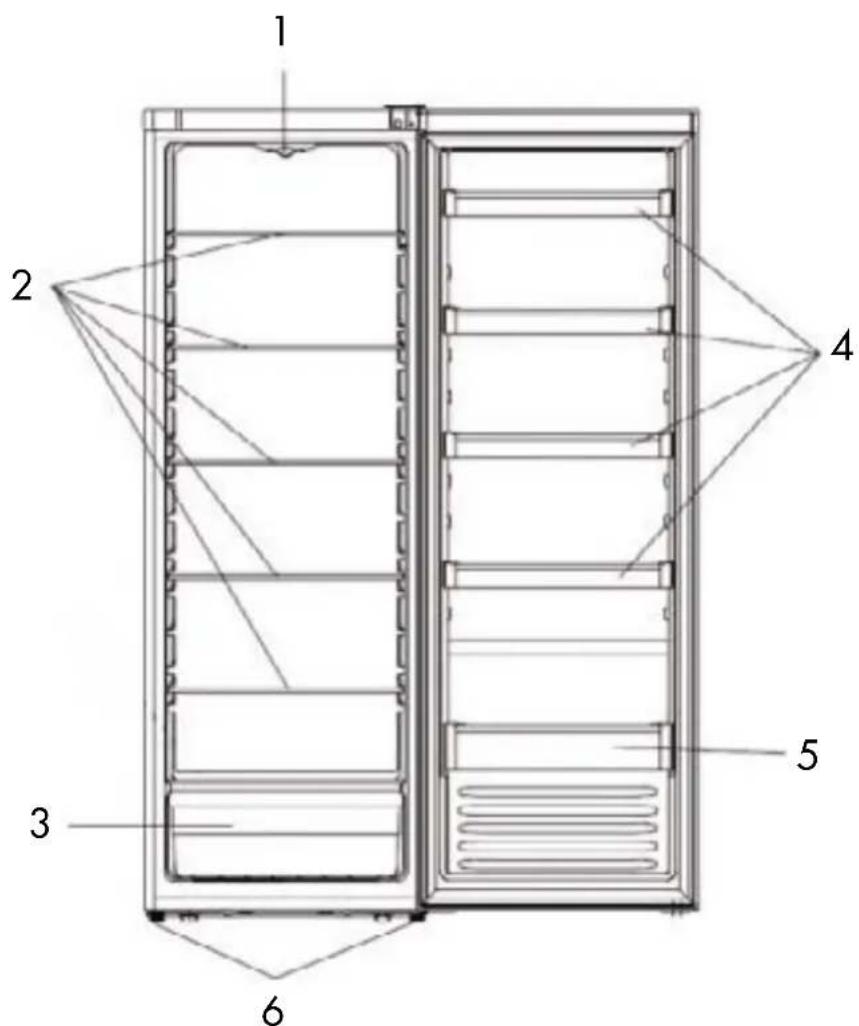

2. PRODUCT FEATURES

1 2 3 4 5 6

1. Thermostat and lighting
2. Glass shelves
3. Vegetable drawer
4. Door shelves
5. Bottom door compartment
6. Setting feet

This image only serves as a reference.

Does not contain freon

The freon-free refrigerant (R600a) and the environmentally friendly foam insulation (cyclopentane) used for the appliance do not affect the ozone layer and have a very small impact on global warming.

Guarantee

This appliance comes with a guarantee period of two years after purchase. For more information on guarantee conditions, please visit www.coolblue.nl/en/customer-service. In any case, you must have the purchase order with purchase and/or delivery date in order to be able to claim the guarantee.

Spare parts

Spare parts for this appliance are available. To order or find out more, visit www.coolblue.nl/en/customer-service

Technical data and energy label

The technical data is indicated on the type plate on the inside of the appliance and on the energy label (both also printed on page 2). The QR code on the energy label provided with the appliance provides a web link to the information related to the appliance performance in the EU EPREL database. Keep the energy label for reference together with the user manual and any other documents provided with this appliance. It is also possible to find the same information in EPREL via the link https://eprel.ec.europa.eu and the model name and product number that can be found on the type plate of the appliance.

See link www.theenergylabel.eu for detailed information on the energy label.

VERIPART CONTACT DETAILS
Address:	Weena 664, 3012 CN, Rotterdam
Website https://www.coolblue.nl/en/customer-service

3. INSTALLATION

Before installing the refrigerator, carefully review the safety information (section 1).

3.1 LOCATION

Ventilation

When selecting a position for your fridge you should make sure the floor is flat and firm, and the room is well ventilated. Avoid locating your fridge near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight in out-buildings or sun lounges. If you are placing your fridge in an out-building such as a garage or annex ensure that the fridge is placed above the damp course, otherwise condensation will occur on the fridge cabinet. When working, the refrigerator gives off heat to its surroundings. Therefore, at least 30mm of free space should be left on the top, more than 100mm on both sides, and more than 50mm at the back of the refrigerator.

Cleaning before use

Wipe the inside of the fridge with a weak solution of bicarbonate of soda then rinse with warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy water and dry completely before replacing in the fridge. The external parts of the fridge

can be cleaned with a non-abrasive detergent diluted in warm water.

Before plugging in YOU MUST:

Check that you have a socket which is compatible with the plug supplied with the fridge. Check BEFORE switching on!

Do not switch on until four hours after moving the fridge.

The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.

Before filling your fridge:

Before storing foods in your fridge, turn the fridge on and wait for 24 hours, to make sure it is working properly and to allow the fridge to fall to the correct temperature.

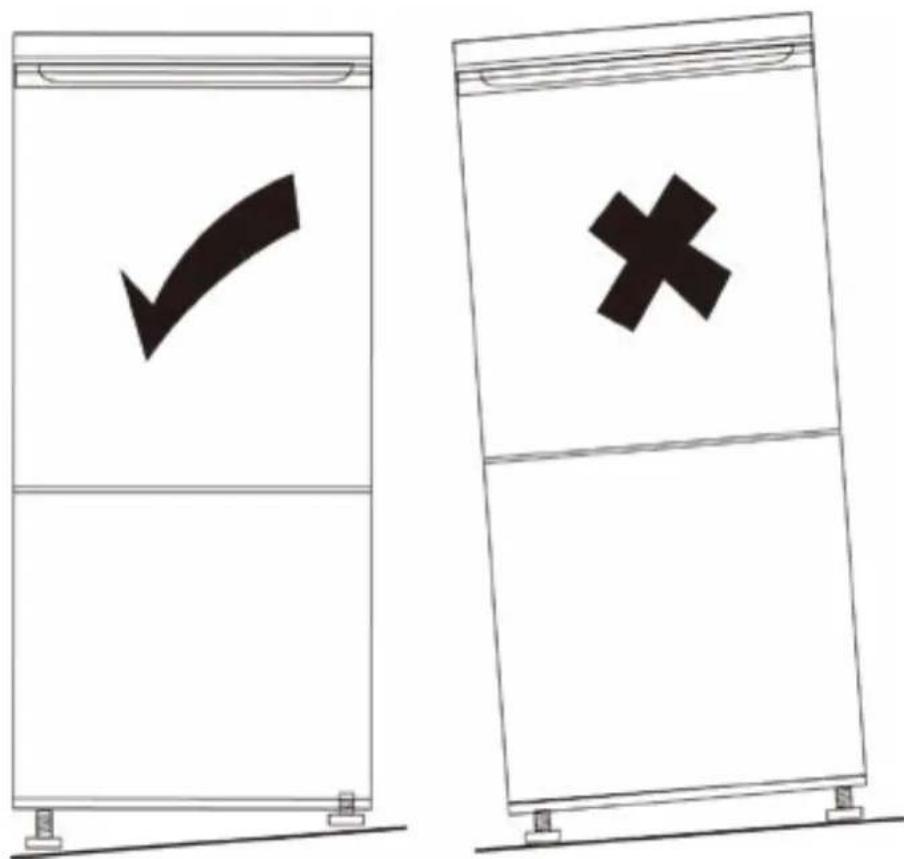

Levelling the fridge

If the fridge is not level, the door and magnetic seal alignment will be affected and may cause your fridge to work incorrectly. Once the fridge is placed in its final location, adjust the leveling feet at the front by turning them.

Diagram showing two labeled panels: a checkmark inside a container and a cross inside a container, both with support symbols.

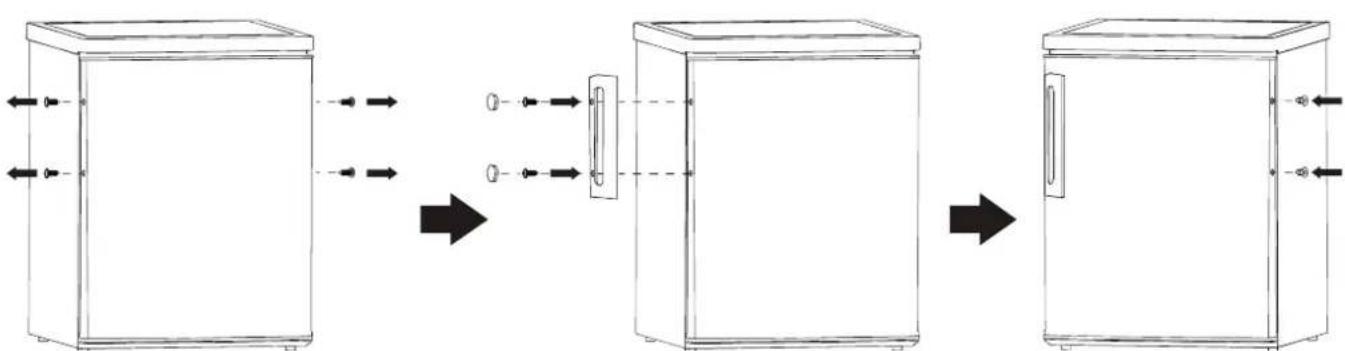

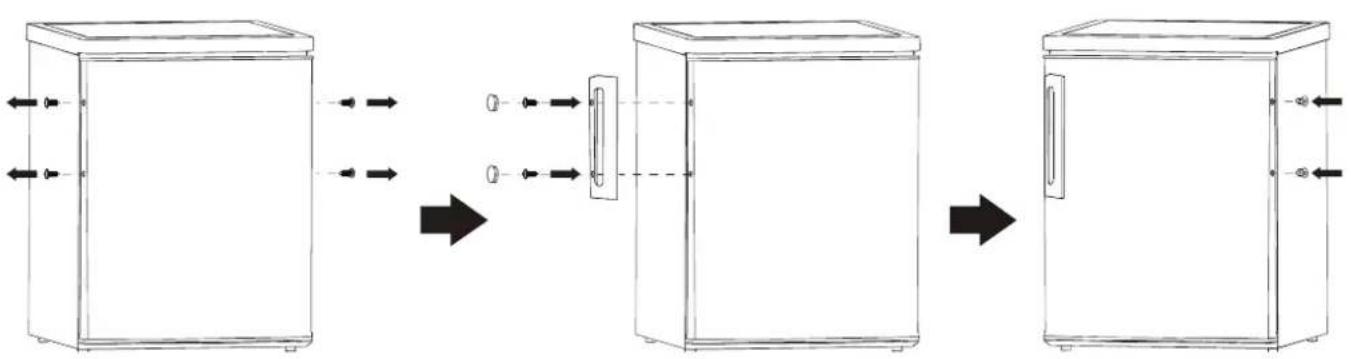

INSTALL DOOR HANDLE

Modify door hinges

Tools required:

Phillips screwdriver, flat screwdriver, Allen key

• Make sure the appliance is unplugged and empty.
• To remove the door, tilt the appliance slightly backwards. You should rest the door on something solid so that it does not slip when you remove the door.
• All removed parts should be kept for reinstallation of the door.
• Do not lay the appliance flat as this may damage the cooling system.

• It is best for two people to perform the door hinge conversion.

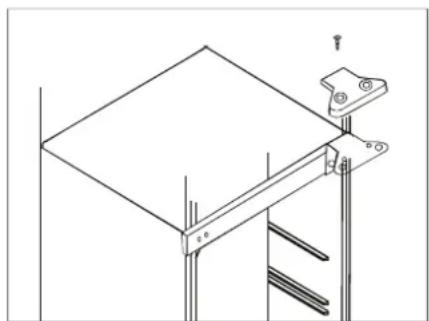

• Unscrew the hinge cover.

Technical line drawing of a mechanical assembly with a diamond-shaped component and mounting bracket (no text or symbols)

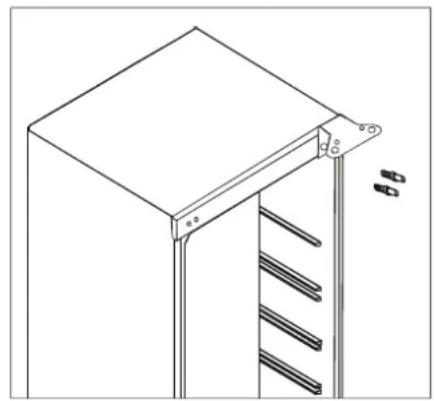

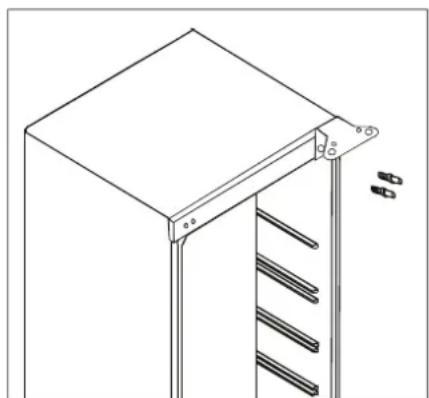

1. Open the door and detach the top hinge. Then remove the door from the refrigerator and place it on a soft surface to avoid damage.

Technical line drawing of a mechanical structure with ladder and frame (no text or symbols)

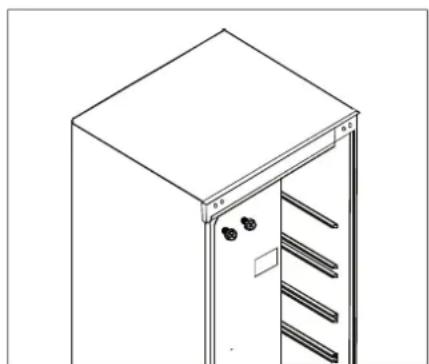

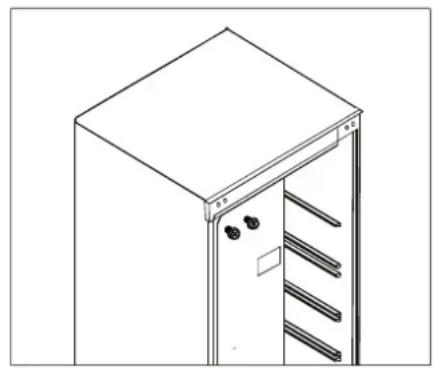

1. Remove the cover plate and the screws from the left-hand side and attach them to the right-hand side.

Line drawing of a server cabinet with doors and rack (no text or symbols)

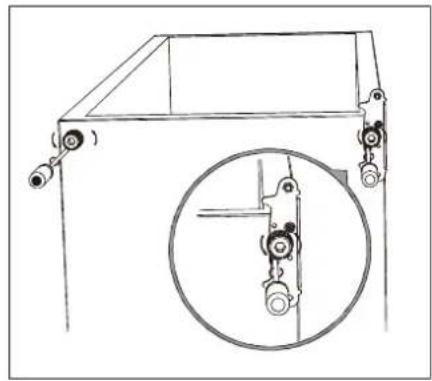

1. Lay the back of the refrigerator on a soft surface. First remove the two adjusting feet. Then loosen the screws on the door hinge and the adjusting bolt on the bottom left.

Note: If there is a screw on the bottom left-hand corner, remove it before installing the hinge.

Technical line drawing of a mechanical lifting device with a magnified inset showing internal components (no text or symbols)

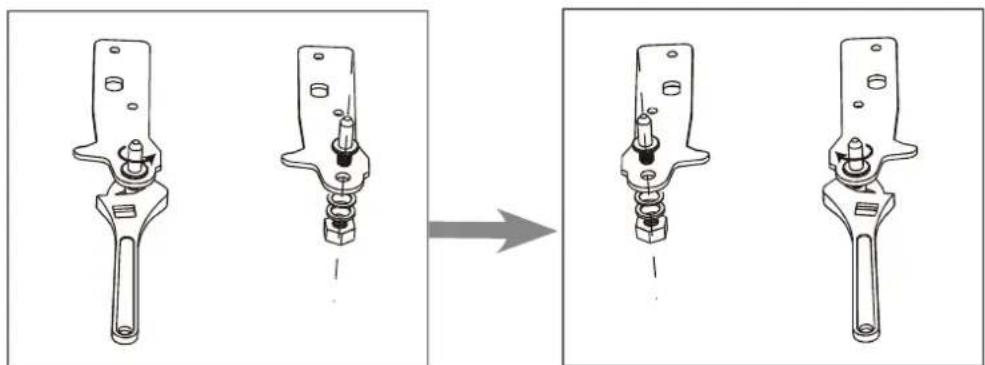

1. Unscrew the hinge pin on the bracket, turn the bracket around and reinstall the hinge pin here.

Diagram showing a mechanical clamp or lever mechanism before and after assembly, with no visible text or symbols.

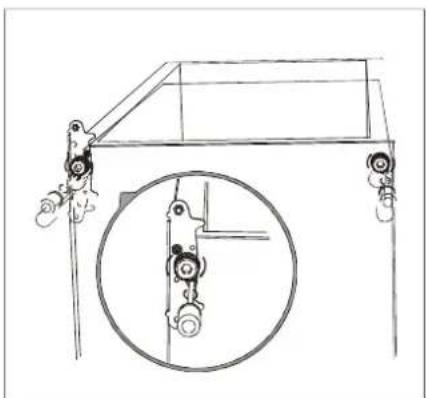

1. Install the hinge on the left side and the adjustment bolt on the right side. Screw the two adjusting pins back on with the corresponding parts.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

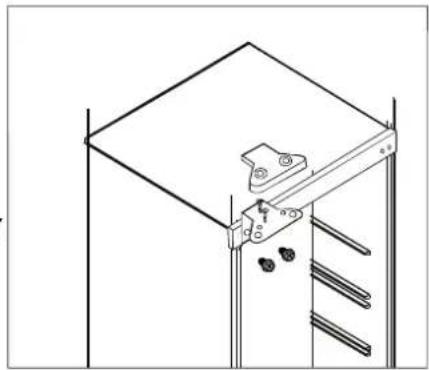

1. Unscrew the hinge pin from the top hinge and screw it into the opening on the left-hand side.

Two technical line drawings of metal bracket components with mounting holes and a tool, no text or symbols present

1. Turn the appliance upright again and place the door on the bottom hinge. Make sure that the hinge pin is correctly positioned in the opening. Then mount the top hinge on the door. Before finally securing the top hinge, try opening the door to check that it closes properly. Finally, place the cover plate on the hinge.

Technical line drawing of a mechanical assembly with no visible text or symbols

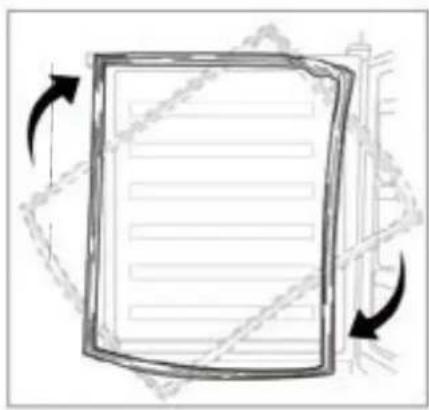

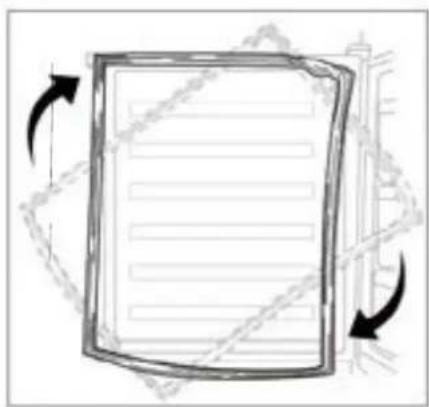

1. Pull the sealing rubber off the door, turn 180° and press it back into place.

Illustration of a closed document with arrows indicating rotational motion (no text or symbols)

4. START

Testing

1. Clean the parts of the refrigerator with lukewarm water containing a little neutral detergent and wipe them dry.

Note!

- Electrical components should only be wiped with a dry cloth.

1. Turn the thermostat knob to the right position according to the scheme below, then plug the refrigerator into the wall outlet. The compressor and the light inside the refrigerator will begin to work.
2. Open the door 30 minutes later. If the temperature in the refrigerator has dropped noticeably, the refrigeration system is working normally. When the refrigerator has operated for a period of time, the temperature controller will automatically set the temperature within limits it adjusts.

Temperature Control

The temperature of the appliance can be adjusted by turning the thermostat dial.

• The thermostat can be set between 1 and 7.
  • 1 is the warmest setting.
• 7 is the coldest setting.
  • The recommended setting is 4.
• Set the dial to 0 to turn off the cooling function.

The internal temperature of the appliance may vary based on ambient temperature, the quantity of items stored and how frequently the door is opened.

TEMPERTURE SETTING RECOMMENDATION
Environment temperature Freezer compartment		Fridge compartment
Warm28°C - 38°C	/
		Set on 3-4
Normal22°C - 28°C	/
		Set on 3-4
Winter16°C - 22°C	/
		Set on 2-3

STORAGE OF FOOD

1. How to Use the Refrigerator Compartment

• Cooked dishes can be put into the refrigerator once they have cooled to room temperature.
• Use the egg pockets and bottle pockets for eggs, butter, milk and bottled drinks, etc.

2. Placement of Food

• Leave enough space between foods. If items are stored too closely together, the cold air flow will be blocked, thus affecting the refrigeration effect.
• Food to be stored should be wrapped with clean plastic film and/or aluminium foil to avoid cross-contamination, odours or loss of moisture, and then distributed amongst the compartments and shelves.
• Cool hot food down to room temperature before putting it in the fridge to avoid any increase in energy consumption or formation of frost within the fridge.

IN USE

1. The appliance might not operate consistently (there is possibility of defrosting or a rise in temperature in the frozen food compartment) if it remains below the cold limit of the temperature range for which the refrigerating appliance is designed.
2. The internal temperatures may be affected by such factors as the location of the refrigerating appliance, the ambient temperature and the frequency of door opening, etc., and, if appropriate, a warning that the settings of any temperature control devices might need adjustment to allow for these factors, will be given.
3. The storage time(s) recommended by the food manufacturers should be adhered to.
4. A rise in the temperature of frozen food during manual defrosting, maintenance or cleaning could shorten its storage life.
5. It is better to wrap frozen food in several layers of food wrapping materials before placing it on the glass shelves.
6. Certain care must be taken with frozen food in storage in the event that the appliance is not run for an extended time (interruption of power supply or failure of the refrigerating system).

Tips for keeping food perfect in the fridge

Take extra care with meat and fish

Cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meat on a plate large enough to collect juices and cover it with cling film or foil.

Leave space around food

This allows cold air to circulate around the fridge, ensuring all parts of the fridge are kept cool.

Wrap up food

To prevent the transfer of flavours or loss of moisture, food items should be covered and/or packed separately. Fruit and vegetables need not be wrapped.

Pre-cooked food should be cooled properly

Allow pre-cooked food to cool down before placing in the fridge. This will help to stop the internal temperature of the fridge from rising.

Shut the door

To prevent cold air escaping, try to limit the number of times you open the door. When returning from shopping, sort foods to be kept in the fridge before opening the door. Only open the door to put food in or take it out.

Recommended storage periods

For recommended food storage time, refer to the information given on your food packaging.

Where to store your foods in the fridge

• Place spreadable butter and cheese on the upper door shelf in the fridge compartment. This is where the temperature is the warmest.
• Store preserves, jars and eggs on the middle shelf. Eggs are best stored on the supplied egg tray.
• Place drink cartons and bottles in the large lower door shelves. Position full containers closer to the hinge in order to reduce the strain on the door.
• Place cooked and baked foods on the glass shelves.
• Place fresh meat, game, poultry, bacon, sausage and raw fish on the glass cover above the vegetable drawer. This is where the temperature is the lowest.
• Place fresh fruit and vegetables in the vegetable tray.
• Only store strong alcohol standing upright and tightly closed.
• Allow hot food to cool before placing it in the fridge.

Note!

- Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom of the fridge and do not store it for a long time. This will stop those products from dripping onto or touching other foods. Do not store flammable gasses or liquids in the fridge.

5. CLEANING AND MAINTENANCE

Before cleaning the appliance, carefully review the safety information (Section 1).

For hygienic reasons, the inside of the appliance, including accessories, should be cleaned regularly.

! CAUTION!

• Remove the plug from the socket before cleaning. Never touch the plug with wet hands because of the risk of electric shocks and injury.
• Do not spill water directly onto the appliance to prevent rust, leakage and accidents.
• Do not put your hands in the bottom of the fridge as the sharp metal corners can cause scratches.
• Do not use water jets and steam to clean the appliance.
• To prevent damage, do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, petrol, acids, chlorine, abrasive powders, hot water or other corrosive or soluble substances to clean the cabinet surface, door gasket or plastic decorative parts.
• Do not use electrical appliances (such as a hairdryer or heater) to defrost your appliance.

! ATTENTION!

- The electrical parts of the appliance may only be cleaned with a dry cloth.

Interior and exterior cleaning

• Food residues in the appliance can cause a bad smell. The appliance should therefore be cleaned regularly. The fresh food compartment is preferably cleaned monthly.
• Remove all shelves, fruit and vegetable compartment, bottle racks, cover plate, drawers, etc. and clean with a soft cloth or sponge moistened with warm water or a neutral detergent.
• If you are using cleaning agents, clean with a soft cloth or sponge, and wipe dry.
• Regularly remove the dust from the back panel and side plates of the appliance. Use a dry cloth for this. (no water)
• If the appliance has been empty for a long time, turn it off, defrost, clean, dry and leave the door open to avoid mould forming in the appliance.

6. TROUBLESHOOTING

You can solve some problems easily yourself using the table below. Caution!

ATTENTION!

• Before solving the problem, switch off the power supply.
• If the following descriptions do not solve your problem, please contact our customer service: www.coolblue.nl/en/customer-service
• Only a qualified electrician or authorised person may solve the faults not contained in this manual. Repairs carried out by unauthorised persons may cause injury and/or serious damage to persons and property.

PROBLEM POSSIBLE CAUSE SOLUTIONS
The appliance does not cool at all	- The temperature control knob is in the Coldest position.- The plug is not inserted properly.- There is no voltage on the socket.- The fuse is blown or defective.- Where is the device installed? Is it located on a balcony, in a garage, storage room or other place where the ambient temperature is less than 16°C?	- Switch the thermostat to another position.- Insert the plug properly.- Open the door and check if lamp is on. If the lamp is off, there may be no voltage on the socket. Have the socket repaired by an electrician.- Check the fuse and replace if necessary.- Install the appliance in a protected location where the ambient temperature is higher than 16°C. If the appliance is installed in a room with too low a temperature, the internal cooling system may not operate correctly.
The door does not open easily.	- You tried to open the door immediately after closing.	- Wait a few seconds between closing and re-opening the door.
Water runs over the back of the appliance	- During the automatic defrosting process, icing thaws against the back wall.	- Wipe up the water with a soft cloth.
Water enters the appliance	- Products prevent water from entering the water collection container.- The water collection channel is blocked.	- Ensure products do not touch the back wall.- Clean the water collection channel.
There is too much condensation on the back wall of the appliance.	- The door has been opened too often.- The door is not completely closed- The stored food was not packed.	- Only open the door if necessary.- Make sure the door is completely closed.- Pack food in suitable material before putting it in the appliance.
There is water on the floor.	- The defrost water collection channel is not connected to the evaporator container above the compressor.	- Secure the defrost water collection channel to the evaporator container.
The appliance freezes or cools too much.	- The temperature is set too cold or the appliance is in the coldest position.	- Temporarily set the temperature control knob to a warmer position.
The temperature in the appliance is too low/high.	- The temperature is not set correctly.- The door is not closed properly.- The temperature of the food in the fridge is too high.- Many products are stored at the same time.- The door has been opened too often.	- Set a higher/lower temperature.- Find the cause of the door not closing properly, remove or move possible obstacles.- Allow the food to cool to room temperature before preserving.- Preserve fewer products at the same time.- Only open the door if necessary.
Strange smell in the refrigerator	- There is spoiled food in the fridge.- The appliance is not clean.- Food with a strong smell is present in the appliance.	- Throw away spoiled food.- Clean the appliance.- Pack food with a strong smell.
There is too much frost and ice.	- The door is not closed properly.- The door gasket is deformed or dirty.- The products are not packed correctly.- The temperature is set incorrectly.- The appliance is fully loaded and set to the lowest temperature.- The set temperature in the appliance is too low and the ambient temperature is too high.	- Find the cause of the door not closing properly, remove or move possible obstacles.- As a result, the door does not close properly. Clean the seal and repair the deformation. If necessary, replace the seal, contact customer service.- Pack the products better.- Please refer to Section 4.- Set a higher temperature. Please refer to Section 4. Set a higher temperature. Please refer to Section 4.
The compressor works continuously.	- The temperature is set incorrectly.- Many products are placed at the same time.- The room temperature is too high.- The food placed in the appliance was too hot.- The door is not closed properly.	- Please refer to Section 4.- Wait a few hours and then check the temperature again.- Please refer to Section 4.- Allow food to cool to room temperature before storing.- See the previous section.
The lamp does not work.	- The lamp is broken.- The lamp is in the standby position.	- Please contact our customer service.- Close and open the door.
The side panels are hot.	- This is normal. The heat exchanger components are on the side.

7. TAKING OUT OF SERVICE

Switching off and storage

If the appliance will not be used for several months, first switch it off (turn the thermostat switch to 0) and then pull the plug out of the socket.

• Make sure the appliance is completely thawed.
- Clean the inside thoroughly and wipe dry. To prevent the formation of odours and moulds, leave the door open: block it.
- Clean the door gasket groove with soap and water and wipe everything dry with a soft cloth.
- Do not use a hard brush, steel brush, detergent, soap powder, alkaline detergent, benzene, gasoline, acids, hot water or other corrosive or soluble substances to clean the appliance.
- Store the cleaned appliance in a dry, ventilated place, away from a heat source. Make sure the appliance is on a level surface and do not place heavy objects on top.
- The appliance in storage must not be accessible to children playing.

8. SAFE DISPOSAL

! CAUTION!

Waste processing

• Refrigerants and the cyclopentane foam used for the appliance are flammable. When the appliance is disposed of, it must therefore be kept away from sources of fire and collected or returned to a qualified waste processing company.
• The appliance may not under any circumstances be incinerated to prevent damage to the environment or other damage.
• R-600a is used as a refrigerant in this appliance. Therefore, please contact local authorities regarding the safe disposal of this appliance.

Recycling symbol with a recycling triangle and a crossed-out trash bin, no text or numbers present.

The materials used in this appliance marked with this symbol are recyclable.

This marking indicates that this product should not be disposed of via household waste throughout the EU. In order to prevent damage to the environment or human health as a result of uncontrolled waste, it must be processed responsibly so that raw materials can be reused sustainably. Use the existing collection systems or contact the shop where you purchased the product if you want to dispose of the used product. There, the product is recycled in an environmentally friendly way.

• Old cooling appliances still have value. Responsible disposal ensures that valuable raw materials can be recycled. Of course, the appliance may not be disposed of with (domestic) residual waste, but it must be collected or returned to the environmental station of your municipal waste processing company.
• The refrigerants and insulation materials used in your appliance require special care. When draining, ensure that the pipes on the back of the appliance are not damaged.
• Avoid damaging the cooling unit, especially the heat exchanger.
• Information on how to dispose of old appliances and packaging correctly can be found at your local municipal waste processing company.

Veripart is a registered trademark of Coolblue B.V.

Weena 664

3012CN, Rotterdam

The Netherlands

Made in China

NOTICE D'UTILISATION

RÉFRIGÉRATEUR

VPKK170W

VPKK170Z

veripart

TABLE DES MATIÈRES

AVANT-PROPOS 62

1. SÉCURITÉ 64
2. CARACTÉRISTIQUES DU PRODUIT 69
3. INSTALLATION 71
4. DÉMARRAGE 76
5. NETTOYAGE ET ENTRETIEN 81
6. DÉPANNAGE 83
7. MISE HORS SERVICE 86
8. ÉVACUATION SÉCURISÉE 87

VORWORT

91

AVANT-PROPOS

Two vertical panels with checkmark and cross symbols, likely indicating approval or rejection status.

MONTAGE DE LA POIGNÉE EXTÉRIEURE DE LA PORTE

Technical line drawing of a mechanical assembly with a diamond-shaped base and ladder (no text or symbols)

Technical line drawing of a mechanical assembly with a ladder and bracket (no text or symbols)

Line drawing of a server cabinet with doors and rack (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram showing a mechanical clamp or lever mechanism before and after assembly, with no visible text or symbols.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Two technical line drawings of metal bracket components with bolts and pins (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a closed document with arrows indicating rotational motion (no text or symbols)

4. DÉMARRAGE

Test

Symbol of recycling and disposal with recycling symbol above a trash can and crossed-out lines below (no text or labels)

Diagram showing two labeled panels: a checkmark inside a container and a cross inside a container, both with alignment markers.

MONTAGE DES AUSSENGRIFFS DER TÜR

Technical line drawing of a mechanical assembly with ladder and bracket (no text or symbols)

Technical line drawing of a mechanical structure with ladder and mounting bracket (no text or symbols)

Line drawing of a server cabinet with doors and rack (no text or symbols)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Diagram showing a mechanical clamp or bracket assembly before and after modification, with no visible text or symbols.

Technical line drawing of a mechanical lifting frame with a magnified inset showing internal components (no text or symbols)

Two mechanical bracket components with mounting holes and a tool, shown in isometric view (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a document with arrows indicating rotational movement (no text or symbols)

4. INBETRIEBNAHME

Testen

Symbol of recycling and disposal with recycling symbol above a trash can and crossed-out lines below (no text or labels)
