Product type	Cyclone vacuum cleaner, with dust bag
Brand	Hoover
Model	BR25PAR 011
Power supply	Electric, with power cord and automatic rewind
Suction control	Yes, adjustable on the handle
Main brush type	Combined hard floor & carpet brush (GP) with selection pedal
Included accessories	2-in-1 crevice tool, mini turbo brush for pet hair, antibacterial mini turbo brush, super turbo brush, parquet brush
Telescopic tube	Yes, height adjustable
Filtration system	Washable pre-motor filter and washable exhaust filter
Dust container capacity	Approximately 1.5 liters (max level mark)
Weight	Approximately 6 kg
Dimensions (L x W x H)	Approximately 350 x 250 x 300 mm (main body)
Noise level	Approximately 78 dB(A)
Power consumption	Approximately 700 W
Filter maintenance	Wash with lukewarm water after 5 emptyings; dry completely before reuse
Emptying the container	Remove the flap, empty the dust, clean the cyclone separator if necessary
Safety	Automatic thermal cutoff in case of overheating; stop and unplug required
Spare parts	Recommended to use original Hoover parts
Warranty	According to retailer conditions; invoice required
Usage	Household use only; do not vacuum liquids, hot or sharp objects

Frequently Asked Questions - BR25PAR 011 HOOVER

How to empty the dust container of the Hoover BR25PAR 011 vacuum cleaner?

Stop and unplug the appliance. Press the container release button, remove the entire container. Turn the flap counterclockwise to remove it. Remove the pre-motor filter and the cyclone diaphragm. Empty the dust, then reassemble everything in reverse order.

How to clean the vacuum cleaner filters?

The pre-motor and exhaust filters are washable. Remove them, tap gently to remove dust, wash with lukewarm water without detergent, squeeze out excess water and let dry completely before replacing. DO NOT use the vacuum without filters.

What to do if the vacuum stops working during use?

This may be due to a thermal cutoff from overheating. Turn off and unplug the appliance. Check for any obstruction (full container, dirty filters, blockage in the hose). Let it cool for about 30 to 45 minutes; the appliance will reset automatically.

How to select the mode for hard floor or carpet?

Use the floor type selection pedal located on the combined brush. For hard floor: brushes are lowered. For carpet: brushes are raised for deep cleaning.

How to use the telescopic tube?

Push the telescopic tube adjustment button upward, then raise or lower the handle to a comfortable height. Release the button to lock.

What accessories are supplied with the vacuum?

The vacuum comes with: a combined hard floor/carpet brush, a 2-in-1 crevice tool (flat crevice tool and upholstery brush), a mini turbo brush for pet hair, a bacteria-limiting mini turbo brush, a super turbo brush and a parquet brush.

How to use the 2-in-1 accessory?

The 2-in-1 accessory combines a flat crevice tool for corners and an upholstery brush for delicate surfaces. It attaches directly to the hose handle or the tube.

Can I use the vacuum to vacuum liquids?

No, never. The vacuum is designed only for dry cleaning. Do not vacuum liquids, hot ashes, matches, sharp objects or flammable products.

How to store the vacuum after use?

Turn off and unplug the appliance. Press the cord rewind pedal to store the cable. The tube and brush can be attached to the back of the vacuum for storage (parking position).

Where to find spare parts for the Hoover BR25PAR 011?

Spare parts must be original Hoover. Contact an authorized Hoover dealer or after-sales service. Always have the model number at hand.

USER MANUAL BR25PAR 011 HOOVER

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

GB

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

GETTING TO KNOW YOUR CLEANER

A. Suction Regulator B. Hose Handle C. Telescopic Tube D. On/Off E. Exhaust filter cover F. Carpet & Floor nozzle (GP) F1. Carpet Nozzle (CA)* F2. Hard Floor Nozzle (HF) G. Floor type selector pedal H. Park Slot I. Cord reel Pedal J. Cleaner Main Body

K. Hose L. Dust Container lid M. Dust Container N. Vortex Finder O. Pre-motor Filter P. Dust Container Release Button Q. Exhaust Filter R. 2 in 1 accessory S. Pet Hair Remover Mini Turbo Nozzle# T. Allergen Remover Mini Turbo Nozzle U. Grand Turbo nozzle V. Parquet Nozzle*

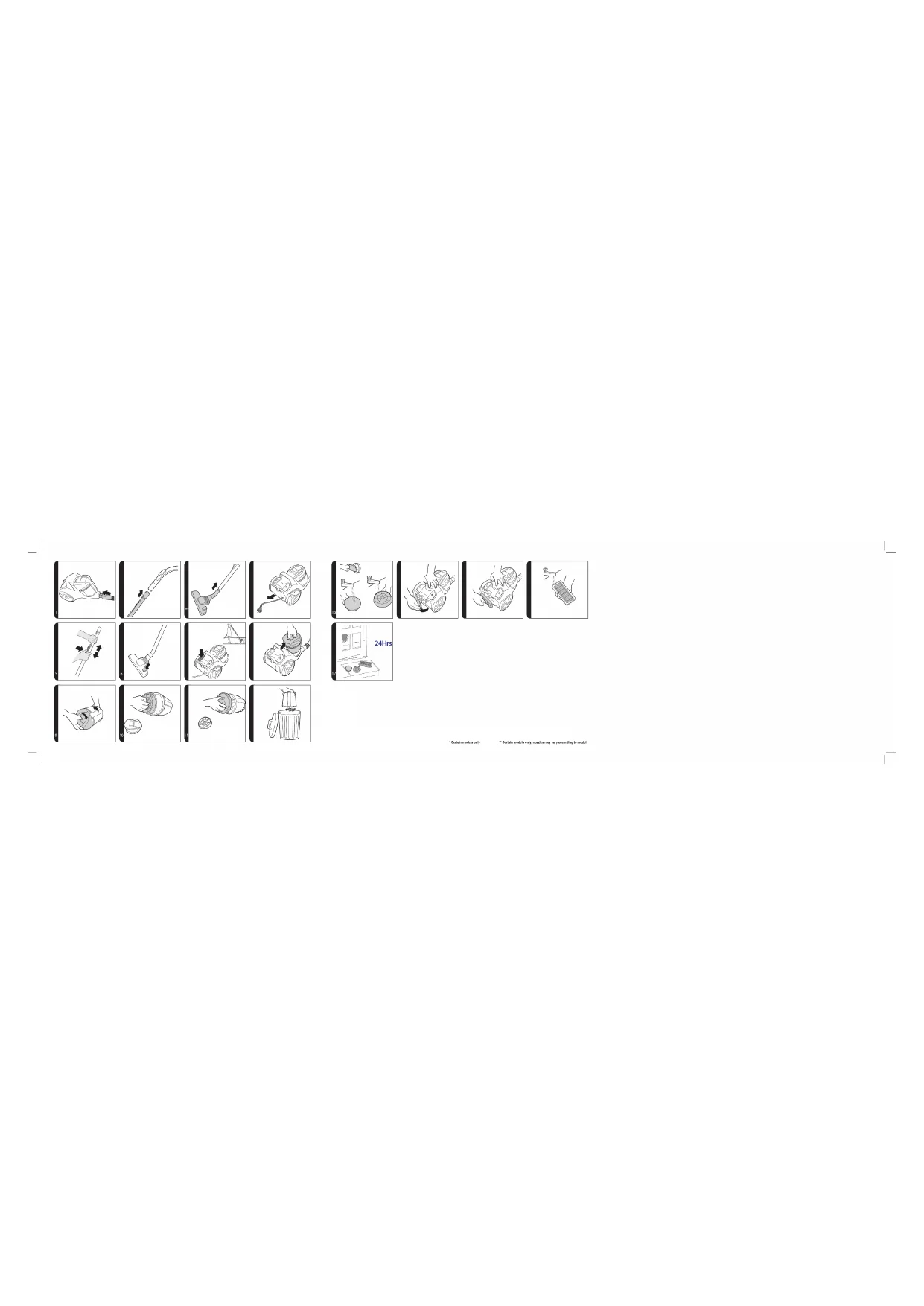

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

1. Connect the hose to the cleaner main body, ensuring it clips and locks into position. [1]
2. To release: simply press the button on the hose end and pull.
3. Connect the hose handle to the upper extension tube end [2], or accessories if required.
4. Connect the extension tube lower end to the carpet and floor nozzle [3] or accessories if required.

USING YOUR CLEANER

1. Extract power cord and plug it into the power supply. Do not pull the cord beyond the red marker, [4]
2. Adjust the telescopic tube to the desired height by moving the telescopic tube adjuster up and raise or lower the handle to the most comfortable cleaning position. [5]
3. Carpet & Floor Nozzle** Press the floor type selector on the nozzle [6] to select the ideal cleaning mode for the floor type.

Hard Floor -Brushes are lowered to protect the floor.

Carpet - Brushes are raised for the deepest clean.

1. Switch the cleaner on by pressing the on/off Pedal on the cleaner main body. [7]
2. Adjust the suction regulator on the handle to the desired level.
3. Switch off at the end of use by pressing the on/off Pedal. Unplug and press the cord reel pedal to wind the power cord back into the cleaner.

PARKING AND STORAGE SECTION

The tube and nozzle can be parked on back of the cleaner for storage or temporary storage while in use.

ACCESSIONS

To obtain the best performance and efficiency it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.

A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

All accessories can be fitted to the hose handle or the end of the tubes.

2 in 1 Tool combines several functions into one tool: Crevice Tool - For corners and hard to reach areas. Dusting Brush - For bookshelves, frames, keyboards and other delicate areas.

Pet Hair Remover Mini Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for pet hairs removal.

Allergen Remover Mini Turbo Nozzle* - Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for allergen removal.

Parquet Nozzle* - For parquet floors and other delicate floors.

IMPORTANT: Do not use the Mini Turbo Nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while the brush is rotating.

CLEANER MAINTENANCE

Emptying the Dust Container

When the dust reaches the max level indicator on the container, empty the dust container.

IMPORTANT: To maintain optimum performance, do not allow the dust to exceed the max level 1. Turn off the cleaner with the main switch and unplug the power cable. 2. Press the bin release button and remove the bin assembly from the cleaner. [8] 3. Hold the dust container with one hand, and remove the dust container lid by rotating anti-clockwise. [9] 4. Remove the pre-motor filter assembly from bin assembly. [10] 5. Remove the Vortex Finder from bin assembly. [11] 6. Empty the dust from the bin. [12] 7. Refit the vortex finder and pre-motor filter assembly to bin assembly. 8. Refit the dust container lid to bin assembly. 9. Close and refit to the cleaner main body.

Cleaning the Washable Filters

The cleaner is fitted with pre motor filter and exhaust filter. To maintain optimum cleaning performance, regularly remove the filters and tap against the side of the bin to release dust. The filters should be washed every 5 cassette empties or when the filter has excessive dust level.

IMPORTANT: All bagless cleaners require regular filter cleaning. Failure to clean your filters may result in air blockage, overheating and product failure. This may invalidate your guarantee.

IMPORTANT: Regularly check and maintain the filters. IMPORTANT: Always ensure the filter pack is fully dry before use.

To access the filter:

1. Remove the dust container from the cleaner. [8]
2. Hold the dust container with one hand, and remove the dust container lid by rotating anti-clockwise. [9]
3. Remove the pre-motor filter assembly from bin assembly. [10]
4. Gently tap and wash the pre-motor filter. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [13] [17]
5. Reassemble the pre-motor filter assembly once fully dry and refit to the cleaner.

To access the exhaust filter:

1. Unclip the exhaust filter cover from the rear of the cleaner main body. [14]
2. Remove the exhaust filter from the rear of the cleaner. [15]
3. Gently tap and wash the filter using warm water. Do not use hot water or detergents. Remove excess water from the filter and leave to dry fully before re-using. [16] [17]
4. Refit the exhaust filter to the rear of the cleaner once fully dry and refit the exhaust filter cover.

IMPORTANT: Do not use the product without the filter pack fitted.

Cleaning the dust container / separation unit

This cleaner uses a separation system unique to Hoover. If necessary, the separation unit can be disassembled from the dust container and cleaned.

1. Press the dust container release button and remove the bin assembly from the cleaner. [8]
2. Hold the bin with one hand and with the other hand remove the dust container lid by rotating anti-clockwise. [9]
3. Remove the dust container lid by rotating anti-clockwise. And remove the pre-motor filter from dust container assembly. [10] And then remove the vortex finder from the dust container by pulling. [11]
4. If necessary, use a cloth to remove excessive dust from the vortex finder surface. Reassemble the internal components to the bin.
5. Reassemble the dust container lid to the dust container. Refit the dustbin to the cleaner.

Removing a blockage

1. Check if the Dust Container is full. If so, refer to 'Emptying The Dust Container'.
2. If the Dust Container is empty, but suction is still low:

A. Do the filters need cleaning? If so, refer to 'Cleaning the Washable Filters'. B. Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from the tubes or hose.

C. Check for and clear any blockage in the Nozzle

D. Check if the separation unit needs to be cleaned. Refer to 'Cleaning the separation unit.'

WARNING - If the cleaner is used for a significant period of time with a blockage, a thermal cut out will switch the cleaner off to prevent overheating. If this should happen, switch the cleaner off, unplug and correct the fault. It will take about 45 minutes for the cut out to automatically reset.

USER CHECKLIST

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance.
• Is the dust container over-filled? Please refer to 'Cleaner Maintenance'.
• Is the filter blocked? Please refer to 'Cleaner Maintenance'.
• Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'.
• Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset.

IMPORTANT INFORMATION

Hoover Spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Quality

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

SAFETY INSTRUCTIONS FOR USE

Do not vacuum up hair, sharp objects, matches, hot ash, cigarette butts, or similar items.

MAINTENANCE OF THE VACUUM CLEANER

Emptying the dust container

USING THE ACCESSORIES

STORAGE AND TRANSPORT SECTION

Remove the plug from the socket.

Use only original Hoover spare parts. The Hoover spare parts are available from the local Hoover agent or from Hoover. When ordering, please quote the appliance model number.

Notes

The Hoover appliances have been tested by independent quality controllers. Our products are manufactured under a quality system that meets the requirements of the ISO 9001 standard.

Warranty

The warranty conditions are defined by the importer of the country in which the appliance is sold. For more information about the warranty terms, please contact the importer or the dealer. The purchase receipt or invoice is essential for the validity of the warranty.

The manufacturer reserves the right to make changes without prior notice.

INSTRUCTIONS FOR TECHNICAL SAFETY

This appliance is intended for household use only, as described in this user manual. Before using this household electrical appliance, make sure you understand this manual.

Do not leave the appliance plugged into the socket. After use, before cleaning or servicing, always unplug the appliance from the socket.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Keep away from rotating parts, hands, feet, loose clothing, and hair.

Use only the nozzles, materials, or spare parts recommended by the manufacturer or supplier.

Static electricity: Some types of carpets can generate a small amount of static electricity. Static electricity discharge is not dangerous to health.

RU

Do not use the appliance outdoors, on wet surfaces, or to collect liquids.

Do not use the appliance to collect sharp objects, matches, hot ashes, cigarette butts, or similar objects.

Do not use or collect flammable liquids, cleaning agents, aerosols, or their vapors.

Do not carry the appliance by the cord or pull the cord to unplug it from the outlet.

In case of malfunction, do not continue to use the appliance.

Hoover service: For the guarantee to be safe and reliable, we recommend that you have authorized Hoover service engineers carry out servicing and repairs.

Do not step on the cord or wrap it around your hand or foot while using the appliance.

Do not use the appliance to clean animals or people.

Do not place the appliance above your head during stair cleaning.

Disposal:

The symbol on the device indicates that it must not be disposed of together with household waste. It must be handed in at the appropriate collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local waste disposal regulations. For more information about handling this device, its disposal and recycling, contact your local authority, your waste disposal service, or the shop where you purchased the device.

Additional accessories

For optimal cleaning efficiency, it is recommended to use the nozzles mainly for the basic operations. These nozzles are marked with letters on the diagram.

Nozzle type A can be used for cleaning both carpets and hard floors.

Nozzle type B is intended only for hard floors.

Nozzle type C is intended only for carpets.

Other nozzles with brushes for special applications are recommended for use only in specific situations.

All accessories can be attached to the tube.

Nozzle 2 in 1 performs several functions simultaneously:

Upholstery nozzle - intended for cleaning hard-to-reach places.

Brush nozzle - intended for cleaning upholstered furniture, picture frames, computer keyboards, and other delicate surfaces.

Mini turbo brush for pet hair - Mini turbo brush is intended for cleaning upholstered surfaces and other hard-to-reach places. Especially suitable for removing pet hair.

Mini turbo brush for stains - Mini turbo brush is intended for cleaning stains on upholstery and other hard-to-reach places. Especially suitable for removing stains.

Nozzle for parquet* - for parquet floors and other floor coverings that require gentle care.

WARNING! It is forbidden to use the turbo brush on carpets with long pile, more than 15 mm, or on animal fur, and to keep the brush in a stationary position while it is operating.

VACUUM CLEANER MAINTENANCE

Dust container error

When dust in the container accumulates to the maximum level indicated by the indicator, the container should be emptied.

WARNING! Do not exceed the maximum fill level indicated by the indicator.

1. Turn off the vacuum cleaner using the main switch and unplug the power cord from the outlet.
2. Press the container release button and remove the container from the vacuum cleaner. [8] To empty the container over a waste bin, remove the lid by turning it.
3. Remove the washable filter from the container. [10]
4. Remove the cyclone attachment from the container. [11]
5. Remove dust from the dust container. [12]
6. Install the cyclone attachment and the washable filter back in place.
7. Replace the lid on the dust container.
8. Close the lid and return the container to the main body of the vacuum cleaner.

The filter must be cleaned after each container is filled or when suction power noticeably decreases. To clean the filters, remove them and tap them over a trash bin. If necessary, wash the filters.

WARNING! Filters of all bagless vacuum cleaners require regular cleaning. If the filters are dirty, this can lead to blockage of the air flow, overheating, and failure of the vacuum cleaner. This can lead to the voiding of the warranty.

WARNING! Regularly check the filters and clean them.

WARNING! Make sure that the filters are completely dry before using them.

To remove the filters:

1. 1. Remove the dust container from the vacuum cleaner. [8] 2. Hold the container over a trash bin and turn it counterclockwise to separate the cyclone unit. [9]
2. 3. Remove the washable motor filter from the container. [10] 4. Carefully tap the filter or rinse it. Do not use aggressive cleaning agents. Set the filter aside and let it dry completely before reinstalling. [13][17]
3. After the motor filter is completely dry, put it back in place in the container and install the container into the vacuum cleaner.

To remove the exhaust filter, perform the following steps:

1. 1. Open the filter cover at the rear of the main body of the vacuum cleaner. [14]
2. 2. Remove the filter from the vacuum cleaner. [15] 3. Carefully tap the filter or rinse it with warm water. Do not wash with hot water or aggressive cleaning agents. Set the filter aside and let it dry completely before reinstalling. [16][17]
3. After the filter is completely dry, put it back in place in the vacuum cleaner and close the cover.

WARNING! Using the vacuum cleaner without the filter installed is prohibited!

Vacuum cleaner error / Error indication

Remove the dust container from the vacuum cleaner. If necessary, clean it. 1. Press the dust container release button and remove it from the vacuum cleaner. [8] 2. Hold the handle with one hand and turn the dust container counterclockwise. [9] 3. Remove the lid from the dust container, turning it counterclockwise. Remove the washable filter from the container. [10] Then remove the foam filter from the container, pulling it out. [11] 4. If necessary, clean the filters with a soft brush. Install the inner components back into the dust container. 5. Replace the lid on the dust container. Install the dust container back into the vacuum cleaner.

Clearing blockages

1. Check if the dust container is full. If so, see the section "Cleaning the dust container".
2. If the dust container is empty but suction remains low:

A. Does the filter need cleaning? If so, see the section "Cleaning the filters".

Only on certain models. *Only for some models. The shape of the nozzle may vary depending on the model.

B. Check for other blockages in the vacuum cleaner. - Inspect the hose, wand, and nozzle for blockages. C. Turn the nozzle to remove any blockage.

D. Turn the nozzle to remove any blockage. See the section "Cleaning the nozzle". WARNING: If the appliance is used with a full dust container, the motor may overheat. In this case, the thermal cut-out will activate and the vacuum cleaner will switch off. To reset, wait approximately 45 minutes.

USER MANUAL

If you encounter any issues during the operation of the vacuum cleaner, try to resolve them by following the troubleshooting steps below.

Is the vacuum cleaner not working? Check the power supply with another appliance or outlet. Is the dust container full? See the section "Maintenance of the vacuum cleaner". Is the filter clogged? See the section "Maintenance of the vacuum cleaner". Is the hose or nozzle clogged? See the section "Clearing blockages in the system". Is the vacuum cleaner overheated? If so, after approximately 30 minutes it will become operational again.

IMPORTANT INFORMATION

Spare parts and consumables from Hoover

For replacements, use only genuine spare parts and consumables from Hoover. They can be purchased from your local Hoover dealer or directly from Hoover. When ordering spare parts, always quote the model number of the vacuum cleaner.

Quality requirements for the product

The product is manufactured in accordance with the quality requirements for the products released. Product release is confirmed by the application of a quality system that meets the requirements of the ISO 9001 standard.

Your warranty

The warranty conditions for this household appliance are determined by our representative office in the country where this appliance was purchased. You can get more detailed information about these conditions from our dealer. When making a claim under the terms of these warranty obligations, it is necessary to present the receipt or return the goods.

Changes may be made without prior notice.

INSTRUKCJE BEZPIECZNEGU UZYTKOWANIA

NAVODILA ZA VARNO UPORABO

Static electricity: It is not always possible to prevent known static electricity buildup. Not every static discharge is dangerous to health.

Do not use the device outdoors or on wet surfaces, or for collecting wet debris.

Do not collect hard or sharp objects, matches, hot ashes, gas, or other similar items.

Do not spray or pour flammable liquids, cleaning agents, aerosols, or similar substances.

Do not use the device with a damaged cable or plug, and do not pull the cable to unplug it.

Do not continue to use the device if it appears damaged.

HOOVER SERVICE: To ensure prolonged, safe, and efficient use of this device, servicing and repairs should be carried out only by an authorized HOOVER service engineer.

Do not place the device on or near hot surfaces or open flames while using it.

Do not use the device to clean animals or people.

This type of device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Disposal

This symbol on the product indicates that it must not be treated as household waste. Instead, it should be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. The disposal must be carried out in accordance with local regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

This product complies with European Directives 2014/35/EU, 2014/30/EU, 2011/65/EU.

HOOVER Limited, Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU, United Kingdom

CONNECTING THE VACUUM CLEANER

A. Suction regulator B. Handle C. Telescopic tube D. Pet hair nozzle E. Crevice nozzle F. Floor nozzle (GP) F1. Floor nozzle (CA) F2. Hard floor nozzle (HF)** G. Hose for flexible cleaning H. Parking slot I. Hose handle J. Main body of the vacuum cleaner

K. Handle L. Hook for the parking slot M. Parking slot N. Telescopic tube O. Pre-motor filter P. Dust container release button Q. Exhaust filter R. Accessories 2-in-1 S. Mini turbo nozzle for pet hair T. Mini turbo nozzle for allergens U. Turbo nozzle V. Parquet nozzle*

ASSEMBLING THE VACUUM CLEANER

Remove all components from the packaging.

1. Attach the handle to the main body of the vacuum cleaner, making sure it is securely fixed. [1] 2. To release: simply press the button on the handle and pull.
2. Attach the hose to the handle, aligning the top end with the groove [2] and push in until it clicks, if necessary.
3. Attach the lower end of the hose to the telescopic tube and the floor nozzle [3a] with the accessories, if necessary.

USING THE VACUUM CLEANER

1. Pull out the power cord and plug it into the mains. Do not pull the cord beyond the red mark. [4]
2. 2. Adjust the telescope to the desired height, as the regulator of the telescope tube above the surface when lowering the lever to the desired position. [5] 3.3. Nozzle for each floor*. Select the nozzle type for the floor part [6] to set the desired cleaning mode for the floor part. Hard floor - use the lowering lever for the intended mode. Carpet - use the lever with the highest suction power.
3. Turn on the vacuum cleaner, then press the On/Off switch on the body [7].
4. Set the suction regulator to the desired level. Turn off the appliance by pressing the On/Off switch. Disconnect from the mains by pressing the pedal for the cable, to wind the cable around the vacuum cleaner.

*Only for models **Only for models with a nozzle, the nozzle may be

PARKING AND STORAGE SECTION

The nozzle can be parked on the back of the appliance and the vacuum cleaner can be stored upright for convenient storage before and after use.

ACCESSORIES

For best performance and energy efficiency, it is recommended to use the correct nozzles for the basic cleaning operations. These nozzles are indicated in the diagrams with the letters GP, HF, and CA.

The GP nozzle can be used for cleaning both carpets and hard floors.

The HF nozzle is suitable for use only on hard floors. The CA nozzle is suitable for use only on carpets.

Other nozzles are accessories for special cleaning tasks and are recommended only for use and not essential.

All accessories can be attached to the handle of the hose or the tube.

The tool 2 in 1 combines two tools in one:

Upholstery tool - for sofas, armchairs, and other hard-to-reach areas.

Dusting brush - for skirting boards, frames, and delicate areas.

Mini paint for home use - Use mini paint and varnish for high-quality coating of textile surfaces and other areas for coating. Especially suitable for painting home use.

Mini tube paint for application with a sprayer - Use mini tube paint and varnish for high-quality coating of textile surfaces and other areas for coating. Especially suitable for application with a sprayer.

Paint for parquet - for parquet and other floor coverings.

IMPORTANT: Do not use mini tube paint on wet surfaces, leather, or with a brush with a 15mm bristle. Do not move the paint until it is completely dry.

CLEANING AND MAINTENANCE

Emptying the dust container

When the dust reaches the maximum level of the container, empty the container.

IMPORTANT: For proper operation, do not allow the dust to exceed the maximum level.

1. Disconnect the vacuum cleaner from the main power supply and remove the cable. 2. Press the button to release the container.

Remove the vacuum cleaner from the dust container. [8] 3. Hold the dust container over a trash can and press the latch to open the bottom of the dust container, when the trash can is full. [9] 4. Remove the filter from the motor inlet from the container inlet. [10]

1. Remove the pre-filter from the container. [11]
2. Clean the pre-filter. [12]
3. Place the pre-filter back into the filter holder and insert it into the container inlet.
4. Place the dust container lid on the container.
5. Close and place the main body of the vacuum cleaner.

The vacuum cleaner is equipped with a filter. The filter must be cleaned regularly to maintain its effectiveness.

Regularly clean the filter to prevent blockages. The filter should be cleaned at least once every 5 uses or when the suction power is noticeably reduced.

IMPORTANT: All vacuum cleaners with filters require regular cleaning of the filter. Failure to clean the filter may lead to overheating, interruption of operation, and malfunction of the device. This may void the warranty.

IMPORTANT: Regularly check and service the filter.

IMPORTANT: Always ensure that the filter is completely dry before use.

To clean the filter:

1. Remove the dust container from the vacuum cleaner. [8]
2. Remove the filter cover by turning it counterclockwise and pulling it off. [9]
3. Take the filter out of the motor protection cover. [10]
4. Carefully pull out and clean the filter under running water. Do not use hot water or detergents. Rinse the filter thoroughly and let it dry completely before reinstalling. [13][17] 5. After the filter is completely dry, reinstall it in the motor protection cover and then reattach the dust container.

To clean the exhaust filter:

1. Open the exhaust filter cover on the back side of the main body of the vacuum cleaner. [14]
2. Remove the exhaust filter from the back side of the vacuum cleaner. [15] 3. Carefully pull out and clean the filter under running water. Do not use hot water or detergents. Rinse the filter thoroughly and let it dry completely before reinstalling. [16] [17]
3. After the exhaust filter is completely dry, reinstall it in its place and reattach the cover.

WARNING: Do not use the appliance without the filter bag installed.

Removing the dust compartment / separating block

The vacuum cleaner uses a separating system, a Hoover innovation. If necessary, the separating block can be removed from the dust compartment and cleaned.

1. Press the button on the dust compartment and pull the block out of the vacuum cleaner. [8]
2. Hold the compartment with one hand and with the other hand turn the block and the compartment, turning clockwise until the arrow points to the unlock symbol. [9]
3. Turn the block of the dust compartment, turning counterclockwise to the arrow.

*Only for models **Only for models with a HEPA filter, the filter may be

Arrow. Remove the pre-motor filter from the dust compartment. [10] After that, remove the release latch from the dust compartment by pulling it. [11]

1. If necessary, use a brush to remove excess dust from the surface of the release latch. Do not wash the internal components.
2. Remove the block from the dust compartment. Place the dust compartment back into the vacuum cleaner.

Clearing blockages

1. Check if the dust compartment is full. If so, empty it. See "Emptying the dust compartment." 2. If the dust compartment is not full, but suction is weak:

A. Check the filter. If dirty, clean it. See "Cleaning the filter." B. Check for another blockage in the system - remove the hose to clear any blockages in the hose or accessories. C. Check the hose and accessories for blockages. D. Check if the separating block is not blocked. See "Removing the separating block." WARNING: The vacuum cleaner is used for short periods. If the thermostat trips, the vacuum cleaner will shut off to prevent damage. If this happens, turn off the vacuum cleaner, unplug it, and fix the problem. It may take about 45 minutes for the thermostat to reset automatically.

TROUBLESHOOTING CHECKLIST

Before calling for service, check the following troubleshooting checklist to ensure that your Hoover product is working properly. - Is the vacuum cleaner plugged into a working electrical outlet? If not, check with another electrical device. - Is the dust compartment full? If so, empty it. See "Emptying the vacuum cleaner." - Is the filter dirty? If so, clean it. See "Cleaning the vacuum cleaner." - Is the filter or the HEPA filter blocked? If so, clean it. See "Clearing blockages from the system." - Is the vacuum cleaner overheated? If so, it may take about 30 minutes for the thermostat to reset automatically.

IMPORTANT INFORMATION

Spare parts and accessories

Some spare parts and accessories are available from Hoover. They are offered by your local Hoover dealer or directly from Hoover. When ordering parts, quote your model number and serial number.

Quality

Hoover has an independent quality assessment system. Our products are manufactured in accordance with a strict quality system. Our products are tested and certified to ISO9001.

Your guarantee

The guarantee conditions for this appliance are as defined by the representative in the country where it is sold. You can obtain full details of these conditions from the retailer who sold you the appliance. Any claims under this guarantee must be made through the retailer in the first instance.

Subject to change without notice.

SAFETY INSTRUCTIONS

This appliance is intended for household use only as described in the instruction manual. Before using the appliance, read and understand the instructions.

Do not leave the appliance unattended when plugged in. Unplug the appliance from the socket before cleaning or maintenance.

Children aged 8 years and above, and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, may use this appliance only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. To avoid danger, the supply cord replacement must be carried out by an authorized Hoover service engineer.

Do not touch the rotating parts with hands, feet, or any part of the body, or with loose clothing.

Use only Hoover recommended or supplied spare parts and accessories.

Electrical safety: Read all instructions before use.

Ensure that the electrical connections are safe. Improper use of the electrical connections may pose a danger.

Do not use the device outdoors, on wet surfaces, or for collecting water.

Do not use the device for collecting sharp objects, nails, hot ash, embers, or flammable objects.

Do not pick up or collect flammable liquids, cleaning agents, aerosols, or their vapors.

Do not carry the device by the power cord, do not pull the cord, and do not pull the plug from the socket. In case of malfunction, do not continue using the device.

HOOVER service: For safety and reliable operation of this device, we recommend that you contact authorized HOOVER service engineers for maintenance and repair.

Do not step on the cord and do not wrap it around your hand or foot while using the device.

Do not use the device for cleaning animals or people.

Do not immerse the device or its accessories in water.

Environment:

The symbol on this device indicates that it cannot be disposed of with household waste. It must be taken to a designated collection point for recycling of electrical and electronic components. Disposal of waste must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information on the disposal of this device, contact your local authorities, waste disposal service, or the store where you purchased the device.

This device complies with the requirements of European Directives 2014/35/EU, 2014/30/EU, and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

Familiarize yourself with the construction of the vacuum cleaner.

A. Power regulator B. Handle C. Telescope tube D. ON/OFF button E. Filter outlet cap F. Nozzle (GP)*

F1. Nozzle for carpets (CA)*

OPERATING INSTRUCTIONS

1. Pull out the power cord to the required length and plug it into the electrical outlet. It is forbidden to pull the cord beyond the red mark! [4]
2. Install the telescope tube onto the hose, adjusting the telescope tube length, then attach the appropriate nozzle to the tube. [5]
3. Nozzle for carpets and hard floors**. Press the pedal to adjust the nozzle for hard floors [6], so that the bristles are lowered for hard floors.

Hard floor nozzle - To protect the floor covering from scratches.

Carpet nozzle - For deeper cleaning of carpets.

1. Turn on the vacuum cleaner by pressing the ON/OFF button on the main body of the vacuum cleaner. [7]
2. Set the power regulator, located on the handle, to the desired position.
3. After use, turn off the vacuum cleaner by pressing the ON/OFF button. Unplug from the outlet and press the cord rewind button to wind the cord into the vacuum cleaner body.

STORAGE

The nozzle and tube can be installed in special holders on the back of the vacuum cleaner for storage between uses.

Only for specific models** Only for all models. The shape of the nozzle may vary depending on the model.

ADDITIONAL ACCESSORIES

Long nozzles are recommended for proper use during oral operations. These nozzles are designed for interdental spaces.

The nozzle can be used for cleaning both teeth and hard-to-reach places. The nozzle is intended only for hard-to-reach places. The nozzle is intended only for teeth.

Other nozzles are used for special cases and are recommended for low-speed use in certain cases.

All accessories can be installed on the tubes.

The 2-in-1 nozzle performs one or more functions.

Other nozzles are designed for cleaning hard-to-reach places.

Brush for cleaning - designed for cleaning interdental spaces, brackets, orthodontic appliances and other delicate surfaces.

Mini turbo nozzle for removing pet hair - mini turbo brush is designed for cleaning carpets or deep cleaning of fabric surfaces and other hard-to-reach places for cleaning. Especially suitable for removing pet hair.

Mini turbo nozzle for cleaning - the mini turbo brush is designed for cleaning carpets or deep cleaning of fabric surfaces and other hard-to-reach places for cleaning. Especially suitable for cleaning.

The parquet nozzle is designed for parquet floors and other coatings that require careful handling.

ATTENTION! Do not use the mini turbo nozzle on carpets with pile longer than 15 mm, or on animal skins.

It is forbidden to hold the nozzle in a stationary position while the brush is rotating.

TECHNICAL MAINTENANCE OF THE VACUUM CLEANER

Cleaning the dust container

Empty the dust container when it is filled to the maximum level indicated by the indicator. The container must be cleaned. ATTENTION! Regular cleaning ensures productivity and prevents the dust container from overflowing above the maximum level. 1. Turn off the vacuum cleaner using the power button and unplug the power cord from the outlet. 2. Press the container release button and remove the container from the vacuum cleaner. [8] 3. Hold the container over a trash bin with one hand, remove the lid from it, and pour out the contents. [9] 4. Remove the pre-filter and rinse it under running water. [10] 5. Remove the cyclone nozzle from the container. [11] 6. Pour out the dust from the container. [12] 7. Install the cyclone nozzle and the pre-filter back, and rinse them if necessary. 8. Put the lid back on the container and install it back.

9.3 Remove the filter and return it to the container in the pump head body.

Cleaning the filter, maintenance

It is forbidden to use the pump without a filter installed. To ensure optimal product performance, regularly check the filters and remove them from the suction tank for cleaning. The filters must be cleaned at least every 5 emptyings of the container, or more often if the filter accumulates dirt.

ATTENTION! For all pump versions with a filter, regular cleaning is essential. The filter can become clogged, which may lead to a reduction in flow rate, reduced pump performance. This may also lead to loss of warranty.

ATTENTION! Regularly check the filters and clean them.

ATTENTION! It is recommended to dry the filters before use.

Removing the filters:

1. Remove the container for collecting dirt from the pump. [8]
2. Holding the container with the collected dirt with one hand, remove the lid from it by turning it counterclockwise. [9]
3. Remove the filter from the container. [10]
4. Carefully tap and rinse the filter. It is recommended to use running water or a mild detergent. Rinse the filter thoroughly and let it dry before reuse. [13][17]
5. After drying the filter, place it back in the container and install the container in the pump.

Installing the filter in the following steps:

1. Screw the filter cap into the rear part of the pump head body. [14]
2. Remove the filter from the pump. [15]
3. Rinse the dust filter with clean water. It is forbidden to rinse it with any detergents. Remove the dust filter and let it dry before reuse. [16][17]
4. After drying, put the filter back in place and close the lid. WARNING! Using the vacuum cleaner without the filter installed is prohibited!

Cleaning the dust container/Cleaning the filter

The vacuum cleaner uses a filter system. If necessary, it can be cleaned.

1. Press the container release button and remove it from the vacuum cleaner. [8]
2. Remove the cyclone filter from the container by turning it counterclockwise. [9]
3. Remove the lid from the dust container by turning it counterclockwise. Remove the foam filter that is located in the container. [10] Then remove the pre-filter from the container by pulling it. [11]. 4. If necessary, clean the pre-filter with a brush. Install the internal components of the dust container.
4. Install the lid on the dust container. Install the motor protection filter in the vacuum cleaner body.

Replacing the filter

1. Make sure the filter is clean. If not, see "Cleaning the dust container".
2. If the dust container is full, but the suction power is low; A. Check the filters? If so, see "Cleaning the filters that can be washed".

Only for specific models *Only for some models. The shape of the nozzle may vary depending on the model.

B. Check for blockages in the vacuum cleaner. - Clean the telescopic tube or hose with a brush or cloth. C. Remove the nozzle and clean all blockages. D. Check if the separator needs cleaning. See the "Cleaning" section.

WARNING! If the vacuum cleaner is used with a dirty filter for a long time, the thermal protection may activate, which will reduce the suction power. Turn off the vacuum cleaner and unplug it for 30 minutes. The thermal protection will automatically reset after cooling.

User manual

If the appliance is not working properly, before contacting the local service center, check the following points.

Does the appliance not work? Check the power supply with another electrical appliance. Is the power cord damaged? See section "Technical maintenance of the appliance". Is the filter clogged? See section "Technical maintenance of the appliance". Is the hose or nozzle clogged? See section "Cleaning the hose and system". Is the appliance overheated? If so, after about 30 minutes it will become operational again.

INFORMATION FOR THE USER

Spare parts and consumables from Hoover

Use only genuine spare parts and consumables from Hoover. They can be purchased from your local Hoover dealer or directly from Hoover. When ordering spare parts, always quote the model number of the appliance.

Product quality guarantee

Hoover company guarantees the quality of products manufactured. The product has been manufactured with the use of high-quality materials that meet the requirements of the ISO 9001 standard.

Your guarantee

The terms of the guarantee for the electrical appliance are determined by the representative office in Ukraine, in accordance with the legislation on the protection of consumer rights. For more information about the terms of the guarantee, contact your local dealer. Claims regarding the fulfillment of warranty obligations must be submitted with the receipt of purchase of the goods.

Changes may be made without prior notice.
