60.2015 - Alarm clock radio TFA - Free user manual and instructions

Product Type	Radio alarm clock
Brand	TFA
Model	60.2015
Housing Dimensions	120 x 35 x 78 mm
Weight (device only)	134 g
Power Supply	3 x 1.5V AAA batteries (not included)
Temperature Measurement Range	0 °C to +50 °C / 32 °F to 122 °F
Humidity Measurement Range	20 % to 99 %
Display	LCD with color backlight (8 seconds)
Main Functions	Clock, calendar, alarm with snooze, temperature, humidity, comfort level, weather symbol, max/min function
Time System	12h or 24h
Comfort Level	Emoticons based on temperature and humidity
Weather Symbol	Based on temperature and humidity (sunny, partly cloudy, cloudy, rainy)
Alarm	With snooze function (8 minutes)
Safety	Private use only, keep out of reach of children, do not expose to moisture
Maintenance	Clean with a soft, damp cloth; remove batteries if not used for a long time
Settings	MODE, UP, DOWN, MAX/MIN, LIGHT/SNZ keys
Battery Type	AAA 1.5 V
Compliance	EU WEEE – do not dispose of with household waste

Frequently Asked Questions - 60.2015 TFA

How to set the time on the TFA 60.2015 radio alarm clock?

In time mode, press and hold the MODE button for 3 seconds until the hour flashes. Use the UP or DOWN buttons to adjust the hour, then press MODE to move to minutes. Set the minutes with UP/DOWN and confirm with MODE.

How to set the alarm?

Press MODE twice in time mode to access the alarm setting. Press and hold MODE: the hour flashes. Adjust the hour with UP/DOWN, press MODE for minutes, set and confirm. Press UP in time mode to activate/deactivate the alarm (symbol shown/hidden).

How to use the snooze function?

When the alarm sounds, press the LIGHT/SNZ button to activate snooze. The snooze icon flashes and the alarm stops for 8 minutes, then sounds again.

How to stop the alarm?

Press any button (except LIGHT/SNZ) to stop the alarm. It will automatically reactivate at the set time the next day if not deactivated via the UP button in time mode.

How to display temperature in degrees Fahrenheit?

Press the DOWN button to toggle between °C and °F units. The display changes immediately.

How to view the maximum and minimum temperature and humidity values?

Press the MAX/MIN button: one press shows the maximum values (MAX), a second press shows the minimum values (MIN), a third returns to normal display. The values reset automatically every day at midnight.

What does the weather symbol on the screen mean?

The weather symbol is based on temperature and humidity readings. It can indicate: sunny, partly cloudy, cloudy or rainy. It does not come from an external sensor.

How to clean the radio alarm clock?

Use a soft, damp cloth (no solvents or abrasives). Remove the batteries if the device is not used for a long period and store it in a dry place.

What to do if the screen does not turn on?

Check the battery polarity (respect the + and - signs). If batteries are low, replace all three with new AAA 1.5 V batteries. If the problem persists, contact the seller.

How to change the batteries?

Open the battery compartment on the back of the device. Remove the old batteries and insert three new AAA 1.5 V batteries, observing polarity (+/-). Close the compartment. A beep confirms power on.

USER MANUAL 60.2015 TFA

Technical line drawing of a mechanical component with internal slots and mounting holes (no text or symbols)

LIGHT/SNZ B 5

2

3

Alarm clock with indoor climate

Thank you for choosing this instrument from TFA.

1. Before you start using it

• Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts, to find out important details about its first use and how to operate it, and to get advice in the event of faults.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non following of these instructions. Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

2. Scope of delivery

• Alarm clock
• Instruction manual

3. Field of operation and all the benefits of your new instrument at a glance

• Color backlight (on keypress)
• Temperature and humidity
- Comfort level
• Maximum-minimum-function
• Alarm with snooze function
• Date and day-of-the-week

Alarm clock with indoor climate

- Weather symbols (based on indoor temperature and humidity)

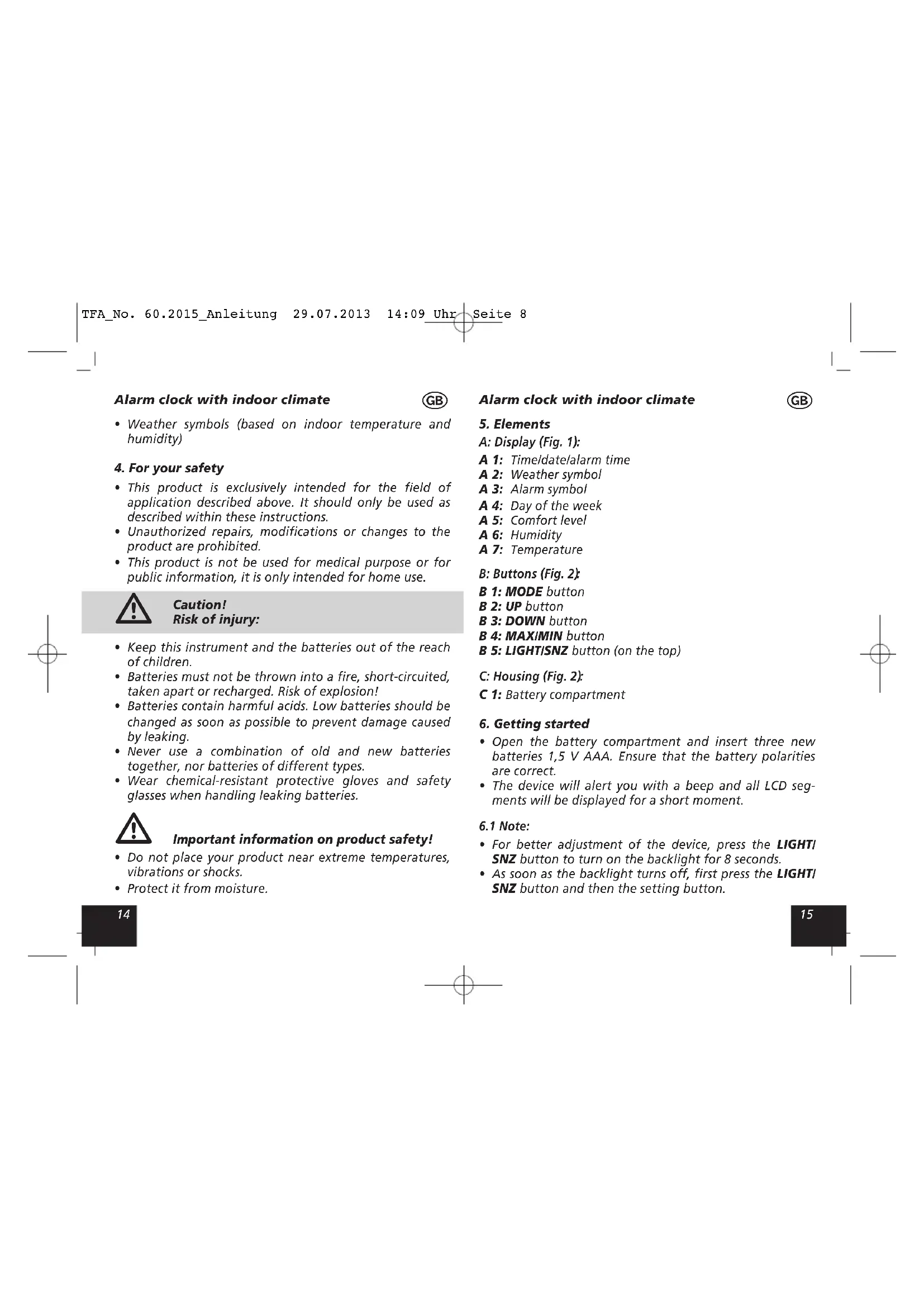

4. For your safety

• This product is exclusively intended for the field of application described above. It should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.
• This product is not be used for medical purpose or for public information, it is only intended for home use.

Caution! Risk of injury:

• Keep this instrument and the batteries out of the reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.
• Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Important information on product safety!

• Do not place your product near extreme temperatures, vibrations or shocks.
• Protect it from moisture.

Alarm clock with indoor climate

5. Elements

A: Display (Fig. 1):

A 1: Time/date/alarm time

A 2: Weather symbol

A 3: Alarm symbol

A 4: Day of the week

A 5: Comfort level

A 6: Humidity

A 7: Temperature

B: Buttons (Fig. 2):

B 1: MODE button

B 2: UP button

B 3: DOWN button

B 4: MAXIMIN button

B 5: LIGHT/SNZ button (on the top)

C: Housing (Fig. 2):

C 1: Battery compartment

6. Getting started

• Open the battery compartment and insert three new batteries 1,5 V AAA. Ensure that the battery polarities are correct.
• The device will alert you with a beep and all LCD segments will be displayed for a short moment.

6.1 Note:

• For better adjustment of the device, press the LIGHT/ SNZ button to turn on the backlight for 8 seconds.
• As soon as the backlight turns off, first press the LIGHT/SNZ button and then the setting button.

Alarm clock with indoor climate

7. How to operate

7.1 Setting of the clock

• Press and hold MODE button for three seconds in the time mode.
  • The hour digits will be flashing.
• Press the UP or DOWN button to adjust the hours.
• Press the MODE button again and you can adjust the minutes with the UP or DOWN button.
• Confirm the setting with the MODE button.
  • The display shows the current time.

7.2 Setting of the date

• Press the MODE button again in the time mode.
  • The date appears on the display.
• Press and hold MODE button.
  • The year indication will be flashing.
• Press the UP or DOWN button to adjust the year.
• Press the MODE button to make the settings in the following sequence: Month and day. Press UP or DOWN button to adjust it.
• Confirm the setting with the MODE button.
• Press the MODE button twice to return to the current time.

7.3 Setting of the alarm time

• Press MODE button twice in time mode.
• The alarm symbol (and a time (default) appear on the display.
• Press and hold MODE button.
  • The hour digits will be flashing.
• Press the UP or DOWN button to adjust the hours.
• Press the MODE button again and you can adjust the minutes with the UP or DOWN button.

Alarm clock with indoor climate

• Confirm the setting with the MODE button.
  • The display shows the alarm time.
• To activate or deactivate the alarm function press the UP button in time mode.
• The alarm symbol appears or disappears on the display.
• Once the alarm starts to ring, you can stop the alarm by pressing any button.
• You can activate the snooze function by pressing the LIGHT/SNZ button.
  • will be flashing and the alarm will be interrupted for 8 minutes.
• If it is not stopped manually, the alarm will automatically turn off after certain minutes and will be reactivated at the same time

7.4 Setting of the 12 and 24 hours display

• Press an hold the UP button to choose 12 HR or 24 HR system.
• In 12 HR system AM or PM appears on the display (post meridiem).

7.5 Temperature display

- Press the DOWN button to select temperature display in °C (Celsius) or °F (Fahrenheit) as the temperature unit.

7.6 Reading of the alarm time and date

- Press MODE button in time mode to show the adjusted alarm time and the date.

7.7 Maximum/Minimum function

- Press the MAXIMIN button to show the maximum values (MAX) of the indoor temperature and humidity.

Alarm clock with indoor climate

• Press the MAX/MIN button again to show minimum (MIN) values of the indoor temperature and humidity.
• Press the MAXIMIN button again to return to the time mode.
• There is an automatic reset of maximum and minimum values (midnight 0:00).

7.8 Comfort level

- On the display appears a Smiley to indicate the comfort level.

DRY: < 40%
COMFORT: 40 ... 70%; 20 °C...25 °C
☺ WET: > 70%
No display: 40 ... 70%; < 20 °C / > 25 °C

7.9 Weather symbol

Simple illustration of black dots and clouds with a small pile of raindrops (no text or symbols)

Sunny Partly cloudy Cloudy Rainy

• The 4 weather icons (sunny, partly cloudy, cloudy and rainy) represent the weather.
• The instrument has no atmospheric pressure sensor. The weather symbol is based on the current temperature and humidity values.

8. Care and maintenance

- Clean your instrument with a soft damp cloth. Do not use solvents or scouring agents.

Alarm clock with indoor climate

• Remove the batteries if you do not use the product for a long period of time.
• Keep the instrument in a dry place.

8.1 Battery replacement

• Change the batteries when the functions of the instrument becomes weak.
• Open the battery compartment and insert three new batteries 1,5 V AAA. Ensure that the battery polarities are correct.
• Close the battery compartment again.

9. Troubleshooting

Problems Solutions

No display / → Ensure that the battery Incorrect indication polarity is correct

→ Change the batteries

If your device fails to work despite these measures contact the supplier from whom you purchased it.

10. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste.

As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

Alarm clock with indoor climate

The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

11. Specifications

Measuring range 0^ C...+50°C

Temperature: +32°F....+122°F

Measuring range 20%....99%

Humidity:

Power consumption: Batteries 3 x 1.5 V AAA

(not included)

Housing dimension: 120 x 35 x 78 mm

Weight: 134 g (instrument only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

www.tfa-dostmann.de 07/2013
