Brand	TFA
Model	60.2555.01
Product type	Analog clock radio
Power supply	2 AAA 1.5 V batteries (not included)
Housing dimensions	72 x 27 x 77 mm
Weight	92 g (device only)
Radio-controlled reception	DCF-77 (77.5 kHz), range ~1500 km
Display	Analog hands (hours, minutes, seconds)
Alarm function	Gradual alarm, duration 3 min, snooze repeat 5 min (up to 7 times)
Lighting	Backlight 5 seconds via SNOOZE/LIGHT button
Key lock	LOCK ON/OFF switch
Manual setting	Time, time zone (-3 to +3), minutes, seconds
Care	Soft damp cloth, no solvents
Storage	Dry place, remove batteries if not in use
Safety	Batteries keep out of reach of children, do not expose to moisture or extreme temperatures
Compliance	EU Directive 2014/53/EU, WEEE
Used batteries	Do not dispose in household waste, take to recycling center

Frequently Asked Questions - 60.2555.01 TFA

How to set the time manually if the DCF signal is not received?

Press and hold the TIME SET button for 3 seconds in normal mode. The hands move to 12 o'clock. Set the time zone using +/-, confirm with TIME SET. Then set the hour, minutes and seconds in the same way. Confirm each step with TIME SET. Note: If the DCF reception later succeeds, the manual time will be overwritten.

How to activate DCF reception manually?

Press the – button for three seconds. The DCF reception symbol flashes. To interrupt, press and hold the – button again until the symbol disappears.

What to do if the display shows nothing?

First check the polarity of the batteries. If correct, replace the batteries with new ones of type AAA 1.5V.

How to set the alarm?

Press the ALARM SET button in normal mode. The alarm time hand pulses. Hold down ALARM SET, then use + or - to set the desired time (minutes are adjusted in 12-minute steps). Confirm with ALARM SET. Then press ALARM ON/OFF to activate the alarm; the alarm hand remains displayed permanently.

How to use the snooze function?

When the alarm rings, press the SNOOZE/LIGHT button. The alarm stops for 5 minutes and the alarm hand pulses. This function can be activated up to 7 times.

Why doesn't the clock receive the DCF signal?

Possible causes: distance too great, interference (screens, televisions), reinforced concrete buildings. Try placing the device near a window, 1.5-2 m from sources of interference. Reception is better at night. If the problem persists, set the time manually.

How to lock the keys to avoid accidental adjustments?

Slide the LOCK switch to ON (LOCK ON position). All keys are then locked. To unlock, slide the switch to LOCK OFF.

How to replace the batteries?

Open the battery compartment (C1) on the back of the device. Insert two new batteries of type AAA 1.5V observing polarity +/–. Close the compartment. An audible signal confirms power on.

What to do in case of battery leakage?

Wear chemical protective gloves and goggles. Remove the used batteries. Clean the compartment with a dry cloth. Avoid skin contact. Dispose of batteries according to regulations.

How to clean the clock radio?

Use a soft, damp cloth (no solvents or abrasives). Remove the batteries before deep cleaning. Do not immerse the device in water.

USER MANUAL 60.2555.01 TFA

Black analog clock face with hour and minute hands (no visible text or numbers)

Kat. Nr. 60.2555

CE

B 3: ALARM SET Taste

B 4: - Taste

B 5: + Taste

B 6: TIME SET Taste

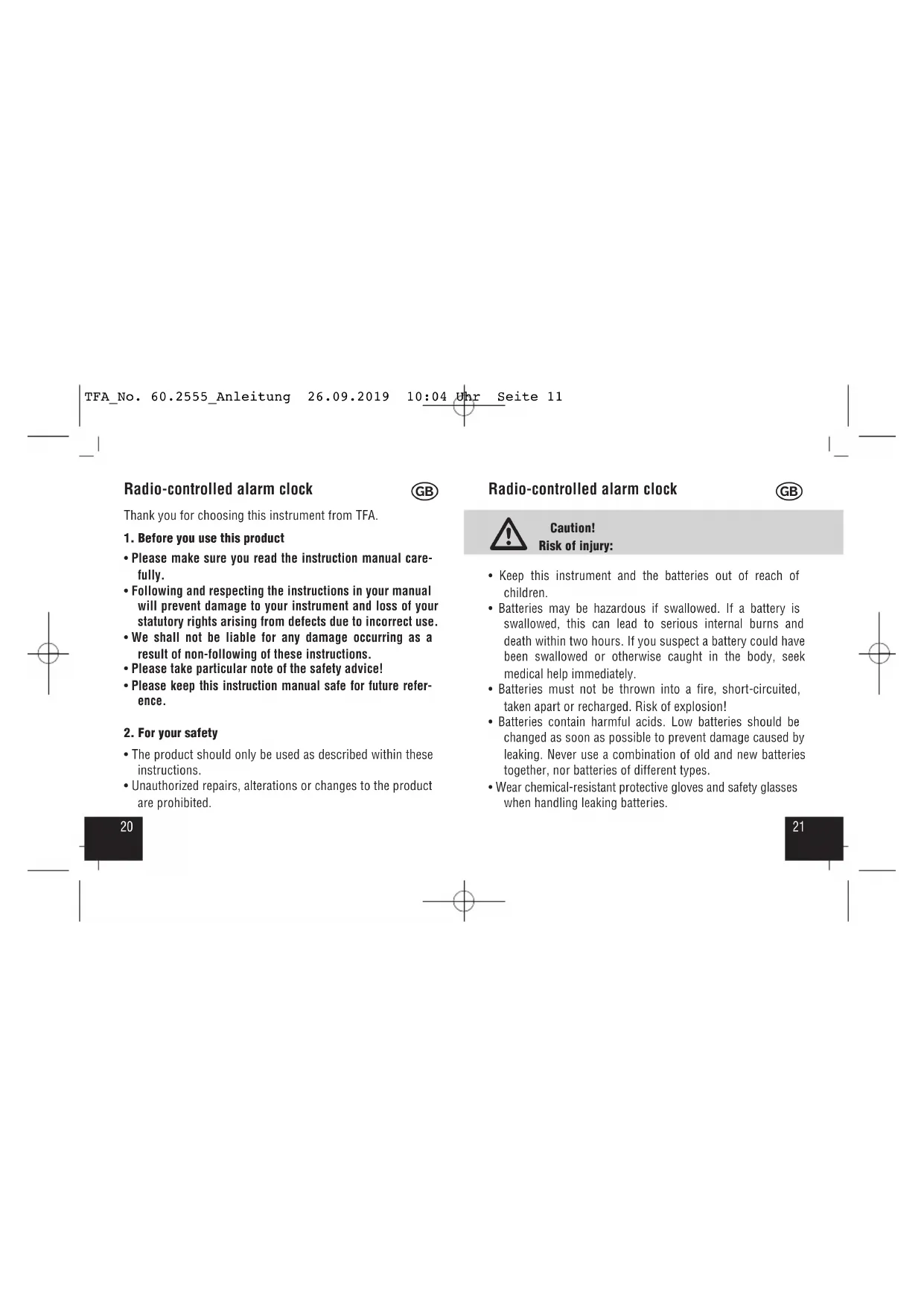

Radio-controlled alarm clock

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
• We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Please take particular note of the safety advice!
• Please keep this instruction manual safe for future reference.

2. For your safety

• The product should only be used as described within these instructions.
• Unauthorized repairs, alterations or changes to the product are prohibited.

Radio-controlled alarm clock

Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.
• Batteries may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.
• Wear chemical-resistant protective gloves and safety glasses when handling leaking batteries.

Radio-controlled alarm clock

Important information on product safety!

• Do not expose the device to extreme temperatures, vibrations or shocks.
• Protect it from moisture.

3. Elements

A: Display (Fig. 1):

A 1: DST symbol
A 2: Seconds hand
A 3: Hour hand
A 4: Minutes hand
A 5: DCF reception symbol
A 6: Alarm time hand (alarm is activated at 6:36)
B: Buttons (Fig. 2+3):
B 1: ALARM ON/OFF button

Radio-controlled alarm clock

B 2: SNOOZE/LIGHT button
B 3: ALARM SET button
B 4: - button
B 5: + button
B 6: TIME SET button
B 7: LOCK ON / OFF switch

C: Housing (Fig. 3):

C 1: Battery compartment

4. Getting started

• Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.
• Close the battery compartment again.
• The device will alert you with a beep and all segments will be displayed for a short moment.

Radio-controlled alarm clock

5. Radio-controlled time reception

• The clock hands move to 3.00 o'clock. The clock will now scan the DCF frequency signal and the DCF symbol flashes on the display. When the time code is successfully received after 3-8 minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display.
• You can also start the initialization manually.
• Press and hold – button for three seconds.
• The DCF reception symbol will be flashing.
• Interrupt the reception by pressing the – button again for three seconds. The DCF reception symbol disappears.
• The DCF reception always takes place daily at 2:00 o'clock in the morning. If the reception is not successfully received, the next DCF reception attempt will happen at 3:00 o'clock in the morning.
• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock.

Radio-controlled alarm clock

Note on radio-controlled time

The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, converts it and always shows the exact time. The adjustment to Daylight Saving Time (summer/winter time) is automatic. In Daylight Saving Time the DST symbol is shown on the display.

Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.
• Within concrete walls (reinforced with steel) such as basements, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception.

Radio-controlled alarm clock

- During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A single daily reception is adequate to keep the accuracy deviation under 1 second.

6. Operation

• The device will automatically quit the setting mode if no button is pressed for 15 seconds.
• Press and hold the + or - button in setting mode for fast mode.

6.1 Manual setting of the time zone and time

• Press and hold the TIME SET button in normal mode for three seconds.
• The clock hands move to 12.00 o'clock (default = without time zone correction). Press the + or - button to make the time zone correction (+3/-3). The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

Radio-controlled alarm clock

Hands to 9 10 11 12 1 2 3

Time zone -3 -2 -1 0 +1 +2 +3

• Confirm the setting with the TIME SET button.
• The hour hand flashes. Press the + or - button to set the hours.
• Confirm with the TIME SET button. Set minutes and seconds in the same way.
• Confirm the setting with the TIME SET button.
• The manually set time is overwritten once the DCF time signal is successfully received.

6.2 Alarm time setting

• Press the ALARM SET button in normal mode to enter the alarm mode.
• 7:00 (default) or the last adjusted alarm time appear on the display. The alarm time hand pulsates.

Radio-controlled alarm clock

• Press and hold the ALARM SET button. The alarm time hand flashes.
• Press the + or -button to set the desired alarm time.
• The minutes can only be set to 12, 24, 36, 48 or to the full hour (see marking).
• Confirm the setting with the ALARM SET button.
• To activate the alarm function press the ALARM ON/OFF button. The hand for the set alarm time pulsates briefly and then appears permanently in the display.
• When the adjusted alarm time is reached, the alarm rings.
• Press any button (except SNOOZE/LIGHT) and the alarm will stop.
• The alarm sound automatically turns off after 3 minutes if not stopped manually.
• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function is activated. The alarm time hand pulsates.
• The alarm will be interrupted for 5 minutes.

Radio-controlled alarm clock

• The snooze function can be activated up to seven times.
• The alarm will be reactivated twelve hours later.
• Press the ALARM ON/OFF button to deactivate the alarm function. The alarm time hand disappears.

7. Light

• Press the SNOOZE/LIGHT button.
  • The backlight turns on for 5 seconds.

8. Lock function

• Slide the switch to LOCK ON and all buttons are locked.
• Slide the switch to the position LOCK OFF and the function is deactivated.

9. Care and maintenance

- Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

Radio-controlled alarm clock

• Remove the batteries if the device will not be used for an extended period of time.
• Keep the device in a dry place.

10. Troubleshooting

Problem Solution

No display on the device → Ensure the batteries' polarities are correct→ Change the batteries
No DCF reception	→ Press the – button for three seconds to start the reception manually→ Wait for an attempt reception during the night→ Choose another place for your product

Radio-controlled alarm clock

→ Set the clock manually
→ Check if there is any source of interference.
→ Restart the instrument according to the manual

Manual setting → Slide the switch to position is not possible LOCK OFF

Incorrect indication → Change the batteries

If your device fails to work despite these measures, contact the retailer where you purchased the product.

11. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Radio-controlled alarm clock

Never dispose of empty batteries and rechargeable batteries with ordinary household waste.

As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment.

The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead

This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this product in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Radio-controlled alarm clock

12. Specifications

Power consumption Batteries 2 x 1,5 V AAA (not included)

Housing dimension 72 x 27 x 77 mm

Weight 92 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.

The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.

EU Declaration of conformity

Hereby, TFA Dostmann declares that the radio equipment type 60.2555 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address:

www.tfa-dostmann.de

Zum Ottersberg 12, D-97877 Wertheim, Germany 09/19
