USER MANUAL 60.2556.02 TFA

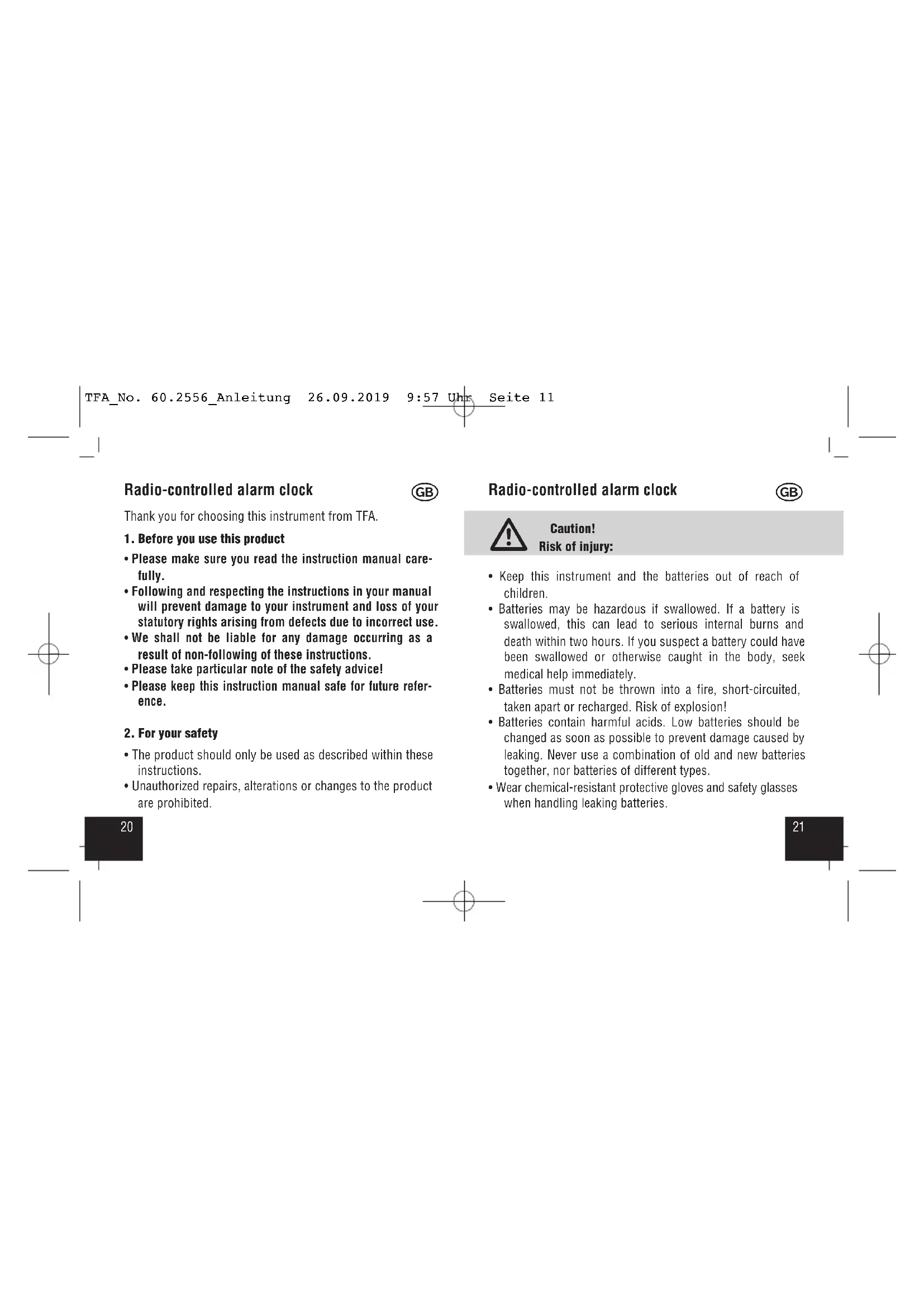

Thank you for choosing this instrument from TFA.

1. Before you use this product

• Please make sure you read the instruction manual care- fully.

• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

• We shall not be liable for any damage occurring as a result of non-following of these instructions.

• Please take particular note of the safety advice!

• Please keep this instruction manual safe for future refer- ence.

• The product should only be used as described within these instructions.

• Unauthorized repairs, alterations or changes to the product are prohibited. Radio-controlled alarm clock

Caution! Risk of injury:

• Keep this instrument and the batteries out of reach of children.

• Batteries may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking. Never use a combination of old and new batteries together, nor batteries of different types.

Important information on product safety!

• Do not expose the device to extreme temperatures, vibra- tions or shocks.

• Protect it from moisture.

A: Display (Fig. 1): A 1: DST symbol A 2: Seconds hand A 3: Hour hand A 4: Minutes hand A 5: DCF reception symbol A 6: Alarm time hand (alarm is activated at 6:36) B: Buttons (Fig. 2+3): B 1: ALARM ON/OFF button Radio-controlled alarm clock

• Open the battery compartment and insert two new AAA 1.5 V batteries, polarity as illustrated.

• Close the battery compartment again.

5. Radio-controlled time reception

• The clock hands move to 3.00 o'clock. The clock will now scan the DCF frequency signal and the DCF symbol flashes on the display. When the time code is successfully received after 3-8 minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display.

• You can also start the initialization manually.

• Press and hold – button for three seconds.

• The DCF reception symbol will be flashing.

• Interrupt the reception by pressing the – button again for three seconds. The DCF reception symbol disappears.

• The DCF reception always takes place daily at 2:00 o'clock in the morning. If the reception is not successfully re- ceived, the next DCF reception attempt will happen at 3:00 o'clock in the morning.

• If the clock cannot detect the DCF-signal (e.g. due to inter- ference, transmitting distance, etc.), the time can be set manually. The clock will then work as a normal quartz clock. Radio-controlled alarm clock

Note on radio-controlled time The time base for the radio-controlled time is a caesium atomic clock operated by the Physikalisch Technische Bundesanstalt based in Braunschweig (Brunswick), Germany. It has a time deviation of less than one second in one million years. The time is coded and transmitted from Mainflingen near Frankfurt via the frequency signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio clock receives the signal, converts it and always shows the exact time. The adjust- ment to Daylight Saving Time (summer/winter time) is automa- tic. In Daylight Saving Time the DST symbol is shown on the display. Therefore, please note the following steps:

• The recommended distance to any interfering sources like computer screens or TV sets is at least 1.5 - 2 meters.

• Within concrete walls (reinforced with steel) such as base- ments, the received signal is naturally weakened. In extreme cases, please place the unit close to a window to improve reception. TFA_No. 60.2556_Anleitung 26.09.2019 9:57 Uhr Seite 132726 Radio-controlled alarm clock

• During night-time, the atmospheric interference is usually less severe and reception is possible in most cases. A sin- gle daily reception is adequate to keep the accuracy devia- tion under 1 second.

• The device will automatically quit the setting mode if no button is pressed for 15 seconds.

• Press and hold the + or – button in setting mode for fast mode.

6.1 Manual setting of the time zone and time

• Press and hold the TIME SET button in normal mode for three seconds.

• The clock hands move to 12.00 o'clock (default = without time zone correction). Press the + or – button to make the time zone correction (+3/-3). The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus). Radio-controlled alarm clock

• Confirm the setting with the TIME SET button.

• The hour hand flashes. Press the + or – button to set the hours.

• Confirm with the TIME SET button. Set minutes and sec- onds in the same way.

• Confirm the setting with the TIME SET button.

• The manually set time is overwritten once the DCF time signal is successfully received.

6.2 Alarm time setting

• Press the ALARM SET button in normal mode to enter the alarm mode.

• Press and hold the ALARM SET button. The alarm time hand flashes.

• Press the + or –button to set the desired alarm time.

• The minutes can only be set to 12, 24, 36, 48 or to the full hour (see marking).

• Confirm the setting with the ALARM SET button.

• To activate the alarm function press the ALARM ON/OFF button. The hand for the set alarm time pulsates briefly and then appears permanently in the display.

• When the adjusted alarm time is reached, the alarm rings.

• Press any button (except SNOOZE/LIGHT) and the alarm will stop.

• The alarm sound automatically turns off after 3 minutes if not stopped manually.

• When the alarm rings, press the SNOOZE/LIGHT button and the snooze function is activated. The alarm time hand pul- sates.

• The alarm will be interrupted for 5 minutes. Radio-controlled alarm clock

• The snooze function can be activated up to seven times.

• The alarm will be reactivated twelve hours later.

• Press the ALARM ON/OFF button to deactivate the alarm function. The alarm time hand disappears.

• The backlight turns on for 5 seconds.

8. Auto Light / Lock function

• Move the ON switch to ON, a weak backlight turns on automatically as soon as the light sensor registers dark- ness.

• Slide the switch to the position , the Auto Light function is deactivated.

9. Care and maintenance

• Clean the device with a soft damp cloth. Do not use sol- vents or scouring agents.

• Remove the batteries if the device will not be used for an extended period of time.

• Keep the device in a dry place.

Problem Solution No display on the device ➜ Ensure the batteries' polari- ties are correct ➜ Change the batteries No DCF reception ➜ Press the – button for three seconds to start the recep- tion manually ➜ Wait for an attempt recep- tion during the night Radio-controlled alarm clock

➜ Choose another place for your product ➜ Set the clock manually ➜ Check if there is any source of interference. ➜ Restart the instrument according to the manual Manual setting ➜ Slide the switch to position is not possible or ON. Incorrect indication ➜ Change the batteries If your device fails to work despite these measures, contact the retailer where you purchased the product.

Never dispose of empty batteries and recharge- able batteries with ordinary household waste. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The symbols for the contained heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). Please do not dispose of this product in ordi- nary household waste. As a consumer, you are required to take end-of-life devices to a desig- nated collection point for the disposal of elec- trical and electronic equipment, in order to ensure environmentally-compatible disposal. Radio-controlled alarm clock

Power consumption Batteries 2 x 1,5 V AAA (not included) Housing dimension 72 x 27 x 77 mm Weight 92 g (device only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 60.2556 is in compli- ance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG Zum Ottersberg 12, D-97877 Wertheim, Germany 09/19 TFA_No. 60.2556_Anleitung 26.09.2019 9:57 Uhr Seite 173534 Réveil radio-piloté
