USER MANUAL Elia BBT770 RIVIERA & BAR

The appliance you have acquired is a high- quality product. It boasts all the advantages conferred by Riviera-et-Bar's comprehensive experience in preparing drinks. It meets with Riviera-et-Bar quality criteria: the best materials and components have been used to manufacture it and it has been subjected to rigorous controls. We hope it will give you complete satisfaction.

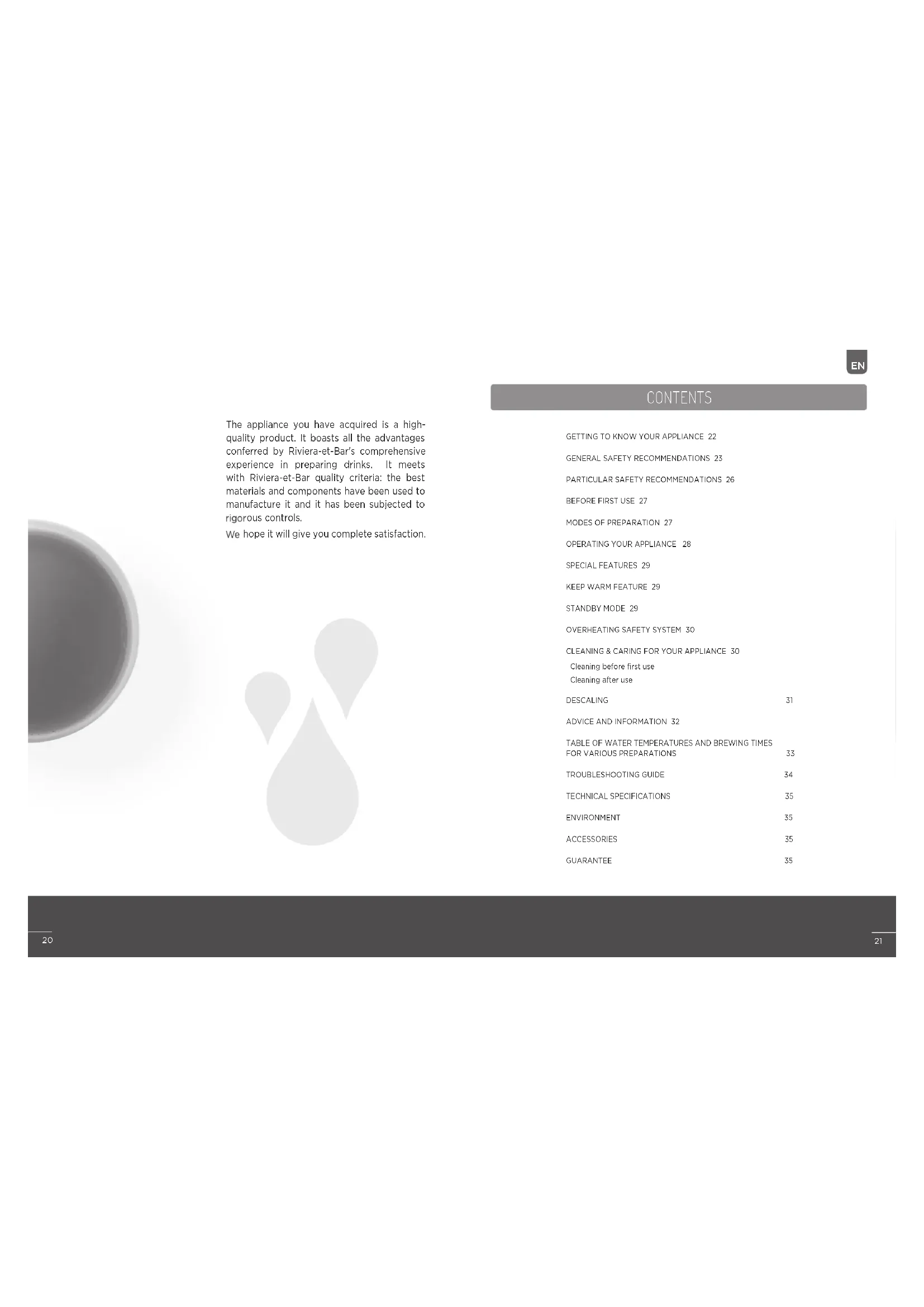

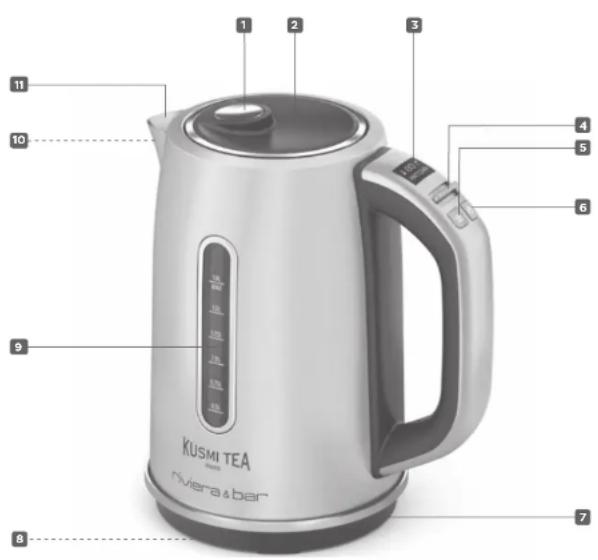

GETTING TO KNOW YOUR APPLIANCE 22

KEEP WARM FEATURE 29

CLEANING & CARING FOR YOUR APPLIANCE 30

Cleaning before first use Cleaning after use DESCALING 31

Incorporated cord storage

Stainless steel scale filter

Spout Please read the instructions detailed in this manual, as they provide, among other things, important information relating to the safe installation, use and care of your kettle. Please do not discard this manual. You may need to refer to it in the future.

• It is essential to comply with the safety, operating and cleaning instructions in this manual. Failure to comply with them will void the guarantee.

• This appliance is intended for domestic use only. It is not intended for use in the following cases, which are not covered by the guarantee: - in kitchen areas reserved for store and office workers, and in other professional environments; - on farms; - by the customers of hotels, motels and other residen

tial environments; - in bed and breakfast environments.

This appliance can be used by children from the age of 8 and upwards, provided that they are supervised or have been given instructions regarding the safe use of the appliance, and that they fully understand the dangers involved. Clea- ning and care must not be carried out by children, unless they are over 8 years of age and under the supervision of an adult. Keep the appliance and its power cord out of the reach of children under the age of 8.

• This appliance may be used by persons with reduced physical, sensory or mental capacities, or by persons whose experience or knowledge is not sufficient to do so, provided they are supervised, or have been given GeneRal safety Recommendations GettinG to KnoW youR aPPliance

instructions regarding the safe use of the appliance, and that they fully understand the dangers involved.

• This appliance must not be used as a child’s toy.

• This appliance must not be used with an external timer or a separate remote-control system.

• Please be aware of potential hazards in the event of im

proper use of this appliance.

• This appliance must not be immersed in water, or any liquid whatsoever.

Full instructions for the safe cleaning of this appliance, including the parts that come in contact with food, are detailed in the "Cleaning and Care" and "Descaling" sec- tions of this manual.

• We recommend you examine this appliance on a regular basis. If the power cord is damaged, it must be replaced by the manufacturer, its service department, or a simi- larly qualified person to prevent potential hazard.

• In the event of a breakdown or malfunction, this ap

pliance must be repaired by an approved Riviera-et-Bar Services Centre professional. For the contact details of the approved Riviera-et-Bar Services Centre closest to your home, please go to: www.riviera-et-bar.fr

• It is essential to disconnect the appliance’s power cord from the power supply in the following cases: - After use - Before cleaning or care. - In case of malfunction.

• Only connect the appliance to an outlet with a grounded power supply that meets electrical safety requirements currently in force. If an extension cord is required, use a grounded extension cord, and make sure that the power supply is powerful enough to cater for the appliance.

• Make sure that the mains voltage corresponds to that indicated on the rating label on the appliance.

• Unroll the power cord completely.

• To avoid overloading the power grid, do not connect other devices to the same circuit.

• Do not pull on the power cord or the appliance itself to unplug it.

• Do not handle the appliance with wet hands.

• Place the appliance on a flat, dry, horizontal, non-slip surface.

• Be careful not to place the appliance on the edge of a table or work surface, to prevent it from tipping over.

• Make sure that the power cord and any extension cords are not obs

tructing the passage, to prevent it from tipping over.

• Never move the appliance while in use.

• Never use the appliance out of doors.

• Never use the appliance near water.

• Do not place the appliance near a source of heat and do not allow the power cord to touch a hot surface.

• This appliance must be protected from frost. Never leave it in a car in winter, or in any other place subject to freezing, to avoid damage.27

• This appliance gets very hot when in use and will remain hot for some time. When handling the jug, be sure only to touch the handle.

• Beware of hot steam escaping from the lid and spout.

• It is essential to ensure that projections of water or any other liquids do not enter the electrical connec

tors, the control buttons, the Easy Select control switch and the digital display screen.

• Only use the jug supplied with the power base.

• Do not exceed the maximum level when filling the kettle (1.8 L). If the kettle is too full, boiling water may spill from the spout.

• CAUTION: always keep the lid closed when in use. Do not open the lid when the kettle is heating or when the water is boiling.

• Do not fill the jug by pouring water into the spout. Do not fill the jug without removing it from its power base.

• To avoid danger, place the appliance on a non-heat- sensitive surface, and make sure it is at least 20 cm from walls. Do not place anything on the appliance. The space above the appliance must remain clear and unobs

• CAUTION: Make sure the appliance is switched off (not in heating mode) before removing the jug from its power base.

• Do not turn the appliance on while empty.

• This appliance is only designed to heat water. Using it to heat any other type of liquid (milk...) or food (tea, honey, sugar, sweetener, coffee, chocolate...) is strictly prohibited.

• Do not insert objects into the kettle.

• Make sure that the power base and the base of the jug are com- pletely dry before connecting the appliance.

• Do not disconnect the power cord when the appliance is in hea- ting mode.

• Never use the appliance as a room-heating device.

• Make sure that the power cord does not come into contact with the hot parts of the appliance.

• Do not store the appliance while still hot. Let to cool in the open air beforehand.

• Unpack the appliance and remove all the plastic bags, cardboard, and paper protecting its different parts.

• Do not discard packaging components.

• Never leave plastic bags within the reach of children. Your Expert kettle has 2 preparation modes that display on the screen: - the water mode is used for infusions, coffee, sauces, dehydrated or instant soups... Only the temperature of the water is shown on the screen. Using the Easy Select control switch, you can select a temperature ranging between 40 and 100°C, in increments of 5°C. - the tea display mode is used to heat water to make tea. Depending on the type of tea you choose, the screen shows the temperature and brewing time. Up to 10 different types of tea can be selected (with water temperatures ranging between 50 and 95°C, in increments of 5°C).

• Remove any self-adhesive labels that may be affixed to the outer part of the appliance, or any information leaflets.

• To clean the various parts of the appliance, please refer to the dedicated section entitled "Cleaning and Care" on page 30. The temperature and brewing time shown for each type of tea are given as a guide. These parameters may vary depending on the origin of the tea. When the tea display mode is selected,

displayed on the screen. PaRticulaR safety Recommendations befoRe fiRst use modes of PRePaRation - You must never put loose tea, teabags or any type of food in the kettle. - To shift from one mode to another, press the button for approximately 3 seconds. Important remarks29

To save energy, your kettle is equipped with a standby mode. After 10 minutes of non-use, the appliance switches to standby mode. Lights and screen are turned off. To exit this mode, press one of the buttons, or operate the Easy Select control switch. A sound signal will be heard and the screen will illuminate. When not in use, the kettle should be unplugged. Deactivating the sound bips If the sound signals emitted by your kettle disturb or bother you, they can be disabled. To do so, press the button for at least 6 seconds. The icon will appear on the screen to confirm that the sound signal has been deactivated. To reactivate the sound signal, press the button again for at least 6 seconds. The icon will disappear from the screen, confirming that the sound signals have been reactivated. If you wish to activate the Keep warm function, press the button during the heating cycle. Its light will illuminate and the icon will appear on the screen. Once the water has reached the selected temperature, the "Keep warm" function is automatically activated for 30 minutes. b. Tea display mode

• Check that the tea display mode icon is displayed on the screen. If not, press the button for approximately 3 seconds.

• Select your choice of tea using the Easy Select control switch. Your choice of tea will determine the temperature and brew time. The kettle has 10 different tea settings:

• The temperature is displayed on the screen while the information on the type of tea and the brewing time are displayed intermittently one after the other.

7. You have 10 seconds to press the

button to begin the heating cycle. A beep is heard and the light will illuminate. From 10°C onwards, the actual water temperature appears on the screen and increases until the selected temperature has been reached.

8. When the required temperature has been reached,

a beep is heard. If the "Keep Warm" function has been selected, it is automatically activated at the end of the heating cycle for 30 minutes, with possible temperature variations around the selected value (see Keep Warm paragraph below). After 30 minutes, the Keep Warm phase and its light are both switched off.

button is immediately switched off and the actual temperature of the water remains on the display for a further 10 minutes. After this time, if the kettle has not been handled, the display screen and the appliance both switch to standby mode.

10. Unplug the power cord.

At any time before the end of the heating cycle, you can activate the "Keep Warm" function by pressing the button. Its light and the icon on the screen will both illuminate. To deactivate it, press the button again. Its light and the icon on the screen will both be switched off. PLEASE NOTE - The "Keep Warm" function cannot be selected before or after the heating cycle. - The keep warm temperature corresponds to the selected temperature if it is between 40°C and 90°C. - If the selected temperature is 95°C or 100°C, the keep warm process begins when the water has reached 90°C. PLEASE NOTE - At any time during the heating and Keep Warm cycles, you can:

• Check the selected temperature in water mode, or the selected temperature, brewing time or tea type in tea display mode. To do so, move the Easy Select control switch up or down briefly, and the information will flash on the screen for a few seconds before switching back to the actual water temperature.

• Switch your kettle off manually by pressing the button. - When in use, some water drops may form on the power base. This is perfectly normal. It is caused by steam condensing during the heating process. - When you reconnect your kettle, the last mode and temperature used are displayed (as previously memorised). - The jug is equipped with a stainless-steel filter, to block any limescale residue when pouring water. PLEASE NOTE sPecial featuRes KeeP WaRm featuRe standby mode

1. Remove the jug from its power base and fully

The water level gauge will tell you how much water is in the kettle.

3. Close the lid by simply pressing down.

4. Plug in the power cord.

5. Place the kettle on the power base. If the temperature

of the water is below 10°C, "- -" will display on the screen.

6. Selecting the mode of preparation.

• To ensure you are in water mode, check that the tea display mode icon is not visible on the screen. If your appliance was previously in tea display mode, press the button for approximately 3 seconds to change to water mode.

• Select the required temperature using the Easy Select control switch (between 40 and 100°C). We recommend that you preheat your cup before brewing your tea to ensure the optimal temperature. Advice To ensure that the water heats to the required temperature, fill the kettle with at least 500 ml of water. You can also use your appliance to heat less water (in which case the temperature will be less accurate), but you must never go below the 250 ml level. Advice oPeRatinG youR aPPliance - Never fill the kettle through the spout. - When filling, it is important not to wet the handle, buttons, Easy Select control switch and screen. - Never fill the kettle beyond the 1.8 L mark. If the kettle is too full, boiling water may spill from the spout. Important remarks Displayed tea name Tea designation Brew temperature Brew time INFUSION Herbal 100°C 5-7 MIN AQUA Aqua 95°C 5-7 MIN OOLONG Oolong 90°C 5-7 MIN ROOIBOS Rooibos 90°C 5 MIN NOIR Black 90°C 3-5 MIN DETOX Detox 85°C 3-4 MIN MATE Maté 80°C 3 MIN MATCHA Matcha 80°C 1-2 MIN VERT Green 75°C 3-4 MIN BLANC White 70°C 3 MIN Handle the kettle carefully to avoid burns. Carry it by its handle, and always keep it upright until it is time to serve. Always pour gently to avoid splashes. Important remark31

Cleaning before first use

1. Remove the kettle from its power base.

3. Rinse the inside of the kettle with hot water. It is essential

to avoid wetting the entire handle.

4. Carefully dry the outside of the kettle.

5. Close the cover by simply pressing it back in place and stand

the kettle on its power base. Cleaning after use

1. The outside of the kettle and power base should be cleaned

with a soft, slightly damp cloth.

2. Carefully wipe the power base before repositioning the jug.

After a certain amount of use, a thin film of limescale may form on the inside of your kettle. When this happens, we suggest descaling it. To do so:

1. Fill your kettle to the maximum (1.8L) level with 2 parts water

and 1 part vinegar. Never fill the kettle through the spout and avoid wetting the entire handle. Never fill the kettle through the spout and avoid wetting the entire handle.

2. Bring to the boil at 100°C and leave to stand overnight.

3. The next morning, empty the water and boil the kettle seve

ral times with fresh water at 100°C until the taste of vinegar has completely disappears. In case of heavy scaling, use a dedicated over-the-counter descaling product and follow the manufacturer’s instructions. PLEASE NOTE descalinG - Disconnect the appliance from the power supply before cleaning or caring for it. - Never immerse the power base, power cord or jug in water or any other liquid. - None of the parts that make up this appliance are dishwasher safe. - Never wash the exterior of the jug under running water. - Never expose the electrical connectors on the power base, jug, handle, control buttons, the Easy Select control switch or the digital display screen to moisture. - Do not use chemicals, abrasive cleaners or steel wool to clean the various parts of the appliance. Important remarks cleaninG & caRinG foR youR aPPliance

• This kettle is equipped with an overheating safety system, which is triggered when the amount of water in the kettle is insufficient. When this happens, the kettle automatically stops working. It emits a long beep, and all lights go out immediately. The screen shows "-H-" for a few seconds before also being switched off. Remark: this safety sound signal is heard even when all sound signals have been deactivated.• Unplug and remove the kettle from its power base, and allow it to stand for at least 45 minutes before using it again. Do not refill the jug until the appliance has cooled down. oveRheatinG safety system33

Tea = leaves and water Depending on the quality of your tap water, it may be necessary to filter it, or use mineral water instead. Using hard or chlorinated water would be an offense to your tea! Let your palate guide you... Depending on the tea, the shape of the leaves, the season or your personal taste, it is important to be able to adapt the brewing temperature. In general, the Chinese consider that boiling water deprives it of its life force. Others prefer to boil the water to "break the crust" and release the oxygen, then leave the water to cool to the desired tempe

rature. Each to his own method... Different types of teas Green tea Green tea is a great thirst-quencher and can be enjoyed throughout the day. It has draining proper

ties and is therefore ideal when dieting. Top quality green teas are among the most expen

sive in the world. Oolong tea Oolong tea is semi-fermented, and has a charac

teristic aroma of roasted chestnuts, hazelnuts, and honey. It is associated with the ideal of well-being and is also low in theine. As a result, it can be enjoyed in the evening with no risk of keeping you awake. Smoked tea Smoked tea is a black tea made from more mature, more powerful leaves. The smokiest teas are the powerful yet subtle Tarry teas. White tea Composed of buds and unfurled leaves from the newest growth of the tea plant. A rare and very refined tea. Yellow tea Composed almost exclusively of buds, yellow tea is a highly refined natural product. Flavoured teas These teas are flavoured with the essences of flowers or fruit, and it is precisely these refined aromas that are popular among tea lovers. The most famous scented leaf teas are Jasmin and Earl Grey, which are flavoured with bergamot orange. Red tea Rich in vitamins, low in caffeine, red tea does not in fact come from a tea shrub, but from a plant called Rooibos. It can be enjoyed throughout the day... Don’t forget you can also heat water for other preparations... - Soluble drinks including coffee - Gelling agents for pastries - Dehydrated culinary preparations such as sauces, soups, and veloutés ... The following temperatures and brewing times are given as a rough guide. We recommend that you adapt them to suit your various preparations and personal tastes.

• Do not brew your preparations directly in the kettle. ** Do not make your preparations directly in the kettle. Water temperature Brew time* Green tea 50 to 90°C 1 to 5 minutes White and yellow tea 70 to 85°C 6 to 20 minutes Black and smoked tea 80 to 95°C 2 to 5 minutes Oolong and dark tea 90 to 95°C 4 to 7 minutes Flavoured tea 70 to 95°C 3 to 7 minutes Red tea (rooibos) and infusions 90 to 100°C 4 to 5 minutes Coffee and other drinks ** 80 to 90°C Specific culinary preparations, warm lemon-flavoured water ** 40 and 45°C Dehydrated sauces ** 60 to 80°C Dehydrated soups ** 80°C Instant soups and noodles ** 90 to 100°C advice and infoRmation table of WateR temPeRatuRes and bReWinG times foR vaRious PRePaRationsThe general guarantee for this appliance is 2 years. It covers domestic use only. The following are excluded from the guarantee: - worn parts, such as seals, - removable or mobile parts damaged due to impro- per handling, as the result of a fall or knock during handling, and affecting the power base or jug, - appliances used for a purpose other than their normal purpose within the private sphere. The manufacturer cannot be held responsible for possible damages caused by improper use of the appliance, or when the appliance is not used in accordance with the operating instructions, or has been repaired by an unskilled person. Repairs must only be carried out at one of the brand's approved Service Centres. For further information, please contact the Riviera-et-Bar’s customer rela- tions department on +33 (0)3.88.18.66.18 or go to our www.riviera-et-bar.fr website. Worn or damaged parts that are excluded from the guarantee will be replaced or repaired for a fee. The guarantee period begins on the date of the ori- ginal purchase. You may benefit from this guarantee only when presenting the defective appliance with the invoice or proof of purchase. In accordance with Article L111-2 of the French Consumer Code, the availability of spare parts, provided for in matters of repairable products is 5 years from of its date of manufacture (information mentioned on the product: batch or serial number). Reminder: for any intervention, you will be asked to return the product in its original packaging in order to avoid any further damage caused by transport. We therefore suggest you keep all of the original packaging. Place of jurisdiction: Strasbourg. The provisions of this guarantee do not exclude the buyer from benefitting from the legal guarantee for defects and hidden defects that applies in any event within the scope of article 1641 and following of the French Civil Code.

Power: 2,000-2,400 W Voltage: 220–240 V ~ 50–60 Hz Weight: 1.2 kg Dimensions : L 225 x H 255 x W 160 mm All the accessories for our products are available on our website: www.accessoires-electromenager.fr Please be aware that using products not recommended by Riviera-et-Bar will void the guarantee. technical sPecifications accessoRies enviRonment GuaRantee Malfunctions Causes Solutions The kettle is not working. The power is off. Make sure that the appliance's power cord is properly plugged into the power outlet. Alternatively, check the circuit breaker or fuses in your electrical system. When the kettle starts to heat, it emits a long beep and the heating cycle fails to begin. After this beep, the actual water temperature is displayed on the screen again. (This safety sound signal is heard even when all sounds have been deactivated). The temperature of the water is higher than the temperature you have selected Use cold water. The kettle is plugged in, but the lights and screen are off. The kettle automatically switches to standby mode after 10 minutes of non-use. Press one of the buttons or remove the jug from the base to exit standby mode. Malfunction icons Causes Solutions -H- The kettle contains too little or no water (see section entitled "Overheating Safety System"). Just as the kettle starts to heat, it stops working, emits a long beep and all lights go out immediately. The screen shows "-H-" for a few seconds before also being switched off. (This safety sound signal is heard even when all sounds have been deactivated). Unplug and remove the kettle from its power base, and allow it to stand for at least 45 minutes before using it again. E1 or E2 Temperature sensor defect. Contact an Approved Riviera-et-Bar Service Centre. tRoubleshootinG Guide Signals indicating a malfunction Operating malfunctions Please observe the following recommendations: - You must not dispose of this appliance with your household waste. - A selective collection system for this type of product has been set up by French municipalities. You should therefore contact your local council to find out where it is located. Electrical and electronic products contain dangerous substances that have harmful effects on the environment or human health, and must therefore be recycled.
