Product Type	Fan
Brand	V-TAC
Model	VT4538
Number of speeds	3 (low, medium, high)
Oscillation	Yes
Timer	60 minutes
Power supply	230 V ~ 50 Hz (mains estimate)
Power cord	Standard length, passes through base
Estimated height	Approximately 35 cm (table fan)
Estimated weight	Approximately 2 kg
Main material	Plastic
Maintenance	Soft cloth dampened with soapy water, no solvents
Storage	Cool dry place, vinyl bag after cleaning
Safety	Cut off electricity before installation
Assembly required	Yes, base to assemble and secure
Spare parts	Base, locking nut, grille, blade

Frequently Asked Questions - VT4538 V-TAC

How to assemble the base of the VT4538 fan?

Loosen the locking nut on the base by turning it counterclockwise. Place it over the power cord, thread the cord through the central gap between the two base halves, then connect the halves by pushing the pegs into the slots. Tighten the nut clockwise.

How to clean the V-TAC VT4538 fan?

Use a soft cloth dampened with soapy water to remove dust and stains. Then wipe with a dry cloth. Never use solvents like thinner or gasoline.

What are the available speeds?

The fan has 3 speeds: speed 1 (low), speed 2 (medium), speed 3 (high). Position 0 is off.

How to activate oscillation?

Select one of the 3 speeds using the switch. Oscillation is on the same 3-speed switch; make sure it is in the oscillating position (usually by turning the knob to the oscillation icon).

How to use the timer?

Turn the timer (60 minutes) to the desired duration. The fan will automatically stop after the set time. Make sure to select a speed before setting the timer.

Can I use the fan continuously without the timer?

Yes, just don't use the timer. Simply set the desired speed and the fan will run continuously until you turn it off.

How to store the fan in winter?

First clean it with a soft cloth and soapy water, dry it, then pack it in a vinyl bag. Store it in a cool, dry place.

What to do if the fan does not turn on?

First check that the power cord is plugged in and the switch is set to a speed. Make sure the timer is not in the '0' (off) position. If the problem persists, contact your dealer.

Is it safe to leave the fan unattended?

Yes, the fan is designed for safe use. However, we recommend not leaving it running unattended in a room with children or pets, and cutting off the power in case of prolonged absence.

How to get spare parts?

Contact your local distributor or supplier. They are trained to serve you and can provide parts like the base, locking nut, or grille.

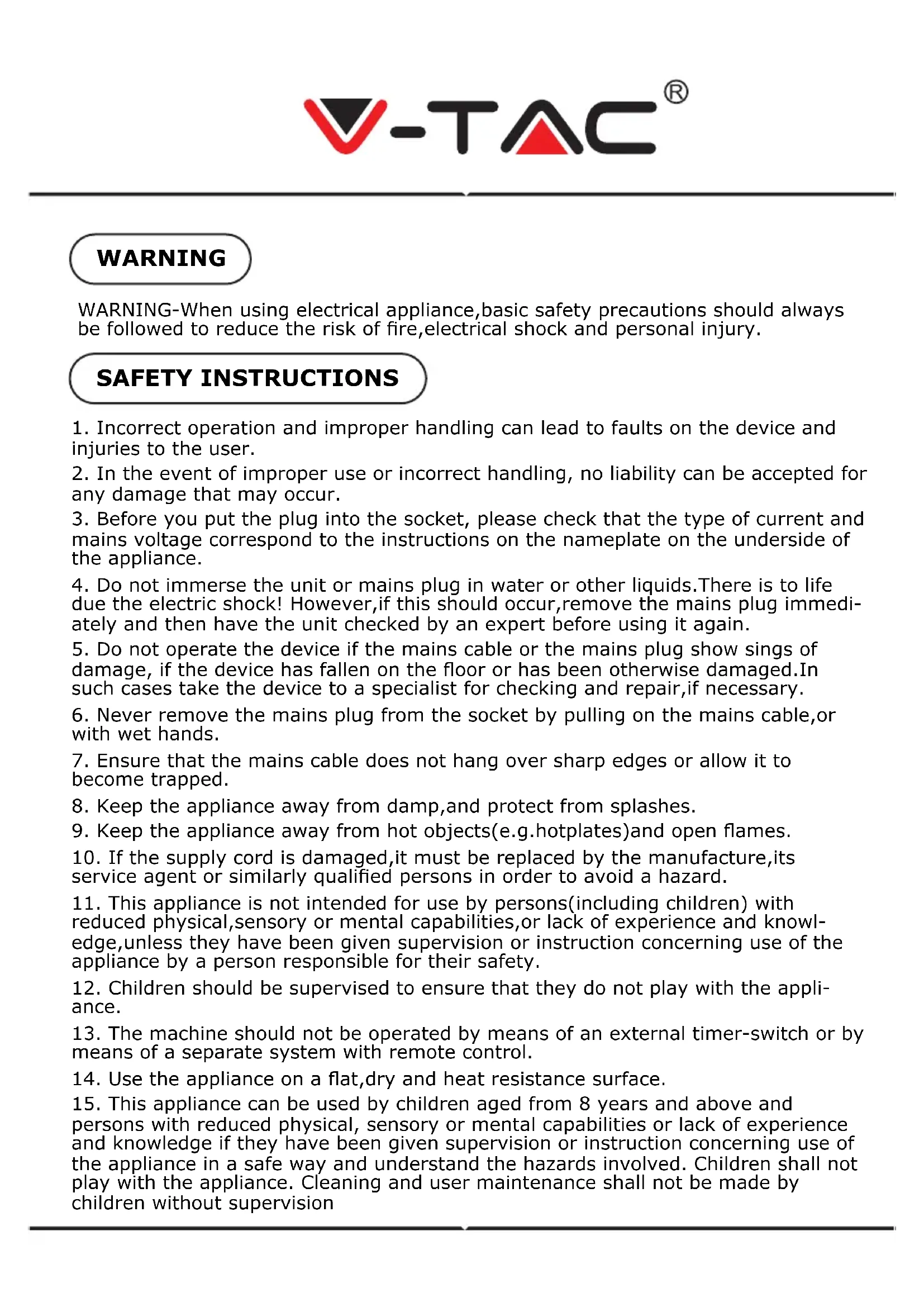

USER MANUAL VT4538 V-TAC

WARNING-When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INSTRUCTIONS

1. Incorrect operation and improper handling can lead to faults on the device and injuries to the user.
2. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
3. Before you put the plug into the socket, please check that the type of current and mains voltage correspond to the instructions on the nameplate on the underside of the appliance.
4. Do not immerse the unit or mains plug in water or other liquids. There is to life due the electric shock! However, if this should occur, remove the mains plug immediately and then have the unit checked by an expert before using it again.
5. Do not operate the device if the mains cable or the mains plug show sings of damage, if the device has fallen on the floor or has been otherwise damaged. In such cases take the device to a specialist for checking and repair, if necessary.
6. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
7. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
8. Keep the appliance away from damp, and protect from splashes.
9. Keep the appliance away from hot objects(e.g.hotplates)and open flames.
10. If the supply cord is damaged, it must be replaced by the manufacture, its service agent or similarly qualified persons in order to avoid a hazard.
11. This appliance is not intended for use by persons(including children) with reduced physical,sensory or mental capabilities,or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
12. Children should be supervised to ensure that they do not play with the appliance.
13. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
14. Use the appliance on a flat, dry and heat resistance surface.

15. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

16. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environment; bed and breakfast type environments.

17. Never leave the device in unattended during use.
18. Do not store or operate the appliance in the open air.
19. Keep the appliance in a dry place, inaccessible to children (in this packaging).
20. Never put fingers or any other objects through the grilles(fan guards)when the fan is running.
21. The appliance must be assembled completely before use.
22. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
23. Do not point the air flow to the people for a long time.
24. Ensure that the fan is switched off from the supply mains before removing the guard.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

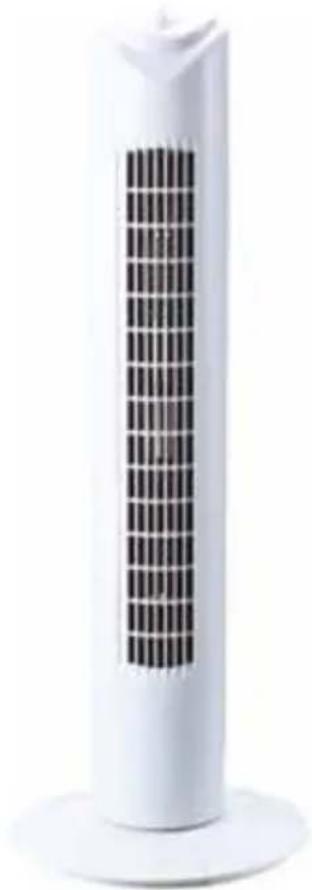

INSTALLATION INSTRUCTION

White cylindrical industrial fan with a grid-patterned grille and a flat base (no text or symbols visible)

SPECIFICATIONS

MODEL NO: VT-4538

3 FAN SPEED: 3 (Low, Medium & High)

OSCILLATION: 3 (Low, Medium & High)

SIZE: 31" Inch

POWER: 45W

TIMER: 1 Hour (Max)

VOLTAGE: AC: 220-240V, 50/60HZ

CABLE LENGTH: 1.7 METERS

PLUG TYPE: VDE 2 ROUND PIN PLUG

COLOR: White

MATERIAL: PP

INTRODUCTION

WEEE Number: 80133970

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

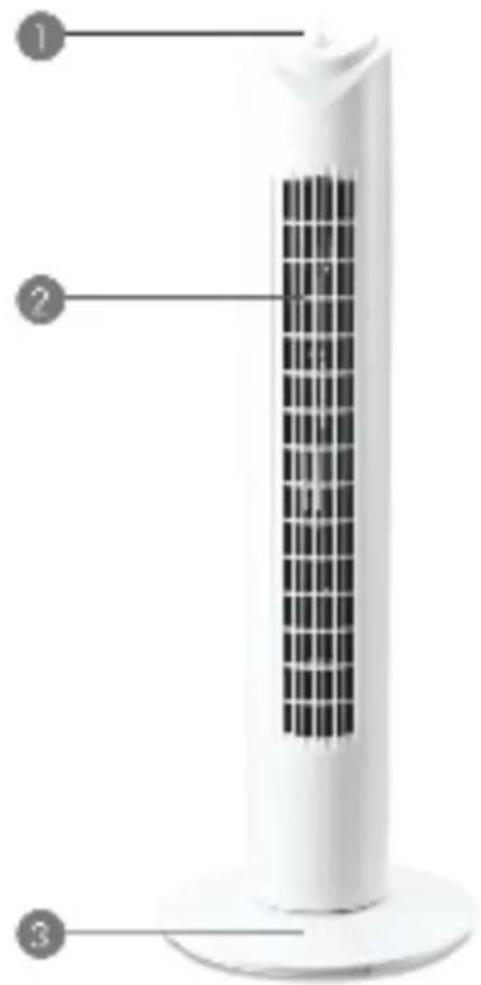

PARTS IDENTIFICATION

PARTS IDENTIFICATION

1. Fan Control
2. Air Outlet
3. Base

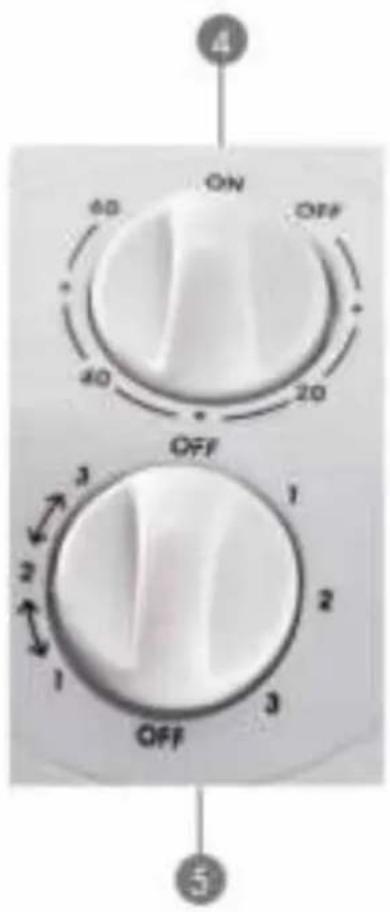

4. Timer(60 minutes) switch
5. 3 speed and Oscillation switch

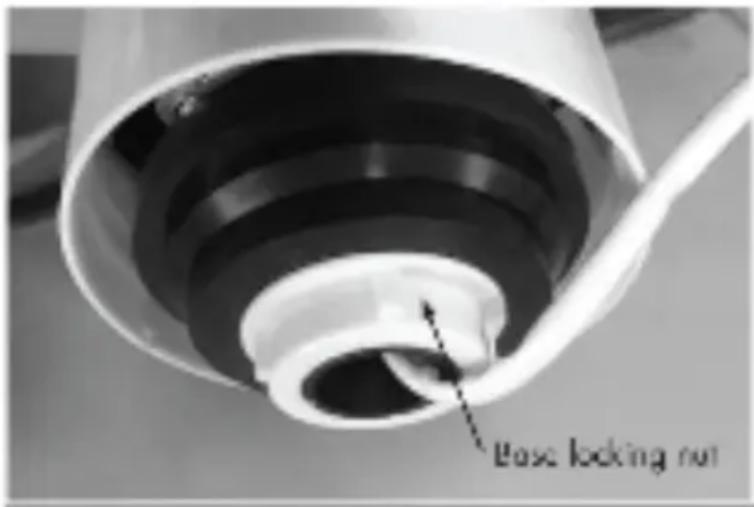

1. Loosen the base locking nut from the bottom of the unit by turning it anticlockwise. Put it down the length of the power cord.
2. Run the power cord through the central gap between the two halves of the un-assembled base.
3. Connect two halves by pushing the plastic pegs on each half into the corresponding slots on the other half.

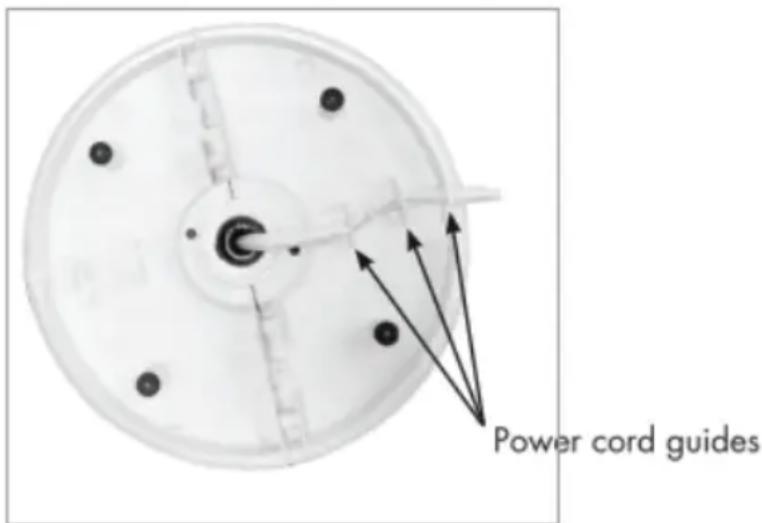

IMPORTANT: Make sure that the power cord passes through the guides on the rear half of the base.

1. Pull up the base locking nut and tighten it clockwise.

HOW TO USE

SPEED FUNCTION

Speed o-Stop/Off

Speed 1-Lower Speed

Speed 2-Medium Speed

Speed 3-High Speed

Select either of the 3 speeds on the right of the speed dial

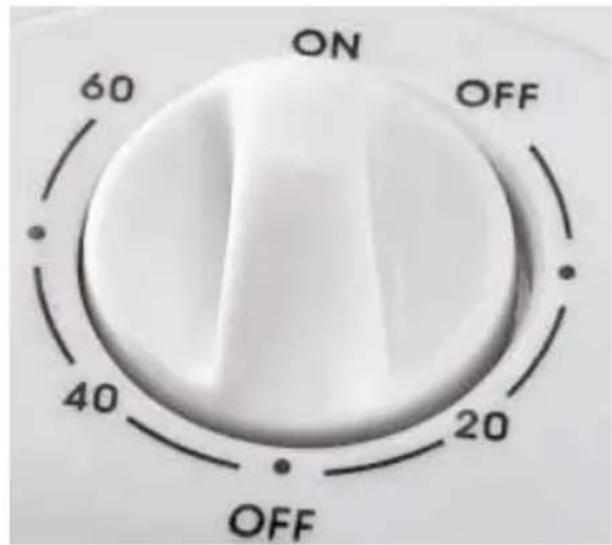

60 minutes timer

MAINTENANCE

1. Keep this unit in cool dry place.
2. To keep the fan clean, use a piece soft cloth soaked with soap water off the dust and stains, wipe dry to keep in a fresh appearance. Must not attempt to use solvents like thinner, gasoline, etc.
3. After the fan is cleaned then pack it into a vinyl bag and store it in a dry place.

In case of any query/issue with the product please reach out to us at [e-mail] V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
