USER MANUAL JPK42SNXWSS JENN-AIR
For questions about features, operation/performance, parts, accessories, or service, call:
1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.
In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.
Location Requirements.. 6
Electrical Requirements. 7
Water Supply Requirements. 7
Product Dimensions 8
Tipping Radius. 9
Door Swing Dimensions 9
Cabinet and Panel Installation Options 9
Fully Integrated Grille Installation Requirements. 10
Standard Integrated Grille Installation Requirements 11
Panel Kit Installation Requirements. 12
Custom Wood Overlay Panels 12
Custom Wood Overlay Panel Dimensions 13
INSTALLATION INSTRUCTIONS 13
Unpack the Refrigerator 13
Move the Refrigerator into House 14
Install Anti-Tip Boards 14
Connect the Water Supply 15
Plug in Refrigerator. 16
Install Side Trims 16
Move Refrigerator to Final Location 17
Level and Align Refrigerator 17
Install Refrigerator and Panels 18
Install BaseGrille 23
Complete Installation. 23
ÍNDICE

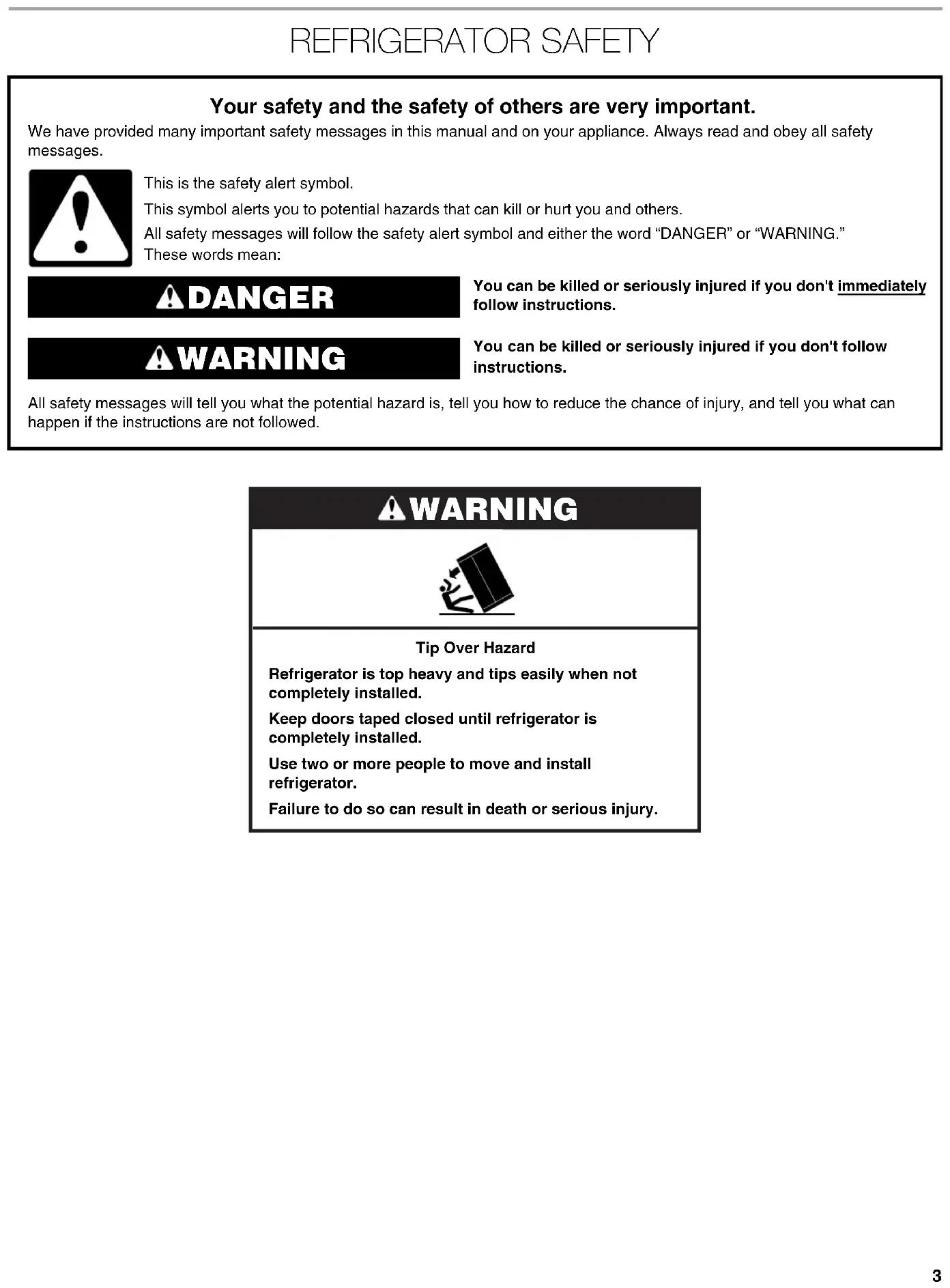

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
ADANGER
You can be killed or seriously injured if you don't immediately follow instructions.
WARNING
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not completely installed.
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do so can result in death or serious injury.
MODELS

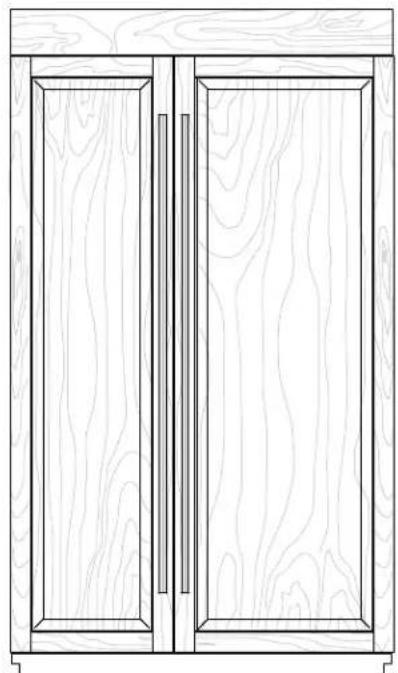

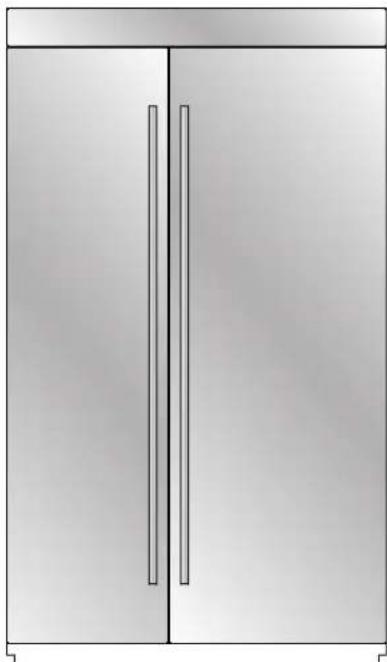

Custom-Made Panel Design
Features custom-made panels and custom hardware provided by the cabinetmaker for a seamless appearance designed to blend with existing kitchen cabinetry.
Base Model Numbers: JS42NXFXDW,JS48NXFXDW

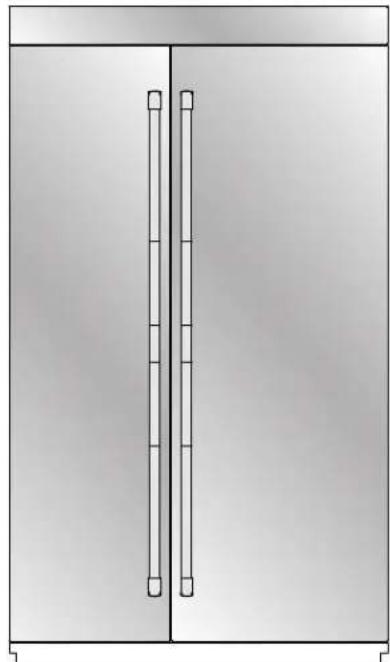

Euro-Style Stainless Design
Features stainless steel wrapped doors with new Euro-style handles designed to compliment the Jenn-Air Euro kitchen suite or enhance any kitchen decor.
Base Model Numbers:JS42NXFXDW,JS48NXFXDW
Kit Model Numbers: JPK42SNXWSS, JPK48SNXWSS
Pro-Style Stainless Design
Features stainless steel wrapped doors and Pro-Style handles with diamond-etched grip.
Base Model Numbers: JS42NXFXDW, JS48NXFXDW
Kit Model Numbers: JPK42SNXWPS, JPK48SNXWPS
Accessories
All factory parts are available through your Jenn-Air dealer or by calling Jenn-Air at 1-800-JENNAIR (1-800-536-6247). In Canada, call 1-800-807-6777.
Door Handle Kits
For custom wood overlay panels only, handle kits can be ordered. Follow the kit instructions for installation.
IMPORTANT: These handle kits are not intended for use with stainless steel door panel kits.
Pro-Style Stainless Steel - W10250643
Euro-Style Stainless Steel - W10250640
Classic Euro-Style - W10250637
Armoire-Style Door Panel Kit
Follow the kit instructions for installation.
42" Model - W10292393
48" Model - W10292394
INSTALLATION REQUIREMENTS
Tools and Parts
IMPORTANT:
- Installer: Leave Installation Instructions with the homeowner.
Homeowner: Keep Installation Instructions for future reference. Save these Installation Instructions for the local electrical inspector's use.
Tools Needed:
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
Cordless drill
38'' and 1 / 2'' open-end wrenches
Drill bits
532" and 3/16" hex key
Adjustable wrenches (2)
14" and 5 / 16 " socket drivers
Phillips screwdriver
Tape measure
Small level
Utility knife
332 "hex key (panel kits only)
Tape (painters)
Appliance dolly
1/32" nut driver
Parts Needed:
# 8 × 3'' (7.6 cm) wood screws (longer screws may be needed) (6)
2^ 4^ 32^ (5cm× 10cm× 81cm) wood boards (2)
- Custom wood overlay panels—consult a qualified cabinetmaker or carpenter to make the custom wood panels. See "Custom Wood Overlay Panels" for more information.
OR
Panel kit—See "36" Models or 42" French Door Models" for panel kit information.
Flexible, codes approved water supply tubing, a ferrule, a union and a 1/4 (6.35 mm) compression fitting.
Parts Provided:
| Slotted hex-head screw W10141645 (21) | Hex-head pointed screw W10141189 (8) |
| Hex-head blunt screw W10142233 (4) | Shoulder washer (use with hex-head pointed screw) W10471946 (4) |
| Phillips-head flat screw 8281251 (28) | Round-head screw 1163283 (24) |
| Door Adjustment Pin (preinstalled) W10234194 (2) | Door Stop Pin W10234202 (2) |
| 0 | Standard Integrated Grille Bracket |
| W10203457 (2) | W10182743—Left (1) W10182741—Right (1) |
| Fully Integrated Grille Bracket W10260890—Left (1) W10260891—Right (1) | Filler Board “L” Bracket W10234199 (2) |
| Panel top bracket W10192849 (2) | Top Grille Lower Trim W10250961—36" BM (1) W10250962—42" BM, SxS (1) W10250963—48" SxS (1) |
| RC Hinge Cover Trim W10199873-42" SxS W10199875-48" SxS W10202875-36" BM (Right) W10202510-42" FDBM (Right) | FC Hinge Cover Trim W10199886-42" SxS W10199888-48" SxS W10202877-36" BM (Left) W10202511-42" FDBM (Left) |
| Panel templates W10222281-SxS W10222279-BM W10222283-Grille | Handle Side Door Trim W10167367-SxS W10188556-BM (Left) W10202604-BM (Right) W10202478-FDBM (Right) W10202480-FDBM (Left) |
| Installation block W10234156 | Grille-Bottom / Skirt-Grille W10189198/W10188549-42"BM W10189196/W10199547-36"BM W10182718/W10188551-48"SxS W10182717/W10188549-42"SxS |
Location Requirements
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IMPORTANT:
Observe all governing codes and ordinances.
It is recommended that you do not install the refrigerator near an oven, radiator, or other heat source.
- Do not install in a location where the temperature will fall below 55^ (13^) .
Floor must support the refrigerator weight, more than 600 lbs (272 kg), door panels and contents of the refrigerator. Flooring under refrigerator must be at same level as the room. Face of cabinetry must be plumb.
Ceiling height must allow for side tipping radius. See "Tipping Radius."
■ Location should permit door to open fully. See "Door Swing Dimensions."
- Location must permit top grille removal. See "Opening Dimensions."

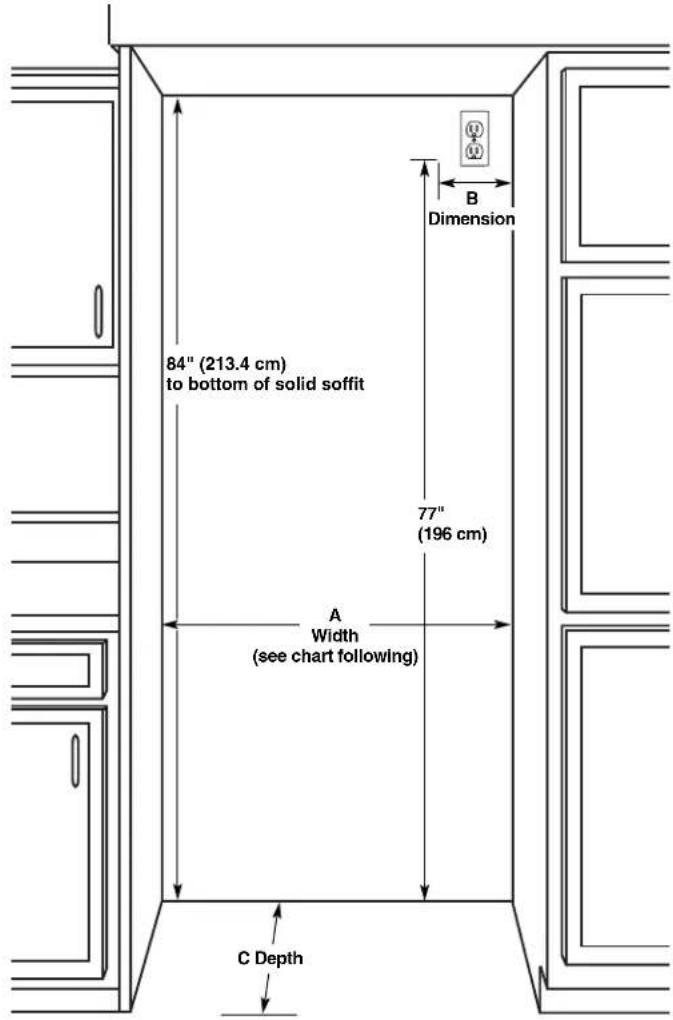

Opening Dimensions
IMPORTANT:
The width of the opening (Width A), from side to side, must be as specified for your model, for at least 2" (5.08 cm) back from the face of the cabinet.
NOTE: If your opening does not meet this requirement, you will need to make modifications.

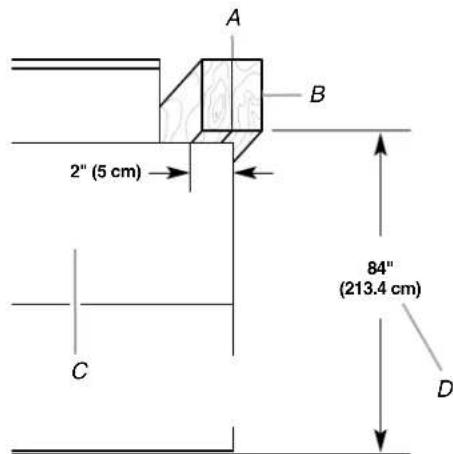

A solid soffit or wall cabinet must be installed 84^ (213.4 cm) above the floor. If the solid soffit is higher than 84^ (213.4 cm) or one is not available, then the refrigerator must be braced.

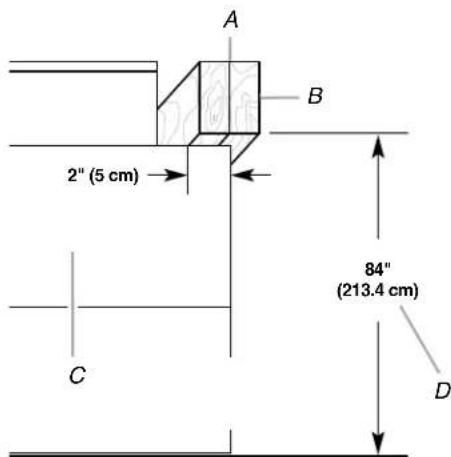

If the anti-tip boards are needed, they must be attached to the rear wall studs so that there is 84^ (213.4 cm) from the bottom of the anti-tip board to the floor. See "Install Anti-Tip Boards" for more information.

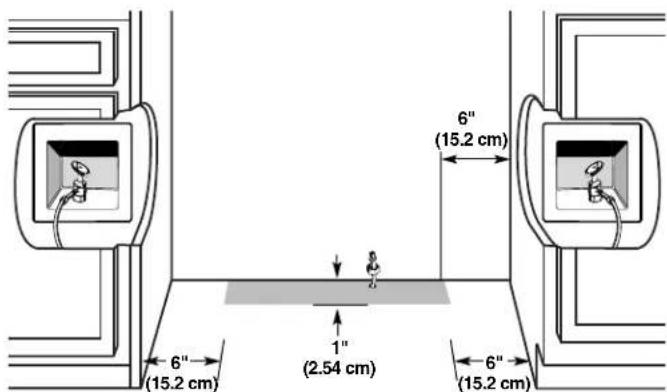

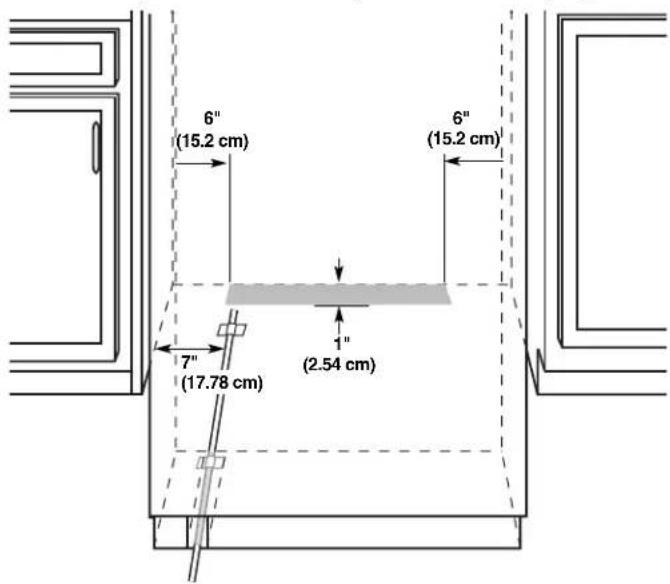

For a fully integrated installation, a minimum of 6" (15.24 cm) of open space above the refrigerator is required. See "Fully Integrated Installation." Anti-tip boards are required. See "Install Anti-Tip Boards" for more information.
A grounded 3 prong electrical outlet should be located within a specified number of inches from the right-hand side cabinets or end panel. See the chart following the graphic for the number of inches required for your model. For more information, see "Electrical Requirements."

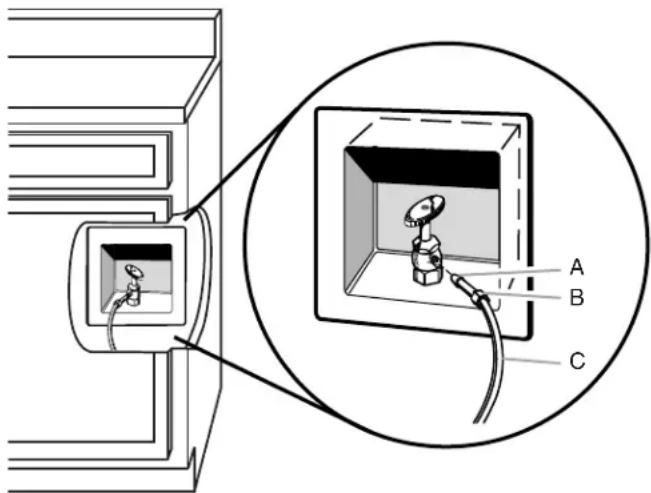

The water shutoff should be located in the base cabinet on either side of the refrigerator or some other easily accessible area. If the water shutoff valve is not in the cabinets, the plumbing for the water line can come through the floor. See "Water Supply Requirements" for more information.
| Model | Width A (as shown above) | Dimension B (as shown above) |
| 42 | 42" (106.7 cm) | 10" (25.4 cm) |
| 48 | 48" (121.9 cm) | 16" (40.6 cm) |
| Installation Type Depth C (as shown above) | |
| Standard Flush (new installation) | 25" (63.5 cm) minimum |
| Retrofit Installations 24" (60.9 cm) minimum | |
Electrical Requirements
AWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 volt, 60Hz AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.
IMPORTANT: If this product is connected to a GFCI (Ground Fault Circuit Interrueter) protected outlet, nuisance tripping of the power supply may occur, resulting in loss of cooling. Food quality and flavor may be affected. If nuisance tripping has occurred, and if the condition of the food appears poor, dispose of it.
NOTE: Before performing any type of installation, cleaning, or removing a light bulb, remove the top grille and turn the master power switch to OFF or disconnect power at the circuit breaker box.
When you are finished, turn ON the master power switch or reconnect power at the circuit breaker box. Then reset the control to the desired setting.
Water Supply Requirements
IMPORTANT:
All installations must meet local plumbing code requirements.
There is not enough clearance to achieve a flush installation if a water shutoff valve is located in the wall behind the refrigerator.
The water shutoff should be located in the base cabinet on either side of the refrigerator or some other easily accessible area. The water supply line, however, must come up through the floor in the gray shaded area shown.
A 12 " (12.7 mm) hole for plumbing should be drilled on the floor at least 6" (15.2 cm) from the right or left hand side cabinet and should be no more than 1" (2.54 cm) away from the back wall. See "Connect the Water Supply."
The water supply connection is made at the front of the refrigerator.
If additional tubing is needed, use copper tubing and check for leaks. Install the copper tubing only in areas where the household temperatures will remain above freezing.
- Do not use a piercing-type or 3 / 16 (4.76 mm) saddle valve which reduces water flow and clogs more easily.
NOTE: Your refrigerator dealer has a kit available with a 1/4'' (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.
Water Pressure
A cold water supply with water pressure between 30 and 120 psi (207 and 827kPa is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827kPa
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414kPa If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414kPa ..
Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
- Allow the storage tank on the reverse osmosis system to refill after heavy usage.
If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter cartridge.
If you have questions about your water pressure, call a licensed, qualified plumber.
Product Dimensions
IMPORTANT:
The depth from the front face of the doors to the back of the refrigerator cabinet is 24^ (60.96 cm) without panels.
The power cord is 84^ (213 cm) long.
The water supply connection is made at the bottom front of the refrigerator.
Top View

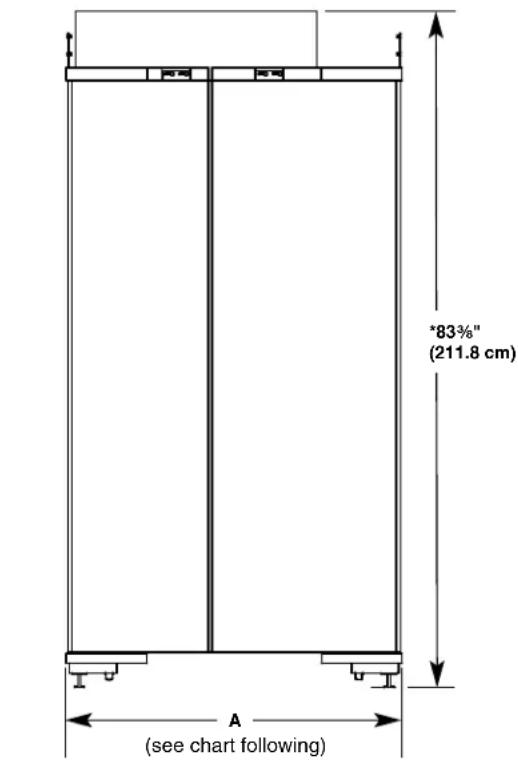

Front View
Width dimensions were measured from hinge to hinge.
- When leveling legs are fully extended to 114 (3.2 cm) below rollers, add 114 (2.9 cm) to the height dimensions.

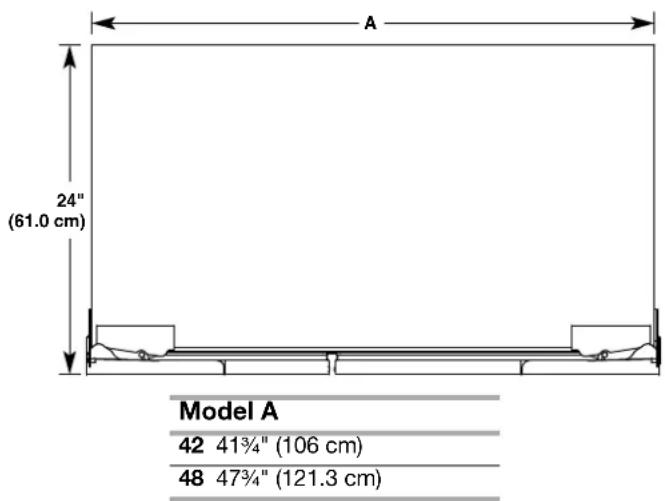

Model Width A (hinge edge to hinge edge)
| 42 41¾" (106 cm) |
| 48 47¾" (121.3 cm) |
Tipping Radius
Be sure there is adequate ceiling height to stand the refrigerator upright when it is moved into place.
The dolly wheel height must be added to the tipping radius when a dolly is used.
Side Tipping Radius
The side tipping radius varies depending upon the width of the model. Use the chart provided to determine the side tipping radius.
NOTE: Tip on side only.
Model Tipping Radius A
| 42 | 91%" (232.1 cm) |
| 48 | 94%" (239.7 cm) |
Door Swing Dimensions

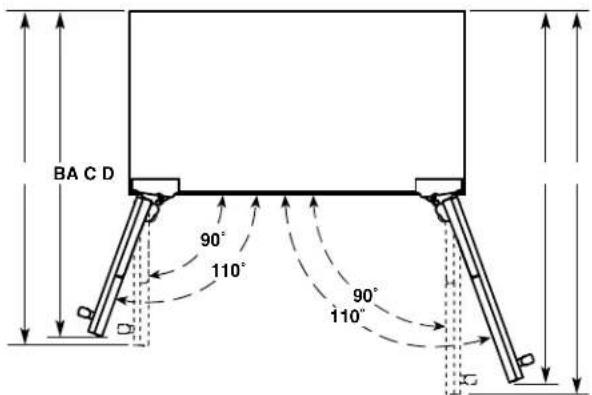

The location must permit both doors to open to a minimum of 90^ . Allow 412'' (11.4 cm) minimum space between the side of the refrigerator and a corner wall.
NOTE: More clearance may be required if you are using wood overlay panels, custom handles, or extended handles.
Model ABCD
| 42 40¾" | (103.5 cm) | 39¾" (101.0 cm) | 45¾" (115.3 cm) | 46¾" (118.8 cm) |
| 48 43¼" | (109.9 cm) | 42" (106.7 cm) | 48¾" (123.5 cm) | 50¼" (127.6 cm) |
Cabinet and Panel Installation Options
NOTE: Graphics shown below illustrate installation configuration options given the specified cabinet depths. All possible configurations are not shown.
Cabinet Depth-25" (63.5 cm)
FramedCabinetry
Top View
A. Refrigerator door
B. Door panel
C. Side trim
D. Adjacent cabinet
E. Flush return filler
F. 25^ (63.5 cm)

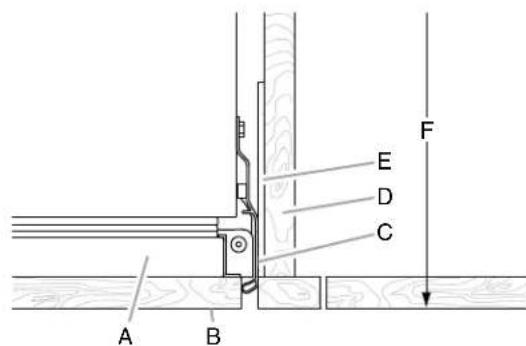

Inset
Top View
A. Refrigerator door
B. Door panel
C. Side trim
D. Adjacent cabinet
E. Flush return filler
F. 25^ (63.5 cm)
Frameless Cabinetry
Top View
A. Refrigerator door
B. Door panel
C. Side trim
D. Adjacent cabinet
E. 25^ (63.5cm)

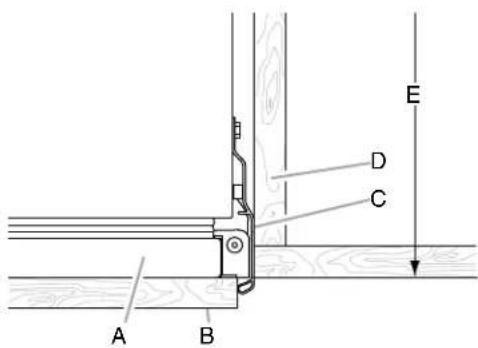

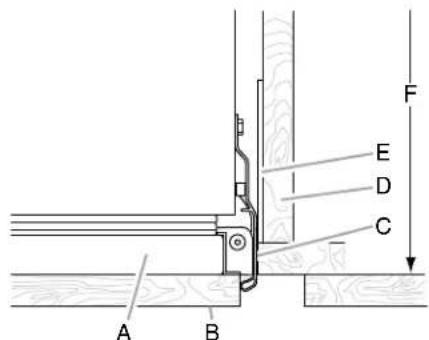

Cabinet Depth-24" (60.9 cm)
NOTE: A flush installation is not possible with a 24" (60.9 cm) deep opening.

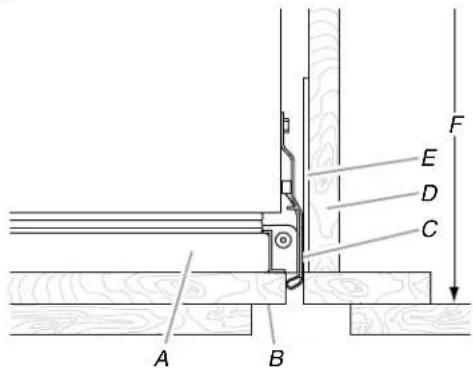

FramedCabinetry
Top View
A. Refrigerator door
B. Door panel
C. Side trim
D. Adjacent cabinet
E. Flush return filler
F. 24^ (60.9cm)

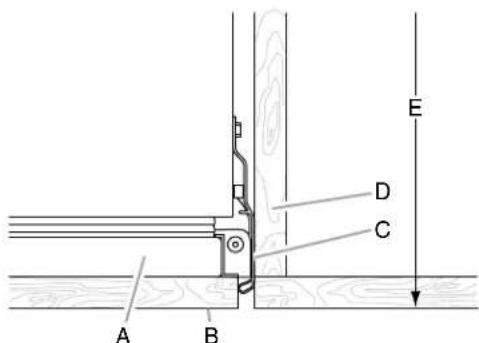

Frameless Cabinetry Top View
A. Refrigerator door
B. Door panel
C. Side trim
D. Adjacent cabinet
E. 24^ (60.9cm)
Fully Integrated Grille Installation Requirements
The refrigerator can be installed fully integrated if the adjacent cabinetry meets the airflow venting requirements critical to refrigerator performance. A Fully Integrated Grille installation has no visible air gap because the grille extends upward to the soffit or upper cabinet.
IMPORTANT:

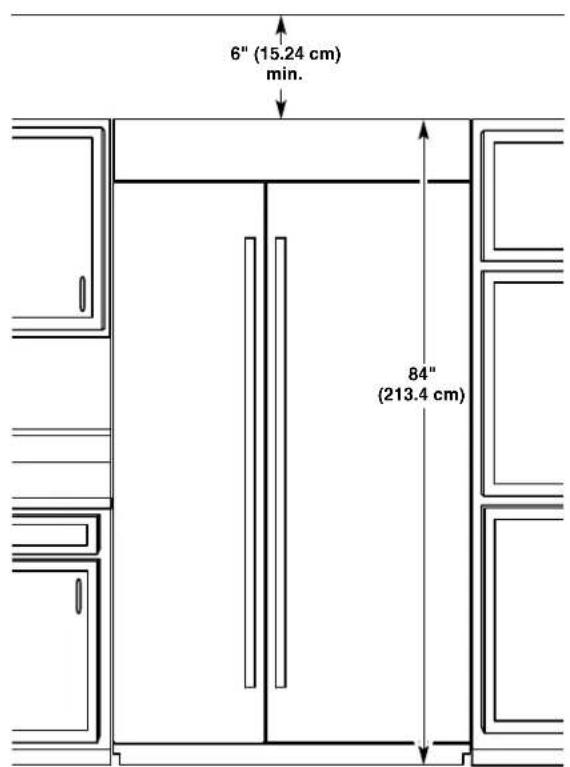

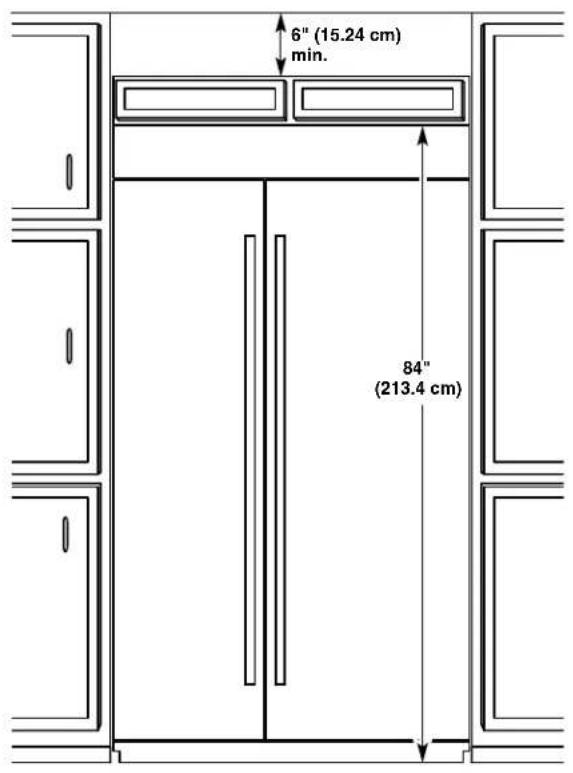

A Fully Integrated Grille installation requires a minimum of 6^ (15.24 cm) of open space above the refrigerator. This space must not be blocked in any way, including by soffits.
- Both Standard and Fully Integrated Grille installations can be achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.
A full height grille is used to achieve a Fully Integrated Grille installation. Use the integrated bracket (provided with refrigerator) to attach the full height grille.
NOTE: A top grille filler is not required with a full height grille.
Integrated Grille Bracket

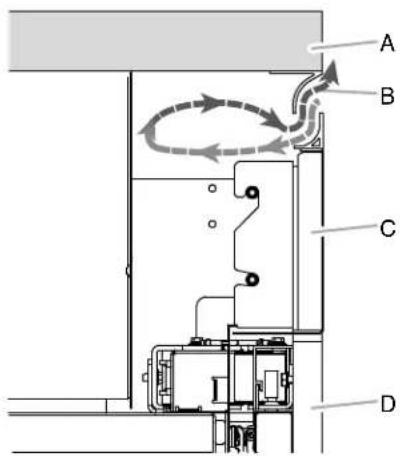

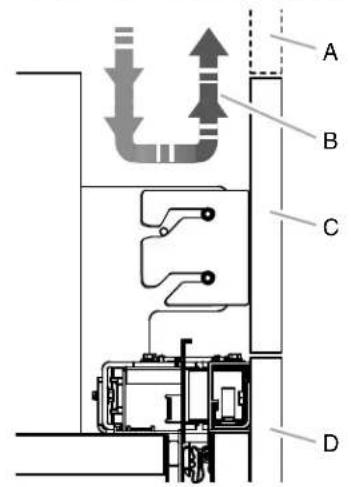

Fully Integrated Grille Installation—Side View
A. False front (optional)
B. Airflow
C. Full height grille
D. Door panel
Fully Integrated Grille Installation Options
Option 1-Open to Ceiling
Option 2—False Front (cabinet face only)
Standard Integrated Grille Installation Requirements
IMPORTANT:
A Standard Integrated Grille installation can be achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.
Use the standard grille bracket (provided with refrigerator) to attach the standard grille.
The grille panel height, shown in the "Standard Integrated Grille Installation—Side View" graphic, allows for an air gap critical to refrigerator performance.
StandardGrilleBracket

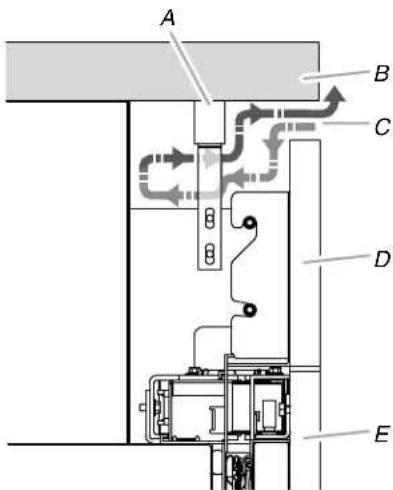

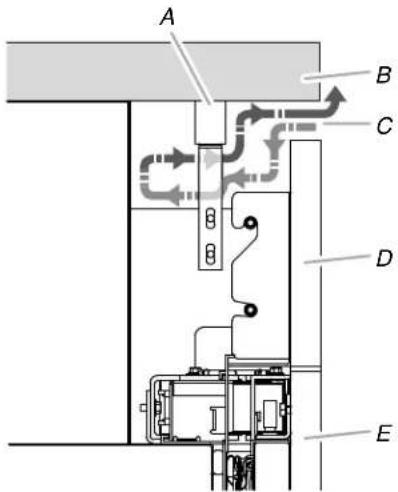

Standard Integrated Grille Installation—Side View
A. Top grille filler
D. Grille panel
B. Soffit
E. Door panel
C. Airflow

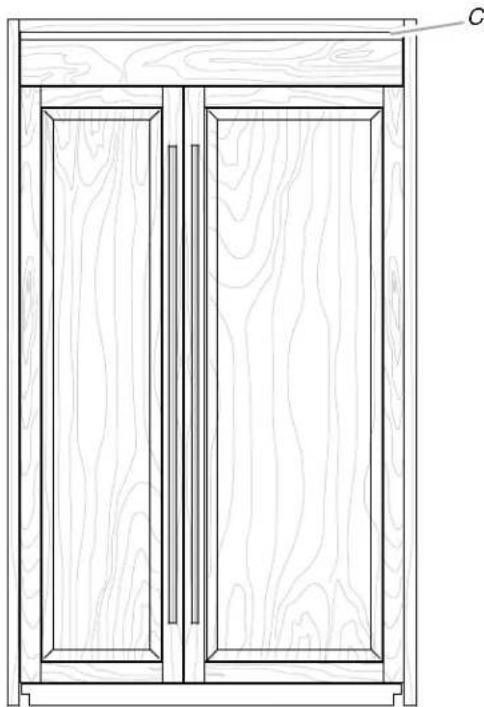

Standard Integrated Grille Installation—Full Product View
C. Airflow
Panel Kit Installation Requirements
See the "Models" section to see the panel kit options available for your model.
IMPORTANT:
A panel kit installation can be achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.
A standard grille is used to achieve a panel kit installation. Use the standard grille bracket (provided with refrigerator) to attach the standard grille.
The grille panel height, shown in the "Panel Kit Installation—Side View" graphic, allows for an air gap critical to refrigerator performance.
StandardGrilleBracket

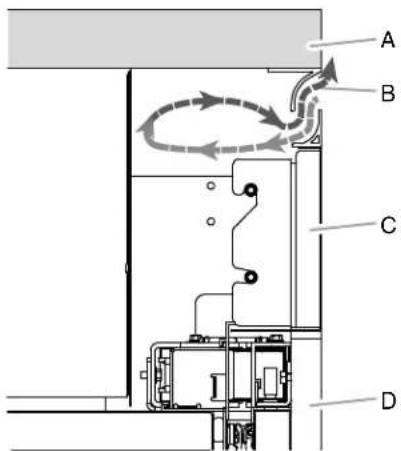

Panel Kit Installation—Side View
A. Soffit
B. Airflow
C. Grille panel
D. Door panel

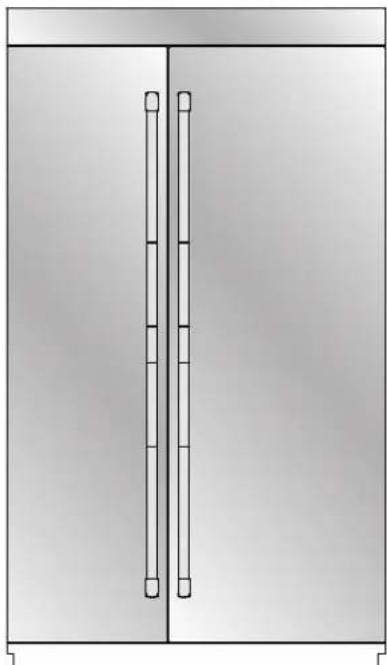

Panel Kit Installation—Full Product View
Custom Wood Overlay Panels
Custom wood overlay panels allow you to blend the exterior of your refrigerator into the overall kitchen decor, and to use custom handles for additional design flexibility.
In some cases, your cabinet manufacturer may choose to work with one panel routed for the different dimensions. Follow these panel dimension and placement instructions to be sure that the custom wood overlay panels will fit properly.
IMPORTANT:
The weight of the refrigerator door wood overlay panel cannot exceed 66 lbs (29.9 kg) for 48" models or 65 lbs (29.5 kg) for 42" models.
The weight of the freezer door wood overlay panel cannot exceed 50 lbs (23 kg) for 48" models or 49 lbs (22.2 kg) for 42" models.
The weight of the top grille wood overlay panel cannot exceed 8 lbs (3.6kg) for 48^ models or 7 lbs (3.2kg) for 42^ models.
The required thickness for all panels is 3 / 4 (1.91 cm).
This installation does not require filler or backer panels.
Custom Wood Overlay Panel Dimensions
Door Panels
CAUTION
Pinch Hazard
Installation of door panels with less than a 3% (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching.
Model 42 48
Fully Integrated Grille Installation—Full Height Grille—Open Soffit
| Reveal | 3%'' | 1%'' | 3%'' | 1%'' |
| A 17%16" | (44.61 cm) | 171%16" | 201%16" | 205%16" |
| (45.24 cm) | (50.96 cm) | (51.59 cm) | ||
| B 23%16" | (59.85 cm) | 2313%16" | 271%16" | 275%16" |
| (60.48 cm) | (68.74 cm) | (69.37 cm) |
Grille Panel
Model 42 48
| Reveal | 3/%" | 1/%" | 3/%" | 1/%" |
| C | 411/4" | 413/4" | 471/4" | 473/4" |
| (104.78 cm) | (106.05 cm) | (120.02 cm) | (121.29 cm) |

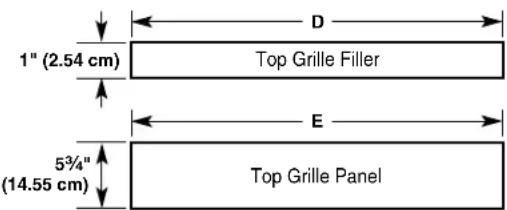

Standard Grille Installation—Flush Grille—Open or Closed Soffit
| Model 42 | 48 | |||
| Revea I | 3%'' | 1%'' | 3%'' | 1%'' |
| D | 411¼" | 413¼" | 471¼" | 473¼" |
| (104.78 cm) | (106.05 cm) | (120.02 cm) | (121.29 cm) | |
| E | 41¼" | 413¼" | 47¼" | 473¼" |
| (104.78 cm) | (106.05 cm) | (120.02 cm) | (121.29 cm) | |
IMPORTANT: The grille panel height, shown in the "Standard Integrated Grille Installation—Side View" graphic, allows for an air gap critical to refrigerator performance.
INSTALLATION INSTRUCTIONS
Unpack the Refrigerator
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not completely installed.
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do so can result in death or serious injury.
IMPORTANT:
- Do not remove the film covering until the refrigerator is in its operating location.
All four leveling legs must contact the floor to support and stabilize the full weight of the refrigerator. -
Keep the cardboard shipping piece or plywood under the refrigerator until it is installed in the operating location.
-
Remove and save the literature package and hardware kit located inside the refrigerator. Remove and save the literature, grille, and trim taped to the outside of the refrigerator.
NOTE: Do not remove tape and door bracing until the refrigerator is in its final location.
Move the Refrigerator into House
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not completely installed.
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do so can result in death or serious injury.
- Place an appliance dolly under the left side of the refrigerator as shown. Place the corner posts from the packing materials over the trims as appropriate. Slowly tighten the strap.
- Place pieces of the shipping carton on the floor when rolling the dolly and refrigerator into the house. Move the refrigerator close to the built-in opening.
- Place top of cardboard carton or plywood under refrigerator.
- Stand the refrigerator up. First, place the left bottom edge of the refrigerator on the floor, stand the refrigerator upright and then lower the right-hand side of the refrigerator to the floor.
- Reassemble the trim and top grille after the dolly has been removed from the refrigerator.
Install Anti-Tip Boards
IMPORTANT:
If a solid soffit is not available, anti-tip boards must be installed.
It is recommended that boards be installed before the refrigerator is installed.
- Boards must be long enough to fully cover the width of the compressor cover.
- Place the boards so that the bottom surfaces of the boards are 84^ (213 cm) from the floor.
During installation, raise the refrigerator up until the top of the refrigerator is making contact with the bottom of the anti-tip boards. Do not crush the compressor cover when raising the rear leveling legs.
To Install Anti-tip Boards
- Mark the stud locations on rear wall 80^ to 90^ (203 cm to 229 cm) above floor.
- Securely attach two 2^ × 4^ × 32^ (5 cm x 10 cm x 81 cm) boards to wall studs behind refrigerator. Use six #8 x 3" (7.6 cm) (or longer) wood screws. The wood screws must be screwed into the studs at least 112 (3.8 cm). The boards must overlap the compressor cover.
A. Two 2'' × 4'' × 32'' (5 cm × 10 cm × 81 cm) boards
B. Attach to studs with six #8 x 3" (7.6 cm) screws.
C. Compressor cover
D. Distance from bottom of anti-tip boards to floor
Connect the Water Supply
Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line is connected, turn the ice maker OFF.
Connect to Water Line
Parts Needed
Minimum 7 ft (2.13 m) flexible, codes approved water supply line
Style 1-Shutoff Valve Connection
NOTE: If your water line connection does not look like Style 1, see "Style 2-Copper Line Connection."
- Unplug refrigerator or disconnect power supply.
IMPORTANT:
There is not enough clearance to achieve a flush installation if a water shutoff valve is located in the wall behind the refrigerator. The water shutoff should be located in the base cabinet on either side of the refrigerator.
Before attaching the tubing to shutoff valve, flush the main water supply line to remove particles and air in the water line. Allow enough flow so that water becomes clear. Flushing the water line may help avoid filters and/or water valves from becoming clogged.
2. Connect the flexible, codes approved water supply line to the water shutoff valve by threading the provided nut onto the shutoff valve as shown.
A. Bulb B. Nut
C. Water tubing
- Place the end of the tubing into a bucket, and turn shutoff valve ON.
- Check for leaks. Tighten any nuts or connections (including connections at the valve) that leak.
Style 2-Copper Line Connection
NOTE: If there is a water supply line that meets the specifications in "Water Supply Requirements," proceed to "Connecting to Refrigerator." If not, use the following instructions to connect to the household cold water supply.
- Unplug refrigerator or disconnect power.
- Turn OFF main water supply. Turn ON nearest faucet long enough to clear line of water.
- Locate a 1 / 2 to 1 / 4 (1.25 cm to 3.18 cm) vertical cold water pipe near the refrigerator.
IMPORTANT:
Make sure it is a cold water pipe.
Horizontal pipe will work, but drill on the top side of the pipe, not the bottom. This will help keep water away from the drill and keep normal sediment from collecting in the valve.
- Determine the length of copper tubing you need. Measure from the connection on the refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 14 " (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.
- Using a cordless drill, drill a 1/4'' (6.35 mm) hole in the cold water pipe you have selected.
A. Cold water pipe
E. Compression sleeve
B. Pipe clamp
F.Shutoff valve
C. Copper tubing
G. Packing nut
- Fasten the shutoff valve to the cold water pipe with the pipe clamp. Be sure the outlet end is solidly in the 1/4'' (6.35 mm) drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten.
IMPORTANT: Before attaching the tubing to shutoff valve, flush the main water supply line to remove particles and air in the water line. Allow enough flow so that water becomes clear. Flushing the water line may help avoid filters and/or water valves from becoming clogged.
- Slip the compression sleeve and compression nut on the copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten the clamp or the sleeve. This will crush the copper tubing.
- Turn off the shutoff valve on the water pipe. Coil the copper tubing.
- Connect the flexible, codes approved water supply line to the water shutoff valve by threading the provided nut onto the shutoff valve.
- Place the end of the tubing into a bucket, and turn shutoff valve ON.
- Check for leaks around the saddle valve. Tighten any nuts or connections (including connections at the valve) that leak.
Connect to Refrigerator
Parts Supplied
1 / 4'' to 1 / 4'' (6.35 mm to 6.35 mm) male-to-male coupling
NOTE: The flexible, codes approved water supply line should connect to the supply valve through the floor.
- Unplug the refrigerator or disconnect power.
- Connect the 7 ft (2.13 m) flexible codes approved water tube to the water supply valve.
- Flush the main water supply line to remove particles and air in the water line. Allow enough flow so that water becomes clear.
- Tape the 7 ft (2.13 m) flexible codes approved water supply line to the floor, 7'' (17.78 cm) from the left side of the refrigerator. Tape along the length of the tubing, which will allow it to pass beneath the refrigerator without interference.
NOTE: Allow a minimum of 26" (66.04 cm) of flexible codes approved water supply line to be loose at the front of the refrigerator for connecting to the refrigerator.
- Connect the 7 ft (2.13 m) flexible codes approved water supply line to the refrigerator.
NOTE: If the main water shutoff valve is behind the refrigerator, a secondary water shutoff valve may be installed in line with the water supply line at the front of the product.

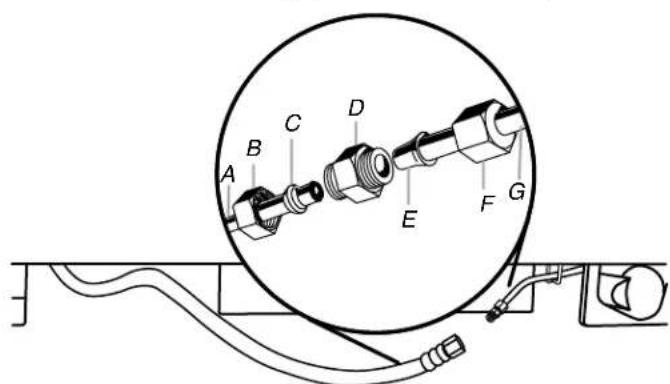

A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Coupling
E. Bulb
F.Nut
G. Refrigerator water tubing
- Turn on the water supply valve and check all connections for leaks.
Plug in Refrigerator
AWARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death, fire, or electrical shock.
- Set control switch at top of cabinet to the OFF position.
- Plug into a grounded 3 prong outlet.
Install Side Trims
The side trims cover the space between the refrigerator and the adjacent cabinets. There is a trim piece taped to each side of the refrigerator. Install each trim piece to the side of the refrigerator to which it is taped.

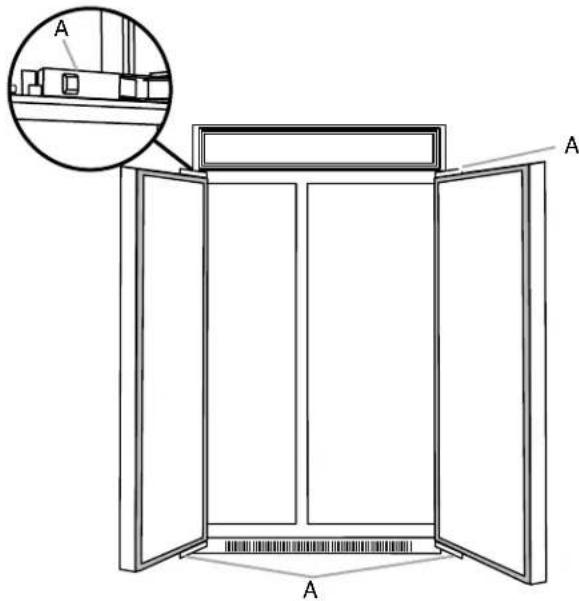

- Remove the tape attaching the trim pieces to the sides of the refrigerator. Set the trim pieces aside.
IMPORTANT: Custom wood panel (with 18 gap) installations only - The bulb-shaped edge of the side trim piece will interfere with the panels. Peel the bulb-shaped, long edge from the trim piece and discard. See the "Top View" graphic later in this section. - Remove the four screws from the side of the refrigerator cabinet.

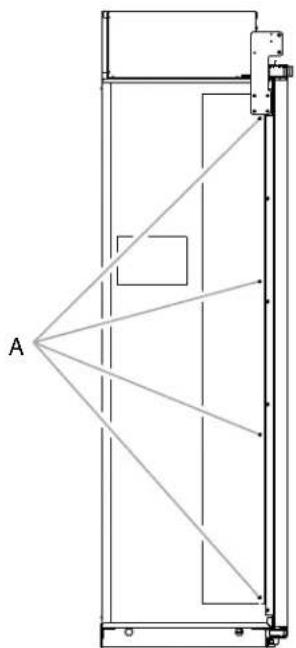

A. Side trim screws
- Using the original holes and the screws removed in Step 2, fasten the side trim to the refrigerator cabinet.
NOTE: Make sure to fasten each trim piece to the side of the refrigerator cabinet from which it was removed. The bulb-shaped edge should be forward with the notch at the top, as shown.
Top View
A. Side trim B. Adjacent cabinet
C. Door D.Bulb-shaped edge
Move Refrigerator to Final Location
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not completely installed.
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do so can result in death or serious injury.
IMPORTANT:
A flush installation is NOT possible with a 24" (60.9 cm) deep opening.
To avoid floor damage, make sure levelers are raised (not touching floor) and refrigerator is on rollers before moving.
Use the installation block, attached to the door hinge, as a reference to make sure the refrigerator is pushed back far enough into the opening, so that when the panels are installed they will be flush with the adjacent cabinets.
After the refrigerator is leveled and aligned, remove the installation block from the door hinge and use it to check the spacing between the panels and adjacent cabinets.
NOTE: The installation block is designed to provide accurate spacing for 34'' (1.9 cm), 38'' (9.53 mm) and 18'' (3.18 mm).
- Place top of cardboard carton or plywood under refrigerator. Remove dolly.
- Move the refrigerator straight back and evenly into the opening. Be sure that the water tubing is not kinked and the power supply cord is on top of the refrigerator.
NOTE: If the power supply cord is behind the refrigerator, it will not install properly.
- Make sure the installation block is flush with the adjacent cabinets.

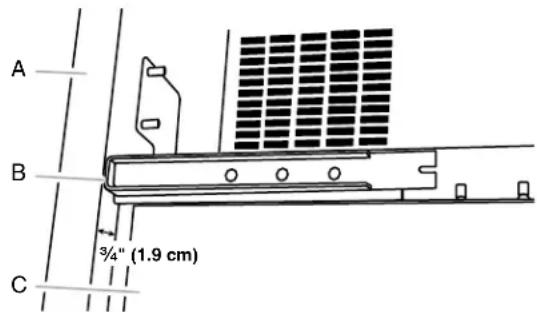

NOTE: To achieve a flush installation, it is critical to verify a 3/4'' (1.9 cm) depth from the front face of the adjacent cabinetry to the refrigerator.
A. Adjacent cabinet or wall
B. Installation block
C. Face of refrigerator
Level and Align Refrigerator
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not completely installed.
Keep doors taped closed until refrigerator is completely installed.
Use two or more people to move and install refrigerator.
Failure to do so can result in death or serious injury.
IMPORTANT: All four leveling legs must contact the floor to support and stabilize the full weight of refrigerator. Rollers are for moving the refrigerator, not for permanent support.
After moving the refrigerator to its final location:

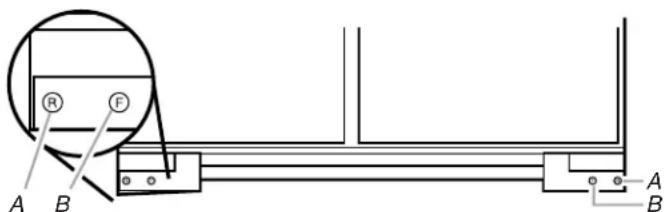

- Use a 5 / 16 " socket driver to turn the leveling bolts clockwise to extend the legs to the floor as shown. The rollers should be off the floor.
A. Rear leveling bolt
B. Front leveling bolt
- Adjust the leveling legs to level and align the refrigerator from left to right and front to back so that the refrigerator is level and aligned with the cabinets.
- Continue adjusting the leveling legs until the top of the refrigerator is making contact with the bottom of the solid soffit, or the bottom of the anti-tip boards, if anti-tip boards were used. Do not crush the compressor cover.
IMPORTANT: Adjust in small increments to keep from damaging the cabinet trim and causing problems with the door alignment or top grille fit. To avoid damage to the cabinet or leveling legs, do not apply more than 50 inch-pounds (5.65 Nm) of torque to the leveling bolts. The leveling legs can be extended to a maximum of 114 (3.18 cm) below the rollers.
A. Two 2^ 4^ 32^ (5cm× 10cm× 81cm) boards B. Attach to studs with six #8 x 3" (7.6 cm) screws. C. Compressor cover D. Distance from bottom of anti-tip board to floor
- After leveling the refrigerator, again use a straight edge or 4-ft level across the front of the refrigerator installation blocks to the cabinets to check that the refrigerator is still flush.
Install Refrigerator and Panels
IMPORTANT: Jenn-Air is not responsible for the removal or addition of molding or wood overlay panels that would not allow access to the refrigerator for service.
Install Top Grille Filler (standard installation only)
IMPORTANT: The grille panel height allows the necessary airflow for refrigerator performance. The top grille filler hides the upper compartment cover behind the top grille. If you choose to modify the recommended grille panel dimensions, performance will be compromised.
Custom Wood Panel Models
- In the custom made (1" x width of grille panel) wood filler piece, drill a hole 1% from each edge.
NOTE: Make sure the hole is centered in the 1" thickness of the wood piece. - Using slotted hex-head screws (provided with refrigerator), fasten an "L" bracket to each end of the wood filler piece.
-
Using hex-head blunt screws (provided with refrigerator), attach the "L" brackets to the top grille mounting plates.
-
Adjust the "L" brackets, so that the wood filler piece is flush with the bottom of the soffit. Completely tighten the screws.

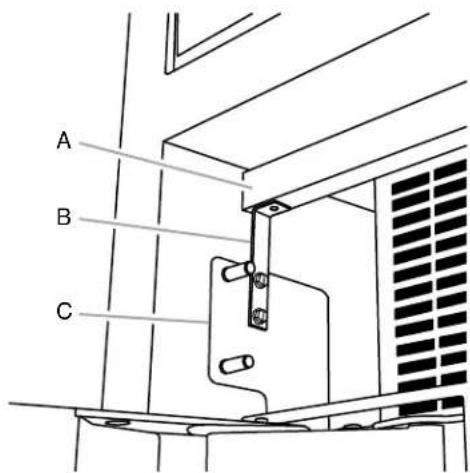

A. Top grille filler
B. "L" bracket
C. Grille mounting plate
Side View
A. Top grille filler
B. Soffit
C. Airflow
D. Grille panel E. Door panel
Panel Kit Models
WARNING
Excessive Weight Hazard
Use two or more people to move and install panels.
Failure to do so can result in back or other injury.
-

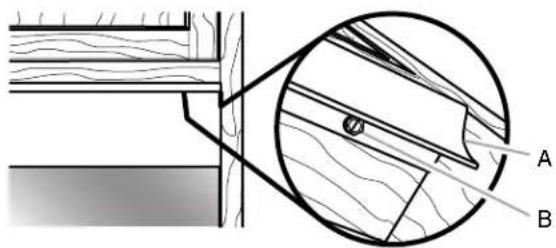

Align top grille vent (provided in the door kit) with the bottom edge of the soffit. Use as a template, and mark where to drill the holes.
-
Using the slotted hex-head screws (provided with refrigerator), attach the top grille vent to the soffit.
A. Top grille vent
B. Slotted hex-head screw
Side View
A. Soffit
B. Airflow
C. Grille panel
D. Door panel
Predrill Panels (custom wood panels only)
IMPORTANT: The custom panel template shipped with the refrigerator can be used for either a 3 / 8 (0.95 cm) or a 1 / 8 (0.32 cm) reveal installation.
The drilling templates are used only for custom wood overlay panels.
The drilling templates are double-sided.
The drilling holes are precut into the template.
- On the template, locate the diagram of your refrigerator. Then, follow the letters and colored arrows to correctly place the drilling template on the back side panels.
NOTE: Check the direction of the arrows to determine which holes to mark when the template is aligned at the top of the panel and which holes to mark when the template is aligned at the bottom of the panel.
- Predrill pilot holes into the wood rails bordering the doors and top grille panels.
Prepare Panels (custom wood panels only)
Door Panels
- Place panels on a firm, covered, flat surface with the front facing down.
- Locate the 2 predrilled holes in the handle side edge of the door panel.

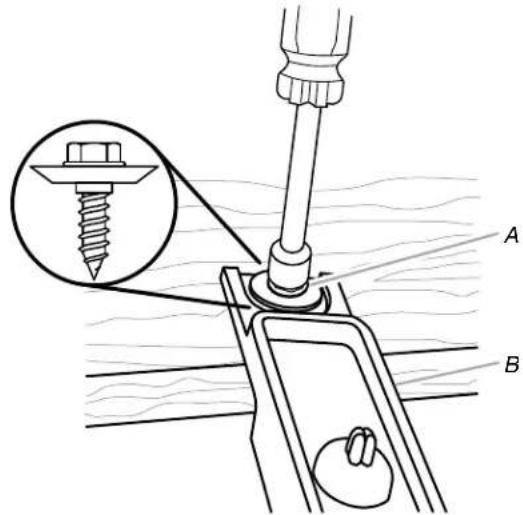

- Using the installation block as a guide for depth, attach a shoulder washer with a hex head pointed screw (both provided with refrigerator) into the predrilled door panel (2 per door).
A. Shoulder washer and hex head pointed screw B. Installation block
- For the mounting bracket, insert the hex-head pointed screws (provided with refrigerator) into the wood at the top of the door panels where they were predrilled.
NOTE: It is critical to use the 5 % screw, the longest length provided, to attach the bracket to the top of the door panel.

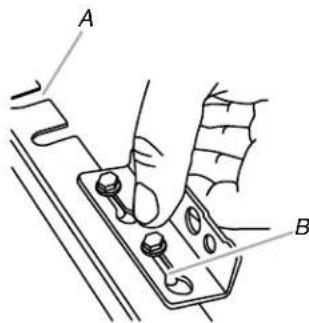

A. U-shaped hole B. Slot

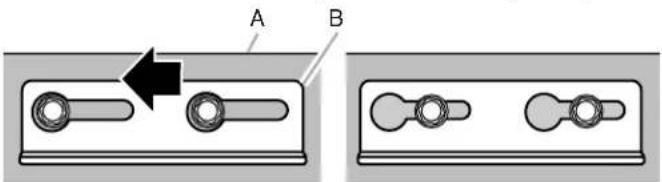

- Attach a mounting bracket to the top edge of each door panel by placing the large end of the keyhole slot over the screws and sliding the bracket so that the screws are centered in the slots.
NOTE: Start with the screws in the center of the slots as shown, then move the door panel, as necessary, to align.
A. Door panel
B. Mounting bracket
TopGrillePanel
- Using the slotted hex-head screws (provided with refrigerator), attach a mounting bracket to each side of the top grille panel.
IMPORTANT: See the "Parts Provided" section to select the brackets designated for your installation.
Use the Integrated Grille brackets for a Fully Integrated Grille installation with a full height grille.
Use the Standard Grille brackets for a Standard Integrated Grille Installation with a closed or open soffit.
A. Top grille brackets
B. White, grille trim piece
(taped to refrigerator door)
- Using round-head screws (provided with refrigerator), attach the grille trim piece to the bottom of the grill panel.
NOTE: The grille trim is preinstalled on the panel kits.
Remove Trim Pieces
- Remove all tape and door bracing from the refrigerator and freezer doors.
- Open the refrigerator and freezer doors.
- Remove the hinge cover pieces from the top and bottom of the door to expose the holes in the hinges.
A. Hinge cover pieces
Install Door Panels
IMPORTANT: Use the foam packaging to prop and hold the door(s) open while installing a door panel.
- Align the two shoulder washers, on the back of the door panel, with the "J" slots on the side of the refrigerator door. Slide the panel onto the door.

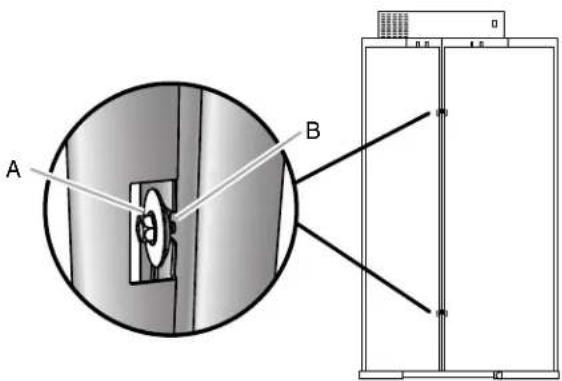

A. Shoulder washer and hex head pointed screw
B. "J" pocket

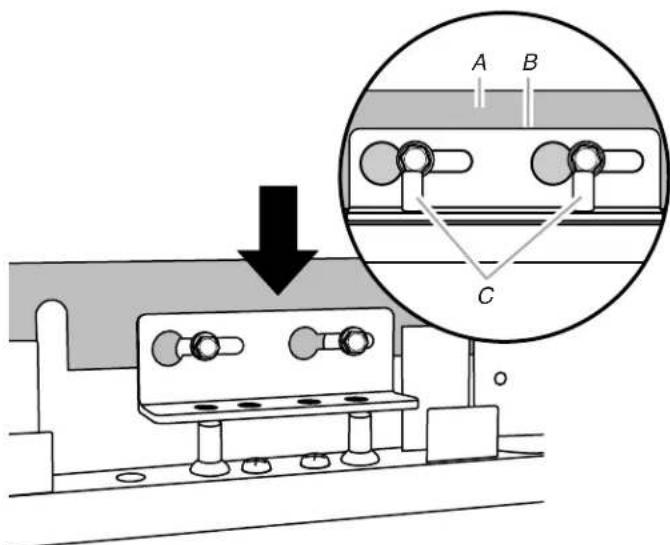

- Lower the panel bracket down onto the adjustment pins at the top of the door.
A. Door panel
C. Adjustment pins
B. Mounting bracket
- Repeat steps 1 through 2 to install the second door panel.

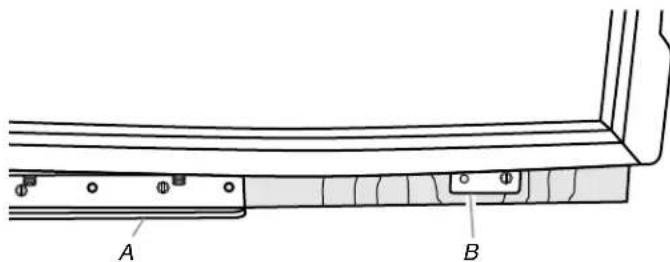

- Using slotted hex-head screws (provided with refrigerator), attach the mounting bracket (factory installed), located at the bottom of the refrigerator and freezer doors, to the respective door panels. Do not fully tighten the screw.
A. Bottom hinge
B. Mounting bracket
Install Top Grille Panel
A. Top grille panel
B. Cabinet sides
Standard Integrated Grille Installation—Flush Grille
- Hook the panel brackets onto the mounting bolts extending from the top of the refrigerator.

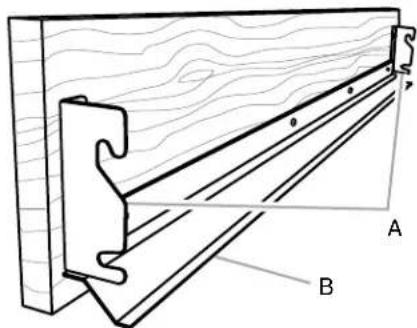

A. Panel brackets
B. Grill trim piece
- Pull the grille panel down slightly to lock into place.
Fully Integrated Grille Installation—Full Height Grille
- Align the bracket on each side of the top grille panel with the mounting bolts.
- Push the grille panel forward until the bracket snaps into place.
Door Swing Adjustment
It may be necessary to adjust the swing of the door. Make sure the refrigerator door(s) can open freely. If the door(s) opens too wide, install the door stop pin (provided with refrigerator).
- Hold the door open to a position that is less than 90^ .
- Insert the door stop pin into the top hinge in the hole shown.
- Using a 532 hex key, tighten the door stop pin.
A. Door stop pin hole
Complete Panel Installation
- Use the installation block to measure the gaps between the panels and adjacent cabinets.
Custom wood overlay panels may be made with a 3 / 8 " (0.95 cm) or 1 / 8 " (0.32 cm) gap between the panel and cabinets and a 1 / 8 " (0.32 cm) gap between the freezer and refrigerator door(s) and the door(s) and top grille.
All purchased panel kits require a 3% (0.95 cm) gap between the panel and the cabinets and a 1% (0.32 cm) gap between the freezer and refrigerator door(s), and the door(s) and top grille.

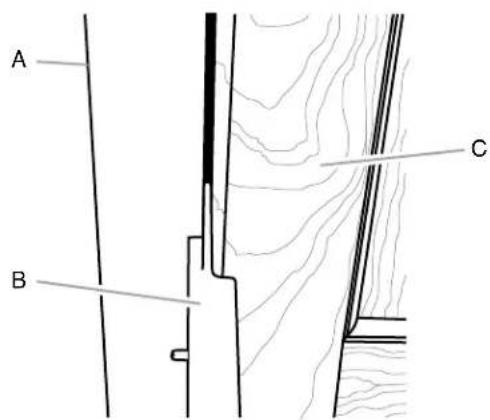

A. Adjacent cabinet
B. Installation block
C. Panel on door
- Adjust the panel to achieve the required spacing, or to align.
IMPORTANT: If adjustments are needed, adjust the panel not the door. Adjust left to right in the mounting bracket before using the pins to adjust the panel up and down or at an angle.
- Slide the panel from side to side in the keyhole slot.

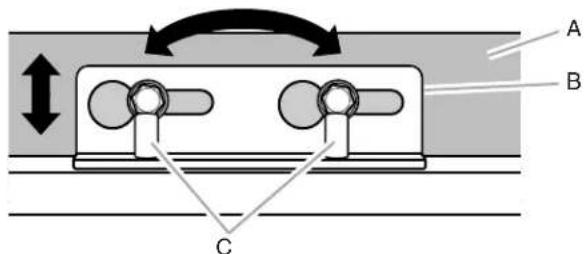

Use a 5 / 32 " hex key to raise or lower the adjustment pins which allows the door panel to swivel.
A. Door panel
B. Mounting bracket
C. Adjustment pins
- Predrill a pilot hole, using an 3/2 drill bit, into the door panel through the open holes in both the bottom and top hinges.
- Using slotted hex-head screws (provided with refrigerator), attach the top and bottom hinges to the door panels. Fully tighten all door panel screws.

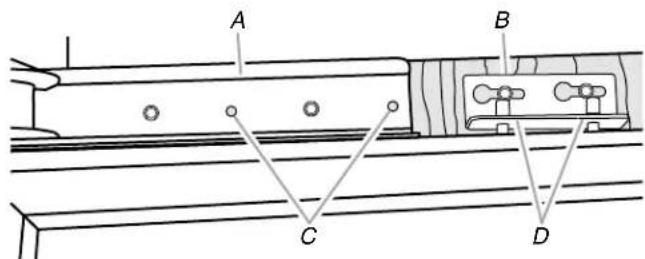

A. Top hinge
B. Mounting bracket
C. Holes for
screws
D. Adjustment pins
- Using slotted hex-head screws (provided with refrigerator) for each side, attach the door panels to the hinge-side door trims.
- Using Phillips head flat screws (provided with refrigerator), install the handle side door trim.
- Completely tighten the screws attaching the mounting brackets, located at the bottom of the doors, to the overlay panels.
- Reinstall the top door trim and hinge cover.
- Snap the adjustment pin cover (provided with refrigerator) into place.
Install Base Grille
There are two pieces to the base grille to allow for a custom fit: the base grille itself and the skirt. The skirt can be added to the base grille in order to extend it all the way to the floor.
- To see whether the skirt is needed, place the base grille into position. Do not attach the base grille to the refrigerator. Measure the distance between the bottom of the base grille and the floor. The gap must be a minimum of 12 (1.27 cm) in order to add the skirt.
NOTE: If the gap measures less than 12 (1.27 cm), skip steps 3 and 4 of the instructions, and install the base grille only. - Remove the film from the base grille.
- Snap the skirt onto the base grille.
A. Base grille B. Skirt
- Trim the skirt by scoring the proper "V" groove with a utility knife. Break the skirt at the score line.
A. "V" groove

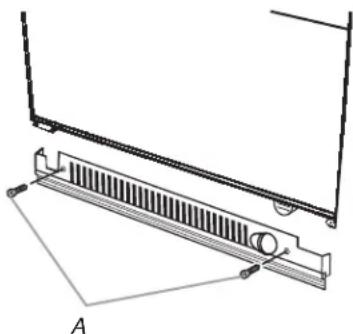

- Using the 2 screws, attach the base grille assembly to the refrigerator as shown.
NOTE: Drive in the right side screw first.
A. Screws (2)
Complete Installation
- Turn the water supply line valve to the "Open" position.
- Turn the refrigerator switch to the ON position. See "Power On/Off Switch" in the Use & Care Guide for instructions. Wait a few minutes. Check the water line connections for leaks.
- Remove all boxes, parts packages and packing materials from the interior of the refrigerator. See the "Cleaning" section in the Use & Care Guide for instructions. Remove the film and cardboard from the grille and doors or door frame, depending on your model.
- Install the shelves and bins in the refrigerator and freezer compartments.
- The controls are preset at the factory to the midpoint setting. Check that the compressor is operating properly and that all the lights are working.
- Flush the water system before use. See "Water System Preparation."
To get the most efficient use from your new built-in refrigerator, read the Use & Care Guide. Keep Installation Instructions and Use & Care Guide near the built-in refrigerator for easy reference.
D. Armario adjacente
E. 24^ (60,9cm)
| Mocheta | 3/8" | 1/8" | 3/8" | 1/8" |
| C 41¼" | (104,78 cm) | 41¾" (106,05 cm) | 47¼" (120,02 cm) | 47¾" (121,29 cm) |
D. Placard adjacent
E. 25^ (63,5cm)
D. Placard adjacent
E. 24^ (60,9cm)
| Retrait | 3%'' | 1%'' | 3%'' | 1%'' |
| C | 411/4"(104,78 cm) | 413/4"(106,05 cm) | 471/4"(120,02 cm) | 473/4"(121,29 cm) |
