JXI8736DS - Basket JENN-AIR - Free user manual and instructions

Product Type	Range Hood
Brand	JENN-AIR
Model	JXI8736DS
Minimum/Maximum Recommended Clearance	24" (61 cm) for electric cooktops, 30" (76.2 cm) for gas; max suggested 36" (91.4 cm)
Minimum Ceiling Height	7'6" (2.3 m) for electric, 8' (2.45 m) for gas
Maximum Ceiling Height	10' (3.04 m) with extension kit
Product Dimensions (W x D x H)	36" (91.4 cm) or 42" (106.7 cm) width; depth 24" (61 cm); hood height 28" (71 cm) to 45¾" (115 cm) adjustable
Weight (Minimum Support Load Required)	100 lb (45.4 kg)
Power Supply	120 VAC, 60 Hz, 15 A, dedicated circuit
Motor Power	420 W, 3.7 A
Fan Speeds	4 speeds: Low, Med, Hi, Boost (max 10 min)
Auto Sense Function	Automatic heat detection adjusts speed; selectable for gas or electric
Timer	Auto shut-off after 15 minutes
Lighting	Integrated LED lamps
Ventilation Duct Diameter	6" (15.2 cm) round; adaptable to 8" (20.3 cm) with adapter
Venting Type	External (roof or wall) or recirculation (with charcoal filter)
Grease Filter	Dishwasher-safe metal filter
Charcoal Filter	Optional for recirculation, lifespan ~3 years
Maintenance	Frequent cleaning of filters; external surfaces with mild detergent
Safety	Auto Sense auto shut-off after 2 h; safety switch; metal duct required
Warranty	2 years parts and labor
Optional Accessories	Recirculation kit, duct cover extension, replacement charcoal filter

Frequently Asked Questions - JXI8736DS JENN-AIR

What is the recommended installation height for the JXI8736DS hood?

For electric cooking, the minimum distance between the hood and cooktop is 24" (61 cm); for gas, 30" (76.2 cm). The maximum suggested height is 36" (91.4 cm).

How do I clean the metal grease filters?

The metal filters can be washed in a dishwasher or in a hot detergent solution. Let them dry completely before reinstalling.

How does the Auto Sense function work?

Auto Sense detects cooking heat and automatically turns on the hood at the appropriate speed. You can choose between gas or electric mode by holding the AUTO button for 5 seconds. The indicator light flashes 5 times for electric, 3 times for gas.

How do I activate Boost speed?

Press the BOOST button for maximum power for 10 minutes, after which the hood automatically returns to high speed (Hi).

Does the 15-minute timer work on all speeds?

Yes, hold down the desired speed button (Low, Med, Hi, or Boost) for 2 seconds. The indicator light flashes and the fan stops after 15 minutes. To cancel, press the same button again or change speeds.

When and how do I replace the charcoal filter?

The charcoal filter should be replaced approximately every 3 years. For recirculation installations, remove the metal filters, then the used charcoal filter. Install the new filter around the metal filter and secure it with springs.

Can I use non-metallic duct for venting?

No, only metal ducts are allowed to reduce fire risk. A rigid 6" (15.2 cm) round metal duct is recommended.

What power supply is required?

The hood requires a 120 VAC, 60 Hz, 15 A supply on a fuse or circuit breaker protected circuit. A qualified electrician must perform the connection in accordance with local codes.

How do I replace a light bulb?

The lamps are integrated LEDs. To replace them, contact customer service. Bulbs are not user-replaceable.

What should I do if the Filter indicator lights up?

The Filter indicator means it's time to clean or replace the filter. After maintenance, press the FILTER button to turn off the indicator.

USER MANUAL JXI8736DS JENN-AIR

JENN-AIR ^® 36" (91.4 CM) AND 42" (106.7 CM)

ISLAND CANOPY RANGE HOOD

HOTTE DE CUISINIÈRE JENN-AIR®

POUR ÎLOT DE 36" (91,4 CM) ET 42" (106,7 CM)

Installation Instructions and Use & Care Guide

For questions about features, operation/performance, parts, accessories, or service in the U.S.A., call: 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-JENNAIR (1-800-536-6247), or visit our website at www.jennair.ca.

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT

JENN-AIR®

2846/W10640310B

TABLE OF CONTENTS

RANGE HOOD SAFETY ....3

INSTALLATION REQUIREMENTS ....5

Tools and Parts 5

Location Requirements....5

Venting Requirements....6

Electrical Requirements 7

INSTALLATION INSTRUCTIONS ....8

Prepare Location....8

Install Range Hood....9

Make Electrical Connection ....11

Complete Installation ....13

RANGE HOOD USE....13

Controls and Features....13

RANGE HOOD CARE 14

Cleaning....14

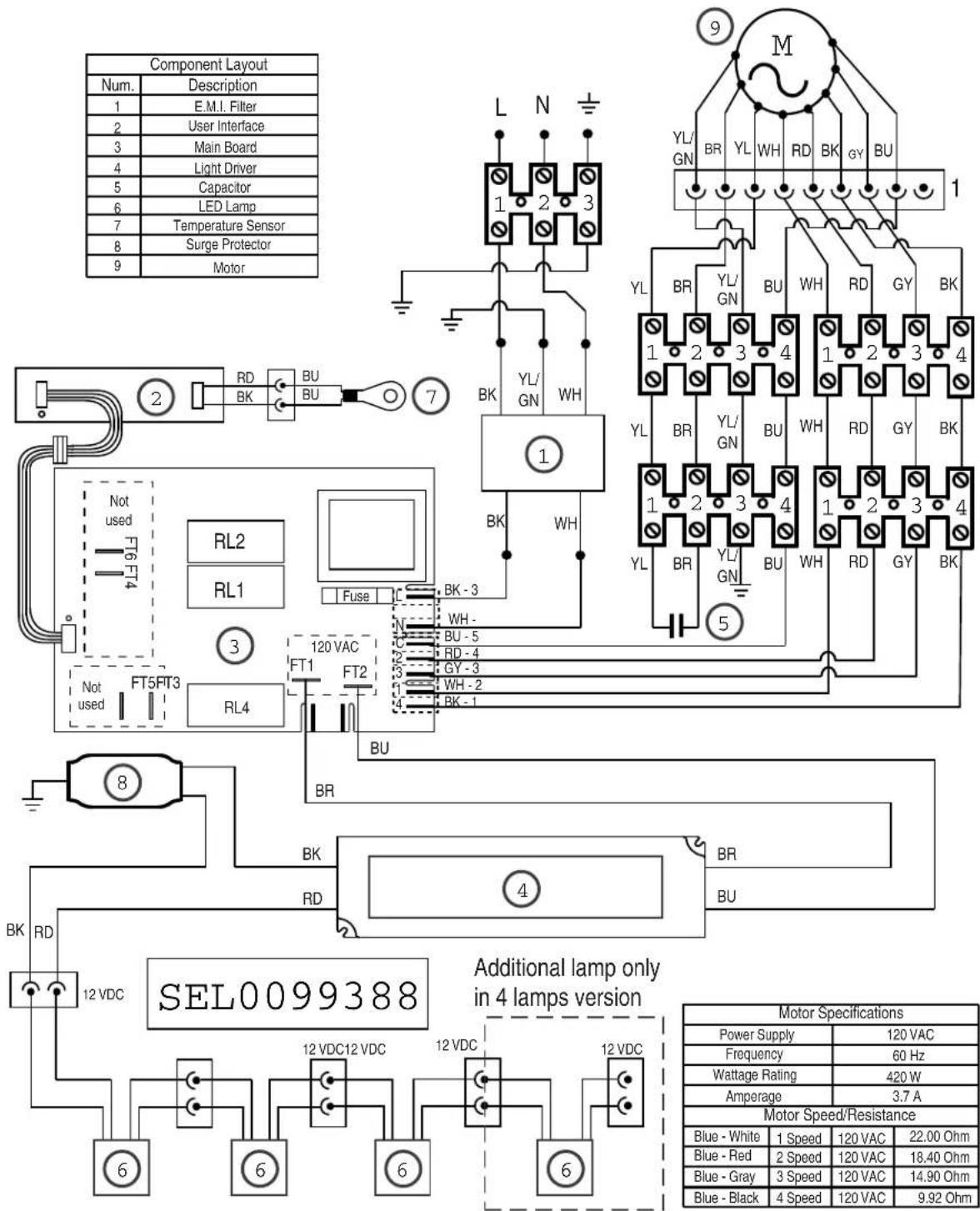

WIRING DIAGRAM 16

ASSISTANCE OR SERVICE....17

In the U.S.A. 17

In Canada 17

Accessories....17

WARRANTY 18

TABLE DES MATIÈRES

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE....19

EXIGENCES D'INSTALLATION....21

ASSISTANCE OU SERVICE....34

Au Canada....34

Accessoires ....34

GARANTIE....35

RANGE HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
■ Ducted fans must always be vented outdoors.
CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:
- You know you have a class ABC extinguisher, and you already know how to operate it.
- The fire is small and contained in the area where it started.
– The fire department is being called.
- You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed:

Level
■ Drill with 1¼" (3.0 cm), ½" (12.7 mm) and ¾/₁₆" (5.0 mm) drill bits
■Pencil
■Tape measure or ruler
■Pliers
■Caulking gun and weatherproof caulking compound
■Vent clamps
■Jigsaw or keyhole saw
■Flat-blade screwdriver
■Metal snips
■Phillips screwdriver
■ 12 " (13 mm) socket and driver with 24" (61 cm) of extensions
■T20 ^® TORX ^® bit or driver

Parts needed:

■Home power supply
■ 12 " (12.7 mm) UL listed or CSA approved strain reliefs

For vented installations, you will also need:

■1 wall or roof cap
■Metal vent system

For non-vented (recirculating) installations, you will also need:

■Chimney Kit Recirculation for non-vented (recirculating) installations only. See “Assistance or Service” section to order.
■Charcoal Filter Part Number W10272069. See "Assistance or Service" section to order.

Parts supplied:

Remove parts from packages. Check that all parts are included.

■Hood canopy assembly with ventilator and lights installed
■ Mounting boss/damper/6" (15.2 cm) round flexible metal duct 7" (17.8 cm) long (not expanded)
■Filter - installed in hood canopy
■(4) 8 x 80 mm hanger bolts (T20 ^ TORX ^ drive)
■(4) 8 mm x 1/2" (13 mm) hex nuts
■(4) 5 x 13 mm mounting screws (T20 ^ TORX ^ drive)
■Mounting template
■Upper chimney cover
■Lower chimney cover
■ 12 " (13 mm) special nut tightening tool
■Vent clamp for 6" (15.2 cm) duct
■(2) 3.5 x 9.5 mm screws used for supporting the lower chimney (located inside canopy behind filters).

†®T20 and TORX are registered trademarks of Acument Intellectual Properties, LLC.

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial/rating plate. The model/serial/rating plate is located behind the left filter on the rear wall of the vent hood.

Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance.

This range hood is recommended for use with cooktops with a maximum total rating of 78,000 BTUs or less.

Grounded electrical outlet is required. See "Electrical Requirements" section.

Because of the size and weight of this island hood, the chimney support must be securely attached to the ceiling.

■The chimney support must be attached to joists. If this is not possible, you must build a support structure behind the plaster or drywall. The support structure must be able to support 100 lbs (45.4 kg).

The range hood is factory set for venting through the roof or wall.

For non-vented (recirculating) Installation see "Non-vented (recirculating) Installations" in "Install Range Hood" section. Chimney Kit Recirculation and Charcoal Filter Kit Part Number W10272069 are available from your dealer or an authorized parts distributor. See "Assistance or Service" section to order.

All openings in ceiling and wall where range hood will be installed must be sealed.

For Mobile Home Installations:

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes.

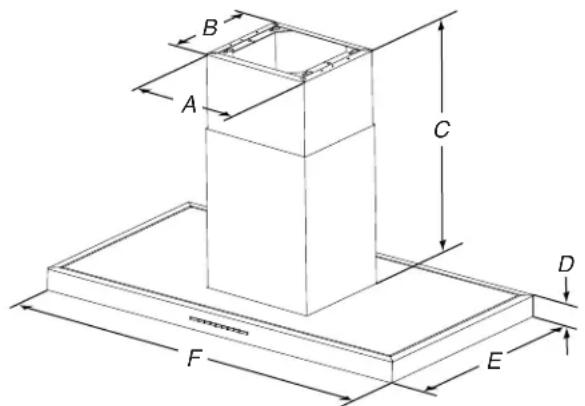

Product Dimensions

B A C D F E

A. 13" (33.0 cm)

B. 11 ^1/4 " (28.6 cm)

C. 28" (71 cm) min.

45 ^1/4 (115 cm) max

D. 2 ^3/8 " (6.0 cm)

E. 24" (61.0 cm)

F. 36" (91.4 cm)

or 42" (106.7 cm)

Installation Dimensions

B D C E A

A. Countertop height
B. Hood height from ceiling to bottom of the range hood: E-A-C=B
C. Hood height: 24" (61.0 cm) min. from electric cooking surface, 30" (76.2 cm) min. from gas cooking surface, suggested 36" (91.2 cm) max.
D. Chimney assembly height: D = B-2 ^3/8 " (6.0 cm)
E. Ceiling height

IMPORTANT:

Minimum distance "C": 24" (61.0 cm) from electric cooking surface, 30" (76.2 cm) from gas cooking surface Suggested maximum distance "C": 36" (91.4 cm)

NOTE: For best performance of the Auto Sense feature, the range hood should be installed at 24" (61.0 cm) from an electric cooking surface and 30" (76.2 cm) from a gas cooking surface. The chimneys can be adjusted for different ceiling heights. See the following chart.

	Vented Installations
	Min. ceiling height	Max. ceiling height
Electric cooking surface	7' 6" (2.3 m)	10' (3.04 m)
Gas cooking surface	8' (2.45 m)	10' (3.04 m)

Non-vented (recirculating) Installations

	Min. ceiling height Max. ceiling height
Electric cooking surface	7' 6" (2.3 m)	10' (3.04 m)
Gas cooking surface	8' (2.45 m)	10' (3.04 m)

*NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance "C" between the bottom of the range hood and the cooking surface. For higher ceilings from 10' (3.05 m), a Stainless Steel Chimney Extension Kit is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. See "Assistance or Service" section to order.

Venting Requirements

■Vent system must terminate to the outside, except for non-vented (recirculating) installations.
■Do not terminate the vent system in an attic or other enclosed area.
■Do not use 4" (10.2 cm) laundry-type wall caps.
■Use metal vent only. Rigid metal vent is recommended. Do not use plastic or metal foil vent.
■The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood.

For the most efficient and quiet operation:

■Use a straight run or as few elbows as possible.
■Use no more than three 90° elbows.
■Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.
■Do not install 2 elbows together.

■ Use vent clamps to seal all joints in the vent system.
■ Use caulking to seal exterior wall or roof opening around the cap.
■The size of the vent should be uniform.

Cold Weather Installations:

An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break.

The break should be as close as possible to where the vent system enters the heated portion of the house.

Makeup Air:

Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area.

Venting Methods

This island hood is factory set for venting through the roof.

A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round.

A 6" to 8" (15.2 cm to 20.3 cm) vent adapter is available for 8" (20.3 cm) vent systems. See the "Assistance or Service" section to order.

Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed.

For Non-Vented (recirculating) Installations:

If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, fitting a charcoal filter and the deflector. Fumes and vapors are recycled through the upper chimney cover louvers. To order charcoal filter and recirculation kit, see "Accessories" in the "Assistance or Service" section.

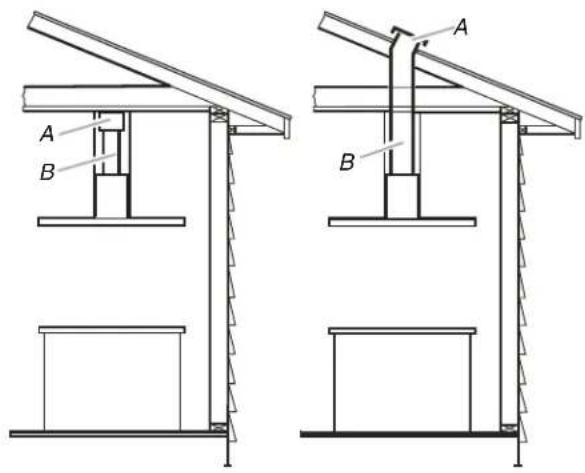

Non-vented (recirculating) Roof Venting

Technical diagram showing two structural frame configurations labeled A and B, with supports and supports.

A. Deflector
B. 6" (15.2 cm) round vent
A. Roof cap
B. 6" (15.2 cm) round vent

NOTE: Wall venting can be an option for 2-story homes.

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent piece 6" (15.2 cm) round

45° elbow 2.5 ft	(0.8 m)
90° elbow 5.0 ft	(1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example Vent System:

90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

The following example falls within the maximum vent length of 35 ft (10.7 m).

$$ 1 - 9 0 ^ {\circ} \text { elbow } = 5. 0 \text { ft (1.5 m) } $$

$$ 1 - \text { wall cap } = 0. 0 \text { ft (0.0 m) } $$

$$ 8 \mathrm{ft} (2. 4 \mathrm{m}) \text { straight } = 8. 0 \mathrm{ft} (2. 4 \mathrm{m}) $$

$$ \text { System length } = 1 3 \text { ft (3.9 m) } $$

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.
■If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial/rating plate. The model/serial/rating plate is located behind the filter on the rear wall of the range hood.
■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

■ It is recommended that the vent system be installed before the range hood is installed.
■Before making cutouts, make sure there is proper clearance within the ceiling for exhaust vent.
- Range hood is to be installed 24" (61.0 cm) min. for electric cooking surfaces, 30" (76.2 cm) min. for gas cooking surfaces, to a suggested maximum of 36" (91.4 cm) above the cooking surface.

1. Disconnect power.
2. Determine which venting method to use: roof or non-vented.
3. Select a flat surface for assembling the range hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install range hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift range hood onto covered surface.
2. Remove the motor from the canopy assembly (see the "Motor Removal" section in this section).

Motor Removal

To remove motor:

1. Remove the filter cover and metal grease filter (see the "Metal Grease Filters" section in the Range Hood Care section).
2. Disconnect the blower motor wiring at the 9 pin connector.
3. Locate the special 12 " (13 mm) tool inside the range hood blower housing in the left front corner behind the insulation pad. Use it to loosen the 4 nuts located inside the blower housing that mounts the motor to the module top cover.
4. Grasp the motor plate and slide the motor toward the back of the module housing to the large openings in the keyhole slots.

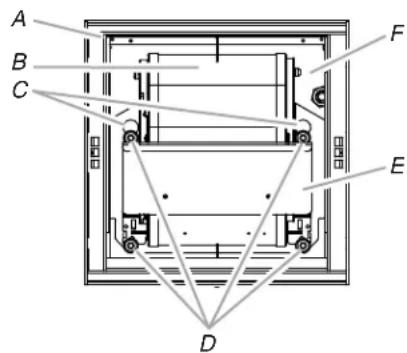

A B C F E D

A. Special 12 " (13 mm) tool
B. Motor assembly
C. Keyhole slots (large opening) (4)
D. 1/2" (13 mm) motor mounting nuts (4)
E. Motor plate
F. Module top cover

1. Remove the motor from the range hood.

Technical diagram of a mechanical device with labeled components A, B, C, and D

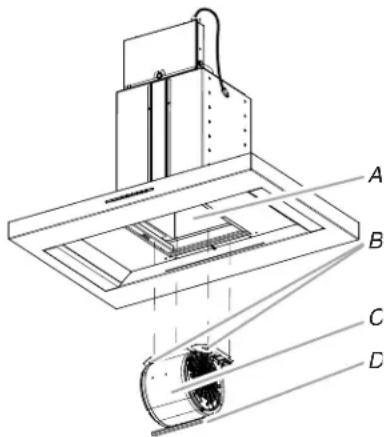

A. Blower housing
B. Keyhole slots (4)
C. Motor assembly
D. Motor plate

Range Hood Mounting Screws Installation

1. Determine and mark the centerline on the ceiling where the range hood will be installed, considering the requirements for ceiling support structures. See the "Location Requirements" section. Make sure the range hood is centered over the cooking surface.
2. Tape template in place on the ceiling at the marked centerline. Align the front of the template with the front of the cooktop.

Hand placing a grid on a rectangular object against intersecting lines (no text or symbols)

1. Use a pencil to mark the mounting screws, wire access and duct hole locations on the ceiling.

NOTE: Mounting hole locations must be into the ceiling support structure. The mounting structure in the ceiling must be able to support 100 lbs (45.4 kg).

Remove the template.

1. Drill (4) 316 " (4.8 mm) pilot holes at the marked locations on the ceiling for installing the hanger bolts.
2. Using a T20 ^® Torx ^® bit and driver, install the (4) 8 x 80 mm hanger bolts into the pilot holes. Leave approximately 34 " (2 cm) protruding down from the ceiling.

1. Screw the nuts on the hanger bolts, but do not tighten.

Complete Preparation

For Vented installations only:

1. Determine and make all necessary cuts in the ceiling for the vent system. Install the vent system before installing the hood. See "Venting Requirements" section.
2. Using a jigsaw or keyhole saw, cut a 6½" (16.5 cm) diameter hole in the ceiling for the vent duct.
3. Install the vent duct through the hole in the ceiling.
4. Connect the flexible vent section to the vent system.

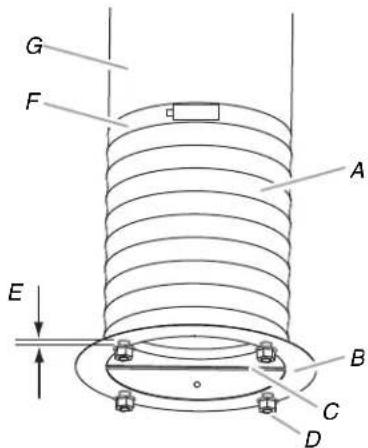

G F A E B C D

A. 6" (15.2 cm) flexible metal duct
B. Mounting boss
C. Mounting boss handle

E. 316 " (5 mm)

F. Vent da mp

G. 6" (15.2 cm) round vent system duct

NOTE: Mounting boss handle must be parallel with the front of the range hood to align the mounting studs with the half slots in the module top cover plate.

For Vented and Non-Vented installations:

1. Expand the flexible section of vent duct (supplied) to approximately 12" (30.5 cm) to 24" (61.0 cm) depending on the ceiling height.
   NOTE: For ceiling heights above 9' (2.7 m), additional 6" (15.2 cm) round duct (not supplied) will be required.

2. Loosen the four nuts on the mounting boss. (The back flange of each nut should be approximately 316 " [5 mm] from the face of the mounting boss.)

3. Secure all connections with vent clamps.

4. Determine the required location in the ceiling for the home power supply cable and drill a 1¼" (3.2 cm) hole at this location.

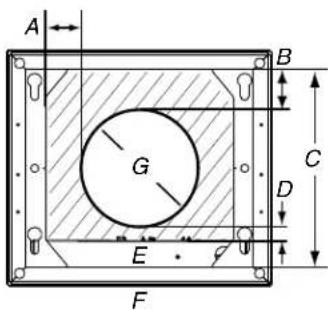

Top View:

Vented Installation: Non-vented (recirculating) Installation:

A G B C D E F

A B D C E F

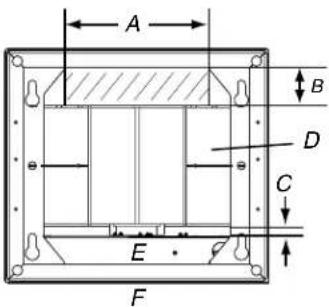

A. 1 11/16" (4.3 cm)
B. 1 13/16" (4.8 cm)
C. 9 ^7/8 (24.9 cm)
D. 5% (1.5 cm)
E. Electrical box
F. Front of range hood
G. 6" (15.2 cm) round duct

A. 7" (17.8 cm)

B. 1½" (3.8 cm)

C. 5% (1.5 cm)

D. Air deflector

E. Electrical box

F. Front of range hood

Use flexible wiring. Crosshatch is the open area available for wiring access in the ceiling within the upper chimney area.

1. Run the home power supply cable according to the National Electrical Code or CSA Standards and local codes and ordinances. There must be enough flexible wiring from the fused disconnect (or circuit breaker) box to make the connection in the hood's electrical terminal box.

NOTE: Do not reconnect power until installation is complete.

1. Use caulk to seal all openings.

Install Range Hood

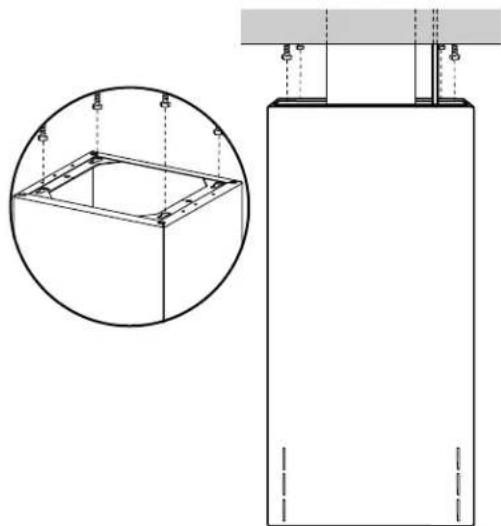

1. Slip the upper chimney cover over the assembled vent duct and electrical outlet and slide it to the ceiling. Align the large end of the keyhole slots in the top of the upper chimney cover up over the nuts and then slide it into the smaller slot section on the keyhole slots.

Technical line drawing of a mechanical assembly with a circular inset showing a square component and a rectangular base (no text or symbols)

1. Using the 12 " (13 mm) special tool (supplied) or a 12 " (13 mm) socket and driver with 24" of extensions, tighten the nuts to fasten the upper chimney cover section to the ceiling.

2. Locate and remove the (2) 4 x 13 mm service screws inside the range hood blower housing.

NOTE: These are be used to hold the lower chimney cover up while assembling the range hood canopy to the upper chimney cover.

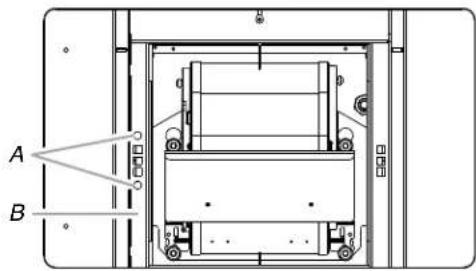

A B

A. 4 x 13 mm service screws (2)

B. Inside area of range hood blower housing

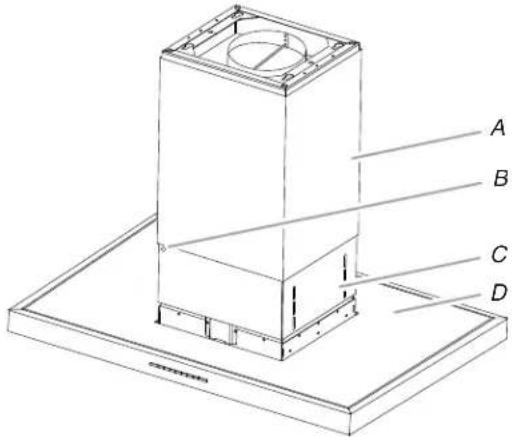

1. Slide the lower chimney cover up over the upper chimney cover until its bottom edge is above the holes on the upper chimney cover front and back. While holding the lower chimney cover, install the 4 x 13 mm service screws in each side of the upper chimney cover. Leave approximately 18 " (3 mm) between the head of the screw and the upper chimney cover. Lower the lower chimney cover to rest on the top of the screws. These screws will hold the lower chimney cover up while assembling the range hood canopy to the upper chimney cover.

Technical line drawing of a rectangular enclosure or storage unit with labeled components A, B, C, D (no text or symbols beyond labels)

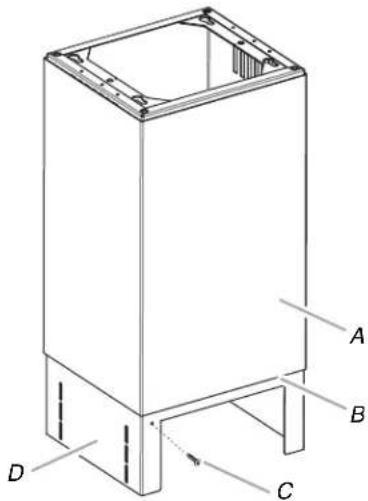

A. Lower chimney cover (front)

B. Bottom edge of lower chimney cover

C. 4 x 13 mm screws

D. Upper chimney cover

D A B C

A. Lower chimney cover

B. 4 x 13 mm screws

C. Upper chimney cover

D. 18 " (3.2 mm)

1. Move the range hood to its mounting location and connect the power supply. See the "Make Electrical Connections" section.

2. Lift the range hood canopy into the approximate recommended height for the cooktop type and install a minimum of (4) 5 x 12 mm screws (D) (2 each side) through the slots in the upper chimney cover and into the mounted threaded fasteners (F) of the range hood canopy.

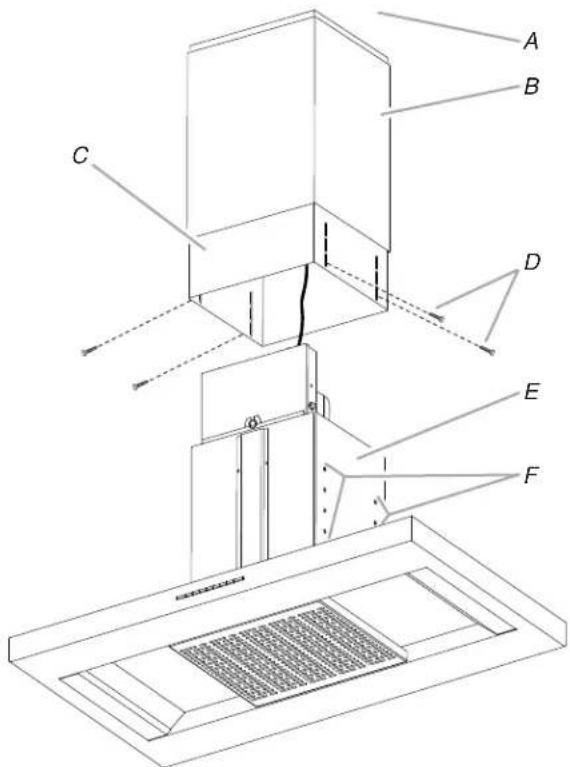

Technical diagram of a mechanical or electrical device with labeled components A through F, showing internal structure and alignment indicators.

A. Ceiling

B. Lower chimney cover

C. Upper chimney cover

D. Mounting screws (4)

E. Range hood canopy assembly

F. Range hood canopy mounted thread fasteners

1. Adjust the range hood to the desired height. Level the range hood and tighten the screws using a T20 ^® Torx ^® bit. See “Installation Dimensions” in the “Location Requirements” section.

NOTE: Final height must be between the recommended minimum and maximum dimension. The mounted threaded fasteners (F) are for height adjustments during installation for approved minimum and maximum distance between the bottom of the range hood and the top of the cooking surface.

1. Reach inside the range hood cavity and grasp the handle of the mounting boss. Pull down to align nuts through cutout holes in the module top cover. Push back into half-slots to assemble. Tighten (4) nuts using the 12 " (13 mm) special tool or 12 " socket and driver with extension.

2. Push up and hold the lower chimney cover, and remove the (2) 4 x 13 mm screws. Slide the lower chimney cover down onto the top of the range hood canopy.

A B C D

A. Lower chimney cover
B. 4 x 13 mm screw (2)
C. Upper chimney cover
D. Range hood canopy assembly

1. Replace (2) 4 x 13 mm service screws into storage area inside range hood blower housing.

A B

A. 4 x 13 mm service screws (2)
B. Inside area of range hood blower housing

1. Go to "Complete Installation" section.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.

2. Remove the (2) screws from the top of the electrical box cover and set the screws and cover aside.

3. Using a T20 ^® Torx ^® driver, remove the (4) screws from the wire protector race panel and set the part and screws aside. Do not damage the wiring.

Technical diagram of a device with labeled components A, B, C, D, and E, showing internal structure and assembly.

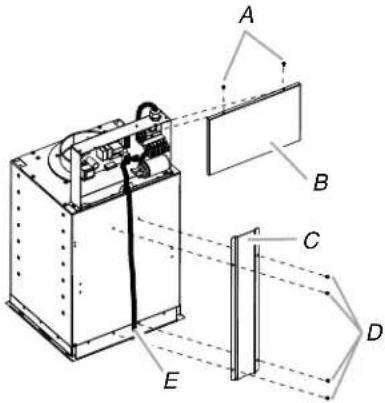

A. Electrical box cover
B. Screws - electrical box cover (2)
C. Wire protector race
D. Screws - wire protector race (4)
E. Electrical wiring

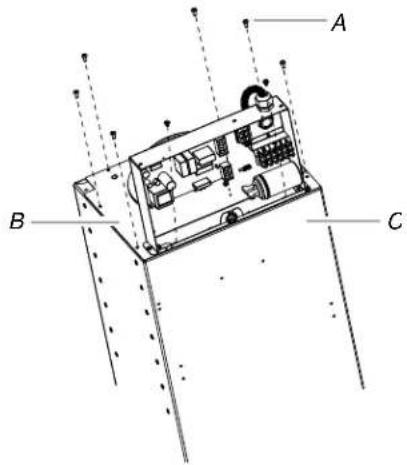

1. Using a T20 ^® Torx ^® driver, remove the (2) screws inside the electrical box holding the module plate and the (6) other screws around the perimeter of the module plate.

Technical diagram of a device with labeled components A, B, and C, showing internal components and alignment lines.

A. Screws - module top assembly (8)
B. Module plate assembly
C. Range hood module

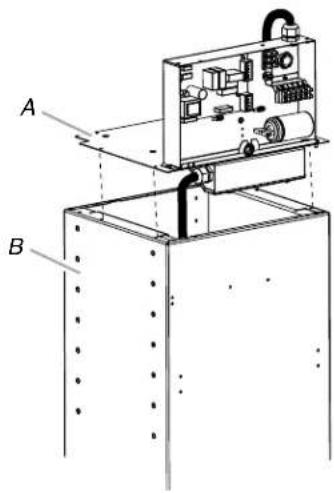

1. Lift module plate assembly from top of range hood module and position it to rest on top of the module.

A B

A. Module plate assembly
B. Range hood module

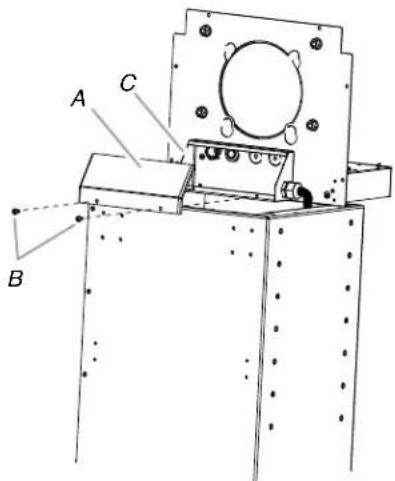

1. Using a T20 ^ Torx ^ driver, remove (2) screws from the electrical connection box on the bottom of the module plate assembly.

A C B

A. Electrical connection box cover
B. Screws (2)
C. Electrical connection box

1. Remove knockout labeled "Elec IN" from the module top plate, and install UL listed or CSA approved strain relief.

A B

A. Bottom of module top plate
B. Elec IN knockout

1. Run the flexible 3 wire home power supply cable from the ceiling through the strain relief and into the electrical connection box.

A B C D E F G

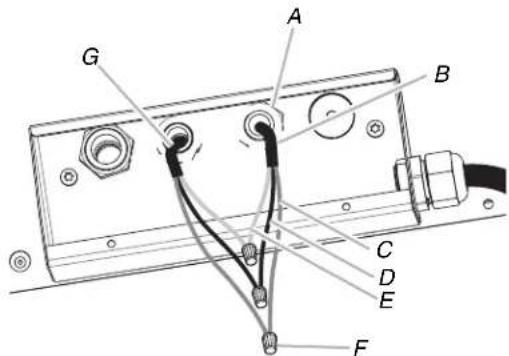

A. UL listed or CSA approved strain relief
B. 3-wire flexible home power supply cable
C. Green, bare or yellow/green wires

D. Black wires E. White wires F. UL listed wire connectors (3) G. 3-wire flexible power cable from electrical box

1. Use UL listed wire connectors and connect the black wires together.

2. Use UL listed wire connectors and connect the white wires together.

WARNING

Electrical Shock Hazard

Electrically ground blower.

Connect ground wire to green and yellow ground wire in terminal box.

Failure to do so can result in death or electrical shock.

1. Connect the green (or bare) ground wire from the home power supply cable to the green (or green/yellow) ground wire in the electrical box using a UL listed wire connector.
2. Tighten strain relief to secure the home power supply cable.
3. Reassemble the electrical connection box cover on the bottom of the module plate assembly.
4. Reassemble the module plate assembly to the top of the range hood module and tighten the (8) assembly screws.
5. Reassemble the electrical box cover and wire race to the front of the range hood module.

Complete Installation

Reinstall Motor:

1. Place the motor into the blower module housing positioning it with the large keyholes in motor mounting plate towards the back of the canopy.
2. Grasping the motor plate, push the motor up into the blower module housing. Locate the large keyholes over the motor mounting nuts, push up against the module top cover and pull the motor forward to lock into the small keyholes slots.
3. Use the special 12 " (13 mm) tool and tighten the (4) nuts to secure the motor.
4. Reconnect 9 pin connector from motor to electrical power.
5. Reconnect power.

Complete Installation:

1. For non-vented (recirculating) installations only, install the charcoal filters over the metal mesh filter. See the "Range Hood Care" section.

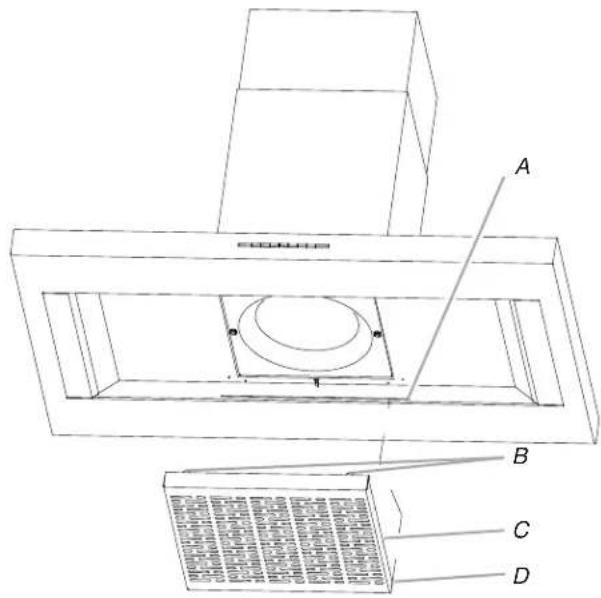

2. Install metal filters. See the "Range Hood Care" section.
3. Check the operation of the range hood blower and light. See the "Range Hood Use" section.
   If range hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown.

NOTE: To get the most efficient use from your new range hood, read the "Range Hood Use" section.

RANGE HOOD USE

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen.

The range hood controls are located on the front of the canopy.

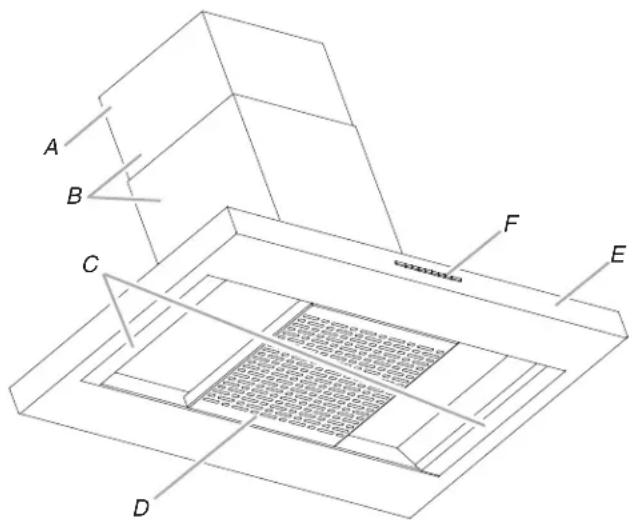

A B C D F E

A. Louver holes (non-vented [recirculating] installations only)

B. Chimney covers

C. Lamps

D. Filter door

E. Canopy

F. Control panel I

Control Panel

Auto Low Med Hi Boost Filter Light

Controls and Features

NOTES:

■To activate the controls, press and release the desired button.
■The control feature button will be lit when a control feature is turned On.

Sleep Mode

The range hood automatically enters Sleep Mode when not in use. After 10 minutes of no range hood activity, all of the control button lights will turn Off. To deactivate Sleep Mode, press any button.

Auto Sense

Auto Sense allows the range hood fan to turn on automatically when it senses heat higher than its allowable temperature limit. When Auto Sense is On, the fan speed will increase or decrease based on the temperature Auto Sense is measuring.

Auto Sense can be manually increased by pressing a higher fan speed. The fan will run at the selected speed for 10 minutes before returning to the speed selected for Auto Sense.

If Auto Sense is On, the Auto button light will turn Off and go into Sleep Mode when the vent hood is not in use. If the vent hood is turned On by the consumer or by Auto Sense, the Auto button light will turn On.

To set Auto Sense:

Press AUTO.

To Select Auto Sense Cooktop Type:

NOTE: The range hood is factory-set for the gas cooktop mode.

Press and hold AUTO for 5 seconds to switch between the gas cooktop and electric cooktop modes.

The Auto button light will flash 5 times when the range hood is changed to the electric cooktop mode. Auto Sense is now set to work with electric cooktops and ranges.

The Auto button light will flash 3 times when the range hood is changed to the gas cooktop mode. Auto Sense is now set to work with gas cooktops and ranges.

Changing the cooktop type will change the temperature limit for Auto Sense to turn On. When the range hood senses a high enough temperature, the fan will start automatically. When the temperature drops below the set temperature limit, the fan will stop automatically. The Auto button light will turn Off after the range hood enters Sleep Mode, but Auto Sense is still active.

To Deactivate Auto Sense:

If the Auto button is lit, press AUTO once to deactivate Auto Sense. The Auto button light will turn Off.

If Auto Sense is in Sleep Mode, press AUTO once to deactivate Sleep Mode and turn the Auto button light On. Press AUTO again to deactivate Auto Sense and turn Off the Auto button light.

Auto Sense will automatically turn off after 2 hours of no activation of the Auto Sense system. To reset Auto Sense, press AUTO.

Manual Vent Functions

Fan Speeds

Low Press LOW to turn the fan on at Low speed.

Med Press MED to turn the fan on at Medium speed.

Hi Press HI to turn the fan on at High speed.

Boost Press BOOST to turn the fan on at the highest speed. Boost will automatically turn Off after 10 minutes and the fan will switch to High speed.

Timer

The range hood can be set to automatically turn off after 15 minutes.

1. Press and hold the desired fan speed button for 2 seconds. The fan will run on the chosen speed for 15 minutes and the fan speed button light will flash continuously.

After 15 minutes, the fan will turn Off automatically.

1. Press the desired fan speed button again while the fan timer is running to cancel the fan timer.

NOTE: Changing the fan speed or turning Auto Sense On will also cancel the 15-minute timer.

Filter

The Filter button lights up when it is time to replace or clean the filter. The button will be lit only when the fan is On. Press FILTER after replacing the filter to turn the Filter button light Off. See the "Cleaning" section for how to replace or clean the filter.

Light

Press LIGHT to turn the range hood lights On and Off.

RANGE HOOD CARE

Cleaning

IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood.

Exterior Surfaces:

To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads.

Always wipe dry to avoid water marks.

Cleaning Method:

■Liquid detergent soap and water, or all-purpose cleanser

■ Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry.

Metal Grease Filters

The filter should be washed frequently. Place the metal filter in the dishwasher or hot detergent solution to clean.

Let the filter dry thoroughly before replacing it.

NOTE: The metal grease filter is located behind the center metal filter cover. The panel is magnetically secured along the front and has a tab along the back to hold the filter cover in place. To access the grease filter, grasp the panel on the front corners and pull down. This releases the panel from the magnets and allows the panel to swing down. Pull the alignment tab on the filter cover out of the alignment slot on the range to remove.

A B C D

A. Slot for filter cover alignment
B. Filter cover magnets
C. Filter cover
D. Tab on filter cover for alignment

To Remove Metal Grease Filters:

1. Turn off fan and lights.

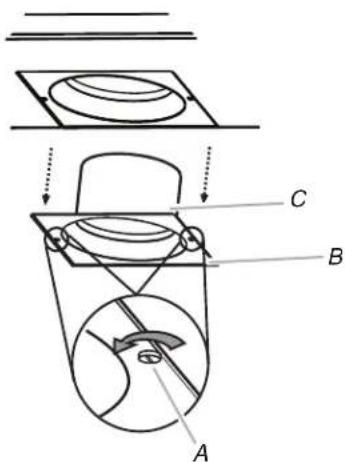

2. Remove the filter holder frame and grease filter using a flat-blade screwdriver to turn the grease filter release screws 90° counterclockwise.

Technical diagram showing mechanical assembly with labeled components A, B, and C

A. Grease filter release screw
B. Filter holder frame
C. Grease filter

To Replace Metal Grease Filter:

Replace grease filter and filter holder frame into range hood. Align the grease filter release screw and use a flat-blade screwdriver to turn the grease filter release screws 90° clockwise to lock in place.

Charcoal Filters - For Non-Vented (recirculating) Installations

NOTE: After approximately 3 years of use the charcoal filter should be replaced. To order a replacement Charcoal Filter Kit, see the "Assistance or Service" section.

The charcoal filters can be cleaned and reactivated. Clean the filter in the dishwasher using normal detergent and choosing the highest temperature setting.

To reactivate the filter, the filter should be dried in an oven for 10 minutes with a maximum temperature of 210°F (100°C).

To Remove Charcoal Filters:

1. Turn fan and lights off.
2. Remove the metal grease filters. See "Metal Grease Filters" section.
3. Remove the upper and side lock springs.
4. Clean or discard the charcoal filter.

To Replace Charcoal Filters:

1. For non-vented (recirculating installations) install charcoal filter, wrapping it around the grease filter.
2. Place the charcoal filter mat around the grease filter and fix it in place by using the cap lock springs provided.
3. Position the upper cap and fix it in place using the cap lock spring provided.

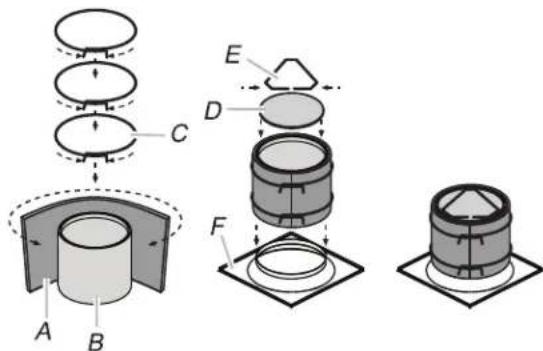

Technical diagram showing three stages of a mechanical assembly with labeled components A, B, C, D, E, F

A. Charcoal filter mat
B. Grease filter
C. Charcoal filter side lock springs
D. Upper cap
E. Cap lock spring
F. Grease filter support

WIRING DIAGRAM

Component Layout Num. Description 1 E.M.I. Filter 2 User Interface 3 Main Board 4 Light Driver 5 Capacitor 6 LED Lamp 7 Temperature Sensor 8 Surge Protector 9 Motor L N 1 1 2 3 BK YL/ GN WH 1 2 3 YL BR YL/ GN BU WH RD GY BK 1 2 3 4 1 2 3 4 YL BR YL/ GN BU WH RD GY BK 1 2 3 4 1 2 3 4 YL BR YL/ GN BU WH RD GY BK 5 Not used FT6 FT4 RL2 RL1 FUSE N C 2 3 1 4 Not used FT5FT3 RL4 120 VAC FT1 FT2 BU BR BK RD BK RD 4 Additional lamp only in 4 lamps version SEL0099388 Additional lamp only in 4 lamps version Motor Specifications Power Supply 120 VAC Frequency 60 Hz Wattage Rating 420 W Amperage 3.7 A Motor Speed/Resistance Blue - White 1 Speed 120 VAC 22.00 Ohm Blue - Red 2 Speed 120 VAC 18.40 Ohm Blue - Gray 3 Speed 120 VAC 14.90 Ohm Blue - Black 4 Speed 120 VAC 9.92 Ohm

ASSISTANCE OR SERVICE

If you need service:

Please refer to the warranty page in this manual.

If you need replacement parts:

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance.

To locate factory specified replacement parts in your area, call the following customer assistance telephone number or your nearest designated service center.

In the U.S.A.

Call Jenn-Air Customer eXperience Center toll free:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

Our consultants provide assistance with:

■Scheduling of service. Jenn-Air ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in the United States.
■Features and specifications on our full line of appliances.
■Referrals to local Jenn-Air ^30 appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

For further assistance:

If you need further assistance, you can write to Jenn-Air®

Appliances with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Center

553 Benson Road

Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

In Canada

Call the Whirlpool Canada LP Customer eXperience Centre toll free at 1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.ca.

Our consultants provide assistance with:

■Scheduling of service. Jenn-Air ^® appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service anywhere in Canada.
■Features and specifications on our full line of appliances.
■Referrals to local Jenn-Air ^20 appliance dealers.
■Installation information.
■Use and maintenance procedures.
■Accessory and repair parts sales.

For further assistance:

If you need further assistance, you can write to Jenn-Air®

Appliances with any questions or concerns at:

Jenn-Air Brand Home Appliances

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

Please include a daytime phone number in your correspondence.

Accessories

Charcoal Filter Kit

(for non-vented installations only)

Order Part Number W10272069

Chimney Kit Recirculation

(for 7' 9" [2.36 m] to 9' 8" [2.95 m] ceilings)

(for non-vented installations only)

Order Part Number W10646865

Chimney Extension Kit - (vented)

(for 10' 2" [3.1 m] to 12' [3.66 m] ceilings)

Order Part Number W10646863

Chimney Extension Kit - (vented)

(for 9' 1" [2.77 m] to 11' [3.35 m] ceilings)

Order Part Number W10685946

Chimney Extension Kit - (recirculating)

(for 10' 2" [3.1 m] to 12' [3.66 m] ceilings)

(for non-vented installations)

Order Part Number W10685947

Chimney Extension Kit - (recirculating)

(for 9' 1" [2.77 m] to 11' [3.35 m] ceilings)

(for non-vented installations)

Order Part Number W10646866

6" (15.2 cm) Makeup Air Kit

(consult local building codes)

Order Part Number W10446915

Vent Duct Adapter 6" to 8" (15.2 cm to 20.3 cm)

(for 8" [20.3 cm] duct installations)

Order Part Number W10685950

JENN-AIR® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer eXperience Center:

■Name, address and telephone number
■Model number and serial number
■A clear, detailed description of the problem
■Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting or Problem Solver section of the Use and Care Guide, scan the QR code on the right to access additional resources, or visit https://jennair.custhelp.com.
2. All warranty service is provided exclusively by our authorized Jenn-Air Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Jenn-Air Customer eXperience Center

1-800-JENNAIR (1-800-536-6247)

https://jennair.custhelp.com

If outside the 50 United States or Canada, contact your authorized Jenn-Air dealer to determine whether another warranty applies.

TWO YEAR LIMITED WARRANTY

WHAT IS COVERED WHAT IS NOT COVERED

For two years from the date of purchase, when this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Jenn-Air brand of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Jenn-Air”) will pay for Factory Specified Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Jenn-Air designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house wiring, fuses or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Jenn-Air parts or accessories.
6. Conversion of products from natural gas or L.P. gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God or use with products not approved by Jenn-Air.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appliance finishes unless such damage results from defects in materials and workmanship and is reported to Jenn-Air within 30 days.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pick-up or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Jenn-Air servicer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered or not easily determined.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Jenn-Air makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Jenn-Air or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. JENN-AIR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

Technical diagram showing a structural assembly with labeled components A and B, likely representing a mechanical or architectural component.

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

Technical diagram of a mechanical device with labeled components A, B, C, and D

Hand holding a grid-patterned object with intersecting lines (no text or symbols)

G F A E B C D

A G B C D E F

A. 1 116 " (4,3 cm)
B. 1 1316 " (4,8 cm)
C. 978 (24,9 cm)
D. 58 " (1,5 cm)
F. Avant de la hotte

Technical line drawing of a structural component with an inset circular detail showing a square frame and vertical supports (no text or symbols)

Technical line drawing of a rectangular enclosure with labeled components A, B, C, D (no text or symbols beyond labels)

Technical diagram of a mechanical or electrical device with labeled components A through F, showing internal structure and alignment indicators.

A. Plafond

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

Technical diagram of a device with labeled components A, B, and C, showing internal components and alignment lines.

A B C D E F G

Technical diagram showing mechanical assembly with labeled components A, B, and C

Technical diagram showing layered mechanical assembly with labeled components A, B, C, D, E, F

ASSISTANCE OU SERVICE

Customer eXperience Centre

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7

http://www.jennair.ca
