Product type	Magnetic wireless charger
Brand	Anker
Model	623 Magnetic Wireless Charger
Power input	Input: 9V 3A / 12V 2A / 15V 2A (Quick Charge 2.0/3.0 or Power Delivery adapter required)
Charging output	5W / 7.5W (depending on device)
Operating temperature	-10°C to 40°C
Operating frequency	110 to 205 kHz (EU/UK)
Radiated H-field	-45.76 dB μA/m (@ 10 m)
Compatibility	MagSafe compatible devices (iPhone 12 and later); non-MagSafe cases not compatible
Key features	Magnetic wireless charging for phone and earbuds; metal object detection; overvoltage/undervoltage protection
LED indicators	Solid white 3s (powered), alternating blinking (charging), white flash (metal object)
Care and cleaning	Clean with a dry cloth or brush
Safety	CE, RoHS compliance; max ambient temperature 40°C; do not expose to liquids, flames, or extreme temperatures
Spare parts and repairability	Not disassemblable; lifetime Anker technical support
General information	Limited warranty; use in temperate climates only

Frequently Asked Questions - 623 Magnetic Wireless Charger Anker

Which phones are compatible with the Anker 623 Magnetic Wireless Charger?

It is designed for MagSafe compatible devices (iPhone 12, 13, 14, 15 and later). Non-MagSafe cases, such as Otterbox Defender, are not compatible.

Can I charge my earbuds on this charger?

Yes, the lower area allows charging of wireless earbuds (e.g., AirPods Pro). However, do not place a phone on this area as it may not charge properly.

What do the LED indicators mean?

Solid white for 3 seconds then off: connected to power. Alternating LEDs: charging in progress. White flash: metal object detected or incompatible power adapter.

Why is my phone not charging?

Check that you are using a Quick Charge 2.0/3.0 or Power Delivery wall adapter (5V/1A or computer USB port are insufficient). Make sure no metal object (magnetic plate, keys, etc.) is between the charger and the phone.

Is it normal for the charger to get hot?

A slight warmth is normal. If the temperature exceeds 40°C, the charging speed decreases to protect the device. Avoid charging in direct sunlight or near heat sources.

Can I use a thick case with this charger?

Non-MagSafe or thick cases (over 3 mm) may block charging. Remove the case if necessary. External magnetic rings are not recommended.

How to clean the wireless charger?

Use a dry cloth or a soft brush. Do not use liquids as they could damage the device.

What are the safety risks to be aware of?

Do not drop, disassemble, or expose to water or flames. Ambient temperature must not exceed 40°C. This product is suitable for temperate climates only.

Is the charger compatible with Samsung Galaxy phones?

Yes, if your Samsung supports Qi wireless charging, it will work but at reduced speed (5W) because it is not optimized for MagSafe.

Where can I find the declaration of conformity?

The EU declaration of conformity is available on Anker's website: https://www.anker.com/. The product complies with directives 2014/53/EU and 2011/65/EU.

USER MANUAL 623 Magnetic Wireless Charger Anker

For FAQs and more information, please visit:

anker.com/support

@anker_official @anker_jp

Blue circular icon with a white human figure reading a book (no text or symbols)

Product Number: A2568 51005002978 V01

EN

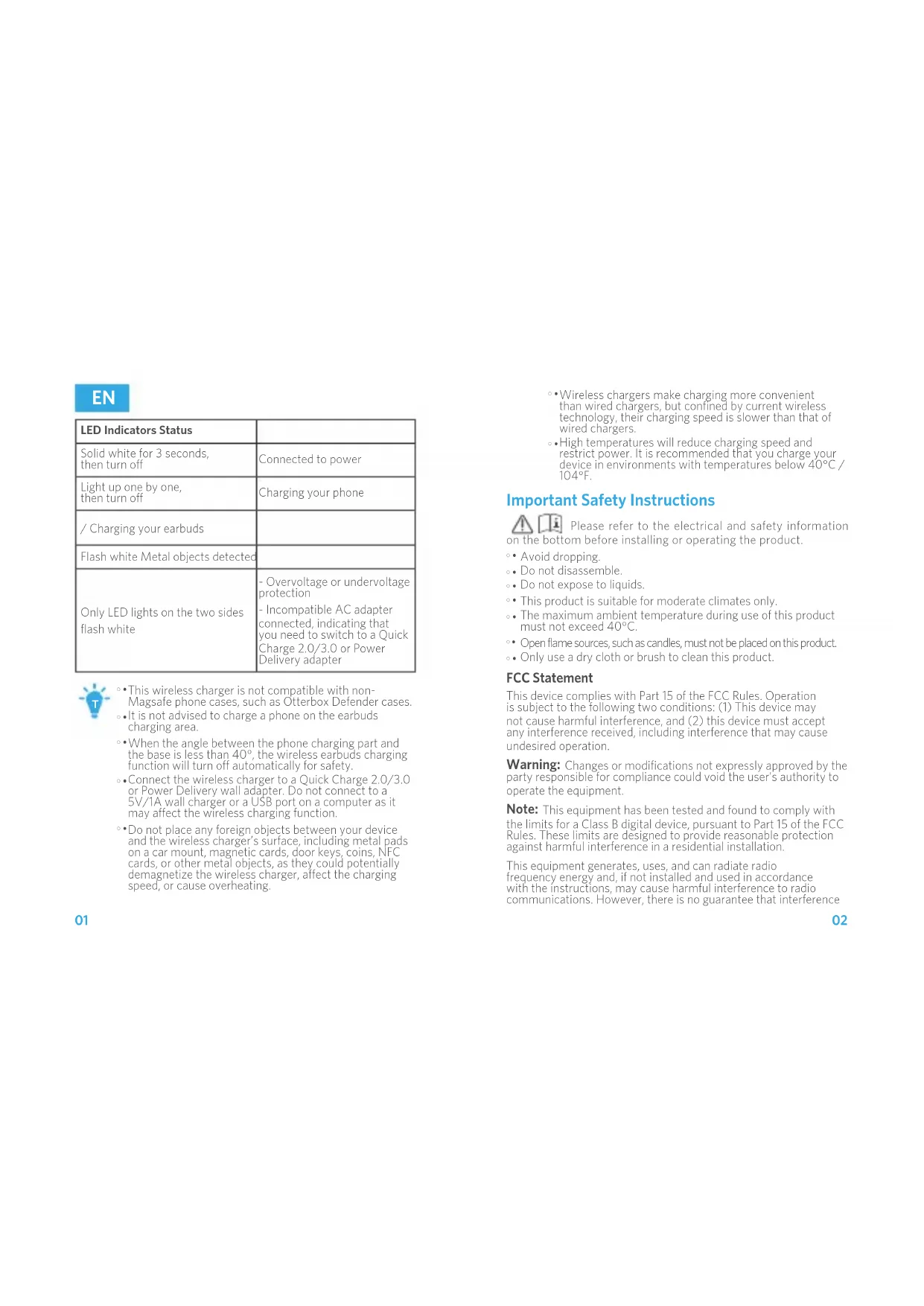

LED Indicators Status
Solid white for 3 seconds, then turn off	Connected to power
Light up one by one, then turn off	Charging your phone
/ Charging your earbuds
Flash white Metal objects detected
Only LED lights on the two sides flash white	- Overvoltage or undervoltage protection- Incompatible AC adapter connected, indicating that you need to switch to a Quick Charge 2.0/3.0 or Power Delivery adapter

• This wireless charger is not compatible with non-Magsafe phone cases, such as Otterbox Defender cases.
- It is not advised to charge a phone on the earbuds charging area.
- When the angle between the phone charging part and the base is less than 40^ , the wireless earbuds charging function will turn off automatically for safety.
- Connect the wireless charger to a Quick Charge 2.0/3.0 or Power Delivery wall adapter. Do not connect to a 5V/1A wall charger or a USB port on a computer as it may affect the wireless charging function.
Do not place any foreign objects between your device and the wireless charger's surface, including metal pads on a car mount, magnetic cards, door keys, coins, NFC cards, or other metal objects, as they could potentially demagnetize the wireless charger, affect the charging speed, or cause overheating.

• Wireless chargers make charging more convenient than wired chargers, but confined by current wireless technology, their charging speed is slower than that of wired chargers.
- High temperatures will reduce charging speed and restrict power. It is recommended that you charge your device in environments with temperatures below 40°C / 104°F.

Important Safety Instructions

⚠️ Please refer to the electrical and safety information on the bottom before installing or operating the product.

• Avoid dropping.
  • Do not disassemble.
  Do not expose to liquids.
• This product is suitable for moderate climates only.
  • The maximum ambient temperature during use of this product must not exceed 40^ C.
• Open flame sources, such as candles, must not be placed on this product.
  • Only use a dry cloth or brush to clean this product.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body.

Product Name: Anker 623 Magnetic Wireless Charger (MagGo) Model: A2568

The following importer is the responsible party (for FCC matters only).

Company Name: Fantasia Trading LLC

Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764

Telephone: [phone]

IC Statement

This device complies with RSS-216 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

RSS-Gen Issue 5 March 2019

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF exposure statement:

The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

This device complies with Industry Canada license-ICES-003. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This digital apparatus complies with CAN ICES-003(B)/NMB-003(B).

CE This product complies with the radio interference

requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type A2568 is in compliance with Directives 2014/53/EU & 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.anker.com/

This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

GB Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type A2568 is in compliance with Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full

text of the GB declaration of conformity is available at the following internet address:

https://www.anker.com

This device was tested for typical body-worn operations.

To comply with RF exposure requirements, a minimum separation distance of 20mm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

This device is in compliance with the essential requirements and other relevant provisions of UKCA. All essential radio test suites have been carried out

This device was tested for typical body-worn operations.

To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

This device in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out.

The device complies with RF specifications when the device used at 20cm form your body

Specifications

Input	9V=3A/12V 2A/15V 2A=
Output	5W/7.5W
Operating Temperature -10°C - 40°C
Radiated H-Field -45.76dB	μ A/m(@10m)
TX/RX Frequency Range 110-205KHz (only for EU and UK)

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Anker Technology (UK) Ltd

Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

CS

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

Entrada 9V 3A/12V 2A/15V=2A = = =

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

/https://www.anker.com

Quick men who don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that you don't know that

EN: 24-month limited warranty\*

EN: Lifetime technical support\*

* EN: Please note that your rights under applicable law governing the sale of consumer goods remain unaffected by the warranties given in this Limited Warranty.

[e-mail] (For Middle East and Africa Only)

(US) [phone] Mon-Fri 6:15 - 17:00 (PT)

(UK) [phone] Mon-Fri 6:00-17:00; Sat-Sun 6:00-14:00

(DE) [phone] Mo-Fr 6:00 - 11:00

(Middle East & Africa) [phone] Sun-Thu 9:00 - 17:30

(UAE) [phone] Sun-Thu 9:00 - 17:30

(KSA) [phone] Sun-Thu 8:00 - 16:30

(Kuwait) [phone] Sun-Thu 8:00 - 16:30

(Egypt) [phone] Sun-Thu 7:00 - 15:30

(AU) [phone] Mon-Fri 8:30 - 17:00 (AEST)

(TR) [phone] Mon-Fri 9:00 - 18:00

(RU) [phone] Mon-Fri 9:00 - 18:00 (MSK)
