USER MANUAL 633 Magnetic Wireless Charger Anker

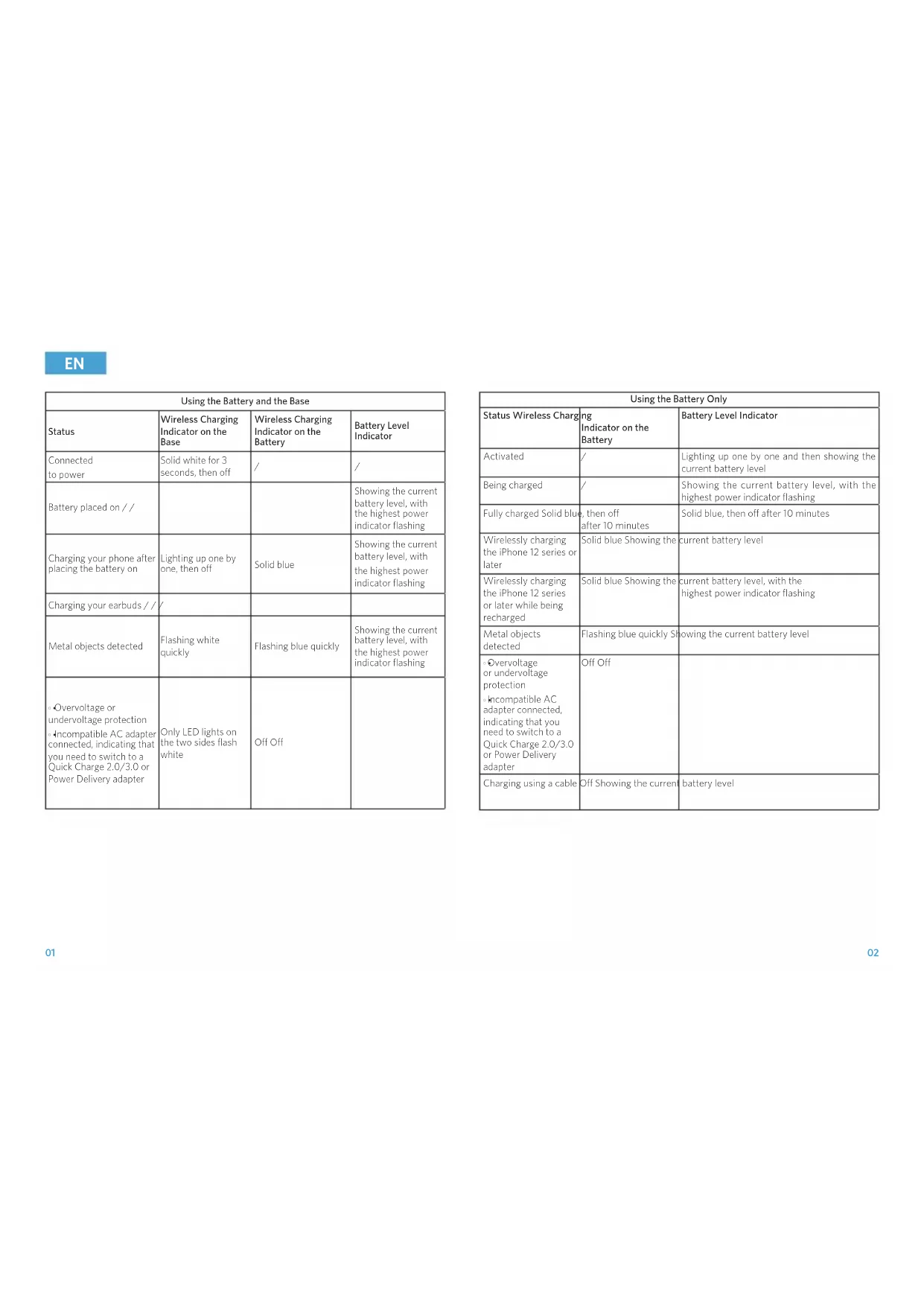

Using the Battery and the Base Status Wireless Charging Indicator on the Base Wireless Charging Indicator on the Battery Battery Level Indicator Connected to power Solid white for 3 seconds, then off

Battery placed on / / Showing the current battery level, with the highest power indicator flashing Charging your phone after placing the battery on Lighting up one by one, then off Solid blue Showing the current battery level, with the highest power indicator flashing Charging your earbuds / / / Metal objects detected Flashing white quickly Flashing blue quickly Showing the current battery level, with the highest power indicator flashing

Incompatible AC adapter connected, indicating that you need to switch to a Quick Charge 2.0/3.0 or Power Delivery adapter Only LED lights on the two sides flash white Off Off Using the Battery Only Status Wireless Charging Indicator on the Battery Battery Level Indicator Activated

Lighting up one by one and then showing the current battery level Being charged

Showing the current battery level, with the highest power indicator flashing Fully charged Solid blue, then off after 10 minutes Solid blue, then off after 10 minutes Wirelessly charging the iPhone 12 series or later Solid blue Showing the current battery level Wirelessly charging the iPhone 12 series or later while being recharged Solid blue Showing the current battery level, with the highest power indicator flashing Metal objects detected Flashing blue quickly Showing the current battery level

Incompatible AC adapter connected, indicating that you need to switch to a Quick Charge 2.0/3.0 or Power Delivery adapter Off Off Charging using a cable Off Showing the current battery level0403

This wireless charger is not compatible with non-MagSafe phone cases, such as Otterbox Defender cases.

Connect the wireless charger to a Quick Charge 2.0/3.0 or Power Delivery wall adapter. Do not connect to a 5V/1A wall charger or a USB port on a computer as it may affect the wireless charging function.

Do not place any foreign objects between your device and the wireless charger’s surface, including metal pads on a car mount, magnetic cards, door keys, coins, NFC cards or other metal objects, as they could potentially demagnetize the wireless charger, affect the charging speed, or cause overheating.

Wireless chargers make charging more convenient than wired chargers, but confined by current wireless technology, their charging speed is slower than that of wired chargers. Important Safety Instructions Please refer to the electrical and safety information on the bottom before installing or operating the product.

Do not expose to liquids.

This product is suitable for moderate climates only.

The maximum ambient temperature during use of this product must not exceed 40°C.

Open flame sources, such as candles, must not be placed on this product.

Only use a dry cloth or brush to clean this product.

For the included portable charger:

To reduce the risk of injury, close supervision is necessary when the product is used near children.

Do not put fingers or hands into the product.

Do not expose to rain or snow.

Do not use in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons.

Do not use if damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.

Do not disassemble the portable charger. Take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or injury to persons.

Do not expose to fire or excessive temperature. Exposure to fire or temperatures above 100°C may cause explosion.

Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

Switch off the portable charger when not in use. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body. Product Name: Anker 633 Magnetic Wireless Charger (MagGo) Model: A25A7 The following importer is the responsible party (for FCC matters only). Company Name: Fantasia Trading LLC Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: [phone] IC Statement This device complies with RSS-216 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference. RSS-Gen Issue 5 March 2019 This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. RF exposure statement: The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This device complies with Industry Canada license-ICES-003. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This digital apparatus complies with CAN ICES-003(B)/NMB-003(B).0605 Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This product complies with the radio interference requirements of the European Community. Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type A25A7 is in compliance with Directives 2014/53/EU & 2014/30/EU & 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.anker.com/ This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. GB Declaration of Conformity Hereby, Anker Innovations Limited declares that the product type A25A7 is in compliance with Electromagnetic Compatibility Regulations 2016, Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 Electrical Equipment (Safety) Regulations 2016 & The Ecodesign for Energy- Related Products Regulations 2010.. The full text of the GB declaration of conformity is available at the following internet address: https://www.anker.com This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 20mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. This device is in compliance with the essential requirements and other relevant provisions of UKCA. All essential radio test suites have been carried out. This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. This device in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out

The device complies with RF specifications when the device used at 20cm form your body Specifications Cell Capacity 5,000mAh Portable Charger Input:

Quick Charge 2.0/3.0

Quick Charge 2.0/3.0

Quick Charge 2.0/3.0

Quick Charge 2.0/3.0

PPS: 3.3–5.9V 3A/3.3–11V 2.25A7675

Quick Charge Power Delivery2.0/3.0

Quick Charge Power Delivery2.0/3.0
