533 Wireless Charger - Battery charger Anker - Free user manual and instructions

Product Type	3-in-1 Magnetic Wireless Charger (Stand)
Brand	Anker
Model	A2597
Input	5V 3A / 9V 3A / 12V 3A
Wireless Output	5W / 7.5W / 10W (7.5W for iPhone)
Compatibility	MagSafe-compatible phones, wireless earbuds
LED Indicators	Yes (solid white for charging, blinking for error)
Features	Simultaneous charging of 3 devices, metal object detection
Safety	Overcharge, overvoltage, and overheating protection
Operating Temperature	-10°C to 40°C
Maintenance	Clean with a dry cloth
Material	Plastic, matte finish
Dimensions (approx.)	15 x 8 x 12 cm
Weight (approx.)	200 g
Included Cable	Yes, USB-C cable
Power Adapter	Not included, requires QC 2.0/3.0 or PD adapter
Warranty	18 months
Country of Origin	China

Frequently Asked Questions - 533 Wireless Charger Anker

How do I know if my phone is charging?

The white LED indicator on the left lights up solid when the phone is charging. For earbuds, it is the right indicator.

Can I use a 5V/1A power adapter?

No, it is essential to use a Quick Charge 2.0/3.0 or Power Delivery adapter. A 5V/1A adapter or computer USB port may affect wireless charging.

Is the charger compatible with thick protective cases?

This charger is not compatible with non-MagSafe cases, such as Otterbox Defender cases. Remove the case for optimal charging.

What does a blinking indicator mean?

Blinking indicates either detection of metal objects (remove objects) or an incompatible adapter (use QC or PD).

Is wireless charging slower than wired charging?

Yes, due to current wireless technology, wireless charging speed is slower than wired chargers.

Can I charge my AirPods on this charger?

Yes, if your earbuds are compatible with wireless charging. Place them on the dedicated charging area (right LED indicator).

What is the minimum distance to keep between the charger and my body?

According to FCC standards, a minimum distance of 20 cm is required. For IC Canada, it is 10 cm.

How to clean the charger?

Use a dry cloth or soft brush. Do not use liquids or abrasive products.

What is the maximum ambient temperature for safe use?

The ambient temperature must not exceed 40°C. High temperatures reduce charging speed.

What should I do if my phone heats up during charging?

Overheating can reduce charging speed. Keep the charger away from heat sources and charge in an environment below 40°C.

USER MANUAL 533 Wireless Charger Anker

For FAQs and more information, please visit:

anker.com/support

@anker_official @anker_jp

Blue circular icon with a white silhouette of a person reading a book and exclamation mark (no text or symbols)

English
Deutsch
Español
Français
Italiano
Português
Русский	21
Türk
日本語	26
한국어	28
简体中文	31
繁體中文	33
لعربيه	35
תְבָרִי	39

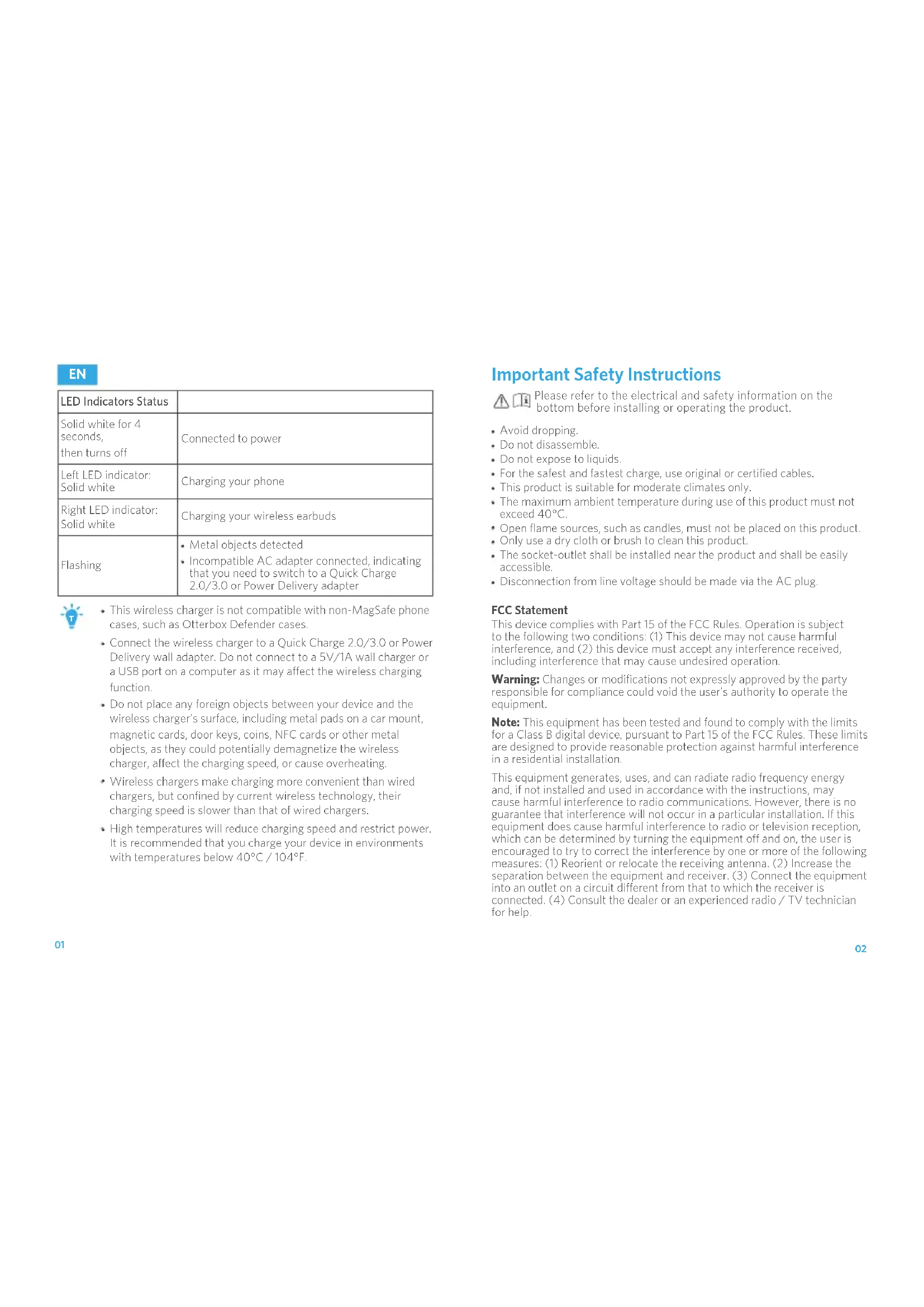

EN

LED Indicators Status
Solid white for 4 seconds, then turns off	Connected to power
Left LED indicator: Solid white	Charging your phone
Right LED indicator: Solid white	Charging your wireless earbuds
Flashing	• Metal objects detected• Incompatible AC adapter connected, indicating that you need to switch to a Quick Charge 2.0/3.0 or Power Delivery adapter

• This wireless charger is not compatible with non-MagSafe phone cases, such as Otterbox Defender cases.
• Connect the wireless charger to a Quick Charge 2.0/3.0 or Power Delivery wall adapter. Do not connect to a 5V/1A wall charger or a USB port on a computer as it may affect the wireless charging function.
• Do not place any foreign objects between your device and the wireless charger's surface, including metal pads on a car mount, magnetic cards, door keys, coins, NFC cards or other metal objects, as they could potentially demagnetize the wireless charger, affect the charging speed, or cause overheating.
• Wireless chargers make charging more convenient than wired chargers, but confined by current wireless technology, their charging speed is slower than that of wired chargers.
• High temperatures will reduce charging speed and restrict power. It is recommended that you charge your device in environments with temperatures below 40°C / 104°F.

Important Safety Instructions

Please refer to the electrical and safety information on the bottom before installing or operating the product.

• Avoid dropping.
• Do not disassemble.
• Do not expose to liquids.
• For the safest and fastest charge, use original or certified cables.
  • This product is suitable for moderate climates only.
• The maximum ambient temperature during use of this product must not exceed 40°C.
• Open flame sources, such as candles, must not be placed on this product.
• Only use a dry cloth or brush to clean this product.
• The socket-outlet shall be installed near the product and shall be easily accessible.
• Disconnection from line voltage should be made via the AC plug.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body.

Product Name: Anker 533 Magnetic Wireless Charger (3-in-1 Stand) Model: A2597

The following importer is the responsible party (for FCC matters only). Company Name: Fantasia Trading LLC.

Address: 5350 Ontario Mills Pkwy, Suite 100, Ontario, CA 91764 Telephone: [phone]

IC Statement

This device complies with RSS-216 of Industry Canada. Operation is subject to the condition that this device does not cause harmful interference.

RSS-Gen Issue 5 March 2019

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

RF exposure statement:

The equipment complies with IC Radiation exposure limit set forth for uncontrolled environment. This equipment should be installed and operated with minimum distance 10cm between the radiator and your body. This device complies with Industry Canada license-ICES-003. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. This digital apparatus complies with CAN ICES-003(B)/NMB-003(B).

This product complies with the radio interference requirements of the European Community.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type A2597 is in compliance with Directives 2014/53/EU & 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.anker.com/

GB Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type A2597 is in compliance with Radio Equipment Regulations 2017 and The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. The full text of the GB declaration of conformity is available at the following internet address:

https://www.anker.com

Anker Innovations Limited | Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Anker Technology (UK) Ltd | Suite B, Fairgate House, 205 Kings Road, Tyseley, Birmingham, B11 2AA, United Kingdom

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained between the user's body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components.

Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

This device in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. All essential radio test suites have been carried out.

1. The device complies with RF specifications when the device used at 10cm form your body

This device was tested for typical body-worn operations. To comply RF exposure requirements, a minimum separation distance of 20cm be maintained between theuser's body and the handset, including the tma. Third-party belt-clips, holsters, and similar accessories used by this he should not contain any metallic components.

Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

This device in compliance with the essential requirements and other relevant provisions of UKCA. All essential radio test suites have been carried out.

Specifications

Input 5V 3A/9V 3A/12V	3A= = =
Output 5W/7.5W/10W (7.5W for iPhone)
Operating Temperature -10°C	-40°C
Radiated H-Field -45.76dB	μA/m(@10m)
TX/RX Frequency Range 110-148KHz

This symbol indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

DE

https://www.anker.com/

Déclaration FCC

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

https://www.anker.com/

規格

輸入5V 3A/9V 3A/	12V=3A = =
輸出5W/7.5W/10W(7.5W適用於iPhone)
操作溫度-10°C-40°C
輻射磁場強度-45.76dBμA/m(@10m)
TX/RX頻率範圍110-148kHz
