USER MANUAL PB61V ASUS

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYORIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language web site at https://www.asus.com/support/

Contents

About this manual. 5

Conventions used in this manual. 6

Typography 6

Package contents 7

Getting to know your Mini PC

Features. 10

Front view 10

Rear view. 13

Using your Mini PC

Getting started 18

Mounting your device on the stand. 18

Connect the AC power adapter to your Mini PC. 19

Connect a display panel to your device. 21

Connect the USB cable from keyboard or mouse. 23

Turn on your Mini PC 24

Turning your Mini PC off 25

Putting your Mini PC to sleep. 25

Entering the BIOS Setup. 25

Load default BIOS settings. 26

Upgrading your Mini PC

Removing the top cover. 28

Replacing the top cover 29

Installing 2.5" HDD or SSD 30

Installing the M.2 SSD 32

Installing top memory module. 33

Installing the CPU 35

Installing the wireless card. 38

Installing an external button. 39

Contents

Appendix

Safety information. 42

Setting up your system 42

Care during use 42

Regulatory notices 44

ASUS contact information. 52

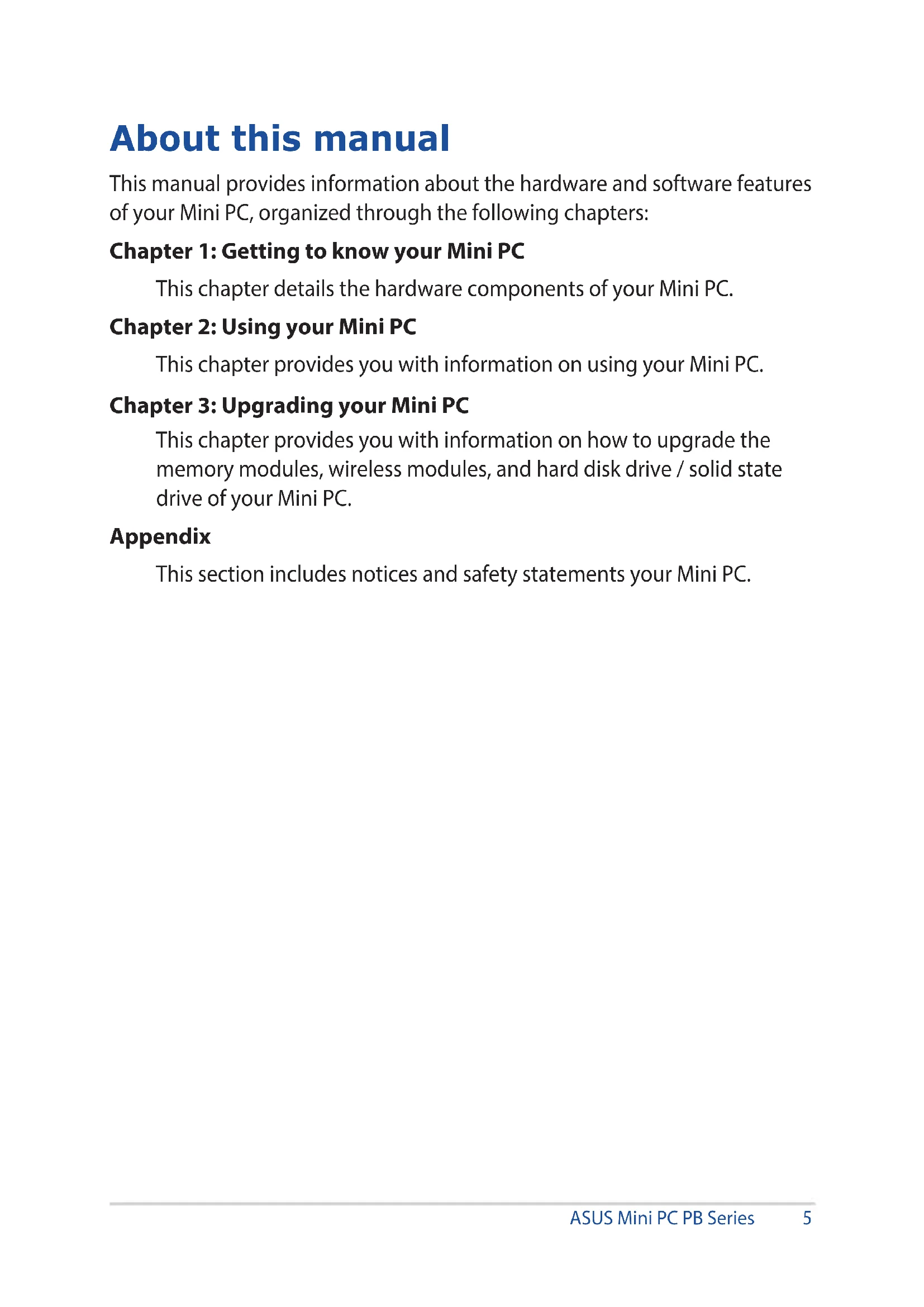

About this manual

This manual provides information about the hardware and software features of your Mini PC, organized through the following chapters:

Chapter 1: Getting to know your Mini PC

This chapter details the hardware components of your Mini PC.

Chapter 2: Using your Mini PC

This chapter provides you with information on using your Mini PC.

Chapter 3: Upgrading your Mini PC

This chapter provides you with information on how to upgrade the memory modules, wireless modules, and hard disk drive / solid state drive of your Mini PC.

Appendix

This section includes notices and safety statements your Mini PC.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing certain tasks and prevent damage to your Mini PC's data and components.

Typography

Bold text Indicates a menu or an item to select.

Italic

This indicates sections that you can refer to in this manual.

Package contents

Your Mini PC package contains the following items:

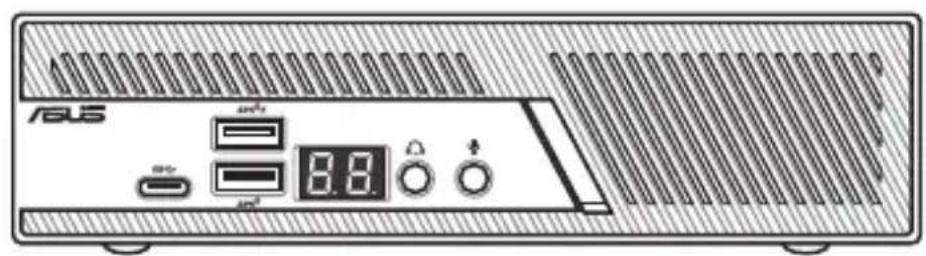

Mini PC

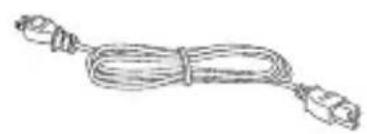

AC power adapter Power cord
Technical documents

NOTE:

• *The bundled power adapter may vary by model and territories.
• Some bundled accessories may vary with different models. For details on these accessories, refer to their respective user manuals.
• The device illustration is for reference only. Actual product specifications may vary with models.
• If the device or its components fail or malfunction during normal and proper use within the warranty period, bring the warranty card to the ASUS Service Center for replacement of the defective components.

1

Getting to know your Mini PC

Features

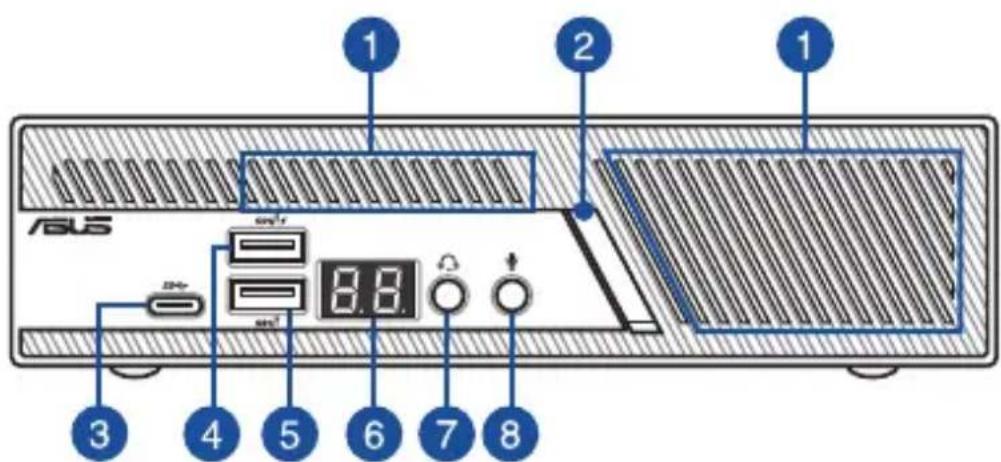

Front view

Air vents (intake vent)

The air vents allow cooler air to enter your Mini PC chassis.

IMPORTANT: For an optimum heat dissipation and air ventilation, ensure that the air vents are free from obstructions.

Power button

The power button allows you to turn the Mini PC on or off. You can use the power button to put your Mini PC to sleep mode or press it for four (4) seconds to force shutdown your Mini PC.

USB 3.2 Gen 1 Type-C® port

This USB Type-C (Universal Serial Bus) port provides a transfer rate of up to 5 Gbit/s.

4 SS<

USB 3.2 Gen 2 port

The USB 3.2 Gen 2 (Universal Serial Bus) port provides a transfer rate up to 10 Gbit/s. These ports also support the Battery Charging 1.2 technology that allows you to charge your USB devices.

NOTE: This port provides a maximum of 5V / 1.5A output.

5 SS<10

USB 3.2 Gen 2 port

The USB 3.2 Gen 2 (Universal Serial Bus) port provides a transfer rate up to 10 Gbit/s.

6

Q-Code LED

The Q-Code LED provides a 2-digit display that shows the status of your system.

NOTE: For more details, refer to the Q-Code table in the E-Manual on the ASUS Support Site at https://www.asus.com/support/.

7

Headphone/Headset jack

This port allows you to connect amplified speakers or headphones. You can also use this port to connect your headset.

8

Microphone jack

The microphone jack is designed to connect to a microphone used for video conferencing, voice narrations, or simple audio recordings.

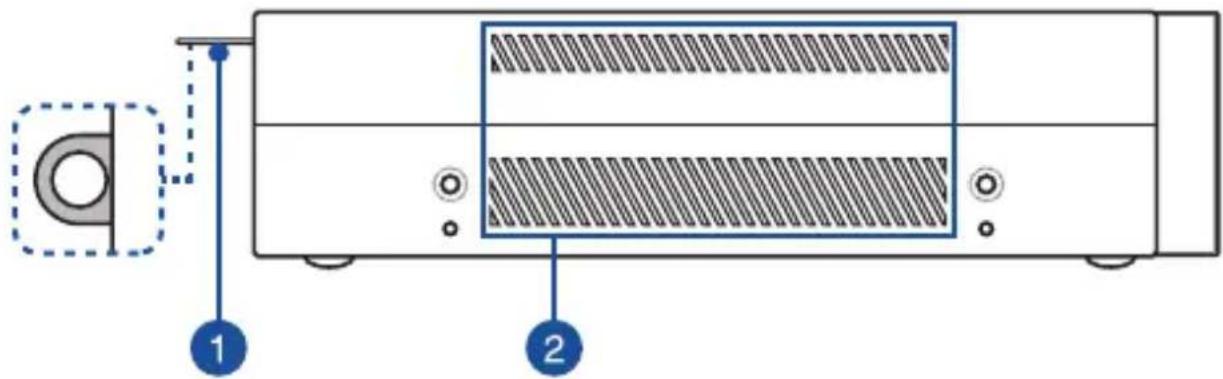

Left view

Padlock ring (on selected models)

This ring allows you to attach a standard padlock to prevent unauthorized disassembly of your Mini PC.

NOTE: The padlock is purchased separately.

Air vents (intake vent)

The air vents allow cooler air to enter your Mini PC chassis.

IMPORTANT: For an optimum heat dissipation and air ventilation, ensure that the air vents are free from obstructions.

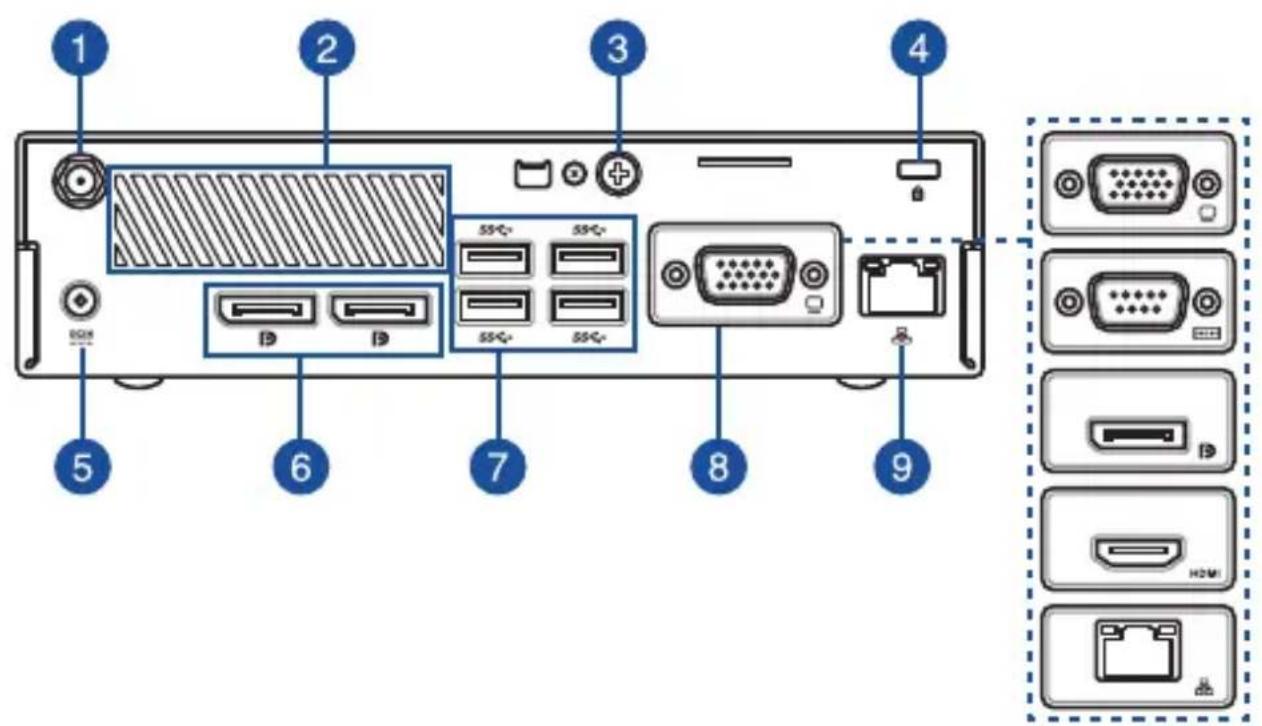

Rear view

Wireless antenna jack

The jack is used to connect the supplied wireless antenna to enhance wireless signal reception.

Air vents (exhaust vent)

The air vents allow your Mini PC chassis to expel hot air out.

IMPORTANT! For optimum heat dissipation and air ventilation, ensure that the air vents are free from obstructions.

CAUTION! Be careful of the hot air expelled at the air vents as it may cause discomfort or injuries.

Punch-out port

Removing the metal cover allows you to install an external power button or CLRTC button.

Kensington® security slot

The Kensington® security slot allows you to secure your PC using Kensington® compatible security products.

Power input

The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Mini PC. To prevent damage to the Mini PC, always use the supplied power adapter.

WARNING! The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

DisplayPort

This port allows you to connect your Mini PC to an external display.

USB 3.2 Gen 1 port

The USB 3.2 Gen 1 (Universal Serial Bus) port provides a transfer rate up to 5 Gbit/s.

Configurable port This port varies between models and consists of the following port options:

VGA port This port allows you to connect your Mini PC to an external display.

Serial (COM) connector The 9-pin serial (COM) connector allows you to connect devices that have serial ports such as mouse, modem, or printers.

DisplayPort This port allows you to connect your Mini PC to an external display.

HDMI®port The HDMI®(High Definition Multimedia Interface) port supports a Full-HD device such as an LCD TV or monitor to allow viewing on a larger external display.

LAN port The 8-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.

LAN port The 8-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network.

Using your Mini PC

2

Getting started

Mounting your device on the stand

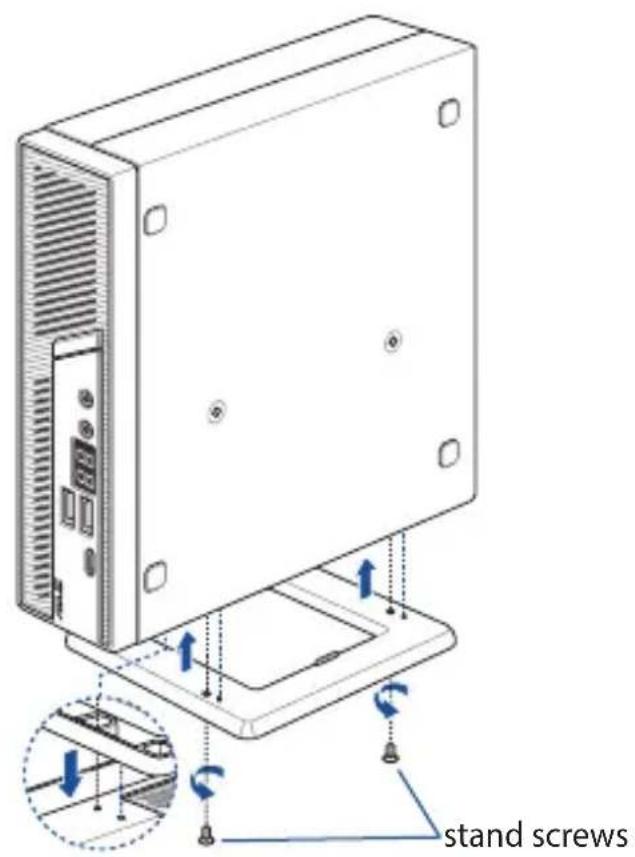

To mount your Mini PC on the stand:

1. Locate the mounting holes at the bottom of your Mini PC.

2. Align the stand's mounting hole with the mounting hole on your Mini PC, then secure it in place with the stand screws.

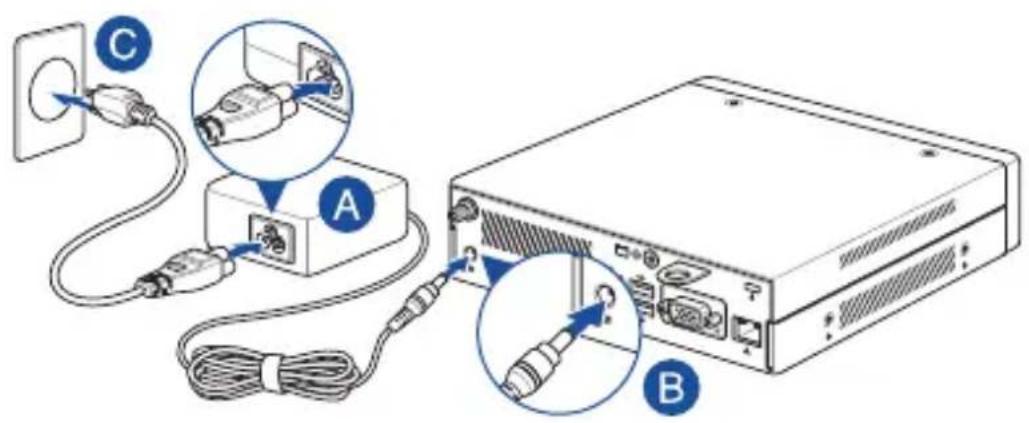

Connect the AC power adapter to your Mini PC

To connect the AC power adapter to your Mini PC:

A. Connect the power cord to the AC power adapter.

B. Connect the DC power connector into your Mini PC's power (DC) input.

C. Plug the AC power adapter into a 100V 240V power source.

NOTE: The power adapter may vary in appearance, depending on models and your region.

IMPORTANT! When connecting the power adapter and cord to the Mini PC and Graphics module, ensure to use the 120W adapter.

NOTE:

The power adapter may vary between models and territories, please refer to the following for more information on the different adapters:

90W Power adapter

Input voltage: 100-240 Vac
- Input frequency: 50 - 60 Hz
Rating output current: 4.74 A / 4.62 A (90.0W)
Rating output voltage: 19.0V / 19.5V

120W Power adapter

• Input voltage: 100-240 Vac
• Input frequency: 50 - 60 Hz
  Rating output current: 6.32 A / 6.0 A (120.0W)
  Rating output voltage: 19.0V / 20.0V

150W Power adapter

• Input voltage: 100-240 Vac
• Input frequency: 50 - 60 Hz
  Rating output current: 7.5 A (150.0W)
  Rating output voltage: 20.0V

Connect a display panel to your device

You can connect a display panel or projector to your device that has the following connectors:

VGA connector
- DisplayPort
HDMI™ connector

NOTE: These ports may vary per model.

To connect a display panel to your Mini PC:

Connect one end of a VGA, DisplayPort, or HDMI™ cable to an external display, and the other end of the cable to your Mini PC's VGA port, DisplayPort, or an HDMI™ port.

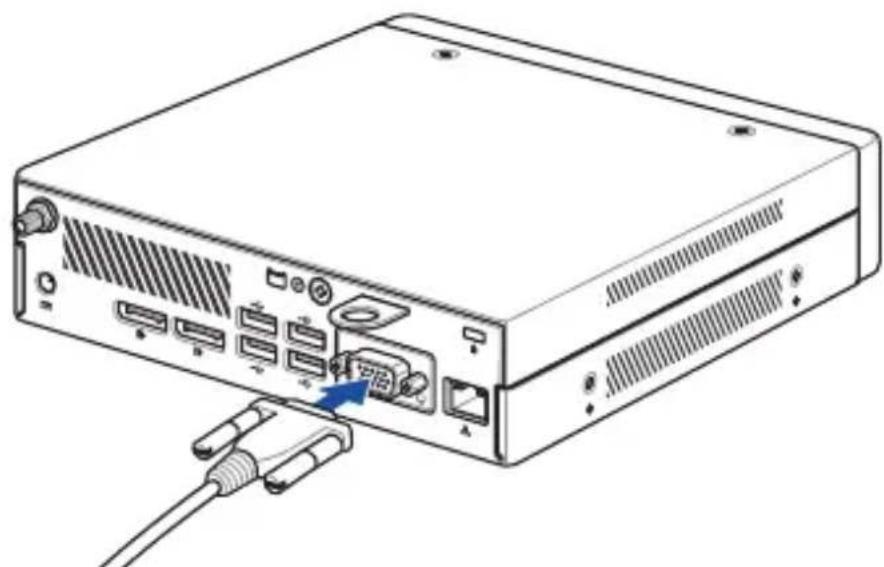

Connect display via VGA port

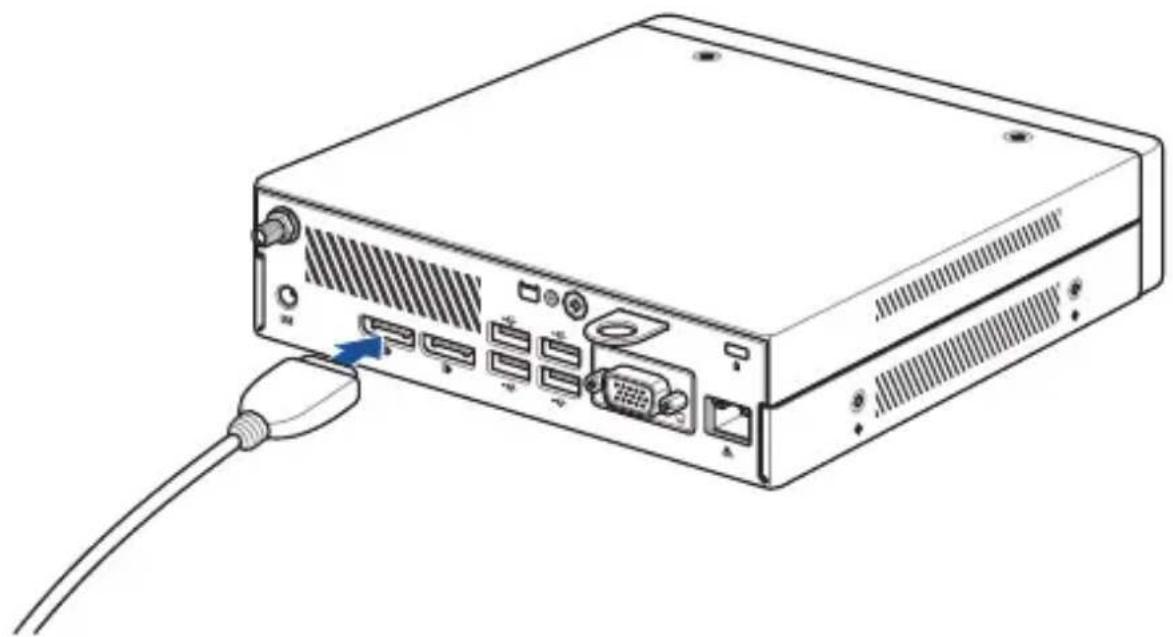

Connect display via DisplayPort

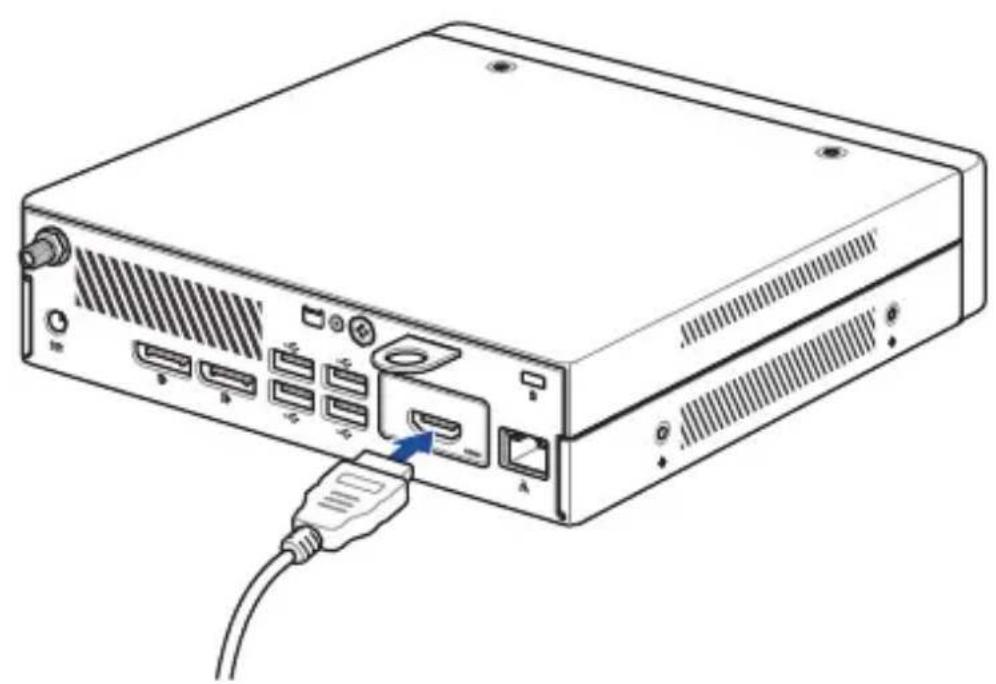

Connect display via HDMI™ port

Connect the USB cable from keyboard or mouse

You can connect generally any USB keyboard and mouse to your Mini PC. You can also connect a USB dongle for a wireless keyboard and mouse set.

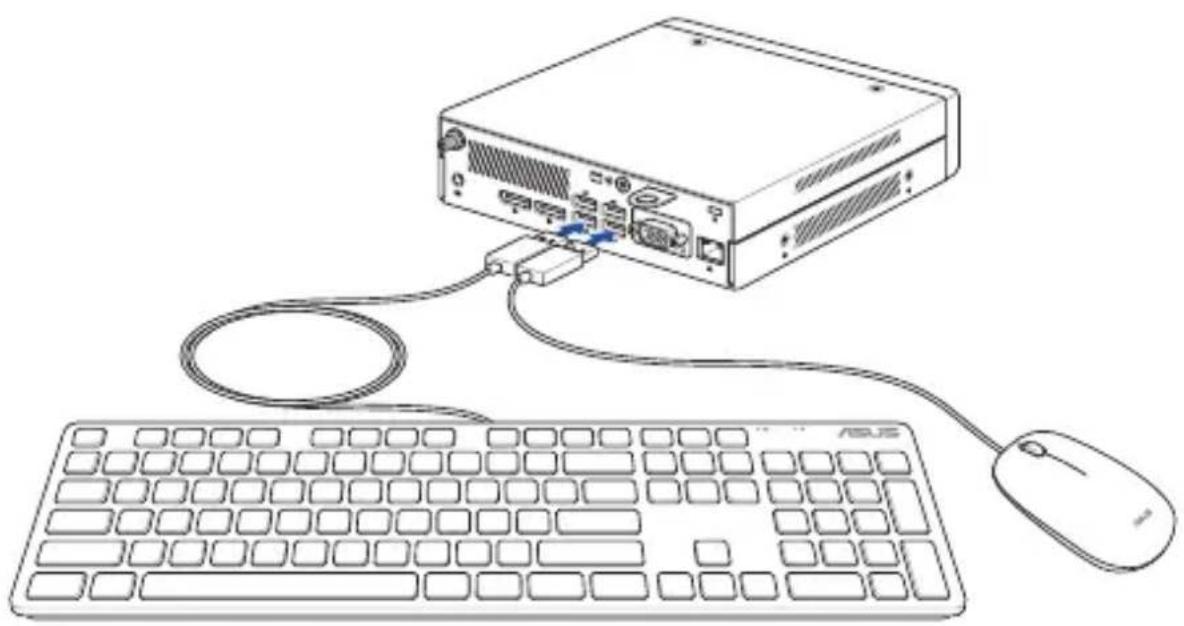

To connect a keyboard and mouse to your Mini PC:

Connect the USB cable from your keyboard and mouse to any of the USB ports of your Mini PC.

NOTE: The keyboard varies with country or region.

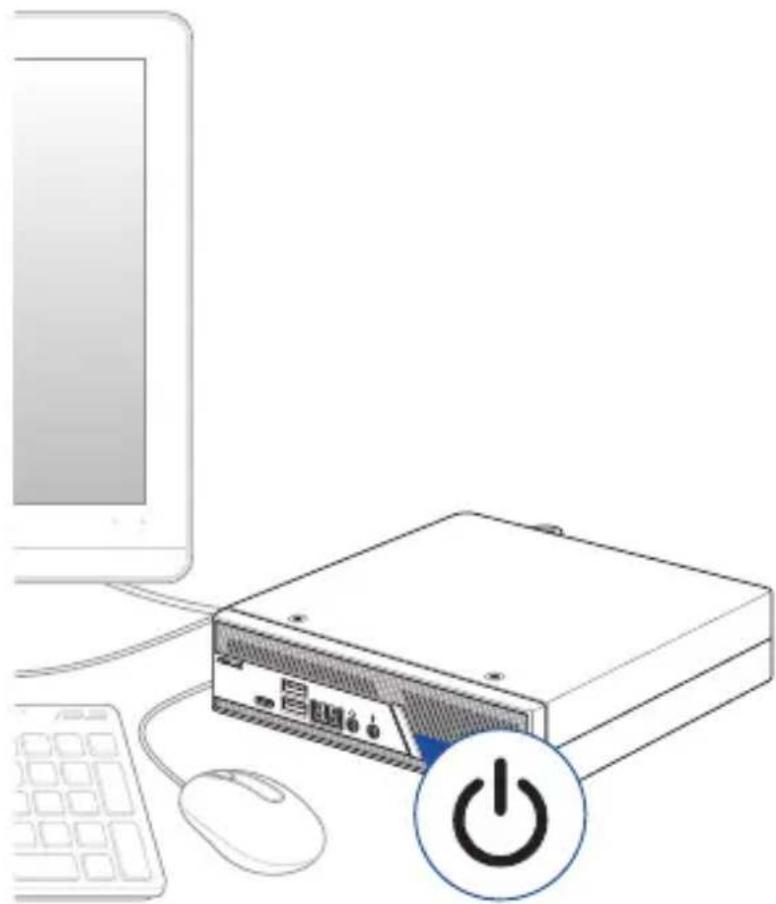

Turn on your Mini PC

Press the power button to turn on your Mini PC.

Turning your Mini PC off

If your Mini PC is unresponsive, press and hold the power button for at least four (4) seconds until your Mini PC turns off.

Putting your Mini PC to sleep

To put your Mini PC on Sleep mode, press the Power button once.

Entering the BIOS Setup

BIOS (Basic Input and Output System) stores system hardware settings that are needed for system startup in the Mini PC.

In normal circumstances, the default BIOS settings apply to most conditions to ensure optimal performance. Do not change the default BIOS settings except in the following circumstances:

• An error message appears on the screen during the system bootup and requests you to run the BIOS Setup.
• You have installed a new system component that requires further BIOS settings or update.

WARNING! Inappropriate BIOS settings may result in instability or boot failure. We strongly recommend that you change the BIOS settings only with the help of a trained service personnel.

Load default BIOS settings

To load the default values for each of the parameters in your BIOS:

• Enter the BIOS by pressing <F2> or <DEL> on the POST screen.

NOTE: POST (Power-On Self Test) is a series of software controlled diagnostic tests that run when you turn on your Mini PC.

• Navigate to the Exit menu.
• Select the Load Optimized Defaults option, or you may press <F5> .
• Select OK to load the default BIOS values.

3

Upgrading your Mini PC

IMPORTANT!

• It is recommended that you install or upgrade the memory modules, wireless card, and solid state drive (SSD), under professional supervision. Visit an ASUS service center for further assistance.
• Ensure that your hands are dry before proceeding with the rest of the installation process. Before installing any of the features in this guide, use a grounded wrist strap or touch a safely grounded object or metal object to avoid damaging them due to static electricity.

NOTE: The illustrations in this section are for reference only. The slots may vary depending on model.

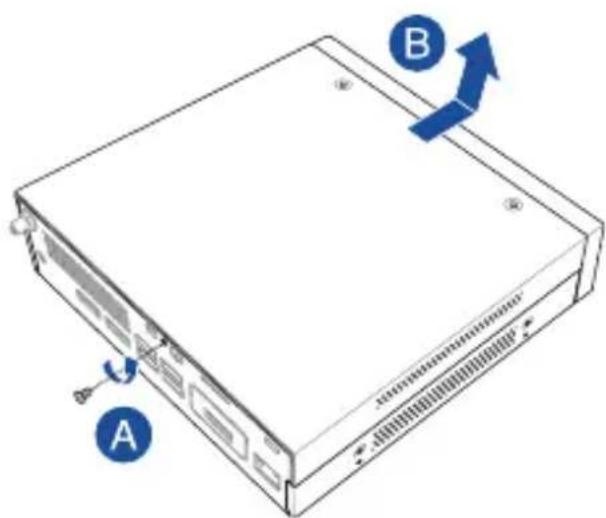

Removing the top cover

1. Turn off your Mini PC then disconnect all cables and peripherals.
2. Remove the screw from the rear (A), then push the top cover towards the front to remove the top cover (B).

Replacing the top cover

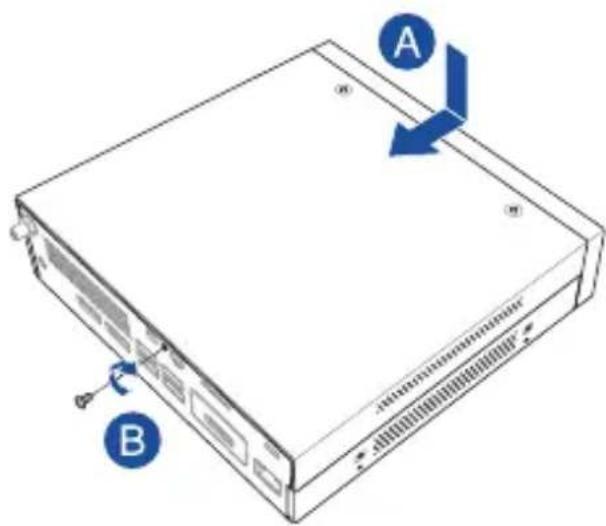

Replace the top cover and push it towards the rear (A), then secure it with the screw removed previously (B).

Installing 2.5" HDD or SSD

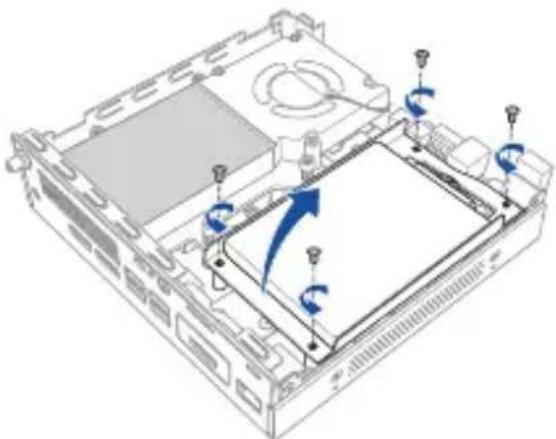

1. Remove the four (4) screws, then lift the storage bay to remove it from the chassis.

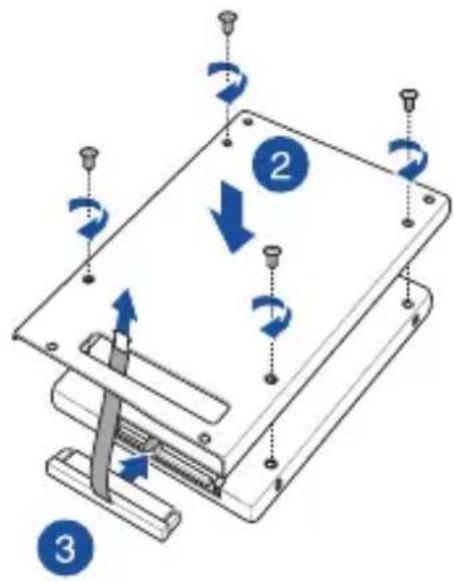

1. Insert your HDD or SSD into the storage bay, then secure it with four (4) screws.

2. Connect the SATA cable to the HDD or SSD.

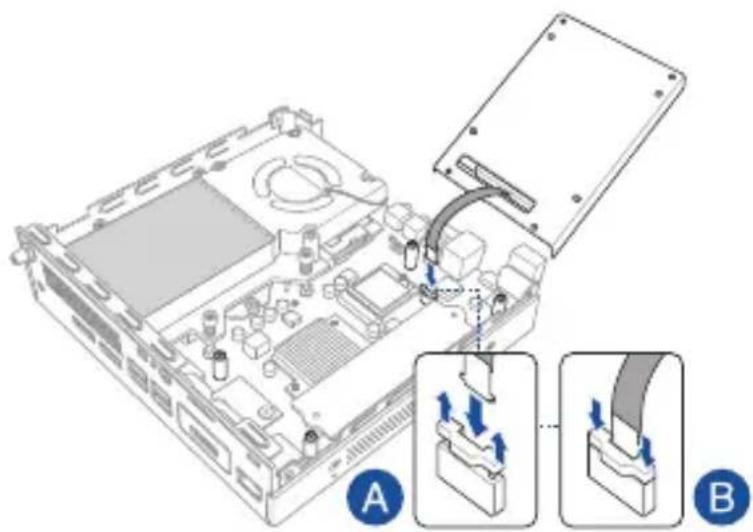

1. Lift the clip on the SATA connector (A), connect the SATA cable to the SATA connector, then push the clip down to secure the cable (B).

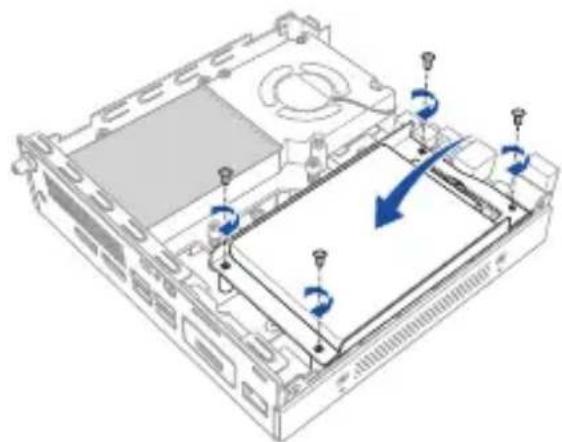

1. Replace the storage bay and secure it with the four (4) screws removed previously.

Installing the M.2 SSD

(optional) Remove the storage bay if a storage bay is installed. Follow step 1 under the Installing 2.5'' HDD or SSD section to remove the storage bay.

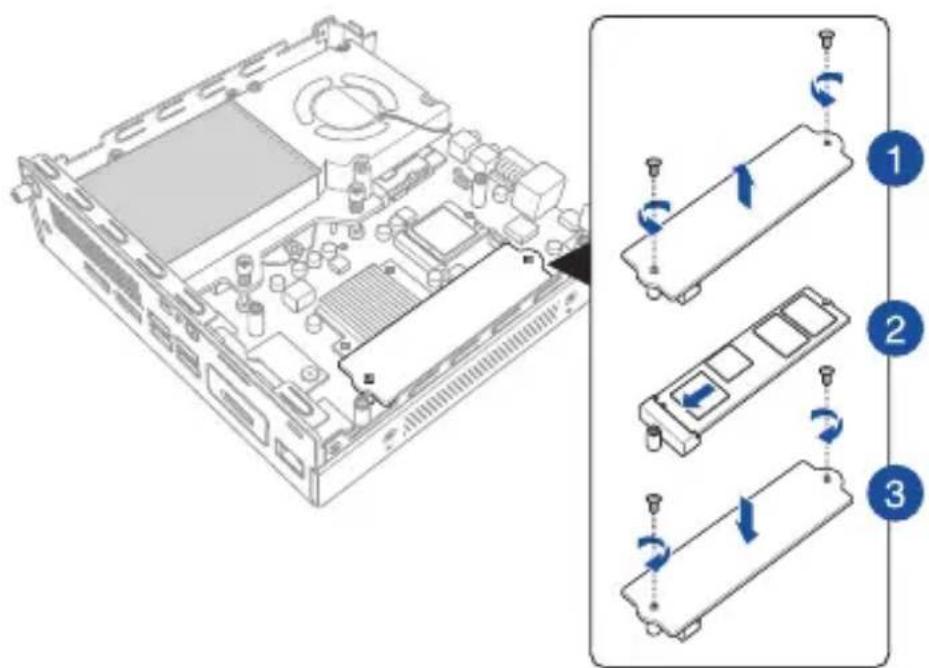

To install 2280 M.2 SSD

1. Remove the screws and remove the 2280 M.2 SSD heatsink.
2. Align and insert the 2280 M.2 SSD into its slot inside the Mini PC.
3. Align and place the 2280 M.2 SSD heatsink on top of the 2280 M.2 SSD, then fasten the heatsink using the screws you removed earlier.

Installing top memory module

IMPORTANT!

Refer to http://www.asus.com for the list of compatible DIMMs. You can only install DDR4 SO-DIMMs to the Mini PC's DIMM slot.
- Only ASUS-authorized technicians should remove and install motherboard and mechanical parts inside your Mini PC. Please refer to the terms and conditions in the warranty card.
- Visit an authorized ASUS service center or retailer for information on module upgrades for your Mini PC.

1. (optional) Remove the storage bay if a storage bay is installed. Follow step 1 under the Installing 2.5'' HDD or SSD section to remove the storage bay.

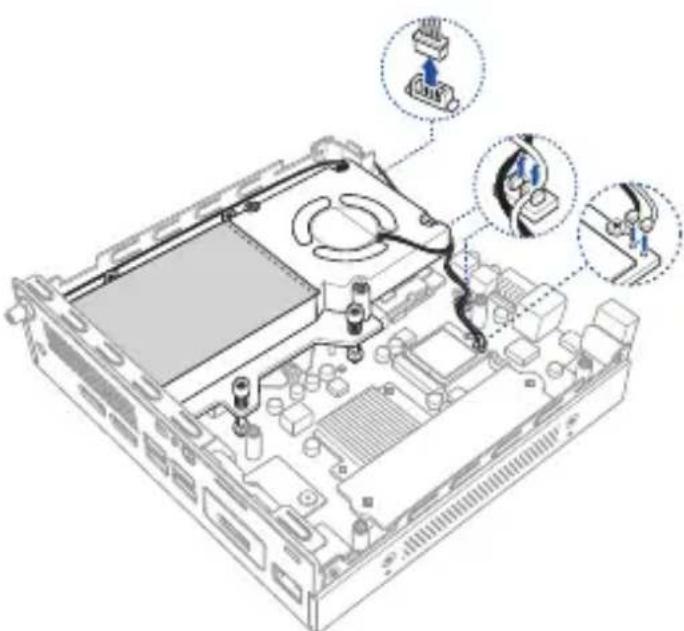

2. Disconnect the CPU fan cable and WiFi antenna cables.

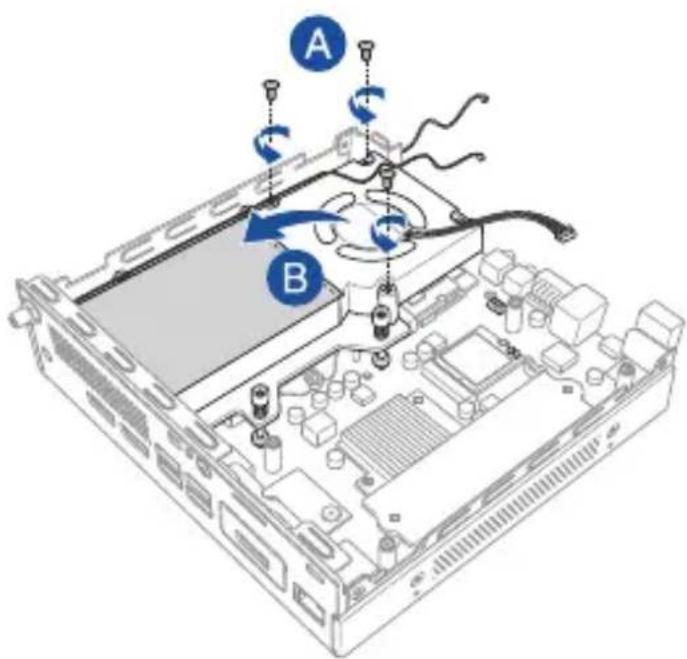

1. Remove the three (3) screws securing the fan (A), and lift the fan upwards so that it is perpendicular to the heatsink (B), but do not remove the fan completely.

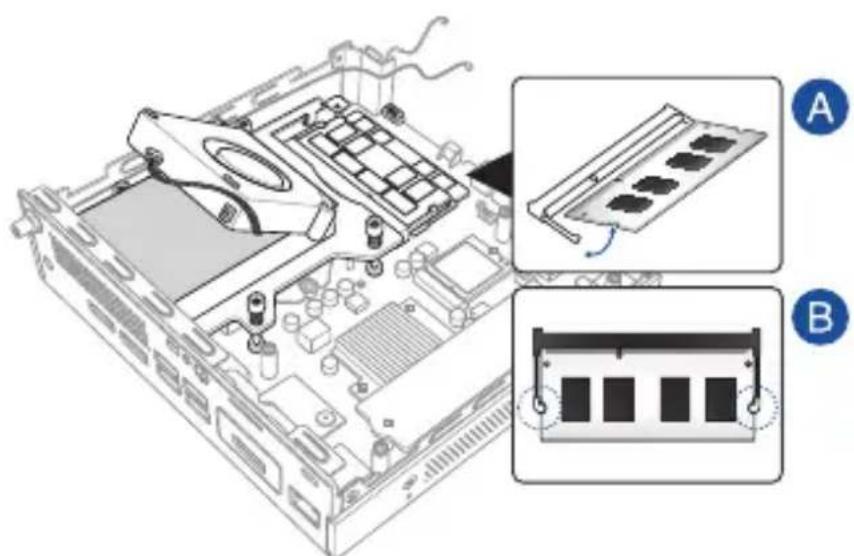

1. Align and insert the memory module into the slot (A) and press it down (B) until it is securely seated in place.

Installing the CPU

IMPORTANT!

Refer to http://www.asus.com for the list of compatible CPUs.
- Only ASUS-authorized technicians should remove and install motherboard and mechanical parts inside your Mini PC. Please refer to the terms and conditions in the warranty card.
- Visit an authorized ASUS service center or retailer for information on module upgrades for your Mini PC.

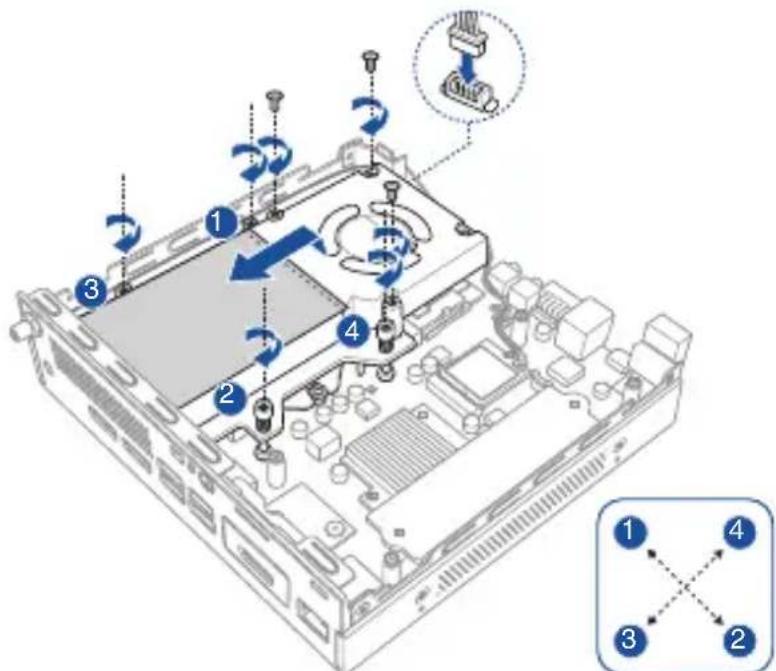

1. Disconnect the CPU fan cable and WiFi antenna cables.

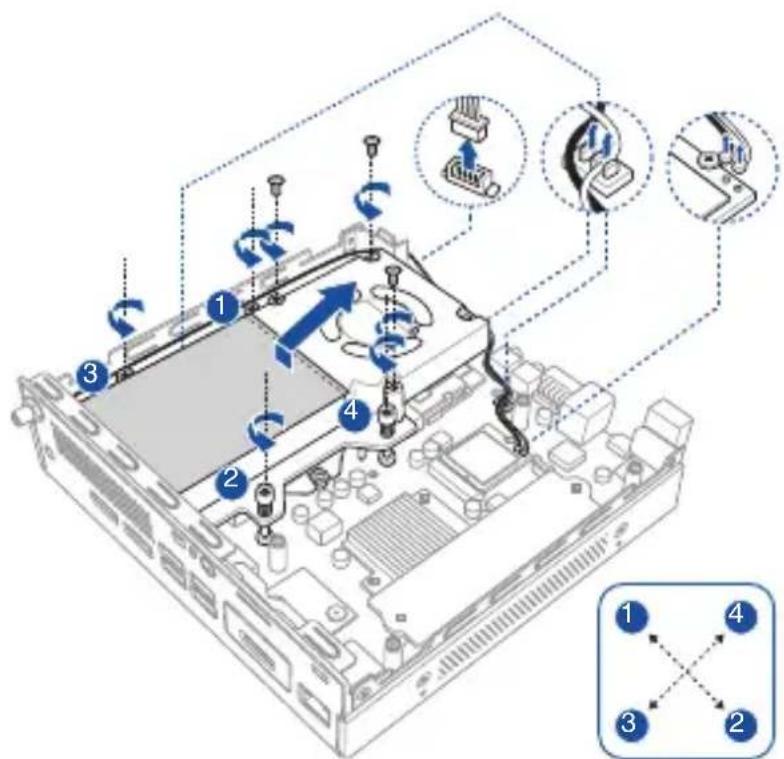

2. Remove the three (3) screws securing the fan, and loosen the four (4) screws securing the CPU heatsink one by one in a diagonal sequence as shown. Then remove the heatsink and fan module completely.

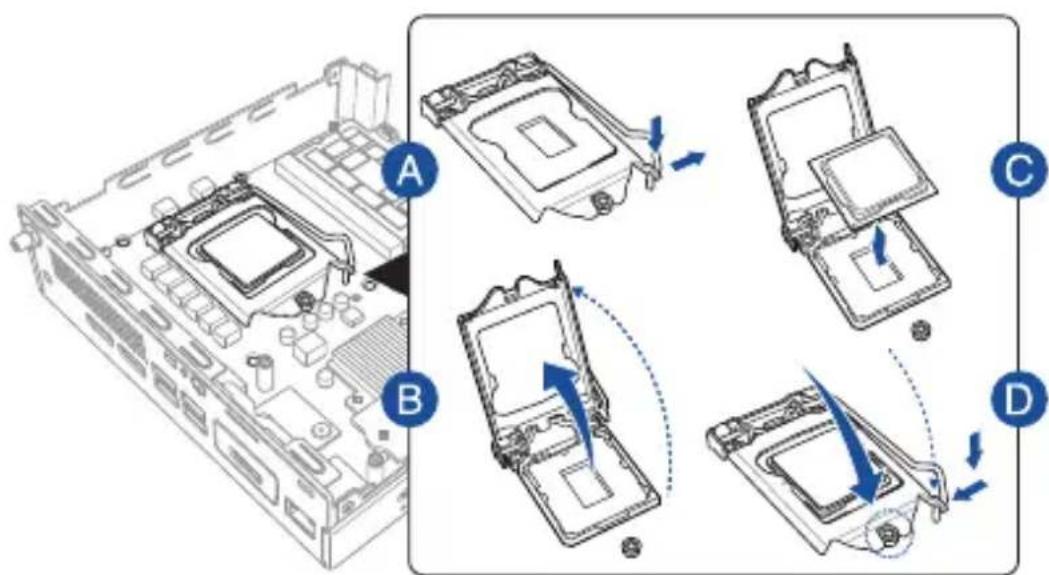

1. Press the load lever with your thumb, and move it to the right (A) until it is released from the retention tab. Lift the load lever until the load plate is completely lifted (B).

2. Position the CPU above the socket, ensuring that the gold triangle mark is on the bottom-left corner of the socket, then fit the CPU notches to the socket's alignment keys (C). Close the load plate, ensuring that the front edge of the load plate slides under the retention lock then push down the load lever (D).

1. Align and place the heatsink and fan module on top of the screw holes. Fasten the three (3) screws securing the fan, then fasten the four (4) screws securing the CPU heatsink one by one in a diagonal sequence as shown.

2. Connect the CPU fan cable.

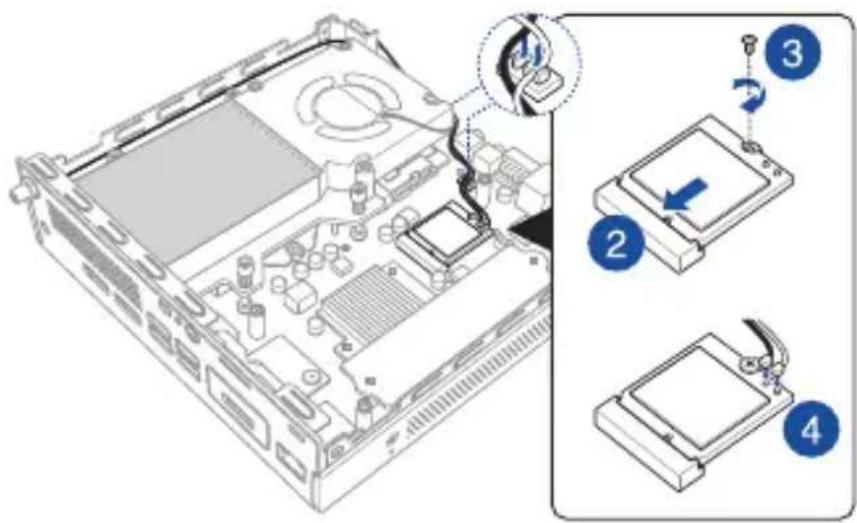

Installing the wireless card

NOTE: Your Mini PC includes a M.2 slot for 2230 wireless and Bluetooth modules. Refer to http://www.asus.com for the list of compatible wireless and Bluetooth modules.

1. Follow steps 1 and 2 under the Installing top memory module section to lift the fan before installing the wireless card.
2. Align and insert the wireless card into its slot inside the Mini PC.
3. Gently push down the wireless card on top of the screw hole and fasten it using the bundled 3mm round screw.
4. (optional) Connect the antennas to your wireless card.

Installing an external button

1. Remove the metal cover of the punch-out port.

CAUTION! Take extra care when removing the metal cover. Use tools such as a screw driver to bend and remove the metal cover to avoid physical injury.

1. Insert the external button connector through the punch-out port and connect it to one of the following 2-pin headers:

Header name Description

PWRBTNHEADER Power on or power off the Mini PC.

CLRTC Clear the Real Time Clock (RTC) RAM in CMOS.

Appendix

Safety information

Your Mini PC is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions.

Setting up your system

• Read and follow all instructions in the documentation before you operate your system.
• Do not use this product near water or a heated source.
• Set up the system on a stable surface.
• Openings on the chassis are for ventilation. Do not block or cover these openings. Make sure you leave plenty of space around the system for ventilation. Never insert objects of any kind into the ventilation openings.
• Use this product in environments with ambient temperatures between 0^ and 35^ .
• If you use an extension cord, make sure that the total ampere rating of the devices plugged into the extension cord does not exceed its ampere rating.
• This product should be connected by means of a power cord to a socket-outlet with earthing connection.
• This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

Care during use

• Do not walk on the power cord or allow anything to rest on it.
• Do not spill water or any other liquids on your system.

• When the system is turned off, a small amount of electrical current still flows. Always unplug the power cord from the power outlets before cleaning the system.

• If you encounter the following technical problems with the product, unplug the power cord and contact a qualified service technician or your retailer.

• The power cord or plug is damaged.
• Liquid has been spilled into the system.
• The system does not function properly even if you follow the operating instructions.
• The system was dropped or the cabinet is damaged.
• The system performance changes.
• Avoid contact with hot components inside the Mini PC. During operation, some components become hot enough to burn the skin. Before you open the computer cover, turn off the computer, disconnect the power, and wait approximately 30 minutes for the components to cool.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

NO DISASSEMBLY

The warranty does not apply to the products that have been disassembled by users

Regulatory notices

COATING NOTICE

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT! Outdoor operations in the 5.15 5.25 GHz band is prohibited. This device has no Ad-hoc capability for 5250 5350 and 5470 5725 MHz.

CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

ISED Radiation Exposure Statement for Canada

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with ISED RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

Operation is subject to the following two conditions:

• This device may not cause interference and
• This device must accept any interference, including interference that may cause undesired operation of the device.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CANICES-003(B)/NMB-003(B)

Wireless Operation Channel for Different Domains

N. America 2.412-2.462 GHz Ch01 through CH11

Japan 2.412-2.484 GHz Ch01 through Ch14

Europe ETSI 2.412-2.472 GHz Ch01 through Ch13

HDMI Compliance Statement

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm

EU RoHS

This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Ecodesign Directive

European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specific Implementing Measures are aimed at improving environmental performance of specific products or across multiple product types. ASUS provides product information on the CSR website. The further information could be found at https://csr.asus.com/english/article.aspx?id=1555.

DO NOT throw the device in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment, and mercury-containing button cell battery) should not be placed in municipal waste. Check local technical support services for product recycling.

ENERGY STAR complied product

ENERGY STAR is a joint program of the U.S. Environmental Protection

Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor and computer are automatically set to sleep after 10 and 30 minutes of user inactivity. To

wake your computer, click the mouse or press any key on the keyboard.

Please visit http://www.energystar.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

NOTE: Energy Star is NOT supported on FreeBSD and Linux-based products.

EPEAT (Electronic Product Environmental Assessment Tool) registered products

The public disclosure of key environmental information for ASUS EPEAT registered products is available on CSR web site http://csr.asus.com/english/article.aspx?id=41. More information about EPEAT program and purchaser guidance can be found on the EPEAT website www.epeat.net.

Optical Drive Safety Information Laser Safety Information

CLASS 1 LASER PRODUCT

WARNING! To prevent exposure to the optical drive's laser, do not attempt to disassemble or repair the optical drive by yourself. For your safety, contact a professional technician for assistance.

Manufacturer ASUSTeK Computer Inc.
	Tel: [phone]
	Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan
Authorised representative in Europe	ASUSTeK Computer GmbH
	Address: Harkortstrasse 21-23, 40880 Ratingen, Germany

ASUS contact information

ASUSTeK COMPUTER INC.

Address 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112, Taiwan

Telephone [phone]

Fax [phone]

Web site https://www.asus.com

Technical Support

Telephone [phone]

Online support https://qr.asus.com/techserv

ASUS COMPUTER INTERNATIONAL (America)

Address 48720 Kato Rd., Fremont, CA 94538, USA

Telephone [phone]

Fax [phone]

Web site https://www.asus.com/us/

Technical Support

Support fax [phone]

Telephone [phone]

Online support https://qr.asus.com/techserv

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkortstrasse 21-23, 40880 Ratingen, Germany

Web site https://www.asus.com/de

Online contact https://www.asus.com/support/Product/ContactUs/Services/

questionform/?lang=de-de

Technical Support

Telephone (DE) [phone]

Telephone (AT) [phone]

Online support https://www.asus.com/de/support

Call center: https://www.asus.com/support/CallUs

Mini PC

PB61V

PRODUIT LASER DE CLASSE 1

Adresse 1F, No. 15, Lide Rd., Beitou, Taipei 112, Taiwan

Telephone [phone]

Fax [phone]

Site Web https://www.asus.com

Support technique

Telephone [phone]

Support en ligne https://qr.asus.com/techserv

ASUS COMPUTER INTERNATIONAL (Amérique)

Adresse 48720 Kato Rd., Fremont, CA 94538, USA

Telephone [phone]

Fax [phone]

Site Web https://www.asus.com/us/

Support technique

Fax [phone]

Telephone [phone]

Support en ligne https://qr.asus.com/techserv

Telephone (AT): [phone]

Support en ligne https://www.asus.com/de/support

Centre d'applés: https://www.asus.com/support/CallUs
