Product type Stabilized fixed voltage power supply
Brand Voltcraft
Model FSP11320
Output voltage 13.8 V DC
Continuous output current 20 A

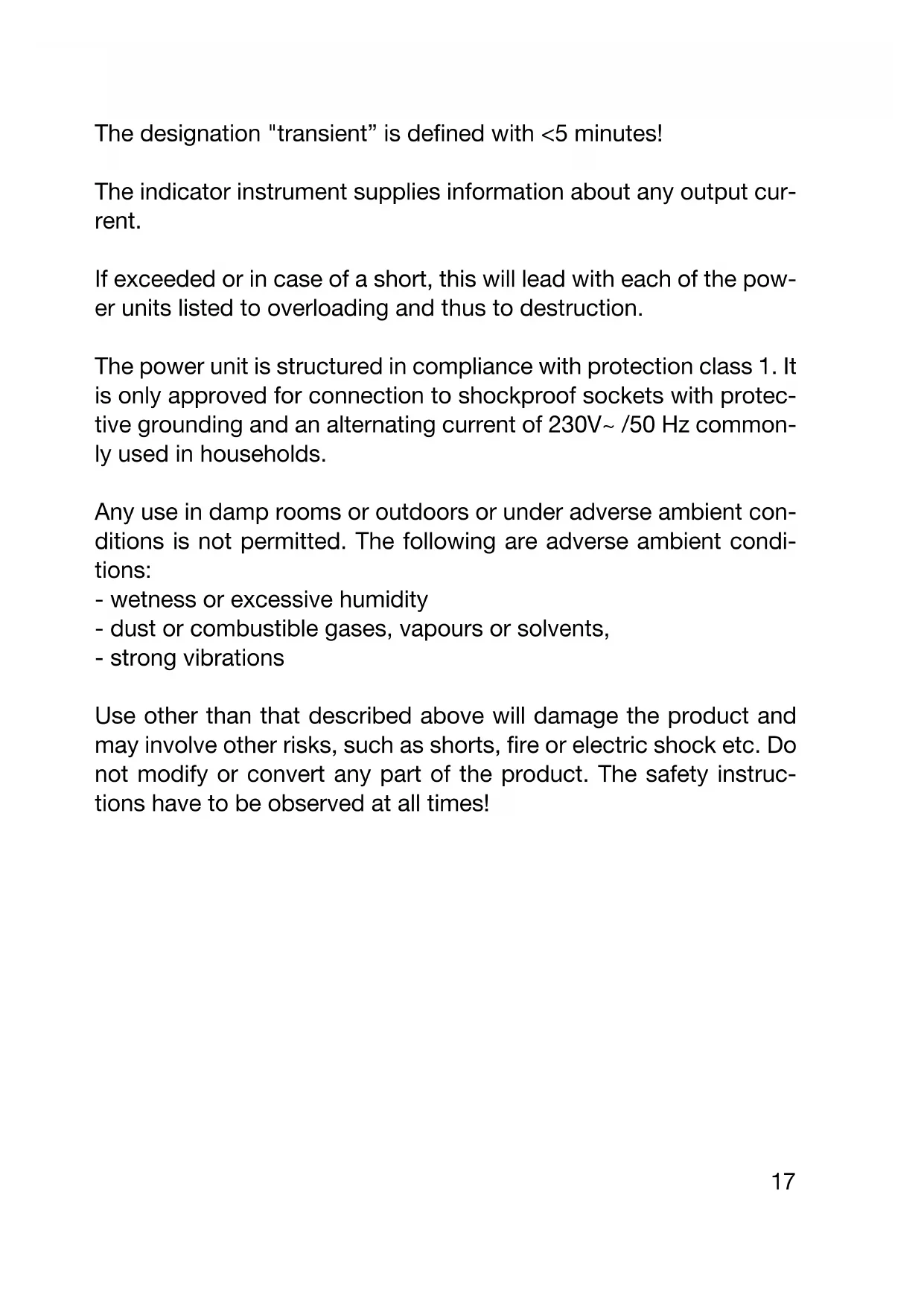

Temporary output current (max. 5 min) 22 A
Maximum output power (continuous) 280 W
Power supply 230 V~ (±10%) / 50 Hz
Mains fuse T2.5A/250V (5 x 20 mm)
Protection class 1 (with grounding)
Operating temperature +10 °C to +35 °C
Maximum relative humidity 85%, non-condensing
Current indicator Needle instrument (class 5)
Voltage regulation Stabilized, ripple < 20 mV (full load)
Output connection Screw terminals (red +, black -) for 4 mm plugs
Ventilation Built-in fan
Approximate dimensions (L x D x H) Not provided (estimated: approx. 250 x 200 x 150 mm)
Approximate weight Not provided (estimated: approx. 3 to 4 kg)
Maintenance Clean with dry, antistatic cloth, no abrasive cleaners
Fuse replacement Bayonet fuse holder, use identical fuse
Safety Protection against short circuits and overloads (limited to 5 min temporarily)
Intended use Power supply for low-voltage consumers (12-24 V DC depending on model)

Frequently Asked Questions - FSP11320 VOLTCRAFT

What are the maximum output currents of the FSP11320 power supply?
The continuous output current is 20 A, and the temporary current (max. 5 minutes) is 22 A.
What is the output voltage of the FSP11320?
The output voltage is fixed at 13.8 V DC.
What type of fuse should I use to replace a defective fuse?
Use a fuse of type T2.5A/250V (5 x 20 mm). Never use a repaired fuse or one of a different rating.
How to connect a load to the power supply?
Make sure the load is disconnected. Connect the positive terminal (+) to the red socket and the negative terminal (-) to the black socket. Preferably use 4 mm plugs.
What to do if the power supply does not turn on?
Check that the mains switch (3) is on. Check the mains voltage and the mains fuse. If necessary, replace the fuse with an identical model.
The connected load does not work, what to check?
Check the polarity of the connection and that the power supply is not overloaded (the ammeter indicates a high current). Consult the technical specifications of your load.
How to clean the power supply?
Use a clean, dry, antistatic, lint-free cloth. Do not use abrasive, chemical or solvent-based products.
Can I use this power supply as a battery charger?
No, this power supply is not a charger. To recharge batteries, use a suitable charger with a charge termination device.
What are the important safety precautions?
Never touch the device with wet hands. Ensure adequate ventilation, do not cover the ventilation grilles. Disconnect before opening. Risk of burns during prolonged operation.
Is this power supply suitable for outdoor use?
No, use is prohibited in damp rooms, outdoors or in the presence of dust, gases, flammable vapors or strong vibrations.
