HEAVY-DUTY SCREWDRIVER EXTRA ROBUSTE TOURNEVIS DESTORNILLADORES HEAVY-DUTY

WARNING To reduce the risk of injury, user must read and understand operator's manual. AVERTISSEMENT Aán de réduire le risque de blessures, l'utilisateur doit lire et bien comprendre le manuel. ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.

GENERAL POWER TOOL SAFETY WARNINGS

⚠WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, are and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

WORK AREA SAFETY

- Keep work area clean and well lit. Cluttered or dark areas invite accidents.

- Do not operate power tools in explosive atmospheres, such as in the presence of a ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

- If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

PERSONAL SAFETY

- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

- Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

POWER TOOL USE AND CARE

- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

- Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

- Store Idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES FOR SCREWDRIVER

- Hold power tool by insulated gripping surfaces when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. - Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a MILWAUKEE service facility for a free replacement.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

- lead from lead-based paint - crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to enter out microscopic particles.

EXTENSION CORDS

Grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage. Refer to the table shown to determine the required minimum wire size.

The smaller the gauge number of the wire, the greater the capacity of the cord. For example, a 14 gauge cord can carry a higher current than a 16 gauge cord. When using more than one extension cord to make up the total length, be sure each cord contains at least the minimum wire size required. If you are using one extension cord for more than one tool, add the nameplate amperes and use the sum to determine the required minimum wire size.

Guidelines for Using Extension Cords

- If you are using an extension cord outdoors, be sure it is marked with the sulfi x "W-A" ("W" in Canada) to indicate that it is acceptable for outdoor use.

- Be sure your extension cord is properly wired and in good electrical condition. Always replace a damaged extension cord or have it repaired by a qualified person before using it.

- Protect your extension cords from sharp objects, excessive heat and damp or wet areas.

Recommended Minimum Wire Gauge For Extension Cords ^a
Nameplate Amps	Extension Cord Length
	25' 50'	75' 100'	150'
0 - 2.0	18	18	18	18	16
2.1 - 3.4	18	18	18	16	14
3.5 - 5.0	18	18	16	14	12
5.1 - 7.0	18	16	14	12	12
7.1 - 12.0	16	14	12	10	--
12.1 - 16.0	14	12	10	--	--
16.1 - 20.0	12	10	--	--	--

* Based on limiting the line voltage drop to five volts at 150% of the rated amperes.

GROUNDING

⚠WARNING Improperly connecting the ground- ing wire can result in the risk of electric shock. Check with a qualia ed electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug pro- vided with the tool. Never remove the grounding prong from the plug. Do not use the tool if the cord or plug is damaged. If damaged, have it repaired by a MILWAUKEE service facility before use. If the plug will not sit the outlet, have a proper outlet installed by a qualia ed electrician.

Grounded Tools (Three-Prong Plugs) Tools marked "Grounding Required" have a three wire cord and three prong grounding plug. The plug must be connected to a properly grounded outlet (See Figure A). If the tool should electrically malfunction or break down, grounding provides a low resistance path to carry electricity away from the user, reducing the risk of electric shock.

The grounding prong in the plug is connected through the green wire inside the cord to the grounding system in the tool. The green wire in the cord must be the only wire connected to the tool's grounding system and must never be attached to an electrically "live" terminal.

Your tool must be plugged into an appropriate outlet, properly installed and grounded in accordance with all codes and ordinances. The plug and outlet should look like those in Figure A.

Double Insulated Tools (Two-Prong Plugs) Tools marked "Double Insulated" do not require grounding. They have a special double insulation system which satisfies OSHA requirements and complies with the applicable standards of Underwriters Laboratories, Inc., the Canadian Standard Association and the National Electrical Code. Double Insulated tools may be used in either of the 120 volt outlets shown in Figures B and C.

SYMBOLOGY

Insulated

Alternating Current

Amps

n, XXXX min ^1 No Load Revolutions per Minute (RPM)

UL Listing for Canada and U.S.

Approval Mark for Mexico

SPECIFICATIONS

Volts	120 AC
Amps	6.5
Cat. No.	6580-20
RPM	0 - 1200
Cat. No.	6740-20
RPM	0 - 2500
Cat. No.	6742-20
RPM	0 - 4300
Cat. No.	6780-20
RPM	0 - 2900
Cat. No.	6790-20
RPM	0 - 2500
Cat. No.	6791-20
RPM	0 - 2500
Cat. No.	6791-20
RPM	0 - 2500
Cat. No.	6792-20
RPM	0 - 2500

FUNCTIONAL DESCRIPTION

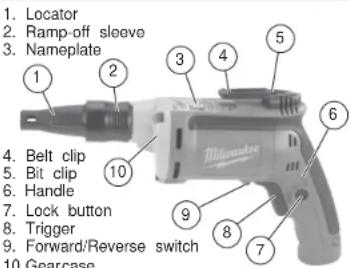

1. Locator 2. Ramp-off sleeve 3. Nameplate 4. Belt clip 5. Bit clip 6. Handle 7. Lock button 8. Trigger 9. Forward/Reverse switch 10. Gearcase

ASSEMBLY

⚠ WARNING To reduce the risk of injury, always unplug tool before changing or removing accessories. Only use accessories specifically recommended for this tool. Others may be hazardous.

Removing and Replacing Quik-Lok® Cords (Cat. No. 6580-20, 6791-20)

MILWAUKEE's exclusive Quik-Lok® Cords provide instant li eld replacement or substitution.

Diagram illustrating four steps of a medical or laboratory procedure with labeled arrows and a magnified inset showing tissue or tissue structure.

1. To remove the Quik-Lok® Cord, turn the cord nut 1/4 turn to the left and pull it out.
2. To replace the Quik-Lok ^® Cord, align the connector keyways and push the connector in as far as it will go. Turn the cord nut 1/4 turn to the right to lock.

Installing and Removing Bits TEKS Ramp-Off Locator Assembly

The locator assembly must

be removed when changing bit sizes.

1. Unplug tool. To remove the locator assembly, turn the ramp-off sleeve while pulling it away from the tool.
2. Pull out the magnetic

socket and replace it with a new socket. 3. Push the locator assembly onto the nose of the tool until it snaps into place.

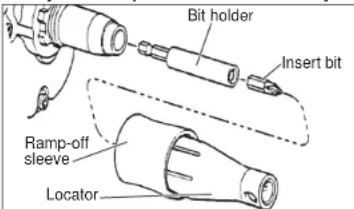

Installing and Removing Bits Drywall Ramp-Off Locator Assembly

Bit holder Insert bit Ramp-off sleeve Locator

1. Unplug tool. To remove the locator assembly, turn the ramp-off sleeve while pulling it away from the tool.
2. Push insert bit into bit holder until it snaps into place. Push the bit holder into the nose of the tool until it snaps into place.
3. Push the locator assembly onto the nose of the tool until it snaps into place.

Installing and Removing Magnetic Sockets on Adjustable Screwdrivers For Cat. No. 6580-20

1. Unplug tool.
2. To remove the magnetic socket, slide the locking sleeve forward and pull out the socket.

1. To Install the magnetic socket, slide the locking sleeve forward and push in the socket until it is fully seated.

For Cat. No. 6780-20

1. Unplug tool.
2. To remove the magnetic socket, slide the locking sleeve forward and pull out the socket.

1. To install the magnetic socket, simply push in the socket until it snaps into place.

OPERATION

⚠ WARNING To reduce the risk of Injury, always wear safety goggles or glasses with side shields.

Using Forward/Reverse Switch

1. For forward (clockwise) rotation, push the forward/reverse switch to the left position as shown.
2. For reverse (counterclockwise) rotation, push the forward/reverse switch to the right position as shown. Although an interlock prevents reversing the tool while the motor is running, allow it to come to a full stop before reversing.

Front of Tool Reverse Forward Trigger Switch

AWARNING To reduce the risk of injury, keep hands and cord away from the bit and all moving parts.

Starting, Stopping and Controlling Speed

1. To start the tool, pull the trigger.
2. To stop the tool, release the trigger.
3. To vary the drilling speed, simply increase or decrease pressure on the trigger. The further the trigger is pulled, the greater the speed.

Locking Trigger

The lock button holds the trigger in the ON position for continuous full speed use.

1. To lock the trigger, hold the lock button in while pulling the trigger. Release the trigger.
2. To unlock the trigger, pull the trigger and release The lock button will pop out.

Adjusting Locator Assembly

The locator assembly controls the tool's driving depth. These screwdrivers feature a locator assembly with one-handed depth adjustment. Depth adjustments can be made easily and quickly by turning the locator with one hand. Detents inside the sleeve "lock" the selected depth.

For the drywall ramp-off locator assembly, start with about 1/16" clearance between the head of the screw and nose with the snap-action clutch disengaged as shown.

For both locator assemblies, the detents on the inside of the sleeve represent different depths. Every two clicks of the locator equal 1/64". Continue adjusting the locator to the desired depth.

1. To Increase the driving depth, simply rotate the locator in the direction labeled
2. To decrease the driving depth, simply rotate the locator in the direction labeled The detents "lock" the locator

in place, ensuring an accurate depth setting. 3. To remove the locator assembly, turn the ramp-off sleeve while pulling it away from the tool. Reattaching the locator assembly will not change the depth setting.

Adjusting Torque Setting

These screwdrivers have a torque setting adjustment collar for driving different types of screws into different materials. When properly adjusted, the clutch will slip at a preset torque to prevent driving the screw too deep and to prevent damage to the screw or tool.

For Cat. Nos. 6580-20

The 6580-20 Screwdriver has a torque setting adjustment collar that may be adjusted to one of forty-four settings. The torque is adjustable from 10 to 140 inch-pounds.

To select a setting, turn the adjustment collar in the direction indicated on the tool. The selected setting will appear in the window as shown.

NOTE: Use a piece of scrap material to test the different settings before driving screws into workpiece. To determine a specific setting for your application use a torque wrench to check the correct torque at any particular setting.

For Cat. No. 6780-20

The 6780-20 Screwdriver has a torque setting adjustment collar that may be adjusted to one of twenty-one settings. The torque is adjustable

from 10 to 140 inch-pounds. To select a setting, turn the adjustment collar on the tool. The selected setting will appear above the arrow as shown.

NOTE: Use a piece of scrap material to test the different settings before driving screws into workpiece.

To determine a specific setting for your application use a torque wrench to check the correct torque at any particular setting.

APPLICATIONS

⚠ WARNING To reduce the risk of electric shock, check work area for hidden pipes and wires before drilling or driving screws.

Driving Drywall Screws

For Screwdrivers Rated up to 4300 RPM Standard drywall screws are generally designed for attaching drywall to wood studs and 26 through 20-gauge steel studs. MILWAUKEE Screwdrivers are ideal for driving these types of drywall screws. The depth setting is very important. Refer to the guide below for the correct depth setting.

Correct. Head of screw is below surface, but does not puncture facing.

Too deep. Head of screw punches hole in drywall surface, making finishing diff cult and allowing moisture beneath facing. Decrease depth.

Too shallow. Head of screw extends above drywall face and can not be finished off. Increase depth.

1. Select the proper drywall screw for each job. Pilot holes are not needed. To insert screws, place the screw onto the insert bit, then align the screw against the work surface, making sure to hold the tool and screw square to the work surface. If the tool or screw are misaligned, the screw will not drive into the work surface or it will not drive straight.

2. Pull the trigger and push the tool forward with a "punching" motion to sink the screw into the drywall. A punching motion will engage the snap-action clutch, cause the screw to start rotating, sink the screw and disengage the snap-action clutch within a fraction of a second. If pressure is not maintained on the tool after engaging the snap-action clutch, the screw will not properly seat. The snap-action clutch will automatically disengage and the insert bit will stop rotating once the screw has been driven to the selected depth. These screwdrivers feature a snap-action clutch, which may ratchet slightly when the screw is sunk to the selected depth.
   NOTE: Practice driving screws into pieces of scrap material to become familiar with the tool and the snap-action clutch action before attempting to drive screws into the workpiece.

3. To remove screws, remove the locator assembly and switch the forward/reverse switch to the reverse position. Reattaching the locator assembly will not change the depth setting.

Driving Decking Screws

For Screwdrivers with Depth Locators Rated up to 2900 RPM

Standard decking screws are generally designed for attaching wood to wood studs. MILWAUKEE Screw-drivers are ideal for driving these types of decking screws. The depth setting is very important. Refer to the guide below for the correct depth setting.

Correct. Head of screw is below surface.

Too deep. Head of screw punches hole in surface, allowing moisture to collect. Decrease depth.

Too shallow. Head of screw extends above surface. Increase depth.

1. Select the proper decking screw for each job. Pilot holes are not needed. To insert screws, place the screw onto the insert bit, then align the screw against the work surface, making sure to hold the tool and screw square to the work surface.
   If the tool or screw are misaligned, the screw will not drive into the work surface or it will not drive straight. Wood screws have sharp points or drill points, and course threads that help the screw through the wood.
   Pull the trigger and push the tool forward to sink the screw into the wood. A quick motion will engage the snap-action clutch, cause the screw to start rotating, sink the screw and disengage the snap-action clutch within a fraction of a second. If pressure is not maintained on the tool after engaging the snap-action clutch, the screw will not properly seat.
   The snap-action clutch will automatically disengage and the insert bit will stop rotating once the screw has been driven to the selected depth.
   These screwdrivers feature a snap-action clutch, which may ratchet slightly when the screw is sunk to the selected depth.

NOTE: Practice driving screws into pieces of scrap material to become familiar with the tool and the snap-action clutch action before attempting to drive screws into the workpiece.

1. To remove screws, remove the locator assembly and switch the forward/reverse switch to the reverse position. Reattaching the locator assembly will not change the depth setting.

Driving Self-Drilling Screws into

Cold-Formed Steel Framing For Adjustable Torque Screwdrivers Rated up to 2900 RPM

Follow this procedure when working with light gauge sheet metal, 20 gauge and thicker.

The screw may hesitate slightly when it finishes breaking through the rst layer of material and starts to penetrate the sheet metal. This is normal. Keep rm pressure on the tool until the screw is fully seated.

Self-drilling and self-tapping screws drill, tap and fasten in one quick, easy motion without a separate drilling operation. Their unique design works in metal up to 1/2" thick, giving a strong, reliable hold. The drill point ensures rapid drilling and consistently low drilling pressure while the drill 4 utes remove drilling chips. The pilot section ensures that drilling is completed before the 5 rst thread engages the material. These screws can be used in many applications.

1. Insert screw into the hex socket and align the screw against the work surface.

2. Pull the trigger while pushing the tool forward. This motion will engage the drive clutch, causing the screw to start rotating. If pressure is not maintained on the tool, the drive clutch will disengage and the screw will stop rotating.

When the selected torque is fully reached, the torque clutch will ratchet. If the screw is not fully seated, increase the torque setting number until the desired torque is obtained.

NOTE: Practice driving screws into pieces of scrap material to become familiar with the tool and the clutch action before attempting to drive screws into the workpiece.

1. To remove screws, switch the forward/reverse switch to the reverse position.

Sheet to sheet

Sheet to structure

Structure to structure

Wood to structure

Corrugated siding

Driving Wood Screws

When driving wood screws, a pilot hole is recommended to make driving easier and to prevent splitting the wood. As a general rule, the pilot hole should have a diameter of approximately 70% the size of the screw diameter. Hardwood pilot holes should have a diameter of approximately 90% the size of the screw diameter. The depth of the pilot hole should be shorter than the length of the screw by at least one screw diameter. This allows the tip of the screw to bite into the wood for extra holding power. Counterbore the top portion of the hole for a free sit of the shank between the screw head and the threads. When using at head screws, countersink the top of the hole to allow the screw head to be driven if rush with the work surface. Use soap or wax for easier screw insertion if necessary.

MAINTENANCE

⚠ WARNING To reduce the risk of injury, always unplug the tool before performing any maintenance. Never disassemble the tool. Contact a MILWAUKEE service facility for ALL repairs.

Maintaining Tools

Keep your tool in good repair by adopting a regular maintenance program. Inspect your tool for issues such as undue noise, misalignment or binding of moving parts, breakage of parts, or any other condition that may affect the tool operation. Return the tool to a MILWAUKEE service facility for repair. After six months to one year, depending on use, return the tool to a MILWAUKEE service facility for inspection.

⚠ WARNING To reduce the risk of personal injury, electric shock and damage, never immerse your tool in liquid or allow a liquid to allow inside it.

Cleaning

Clean dust and debris from vents. Keep handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use ammable or combustible solvents around tools.

Repairs

For repairs, return the fool to the nearest service center.

ACCESSORIES

AWARNING Use only recommended accessories. Others may be hazardous. For a complete listing of accessories, go online to www.milwaukeetool.com or contact a distributor.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CS

visit www.milwaukeeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Register your tool at www.milwaukeeetool.com... • to receive important noti cations regarding your purchase

• to ensure that your tool is protected under the warranty • to become a Heavy Duty club member

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE power tool (including cordless product tool, battery pack/s) - see separate & distinct CORDLESS BATTERY PACK LIMITED WARRANTY statements & battery charger and Work Lights ^1 is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool for a 3-wheeler motor, which is not suitable for sale of the current file in material or workmanship for a period of five (5) years after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE is not suitable for sale of the current file in material or workmanship for a period of five (5) years after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents. *The warranty period for, Job Site Radios, M12 ^™ Power Port, M18 ^™ Power Source, Jossite Fan and Trade Titan ^™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for a period of sale is not suitable for sale of the current file in material or workmanship for a period of normal use the LED bulb falls the Work Light or Upgrade Bulb will be replaced tree of charge. *This warranty does not cover Air Nailers & Stapler, Airless Paint Sprayer, Cordless Battery Packs, Gasoline Driven Portable Power Generators, Hand Tools, Hoist - Electric, Lever & Hand Chain, M12 ^™ Hosted Jackets, Reconditioned product and Test & Measurement Paper (or other items are separate and distinct) warranties available for these products.

Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. A Warranties for the years 1990, 1991, and 1992 are NOT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CONTRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR CONSEQUENTIAL ANY WARRANTY OF ANY INFORMATION AND ANY OTHER EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES; SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT REQUIRE ANY WARRANTY OF ANY WARRANTY OF ANY THIS ORDER OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH WARRANTY IS NOT REQUIRED. ANY WARRANTY ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeetool.com or call 1.800. SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.

LIMITED WARRANTY - MEXICO, CENTRAL AMERICA & CARIBBEAN

TECHTRONIC INDUSTRIES' warranty is for 5 year since the original purchase date.

This warranty card covers any defect in material and workmanship on this Power Tool.

To make this warranty valid, present this warranty card, sealed stamped by the distributor or store where you purchased the product, to the Authorized Service Center (ASC). Or, if this card has not been sealed/stamped, present the original proof of purchase to the ASC. Call toll-free 1 800 832 1949 to find the nearest ASC, for service, parts, accessories or components.

Procedure to make this warranty valid

Take the product to the ASC, along with the warranty card sealed stamped by the distributor or store where you purchased the product, and there any faulty piece or component will be replaced without cost for you. We will cover all freight costs relative with this warranty process.

Exceptions

This warranty is not valid in the following situations:

a) When the product is used in a different manners from the end-user guide or instruction manual.

b) When the conditions of use are not normal.

c) When the product was modified or repaired by people not authorized by TECHTRONIC INDUSTRIES.

Note: If cord set is damaged, it should be replaced by an Authorized Service Center to avoid electric risks.

SERVICE AND ATTENTION CENTER

Av Presidente Mazarik 29 Piso 7, 11570 Chapultepec Morales

Miguel Hidalgo, Distrito Federal. Mexico

Ph. 52 55 4160-3547

IMPORTED AND COMMERCIALIZED BY:

TECHTRONIC INDUSTRIES MEXICO, S.A. DE C.V.

Av Presidente Mazarik 29 Plso 7, 11570 Chapultepec Morales

Miguel Hidalgo, Distrito Federal, Mexico

Model:

Date of Purchase:

Distributor or Store Stamp:

RÈGLES DE SÉCURITÉ GÉNÉRALES RELATIVES AUX OUTILS ELECTRIQUES

Diagram illustrating three stages of a geological or sedimentary process with embedded particles and stratified layers.

Diagram of three vertical screw-like structures with wavy internal lines, no text or symbols present

Milwaukee Tool (Canada) Ltd

1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST

www.milwaukeetool.ca

GARANTIE LIMITÉE

AUX ÉTATS-UNIS ET AU CANADA

Three diagrams showing a pointed tool inserted into different depths (no text or symbols present)

Three diagrams showing a pointed tool inserted into a surface, with no text or symbols present.

Lunes a Viernes (9am a 6pm)

13135 West Lisbon Road

Brookfield, WI 53005 USA

58146740d12 961011789-01(A)

11/15 Printed in China
