| Brand | Electrolux |
| Model | KUT6NE18S |
| Product type | Freezer |
| Overall dimensions (H x W x D) | 1772 mm x 548 mm x 549 mm |
| Dimensions with service space (H x W x D) | 1816 mm x 548 mm x 551 mm |
| Total dimensions with door open (H x W x D) | 1816 mm x 548 mm x 1071 mm |
| Climate class | 10°C to 43°C (SN-T) |
| Refrigerant | Isobutane (R600a) |
| Defrost type | Automatic (frost-free) |
| Adjustable temperature range | -15°C to -24°C |
| Special functions | FastFreeze, ChildLock, DrinksChill, high temperature alarm, open door alarm |
| Display | Digital screen with temperature and function indicators |
| Door reversal | Possible (instructions provided) |
| Included accessories | Ice cube trays, cold accumulators |
| Maintenance and cleaning | Clean with lukewarm water and mild soap; do not use abrasive products |
| Availability of spare parts | Electronic and mechanical parts for 7 years, door gaskets for 10 years after model discontinuation |
| Safety | Child lock (ChildLock), automatic alarm stop, mandatory grounding |
| Installation | Requires ventilation of at least 200 cm² at the back; do not expose to direct sunlight |
| Intended use | Domestic, food preservation and freezing |
| Power supply | 220-240 V, 50 Hz (check the rating plate) |
Frequently Asked Questions - KUT6NE18S ELECTROLUX
User questions about KUT6NE18S ELECTROLUX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual KUT6NE18S - ELECTROLUX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KUT6NE18S by ELECTROLUX.
USER MANUAL KUT6NE18S ELECTROLUX
WE'RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
Register your product for better service: www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
⚠ Warning / Caution-Safety information
i General information and tips
Environmental information
Subject to change without notice.
1. ⚠ SAFETY INFORMATION
Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

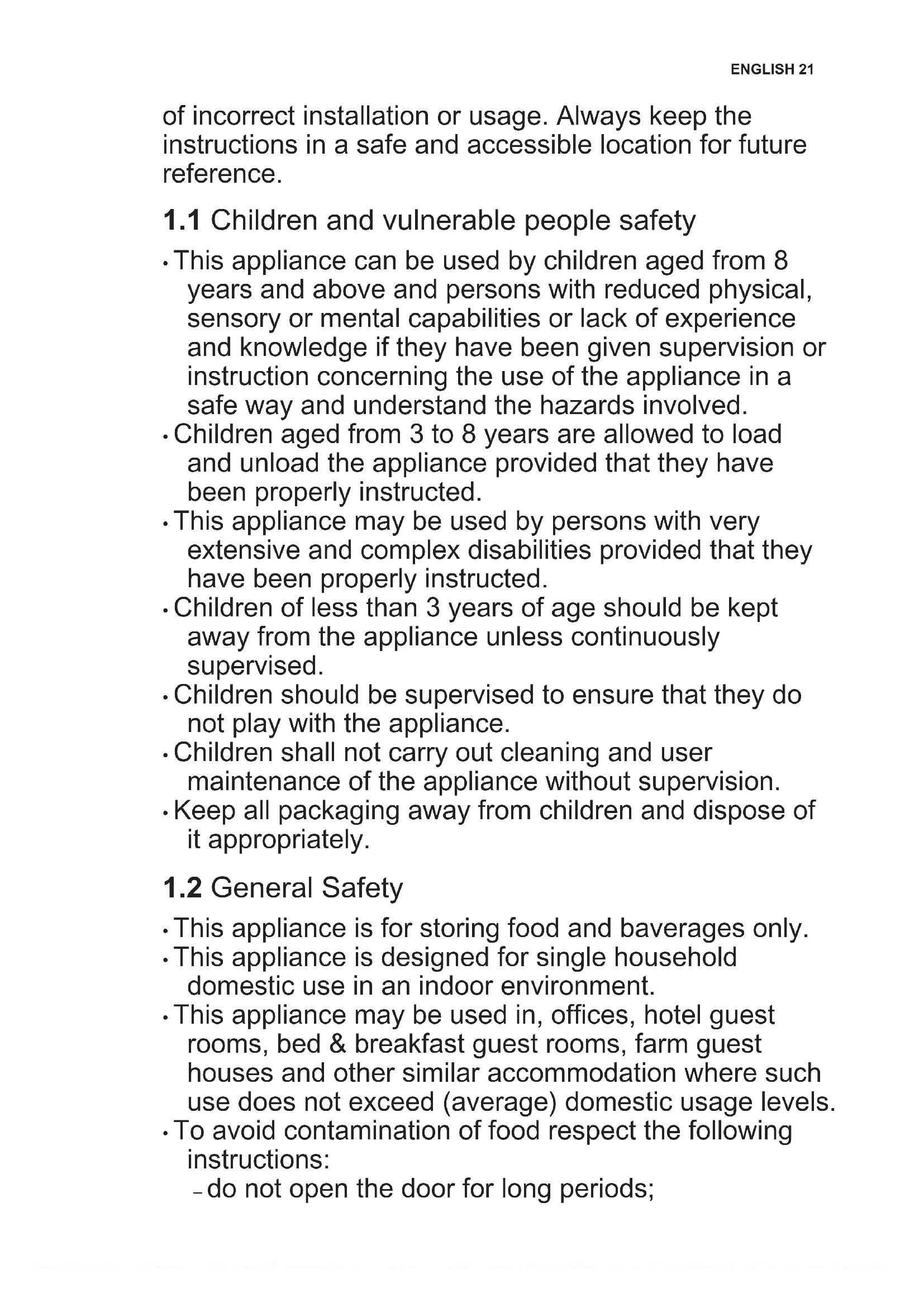

1.1 Children and vulnerable people safety
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
- Children aged from 3 to 8 years are allowed to load and unload the appliance provided that they have been properly instructed.
- This appliance may be used by persons with very extensive and complex disabilities provided that they have been properly instructed.
- Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
- Children should be supervised to ensure that they do not play with the appliance.
- Children shall not carry out cleaning and user maintenance of the appliance without supervision.
- Keep all packaging away from children and dispose of it appropriately.
1.2 General Safety
- This appliance is for storing food and baverages only.
- This appliance is designed for single household domestic use in an indoor environment.
- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
- To avoid contamination of food respect the following instructions:
- do not open the door for long periods;
– clean regularly surfaces that can come in contact with food and accessible drainage systems;
- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not use water spray and steam to clean the appliance.
- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
- When the appliance is empty for long period, switch it off, defrost, clean, dry and leave the door open to prevent mould from developing within the appliance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
- Remove all the packaging.
- Do not install or use a damaged appliance.
- Do not use the appliance before installing it in the built-in structure due to safety manner.
- Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Make sure the air can circulate around the appliance.
- At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.
- Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
- Do not install the appliance close to radiators or cookers, ovens, or hobs, unless otherwise specified in the installation instructions.
- Do not expose the appliance to the rain.
- Do not install the appliance where there is direct sunlight.
- Do not install this appliance in areas that are too humid or too cold.
- When you move the appliance, lift it by the front edge to avoid scratching the floor.
- The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
WARNING!
When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING!
Do not use multi-plug adapters and extension cables.
• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric shock or fire.
The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility. Be careful not to cause damage to the refrigerant circuit containing isobutane.
- Do not change the specification of this appliance.
- Any use of the built-in product as free-standing is strictly prohibited.
- Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
- If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
- Do not let hot items to touch the plastic parts of the appliance.
- Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
- Do not store flammable gas and liquid in the appliance.
- Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
- Do not touch the compressor or the condenser. They are hot.
- Do not remove or touch items from the freezer compartment if your hands are wet or damp.
- Do not freeze again food that has been thawed.
- Follow the storage instructions on the packaging of frozen food.
- Wrap the food in any food contact material before putting it in the freezer compartment.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to the appliance.
- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
- This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
- Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.
2.5 Service
• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts will be available for 7 years after the model has been discontinued: thermostats, temperature sensors, printed circuit boards, light sources, door handles,
3. INSTALLATION
WARNING!
Refer to Safety chapters.
WARNING!
Refer to installation instruction document to install your appliance.
door hinges, trays and baskets. Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
- Door gaskets will be available for 10 years after the model has been discontinued.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
- Disconnect the appliance from the mains supply.
- Cut off the mains cable and discard it.
- Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly. - The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
- Do not cause damage to the part of the cooling unit that is near the heat exchanger.
WARNING!
Fix the appliance in accordance with installation instruction document to avoid a risk of instability of the appliance.

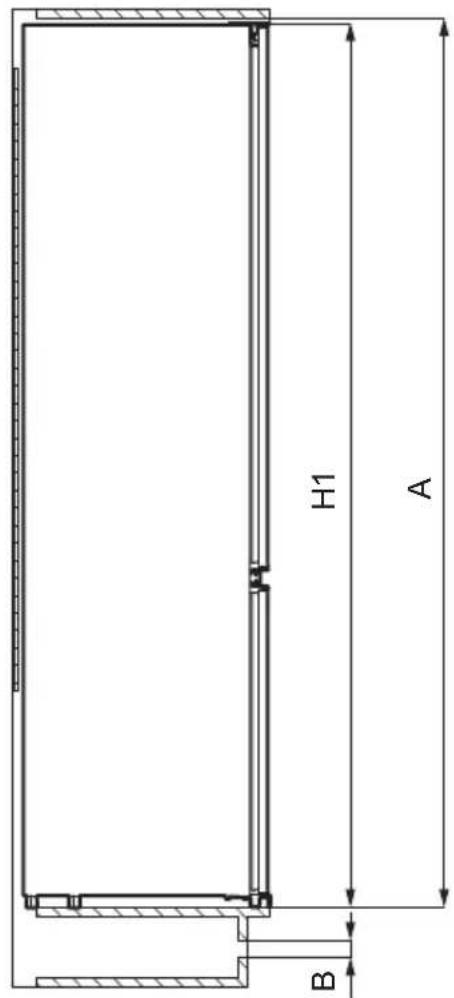

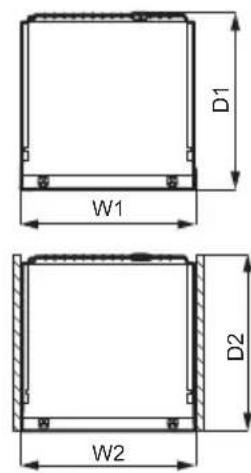

3.1 Dimensions
| H1 mm 1772 |
| W1* mm 548 |
| D1 mm 549 |
^1 the height, width and depth of the appliance without the handle
* including the width of the bottom hinges (8 mm)
| Space required in use2 |
| H2 (A+B) mm 1816 |
| W2* mm 548 |
| D2 mm 551 |
| A mm 1780 |
| Space required in use2 |
| B mm 36 |
^2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air
* including the width of the bottom hinges (8 mm)
Overall space required in use ^3
| H3 (A+B) mm 1816 |
| W3* mm 548 |
| D3 mm 1071 |
^3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of
the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment
* including the width of the bottom hinges (8 mm)
3.2 Location
To ensure appliance's best functionality, you should not install the appliance in a place with direct sunlight. Do not install the appliance close to radiators or cookers, ovens, or hobs, unless otherwise specified in the installation instructions.
Make sure that air can circulate freely around the back of the cabinet.
This appliance should be installed in a dry, well ventilated indoor position.
This appliance is intended to be used at ambient temperature ranging from 10^ C to 43^ C.
The correct operation of the appliance can only be guaranteed within the specified temperature range.
If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.
It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.
3.3 Electrical connection
- Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
- The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
- The manufacturer declines all responsibility if the above safety precautions are not observed.

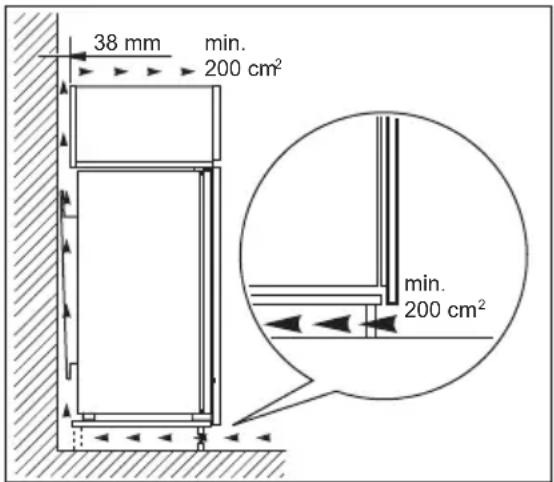

3.4 Ventilation requirements
The airflow behind the appliance must be sufficient.
CAUTION!
Refer to the installation instructions for the installation.
3.5 Door reversibility
Please refer to the separate document with instructions on installation and door reversal.
CAUTION!
At every stage of reversing the door protect the floor from scratching with a durable material.
4. CONTROL PANEL
1 Display
2 Temperature warmer button
3 Temperature colder button
4 OK
5 Mode
6 ON/OFF
It is possible to change predefined sound of buttons by pressing together Mode
and temperature colder button for a few seconds. Change is reversible.

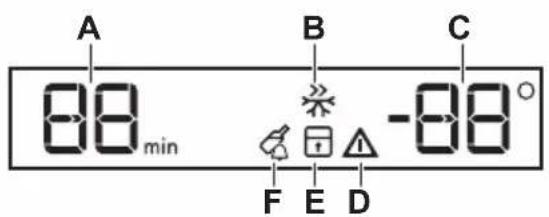

4.1 Display
B. FastFreeze function
C. Temperature indicator
D. Alarm indicator
E. ChildLock function
F. DrinksChill function
4.2 Switching on
- Connect the mains plug to the power socket.
- Press the appliance ON/OFF if the display is off. The temperature indicators show the set default temperature.
To select a different set temperature refer to "Temperature regulation".
If "dEMo" appears on the display, refer to "Troubleshooting".
4.3 Switching off
- Press the appliance ON/OFF for 3 seconds.
The display switches off. - Disconnect the mains plug from the power socket.
4.4 Temperature regulation
Set the temperature of the appliance by pressing the temperature regulators.
Recommended set temperature is: -18°C for the freezer
The temperature range may vary between -15°C and -24°C for freezer.
The temperature indicators show the set temperature.
The set temperature will be reached within 24 hours. After a power failure the set temperature remains stored.
4.5 FastFreeze function
The FastFreeze function is used to pre-freeze and fast freeze in sequence in the freezer compartment. This function accelerates the freezing of fresh food and, at the same time, protects
foodstuffs already stored from undesirable warming.
To freeze fresh food activate the FastFreeze function at least 24 hours before placing the food to complete pre-freezing.
- To activate this function press the Mode button until the corresponding icon appears.
The FastFreeze indicator flashes.
- Press the OK button to confirm.
The FastFreeze indicator is shown.
This function stops automatically after 52 hours.
You can deactivate the FastFreeze function before its automatic end by repeating the procedure until the FastFreeze indicator turns off or by selecting a different set temperature.
4.6 ChildLock function
Activate the ChildLock function to lock the buttons from unintentional operation.
- Press Mode until the corresponding icon appears.
The ChildLock indicator flashes.
- Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function, repeat the procedure until the ChildLock indicator turns off.
4.7 DrinksChill function
The DrinksChill function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down food products for a certain period of time.
It is also useful when a reminder is needed in order not to forget the bottles or cans placed in the freezer for fast cooling.
- Press Mode until the corresponding icon appears.
The DrinksChill indicator flashes.
The Timer shows the set value (30 minutes) for a few seconds.
-
Press the Timer regulator to change the Timer set value from 1 to 90 minutes.
-
Press OK to confirm.
The DrinksChill indicator is shown. The Timer starts to flash (min).
At the end of the countdown the "0 min" indicator flashes and an audible alarm sounds. Press OK to switch off the sound and terminate the function.
To switch off the function repeat the procedure until the DrinksChill indicator turns off.
It is possible to change the time at any time during the countdown and at the end by pressing the Temperature colder button and the Temperature warmer button.
4.8 High temperature alarm
When there is a temperature increase in the freezer compartment (for example due to an earlier power failure), the alarm and freezer temperature indicators flash and the sound is on.
To deactivate the alarm:
- Press any button.
The sound switches off.
- The freezer temperature indicator shows the highest temperature reached for a few seconds, then the display shows the set temperature again.
The alarm indicator continues to flash until the normal conditions are restored.
If you do not press any button, the sound switches off automatically after around one hour to avoid disturbing.
4.9 Door open alarm
If the freezer door is left open for approximately 90 seconds, the sound is on and alarm indicator flashes.
The alarm stops after closing the door. During the alarm, the sound can be muted by pressing any button.
If you do not press any button, the sound switches off automatically after around one hour to avoid disturbing.
5. DAILY USE
5.1 Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
To freeze fresh food activate the FastFreeze function at least 24 hours before placing the food to be frozen in the freezer compartment.
Store the fresh food evenly distributed in the first and second compartment or drawer from the top.
The maximum amount of food that can be frozen without adding other fresh food during 24 hours is specified on the rating plate (a label located inside the appliance).
When the freezing process is complete, the appliance automatically returns to the previous temperature setting (see "FastFreeze function").
For more information refer to "Hints for freezing".
5.2 Storage of frozen food
When activating an appliance for the first time or after a period out of use, before putting the products in the compartment let the appliance run at least 3 hours with the FastFreeze function switched on.
The freezer drawers ensure that it is quick and easy to find the food package you want.
If large quantities of food are to be stored, remove all drawers and place the food on shelves.
Keep the food no closer than 15 mm from the door.
CAUTION!
In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown on rating plate under "rising time", the defrosted food must be consumed quickly or cooked immediately then cooled and then re-frozen. Refer to "High temperature alarm".
5.3 Thawing
Deep-frozen or frozen food, prior to being consumed, can be thawed in the refrigerator or inside a plastic bag under cold water.
This operation depends on the time available and on the type of food. Small pieces may even be cooked still frozen.
5.4 Ice-cube production
This appliance is equipped with one or more trays for the production of ice-cubes.
Do not use metallic instruments to remove the trays from the freezer.
- Fill these trays with water.
- Put the ice trays in the freezer compartment.
5.5 Cold accumulators
This appliance is equipped with cold accumulators which increase storage time in the event of a power cut or breakdown.
To ensure the best performance of the accumulators, place them in the front top area of the appliance.
6. HINTS AND TIPS
6.1 Hints for energy saving
- The internal configuration of the appliance is the one that ensures the most efficient use of energy.
- Do not remove the cold accumulators from the freezer basket.
- Do not open the door frequently or leave it open longer than necessary.
- The colder the temperature setting, the higher the energy consumption.
- Ensure a good ventilation. Do not cover the ventilation grilles or holes.
- Make sure that food products inside the appliance allow air circulation through dedicated holes in the rear interior of the appliance.
6.2 Hints for freezing
- Activate FastFreeze function at least 24 hours before placing the food inside the freezer compartment.
- Before freezing wrap and seal fresh food in: aluminium foil, plastic film or bags, airtight containers with lid.
- For more efficient freezing and thawing divide food into small portions.
- It is recommended to put labels and dates on all your frozen food. This will help to identify foods and to know when they should be used before their deterioration.
- The food should be fresh when being frozen to preserve good quality. Especially fruits and vegetables should be frozen after the harvest to preserve all of their nutrients.
- Do not freeze bottles or cans with liquids, in particular drinks containing carbon dioxide - they may explode during freezing.
- Do not put hot food in the freezer compartment. Cool it down at room temperature before placing it inside the compartment.
-
To avoid increase in temperature of already frozen food, do not place fresh unfrozen food directly next to it. Place food at room temperature in the part of the freezer compartment where there is no frozen food.
-
Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer. Risk of frostbites.
- Do not re-freeze defrosted food. If the food has defrosted, cook it, cool it down and then freeze it.
6.3 Hints for storage of frozen food
- Freezer compartment is the one marked with ✕ ***
- Good temperature setting that ensures preservation of frozen food products is a temperature less than or equal to -18^ . Higher temperature setting inside the appliance may lead to shorter shelf life.
- The whole freezer compartment is suitable for storage of frozen food products.
- Leave enough space around the food to allow air to circulate freely.
- For adequate storage refer to food packaging label to see the shelf life of food.
- It is important to wrap the food in such a way that prevents water, humidity or condensation from getting inside.
6.4 Shopping tips
After grocery shopping:
- Ensure that the packaging is not damaged - the food could be deteriorated. If the package is swollen or wet, it might have not been stored in the optimal conditions and defrosting may have already started.
• To limit the defrosting process buy frozen goods at the end of your grocery shopping and transport them in a thermal and insulated cool bag. - Place the frozen foods immediately in the freezer after coming back from the shop.
- If food has defrosted even partially, do not re-freeze it. Consume it as soon as possible.
- Respect the expiry date and the storage information on the package.
6.5 Shelf life
| Type of food Shelf life (months) | |
| Bread 3 | |
| Fruits (except citrus) 6 - 12 | |
| Vegetables 8 - 10 | |
| Leftovers without meat 1 - 2 | |
| Dairy food: | |
| Butter | 6 - 9 |
| Soft cheese (e.g. mozzarella) | 3 - 4 |
| Hard cheese (e.g. parmesan, cheddar) | 6 |
| Seafood: | |
| Fatty fish (e.g. salmon, mackerel) | 2 - 3 |
| Lean fish (e.g. cod, flounder) | 4 - 6 |
| Shrimps | 12 |
| Shucked clams and mussels | 3 - 4 |
| Cooked fish | 1 - 2 |
| Meat: | |
| Poultry | 9 - 12 |
| Beef | 6 - 12 |
| Pork | 4 - 6 |
| Lamb | 6 - 9 |
| Sausage | 1 - 2 |
| Ham | 1 - 2 |
| Leftovers with meat | 2 - 3 |
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 Cleaning the interior
Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.
CAUTION!
Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.
CAUTION!
The accessories and parts of the appliance are not suitable for washing in a dishwasher.
7.2 Periodic cleaning
The equipment has to be cleaned regularly:
- Clean the inside and accessories with lukewarm water and some neutral soap.
- Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.
- Rinse and dry thoroughly.
7.3 Defrosting of the freezer
The freezer compartment is frost free. This means that there is no build up of frost when it is in operation, neither on the internal walls, nor on the foods.
7.4 Period of non-operation
When the appliance is not in use for long period, take the following precautions:
-
Disconnect the appliance from electricity supply.
-
Remove all food.
-
Clean the appliance and all accessories.
-
Leave the door open to prevent unpleasant smells.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
| Problem Possible cause Solution | ||
| The appliance does not operate. | The appliance is switched off. | Switch on the appliance. |
| The mains plug is not connected to the mains socket correctly. | Connect the mains plug to the mains socket correctly. | |
| There is no voltage in the mains socket. | Connect a different electrical appliance to the mains socket. Contact a qualified electrician. | |
| The appliance is noisy. The appliance is not supported properly. | Check if the appliance stands stable. | |
| Acoustic or visual alarm is on. | The cabinet has been recently switched on. | Refer to "High temperature alarm" or "Door open alarm". |
| The temperature in the appliance is too high. | Refer to "High temperature alarm" or "Door open alarm". | |
| The door is left open. Close the door. | ||
| The compressor operates continually. | Temperature is set incorrectly. | Refer to "Control panel" chapter. |
| Many food products were put in at the same time. | Wait a few hours and then check the temperature again. | |
| The room temperature is too high. | Refer to "Installation" chapter. | |
| Food products placed in | the appliance were too warm. | Allow food products to cool to room temperature before storing. |
| The door is not closed correctly. | Refer to "Closing the door" section. | |
| The FastFreeze function is switched on. | Refer to "FastFreeze function" section. | |
| The compressor does not start immediately after pressing the "FastFreeze", or after changing the temperature. | The compressor starts after a period of time. | This is normal, no error has occurred. |
| Door is misaligned or interferes with ventilation grill. | The appliance is not levelled. | Refer to installation instructions. |
| Door does not open easily. | You attempted to re-open the door immediately after closing. | Wait a few seconds between closing and re-opening of the door. |
| There is too much frost and ice. | The door is not closed correctly. | Refer to "Closing the door" section. |
| The gasket is deformed or dirty. | Refer to "Closing the door" section. | |
| Food products are not wrapped properly. | Wrap the food products better. | |
| Temperature is set incorrectly. | Refer to "Control panel" chapter. | |
| Appliance is fully loaded and is set to the lowest temperature. | Set a higher temperature. Refer to "Control panel" chapter. | |
| Temperature set in the appliance is too low and the ambient temperature is too high. | Set a higher temperature. Refer to "Control panel" chapter. | |
| Water flows on the floor. The melting water outlet is not connected to the evaporative tray above the compressor. | Attach the melting water outlet to the evaporative tray. | |
| Temperature cannot be set. | The FastFreeze function is switched on. | Switch off FastFreeze function manually, or wait until the function deactivates automatically to set the temperature. Refer to "FastFreeze function" section. |
| The temperature in the appliance is too low/too high. | The temperature is not set correctly. | Set a higher/lower temperature. |
| The door is not closed correctly. | Refer to "Closing the door" section. | |
| The food products' temperature is too high. | Let the food products temperature decrease to room temperature before storage. | |
| Many food products are stored at the same time. | Store less food products at the same time. | |
| The door has been opened often. | Open the door only if necessary. | |
| The FastFreeze function is switched on. | Refer to "FastFreeze function" section. | |
| There is no cold air circulation in the appliance. | Make sure that there is cold air circulation in the appliance. Refer to "Hints and tips" chapter. | |
| DEMO appears on the display. | The appliance is in the demonstration mode. | To exit the demonstration mode, press and hold the OK button for approximately 10 seconds until you hear a long sound and the display turns off for a short time. |
| A or or symbol is shown instead of numbers on the temperature display. | Temperature sensor problem. | Contact the nearest Authorized Service Centre. The cooling system will continue to keep food products cold, but temperature adjustment will not be possible. |
If the advice does not lead to the desired result, call the nearest Authorized Service Centre.
-
If necessary, adjust the door. Refer to installation instructions.
-
If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.
8.2 Closing the door
- Clean the door gaskets.
9. NOISES
The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.
The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.
It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.
See the link www.theenergylabel.eu for detailed information about the energy label.
11. INFORMATION FOR TEST INSTITUTES
Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear
clearances shall be as stated in this User Manual at Chapter 3. Please contact the manufacturer for any other further information, including loading plans.
12. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol 📊 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of
appliances marked with the symbol ⚙️ with the household waste. Return the product to your local recycling facility or contact your municipal office.
TABLE DES MATIÈRES
- INFORMATIONS DE SÉCURITÉ....37
- CONSIGNES DE SÉCURITÉ....40
- INSTALLATION....42
- BANDEAU DE COMMANDE.... 45
- UTILISATION QUOTIDIENNE....47
- CONSEILS....48
- ENTRETIEN ET NETTOYAGE....50
- DÉPANNAGE....50
- BRUITS....54
- DONNÉES TECHNIQUES.... 54
- INFORMATIONS POUR LES LABORATOIRES D'ESSAIS....54
- EN MATIÈRE DE PROTECTION DE L'ENVIRONNEMENT....55
