3610 CA - Multitools SKIL - Free user manual and instructions

Product type	Cordless multi-tool (oscillating)
Brand	SKIL
Model	3610 CA
Power supply	Lithium-ion battery (model SKIL BR1*31****)
Compatible charger	SKIL CR1*31****
Variable speed	Yes, speed dial 1-6
Battery charge level indicator	Yes (button M)
LED light	Automatic when turning on
Compatible accessories	All common multi-tool accessories, OIS and Starlock basics
Main functions	Sawing, cutting, dry sanding, scraping
Included accessories	Segment saw blade, plunge saw blade, sanding sheet, sanding pad, vacuum adapter, hex key
Operating temperature range	-20°C to +50°C
Charging temperature range	4°C to 40°C
Sound pressure level	85.0 dB(A)
Sound power level	96.0 dB(A)
Vibration (sanding)	3.7 m/s²
Safety	On/off switch, battery protection, automatic stop
Maintenance and cleaning	Regularly clean ventilation slots; remove battery before cleaning
Warranty	Consult dealer (excluding overload or misuse)
Use	Non-professional, for ages 16 and up

Frequently Asked Questions - 3610 CA SKIL

How to change the accessory on the Skil 3610 CA?

First remove the battery from the tool. Loosen screw B using the hex key A. Remove the used accessory and mount the new accessory ensuring the openings engage with the tabs on the tool head. Tighten screw B firmly with the hex key.

How to use the vacuum adapter?

The adapter J is only used with the sanding pad E. Remove the battery, mount the adapter as shown in the manual, then connect a vacuum. Do not use for sanding metals. Empty the adapter regularly for optimal suction.

What speed to choose for which material?

Use the dial D to set the speed from 1 (low) to 6 (high). The optimal speed depends on the material: test on a scrap piece. Generally, hard materials require higher speed, soft materials lower speed.

How to check the battery charge level?

Press the battery charge level indicator button M (located on the battery). The LED lights show the current level. If the battery is nearly empty, the tool stops automatically.

Can I use accessories from other brands?

Yes, the Skil 3610 CA accepts all common multi-tool accessories, including OIS and Starlock basics systems. Make sure the accessory is tightly secured before use.

How to maintain the tool?

Keep the tool clean, especially the ventilation slots K. Remove the battery before any cleaning. For proper operation, keep accessories sharp and clean. Do not overload the tool.

What to do if the tool stops automatically?

Automatic stop may be due to overload, battery temperature out of range (-20 to +50°C) or a discharged battery. Release the switch, let cool or recharge the battery. Do not force restart.

What materials can I cut with the Skil 3610 CA?

This tool is designed for sawing and cutting wood, plastic, metals and soft wall tiles. It also allows dry sanding and scraping of small surfaces.

How to mount a sanding sheet?

Clean the dust from the VELCRO coating on the sanding pad E by tapping it. Position the perforated sanding sheet H on the pad aligning the holes. Press firmly for optimal adhesion.

Is the tool suitable for professional use?

No, the Skil 3610 CA is not designed for professional use. It is intended for household use and occasional tasks. For intensive use, consider a professional range.

USER MANUAL 3610 CA SKIL

Illustration of a SKIL (Silk) weapon with visible internal components and no text or symbols on the body itself.

EAC

GB ORIGINAL INSTRUCTIONS 9

F NOTICE ORIGINALE 12

② K C K SKIL M D L E B A J F G H

③④⑤ OIS Oscillating Interface System

Icon of a person reading a book inside a circle (no text or symbols)

Warning sign with crossed-out symbols and a flame icon, indicating no fire or explosion hazard.

⑥ max.50 °C

⑦

⑧ M

⑨ H E

10 A B F H G E

Safety warning illustration showing a device with warning symbol and correct/incorrect check indicators

-30° 0° 30° -60° 60° -90° 90°

11

1 A B E

Technical diagram showing three-step assembly of a handheld device with labeled parts and directional arrows indicating motion.

Ø 34-35mm

E 4

SKIL 80V MAX D

SKIL K

14 C L

*
*
*
*
*
	*

GB

Cordless multi-function tool 3610 INTRODUCTION

• This tool is intended for sawing and cutting in wood, plastic, plaster, metals and soft wall tiles as well as for dry sanding and scraping of small surfaces
• It is especially suitable for working close to edges, for plunge cutting and for flush cutting
  • This tool is not intended for professional use
• This tool accepts most commonly available multi-tool accessories, including existing OIS and Starlock accessories ③
• Read and save this instruction manual ④

TECHNICAL DATA①

TOOL ELEMENTS ②

A Hex key
B Clamping screw with washer
C On/off switch
D Speed selection wheel
E Sanding pad
F Segment saw blade
G Plunge-cut saw blade
H Sanding sheet
J Vacuum cleaner adapter
K Ventilation slots
L LED-light
M Battery level indicator

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

2) ELECTRICAL SAFETY

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS MULTI-FUNCTION TOOLS

- Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring (cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

- Use clamps or another practical way to secure and support the workpiece to a stable platform (holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control)

GENERAL

- This tool should not be used by people under the age of 16 years

- Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

- Do not work materials containing asbestos (asbestos is considered carcinogenic)

- Remove battery from tool before making any adjustments or changing accessories

- When working, always hold the tool firmly with both hands and take a secure stance

- Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable

- Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable

- Follow the dust-related national requirements for the materials you want to work with

- Use protective gloves when changing accessories (contact with the accessory can lead to injuries)

- When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

WHEN SAWING/CUTTING

• Keep hands away from cutting area; never reach underneath the material for any reason while cutting
• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

- Do not use a saw blade which is cracked, deformed or dull

WHEN SANDING

- Use the tool only for dry sanding (penetration of water into the tool increases the risk of an electric shock)

• Do not touch the moving sanding sheet
• Do not continue to use worn, torn or heavily clogged sanding sheets
• When sanding metal, sparks are generated; do not use vacuum cleaner and keep other persons and combustible material from work area

BATTERIES

- The battery supplied is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)

- Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

- Do not use the battery when damaged; it should be replaced

- Do not disassemble the battery

- Do not expose tool/battery to rain

- Permitted ambient temperature (tool/charger/battery): -when charging 4...40°C -during operation -20...+50°C -during storage -20...+50°C

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

③ This tool accepts most commonly available multi-tool accessories, including existing OIS and Starlock basic accessories

④ Read the instruction manual before use

⑤ Batteries may explode when disposed of in fire, so do not burn battery for any reason

⑥ Store tool/charger/battery in locations where temperature will not exceed 50°C

⑦ Do not dispose of electric tools and batteries together with household waste material

USE

- Charging battery ! read the safety warnings and instructions provided with the charger

- Removing/installing the battery ②

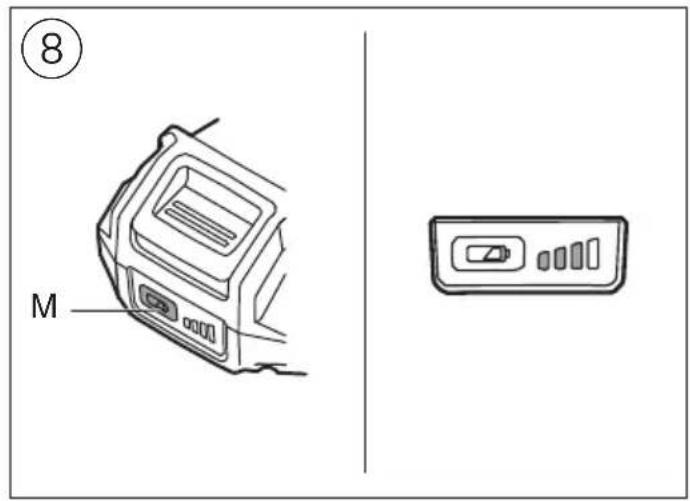

- Battery level indicator ⑧ - press the battery level indicator button M to show the current battery level.

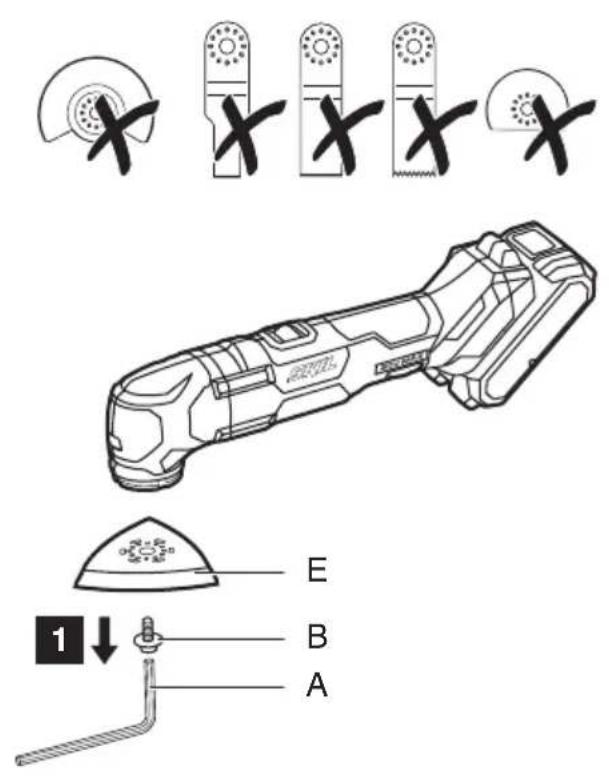

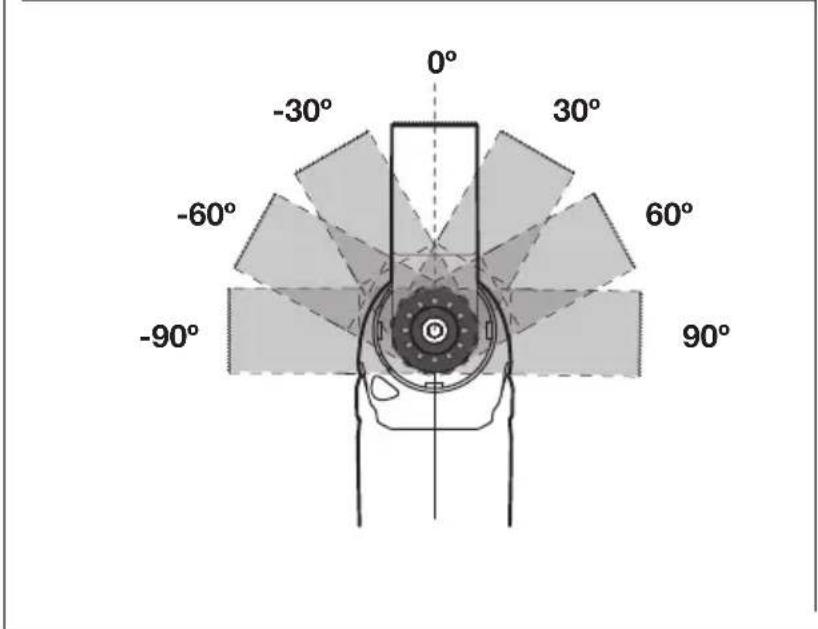

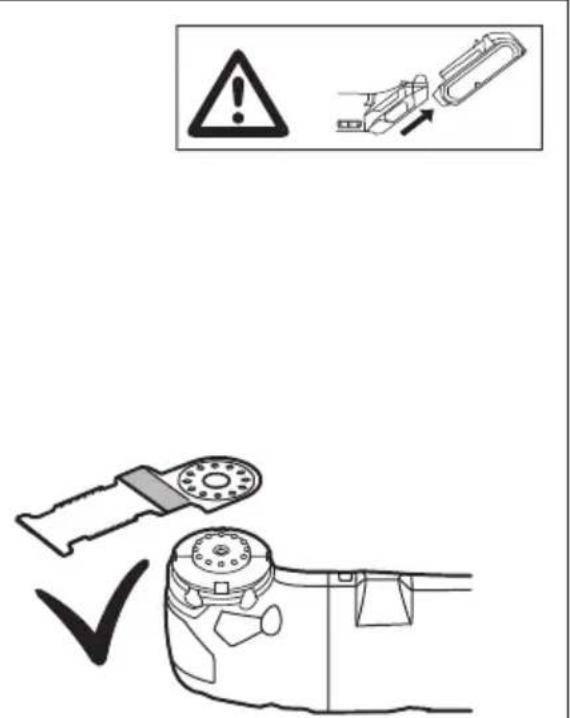

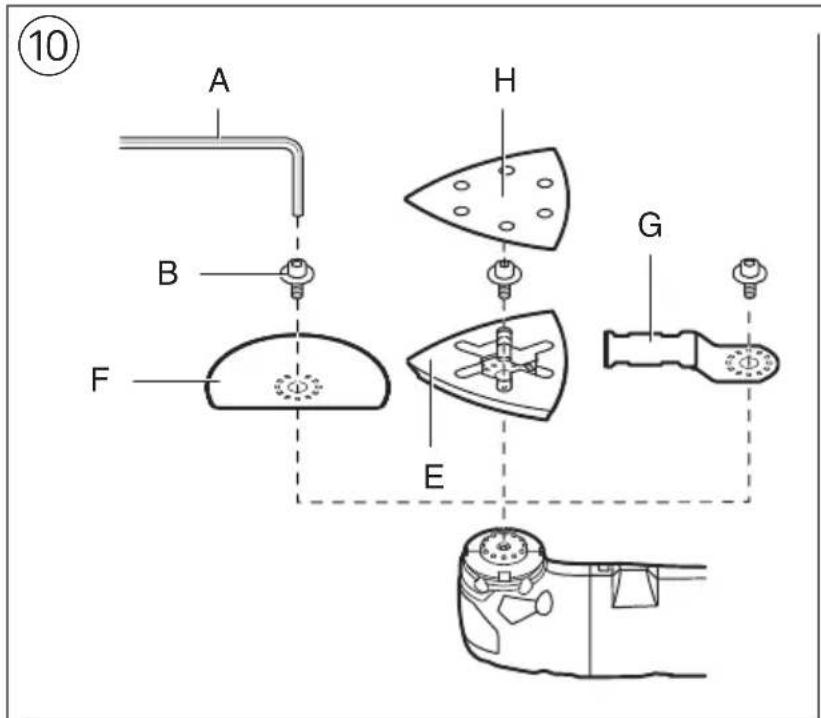

- Changing accessories ⑩ ! remove battery from

-remove/mount the required accessory as illustrated -ensure that the openings of the accessory engage into the tabs of the tool head (any snap-in position possible) -mount the accessory with the depressed centre pointing downwards
-loosen/fasten screw B with hex key A
- check the tight seating of the accessory (incorrect or not securely fastened accessories can come loose during operation and create a hazard)

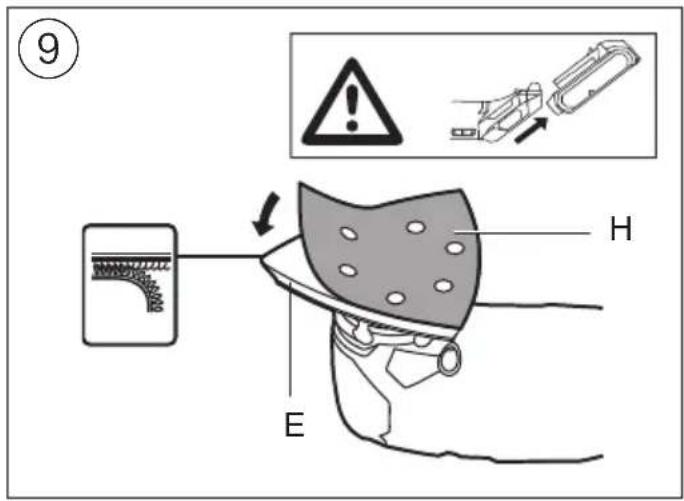

- Mounting of sanding sheet ⑨ -tap the dust out of the VELCRO material on sanding pad E before mounting the sanding sheet -mount VELCRO sanding sheet H as illustrated ! the dust suction requires the use of perforated sanding sheets

! perforation in sanding sheet should correspond with perforation in sanding foot ! replace worn sanding sheets in time

! always use the tool with the total VELCRO surface covered with sanding paper

- Dust suction ⑪

! remove battery from tool

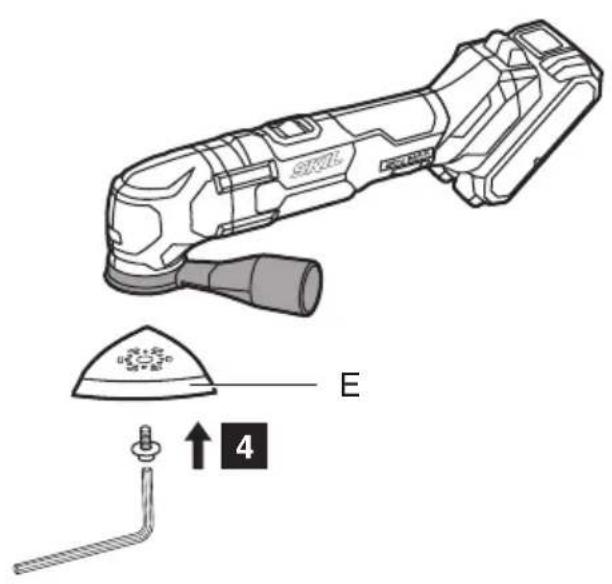

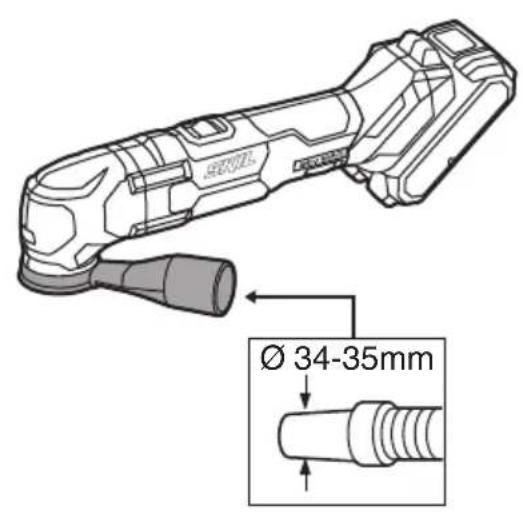

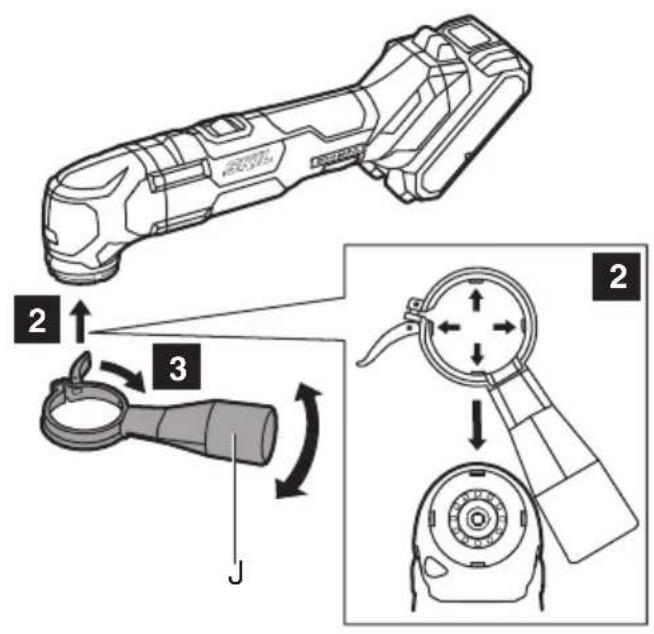

-use vacuum cleaner adapter J only when working with sanding pad E

-mount vacuum cleaner adapter J as illustrated

-connect vacuum cleaner

-use vacuum cleaner adapter J only when working with sanding pad E -mount vacuum cleaner adapter J as illustrated -connect vacuum cleaner

! do not use dust extraction device/vacuum cleaner when sanding metal

-clean vacuum cleaner adapter J regularly for optimal dust pick-up performance

- On/off

-switch on/off the tool by pushing switch C② in "I"/"O" position

! before the accessory reaches the workpiece, the tool should run at full speed

! before switching off the tool, you should lift it from the workpiece

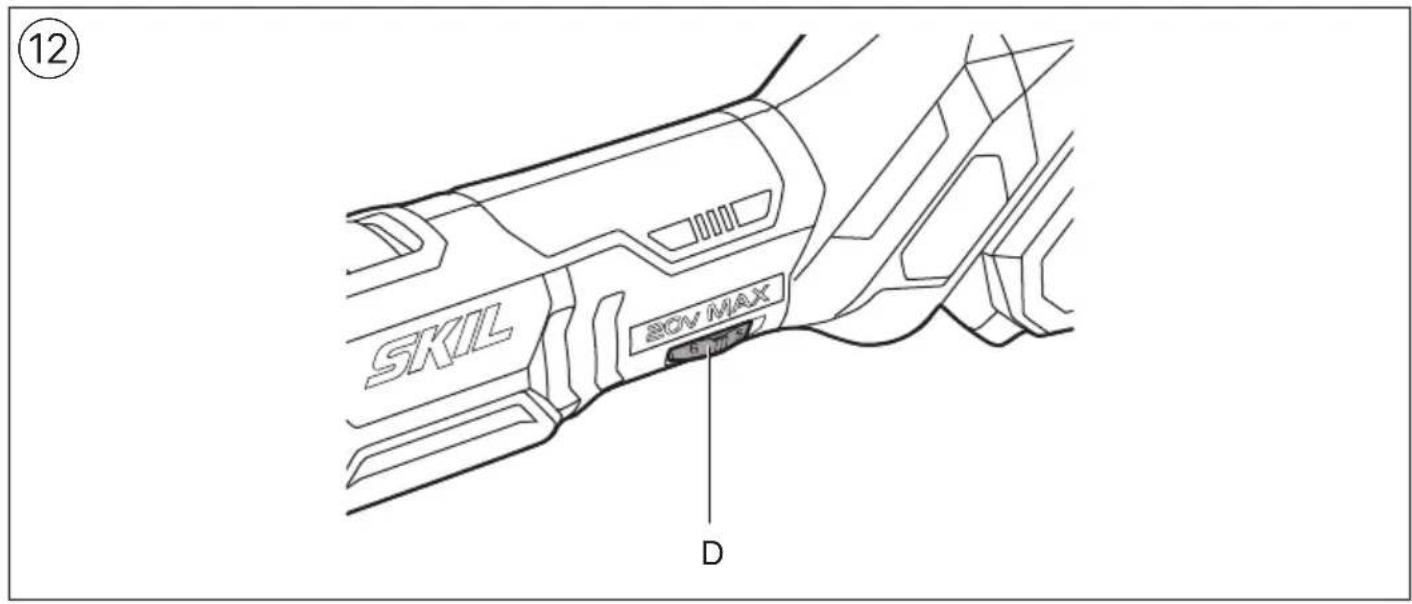

- Adjusting working speed ⑫

-with wheel D the required oscillating frequency can be adjusted from low (1) to high (6) (also while tool is running)

-the optimal working speed depends on the material and can be determined with practical trials

- Holding and guiding the tool

! while working, always hold the tool at the grey-coloured grip area(s) ⑬

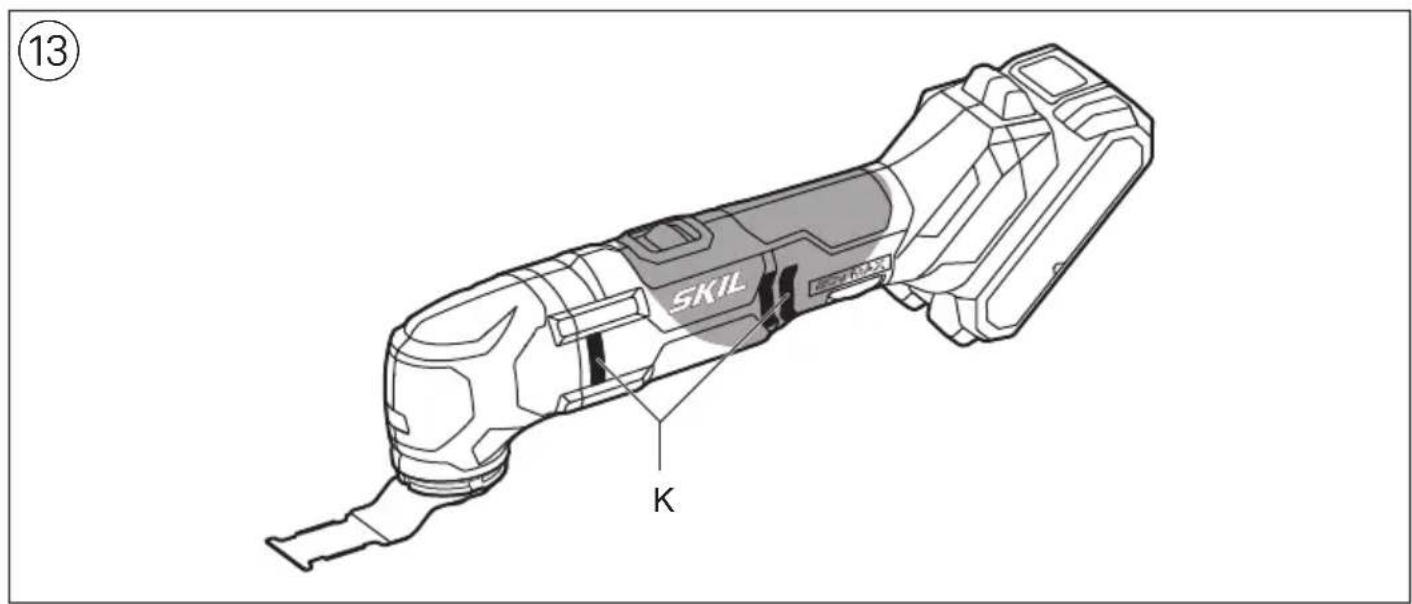

-keep ventilation slots K uncovered

-do not apply too much pressure on the tool (excessive pressure will cause excessive heat and may shorten the service life of the accessory)

- Battery protection

Switches off the tool or prevents the tool from being switched on, when

-the load is too high

-the battery temperature is not within the allowable operating temperature range of -20 to +50°C

-the lithium-ion battery is nearly empty (to protect against deep discharge)

! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

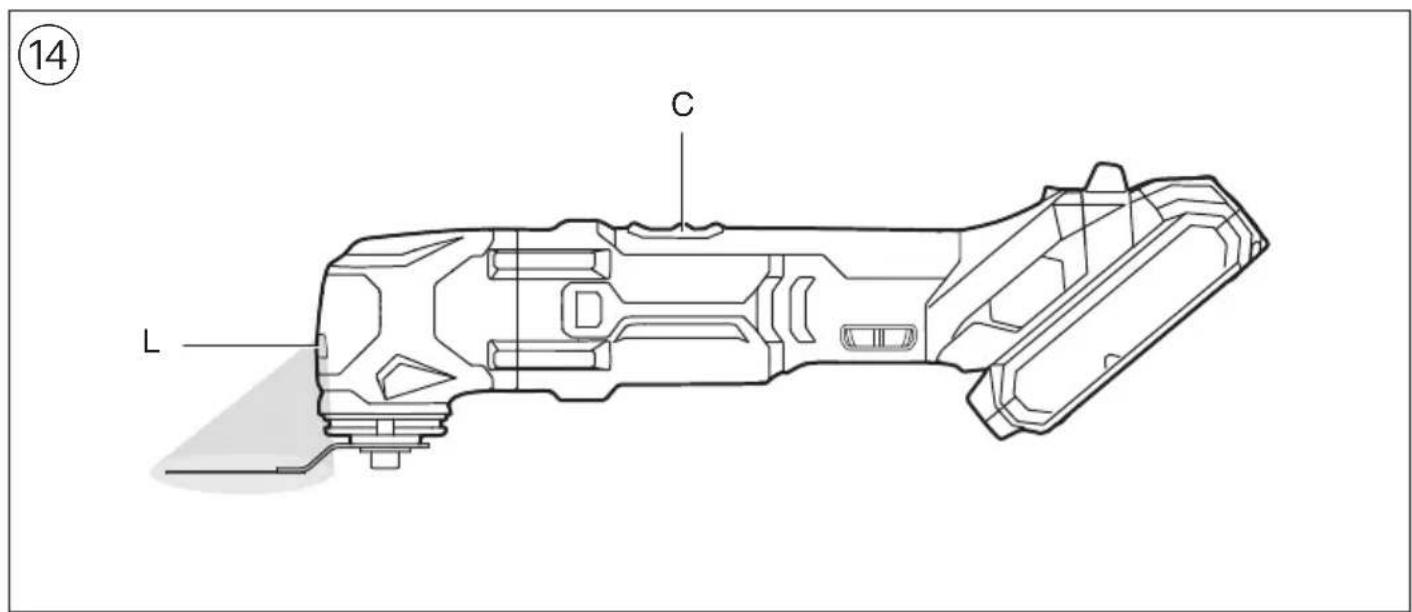

- LED-light L ⑭

-LED-light L automatically lights on when activating switch C

APPLICATION ADVICE

- For optimal results on different materials use table ⑮ as reference for determining the right accessory (accessories not standard included)

- For more information see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Always keep tool clean (especially ventilation slots K ②) ! remove battery from tool before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, please send the tool undismantled together with proof of purchase to your dealer.

- Be aware that damage due to overload or improper handling of the product will be excluded from the

warranty (for the warranty conditions please ask your dealer).

ENVIRONMENT

- Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

-symbol⑦ will remind you of this when the need for disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

- Measured in accordance with EN 62841 the sound pressure level of this tool is 85.0 dB(A) and the sound power level 96.0 dB(A) (uncertainty K = 3 dB), and the vibration * (triax vector sum; uncertainty K = 1.5 m/s ^2 ) * when sanding 3.7 m/s ^2

- The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned - using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level - the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Outil multifonctions sans fil 3610 INTRODUCTION

Simple line drawing of a pencil (no text or symbols)

Simple line drawing of a pencil (no text or symbols)

Simple line drawing of a pencil (no text or symbols)

SKIL SKIL SKIL SKIL SKIL SKIL EOPMDC 20V ENERGY PLATFORM

www.skil.com
