USER MANUAL SCANJET G4010 PHOTO SCANNER HP

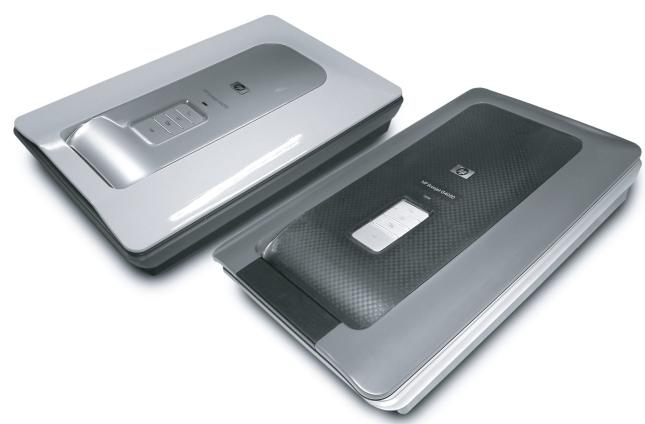

HP Scanjet G4000 series

Guide d'installation et d'assistance
Installatie- en ondersteuningshandleiding
Setup and Support Guide

© 2006 Copyright Hewlett-Packard Development Company, L.P.

D. Législation locale

© 2006 Copyright Hewlett-Packard Development Company, L.P.

Setup and Support Guide

English

Copyright and license

© 2006 Copyright Hewlett-Packard Development Company, L.P.

Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Trademark credits

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Contents

1 Get started 4

Step 1. Check the box contents 4
Step 2. Install the software .5
Step 3. Connect the TMA cable .5
Step 4. Connect the power supply .6
Step 5. Connect the USB cable . 6
Step 6. Test the installation 8

2 How to use the scanner 9

Where to get additional information 9
HP Photosmart Windows software 9
HP Photosmart Macintosh software 10

Front panel and accessories overview 10

Front-panel buttons 10
Transparent materials adapter (TMA) 10

3 Scanner installation troubleshooting 12

Uninstall and reinstall the software 12
Check the cables 13

4 Regulatory information and product specifications 14

Scanner specifications 14
Transparent materials adapter (TMA) specifications 15
Environmental specifications 15
Recycle and restricted material information 15
Disposal of Waste Equipment by Users in Private Households in the
European Union 16

5 Product support 17

Accessibility 17
HP Scanjet Web site 17
Getting assistance 18

6 Hewlett-Packard limited warranty statement 19

1 Get started

Follow these steps to set up the scanner:

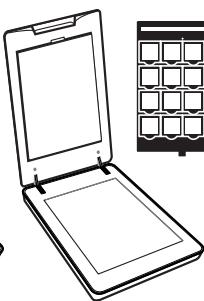

Step 1. Check the box contents

Unpack the scanner hardware. Be sure to remove any shipping tape.

1	HP Scanjet G4010 or G4050 scanner
2	USB cable
3	Power supply
4	Setup and Support Guide (this book)
5	Scanning software CDs
6	TMA templates (HP Scanjet G4050 only)

Step 2. Install the software

Caution If you are installing the software onto a Windows computer, do not connect the USB cable to the computer yet. Install the scanning software before connecting the USB cable. If you are installing the software into a Macintosh computer, you can connect the USB cable either before or after installing the software.

1. Insert the HP Photosmart CD that came with the scanner into the computer CD drive.

For Windows installations: Wait for the installation dialog box to display. If the installation dialog box does not display after a few moments, see Scanner installation troubleshooting on page 12.

For Macintosh installations: Double-click on the CD icon that appears on the desktop, and then double click on the HP Scanjet Scanner Install icon to start the installation.

1. Click Install software to install the scanning software. Follow the onscreen instructions to complete the scanning software installation.

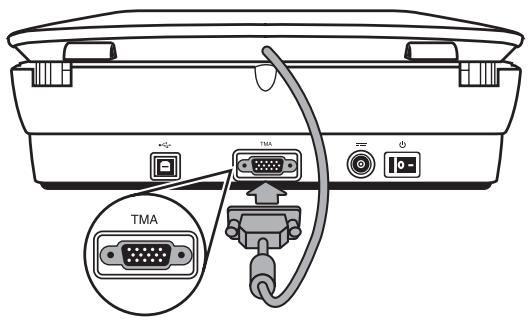

Step 3. Connect the TMA cable

Connect the TMA cable from the lid to the scanner base.

Chapter 1

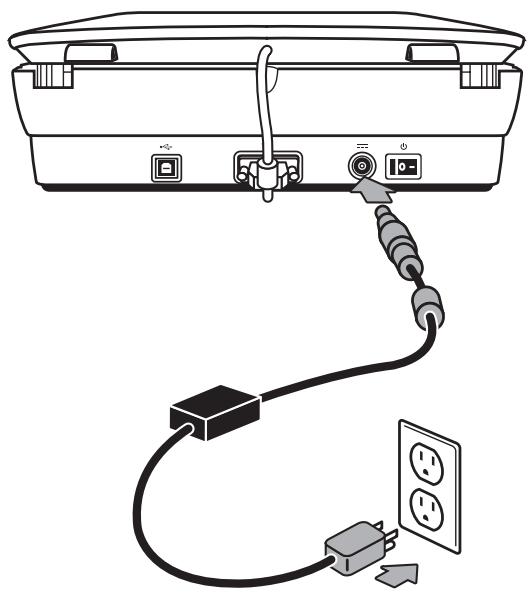

Step 4. Connect the power supply

The power supply has an attached cable that plugs into the back of the scanner.

The power supply also has an AC cable that is connected to the power supply on one end and plugged into a power outlet or surge protector on the other end.

1. Plug the AC cable into the back of the power supply.
2. Plug the other end of the AC cable into a power outlet or a surge protector.

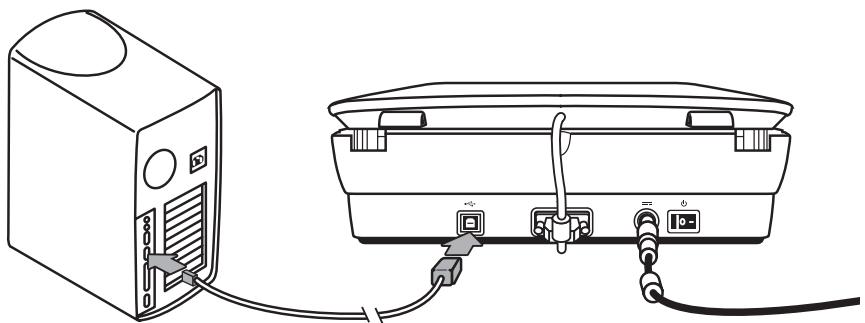

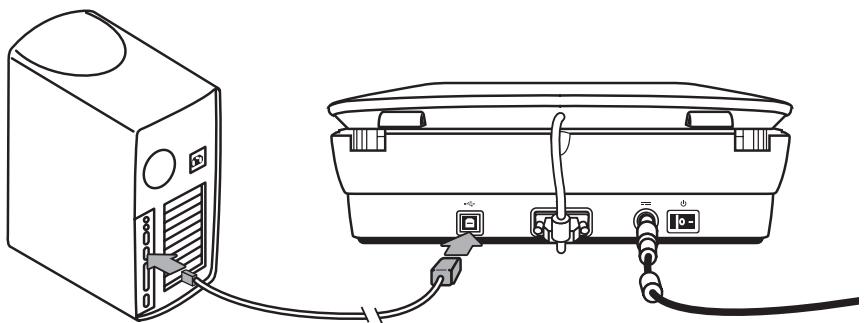

Step 5. Connect the USB cable

Caution If you are installing in a Windows environment, be sure you install the HP Photosmart software before connecting the scanner to your computer with the USB cable. See Step 2. Install the software on page 5. If you are installing in a Macintosh environment, you can connect the USB cable either before or after installing the software.

Use the USB cable that came with the scanner to connect the scanner to the computer.

1. Connect the square end of the cable to the scanner.

1. Connect the rectangular end of the cable to the computer.

Chapter 1

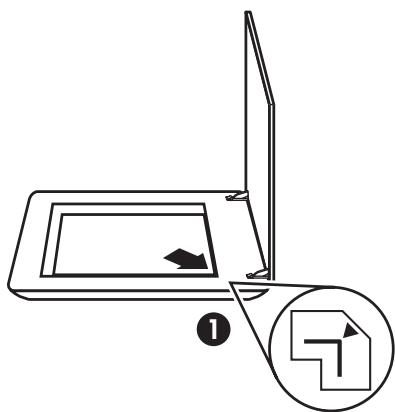

Step 6. Test the installation

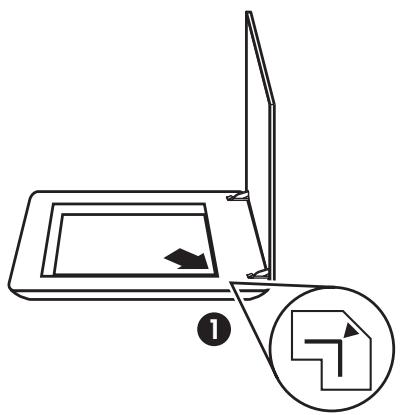

1. Place a photo or document on the scanner glass as indicated by the reference mark on the scanner.
2. Press the Scan (一) button. If you are scanning using Windows software, the What are you scanning? dialog box appears. Follow the onscreen instructions to complete the scan.

If you are scanning using Macintosh software, the HP Scan Pro application opens and a preview of the scan is displayed. When the preview is accepted, the scanned image is sent to the destination that has been selected in the scanner settings.

If the What are you scanning? dialog box or the HP Scan Pro window does not appear, see Scanner installation troubleshooting on page 12.

2 How to use the scanner

This section presents an overview of the scanner and how to use it.

Where to get additional information

More information about the scanner and software can be found in the scanner Help file. If you have installed the HP Photosmart software that came with the scanner, double-click the HP Solution Center icon on your desktop, and then click Help and Support. Under the Documentation section, click Product Help.

To access an online version of the scanner user guide, click Start, point to Programs or All Programs, point to HP, Scanjet, G4000 series, and then click User Guide.

Macintosh users: For information about scanning procedures, open HP Device Manager, and then click on the question mark at the bottom of the dialog box.

HP Photosmart Windows software

When you install the HP Photosmart Windows software, two icons are added to your desktop. These icons open programs for scanning and editing your scans.

For information on how to use HP Solution Center and HP Photosmart software, see the scanner Help file. Double-click the HP Solution Center icon on your desktop, and then click Help and Support. Under the Documentation section, click Product Help.

HP Solution Center is the program that gets you started scanning pictures and documents. Use the HP Solution Center for all of the following:

• Perform scanning and copy functions
• Access help and troubleshooting information
• Access the HP Photosmart software to edit your scans
• Modify settings and preferences

HP Photosmart software is the program to use for manipulating, printing, archiving, and sharing your images after they have been scanned. You can get to the HP Photosmart software from the desktop icon or through HP Solution Center.

To start a scan:

Double-click the HP Solution Center icon on the desktop, click the tab for the scanner, and then click the task you want to perform.

Note If the HP Solution Center icon is not available on the desktop, click Start, point to Programs or All Programs, point to HP, and then click HP Solution Center.

Chapter 2

HP Photosmart Macintosh software

When you install the HP scanning software on a Macintosh, two software programs are available in the Dock: HP Device Manager and HP Photosmart Studio. These programs are used for scanning and editing your scans.

HP Device Manager is the program that gets you started scanning pictures and documents. Use the Device Manager for all of the following:

• Perform scanning and copy functions
• Access help and troubleshooting information
• Access the HP Photosmart Studio to edit your scans
• Modify settings and preferences

HP Photosmart Studio is the program to use for manipulating, printing, archiving, and sharing your images after they have been scanned. You can open HP Photosmart Studio from the Dock, or from the HP Device Manager Applications menu.

Front panel and accessories overview

This section presents an overview of the scanner front panel and the transparent materials adapter (TMA).

Front-panel buttons

Icon	Feature name	Description
	Scan button	Scans pictures, graphics, documents, or objects.
	Scan Film button	Scans transparent positives (such as 35 mm slides) and negatives. Scanning film requires that you use the transparent materials adapter (TMA) located on the underside of the scanner lid.
	Copy button	Scans the item and sends it to the printer to make a copy.
PDF	Scan to PDF button	Scans one or more pages and saves them as a PDF file for sharing or storing.

Note For more information on the default actions of these buttons in a Macintosh environment, open HP Device Manager, and then click on the question mark at the bottom of the dialog box.

Transparent materials adapter (TMA)

You can use the transparent materials adapter (TMA) to scan 35 mm slides or negatives. With the HP Scanjet G4050 TMA you can also scan medium- and large-format film. For more information about the TMA, see the scanner user guide. For

information about how to find the user guide, see Where to get additional information on page 9.

3 Scanner installation troubleshooting

This section contains solutions for installation and setup problems.

Uninstall and reinstall the software

An incomplete software installation could cause the scanner not to be recognized or the software not to launch correctly. Try uninstalling and then reinstalling the HP Scanning software. To reinstall the HP Scanning software, you must have the HP Photosmart software CD.

Windows environment:

1. Click Start, click Settings, and then click Control Panel (in Windows XP, click Start, and then click Control Panel).
2. Click Add/Remove Programs (in Windows XP, this is called Add or Remove Programs) and then select HP Scanjet G4000 series.
3. Click Remove.
4. Click Add/Remove Programs (in Windows XP, this is called Add or Remove Programs) and then select the HP Photosmart software.
5. Click Remove.
6. Unplug the scanner USB cable from the computer.
7. Reinstall the software, using the HP Photosmart software CD that came with your scanner. When you insert the CD, an installation interface launches automatically. Choose the HP Photosmart software to install.
8. Reconnect the scanner USB cable after the software is installed. For more information see Step 5. Connect the USB cable on page 6.

Macintosh environment:

1. Go to Applications/Hewlett-Packard and open HP Uninstaller.

Note You must have administrative privileges in order to uninstall the software.

1. When prompted, type your username and password. The HP Uninstaller window opens and displays the products that are available to be uninstalled.
2. Select the G4000 series product and click Next.
3. Follow the onscreen instructions to complete the uninstall process.
4. Reinstall the software, using the HP software CD that came with your scanner. After inserting the CD, click on the CD icon that appears on your desktop to begin the installation.

Check the cables

Cable type	Action
Power cable	The power cable is connected between the scanner and a power outlet. ·Ensure that the power cable is securely connected between the scanner and a live electrical outlet or surge protector. ·If the power cable is connected to a surge protector, ensure that the surge protector is plugged into an outlet and turned on. ·Turn off the scanner power switch and turn off the computer. After 60 seconds, turn the scanner back on and then turn on the computer, in that order.
USB cable	The USB cable is connected between the scanner and the computer. ·Use the cable that was included with the scanner. Another USB cable might not be compatible with the scanner. ·Ensure that the USB cable is securely connected between the scanner and the computer. ·If the USB cable is connected to a USB port on the front of the computer, move it to a USB port on the back of the computer. For additional USB troubleshooting information, see www.hp.com/support, select your country/region, and then use the search tool to find USB troubleshooting topics.
TMA cable	The TMA cable is connected between the TMA in the scanner lid and the scanner base. Ensure the cable is securely connected in the back of the scanner.

4 Regulatory information and product specifications

This section contains regulatory information and product specifications for the HP Scanjet G4000 series Photo Scanner and accessories.

Scanner specifications

Name	Description
Scanner type	Flatbed with transparent materials adapter (TMA)
Size	G4010: 303 mm x 5088 mm x 98 mm (11.93 x 20.00 x 3.86 inches) G4050: 303 mm x 5088 mm x 108 mm (11.93 x 20.00 x 4.25 inches)
Weight	G4010: 4.4 kg (9.6 lbs) G4050: 5.3 kg (11.6 lbs)
Scanning element	Charged-coupled device
Interface	USB 2.0 Hi-Speed
Hardware resolution	4800 x 9600 dpi hardware resolution
Selectable resolution	12 dpi to 999,999 enhanced dpi at 100 percent scaling
AC line voltage	100-120 V 60 Hz – North America 200-240 V 50 Hz – Continental Europe, United Kingdom, Australia 100-240 V 50 Hz/60 Hz – Rest of the world
Regulatory information	Regulatory model identification number: For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is FCLSD-0605. This regulatory number should not be confused with the product name (HP Scanjet G4010 or G4050) or product numbers (L1956A and L1957A).
ENERGY STAR	Energy usage drops significantly while in ENERGY STAR® mode, which saves natural resources, and saves money without affecting the high performance of this product. This product qualifies for ENERGY STAR (MOU v. 1.0), which is a voluntary program established to encourage the development of energy-efficient office products.
	ENERGY STAR is a U.S. registered service mark of the U.S. EPA. As an ENERGY STAR partner, HP has determined that this product meets ENERGY STAR guidelines for energy efficiency. For more information on ENERGY STAR guidelines, go to the following Web site: www.energystar.gov

Transparent materials adapter (TMA) specifications

Name	Description
Media types	G4010: Up to five 35 mm slides or six 35 mm negative frames G4050: Up to sixteen 35 mm slides, thirty 35 mm negative frames, up to two medium format film frames (120 roll film), or one large format film frame (220 roll film).
Power requirements	12 Volts/400 mA max
Power consumption and regulatory information	For power consumption data, information on power supplies, and regulatory information, see the regulatorySUPplement.htm file on the HP Photosmart software CD.

Environmental specifications

Name	Description
Temperature	Operating the scanner and TMA: 10° to 35°C (50° to 95°F)
	Storage: -40° to 60°C (-40° to 140°F)
Relative humidity	Operating the scanner and TMA: 15% to 80% noncondensing 10° to 35°C (50° to 95°F)
	Storage: up to 90% noncondensing at 0° to 60°C (32° to 140°F)

Recycle and restricted material information

Recycling

HP offers an increasing number of product return and recycling programs in many countries/regions, and partners with some of the largest electronics recycling centers throughout the world. HP conserves resources by reselling some of its most popular

Chapter 4

products. For more information regarding recycling of HP products, please visit: www.hp.com/hpinfo/globalcitizenship/environment/recycle/

Product restricted material

This HP product contains the following material that might require special handling at end-of-life: Mercury in the scanner fluorescent lamp and transparent materials adapter ( < 5mg ).

For recycling information, contact www.hp.com/go/recycle, your local authorities, or the Electronic Industries Alliance at www.eiae.org.

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

5 Product support

This section describes the options for product support.

Accessibility

The following accessibility options are available on this scanner:

Windows environment:

• To prevent buttons from being accidentally pushed, you can use the Button Disable Utility to disable the buttons. You can use the same utility to re-enable the buttons. For more information about the Button Disable Utility, see the scanner User Guide.
• The scanner User Guide is also available in a Help format that is readable by most screen readers. To find this file, double-click the HP Solution Center icon on your desktop, and then click Help and Support. Under the Documentation section, click Product Help.

Macintosh environment:

• To prevent buttons from being accidentally pushed, use the Button Disable Utility to disable the buttons. You can use the same utility to re-enable the buttons. For more information about the Button Disable Utility, see the HP Scanjet Scanner Help.
• The HP Scanjet Scanner Help is available in a format that is readable by most screen readers. To find this file, open HP Device Manager, and then click on the question mark at the bottom of the dialog box.

Customers with disabilities can get help by

visiting www.hp.com/hpinfo/community/accessibility/prodserv/ (English only).

HP Scanjet Web site

Visit www_hp.com and select your country/language at the top of the page. On the country page, select scanners from the list of products. Use this site for a variety of information:

Find solutions to technical issues.
- Learn tips for scanning more effectively and creatively.
- Update your HP drivers and software.
- Register your product.
- Subscribe to newsletters, driver and software updates, and support alerts.
Purchase HP supplies and accessories.

Chapter 5

Getting assistance

In order to get the best from your HP product, please consult the following standard HP support offerings:

1. Please consult the product documentation that came with the product.

2. Review the troubleshooting section or electronic Help of this manual/CD.

3. Review the electronic Help section within the software.

4. Visit the HP online support at www.hp.com/support or contact your point of purchase.

HP online support is available to all HP customers. It is the fastest source for up-to-date product information and expert assistance, including the following features:

• Fast E-mail access to qualified online support specialists
• Software and driver updates for your product
• Valuable product and troubleshooting information for technical issues

• Proactive product updates, support alerts, and HP newsletters (available when you register your product)

• HP support by phone

Support options and fees vary by product, country and language.
- Fees and policies are subject to change without notice. Please check the Web site www.hp.com/support for the latest information.

1. Post-warranty period

After the limited warranty period, help is available online at www.hp.com/support.

1. Extending or upgrading your warranty

If you would like to extend or upgrade the product's warranty, please contact your point of purchase or check the HP Care Pack Services at www.hp.com/support.

1. If you already purchased an HP Care Pack Service, please check the support conditions in your contract.

6 Hewlett-Packard limited warranty statement

The following information outlines the warranty information for this product.

Product	Duration of limited warranty
HP Scanjet G4000 series scanner	1 year

A. Extent of limited warranty

1. Hewlett-Packard (HP) warrants to the end-user customer (Customer) that each HP product specified above (Product) shall be free from defects in material and workmanship for the period specified above. The warranty period begins on the date of purchase by Customer.
2. For each software product, HP's limited warranty applies only to a failure to execute programming instructions. HP does not warrant that the operation of any Product will be uninterrupted or error free.
3. HP's limited warranty covers only those defects that arise as a result of normal use of a Product, and does not cover any other problems, including those that arise as a result of:

a. Improper use, maintenance, storage, handling, or modification;
b. Software, media, parts, accessories, supplies, or power adapters or sources not provided or supported by HP; or,
c. Operation or other conditions outside a Product's specifications.

1. If HP receives, during the applicable warranty period, notice of a defect in a Product, HP shall at its option either replace or repair the defective Product.
2. If HP cannot replace or repair a defective Product that is covered by HP's limited warranty, HP may, within a reasonable time after being notified of the defect, provide either another product similar in performance or a refund of the purchase price prorated based on usage and other appropriate factors.
3. HP shall have no obligation to replace, repair, or refund until Customer returns the defective Product to HP and provides a valid proof of purchase.
4. Any replacement product may be either new or like-new, provided it has functionality at least equal to that of the Product being replaced.
5. A Product may contain remanufactured parts, components, or materials equivalent to new in performance.
6. HP's limited warranty is valid in any country or locality where HP has a support presence for the Product and has marketed the Product. The level of warranty service may vary according to local standards. Upgraded warranty services, such as next day exchange, on-site service, and accident protection, may be purchased from HP.

B. Limitations of Warranty

TO THE EXTENT ALLOWED BY LOCAL LAW, NEITHER HP NOR ITS THIRD PARTY SUPPLIERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY

KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO A PRODUCT, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTYES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

C. Limitations of Liability

1. To the extent allowed by local law, the remedies provided in this Limited Warranty Statement (LWS) are Customer's sole and exclusive remedies.
2. TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS LWS, IN NO EVENT SHALL HP OR ITS THIRD PARTY SUPPLIERS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND WHETHER ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

D. Local Law

1. This LWS gives Customer specific legal rights. Customer may also have other rights that vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world.
2. To the extent this LWS is inconsistent with local law, this LWS shall be deemed modified to be consistent with local law. Under local law, certain disclaimers and limitations of this LWS may not apply to Customer. For example, the federal government of the United States, some states in the United States, and some governments outside the United States (including provinces in Canada), may:

a. Grant Customer additional warranty rights;
b. Preclude the disclaimers and limitations in this LWS from limiting the statutory rights of a consumer (e.g., the United Kingdom);
c. Otherwise restrict the ability of a manufacturer to enforce such disclaimers or limitations;
d. Specify the duration of implied warranties that the manufacturer cannot disclaim; or,
e. Disallow limitations on the duration of implied warranties

1. Customer may have additional statutory rights based on its purchase agreement. Those rights are not in any way affected by this LWS.
2. For consumer transactions in the United States, any implied warranties imposed by law are limited in duration to the express warranty period.
3. FOR CONSUMER TRANSACTIONS IN AUSTRALIA AND NEW ZEALAND, THE TERMS IN THIS LWS, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT, OR MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF A PRODUCT TO SUCH CUSTOMERS.

You may have additional statutory rights against the seller based on your purchase agreement. Those rights are not in any way affected by this HP Limited Warranty.

You will find on the inside front cover of this book the names and address of the HP entity responsible for the performance of the HP Limited Warranty in your country.

aalgawall 2

HP alas iis jc algswall HP J aaiill cals wll gclw glal lglal

Hewlett- 4

Packard

6

aaii aie aiie ayaiiaai ciagaleall aaii ciagaleal

aalal aol aol aol aol aol aol aol aol

J1111111111111111111111111111111111111 4

Jn j 1 HP online support

www.hp.com/support

gJ 10

ailll l jall jaii li s el jiall aclu gle Jauall glljie

1 1

aJyulll jlll lllllllllllllll

aill 15ually gaiy lgl i y uul uil bui cuiu uus

（）HHP

HP

ailllglllgllgllllllllllllllll

. www.hp.com/support 1 (HP .dac jra jda) Pack Services

aalalalalalalalalalal

aallll llll 1000000000000000000000000000000000000000000

:Windows4

J (a) 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

Jrrrnnn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

J J. (J) Button Disable Utility 1

aigiall aolal piai

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

J Jg) HP Solution Center jzj jzj jzj jzj jzj jzj jzj

(HP)

(1) Product Help (2) Documentation

:Macintosh 4

Jn (Jz) Button Disable Utility.

Jrnnnne nnne nee

Cai k j (j) 1000000000000000000000000000000000000000000000000000000000

.HP Scanjet Scanner Help

Hepnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nannnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nnnnne nennnee

paaaia aaege gaj (HP Jg j) HP Device Manager

J 1

(1) /www.hp.com/hpinfo/community/accessibility/prodserv

HP Scanjet

y j 11111111111111111111111111111111111111111

Jia cai jie gao jia acgao gao juaonall gao gao li piaiui li kai ci jiaaiai

Aiiill 1

e 1

HP

a

aall 1

.HP Ciaio, Cia jiuu el

J 1

(1)

Cilia 100011111111111111111111111111111111111111111111111111111111111111

/www.hp.com/hpinfo/globalcitizenship/environment/recycle

jglalllg

gagall gjll:laa o jie gail ic aalalaalbii d gill alllal gll HP

(1)

j. www.hp.com/go/recycle Jdai jiai iitale!Jgtae gie

www.eiae.org Electronic Industries Alliance

i

HP Scanjet G4000 2555555555555555555555555555555555555555555555555555555555555555

log

aigaiia aalalal alal

الإستعمال	الإستعمال
(TMA) مصحيى بعس الحرفية بعس الحرفية مصحيى بعس الحرفية	الإستعمال الحرفية
(الإستعمال ر玲 17 × 18,··· × 11,94) مصحيى بعس الحرفية بعس الحرفية	ال,enGLISH
(ال,enGLISH 20 × 18,··· × 11,94) مصحيى بعس الحرفية بعس – R. :G4010	ال,(ال,(ال,(R. :G4010
(ال,(R. :G4010	ال,(ال,(R. :G4010
(ال,(R. :G4010	ال,(R. :G4010
(ال,(R. :G4010	ال,(R. :G4010
(ال,(R. :G4010	ال,(R. :G4010
(ال,(R. :G4010	ال,(R. :G4010
(ال,(R. :G4010)	ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال.(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G4010)	(ال,(R. :G4010
(ال,(R. :G50 × 18,··· × 11,94) مصحيى بعس الحرفية بعس – R. :G4010	(ENGLISH
(ENGLISH: ENGLISH 2.0	ENGLISH
dpi 97··· × 3··· مصحيى بعس الحرفية	ال,(ال,(R. :G4010
dpi 97··· × 3··· مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيى بعس – R. :G4015	(ENGLISH
%1··· · مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيى بعس – R. :G4010	(ENGLISH
%1··· · مصحيpé بعس – R. :G4010	(ENGLISH
%1··· · مصحيpé بعس – R. :G4010	(ENGLISH
%1··· · مصحيpé بعس – R. :G4010	(ENGLISH
%1··· · مصحيpé بعس – R. :G4010	(EN
%1··· · مصحيpé بعس – R. :G4010	(EN
%1··· · مصحيpé بعس – R. :G4010	(EN
%1··· · مصحيpé بعس – R. :G4010	(EN
%1··· · مصحيpé بعس – R. 17	(EN
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENGLISH: ENGLISH)	(ENGLISH)
(ENSURY: ENGLISH)	(ENSURY)
(ENSURY: ENGLISH)	(ENSURY)
(ENSURY: ENGLISH)	(ENSURY)
(ENSURY: ENGLISH)	(ENSURY)
(ENSURY: ENGLISH)	(ENSURY)
(ENSURY: ENGLISH)	(ENSURY)
(ENSURY: ENGLISH)	(INSURY)
(ENSURY: ENGLISH)	(INSURY)
(ENSURY: ENGLISH)	(INSURY)
(ENSURY: ENGLISH)	(INSURY)
(ENSURY: ENGLISH)	(INSURY)
(ENSURY: ENGLISH)	(INSURY)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
(ENSURY: ENGLISH)
- ENGLISH: ENGLISH

الجع	الإستعمال
.الBALBalالسالمي باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني باني ب;/باني ب;/باني ب;/باني ب;/باني b;	الإستعمال
.الBALBalالسالمي باني باني باني باني باني باني باني b;	USB BALS
.الBALBalالسالمي باني باني b;	USB BALS
.الBALBalالسالمي b;	USB BALS
.الBALBalالسالمي b;	USB BALS
.الBALBalالسالمي b;	USB BALS
.الBALBalالسالمي b;	USB BALS
.الBALBalالسالمي b;	USB BALS
.الBALBalالسالمي b;	USB BALS
.الBALBalالISCII b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USBA lalb alalal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal all alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alall alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alAL	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BAL5
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ; . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . •. • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALS
.الBALBalALbI b;	USB BALB
.الBALBalALbI b;	USB BALB
.الBALBalALbI b;	USB BALB
.الBALBalALbI b;	USB BALB
.الBALBalALbI b;	USB BALB
.الBALBalALbI b;	USB BALB
.الBALBalALbI b;	USB BALB
• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • -

aaiiiaaaai iiee iieae

y 1 y

a

alrlll l 1000000000000000000000000000000000000000000000000000000000000000000000000000000

:Windows

(1) Control Panel (2) Settings (3) Start (4) Windows XP (5)
((6) Control Panel (7) Start (8) Windows XP (9)
Windows XP (10) Add/Remove Programs (11)
HP Scanjet G4000 series (12) Add or Remove Programs (13) Remove (14) Remove (15) Remove (16) Remove (17) Remove (18) Remove (19) Remove (20) Remove (21) Remove (22) Remove (23) Remove (24) Remove (25) Remove (26) Remove (27) Remove (28) Remove (29) Remove (30) Remove (31) Remove (32) Remove (33) Remove (34) Remove (35) Remove (36) Remove (37) Remove (38) Remove (39) Remove (40) Remove (41) Photosmart (42) Photosmart (43) Photosmart (44) Photosmart (45) Photosmart (46) Photosmart (47) Photosmart (48) Photosmart (49) Photosmart (50) Photosmart (51) Photosmart (52) Photosmart (53) Photosmart (54) Photosmart (55) Photosmart (56) Photosmart (57) Photosmart (58) Photosmart (59) Photosmart (60) Photosmart (61) Photosmart (62) Photosmart (63) Photosmart (64) Photosmart (65) Photosmart (66) Photosmart (67) Photosmart (68) Photosmart (69) Photosmart (70) Photosmart (71) Photosmart (72) Photosmart (73) Photosmart (74) Photosmart (75) Photosmart (76) Photosmart (77) Photosmart (78) Photosmart (79) Photosmart (80) Photosmart (81) Photosmart (82) Photosmart (83) Photosmart (84) Photosmart (85) Photosmart (86) Photosmart (87) Photosmart (88) Photosmart (89) Photosmart (90) Photosmart (91) Photosmart (92) Photosmart (93) Photosmart (94) Photosmart (95) Photosmart (96) Photosmart (97) Photosmart

:Macintosh 4

HP (Hewlett-Packard/ Applications/Hewlett-Packard (HP Uninstaller

aalillll lnae aee 1y jy yj y jy

y) HP Uninstaller jblg iig .dla dia lgl gic galsal gis

(HP)

(1) Next G4000 1

gusll aalaaa aalaaal 1e gaii jil

J 1

Macintosh - HP Photosmart

GaaalllkallghgaleMacintosh sHg HP 1n aie C

gaaal gaaal

e 1111111111111111111111111111111111111111111

wlll wlll lalp 1
Ldwlglalil cllkwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwlwl

aalalal alalalal alalal alalal alalal

.(TMA) aalall gall Jgaaagaaa aalall aolal algll glc ocl o jbi aaii 13

aalalal algll jzj

Ca b (HPJg) HP Solution Center Jg) HP Solution Center .

Gwllg wlll gllg 1
Lgwlglbkiwlglalilhlll lglall 1
HP Photosmart jy jy

JHHP Photosmart JALI BILI HHP Solution JLJQHP Photosmart (HP JUJL) Center

aLe e g a j 100 (HP - lglal) HP Solution Center jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz jz

<HP 一 _ 一 HP Solution Center JrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJr

2

gale aalalalalalalalalalalalalalalalalalalalalalalal

aaiiaai

J . (g) (g) Scan jzgej. Windows

aal aae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae ae aaee

HP Scan Pro Macintosh aal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal alal

Aaall aal all cllc! g laeai gill agg jll

HP 10!

11 11 11 11

JSSSll jIgI gil gill aiaa aal 1sss sss

aasall aall 155

aalal 1d 1s jgals jjall jll

Jlll j 1111111111111111111

USB

HP Photosmart Windows

CIS 1.0 aas "calalll .y sghai" 2. USB 454aabw y jgssbly ay gaaall all

Ae aee eae ee eae ae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eee

Windows jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j jj JJ J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J

JHHPnssnnnns nnnnnnne nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn nn

y 1

Hp hp Hp Scanjet Scanner Install j Jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

sle g 11111111111111111111111111111111111111111

a aalall aalll 1 t (TMA) aalall gall lss

ailll lalallg aaiy aaiiialll

aal 1

aai jy jy all jj no y jy aay y ay aay aay

3

5

G4050 scanner or HP Scanjet G4010 LaSWSaHsuehahsauuHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehauHsuehAU	1
USB L	2
L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L	3
( L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L I	4
( L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L I	5
( L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L L l	6

1
1
0
0
i
USB
A
9 4jglal aalall alil
9. 1
9 Windows HP Photosmart
1 Macintosh HP Photosmart
1.
1.
1.
11 1
11 1
19 2
14 2
14 2
1. 2.
1.5
1 2
10.
17 2
17 2
HP Scanjet
11. 电 电 电 电 电 电
Hewlett-Packard 1

Copyright Hewlett-Packard 2006

. Development Company, L.P. ©

jui jji jai jai jai jai jai jai

aaii aiee

yill iie jie 111 802

juaa juaa

Cai jia 2004 aai all aaiy ai y

a jiai a llyisll Js a HP as cld

x 4y 4z 4y 4z 4y 4z 4y 4z 4y 4z

gie iiaaill iiai jai gaaill n a

HP 45

i 1

iiie 1

a

Windows, Microsoft 2

Microsoft

. Corporation

© 2006 Hewlett-Packard Development Company, L.P.

www.hp.com
