| Product type | Rotary incremental encoder |
| Brand | IFM |
| Model | RU1079 |
| Output version | 5 V TTL or 10…30 V HTL |
| Supply voltage | 5 V DC (TTL) or 10…30 V DC (HTL) |
| Output signals | A, B, index 0 (combined), full inverted outputs |
| Electrical phase shift | 90° between outputs A and B |
| Angular resolution (zero index) | One pulse per mechanical revolution |
| Short-circuit protection | 5 V TTL version: on 0 V; HTL version: on 0 V and L+ (max 1 min) |
| Electrical connection | 15-pin male connector (ifm1000.xx) or 5/13-wire cable (ifm1013.xx) |
| Maximum cable length | 100 m (5 V TTL) / 300 m (10…30 V HTL) |
| Minimum distance to interference sources | 20 cm |
| Shielding | Braid connected to housing |
| Mounting | On mounting flange with flexible bellows coupling or elastic washer |
| Fixing dimensions (flange E60033) | Diameter 50 mm, inner diameter 42 mm, 3 holes at 120°, M4 thread depth 5 mm |
| Estimated weight | Approximately 200 g |
| Main application | Measurement of linear and angular displacements, position determination |
| Maintenance | No specific maintenance required; clean with a dry cloth |
| Safety | Disconnect power before any intervention; do not strike the shaft |
| Spare parts / accessories | Mounting flange E60033, connection cables (to be ordered separately) |
| Certification | Certificate number: U8V 10 08 70596 006 |
Frequently Asked Questions - RU1079 IFM
User questions about RU1079 IFM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Rotary encoder in PDF format for free! Find your manual RU1079 - IFM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RU1079 by IFM.
USER MANUAL RU1079 IFM


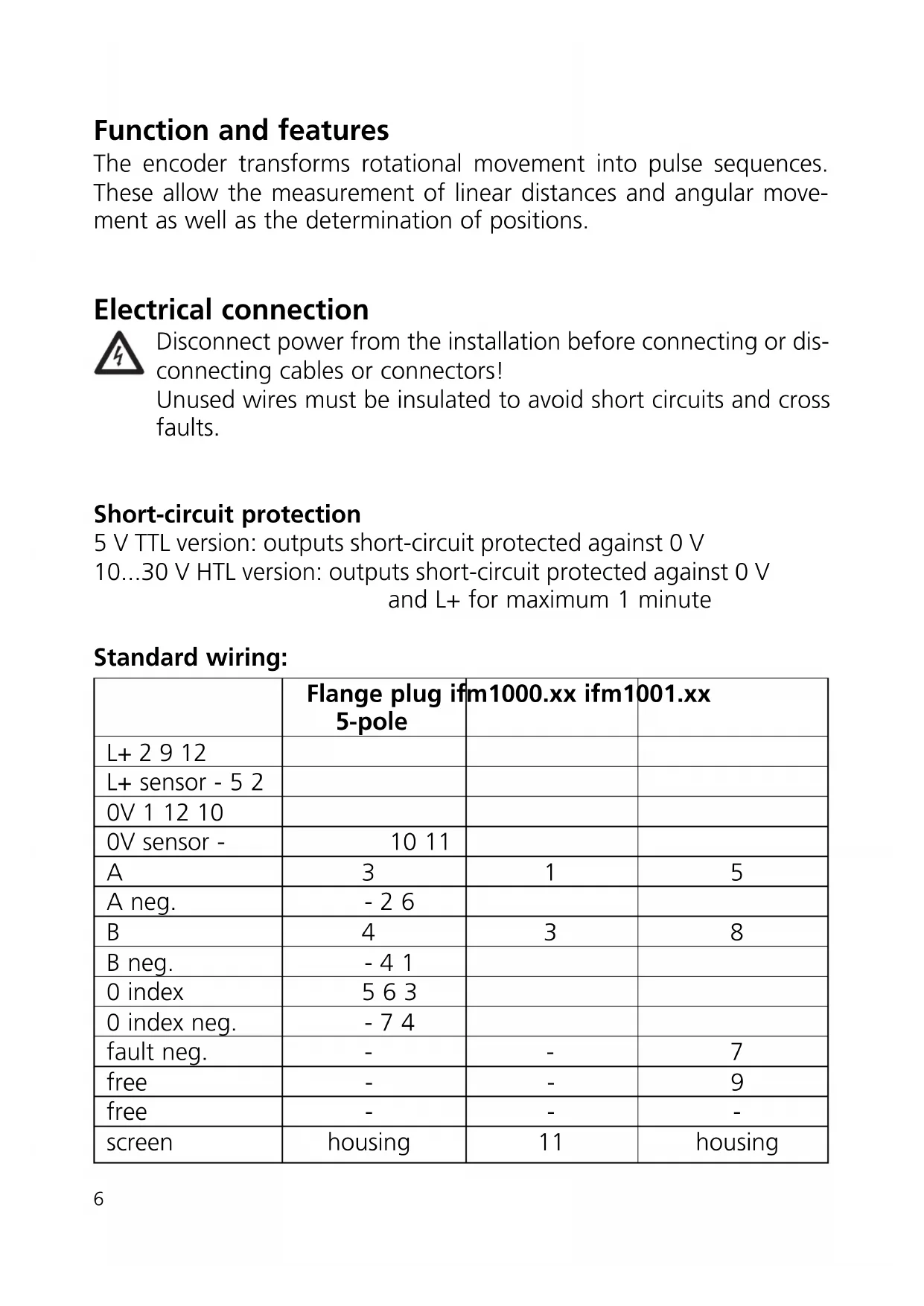

Technical line drawing of a mechanical assembly with mounting bracket and motor (no text or symbols)Function and features
The encoder transforms rotational movement into pulse sequences. These allow the measurement of linear distances and angular movement as well as the determination of positions.
Electrical connection
Disconnect power from the installation before connecting or disconnecting cables or connectors!
Unused wires must be insulated to avoid short circuits and cross faults.
Short-circuit protection
5 V TTL version: outputs short-circuit protected against 0 V
10...30 V HTL version: outputs short-circuit protected against 0 V
and L+ for maximum 1 minute
Standard wiring:
| Flange plug ifm1000.xx ifm1001.xx5-pole | |||
| L+ 2 9 12 | |||
| L+ sensor - 5 2 | |||
| 0V 1 12 10 | |||
| 0V sensor - | 10 11 | ||
| A | 3 | 1 | 5 |
| A neg. | - 2 6 | ||
| B | 4 | 3 | 8 |
| B neg. | - 4 1 | ||
| 0 index | 5 6 3 | ||
| 0 index neg. | - 7 4 | ||
| fault neg. | - | - | 7 |
| free | - | - | 9 |
| free | - | - | - |
| screen | housing | 11 | housing |
| ifm1013.xx 5-wire cable 13-wire cable | |||
| L+ 1 brown brown/green | |||
| L+ sensor - - blue | |||
| 0V 6 grey white/green | |||
| 0V sensor - - white | |||
| A 2 | green | brown | |
| A neg. | - - green | ||
| B | 4 | white | grey |
| B neg. | - - pink | ||
| 0 index | 5 | yellow | red |
| 0 index neg. | - - black | ||
| fault neg. | - - | lilac | |
| free | - - | - | |
| free | - - | yellow | |
| screen | 3 | housing | housing |
Wiring is also indicated on the housing cap. If there is a deviation, the encoder must be connected as indicated on the label on the housing cap.
The wires L+ (sensor) and 0V (sensor) are internally connected to the supply voltage. When using external electronics which regulate the supply voltage these wires can be used as test wires. If unused, these wires must be connected to the supply voltage or insulated.
Depending on the version, the electrical connection is made via the cable or via cables to be obtained separately.
When using suitable cables the maximum cable length is 100 m for the 5 V TTL version and 300 m for the 10...30 V HTL version.
The cables must be laid separately from interfering sources, the minimum distance is 20 cm.
The braided screen in the cable is connected to the encoder housing.
Output signals
output A
output B
0 index
The outputs A and B are electrically offset by 90^ . Thus the direction of rotation can be evaluated in the external electronics.
The combined zero index is provided once in a mechanical revolution of the shaft. In case of power failure it can be used as a reference point within a revolution.
The inverted output signals are used for external electronics with differential voltage input to filter interference.
Installation
Do not hit the shaft, do not use a file or similar tool on the shaft: This could destroy the unit!
The encoder can be screwed to the angle bracket. The shaft should be connected using a flexible bellows or spring disc coupling to compensate for shaft displacement and to protect the encoder against damage.
Linear movements can be transformed into a rotational movement using a measuring wheel or rack and pinion. For mounting the maximum permissible shaft loads of the encoder must be taken into account.
Mounting the angle bracket on a resilient base protects the encoder against too high a stress due to roughness of the material.


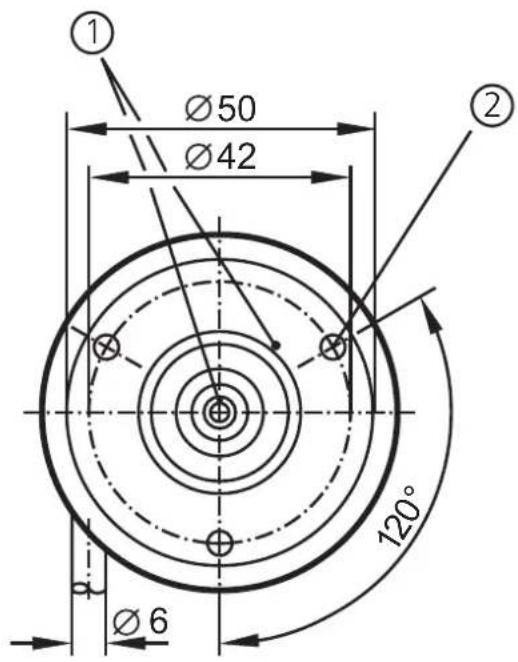

① Ø50 Ø42 ② 120° Ø61) reference mark
2) M4 thread / 5mm deep
The data sheet, further documents and suitable accessories are available on our website at www.ifm.com.
Friedrichstr. 1
45128 Essen
GERMANY
Production 20196
Facility(ies):
Certification Mark:
Product: Electronic measuring equipment (encoders)
Model(s): RAx, ROx, RPx, RBx, RCx, RUx, RVx, RSx, RMs, RNx "x" can be any character (up to 15 digits) and defines configurations, interface, resolution and length.
Parameters: Rated Voltage: 5-30 Vdc Rated Current: max. 370 mA
Remark: When installing, requirements of mentioned Test Standards and Installation Guide has to be fulfilled. Supply shall fulfil requirements of limited energy circuit or Class 2 power.
Tested UL 61010-1:2004 according to: CAN/CSA-C22.2 No. 61010-1:2004
The product was voluntarily tested according to the relevant safety requirements and mentioned properties. It can be marked with the certification mark shown above. The certification mark must not be altered in any way. This product certification system operated by TÜV SÜD America Inc. most closely resembles that described by ISO/IEC Guide 67, Conformity assessment - Fundamentals of product certification, System 3. See also notes overleaf.
Test report no.: 028-71370093-000
Date, 2010-08-18
Page 1 of 1
